Durable/ Functional/ Affordable B/W Ultrasound Scanner for Human (KX5600)

1 / 5

Durable/ Functional/ Affordable B/W Ultrasound Scanner for Human (KX5600)

Customization:	Available
Certification:	CE, ISO13485
Scale:	Large

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.	KX5600
Use	for Human
Application	Abdomen, Gyn, Ob, Urology etc.
Net Weight	4.5kg
Power	Dual Power Supply AC & DC
Battery	Large Capacity Li-Battery
Origin	China
HS Code	9018121000
Dimensions	320300420mm

🔬

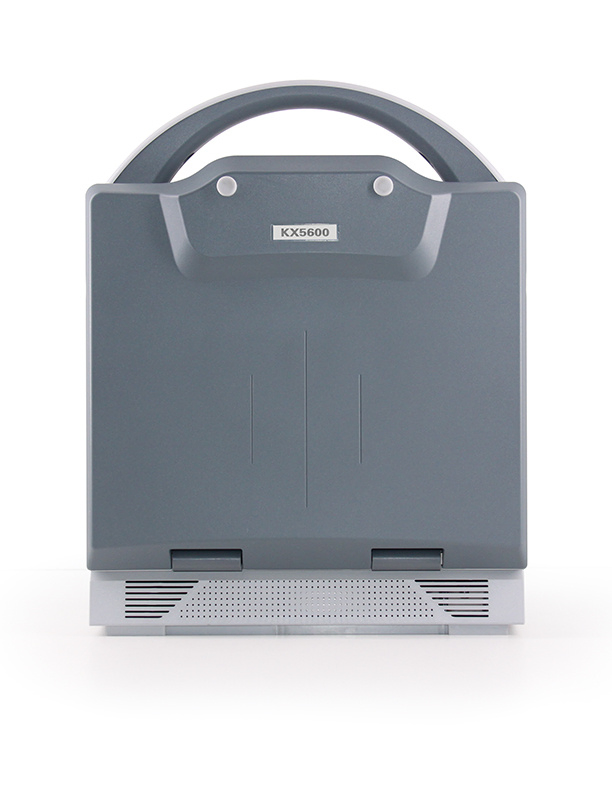

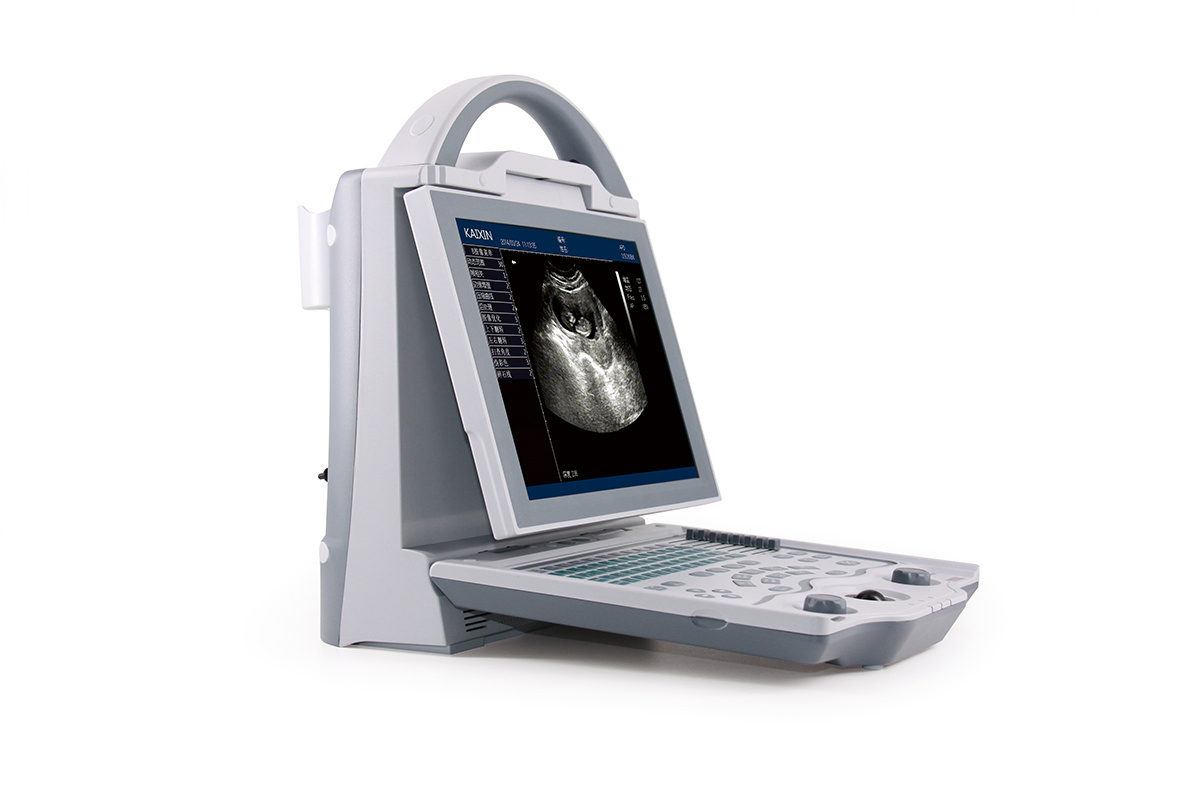

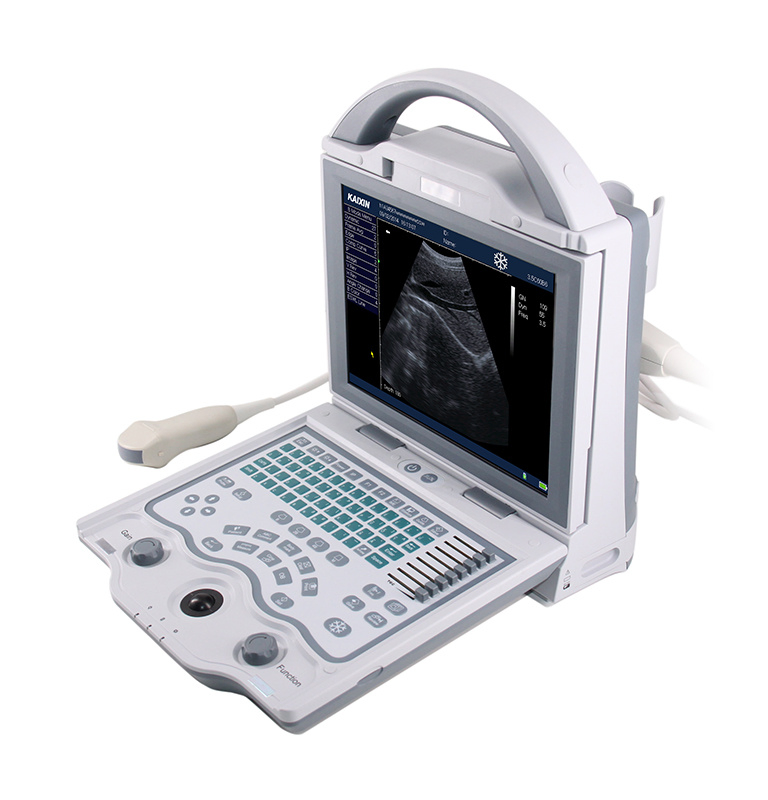

KX5600 Human B/W Ultrasound Scanner

New Portable LED Model

⚙️ Technical Parameters

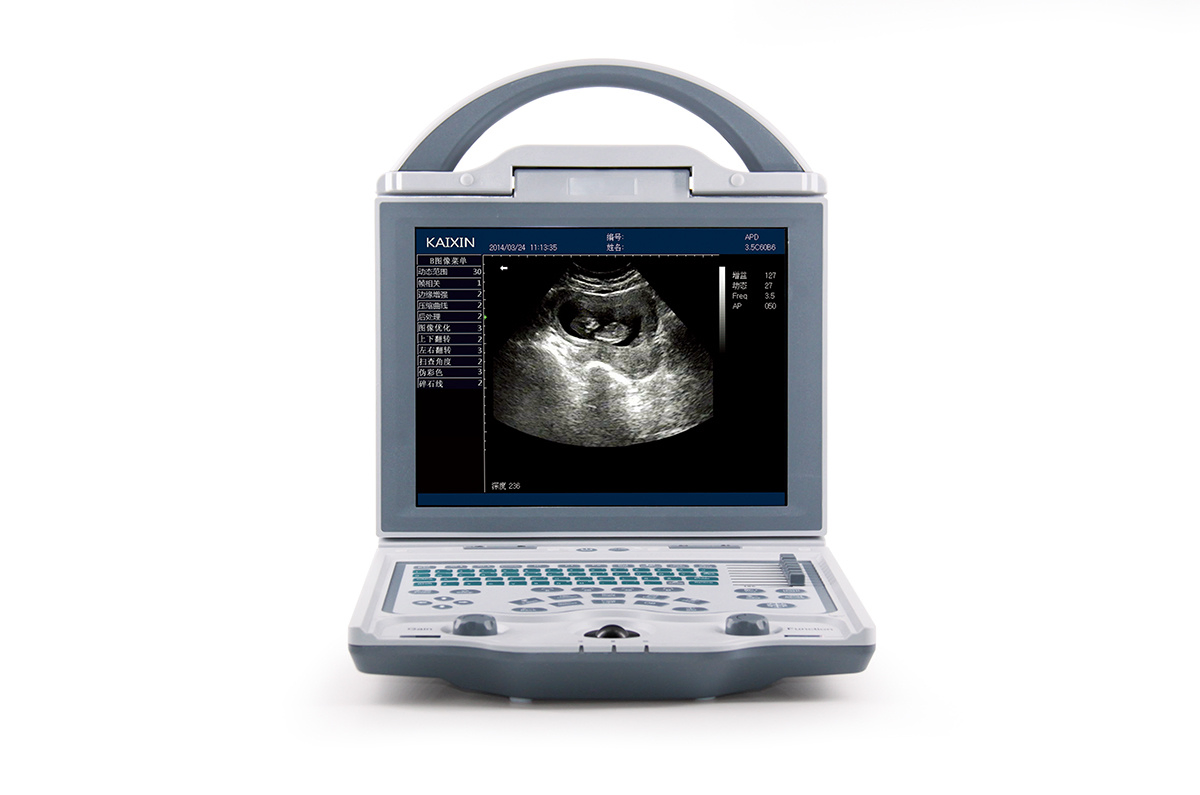

10.4' high resolution color LED backlight display, high contrast and wide viewing angle
Multilingual menu system (English, Spanish, French, Russian, Portuguese)
Two probe sockets with auto-identification
64 kinds of body marks indicating probe position
Display modes: B, 2B, 4B, B/M, M
Adjustable depth: 10 grades, max depth to 236mm
Gray scale: 256; 8 kinds of pseudo colors
4G hard disk storage (approx. 5000 frames) with power-off protection
Comprehensive measurements: Cardio, Gynecology, OB, and Urology
One-key functions: Store, Review, Print, and Net Workstation Transfer
Unique One-key-light keyboard for dark room operation

📦 Configuration

Standard Configuration

Main unit	1pc
3.5MHz convex probe	1pc
Power supply adaptor	1pc
Reticle	1pc
Two probe sockets	Included

Optional Items

6.5MHz trans-vaginal probe

7.5MHz linear probe

7.5MHz cavity probe

Li-battery (4400mAh) & Charger

Trolley & Video printer

❓

Frequently Asked Questions

What are the primary clinical applications for the KX5600?

The KX5600 is designed for human medical use, specifically for Abdomen, Gynecology, Obstetrics, Urology, and Cardiac measurements and analysis.

How portable is this ultrasound machine?

It is highly portable with a net weight of only 4.5kg and features a dual power supply system (AC and DC) with a large capacity Li-battery.

What is the display quality and size?

The device features a 10.4-inch high-resolution color LED backlight display, providing high contrast and a wide viewing angle for clear imaging.

Can I store images directly on the device?

Yes, it comes with a built-in 4G hard disk that can permanently store approximately 5,000 frames of images without loss even when the power is turned off.

Does it support multiple languages?

Yes, the menu operation system is multilingual, including English, Spanish, French, Russian, and Portuguese.

Is it suitable for use in dark clinical environments?

Absolutely. It features a unique "One-key-light" keyboard function specifically designed for convenient operation in black rooms or low-light settings.
