Customization: Available
Certification: CE, ISO13485
Instrument Classification: Class II
Send Inquiry

Product Description

📋 Overview
Model NO.
YJ-V20
Monitor Size
5 Inch
Image Storage
65
Output
USB2.0, Video( Pald, NTSC)
Battery
2600mAh
Cine Loop
400 Frames
Color
Black
Application
Veterinary
🔍 Product Description
Laptop Vet Veterinary Ultrasound Machine Scanner for Sheep, Goat, Cow
Vet Ultrasound Scanner

Introduction:

This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

✨ Key Features:

➠ 5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
➠ Hand-held design, smart and light, easy to carry, convenient for detection.
➠ OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
➠ 65 frames permanent storage, 400 frames cine loop.
➠ Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and workstation.
➠ Lithium battery capacity 2600mA which can make machine work more than 180 minutes.
📷 Detailed Photos

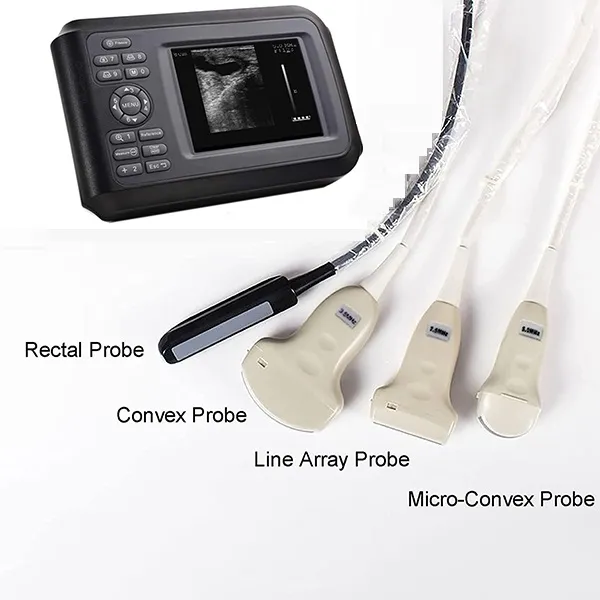

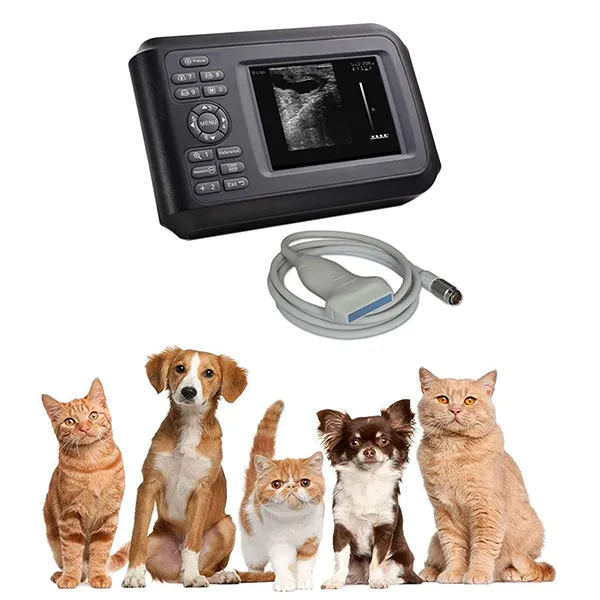

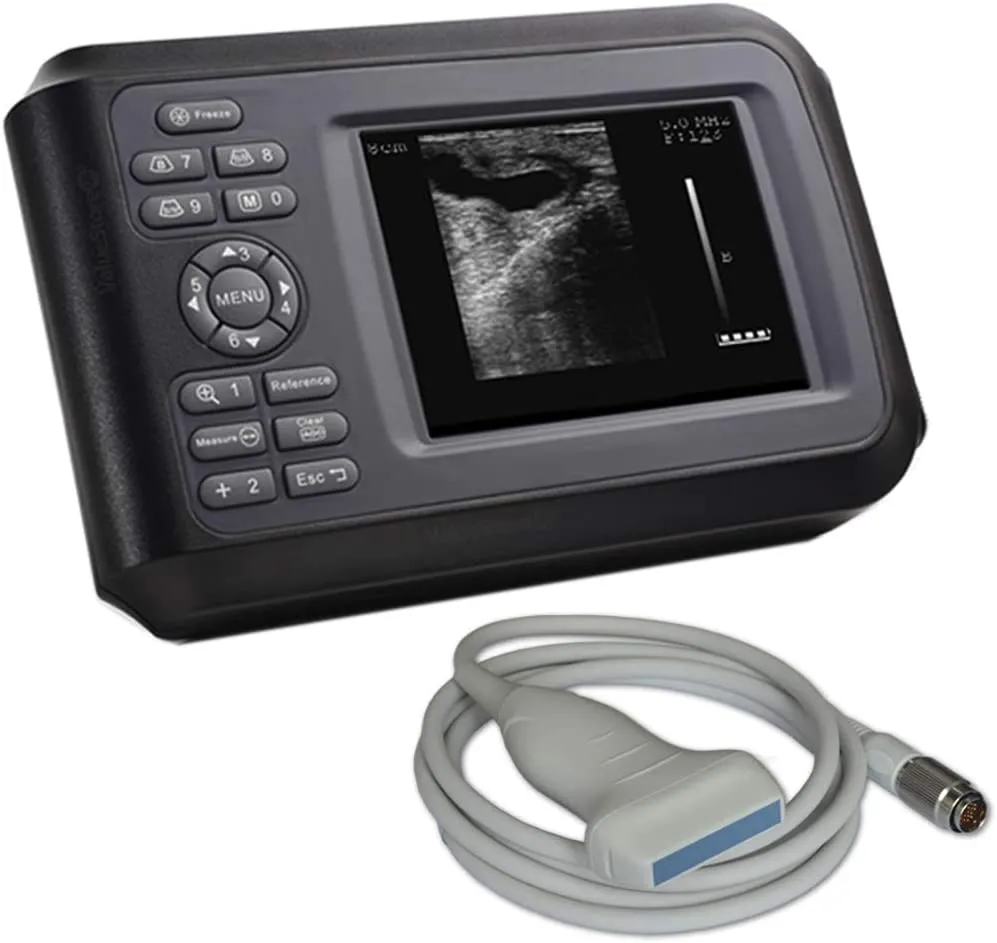

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4
⚙ Technical Specifications
Detect Depth(mm)≥140
Blind zone(mm)≤3
Monitor size5 inch TFT-LCD
Display modeB, B+B, B+M, M, 4B
Image gray scale256
Image storage65
Cine loop≥400 frame
Scan depth120mm-220mm
Image flipup/down, left/right
Focus positionAdjustable
Posture mark15
Image processHistogram, color encode, gama, image smooth
Probe frequencyAdjustable ( 3 point each probe )
Measurementdistance, circumference, heart rate, EDD, area
Notationdate, time, name, sex, age, full screen words edit
OutputUSB2.0, VIDEO( PALD, NTSC)
🏥 Scope of Application
✓ Inspection during the initial transplantation process.
✓ Recognition of pigs, horses and other animals with empty arms.
✓ Measurement of muscle thickness and area of poultry.
✓ Diagnosis of ovarian and other reproductive system diseases.
✓ Diagnosis of pregnancy, fetal development, vitality and gender identification.
✓ Examination of various animal body surface tumors, abscesses and hematomas.
✓ Determination of back fat thickness of cattle, sheep, horses, pigs, and camels.
✓ Metabolic diagnosis of liver, gallbladder, spleen, kidney, bladder, and uterus.
📊 Product Visuals
Visual 1 Visual 2
Visual 3 Visual 4 Visual 5
Frequently Asked Questions
❓ Which animals can this ultrasound scanner be used for?
This scanner is versatile and suitable for bovine, equine, swine, alpaca, ovine, goat, canine, feline, and rabbit. It also supports pregnancy diagnosis for reptiles and fish.
❓ How long does the battery last on a single charge?
The device is equipped with a 2600mAh lithium battery that provides over 180 minutes of continuous working time.
❓ What are the available display modes?
The machine supports multiple display modes including B, B+B, B+M, M, and 4B for comprehensive diagnostic needs.
❓ Can I store images directly on the device?
Yes, it features permanent storage for up to 65 frames and a cine loop capacity of ≥400 frames.
❓ What kind of measurements can the software perform?
The system can measure distance, circumference, area, heart rate, and Estimated Date of Delivery (EDD) for various species.
❓ Does it support external connections for reporting?
Yes, it has USB 2.0 and Video (PAL-D, NTSC) outputs, allowing you to connect to video recorders or workstations for easy printing and reporting.
