Kx5600g Vet Ultrasound Scanner Pregnancy Checking Large 7 Inch Monitor

Customization:	Available
Certification:	ISO13485
Type:	Veterinary Ultrasound Scanner

Send Inquiry

Product Description

Basic Specifications

Model NO.

KX5600G

Type

Veterinary Ultrasound Scanner

Application

Cow, Horse, Goat, Swine, Sheep

Design

Palm Ring Design, Smart and Light

Function

Pregnancy Check, Follicular Aspiration

Battery

Internal Li-Battery (6+ Hours)

Weight

N.W: 1.1KG

HS Code

9018121000

KX5600G Product Overview

The KX5600G is a professional veterinary ultrasound scanner widely used for abdominal diagnosis and pregnancy checks. It is specifically optimized for large animals including bovine, equine, ovine, canine, feline, goat, swine, and llama.

Key Features

Ultra-lightweight 1.1kg smart design.
High-capacity lithium battery for 6+ hours of operation.

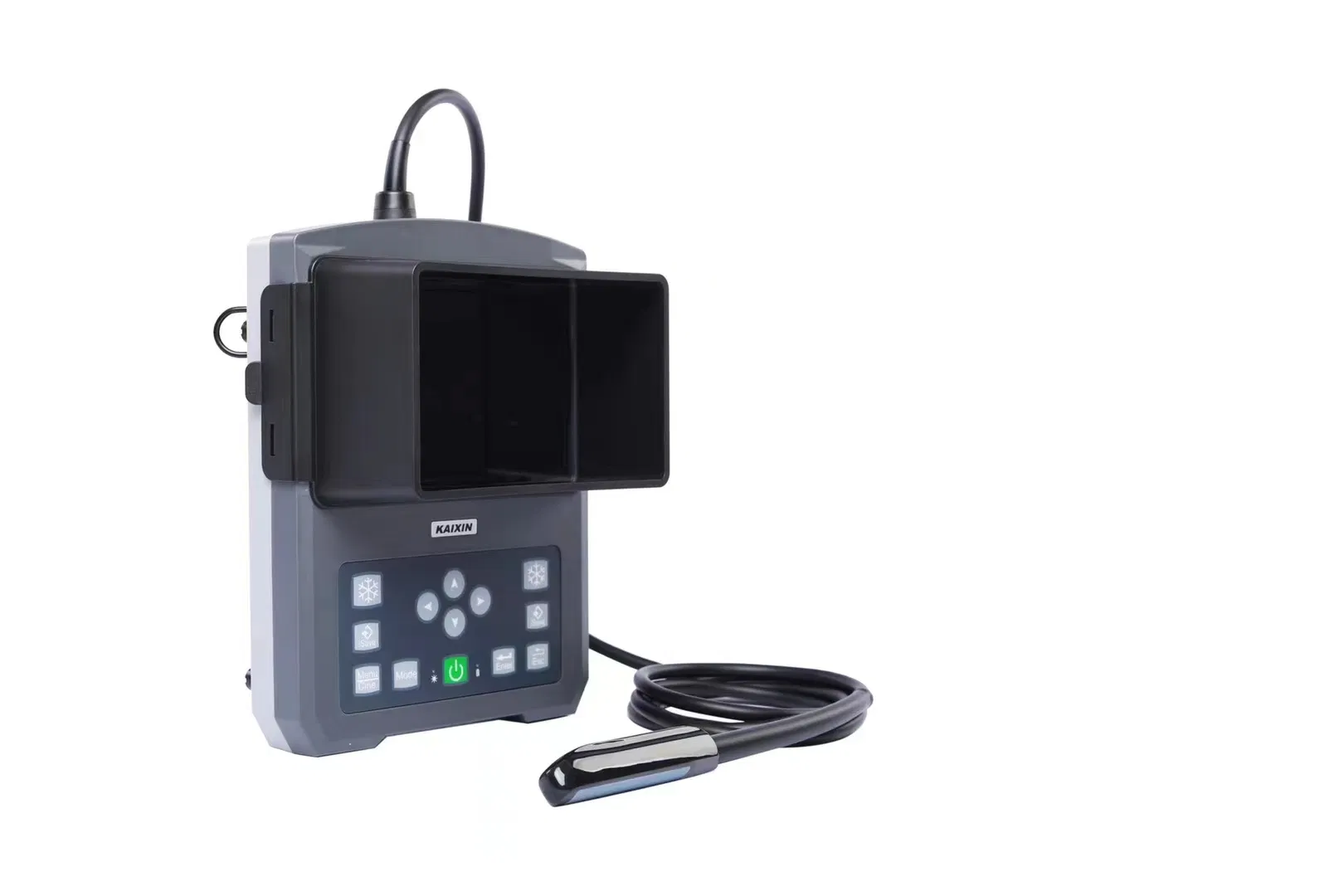

Adjustable sunshine cover for outdoor visibility.
Left/Right hand alternative use to reduce fatigue.
Versatile carrying: hand-held, chest, back, or waist hanging.
Optional professional ultrasound goggles.
Splash-proof and dust-proof soft rubber coating.
Automatic Back-fat and Lean percentage calculation for swine.

Technical Specifications

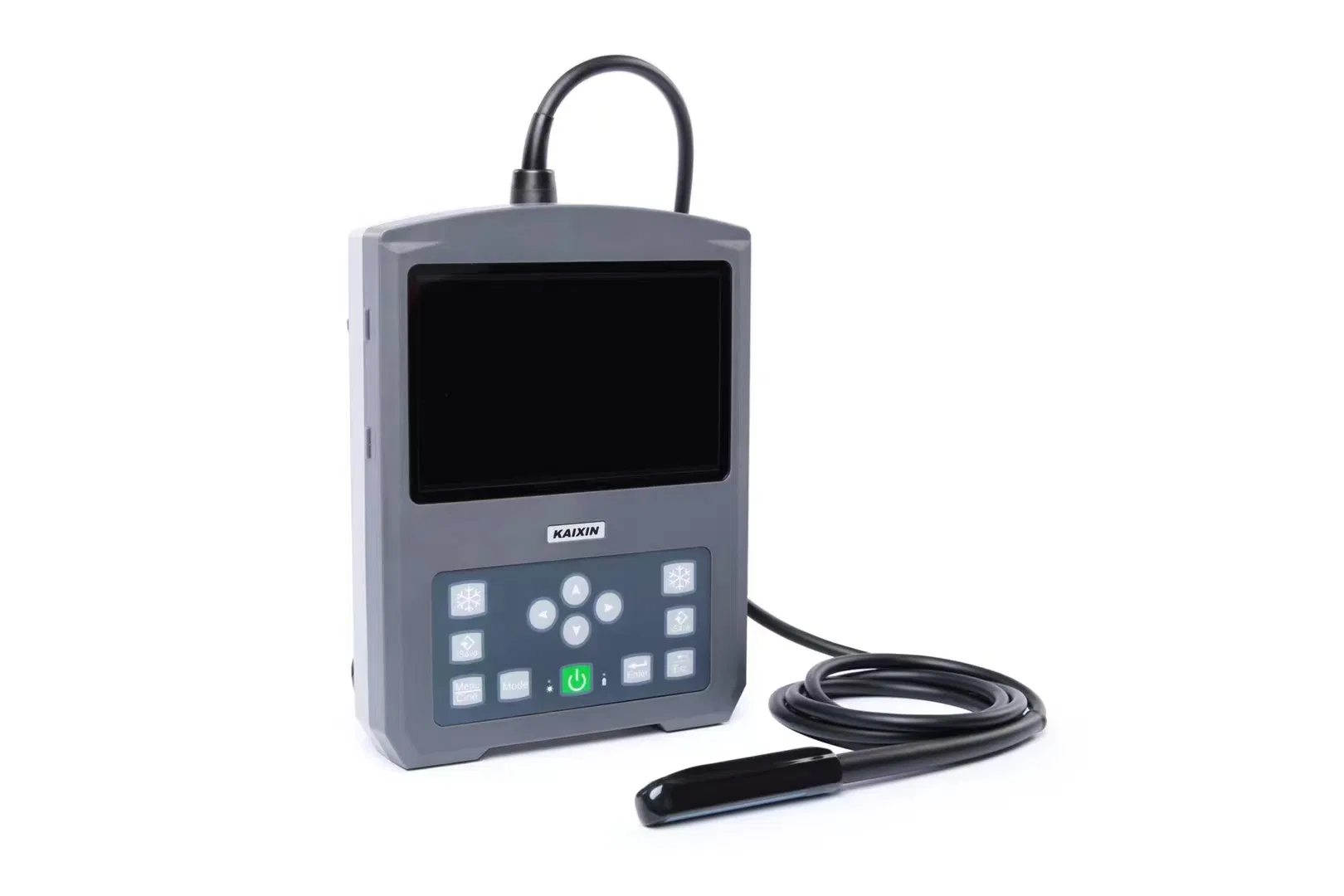

Monitor	7" high resolution LED, high brightness/contrast, wide viewing angle
Display Mode	B, 2B, 4B, B/M, M
Gain / Contrast	Gain: 0~127dB \| Contrast: 27~90dB
Magnification	0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0
Storage	100 frames permanent storage, 256 frames cine loop
Measurements	Distance, circumference, area, volume, heart rate, cycle
OB Measurement	Cattle, dogs, horses, pig, cats, goats, camels, sheep
Grid Measurement	6 types (point grid, line grid, 10mm/2mm rulers, etc.)

Configuration

Standard Items

Main unit (1 pc)
6.5MHz linear rectal probe (1 pc)
Power adapter & Internal Li-battery
Sunshine cover (3 sections adjustable)
Black plastic suitcase
Base Charger, belt, probe socket spatula

Optional Probes

4.0Mhz convex rectal Probe
6.5MHz micro-convex probe
3.5MHz convex probe
7.5MHz linear probe
3.5MHz Backfat probe
High-capacity Battery (5500mAH)

Frequently Asked Questions

Q: Which animals is the KX5600G suitable for? A: It is designed for a wide range of animals, specifically bovine (cattle), equine (horses), ovine (sheep), canine, feline, goats, swine, and llamas.

Q: How long can the device operate on a single charge? A: The high-capacity internal lithium battery provides more than 6 hours of continuous working time, making it ideal for field use.

Q: Is the screen visible in bright outdoor conditions? A: Yes, the unit features a 7" high-resolution LED display with high brightness and contrast, and it includes a dedicated sunshine cover for outdoor use.

Q: What is the weight of the scanner? A: The main unit is extremely portable, weighing only 1.1kg, which helps eliminate operator fatigue during long diagnostic sessions.

Q: Does it support specialized measurements for swine? A: Yes, the KX5600G includes a specialized function to automatically calculate Back-fat and Lean percentage for swine.

Q: What are the available carrying methods? A: The device supports multiple ergonomic carrying methods, including hand-held, chest hanging, back hanging, and waist hanging.
