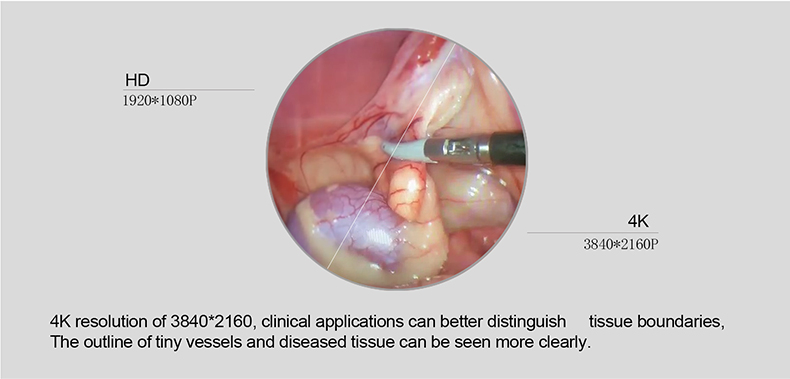

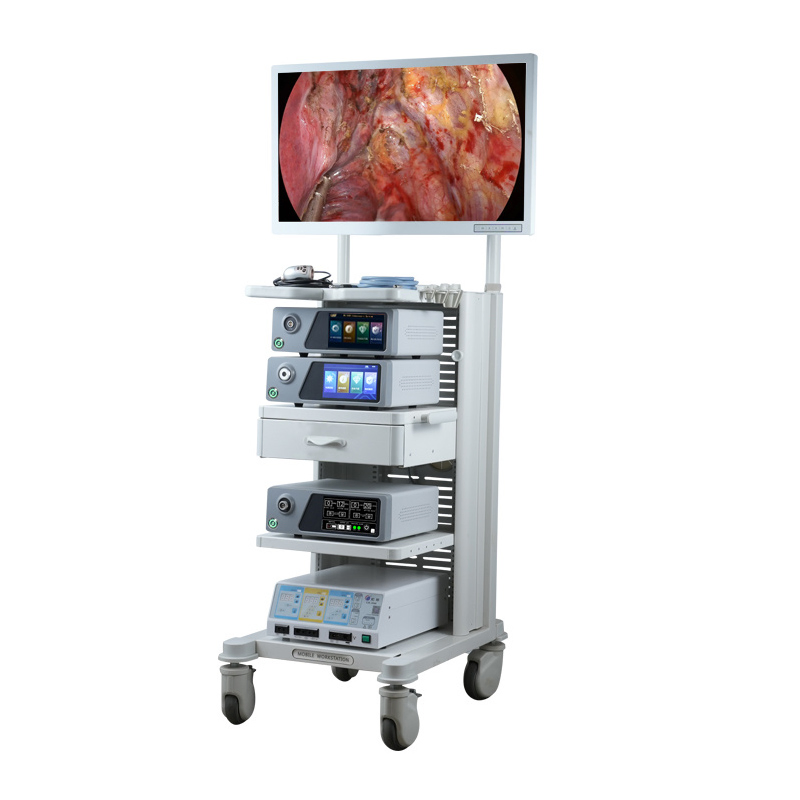

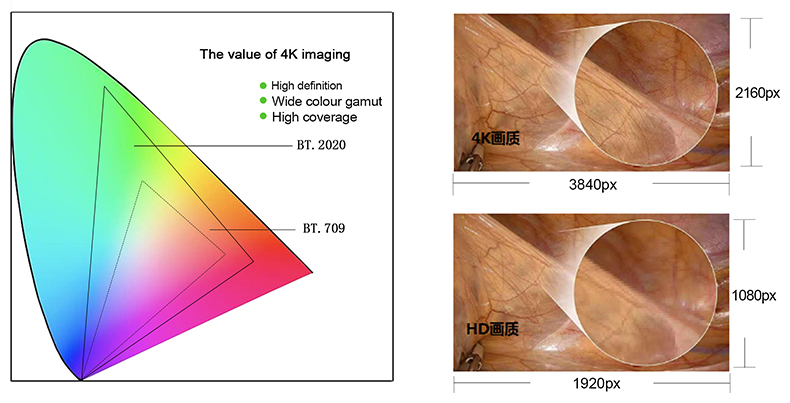

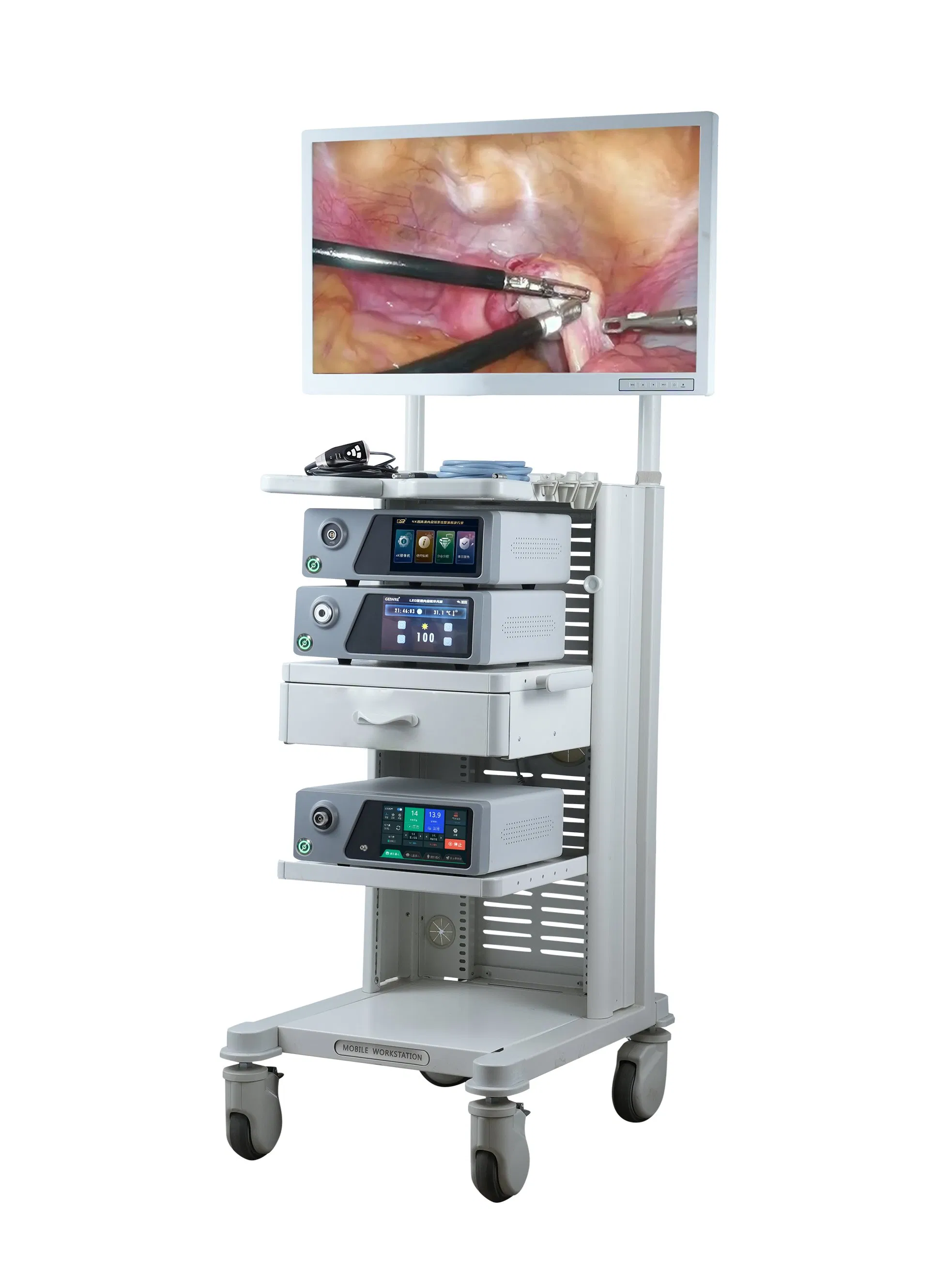

The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during the surgical procedure.

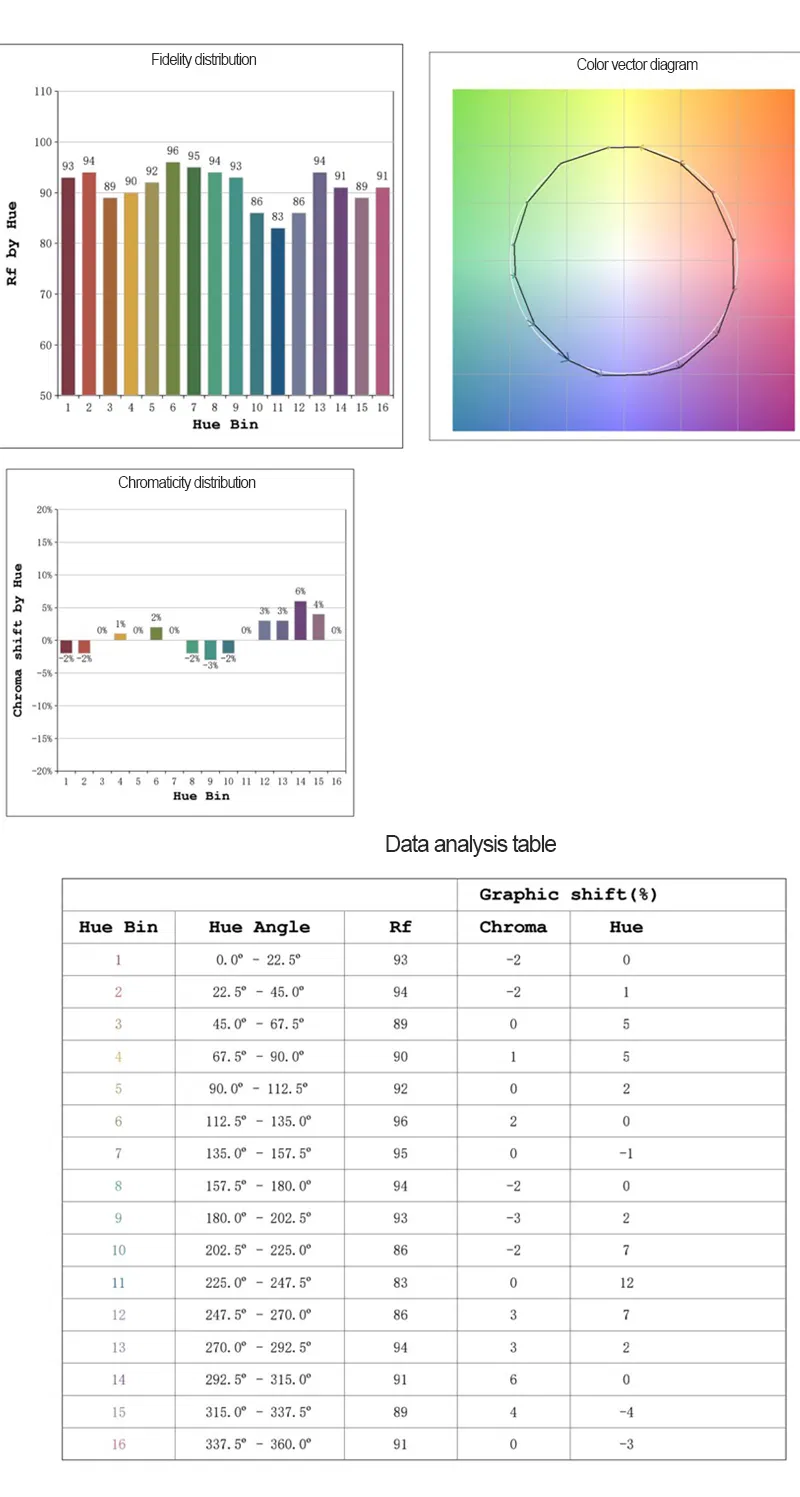

4K fluorescence laparoscopy systems utilize advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables surgeons to observe patterns, structures, and abnormalities in high precision.
The addition of fluorescence technology allows the use of contrast agents, such as indocyanine green (ICG), to highlight specific tissues. Under near-infrared light, it emits a fluorescent signal, enabling surgeons to clearly identify lymphatic vessels, blood vessels, and tumors.
4K fluorescence laparoscopy provides real-time imaging and visualization, allowing surgeons to observe the surgical field in high definition during the procedure for more accurate decisions.
Applications include gastrointestinal surgery, urology, gynecology, and hepatobiliary surgeries. It assists in surgeries involving the liver, pancreas, bile ducts, and lymphatic system.
Systems offer multiple modes: high-definition white light, black and white fluorescence, and green fluorescence imaging, providing valuable information about tissue perfusion and drainage.

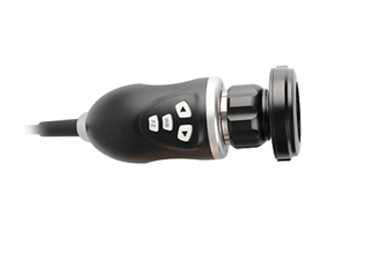

| Component | 9,000,000 pixels 4*1/2.8'' CMOS |
|---|---|
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal illumination | 0.5Lux |
| Video output | HDMI2.0/3G-SDI, DVI, USB3.0 |
| Shutter speed | 1/60~1/60000(NTSC), 1/50~50000(PAL) |
| Power supply | AC220/110V+-10% |
| Language | Chinese, English, Russian, Japanese, Spanish |
| Screen size | 32 " / 55 " |
|---|---|
| Input interface | VGA, SDI, S-VIDEO, YPbPr, RGB, DVI, VIDEO, YC |
| Resolution | 3840*2160 |
| Ratio | 16:9 |
| Display color | 1.07B |

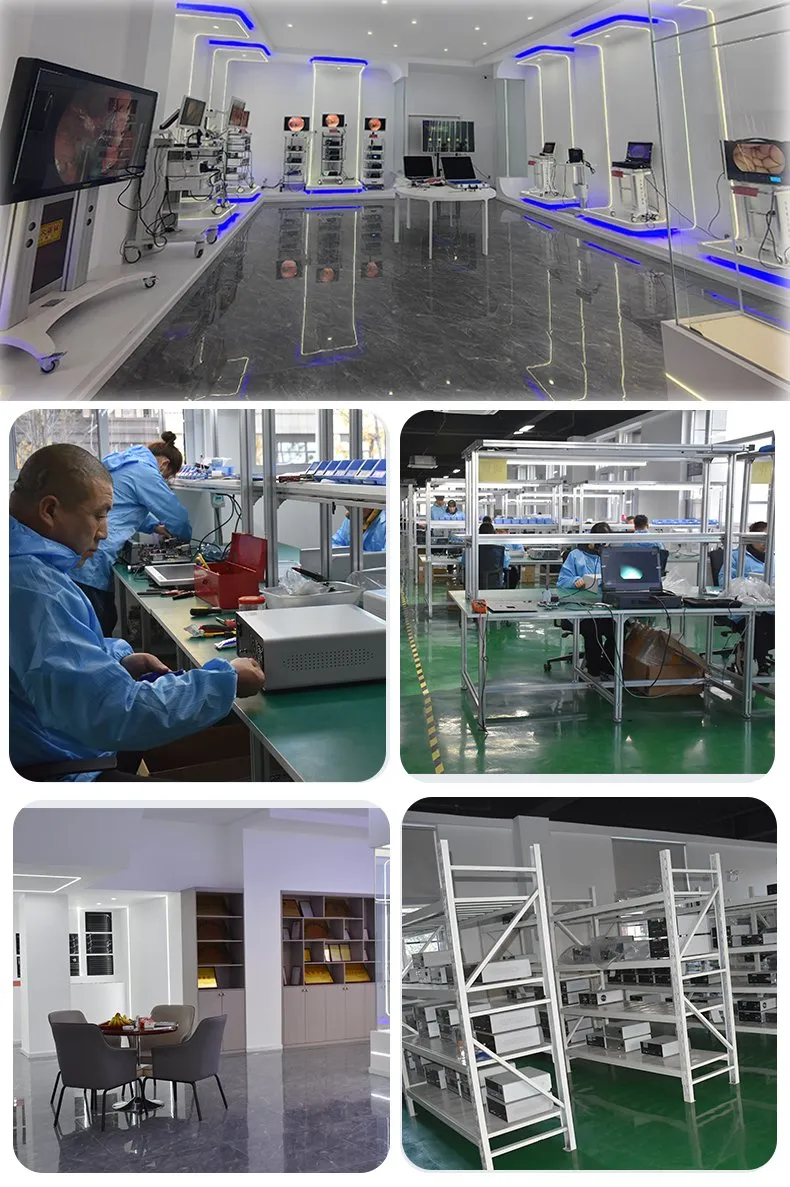

We are a comprehensive joint-stock company engaged in the production, management, development, and sales of medical devices. With the enterprise spirit of "honesty, development, innovation and development", the company strives to provide high-performance, high-tech, and high-quality products for modern clinical applications.
Main Products: Endoscope Image Processing Systems, High Definition Endoscope Cameras, LED Cold Light Sources, Medical Monitors, Pneumoperitoneum Machines, Perfusion Pumps, Power Systems, and various laparoscopic instruments including hysteroscopy, choledochoscope, and cystoscope systems.
Packaging Details: Wooden or carton package. Port: Shanghai.
