📋 Basic Information
Sterilization
Ethylene Oxide (EO)
Guarantee Period
Five Years
Mean Flow Rate
2/4/6/8 Ml/Hr
Production Capacity
500,000 pieces/Year
💡 Product Description
Usage: It is used for continuous infusion during clinical ease-pain treatment, to relieve or lenitive pain.
| Type |
Product Code |
Max Capacity (ml) |
Flow Rate (ml/h) |
Bolus (ml/time) |
Time Lock-out (min) |
| Without Bolus |
CBI-M60 / CBI-M100 |
60 / 100 |
2.0/3.0/4.0/5.0 |
/ |
/ |
| CBI-M150 / CBI-M200 / CBI-M275 |
150 / 200 / 275 |
2.0/3.0/4.0/5.0 |
/ |
/ |
| With Bolus |
CBI+PCA-M60 / CBI+PCA-M100 |
60 / 100 |
2.0/3.0/4.0/5.0 |
0.5 |
15 |
| CBI+PCA-M150 / CBI+PCA-M200 / CBI+PCA-M275 |
150 / 200 / 275 |
2.0/3.0/4.0/5.0 |
0.5 |
15 |
| Multirate |
CBI+PCA-MR Series |
60 - 275 |
2-4-6-8 |
0.5 |
15 |
📂 Product Classifications

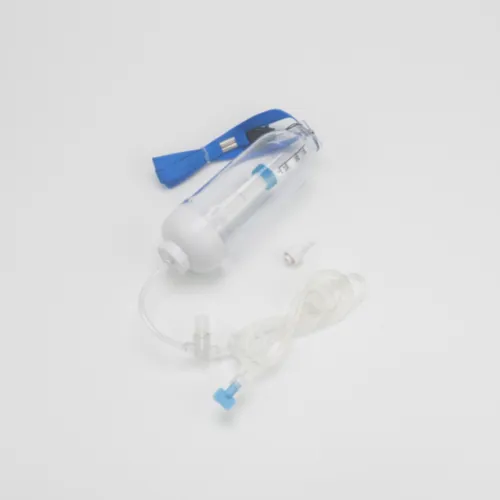

CBI Type, Without Bolus
SINGLE SPEED Pump with constant infusion rate
- Volume: 60ml, 100ml, 200ml, 275ml
- Flow Rate: 2ml/h, 3ml/h, 4ml/h, 5ml/h...
- Application: Fixed administration of painkillers and chemotherapy drugs.

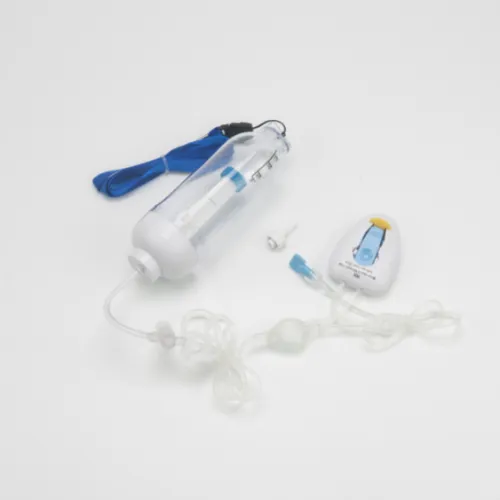

CBI+PCA Type, With Bolus
SINGLE SPEED Pump with Patient-Controlled Analgesia
- PCA: 0.5ml/15min (Volume: 0.5ml, Lock-time: 15 min)
- Volume: 60ml, 100ml, 200ml, 275ml
- Flow Rate: 2ml/h, 3ml/h, 4ml/h, 5ml/h...

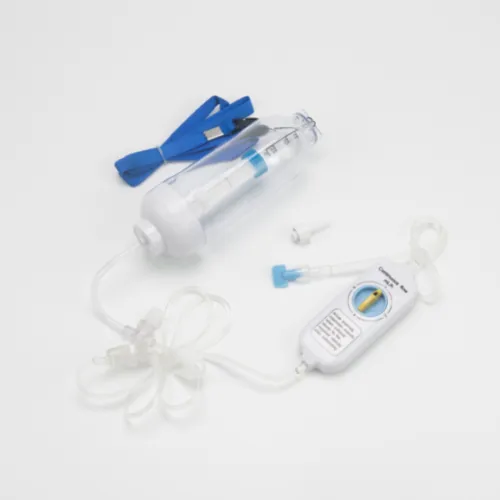

Multirate Type, Without Bolus
Four-speeds Pump with Multirate Controller
- Volume Options: 60ml, 100ml, 200ml, 275ml
- Selectable Speeds: 1/2/3/4; 2/4/6/8; 4/6/8/10; 6/8/10/12 ml/h.

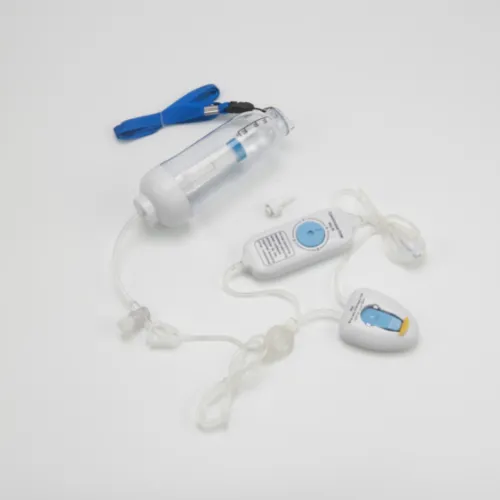

Multirate Type, With Bolus
Four-speeds Pump with PCA & Multirate Controller
- PCA: 0.5ml/15min
- Four Speeds selection from 0-14 ml/h.

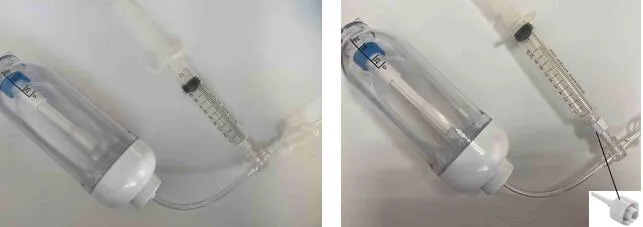

📖 Using Instruction
Close the clip, use a syringe to add medicine into reservoir from injection set. Connect the white set with syringe to make medicine return to syringe, then dispense different drug into the reservoir.
🏥 Hospital Departments & Application
Departments: Emergency room, Operating room, Pediatrics, Obstetrics and Gynecology, Hematology, Internal and General operation.
Clinical Application: Widely used for continuous infusion of liquid medicine such as blood pressure control, anticoagulation, hormones, oxytocin, chemotherapy, and continuous analgesics.
⭐ Key Features
- Small, lightweight, and portable design for surgery and chemotherapy.
- Medical level silicone reservoir ensures precise and steady flow.
- Filter screens off air bubbles, germs, and particles to prevent blockage.
- German-made world-class quality glue for smooth finishing.
- Efficient infusion capacity exceeds 95%.
⚠️ Attention:
- Do not exceed 10% of the max volume marked on the reservoir.
- Flow rate evaluated at 23ºC±2ºC using water for injection.
- Adrenalin and CAT (calcium antagonists) are strictly prohibited.
- Product is DEHP-free; not suitable for fat-soluble drugs (e.g., Fat Emulsion).
Available Certificates: CE 0197, ISO 13485, Free Sales Certificate, CFDA Registration.
FAQ
Q1: What is the primary use of this disposable infusion pump?
It is designed for continuous clinical infusion to provide ease-pain treatment, chemotherapy, and painless labor analgesia.
Q2: What is the PCA function mentioned in the specifications?
PCA stands for Patient-Controlled Analgesia, which allows patients to administer a preset bolus (0.5ml) with a 15-minute lock-out time for safety.
Q3: Are there different flow rate options?
Yes, we offer Single Speed types (e.g., 2ml/h, 3ml/h) and Multirate types where you can select between four different speeds (e.g., 2/4/6/8 ml/h).
Q4: Is the device safe from contamination?
Yes, the device includes a high-quality filter that effectively screens out air bubbles, bacteria, and particles to prevent blockage and ensure patient safety.
Q5: What are the capacity limits for filling the pump?
It is critical not to exceed 10% of the maximum marked volume on the reservoir to prevent the device from blowing out.
Q6: Which medical certifications does this product hold?
The product is certified with CE 0197 and ISO 13485, and it is CFDA registered.
