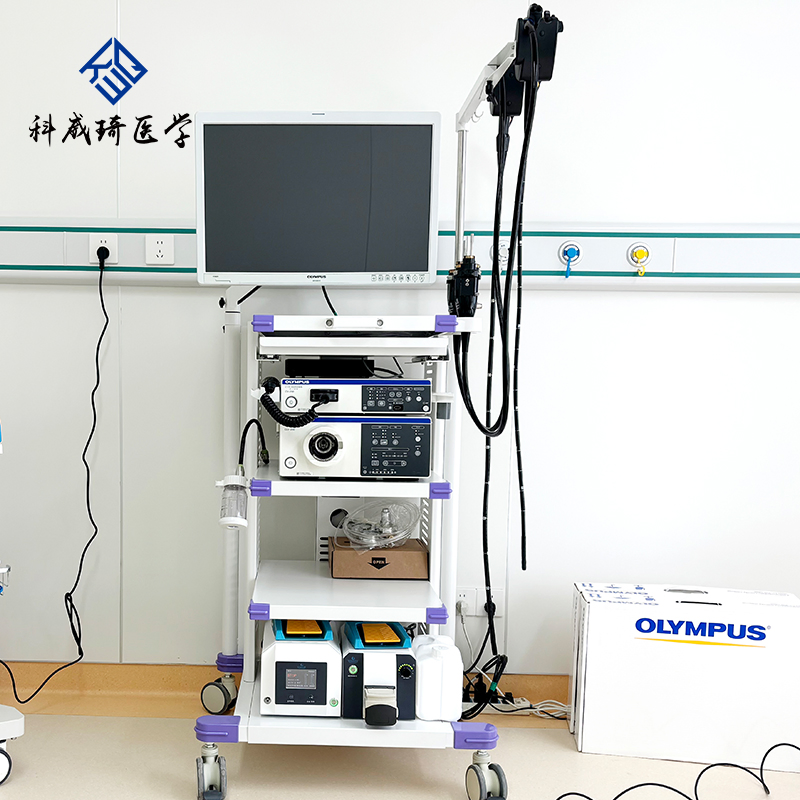

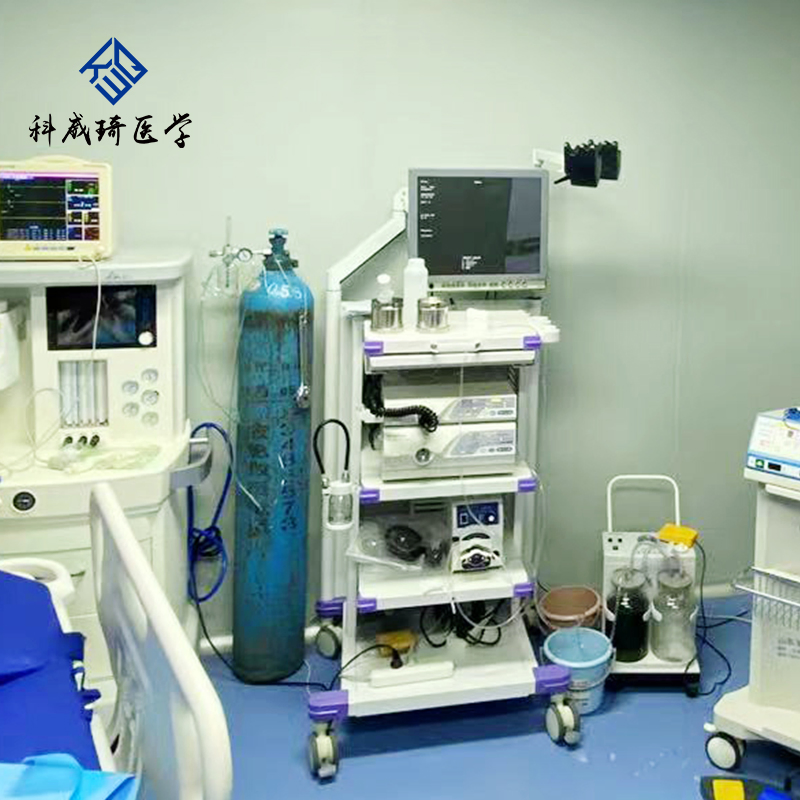

CV-290+CLV-290SL+GIF-HQ290+CF-HQ290I
A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability. This system integrates advanced imaging technology to provide clinicians with superior visualization and control during procedures.

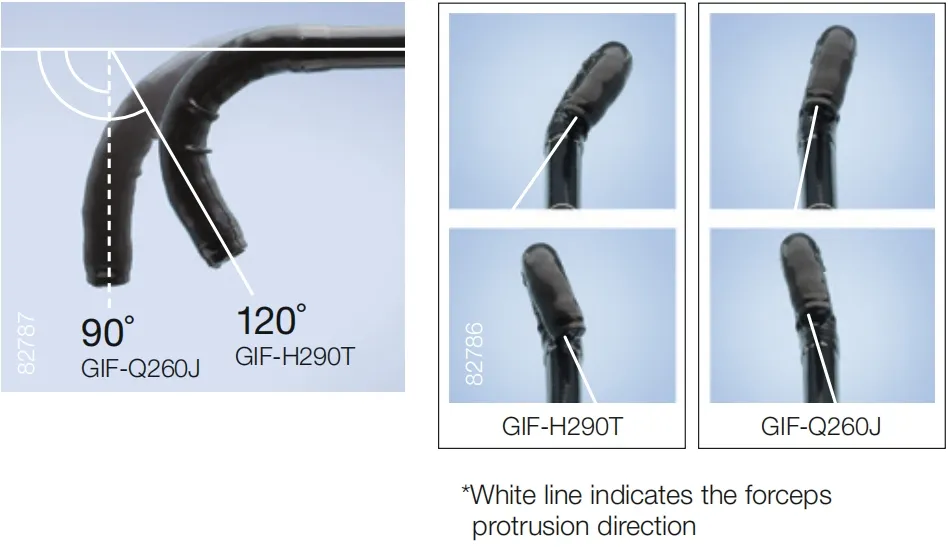

The down angle of the GIF-H290T has been expanded to 120° from the conventional 90°. The extended left and right moveable range during the up angle position offers easier lesion approachability.
Features an improved position of the auxiliary water channel close to the instrument channel. Supplying water near the instrument supports hemostasis without adjustment of scope positioning.
Equipped with a high-definition CCD, high-resolution HD images are provided, leading to significant improvement in treatment accuracy and diagnostic confidence.
| Optical System | Field of view | 140º |
|---|---|---|
| Direction of view | 0° (Forward viewing) | |
| Depth of field | 3-100 mm | |
| Insertion Section | Distal end outer diameter | 9.8 mm |
| Insertion tube outer diameter | 9.9 mm | |
| Working length | 1030 mm | |
| Minimum visible distance | 3 mm | |
| Bending Section | Angulation range | Up 210º / Down 120º / Right 100º / Left 100º |
| Total Length | 1350 mm | |
