Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner

Send Inquiry

Product Description

Basic Information

Model NO.:AU-BV5N

Certification:CE, ISO13485

Display:15 Inch LED Screen

Display Mode:B, B + B, 4b, B + M, M

Language:English/Spanish/Portuguese/Russian/French

Grey Scale:Level 256

Host Size:360mm(L)*355mm(W)*65mm(H)

Origin:China

Product Description

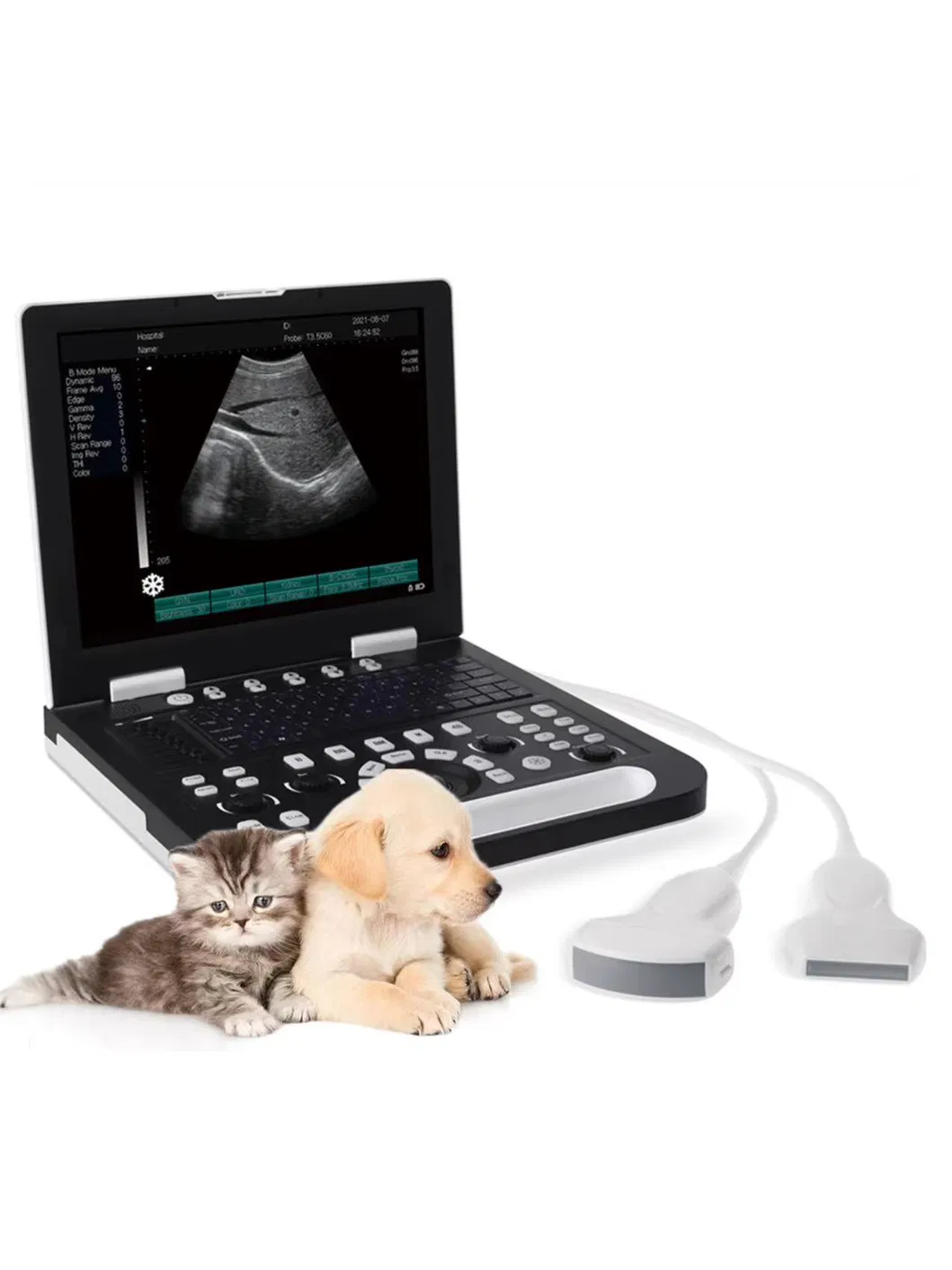

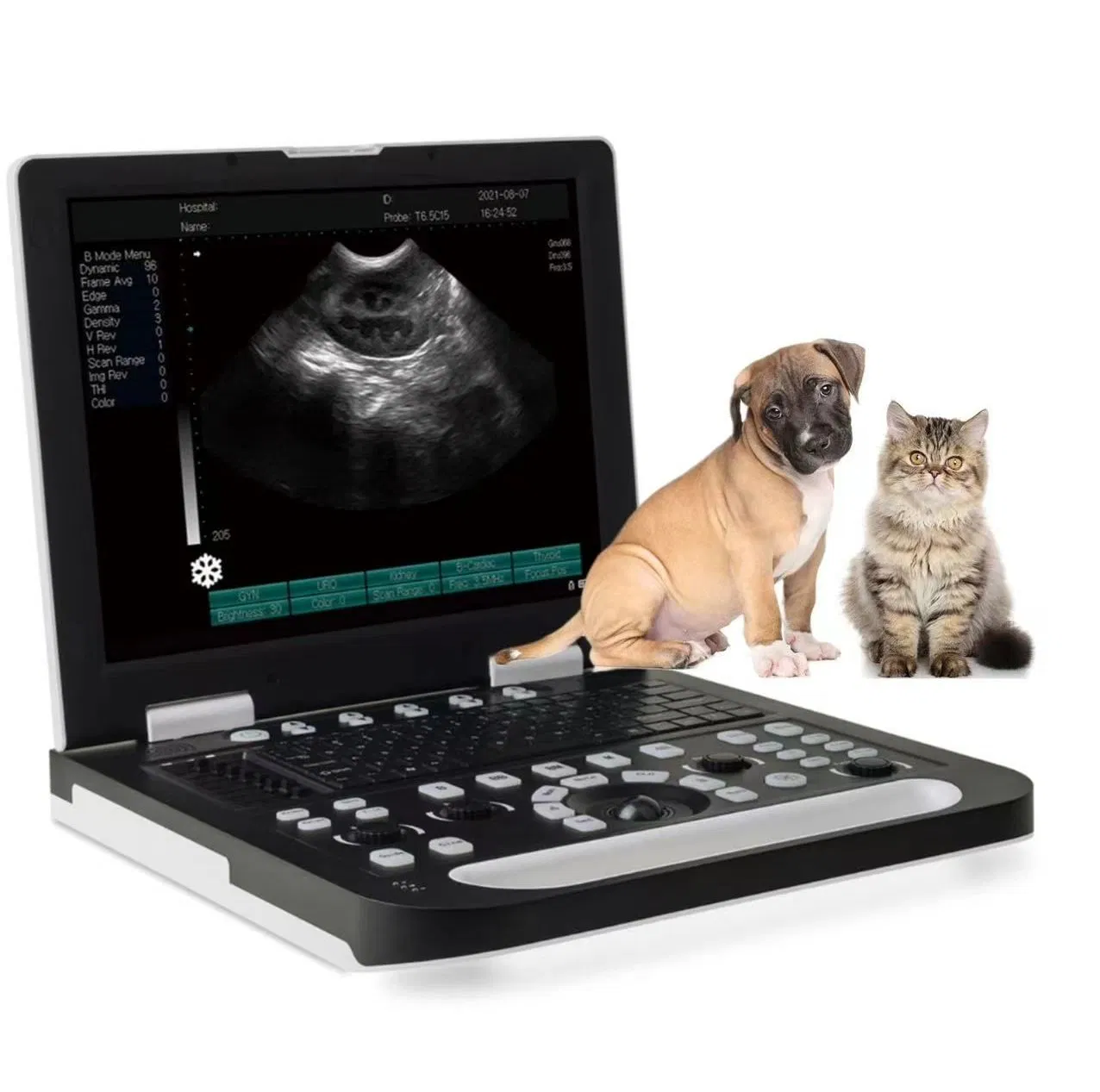

High Quality Portable Veterinary Ultrasound Scanner 15 Inch LED Screen
Model: AU-BV5N

Veterinary Ultrasound Scanner

Key Features

15 inches LCD display zone for large image size, with high quality.
Probe Interface: Dual probe interface, with automatic identification function.
ARM platform, fast computing, HD imaging.
Abundant probe sets, suitable for different parts.
Battery Capacity: Independent battery compartment / removable lithium battery / 6000mAh.
Four encoders, knob design, quick and convenient operation.
Support multi-language switching.
Movie playback: 256 frames, frame by frame playback and pause.
Applicable Objects: Middle and small animals (liver, gallbladder, spleen, kidney, etc.) and large animals (cattle, sheep, horses, pigs).

Technical Specifications

1. Display: 15 inch LED screen

2. Probe Interface: Dual probe interface with auto-identification

3. Battery Capacity: 6000 mAh removable lithium battery

4. Display modes: B, B + B, 4b, B + m, m

5. Control: Four encoders, knob design

6. Interface: Simple and intuitive operation

7. Cine Loop: 256 frames movie playback

8. Language: Chinese/English/Spanish/Portuguese/Russian/French

9. Focusing: Four stage electron focusing

10. Body Markers: More than 18 markers

11. Frequency: Five-stage frequency conversion for all probes

12. Image Processing: Mirror (U/D, L/R), black and white flip

13. Measurement: Professional software measurement package

14. Character Display: Full-screen character editing (Date, Name, Gender, etc.)

15. Gain range: 0-135db

16. Connectivity: Video, 2x USB, DICOM, VGA, Power interface

17. Storage: 16G built-in storage, supports external USB

18. Grey scale: 256 levels

19. Puncture Guidance: Adjustable puncture line position

20. Max Display Depth: 300mm

21. Geometric Accuracy: Transverse ≤5%, Longitudinal ≤5%

22. Resolution: Lateral ≤2mm, Axial ≤1mm

Detailed Photos

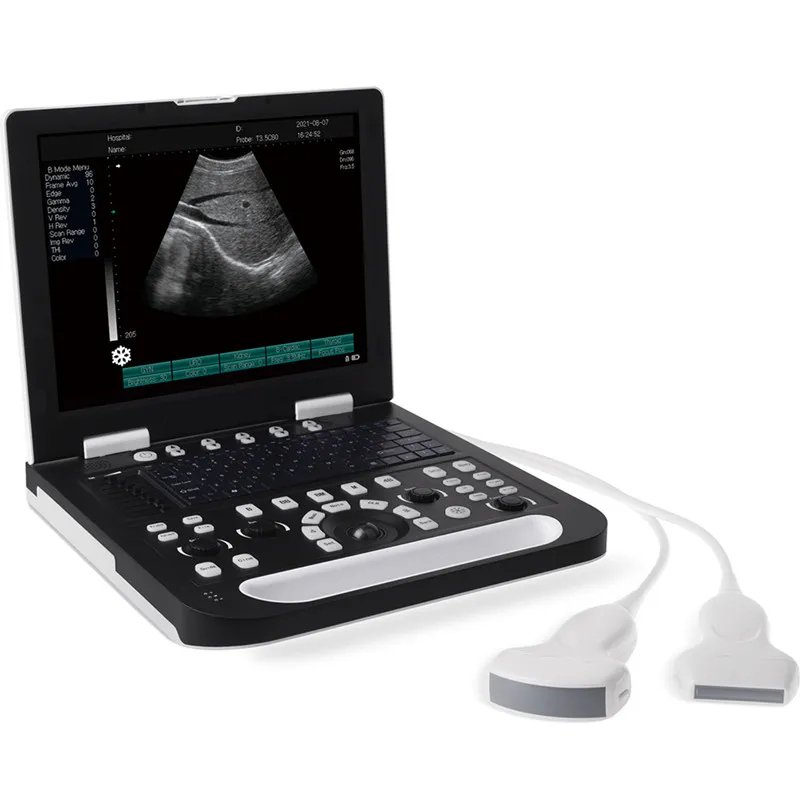

Ultrasound Detail 1

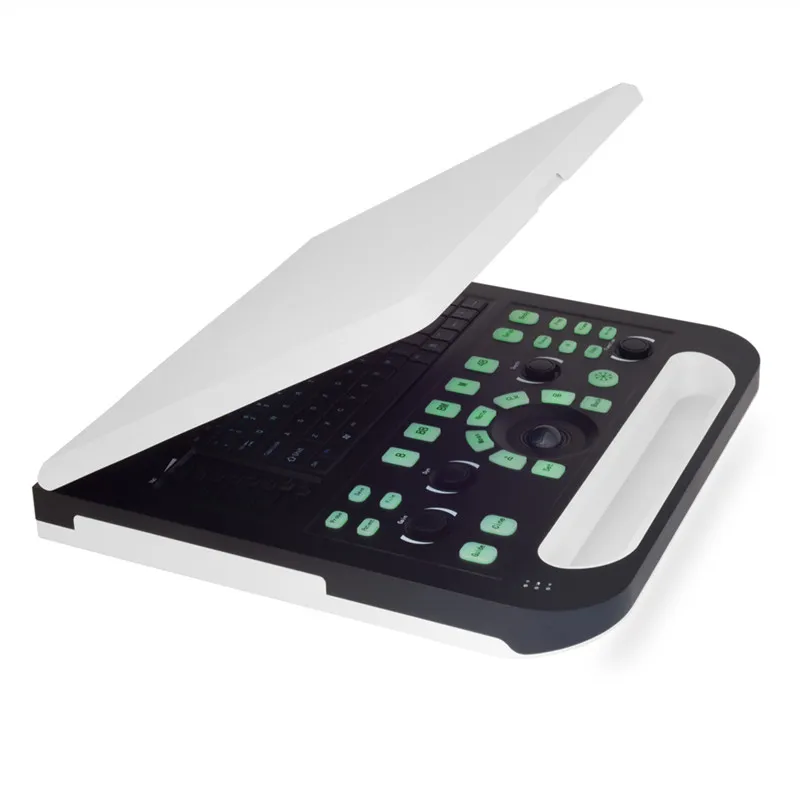

Ultrasound Detail 2

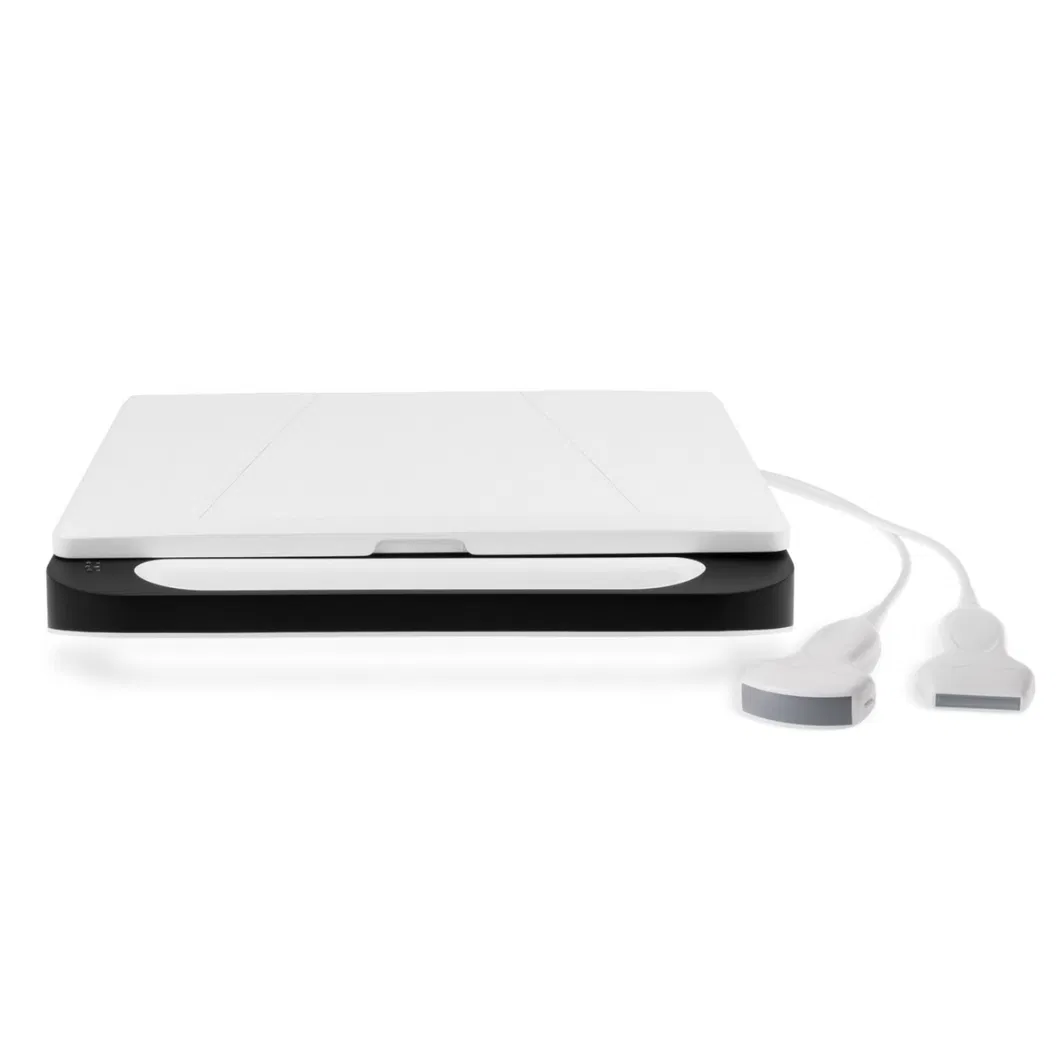

Ultrasound Detail 3

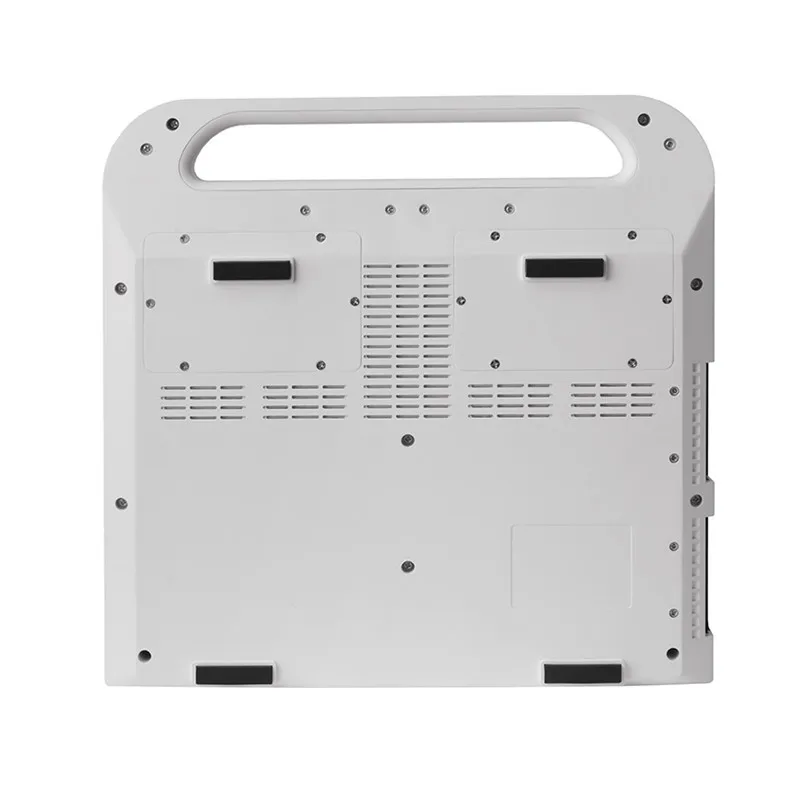

Ultrasound Detail 4

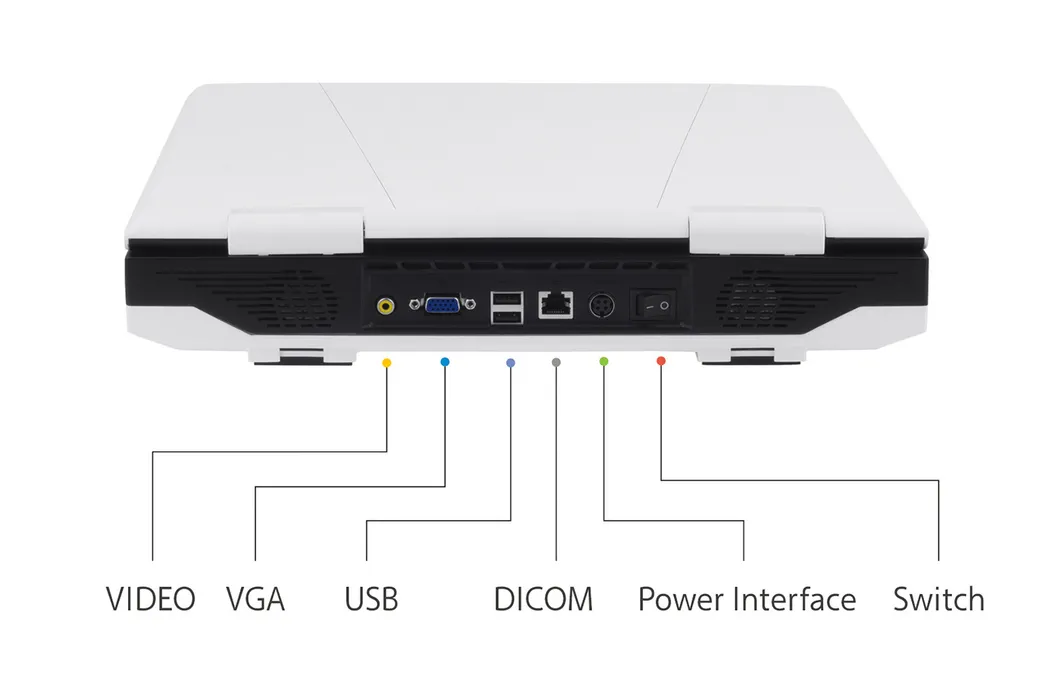

Ultrasound Detail 5

Scanning Samples

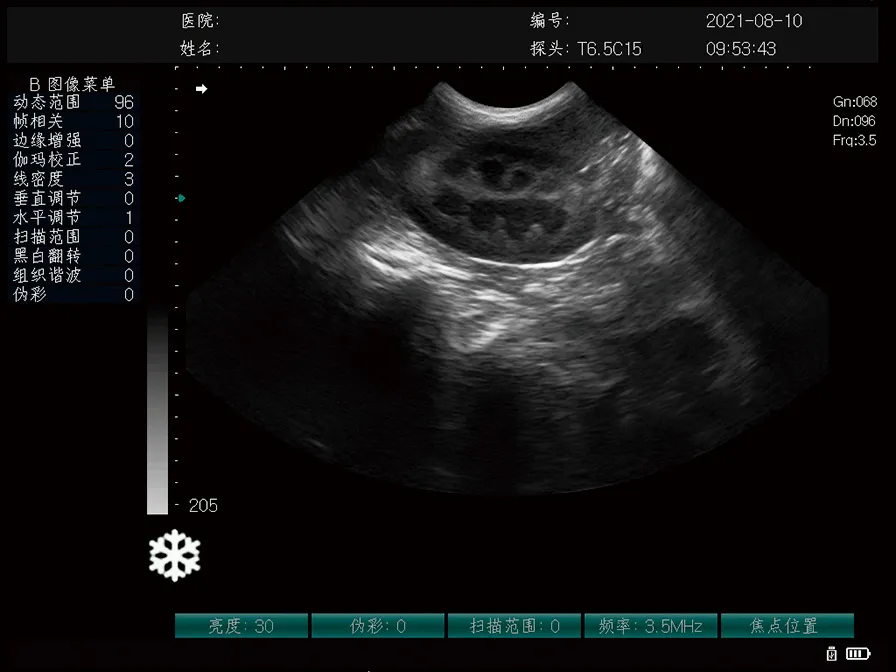

Scan Image 1

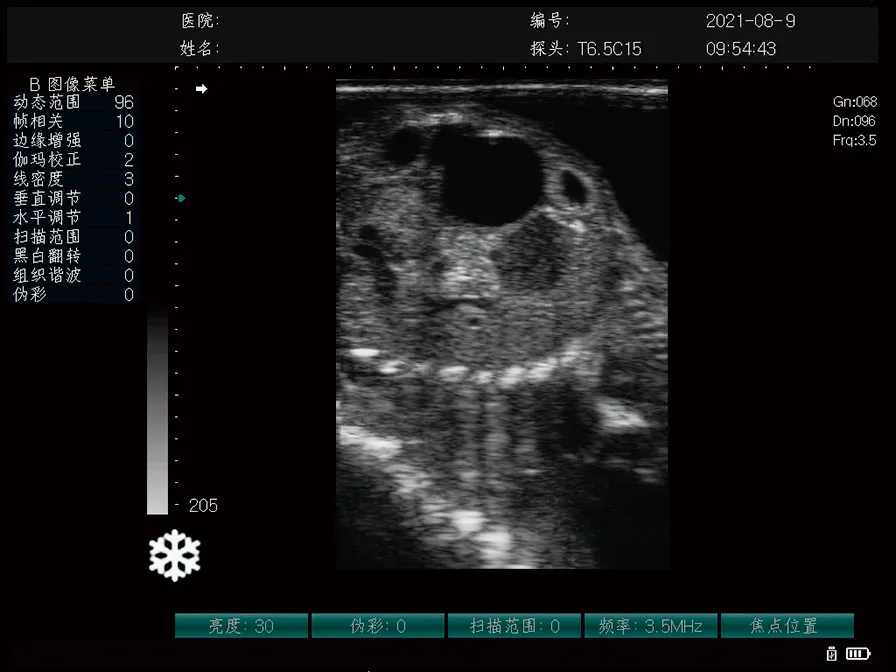

Scan Image 2

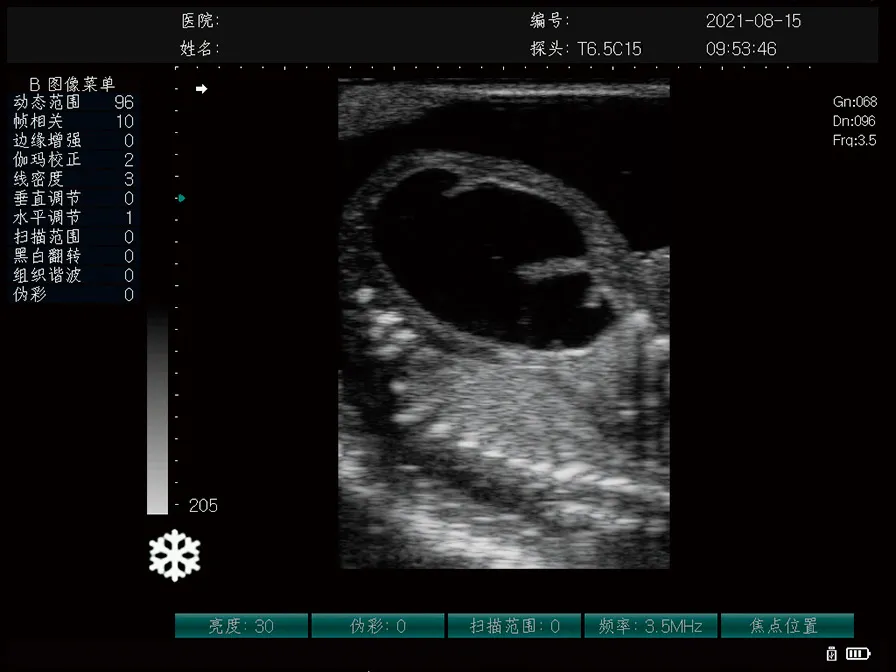

Scan Image 3

Related Veterinary Products

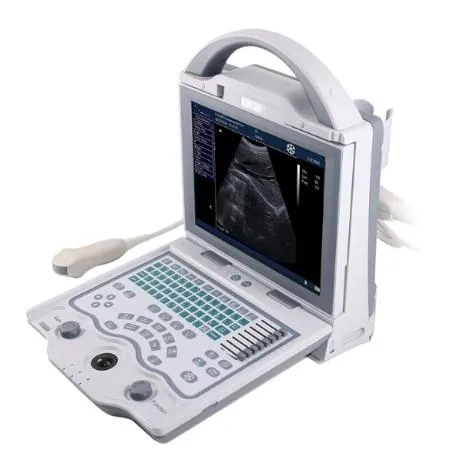

Portable 10.4 Inch Color Doppler

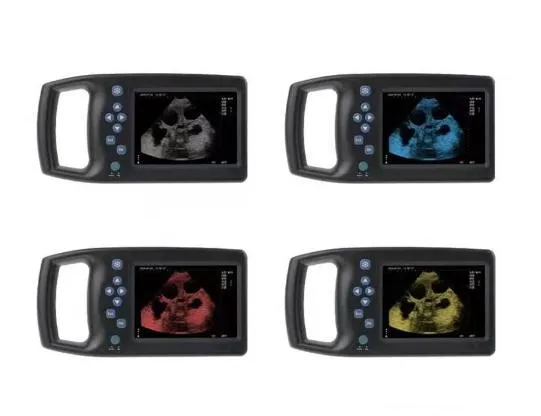

Handheld Scanner

Handheld Ultrasonic Diagnostic System

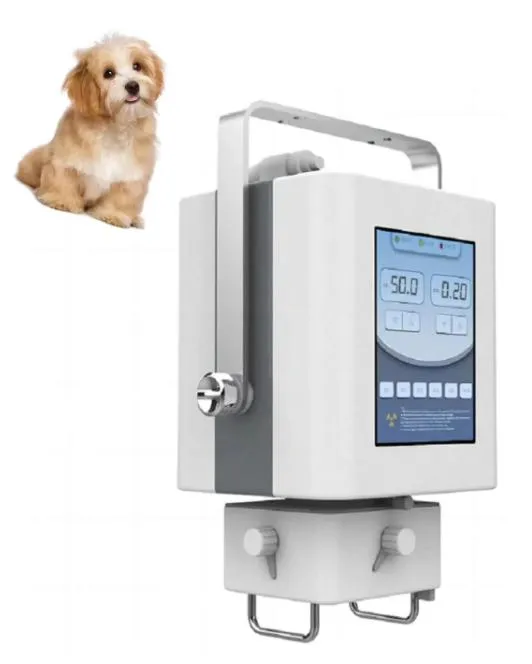

X-ray Generator

Portable 5kw High Frequency X-ray

Manufacturing & Quality Control

Process 1

Process 2

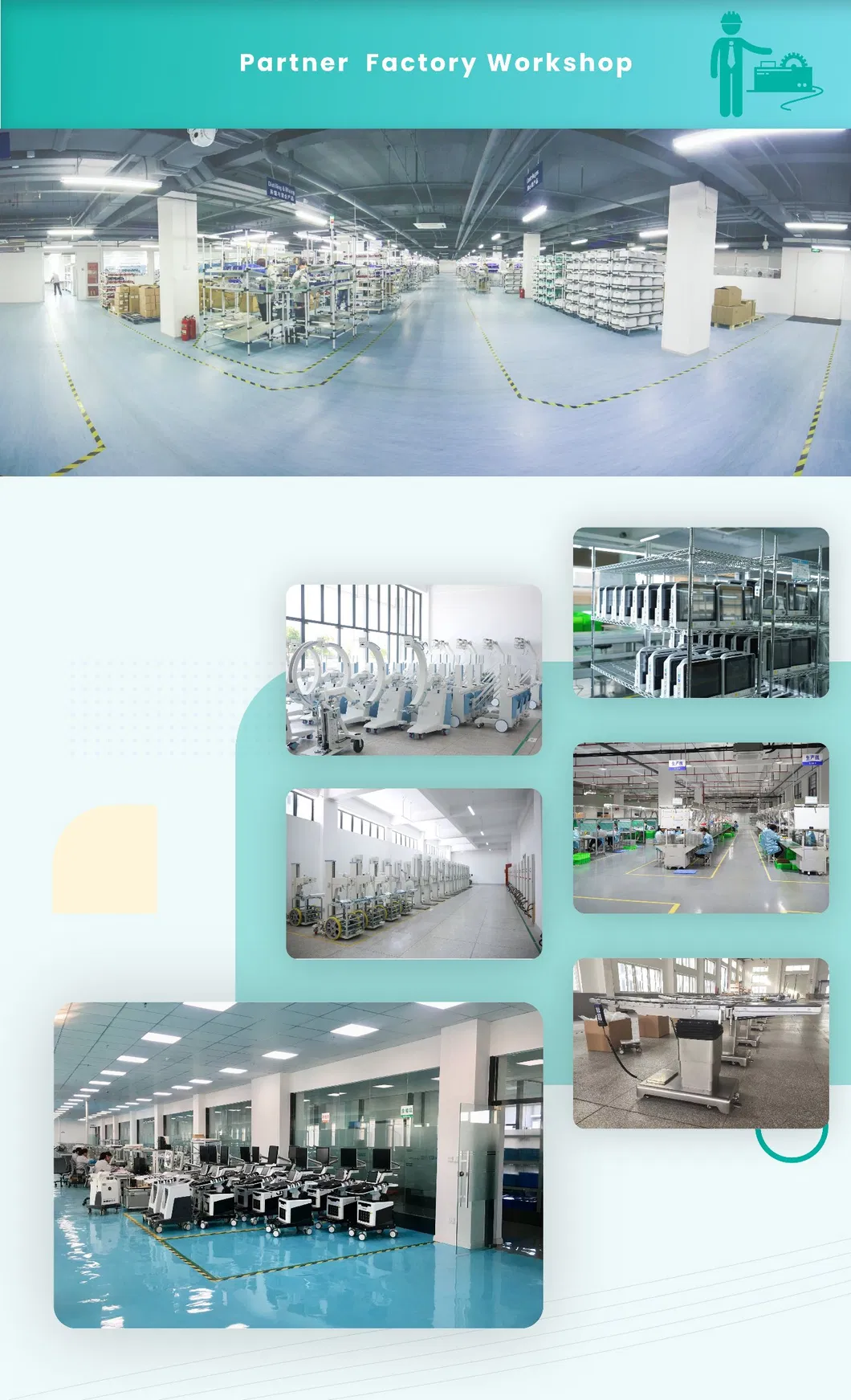

Process 3

Process 4

Process 5

Process 6

Frequently Asked Questions

Q1: Is your company a manufacturer or trader?

A1: We are an industry & trade company with our own investments in manufacturing facilities to ensure a strong product supply chain.

Q2: What certificates do you have for these products?

A2: All our products are ISO certified, and 90% carry CE certification, with some also having FDA approval.

Q3: What is the warranty for the medical equipment?

A3: The standard warranty is 14 months after shipment. For specific equipment like our X-ray machines, we offer a 24-month warranty.

Q4: What payment methods are accepted?

A4: We accept T/T in advance, Western Union, MoneyGram, and L/C where required.

Q5: Can you provide OEM services?

A5: Yes, we can. OEM availability for certain low-value products may depend on the order quantity.

Q6: What is your Minimum Order Quantity (MOQ)?

A6: For common medical equipment, the MOQ is 1 unit. For consumables, the MOQ is negotiable based on the item.
