Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid and Flexible Endoscopy

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE

Product Description

📋

Basic Information

Model NO. SY-P033-1 Insertion Tube Diameter 6.3mm, 8.3mm, 12.9mm
Field of View 120° Image Definition 1080P
Application Animal Hospital Origin China
Production Capacity 200 Set/Month Transport Package Carton Box
🔬

Product Description

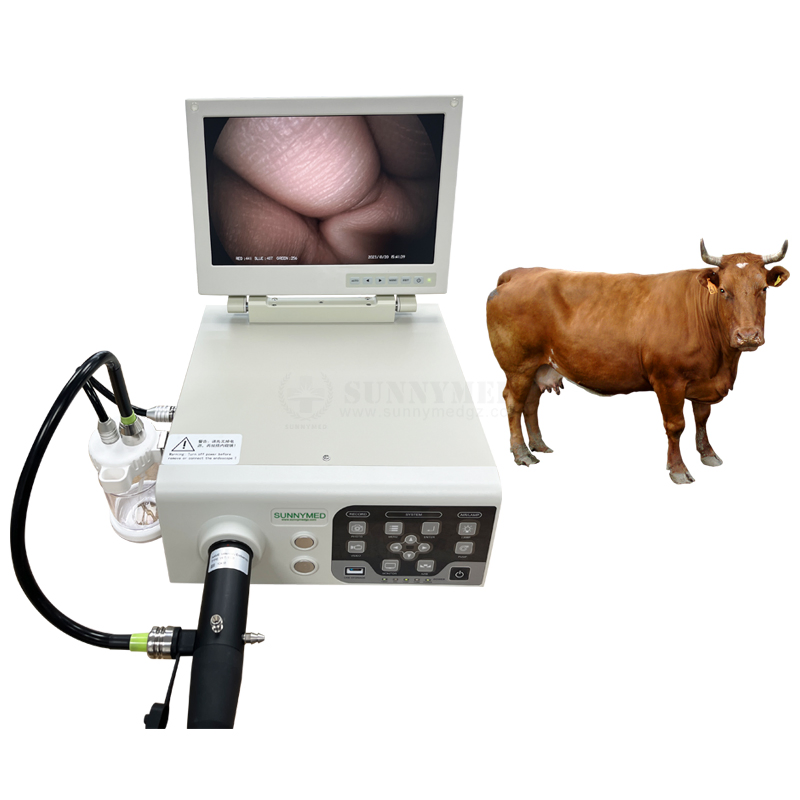

SY-P033-2 Veterinary All-in-one Endoscope Processor (Rigid and Flexible)

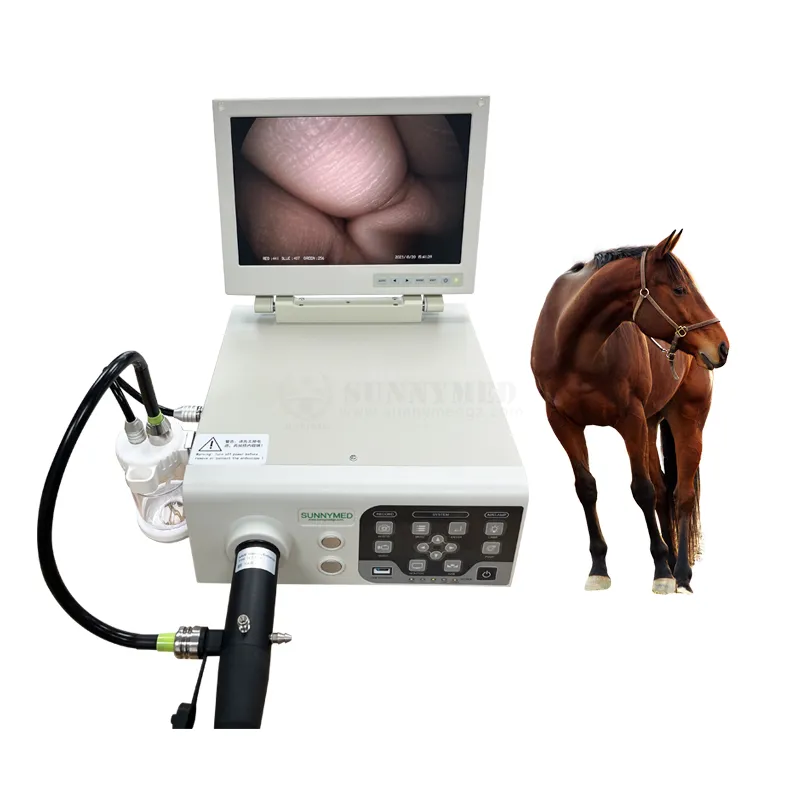

Veterinary Endoscope Processor

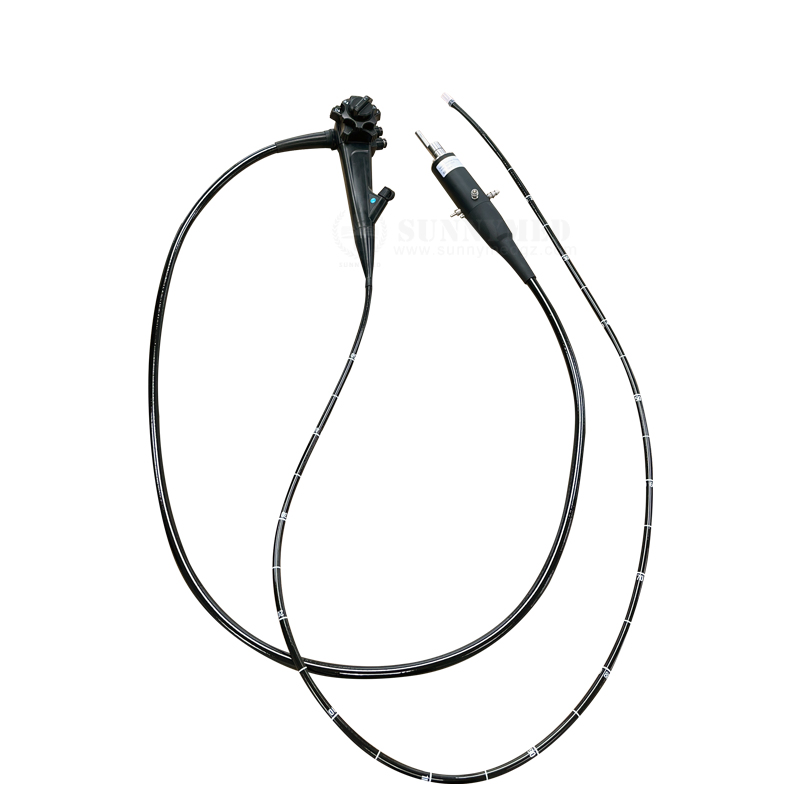

Video Gastroscope Standard (VET-1508) Optional (VET-1206) Optional (VET-3313)
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210°D90°L100°R100° U180°D180°L160°R160°
Field of view 120°
Image definition 1080P

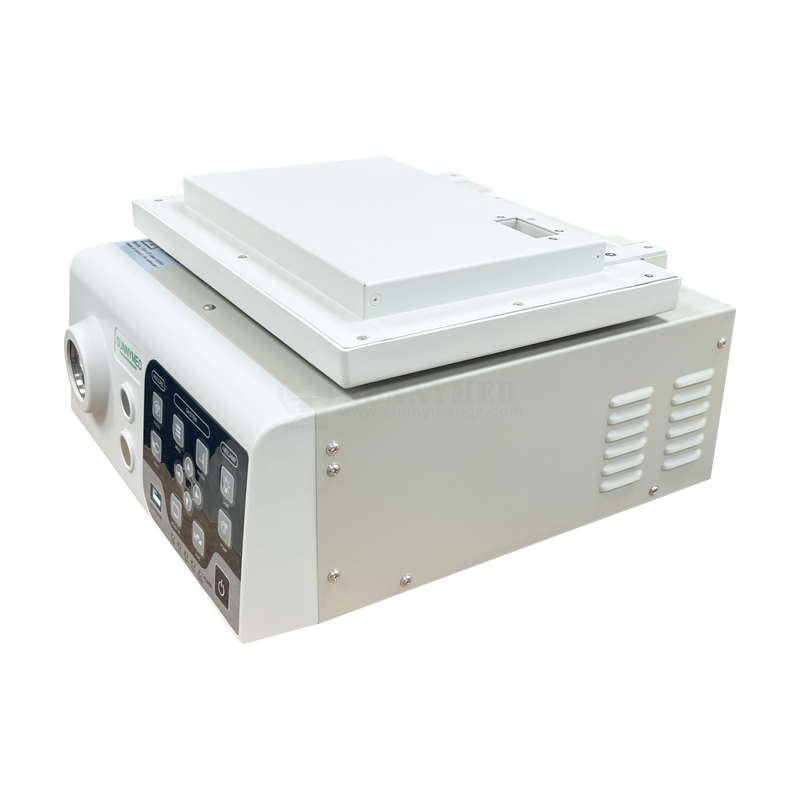

Endoscope Processor Specifications (VET-300F)
White balance Automatic
Cold light LED 40W / >800Lm
Air/Flow 0.05MPa, 0.75m³/n
Snap/Record 1080P / 30Fps
Voltage ~100V-240V, 50HZ/60HZ
📦

System Components & Accessories

Video Gastroscope Set:
Venting Cap, Leakage Tester, Channel Cleaning Brush, Biopsy Forceps, Foreign Body Forceps.
Processor Unit:
12-inch Monitor, Water Bottle, AC Power Cord, Type C/HDMI/DVI Signal Lines, Fuses.
Optional Extras:
Professional Trolley, Veterinary Attract Machine.
📸

Detailed Product Gallery

Detail 1

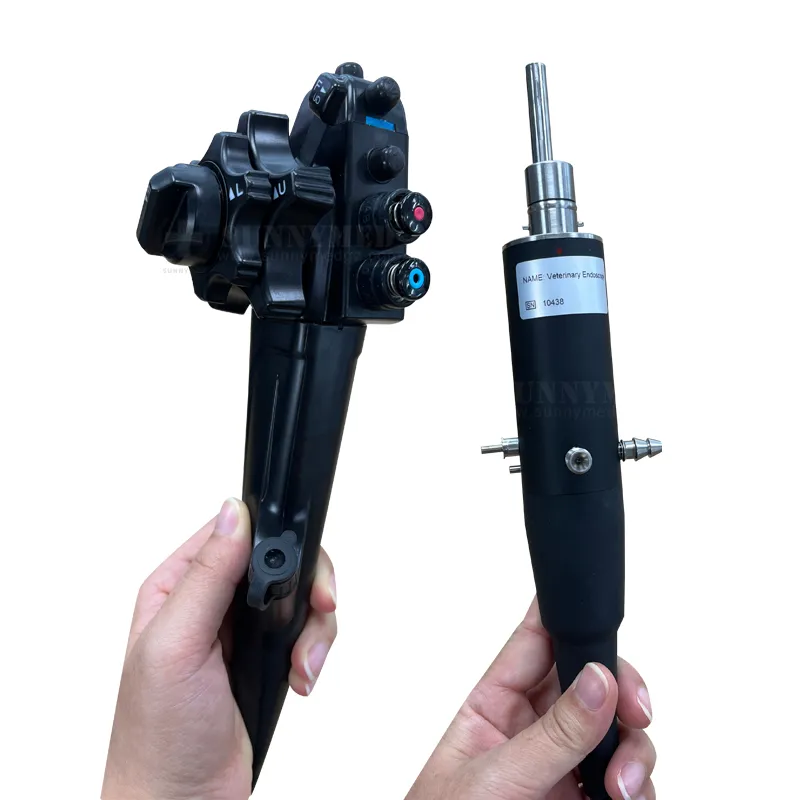

Detail 2

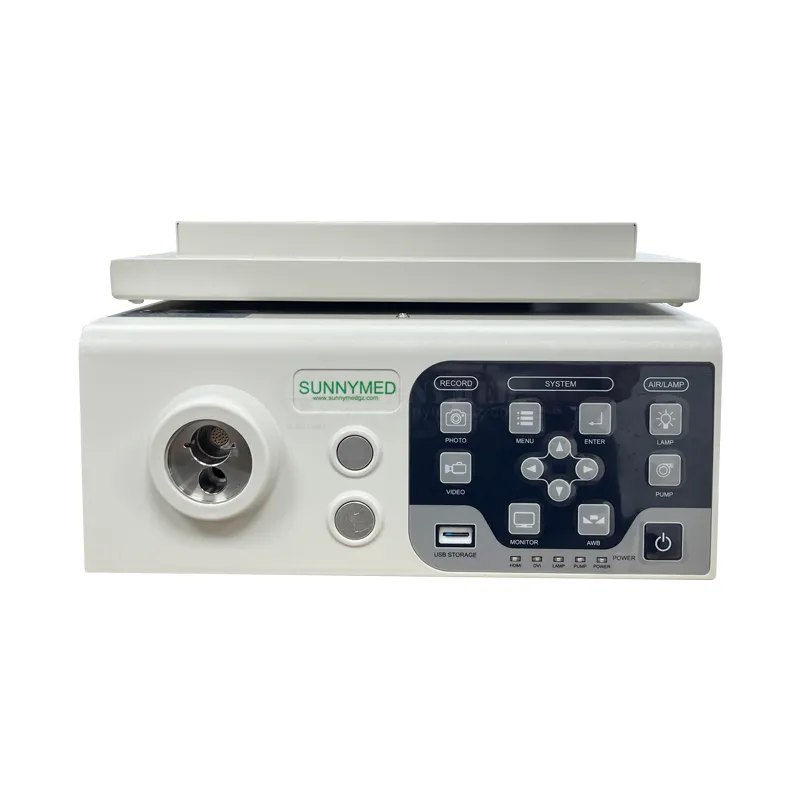

Detail 3

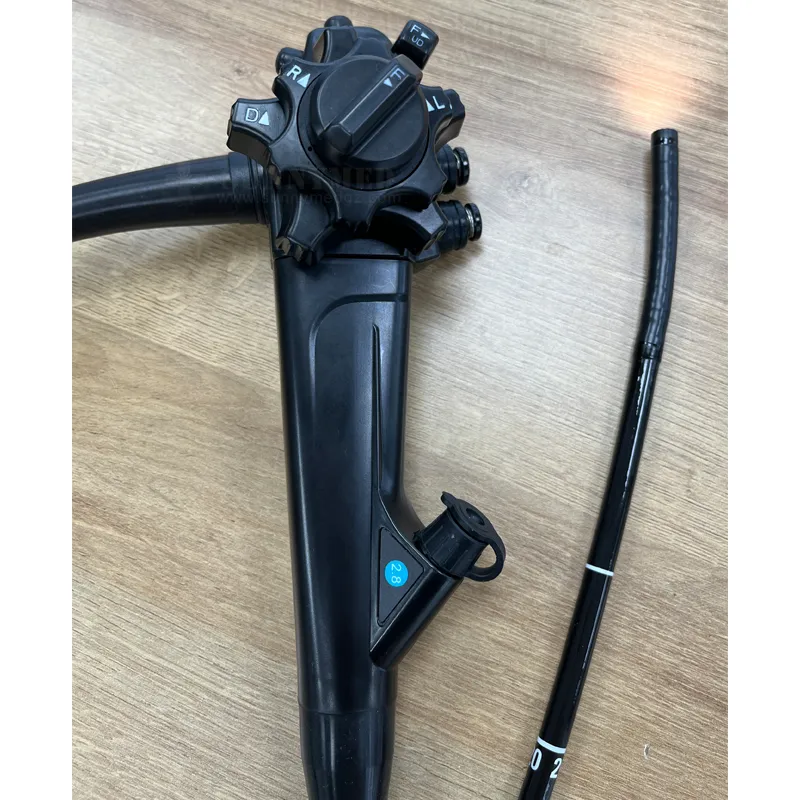

Detail 4

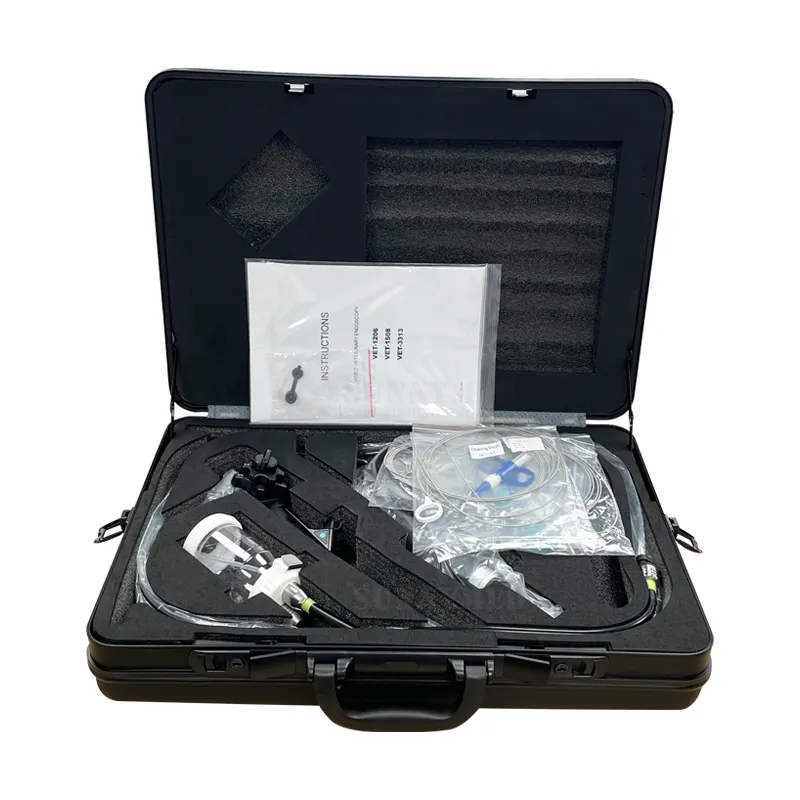

Detail 5
Detail 6
🏢

Manufacturing & Quality

Production Facility
Quality Control
Certifications

Frequently Asked Questions

What types of animals can this endoscope be used for?
It is designed for both large and small animals in veterinary hospitals, with various tube lengths and diameters available to suit different species.
What is the image quality of the SY-P033-2 system?
The system provides high-definition 1080P resolution for both live viewing and recording, ensuring clear diagnostic images.
Are there different insertion tube options?
Yes, we offer three main diameters: 6.3mm, 8.3mm, and 12.9mm, with working lengths ranging from 1200mm to 3300mm.
Does the processor include a monitor?

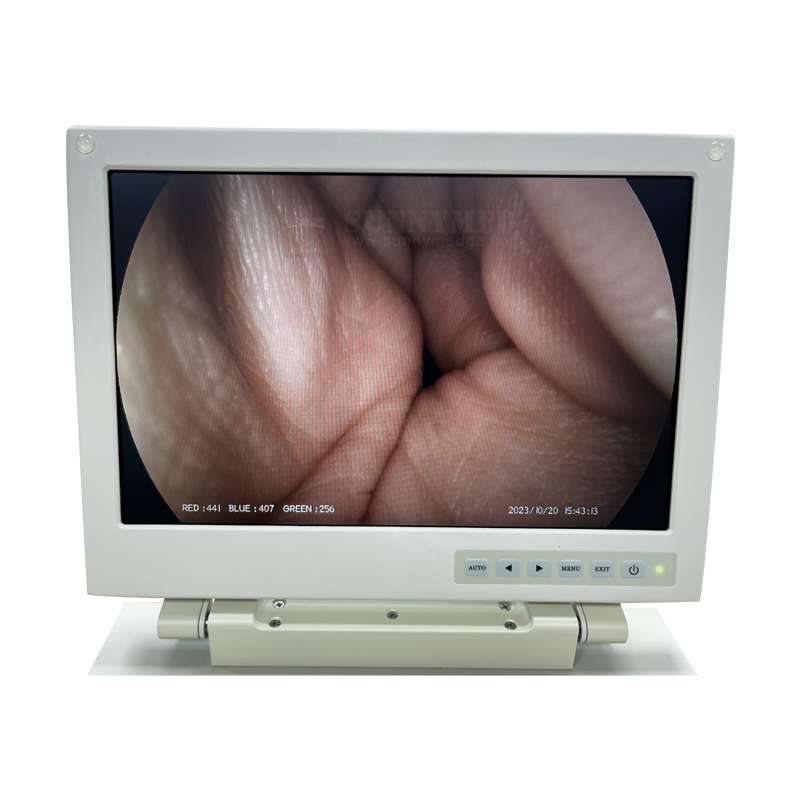

Yes, the all-in-one endoscope processor comes equipped with a built-in 12-inch high-resolution monitor.
Can I record videos and take snapshots during procedures?
Absolutely. The system supports 1080P recording at 30Fps and snapshot functionality for documentation and analysis.
