Product Description

ℹ️

Basic Information

Model NO.
Food Sterilizer
Certification
CE, TUV / FDA
Automation
Automatic
Principle
High temperature and pressure
Material
304 or 316L Stainless Steel
Energy
Electricity / Steam
Control System
Fully automatic / Semi-automatic / Manual
Capacity
50 Sets / Month
⚙️

Product Description

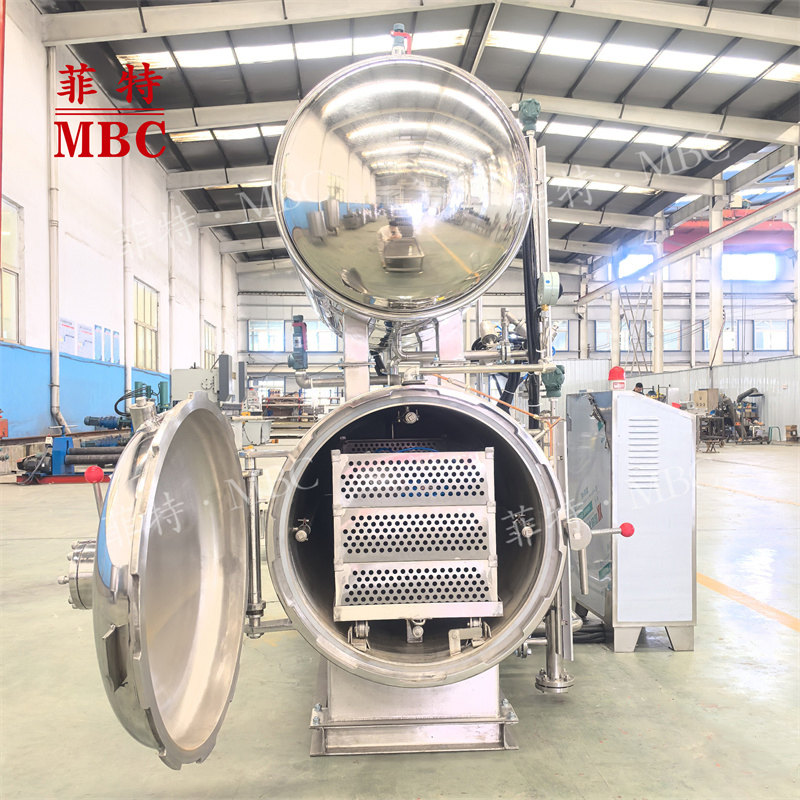

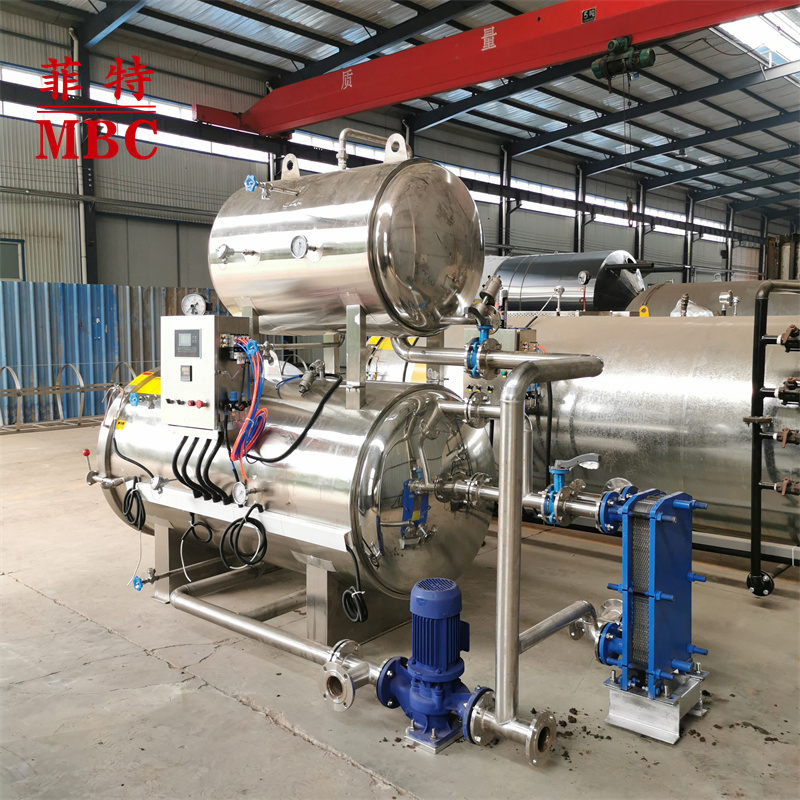

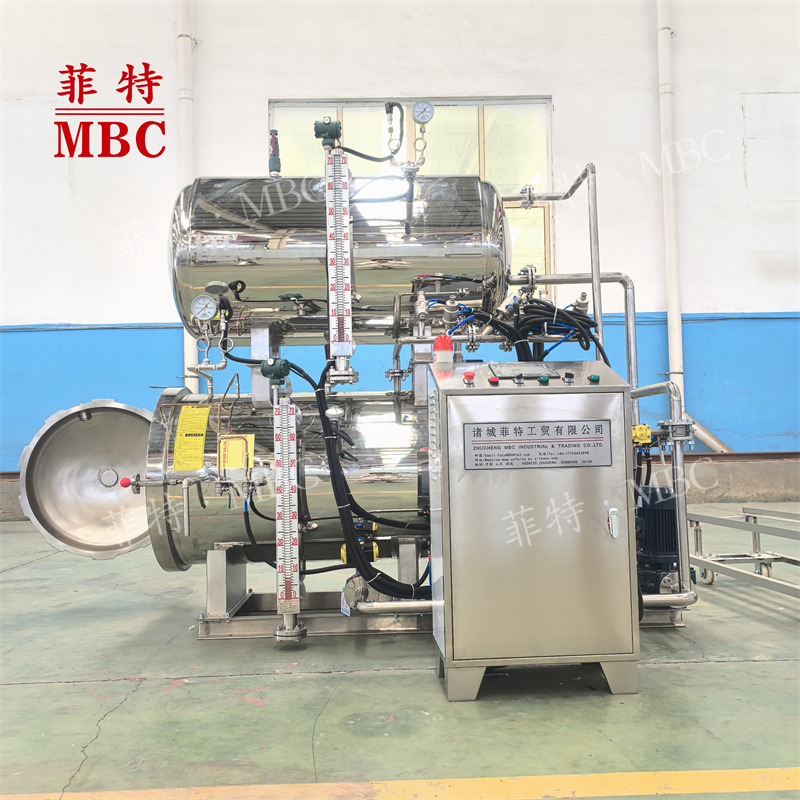

Automatic Water Spray Retort Sterilization Machine

The temperature, pressure, and time of the high-temperature and high-pressure steamer are fully controlled by computer. This equipment is an energy-saving, high-efficiency, and environmentally friendly sterilization solution. It features automatic heating, heat preservation, pressure maintenance, and pressure relief.

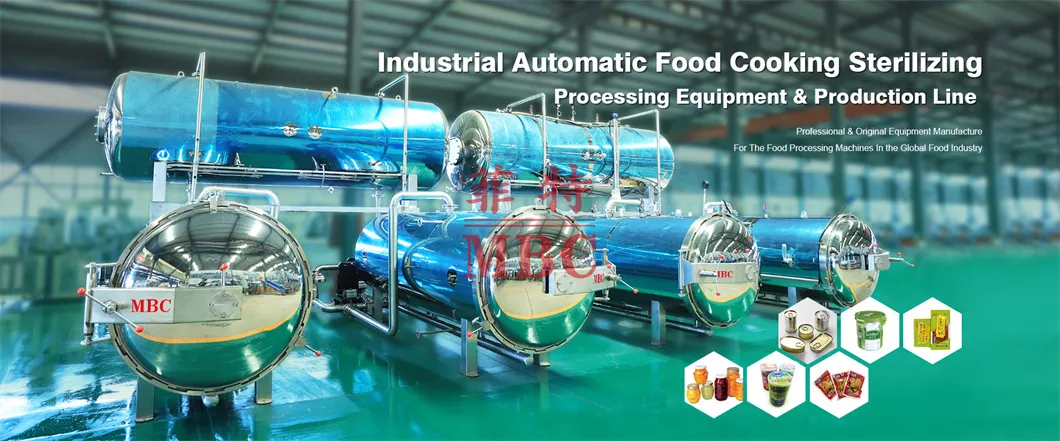

Automatic Food Sterilizer

High-temperature sterilization is critical for food processing. Our equipment ensures standard and uniform sterilization effects by providing stable performance and accurate temperature control. This reduces labor and energy consumption, potentially lowering production costs by over 35%.

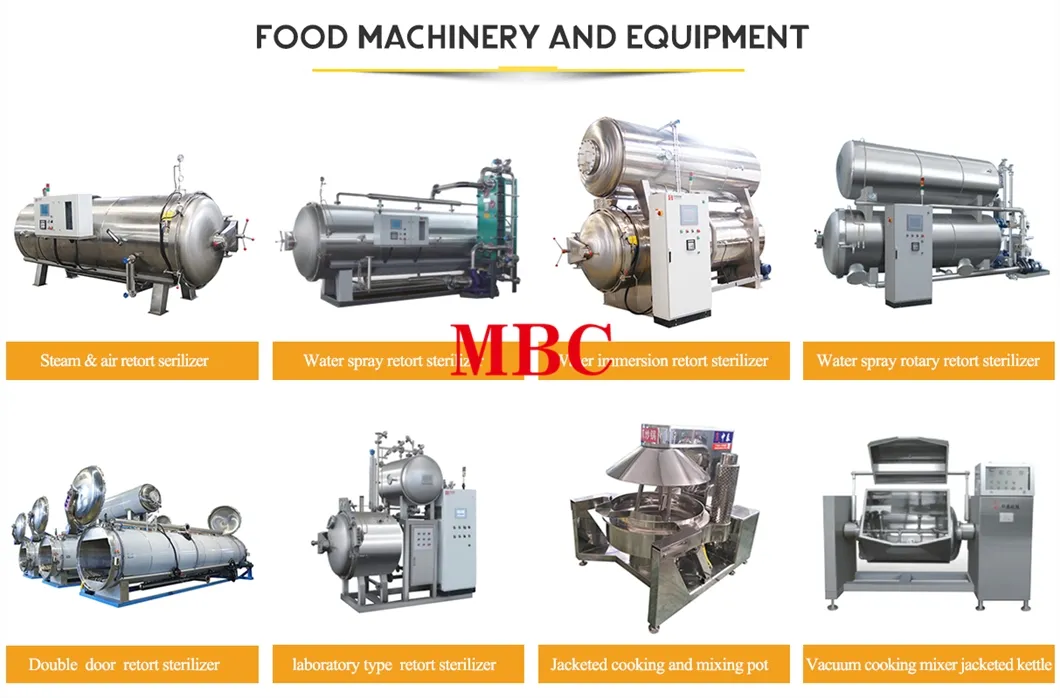

Sterilization Technology

Applicable Packaging Materials

  • Glass Containers: Glass jars and glass products.
  • Metal Containers: Cans, tin cans, and steel bottles.
  • Plastic Containers: PP bottles, HDPE bottles.
  • Soft Bag Packaging: Pouches, foil bags, transparent bags, vacuum bags, and high-temperature cooking bags.
Glass bottle sterilization Pouch sterilization
📊

Technical Parameters

Model (Inner Diameter * Length) Baskets Qty Trays Qty Carts Qty Capacity Volume (m³) Power Cold Water Tank
DN700*1200mm 3 1 1 120-150kg 0.7 36KW 1m³
DN800*1500mm 6 2 2 200-250kg 1.1 40-45KW 1.8m³
DN900*1800mm 8 2 2 300-350kg 1.3 45-55KW 2.5m³
DN1000*2200mm 10 2 2 500-550kg 2.1 60-80KW 3.5m³

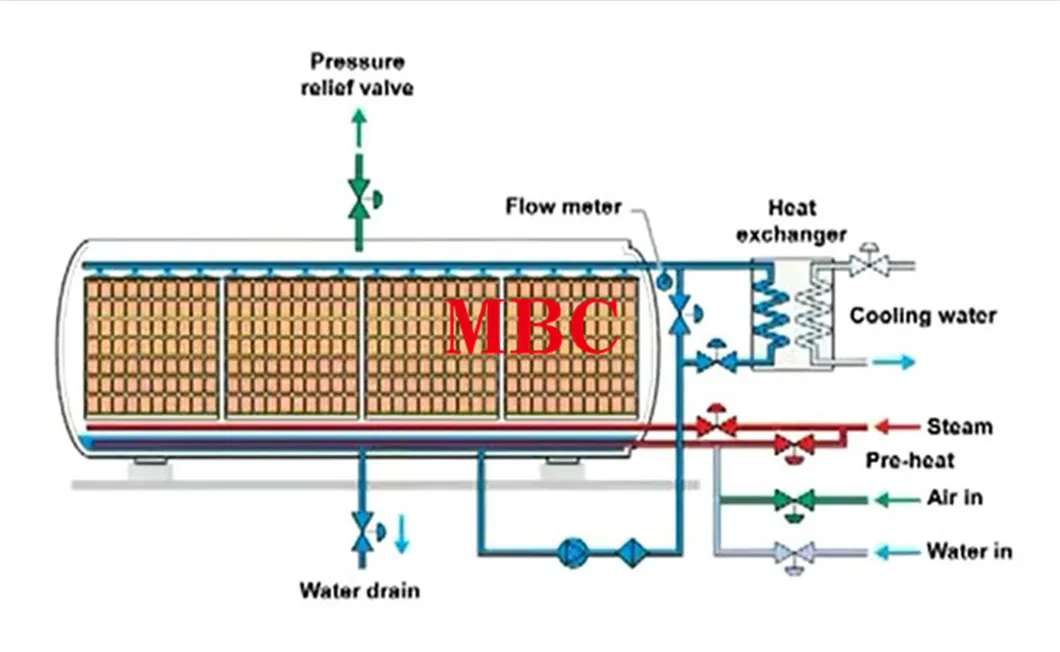

Autoclave Machine Structure
💎

Design Philosophy & Details

  • Safety: Complies with national pressure vessel standards (GB150-2011) and HACCP food safety certification.
  • Humanization: People-oriented design for easy operation.
  • Reliable: World-famous brand components.
  • Energy Saving: Optimized power and compressed air consumption.
  • Precision: Temperature control precision within ±0.3ºC.

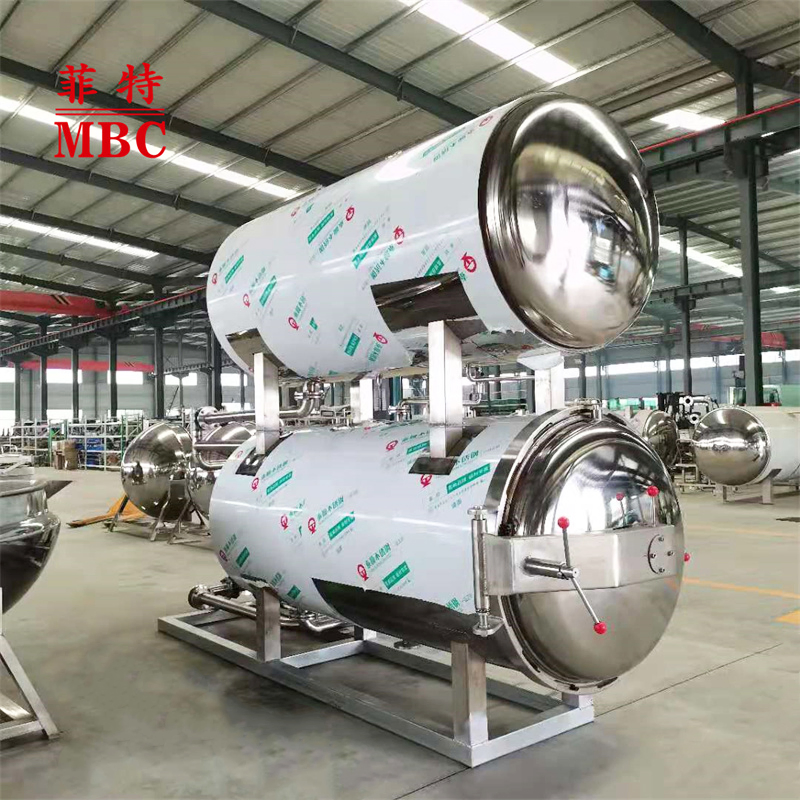

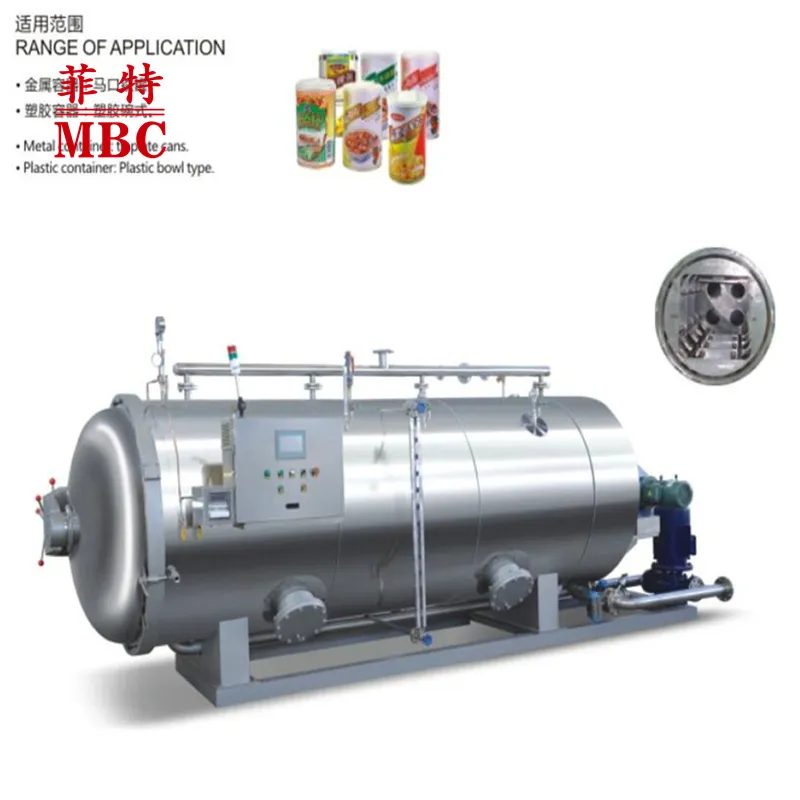

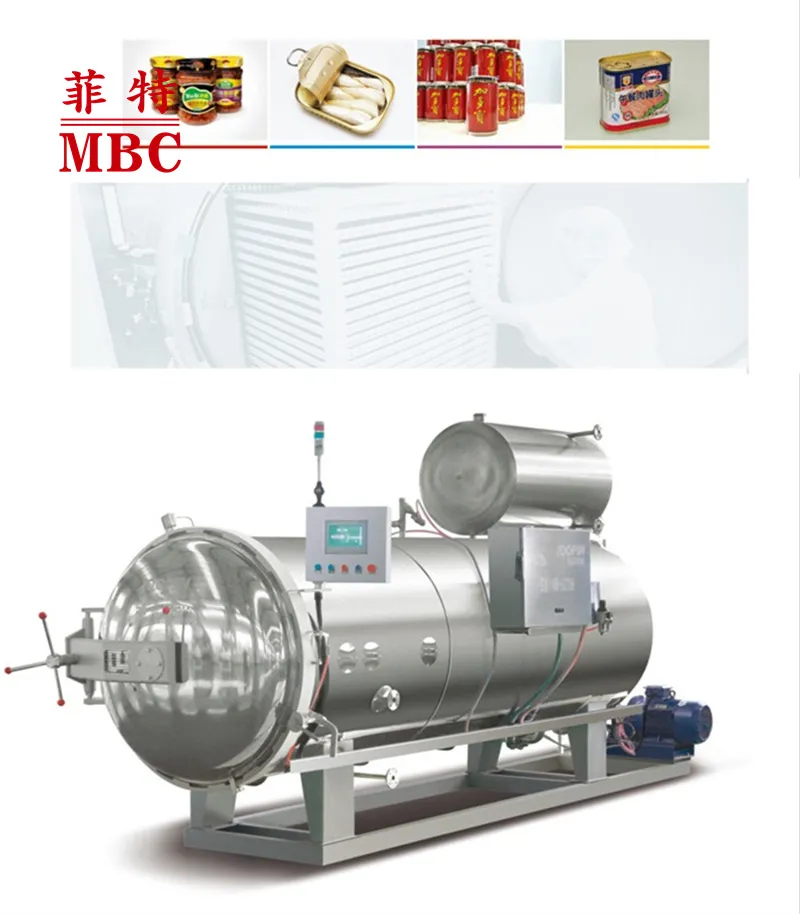

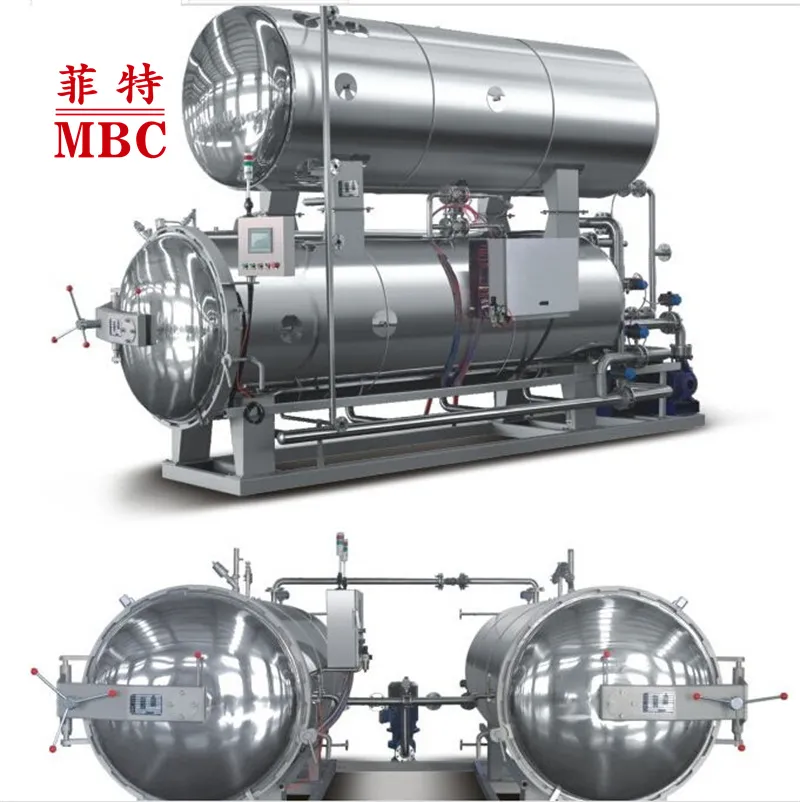

Automatic Steam Sterilizer Double Layer Sterilizer Hot Water Spraying

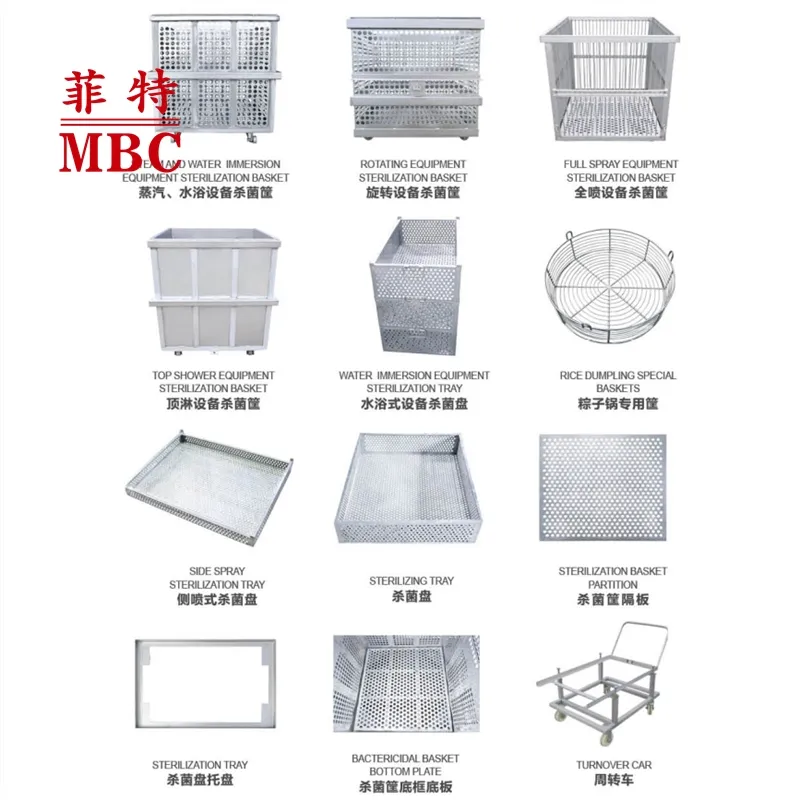

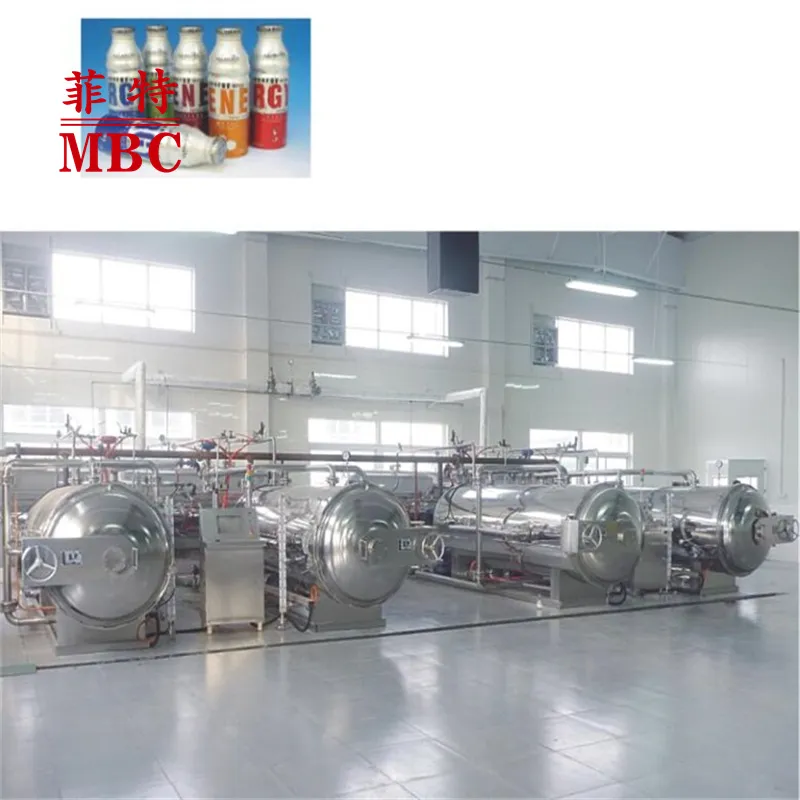

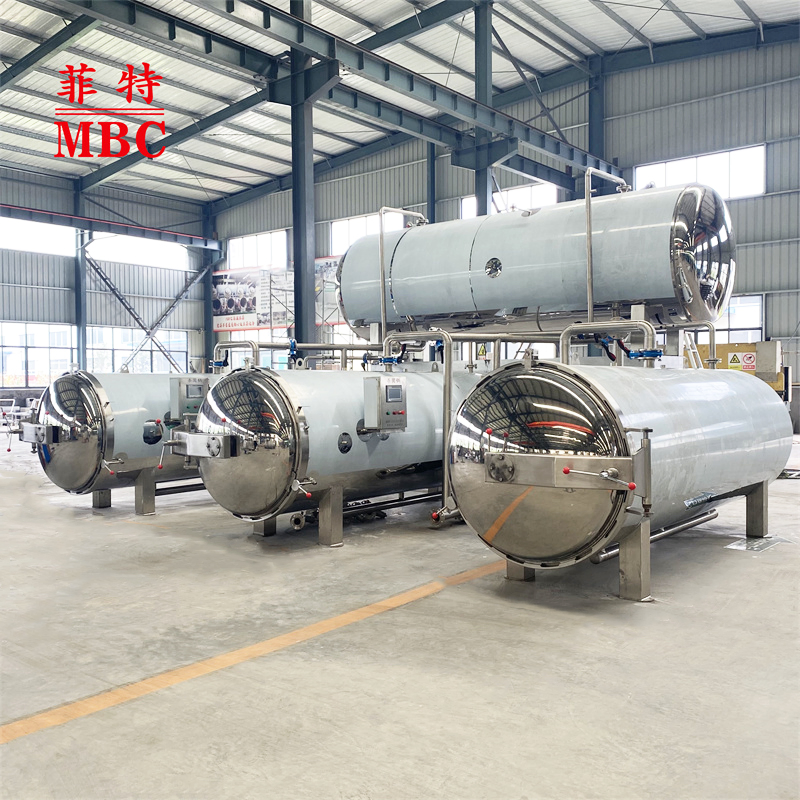

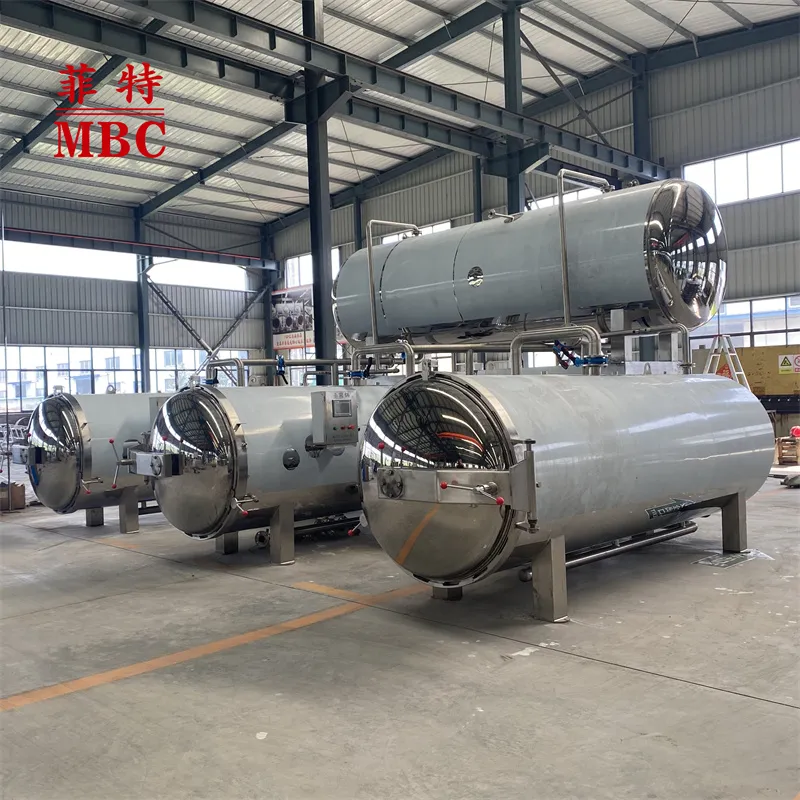

Three Pots Sterilizing Top Water Tank Sterilizing Tray
📦

Packaging & Shipping

We implement a comprehensive delivery process. All machinery is inspected by professional technical engineers before shipping. Packaging includes plastic film for full containers to prevent scratches and wooden cases for LCL shipments to meet export standards.

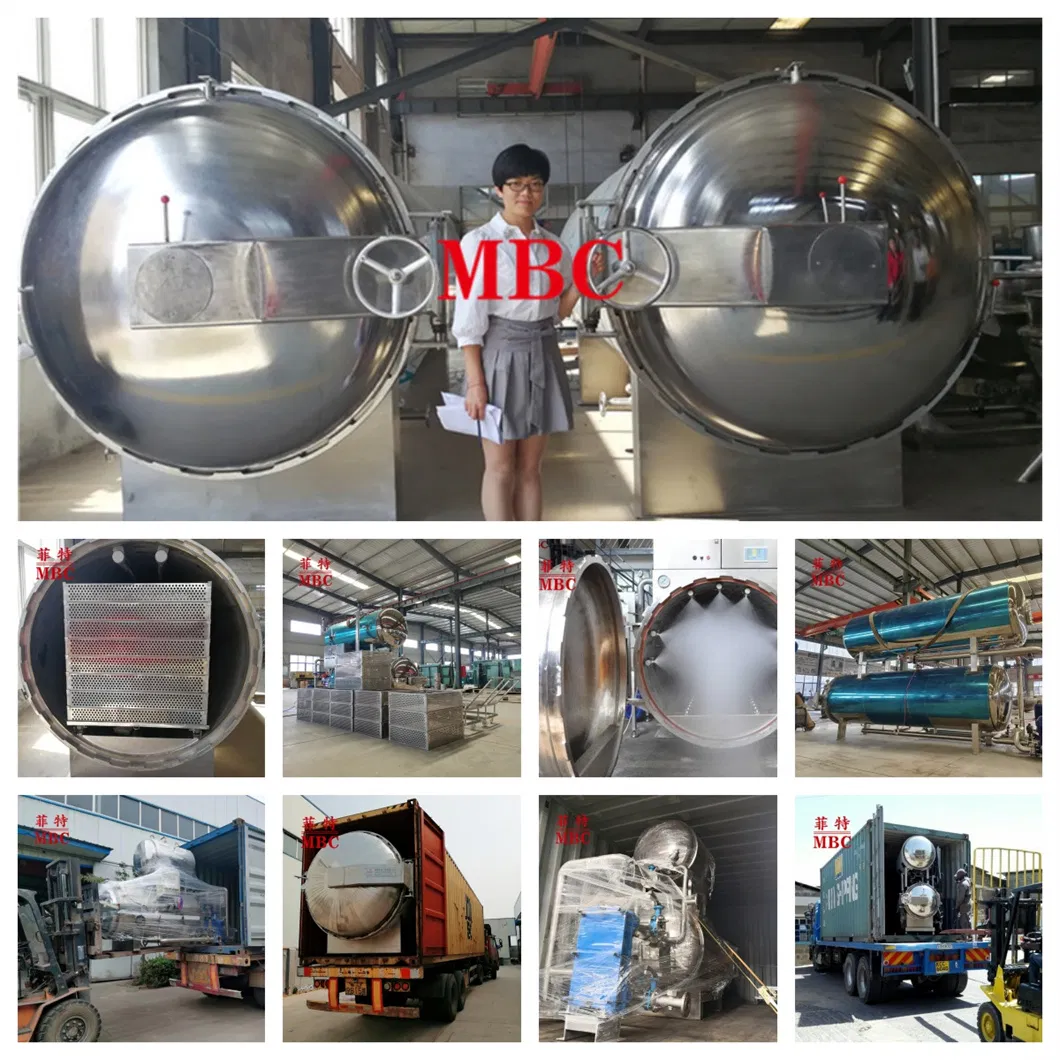

Packaging Process
🌍

Global Presence

With over 15 years of experience, our food processing machines are exported to more than 130 countries, including the USA, Canada, Russia, England, India, and more. We specialize in R&D for fruit, vegetable, and meat processing production lines.

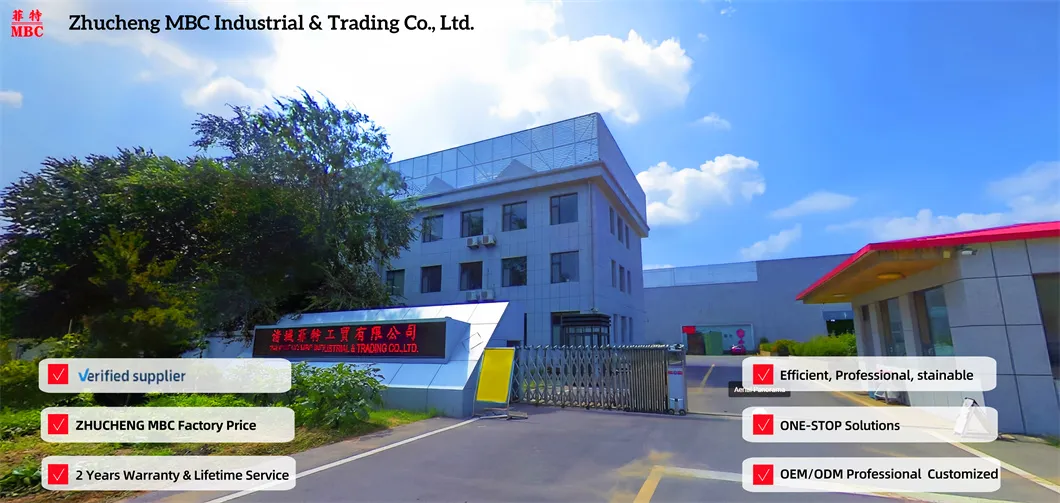

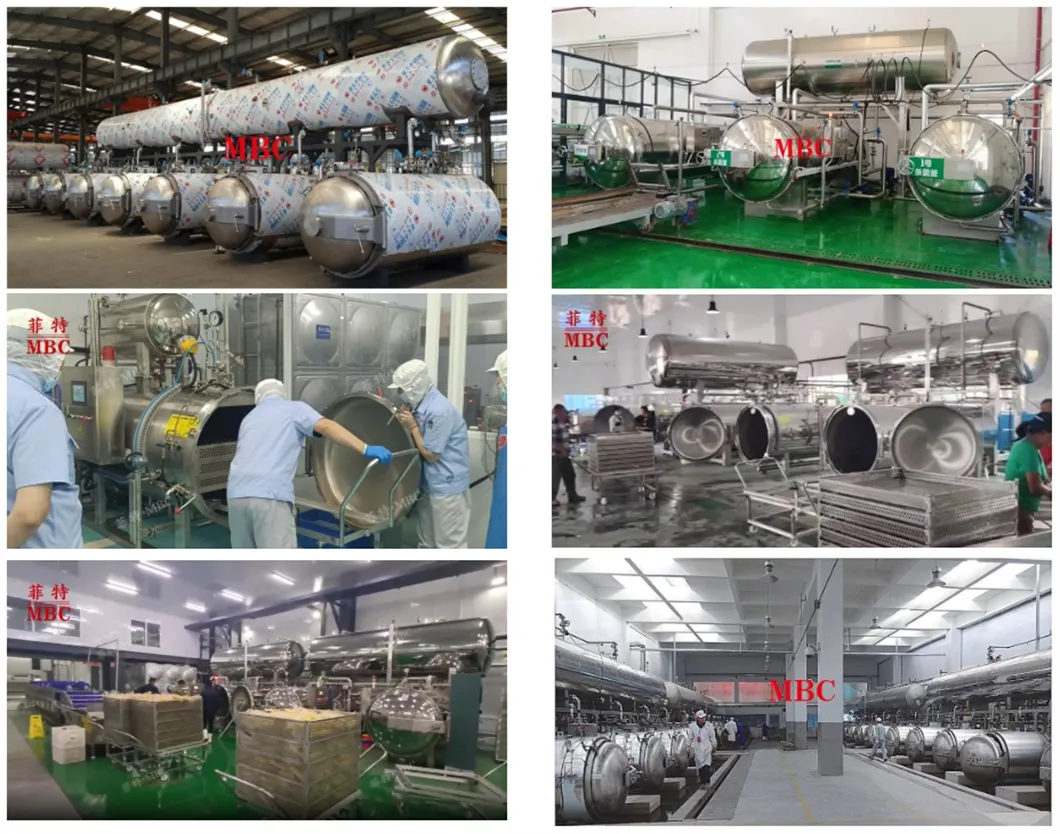

Customer Usage Site Workshop

Frequently Asked Questions

Q1: What types of food packaging can be sterilized by this machine?
The machine is versatile and can handle glass jars, metal cans (tin/steel), plastic bottles (PP/HDPE), and various soft pouches like aluminum foil or vacuum bags.
Q2: How does the automatic control system benefit the user?
The computer-controlled system manages heating, pressure, and time automatically. This ensures consistency, reduces labor costs, and can lower energy consumption by up to 35%.
Q3: What is the temperature control precision of the retort?
The sterilization temperature is highly precise, maintained within ±0.3ºC, while heat distribution throughout the pot is kept within ±0.5ºC.
Q4: What materials are used to construct the machine?
We use high-quality 304 or 316L Stainless Steel to ensure durability, food safety, and compliance with international hygiene standards.
Q5: What kind of after-sales service do you provide?
We provide a one-year warranty, on-site installation guidance, operator training, and lifetime maintenance support with readily available spare parts.
Q6: Is the machine customizable?
Yes, we offer full customization based on your specific products, processing requirements, output volume, and factory layout.
