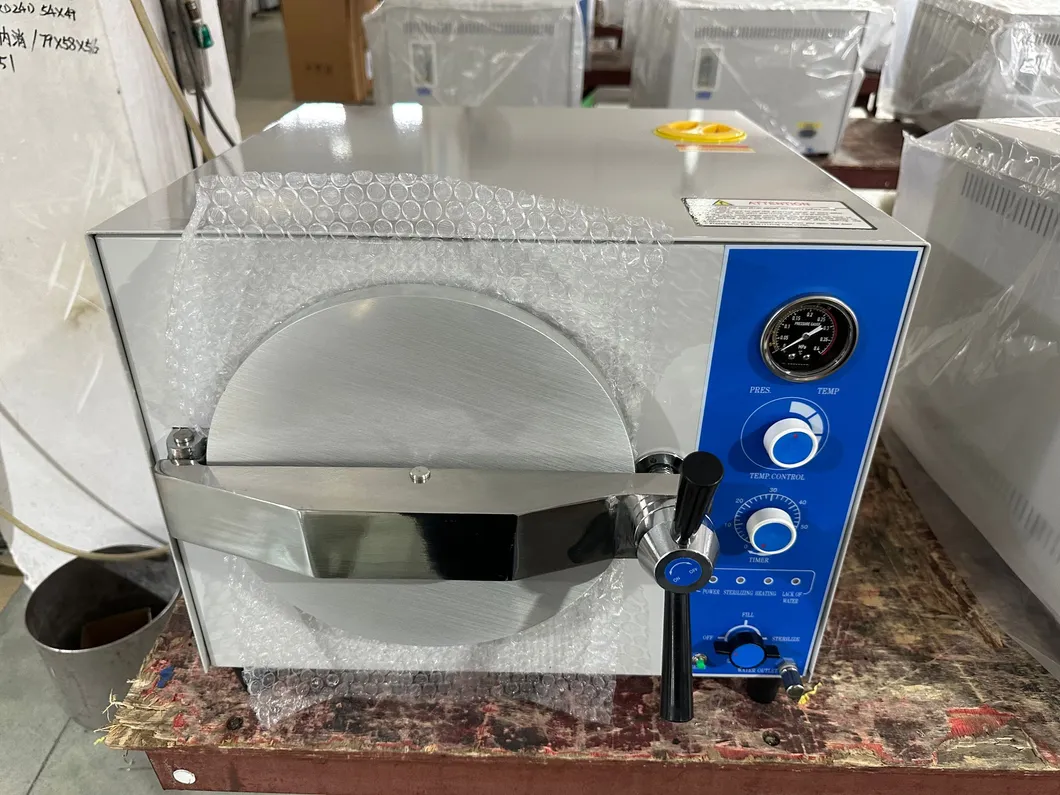

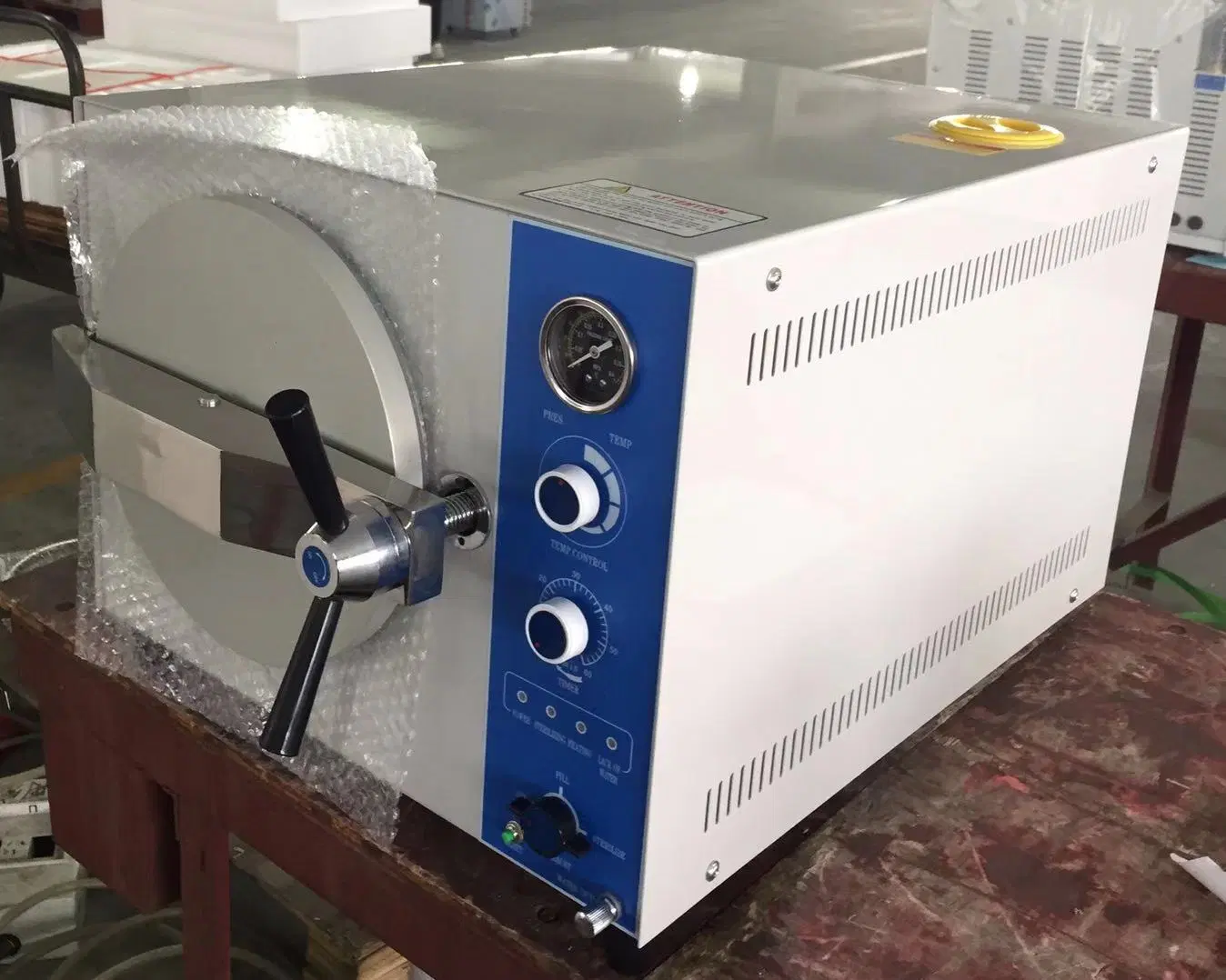

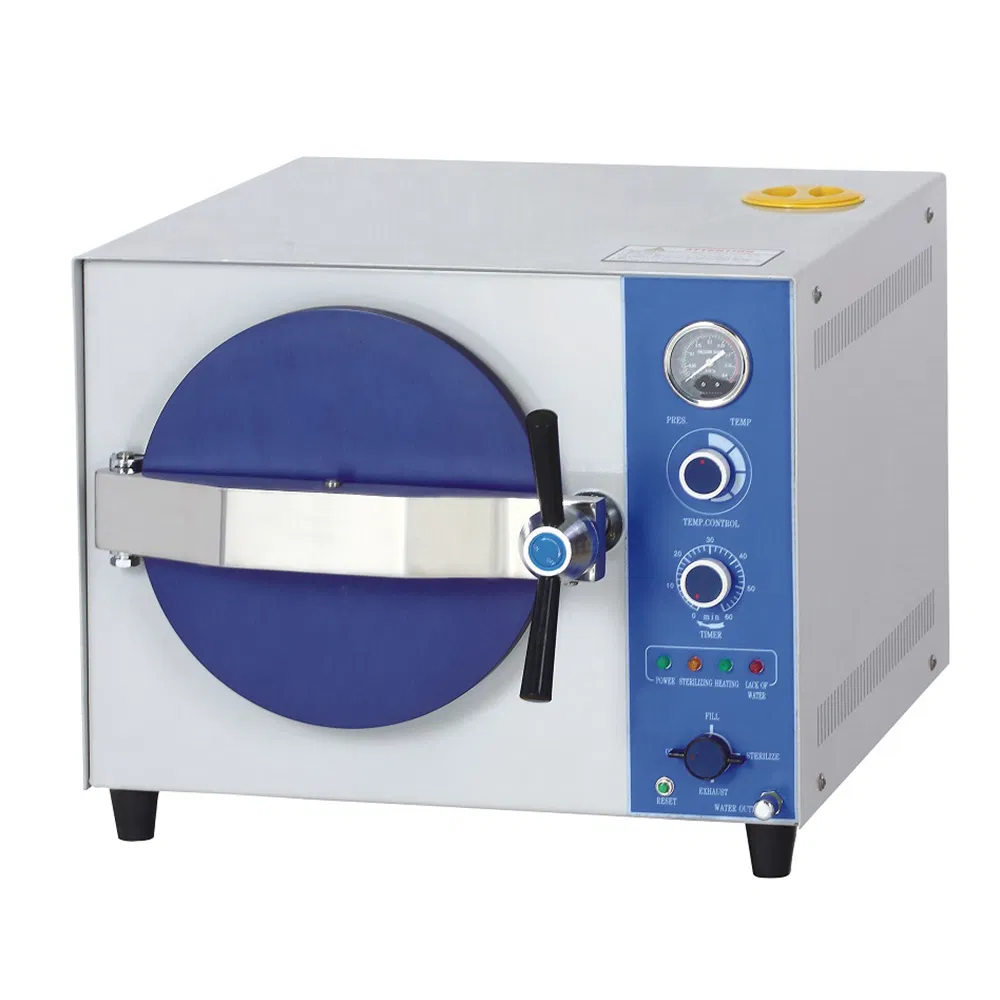

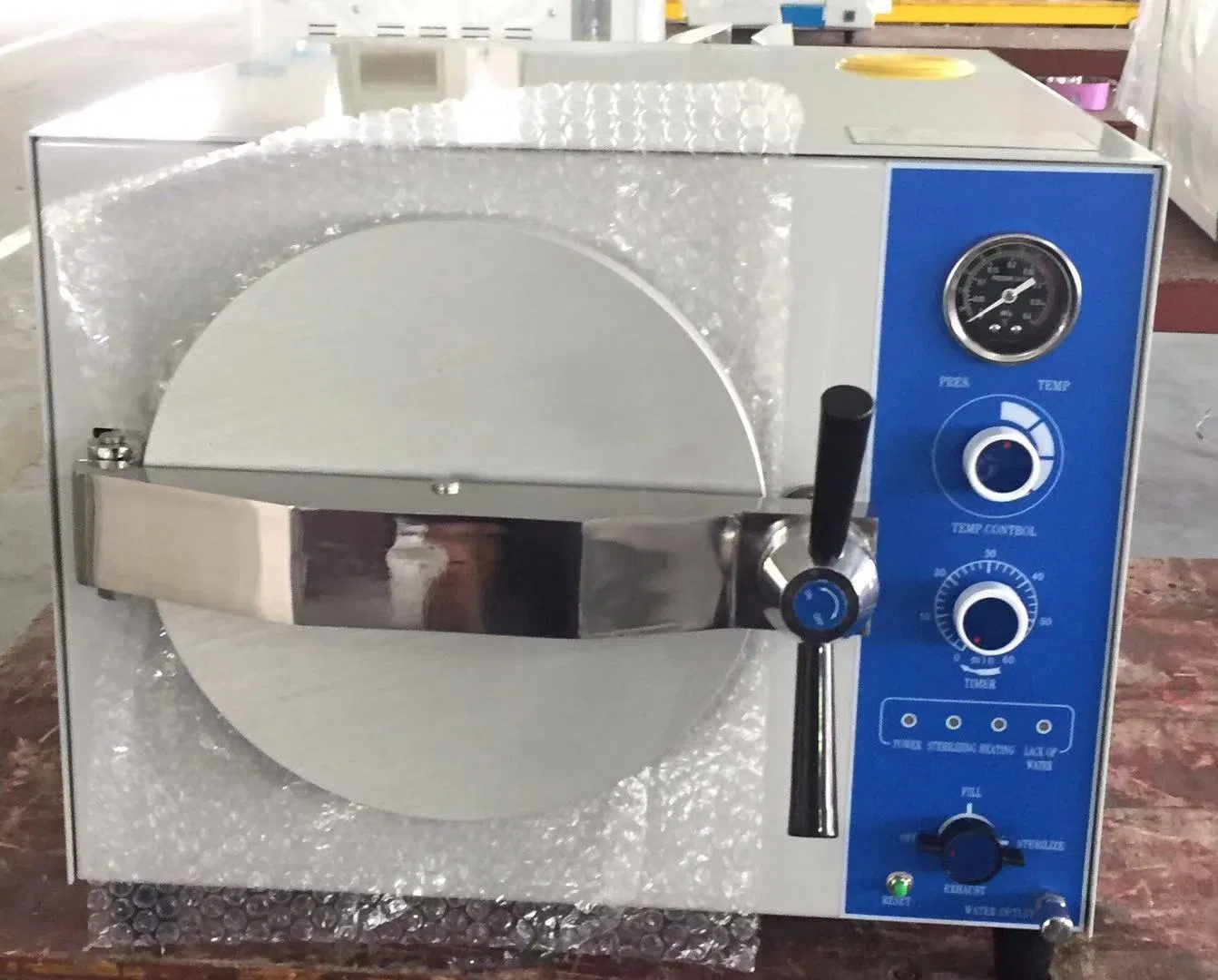

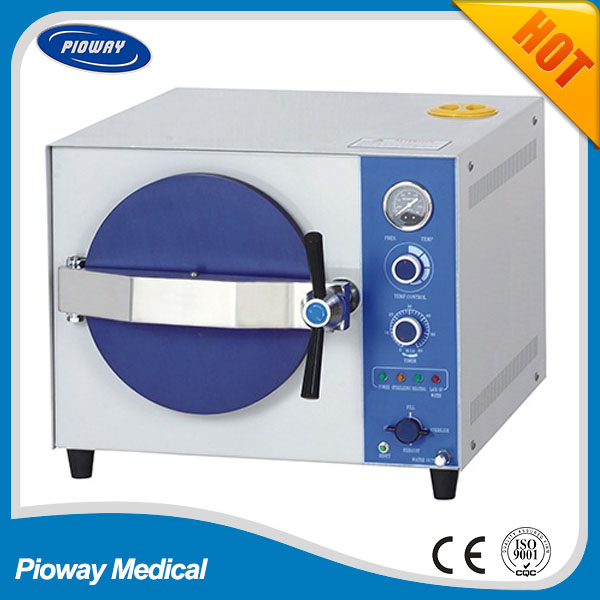

Pioway Medical Steam Sterilizer, Pressure Steam Autoclave Sterilizer (TM-XB20J)

1 / 5

Pioway Medical Steam Sterilizer, Pressure Steam Autoclave Sterilizer (TM-XB20J)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

TM-XB20J

Certification

CE, EEC, ISO13485

Electric Tension

220V

LCD Display

With LCD Display

Material

Stainless Steel

Product Name

Tabletop Steam Sterilizer

Max Pressure

0.22MPa

Max Temperature

134ºC

Volume

20 or 24L

Timer

0-60 Mini

Warranty

12 Months

Origin

China

🔬

Medical Steam Sterilizer Overview

Key Characteristics

✔Indicator light indicates working state.

✔Rapid 4~6 minutes sterilizing cycle.

✔Preset sterilizing temperature and time.

✔Steam-water inner circulation system: no steam discharge.

✔Over temperature & over pressure auto-protection.

✔Safe protection against water shortage.

✔Automatic cool air exhaustion.

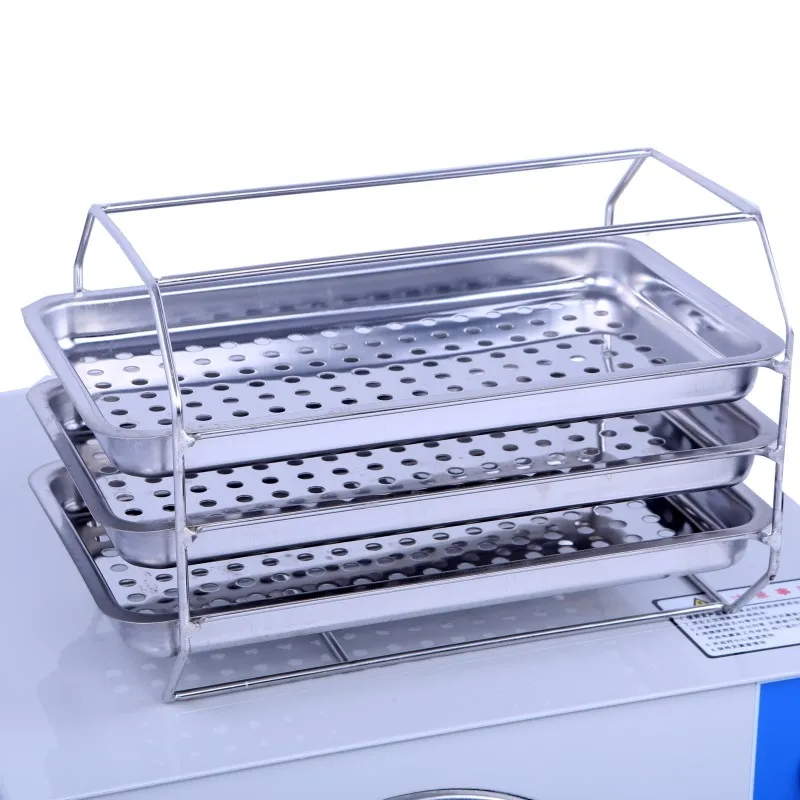

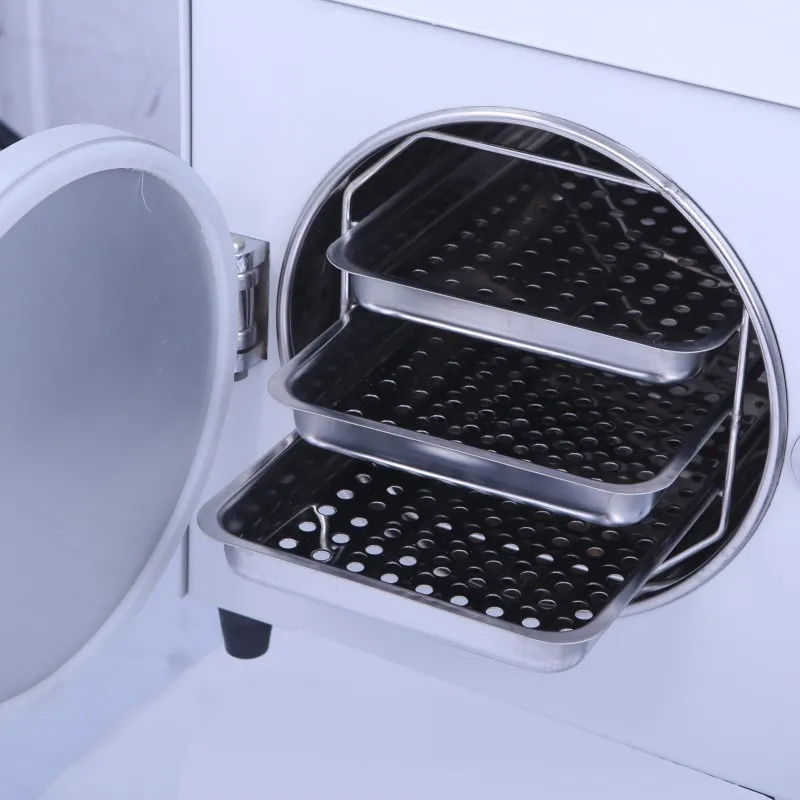

✔Equipped with three stainless steel sterilizing plates.

✔High-quality stainless steel chamber.

✔Auto shut-off with beep reminder after sterilization.

📊

Technical Data Comparison

MODEL DATA	TM-XB20J	TM-XB24J
Chamber Volume	20L(φ250×420 mm)	24L(φ250×520 mm)
Max Working Pressure	0.22MPa
Max Working Temp	134ºC
Temp Adjustment	105-134ºC
Timer Range	0-60 min
Temp Equality	≤ ± 1ºC
Source Power	1.5KW/AC 220V 50Hz
Sterilizing Plate	340×200×30 mm	400×200×30 mm
Dimension	480×480×384 mm	580×480×384 mm
G. W/N.W	44/40 kg	50/45 kg

⚙️

Available Models & Features

Model	Capacity	Key Features
TM-XB20J / TM-XB24J	20L / 24L	Manual control, 0.22MPa, 134°C, Inner circulation, Auto exhaust.
TM-XD20D / TM-XD24D	20L / 24L	Fully automatic microcomputer type, Digital display, Touch keys, 3 fixed cycles, Drying function included.
TM-XD35D / TM-XD50D	35L / 50L
