Ce Standards Eo Sterilizer Chamber Sterilization

Theory:	Pneumatic
Type:	Gas Sterilization Equipments
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Specifications

Model NO.

FST-SIZE

Electric Tension

220~380

LCD Display

With LCD Display

Alarm System

Ultra High Temperature Alarm

Data Recording

Information Recording & Printing

Material

Stainless Steel

Door Mechanism

Pneumatic Door

Control System

Industrial Computer & Siemens PLC

OS Platform

Windows 7 Platform

Software

Siemens Wincc 7.X

HS Code

8419200000

Professional Introduction

Comprehensive facilities including EO sterilization chamber, preconditioning chamber, degassing chamber, and waste gas treatment apparatus.
Products strictly meet the requirements of ISO9001:2008 and ENISO134585:2003/AC2009.
Innovative manufacturer utilizing a specialized hot air heating system with utility model patent certification.
Leading position in the ethylene oxide sterilization industry.
Extensive global export experience to Spain, South Africa, Ecuador, Laos, Vietnam, Argentina, and more.

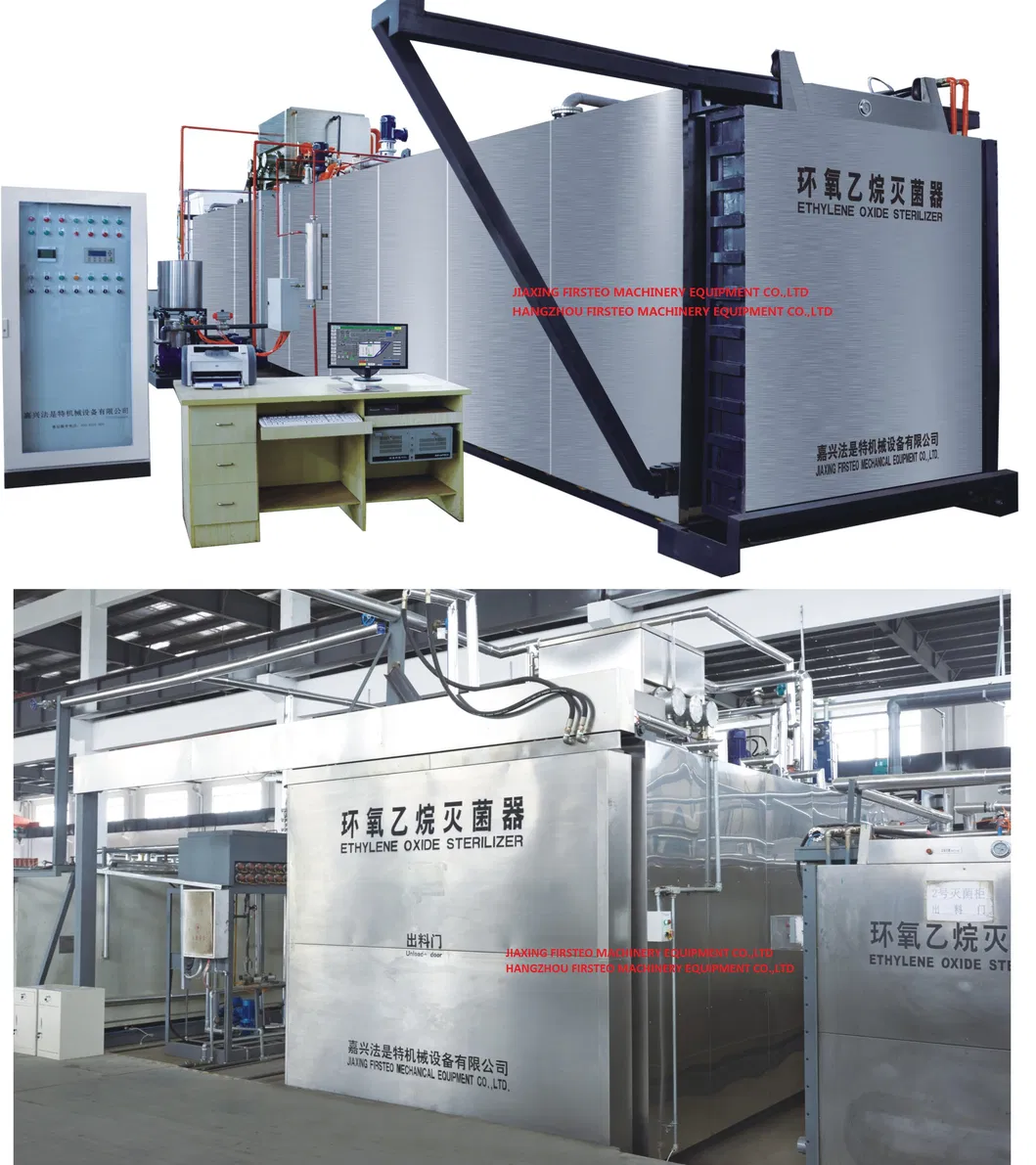

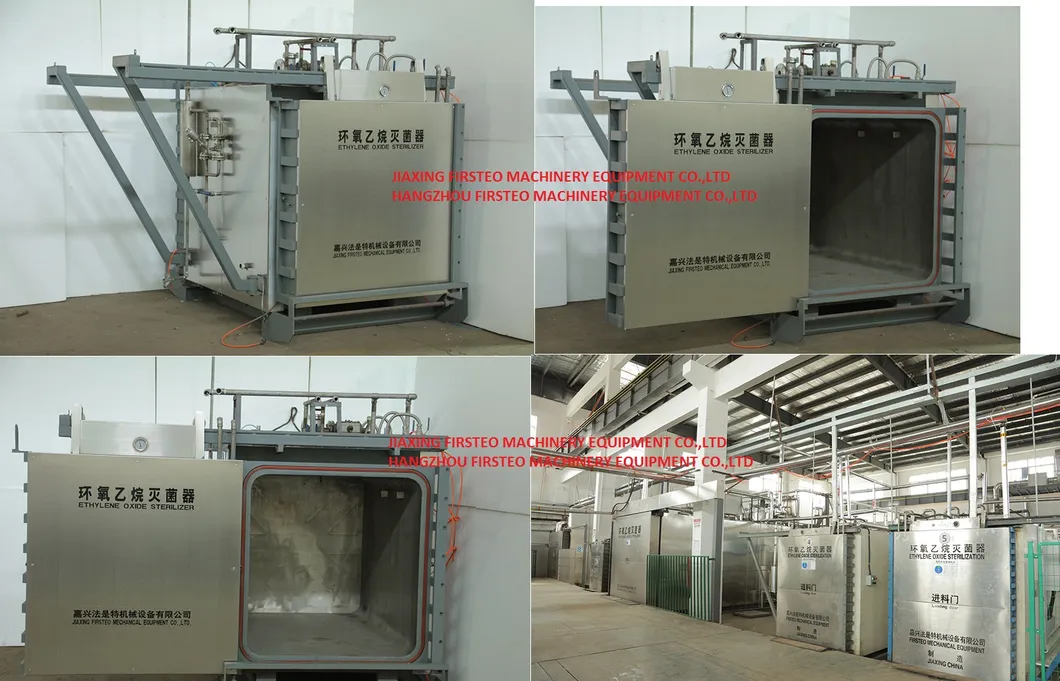

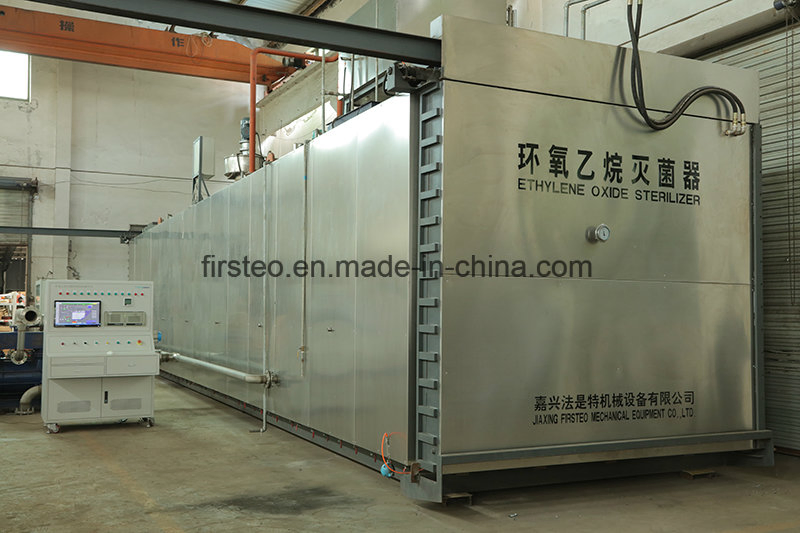

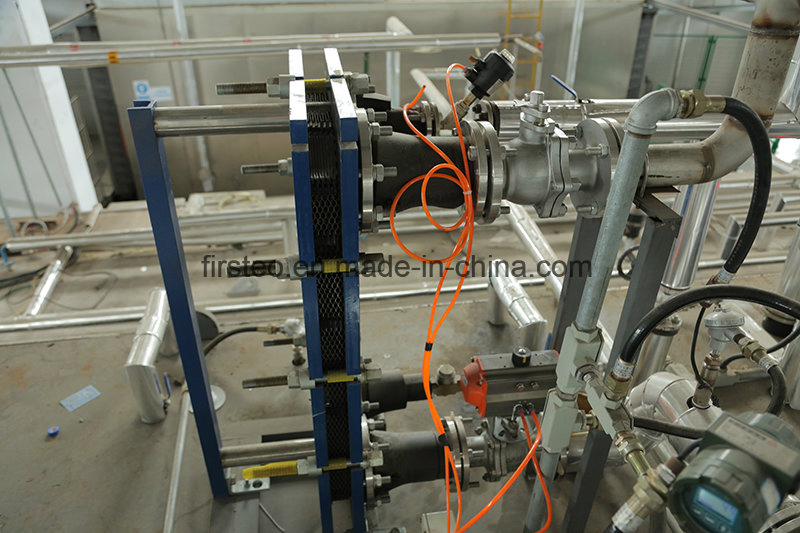

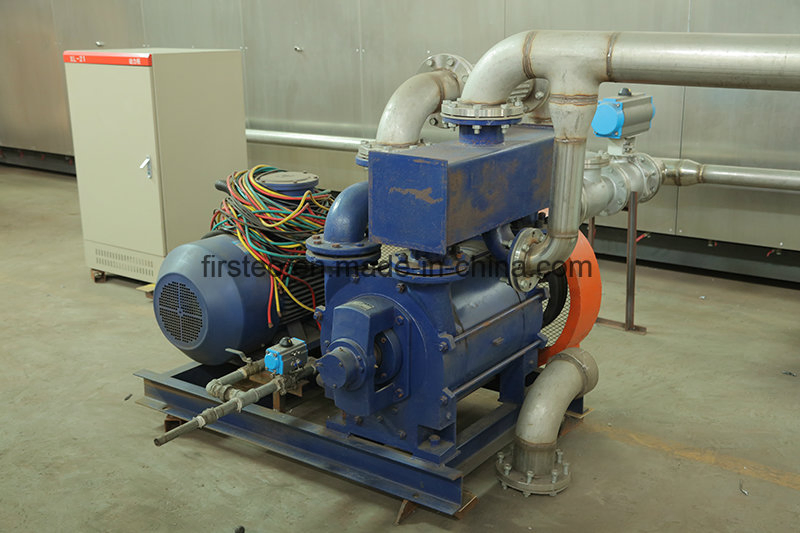

Product Display

E.O. Gas Sterilization Process

Loading: Place goods in the sterilizer and secure the pneumatic door.

Temperature Adjustment: Set to required 50ºC (approx. 1-2 hours).

Pre-Vacuum: Remove air from the chamber (6-30 minutes).

Leak Test: Check air pressure tightness to ensure no gas leaks.

Pre-humidification: Adjust humidity to 55%RH (1-1.5 hours).

Gas Injection: Inject EO gas into the chamber (20-30 minutes).

Sterilizing: Maintain conditions for 4-8 hours.

Residue Removal: Clear residue gas via vacuum (60 Kpa) and air blowing (approx. 1 hour).

Unloading: Unlock door and remove the cart.

Efficiency: Our sterilizer chamber can process two batches of cargo within 24 hours.

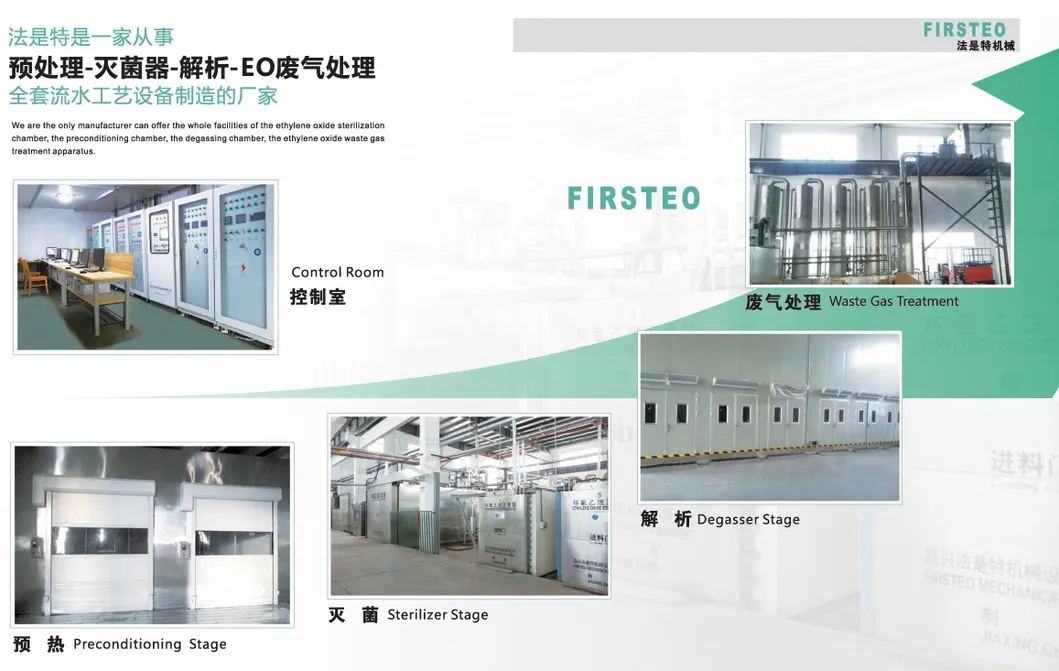

Sterilization Stages

Technical Specifications

Technical Info	Specifications
Machine Type	Ethylene Oxide sterilizers / Sterilization chambers
Chamber Capacity	1 to 100 m3
Chamber Type	Rectangular type, 1 to 13 pallets (80x120cm)
Doors Type	Double doors with pneumatic sliding systems
Chamber Material	Stainless steel (grade 304 or 316)
Heating System	Double jacket with 4 hot water circulation systems
Steam Generator	Integrated steam generator with tank
ETO Vaporizer	High-efficiency Ethylene oxide vaporizer
Electric Energy	380V AC, 50Hz or 60Hz
Software Control	Automatic/Manual, data storage, graphic recorder
PLC	SIEMENS or SCHNEIDER Programmable Logic Controller
Sensors	High-precision Pressure, temperature, humidity sensors

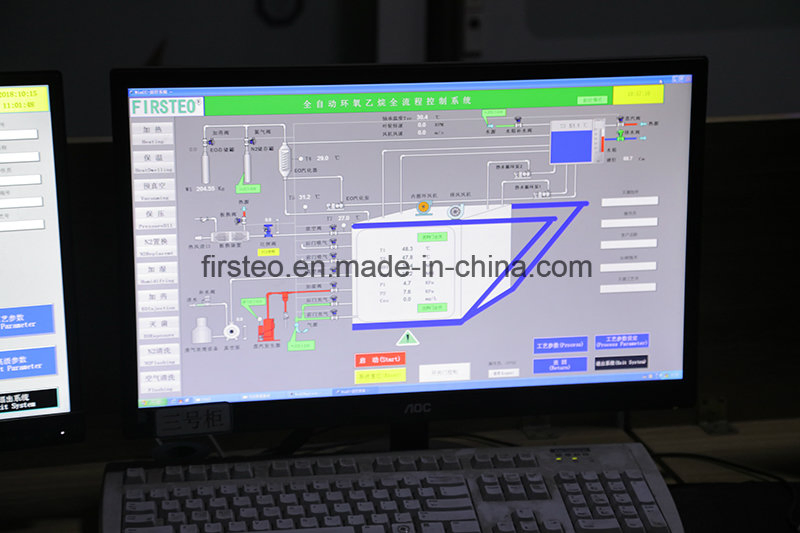

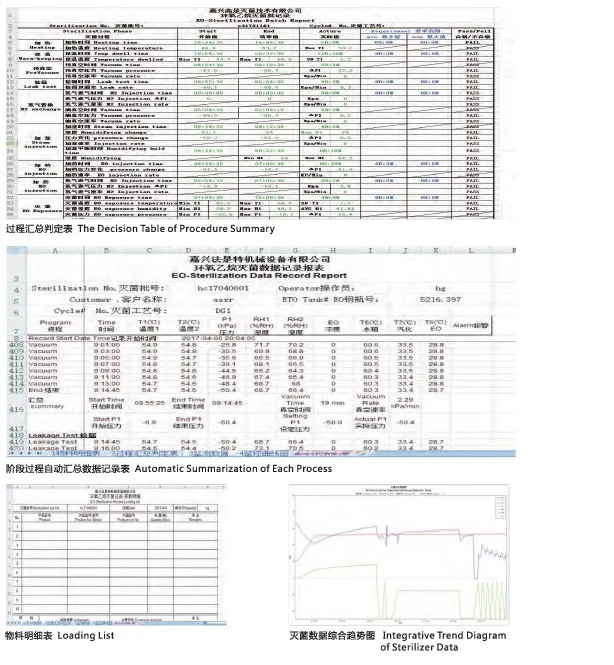

Software & Data Processing

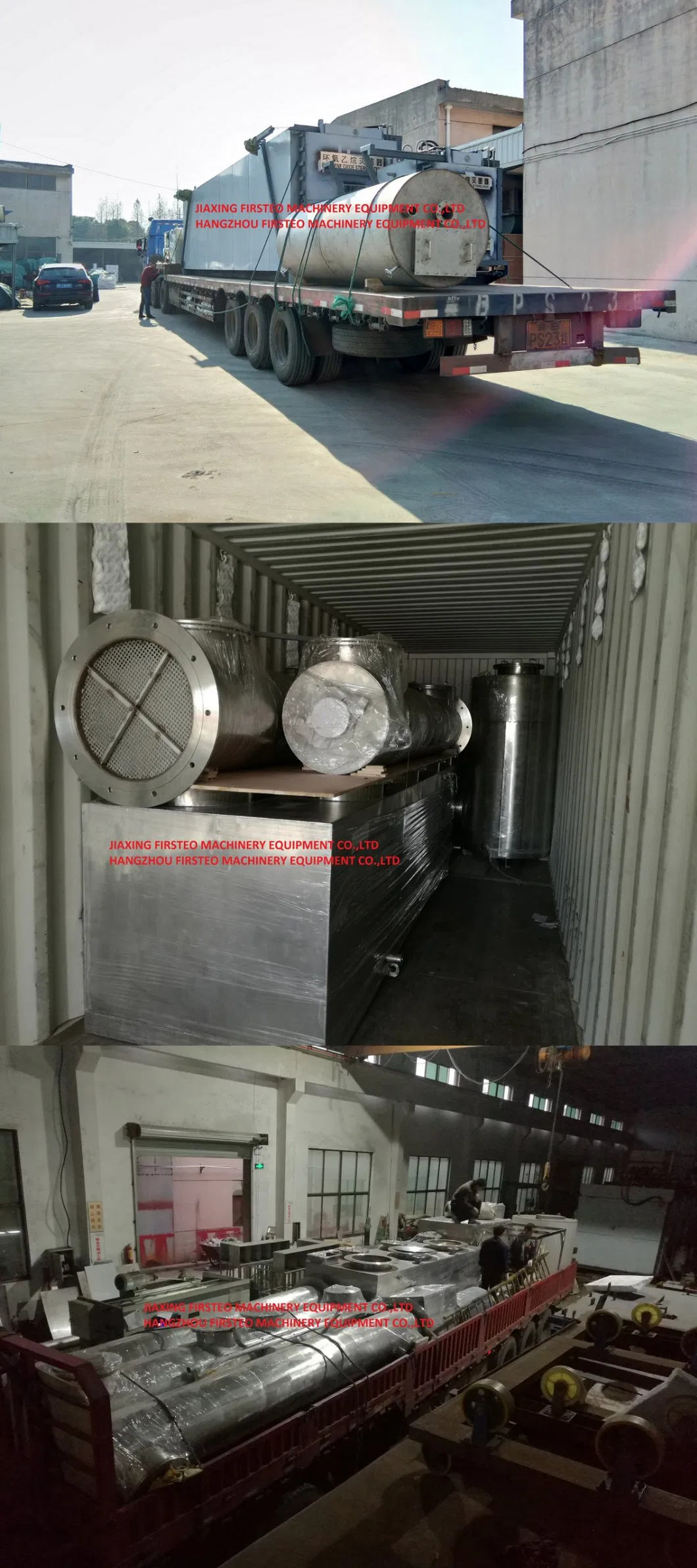

Container Loading

Service & Support

Pre-Sales Service

Drafting technical agreements
Customized technical solutions
Equipment manufacturing to spec

After-Sales Service

Installation and operation training
Overseas engineering service available
Maintenance, repair, and parts supply

Frequently Asked Questions

Q1: What materials are used for the sterilization chamber? A: The chamber is constructed using high-grade Stainless Steel 304 or 316 to ensure durability and corrosion resistance.

Q2: What is the capacity range of your EO sterilizers? A: We offer a wide range of capacities from 1 m3 up to 100 m3, suitable for various industrial needs.

Q3: Does the system provide sterilization records? A: Yes, our software includes automatic data storage and graphic recording for temperature, humidity, pressure, and time.

Q4: What kind of heating system is employed? A: We use a patented hot air heating system and a double jacket with hot water circulation for precise temperature control.

Q5: Is the software compliant with international regulations? A: Yes, we offer optional software qualified for FDA 21CFR Part 11 requirements.

Q6: How many batches can be processed in a day? A: Our high-efficiency design allows for the sterilization of two batches of cargo within a 24-hour period.
