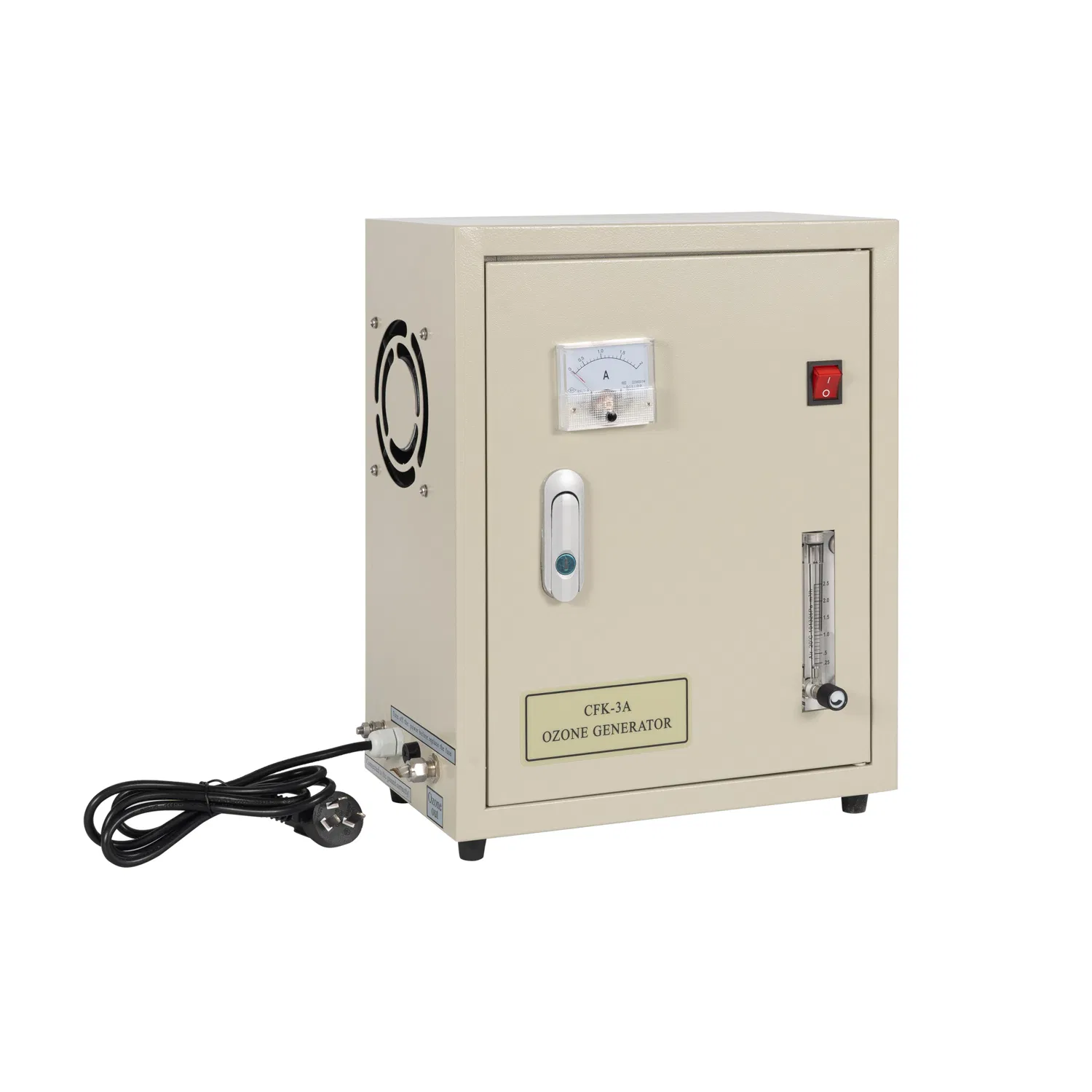

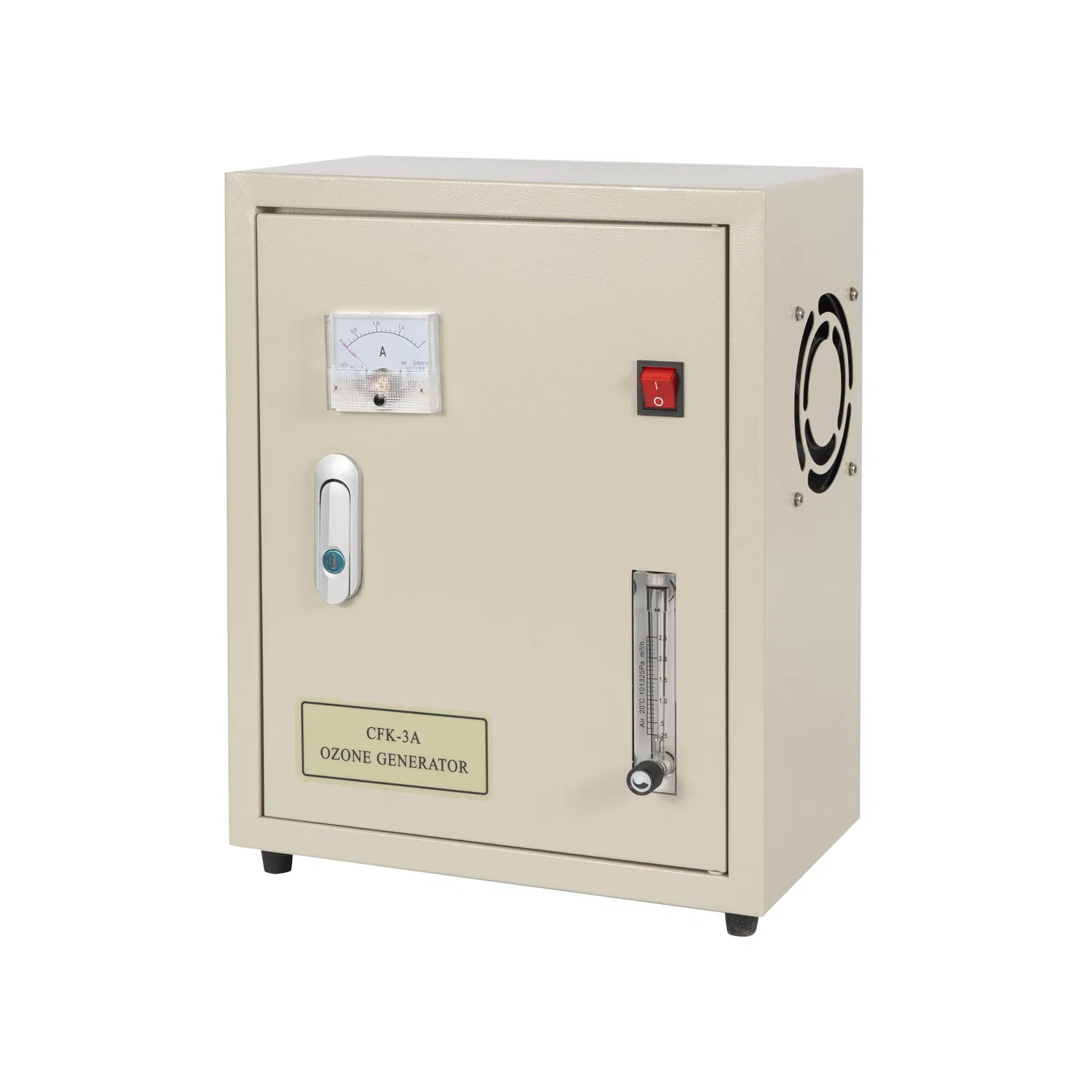

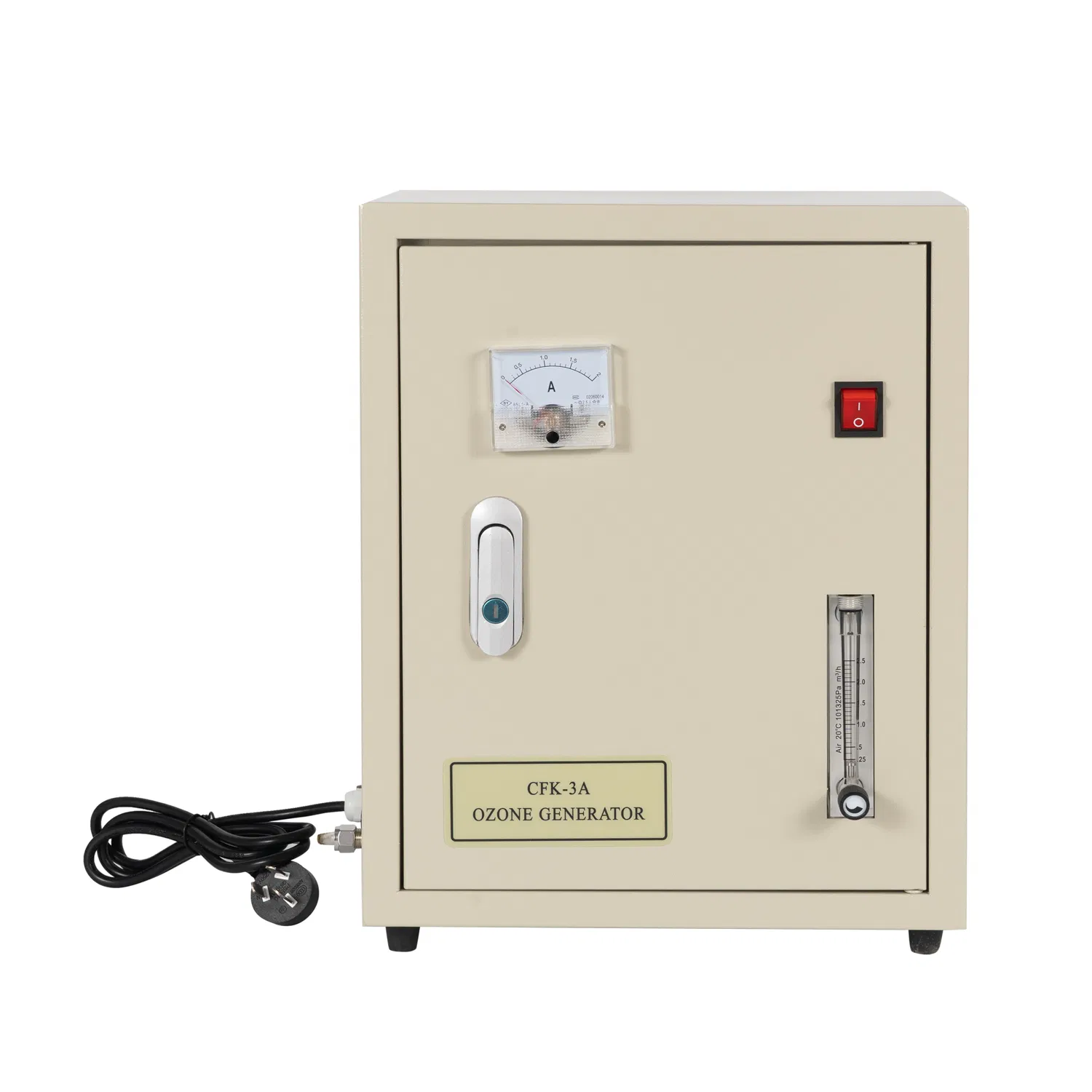

Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
1 / 5
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer
Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer

Cfk-3A Ozone Generator Air Source Air Cooling Plate Type Industrial Disinfection Air Sterilizer

Customization: Available
Certification: CE
Dielectric Material: Ceramic Plate
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CFK-3A
Cooling Method
Air-Cooling
Gas
Air
Frequency
400-1000Hz
Installation
Wall-Mounted
Type
High Pressure Discharge Type
Rated Capacity
3G/H
Rated Power
180W
Origin
China
HS Code
8543709990
⚙️ Product Description
Ozone Generator Overview

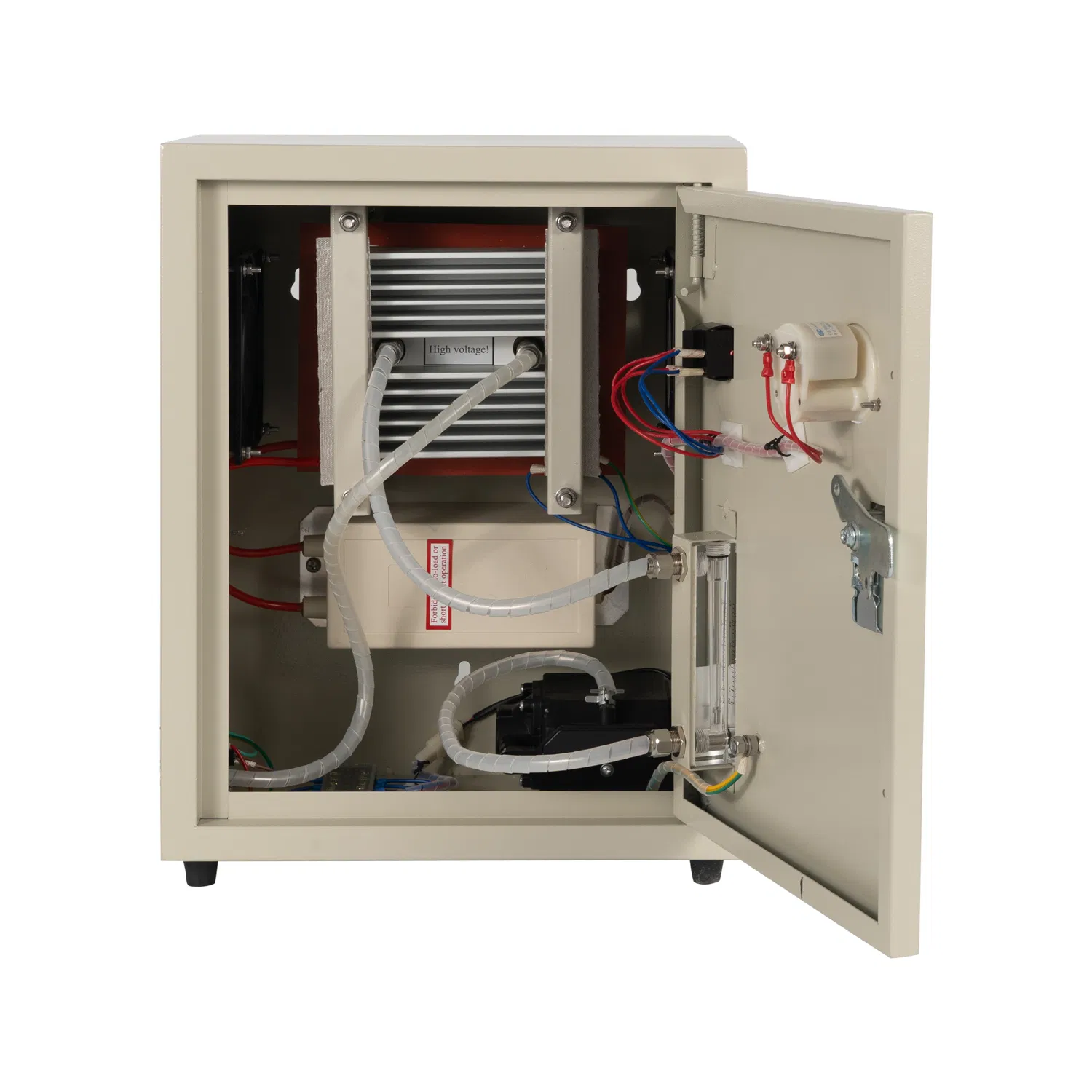

The CFK-3 series ozone generator is composed of an ozone generating unit with a forced air-cooled type, ceramic medium, and a high-frequency high-voltage power module. It utilizes compressed air from a built-in air pump as the gas source, using cooling air to maintain optimal temperatures instead of cooling water.

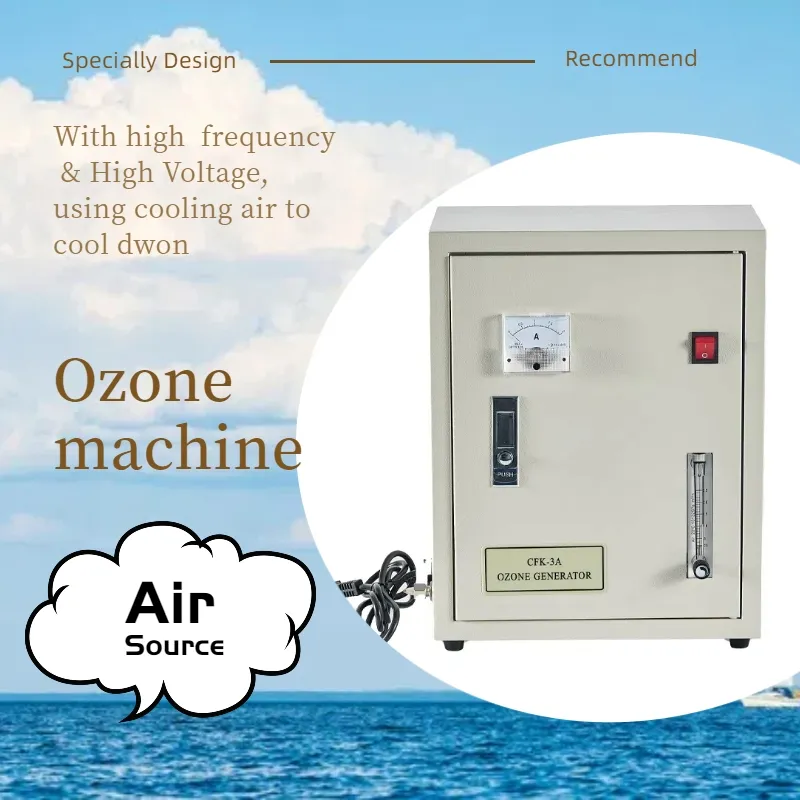

Product Detail
Ozone (O3) is an allotrope of oxygen. Its molecular structure changes easily under normal temperature and pressure, swiftly decomposing into oxygen (O2) and single oxygen atoms (O). Ozone is a highly effective oxidant without secondary pollution. As a strong oxidant and disinfectant, it is widely applied in water treatment, foodstuff, pharmacy, and chemical oxygenation.
Fuse3A
Ammeter Indication0.6A
Shape Dimension350 x 450 x 220 (mm)
Net Weight13.5kg
🔬 Working Principle

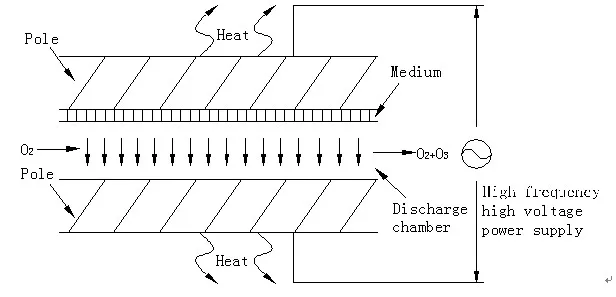

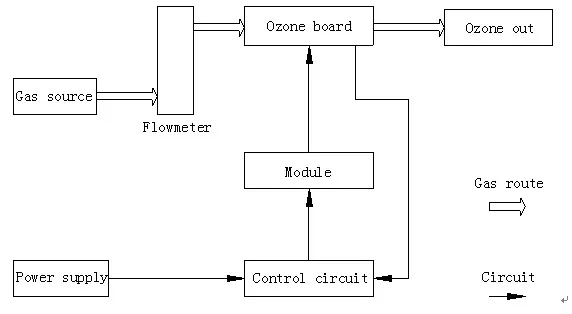

Principle Block Diagram Technical Diagram
🏢 Company Profile & Main Products

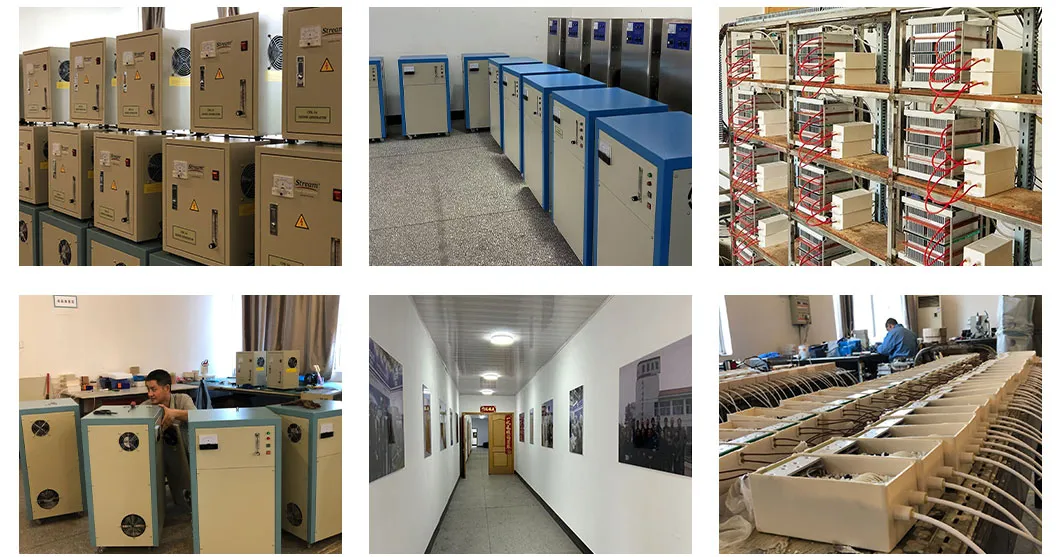

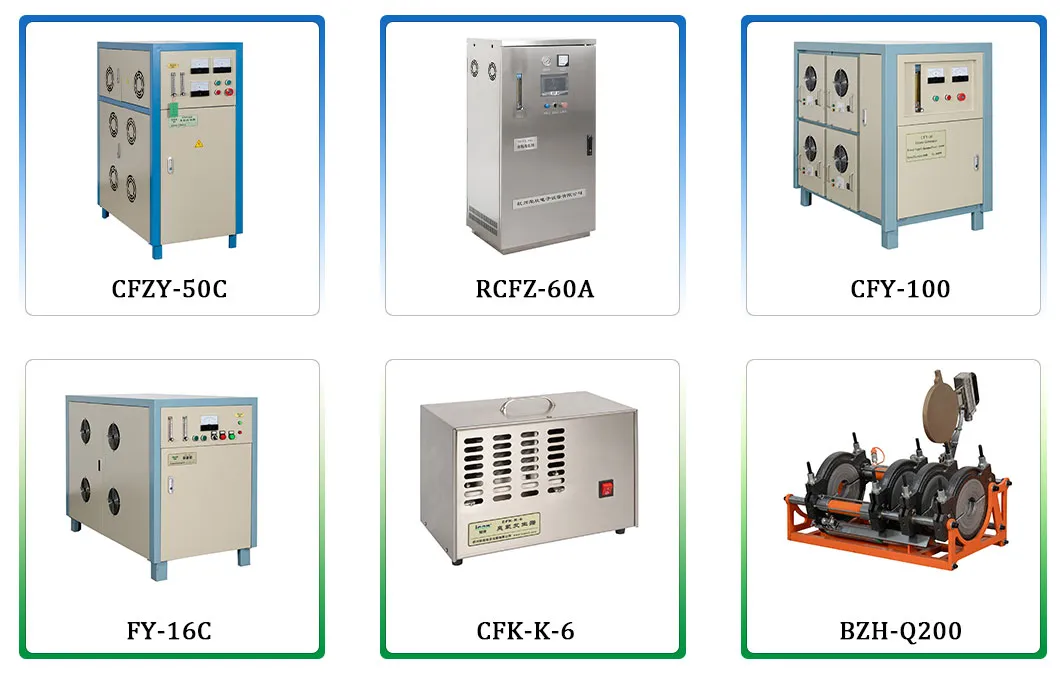

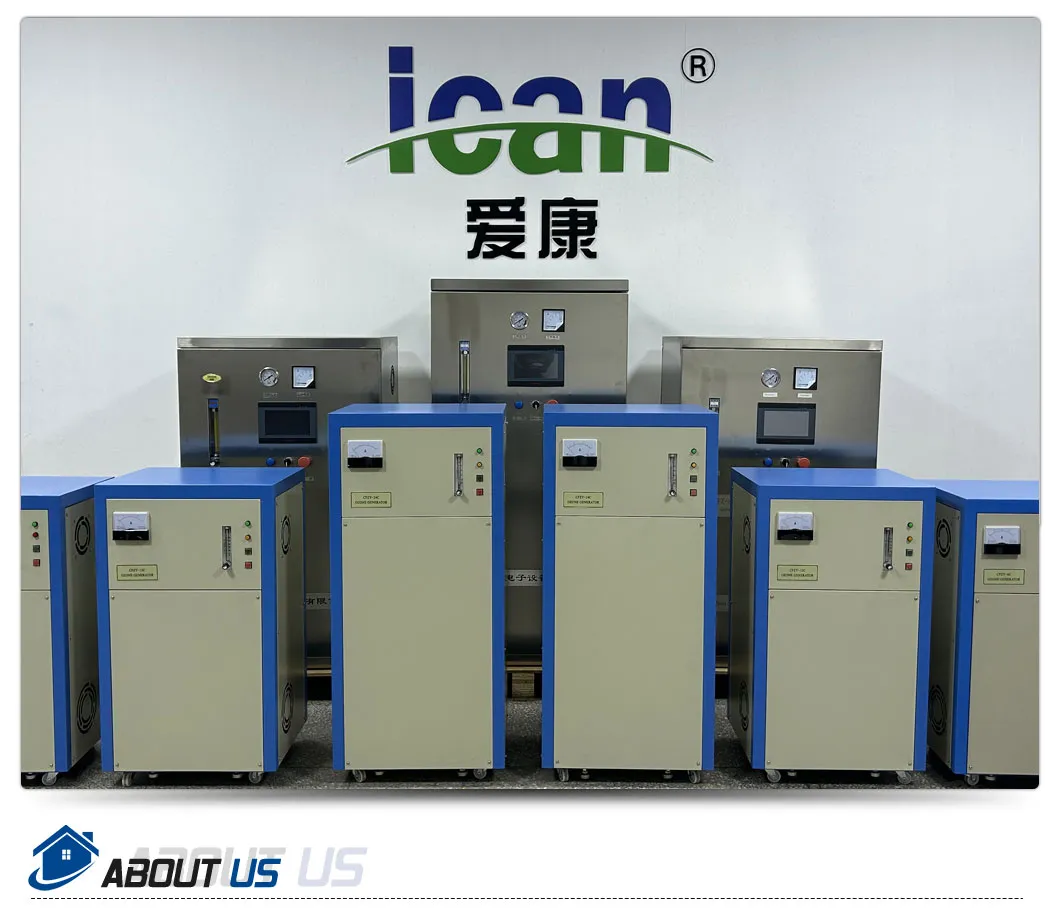

Main Product Range Production Facility
We provide a wide range of ozone generators from 3g/h to 5kg/h, equipped with air and oxygen sources, ozone water treatment devices, ozone destroyers, and oxygen generators. Additionally, we offer ozone testers and mixing devices such as Venturi mixers and mixing towers. Our products hold CE and health approval documents, serving clients across the Americas, Africa, Europe, and Asia.
🏆 Corporate Advantages & Certificates
Corporate Advantage Technical Advantage
Certificate 1 Certificate 2
📦 Exhibition & Logistics
Exhibition Packaging and Shipping
❓ Frequently Asked Questions
1. What should I do if the machine doesn't work?
Please check if the power supply matches the rated power supply of the machine and ensure the machine fuse is intact.
2. What should I do if the machine is working but there is no current?
Please inspect the high-voltage power module and the fuse for any faults.
3. What should I do if I find that the device current is too low?
It is recommended to replace the high-voltage power module or the ozone board core to restore normal levels.
4. What should I do if the oxygen concentration is low?
Please check and replace the oxygen adsorption tank to ensure proper concentration.
5. How often should the ozone generator be maintained?
Maintenance depends on usage, but generally, the air filters and ozone components should be inspected every 3-6 months.
6. Is the installation process difficult?
The CFK-3A is designed for wall-mounted installation, making it space-efficient and relatively simple to set up in industrial environments.
