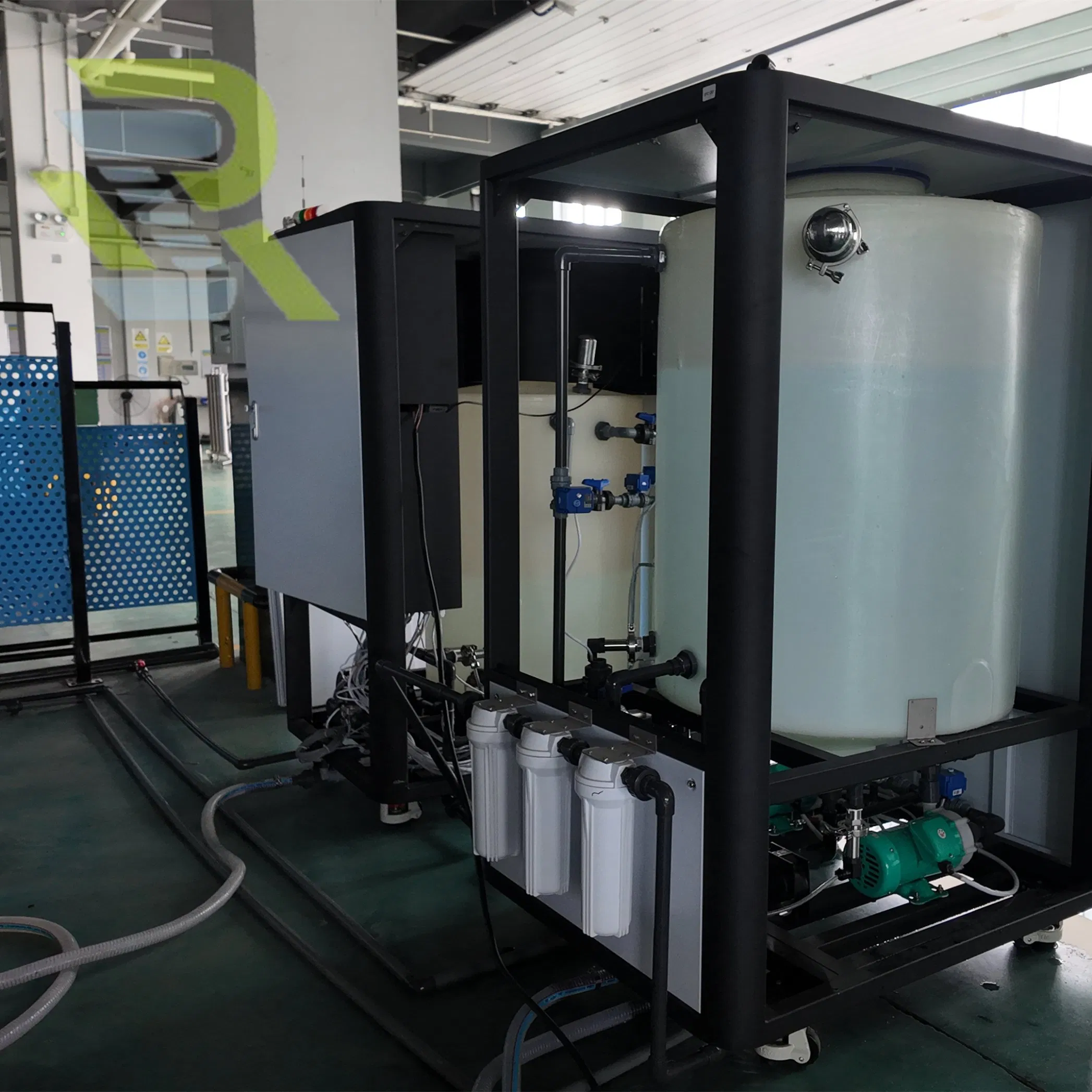

China Blood Dialysis Water Purification Equipment, Custom Auto Disinfection Dialysis System, Reverse Osmosis Dialysis Medical Grade Machine

1 / 5

China Blood Dialysis Water Purification Equipment, Custom Auto Disinfection Dialysis System, Reverse Osmosis Dialysis Medical Grade Machine

Customization:	Available
Customized:	Customized
Certification:	CE, FDA, ISO13485

Send Inquiry

Product Description

Product Overview

Model NO.	HHHD	Colour	Transparent
Type	Blood Analysis Water Device	Ion Removal Rate	Above 99.5%
Endotoxin Removal	Above 99.9%	Bacterial Count	Below 10 Cfu/Ml
Standards	AAMI/Asaio, YY0572-2015	Disinfection	Pasteurization (90°C)
RO Host	Two-Stage RO System	Capacity	100-5000 LPH

Product Description

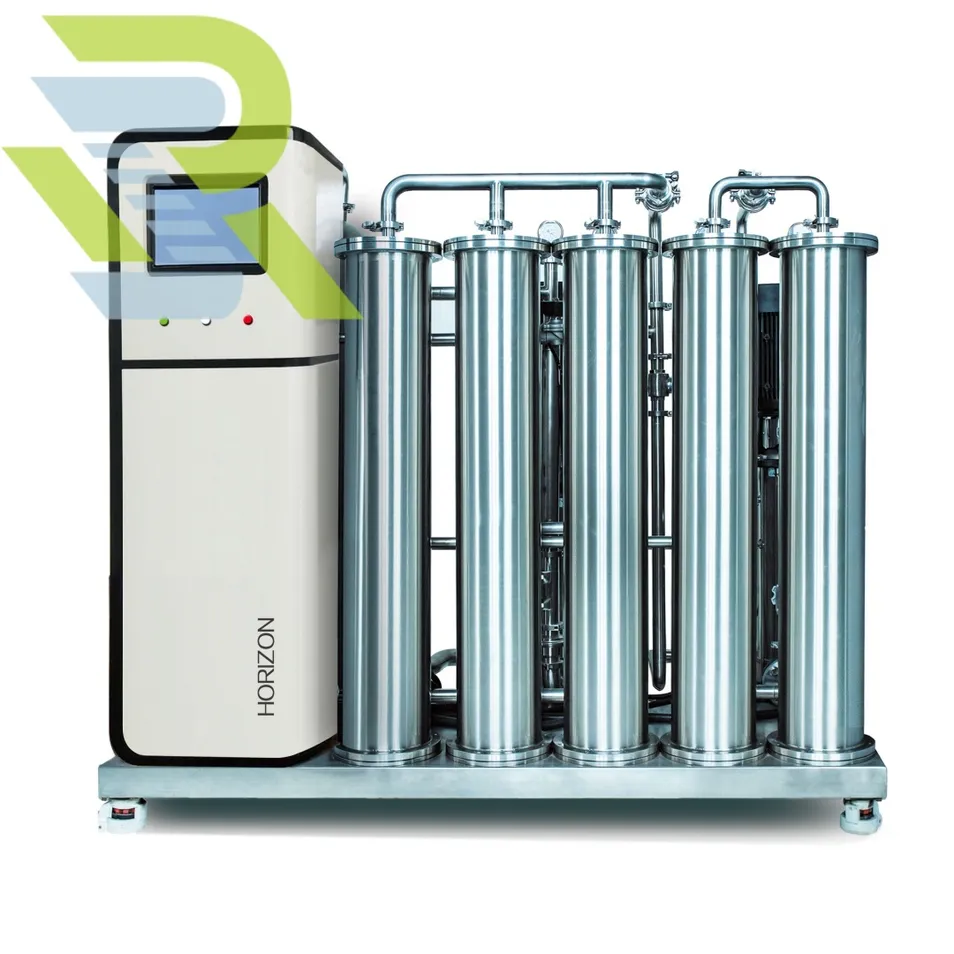

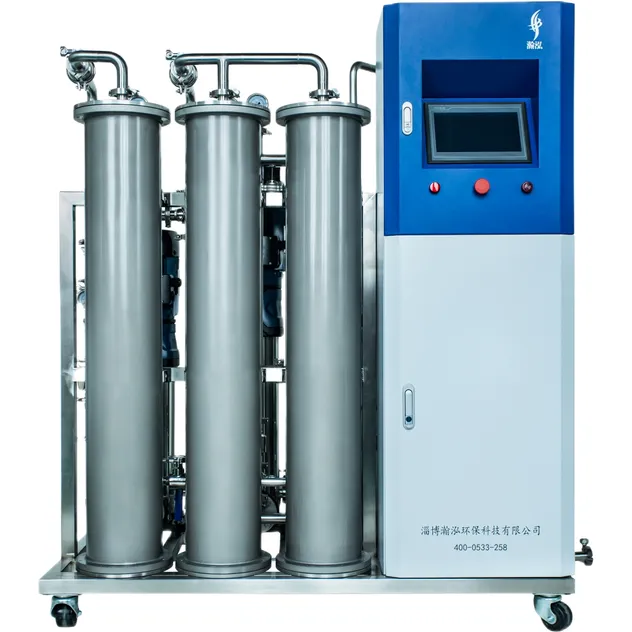

💠 Hematodialysis Water Treatment System

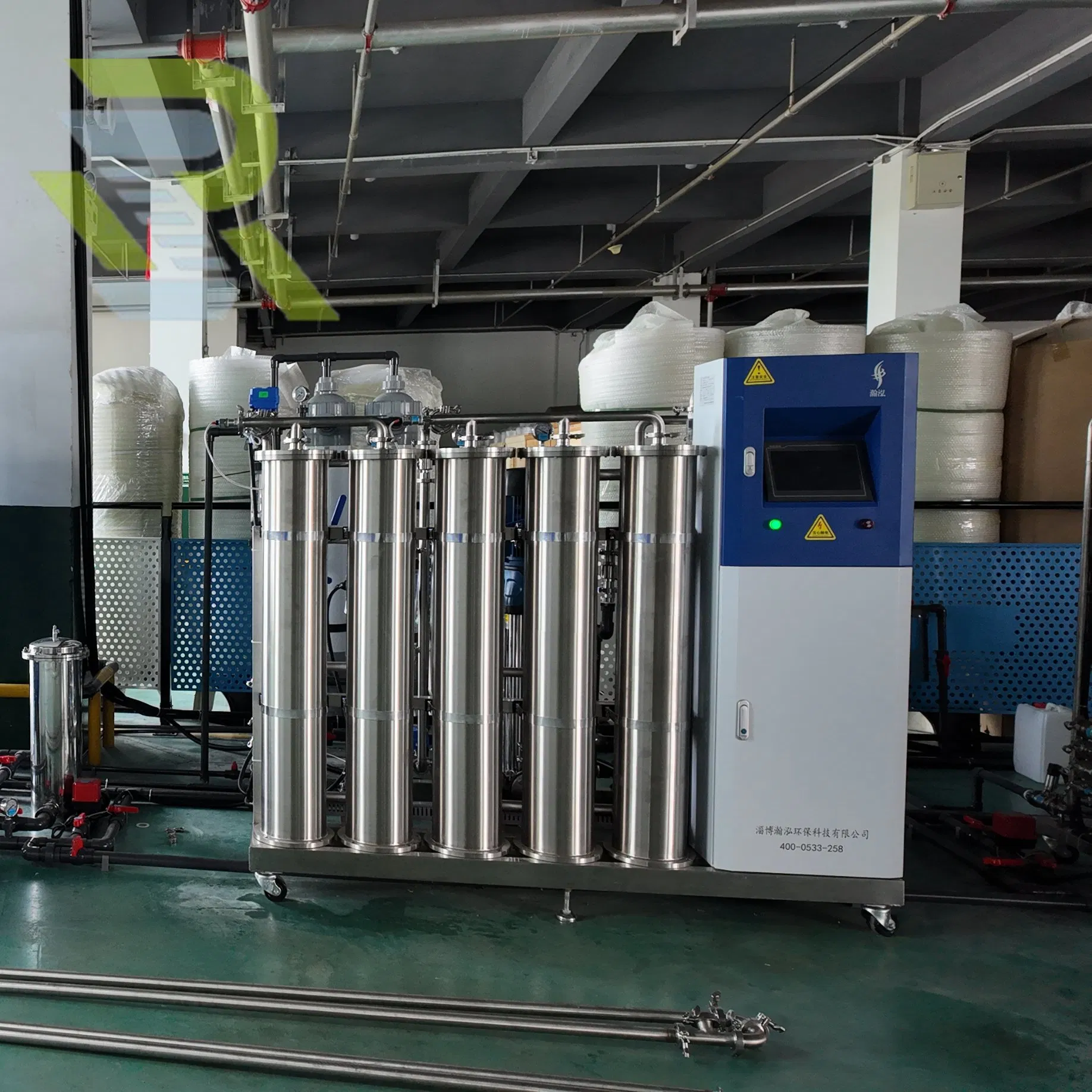

The HHHD-RO water treatment equipment is specifically designed for hospital hemodialysis rooms and centers, meeting the stringent water quality requirements essential for safe and effective hemodialysis treatment. This advanced system is fully compatible with a wide range of domestic and international dialysis machines, ensuring seamless integration into any dialysis facility.

✅ Key Performance Standards:

Comply with YY0572-2015 and YY0793-2010 standards
Meet AAMI/ASAIO American standards
Ion removal rate: ≥ 99.5%
Bacterial endotoxin removal rate: ≥ 99.9%
Total bacterial count ≤ 10CFU/ml
Endotoxin < 0.03EU/ml

Technical Specifications

Model	Water Output (L/H)	Power (Kw)	Beds Capacity	Dimension (mm)
HHHD-RO-300	300	4.0	3-7 Sets	900x750x1600
HHHD-RO-600	600	5.0	5-15 Sets	1500x750x1750
HHHD-RO-1000	1000	7.0	10-25 Sets	1500x750x1750
HHHD-RO-1500	1500	10.0	20-40 Sets	1200x750x1750
HHHD-RO-3000	3000	12.0	40-80 Sets	1500x800x1750

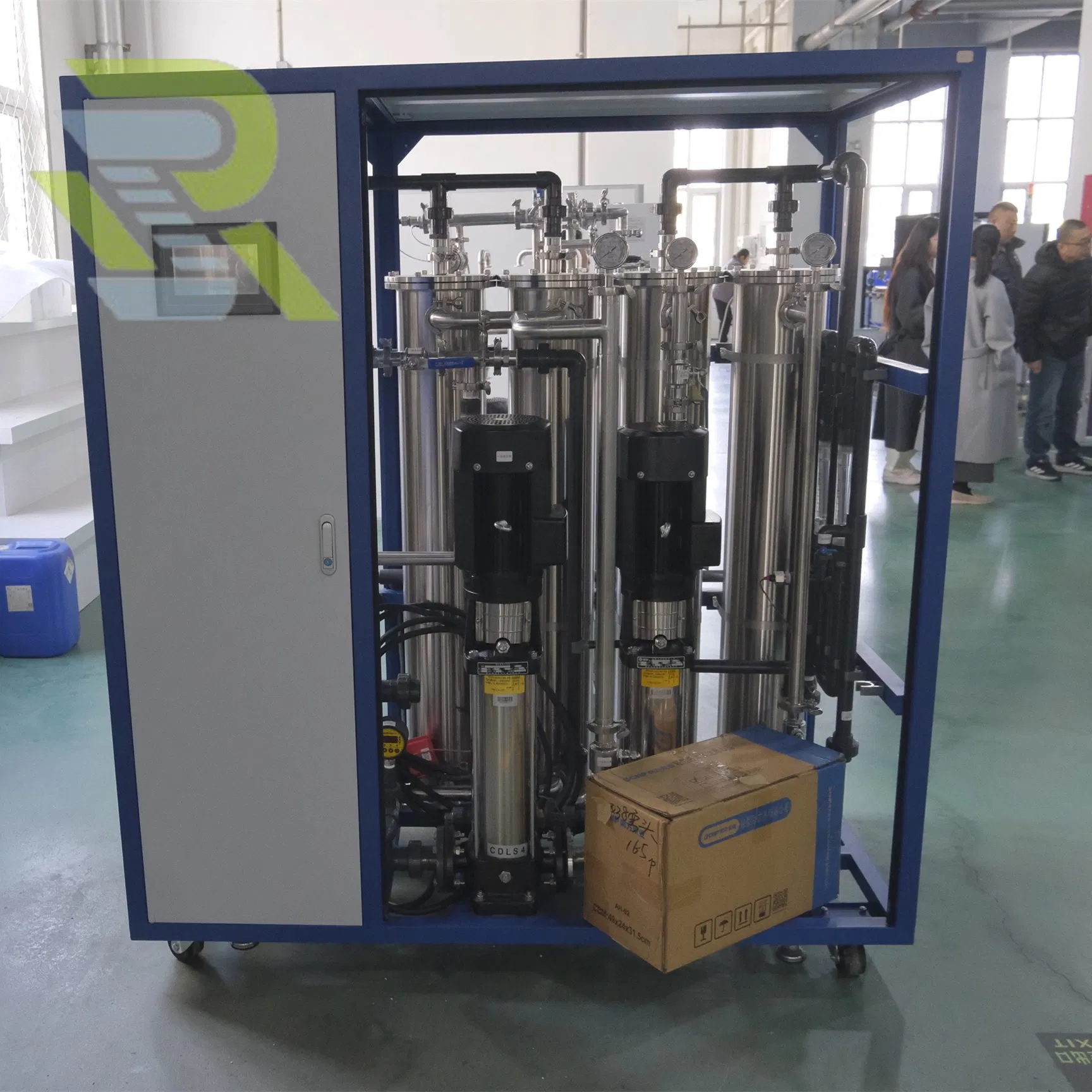

System Components

Automatic Pretreatment System: Includes booster pump, multi-media filter, activated carbon filter, and water softener.

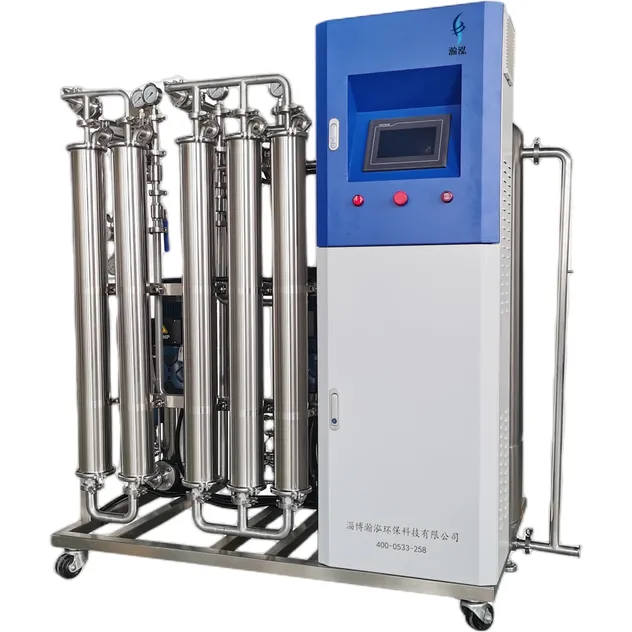

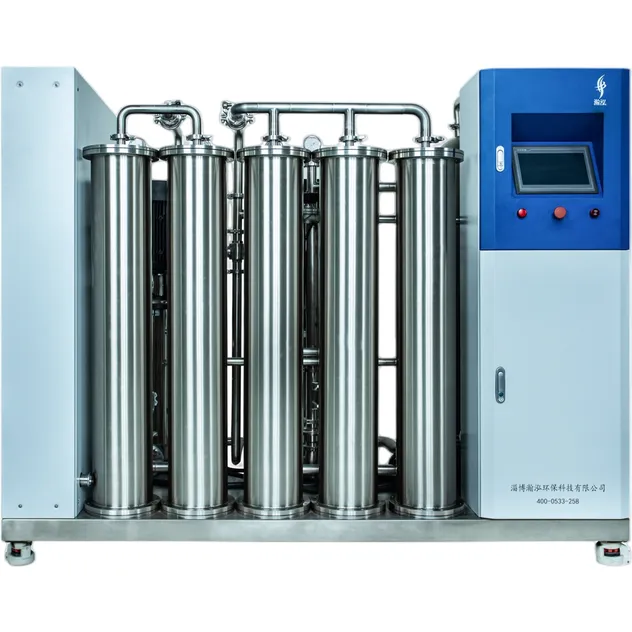

Reverse Osmosis Host: Two-stage RO design with concentrate water recycling and integrated automatic control.
Water Distribution Loop: U-type circulation loop to maintain constant flow velocity and prevent bacterial growth.
Disinfection System: Options for Chemical Disinfection or Pasteurization (90°C).
Remote Monitoring: Real-time supervision via mobile phone or computer.

Advanced Technical Features

🛡️ Bacteria & Endotoxin Control

Zero Dead-Leg Design: 3D principle technology eliminates water stagnation.
Turbulent Flow: Circulation velocity >1 m/s inhibits bacterial attachment.
Ultra-pure Technology: High-efficiency endotoxin removal process.

⚙️ Operation & Safety

Intelligent PLC: Real-time monitoring of conductivity, temperature, and pressure.
Dual Pipeline: Ensures safe and continuous liquid supply.
Emergency System: Red mushroom button for immediate shutdown and remote alarms.

Packing & Delivery

After Sales Service

On-site Training: Hands-on training for medical staff on operation and maintenance.
Technical Support: Provision of operation manuals, repair guides, and software upgrades.
Regular Follow-up: Quarterly performance checks and monitoring.
Global Support: Online technical assistance and video guidance for international orders.

Certifications

❓ Frequently Asked Questions

1. What water quality standards does this system meet? The system complies with YY0572-2015 and YY0793-2010 hemodialysis water quality standards, as well as American AAMI/ASAIO standards.

2. What is the efficiency of the purification process? It features an ion removal rate of ≥ 99.5% and a bacterial endotoxin removal rate of ≥ 99.9%.

3. How does the system prevent bacterial growth? The system utilizes a "Zero Dead-Leg" design and a U-type circulation loop that maintains a flow velocity of over 1 m/s to prevent water stagnation and biofilm attachment.

4. What disinfection methods are available? The system supports both Chemical Disinfection and Pasteurization (Thermal disinfection at 90°C) to ensure high-level sterility.

5. Can the system be monitored remotely? Yes, it includes a remote monitoring system that allows real-time supervision of operating parameters via mobile phones or computers.

6. How do I choose the right capacity for my hospital? Capacity is typically based on the number of beds. For example, 300LPH supports 3-7 beds, while 1000LPH can support 10-25 beds. We can provide specific suggestions based on your bed quantity.
