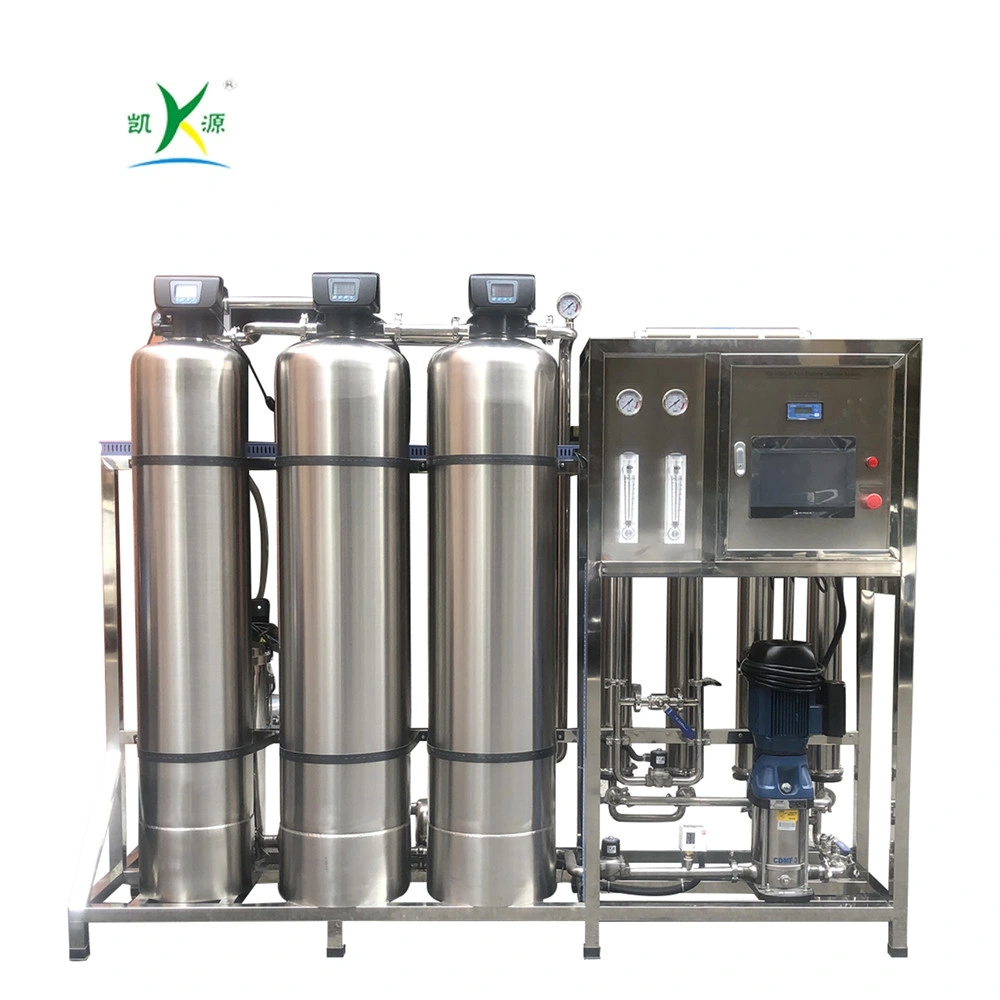

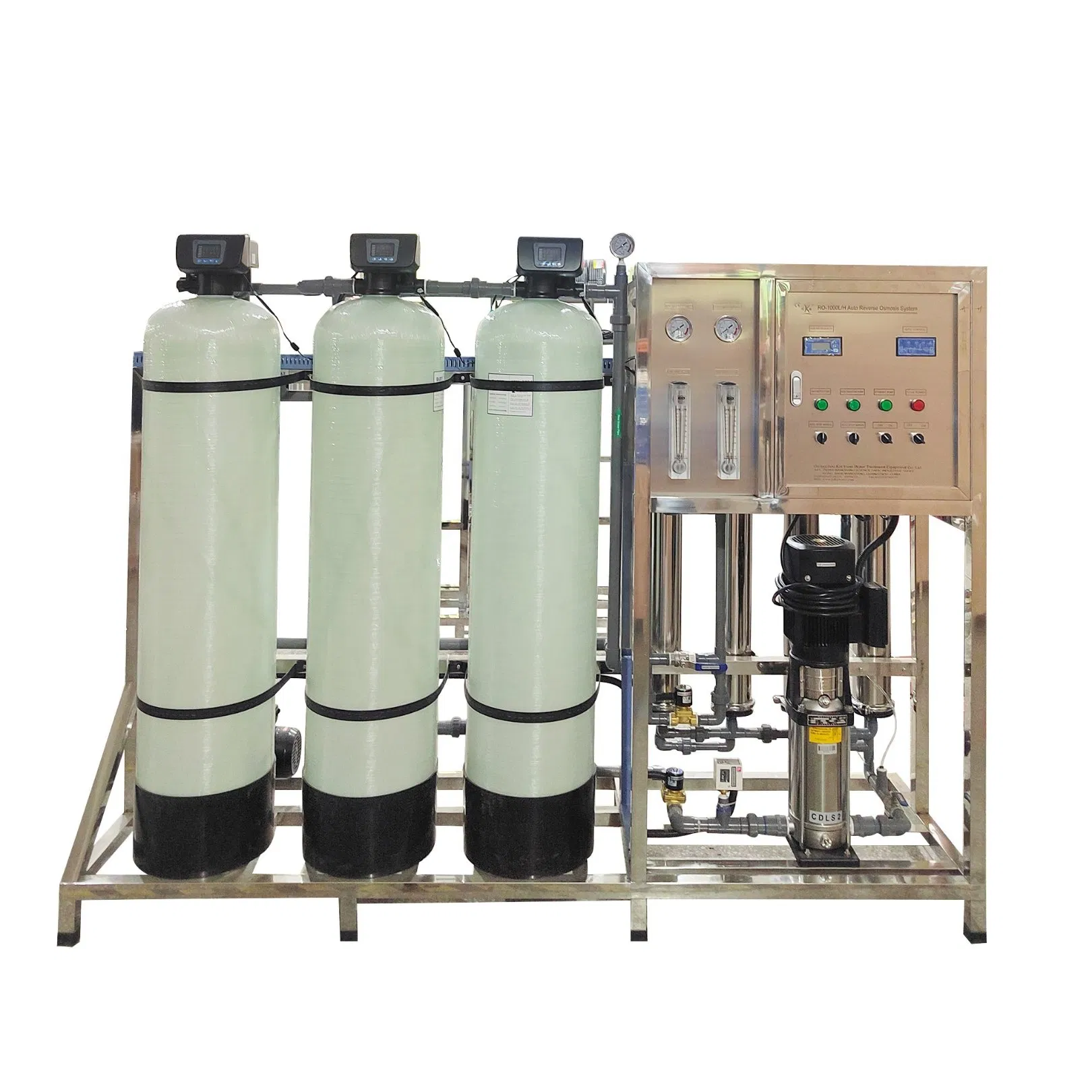

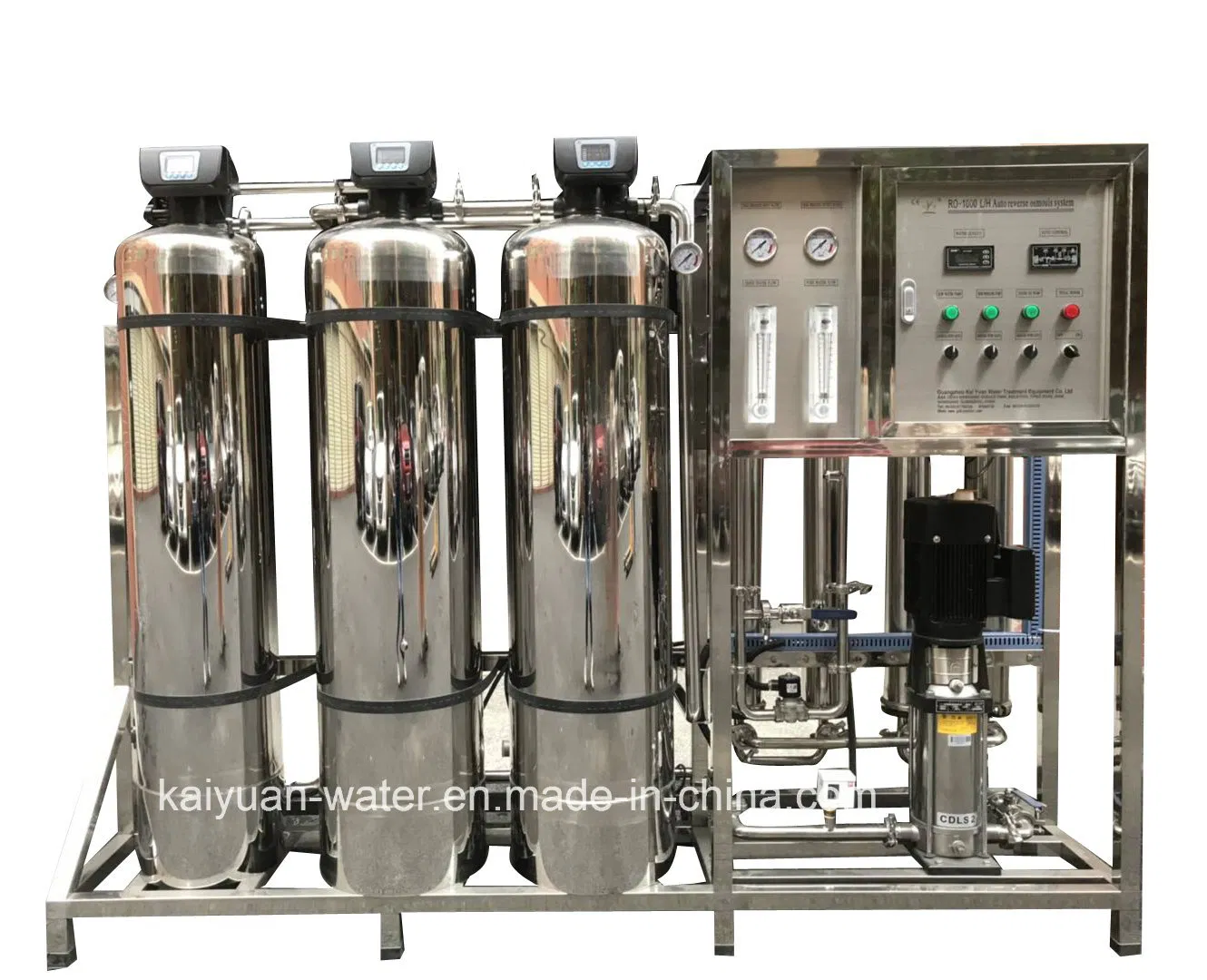

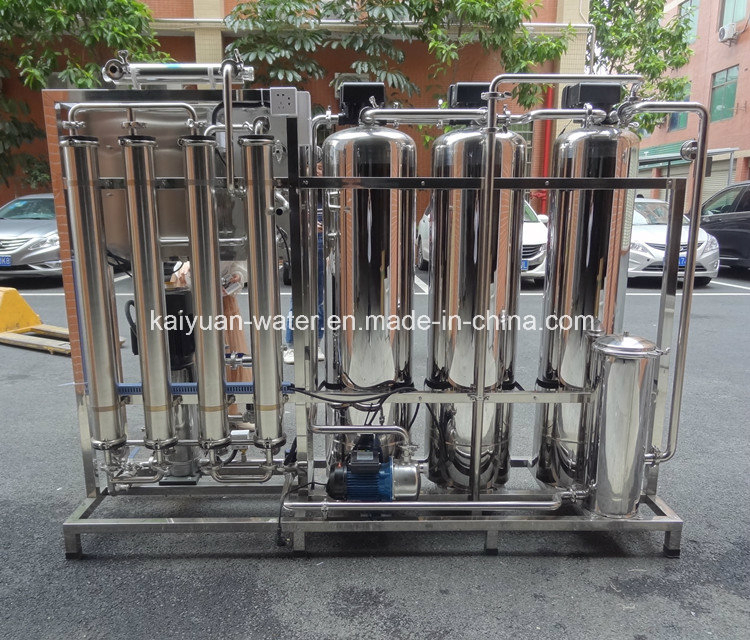

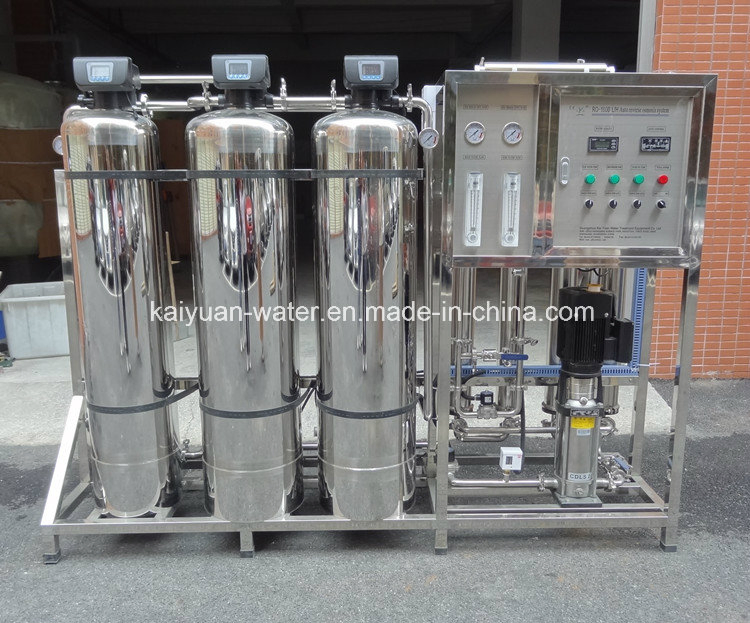

Stainless Steel 1000lph Automatic water desalination reverse osmosis plant dialysis reverse osmosis salt water treatment system water purifier machine cost
The reverse osmosis (RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi-permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. in the raw water. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater.
| Raw water / Application | Bottled water | City tap water | Brackish water | Seawater |
|---|---|---|---|---|
| TDS Range | 2-10ppm | 100-1000ppm | 2000-20000ppm | 20000-40000ppm |
| Direct Drinking | Yes | Yes/No | No | No |
| Cooking/Consumption | Yes | Yes | No | No |

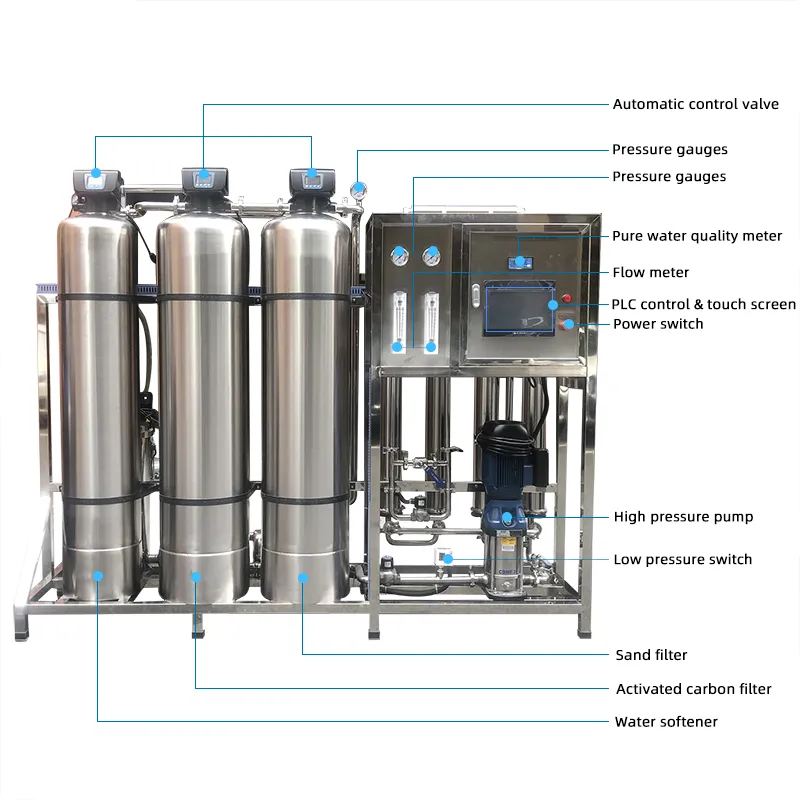

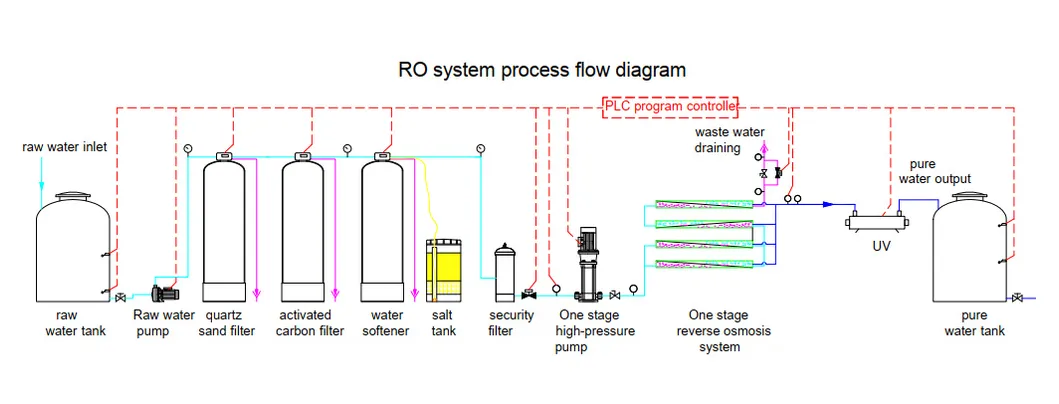

Raw water pump → mechanical filter (quartz sand filter) → activated carbon filter → sodium-ion exchanger (water softener) → security filter → high pressure pump → Reverse osmosis → Ozone sterilizer (UV sterilizer).
| Model | KYRO-1000 |
|---|---|
| Production Capacity | 1000 L/Hr |
| Power | 2.5KW |
| RO Membrane | LCLE-4040 4pcs USA DOW |
| Membrane Housing | FRP 4040 4pcs |
| Quartz Sand Filter | 350 × 1350 Stainless Steel SUS-304 |
| Size (mm) | 2310 X 630 X 1840 |
| Model | Flow Rate (L/h) | Power (KW) | Efficiency | Membrane |
|---|---|---|---|---|
| KYRO-250 | 250 | 1.5 | ≥ 15% | 4040 |
| KYRO-500 | 500 | 1.5 | ≥ 50% | 4040 |
| KYRO-1000 | 1000 | 2.5 | ≥ 50% | 4040 |
| KYRO-2000 | 2000 | 3.5 | ≥ 50% | 4040 |
| KYRO-5000 | 5000 | 7.5 | ≥ 50% | 8040 |
| KYRO-10T | 10T/H | 19 | ≥ 60% | 8040 |
