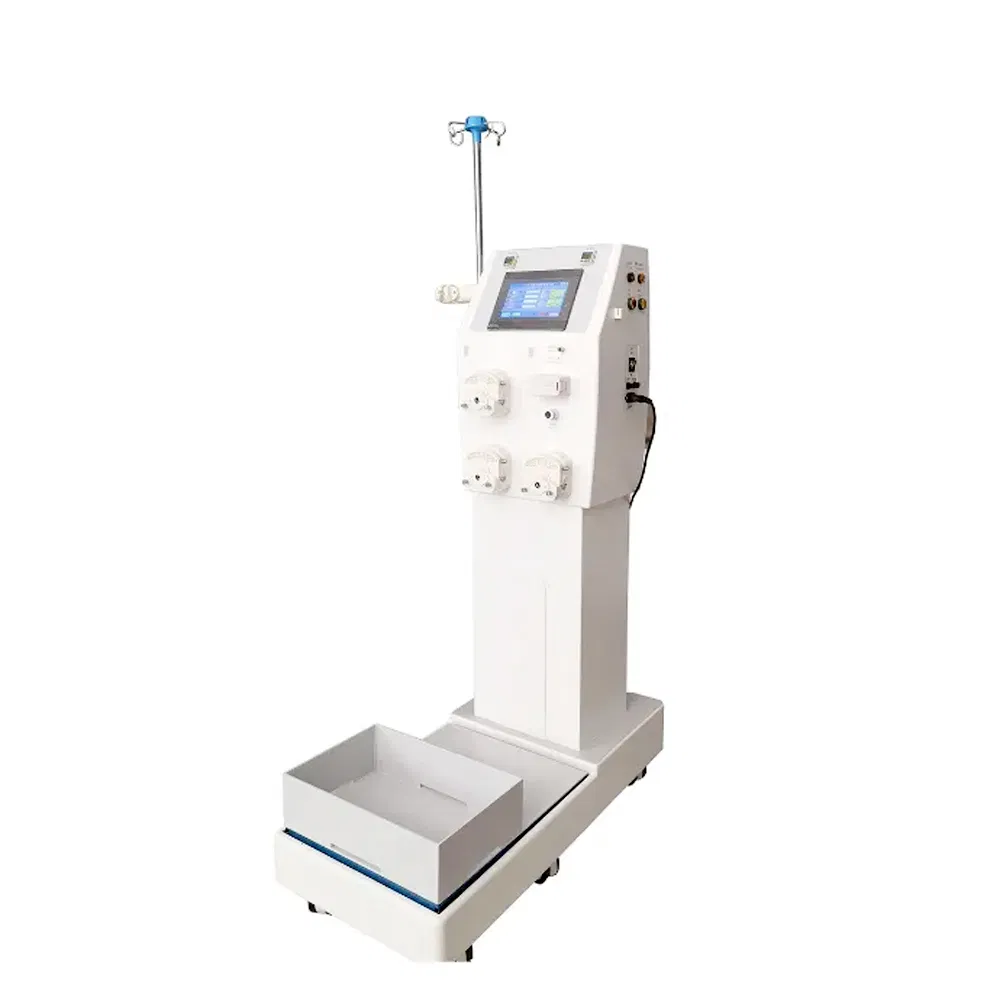

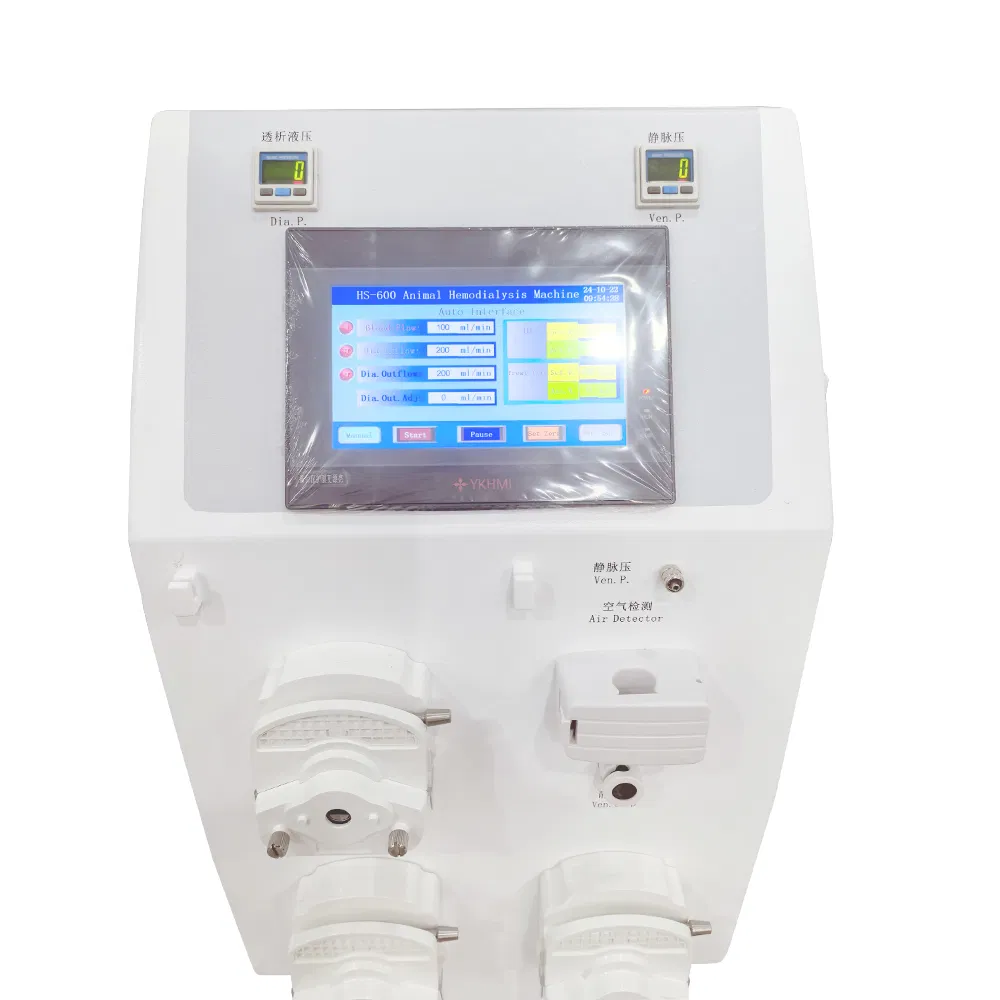

My-W081 Veterinary Hemodialysis Machine Animal Dialysis Equipment Clinical Analytical Instrument

Customization: Available
Certification: ISO13485
Colour: White

Product Description

Basic Specifications

Model NO.
MY-W081
Device Type
Ingredients Blood Transfusion Device
Category
Veterinary Hemodialysis Machine
Color
White
MOQ
1 Unit
Dimensions
97*55*150cm
Origin
China

Technical Performance & Parameters

MY-W081 Veterinary Hemodialysis Equipment

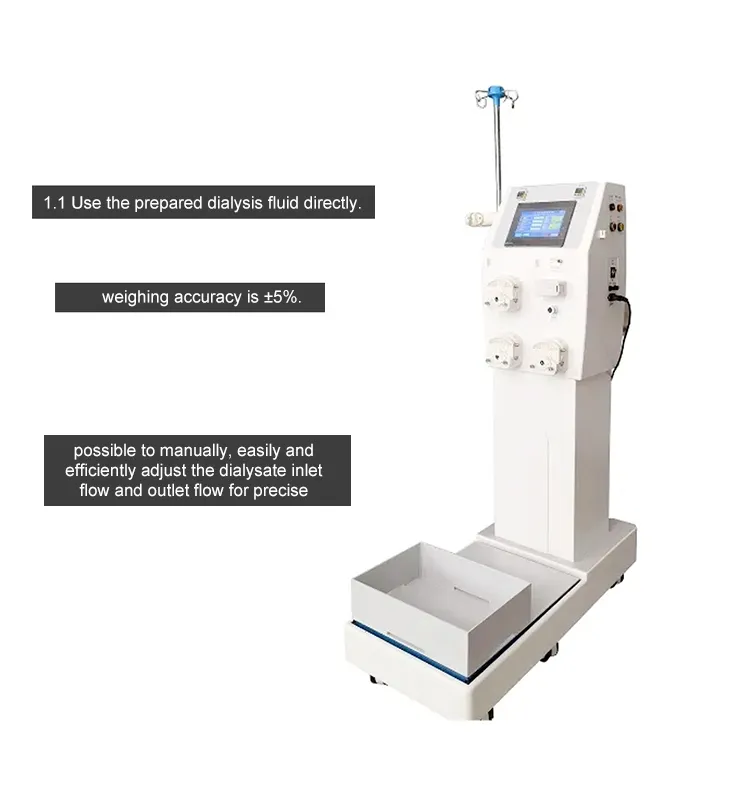

  • Direct Fluid Usage: Supports the use of prepared dialysis fluid directly for streamlined operations.
  • Precision Control: Utilizes weighing to control ultrafiltration volume with an accuracy of ±5%.
  • Dual Pump System: Equipped with dialysate inlet and outlet pumps for manual, efficient adjustment of flow rates.
  • Small Animal Support: Extracorporeal circulation volume as low as 30ml; blood flow rate controllable at 1ml/min, suitable for animals as small as 3kg.
  • Safety & Hygiene: Uses disposable consumables; no direct contact between blood/dialysis fluid and the machine, eliminating cross-infection risks.

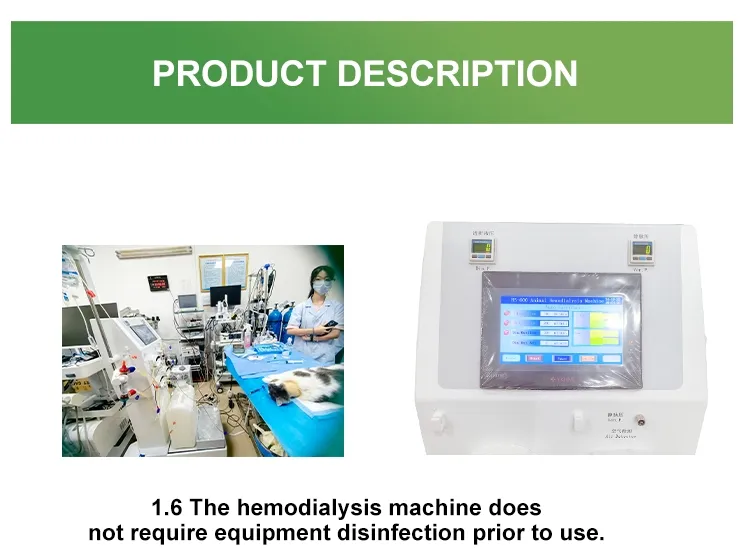

  • Efficiency: No equipment disinfection required prior to use due to the closed consumable system.
  • Adjustable Pumps: Blood pump range 1mL/min~250mL/min; Liquid pump range 2mL/min to 600mL/min.
  • Monitoring & Alarms: Features intravenous and dialysis pressure monitoring with integrated audible and visual alarm systems.

Frequently Asked Questions

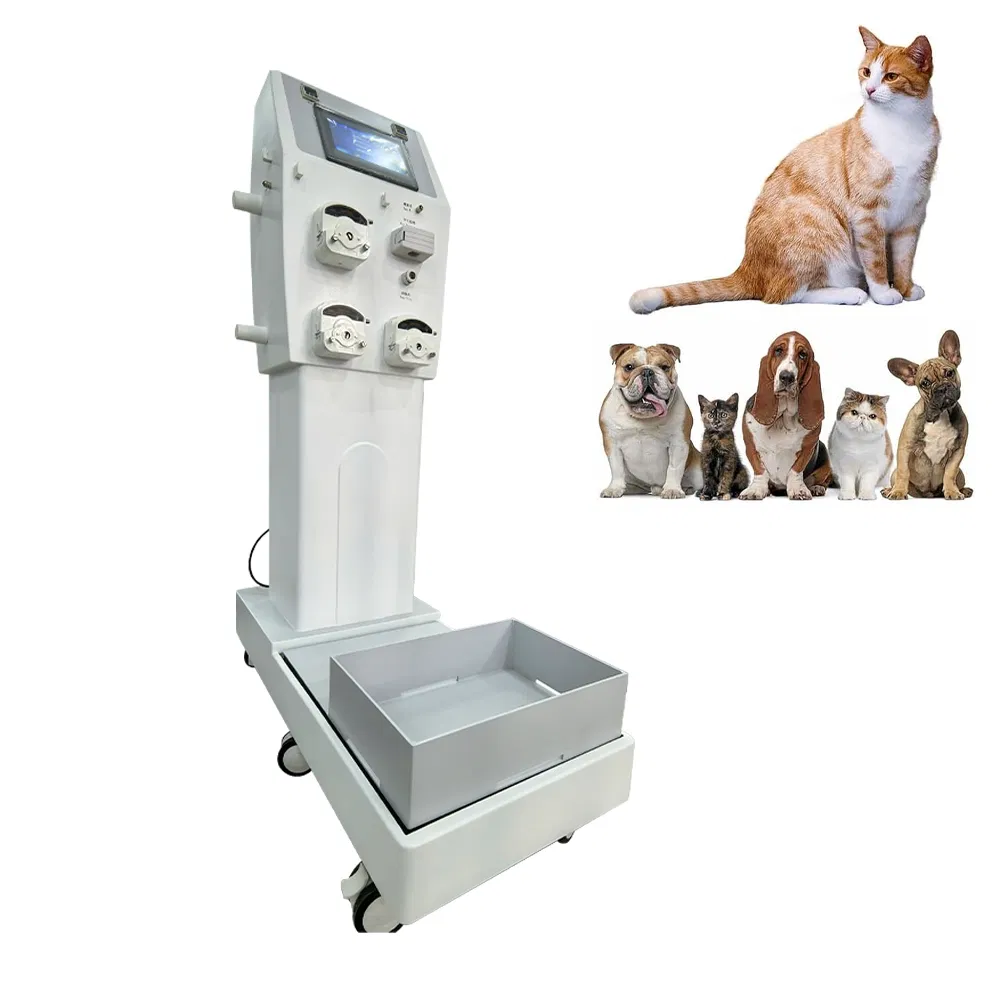

Q: What size of animals is the MY-W081 suitable for? A: The machine is designed for small blood volumes. With a flow rate as low as 1ml/min and a 30ml extracorporeal volume, it can safely treat animals as small as approximately 3kg.
Q: Does the machine require complex disinfection between patients? A: No. Because it uses disposable consumables and there is no direct contact between the machine and the fluids, no disinfection is required prior to use.
Q: How accurate is the ultrafiltration control? A: The system uses a weighing method to control ultrafiltration with a high accuracy of ±5%.
Q: What are the flow rate ranges for the pumps? A: The blood pump range is 1mL/min to 250mL/min, and the liquid pump range is 2mL/min to 600mL/min, both with a step value of 1mL/min.
Q: What safety features are included for pressure monitoring? A: The machine includes an intravenous pressure and dialysis hydraulic monitoring system. If parameters exceed limits, it triggers both audible and visual alarms.
Q: Can the defoamer fluid level be adjusted during treatment? A: Yes, the defoamer fluid level is fully adjustable to meet specific clinical requirements during the procedure.
