Customization: Available
Theory: Pressure Steam
Type: Pressure Steam Sterilization Equipments
Send Inquiry

Product Description

Basic Specifications
Model NO.
14L 17L 23L
Certification
CE, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Stainless Steel
Operation
Automatic
Classification
Class B
Style
Table Top
HS Code
8419200000
Capacity
14L, 17L, 23L
Product Features & Advantages

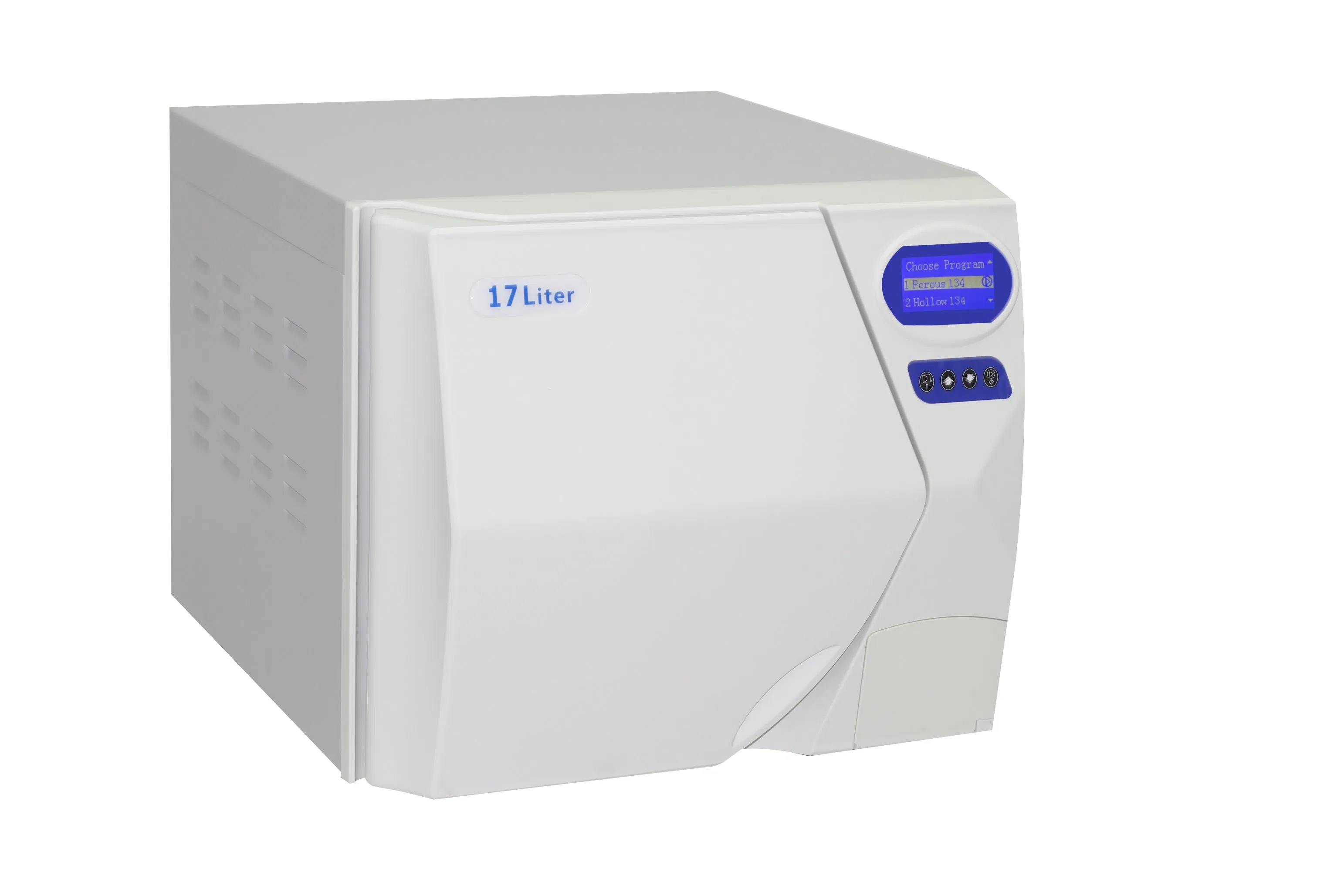

14L 17L 23L Autoclave Steam Sterilizer

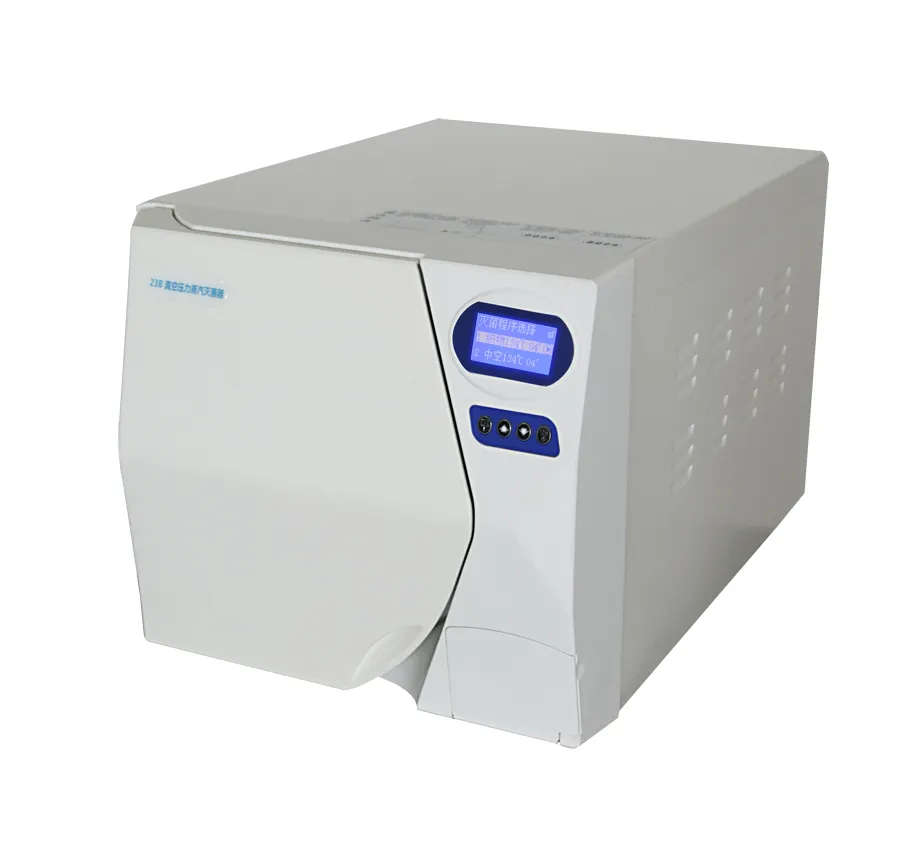

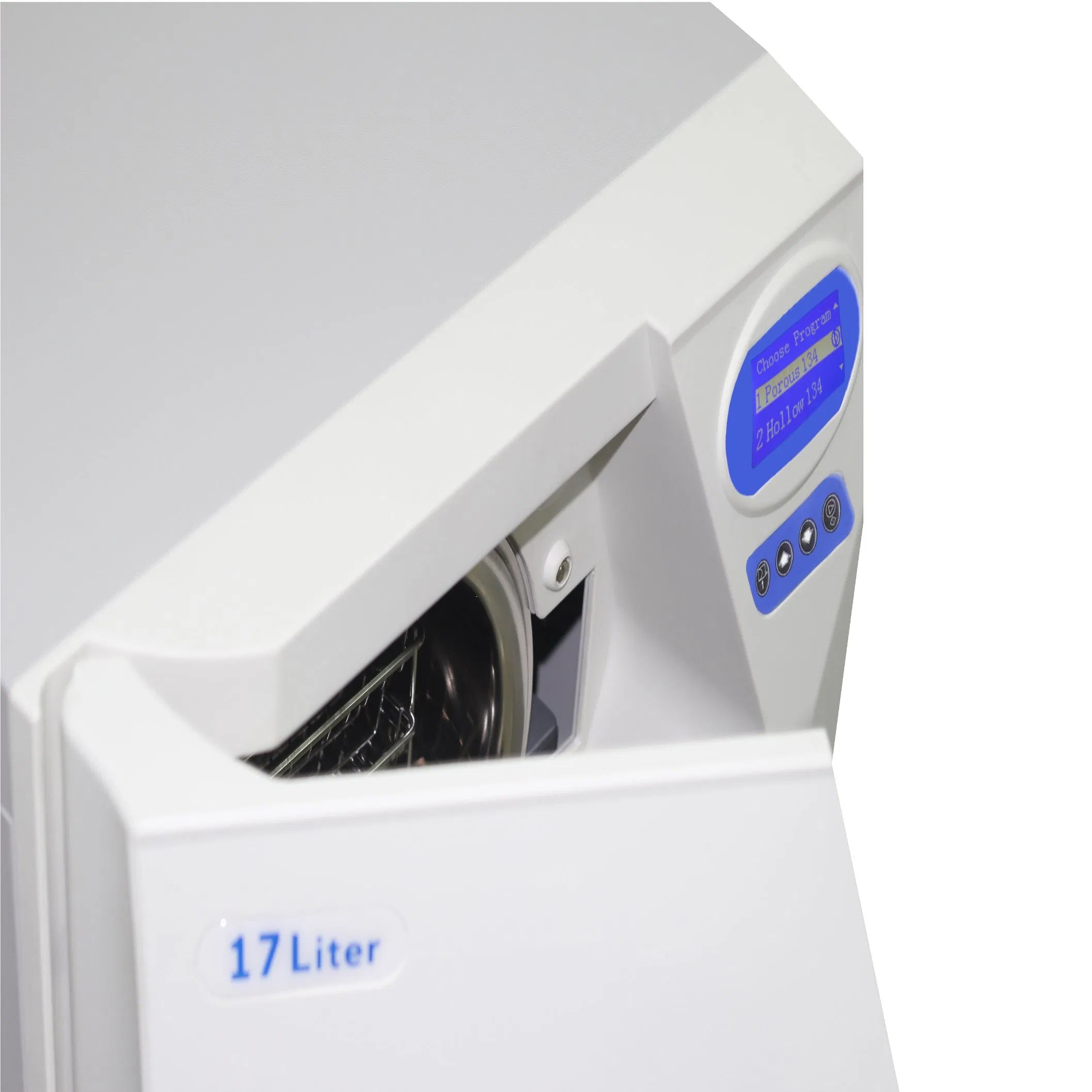

  • Wide LCD display with 8 automated programs for easy operation.

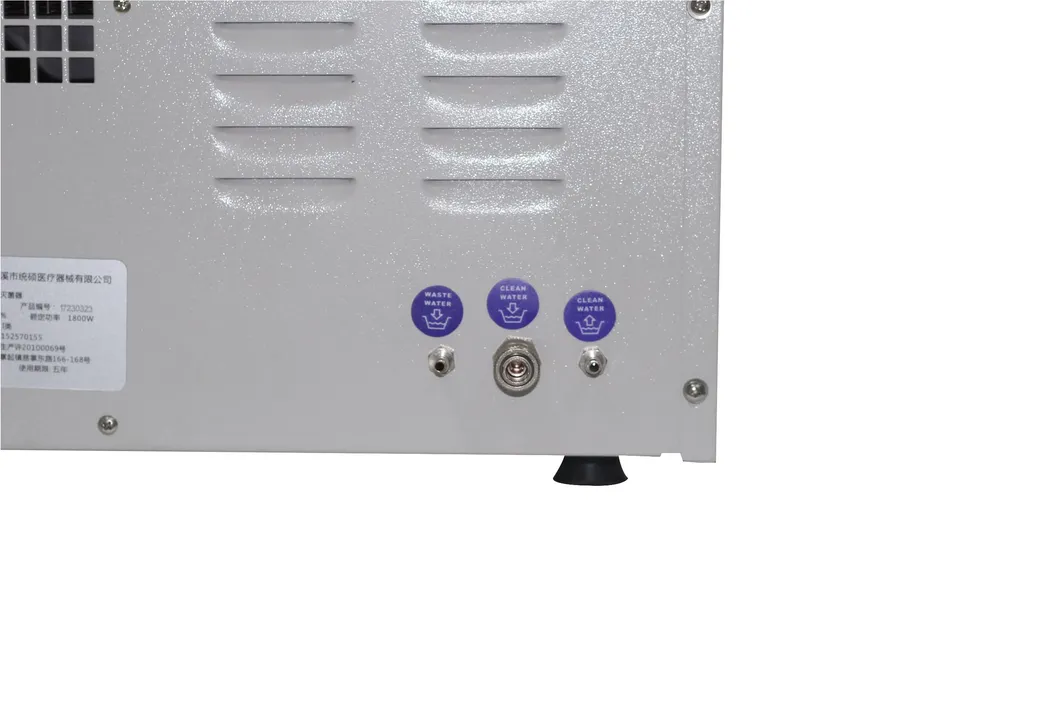

  • Full-automatic water feeding and draining system.
  • Computerized monitoring and check system for safety.

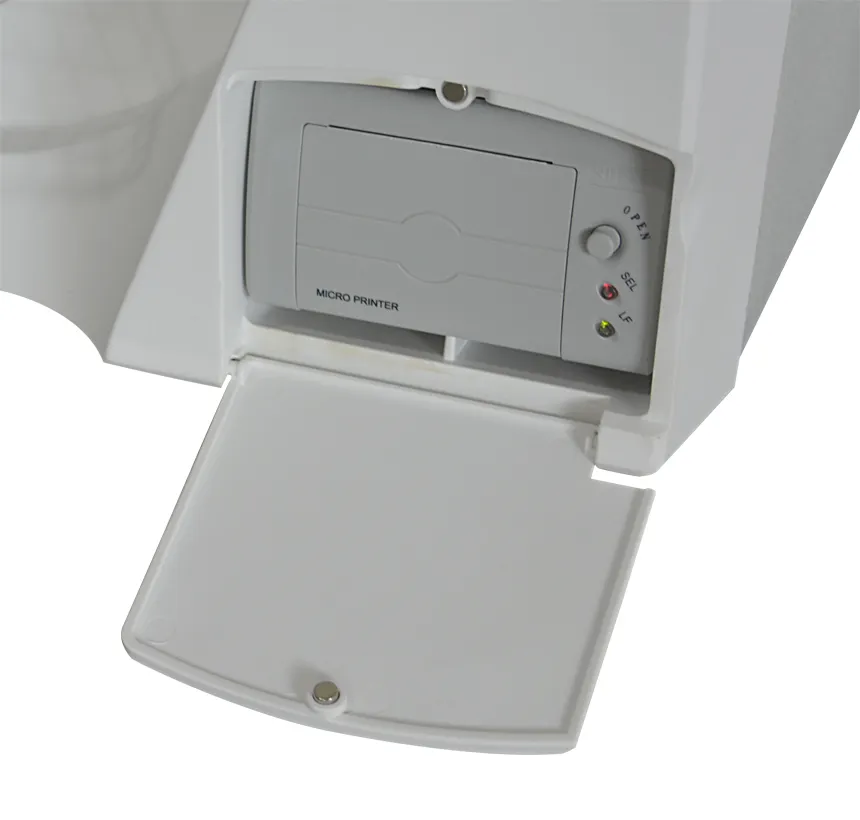

  • Internal printer for detailed sterilization process recording.

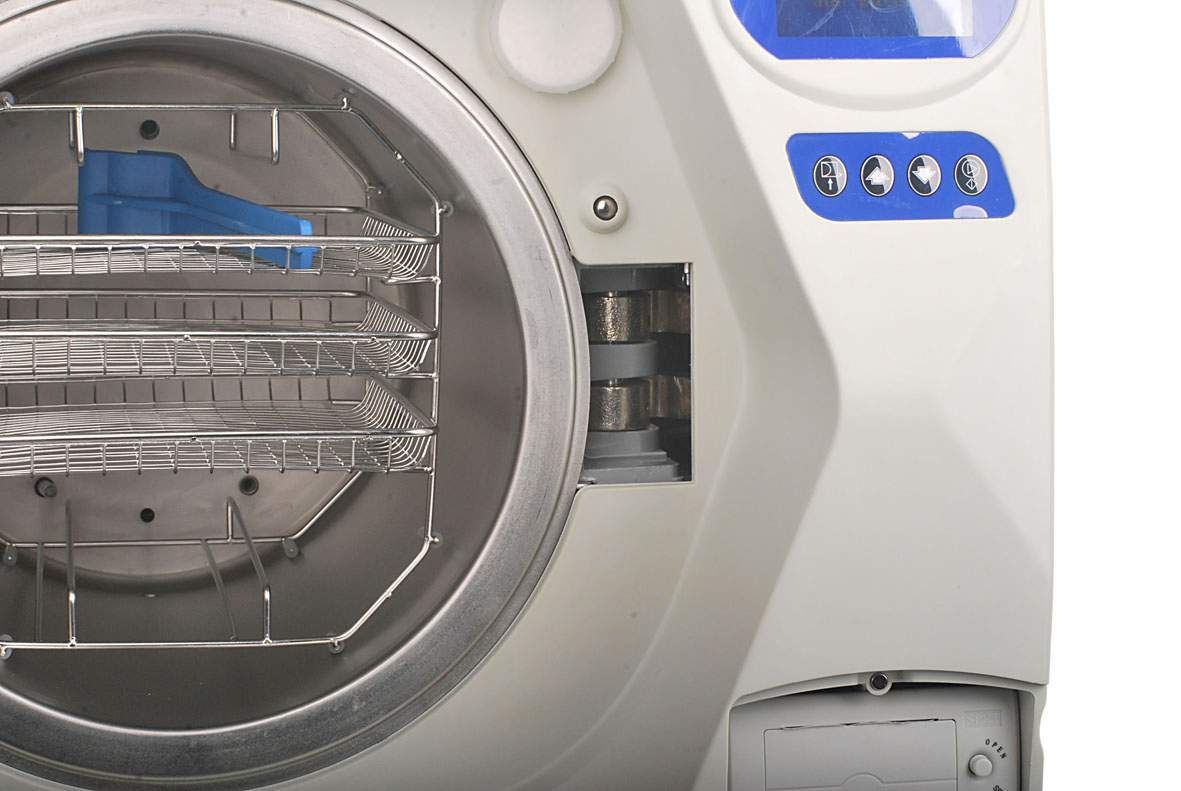

  • Advanced multi-protection safety door lock system.
  • Compliance with European Class B standards featuring 3-times pre-vacuum.
  • Failure diagnostics displayed directly on LCD via code menu.
  • Separate steam generator for enhanced performance.
  • Multi-language support (English, German, Italian, Polish, Turkish, Spanish, Hungarian, Russian, etc.).
  • Highly accurate measurement (Temperature to 0.1°C, Pressure to 0.01 bar).
Technical Parameters
Model TS14B TS17B TS 23B
Chamber Dimensions (mm) Φ250×270 Φ250×370 Φ250×480
Capacity 14L 17L 23L

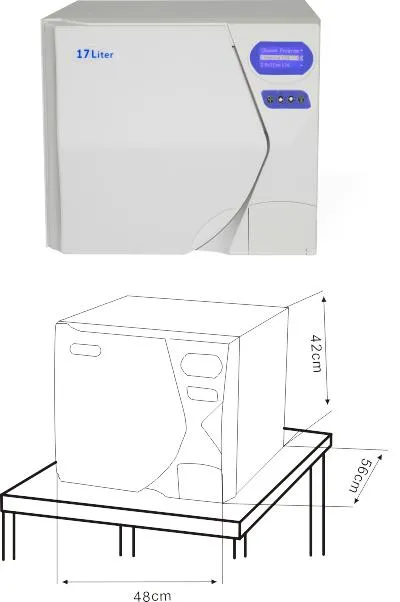

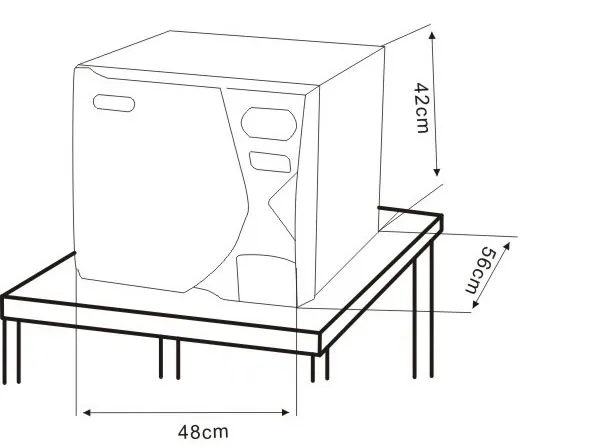

Overall Size (cm) 48×60×43 48×60×43 48×70×43
Heater Power 1600W 1800W 2000W
Net Weight (KGS) 39 42 45
Power Supply 110-220V±10%, 50/60HZ, 10A
Sterilize Temperature 121°C / 134°C
Drying Procedure Vacuum drying

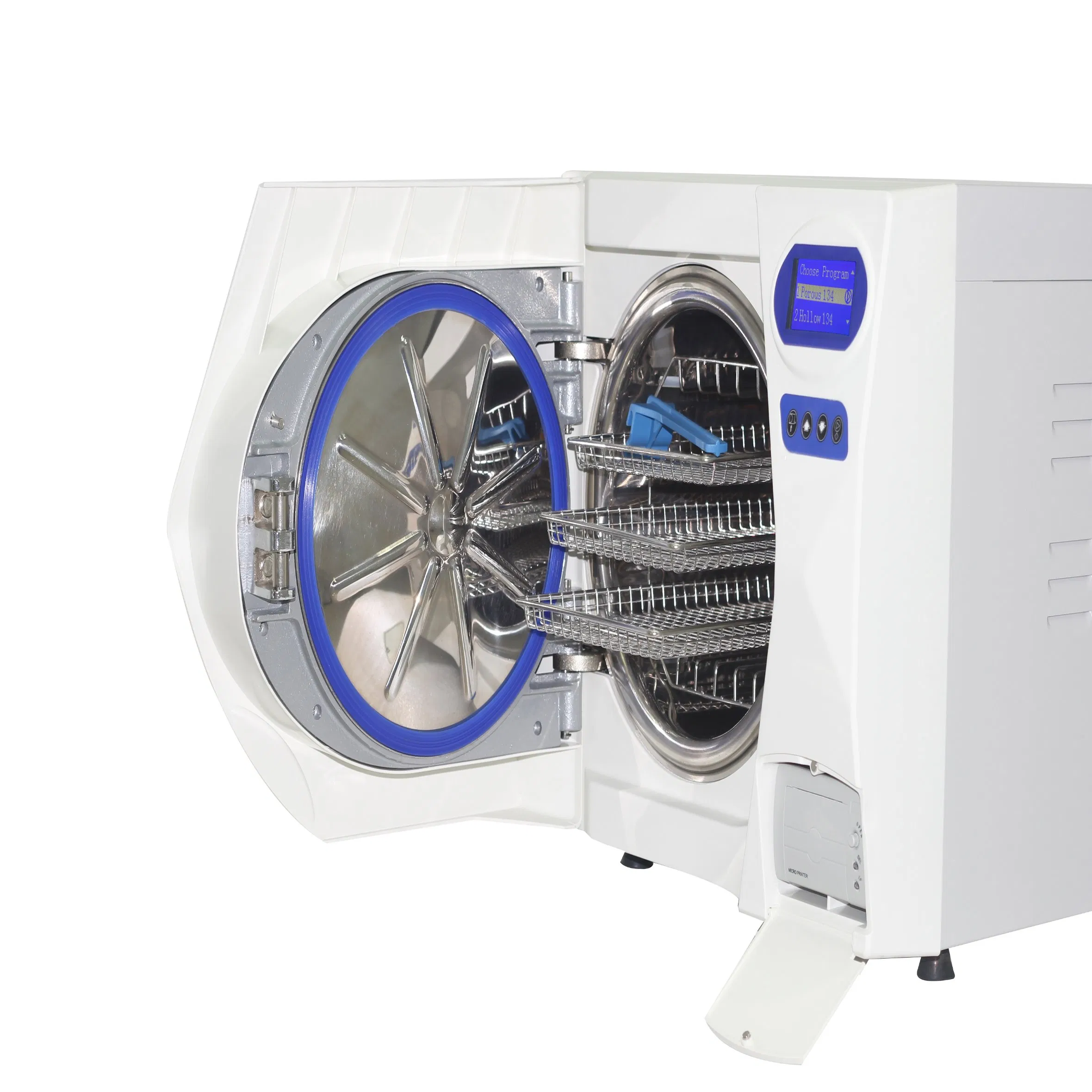

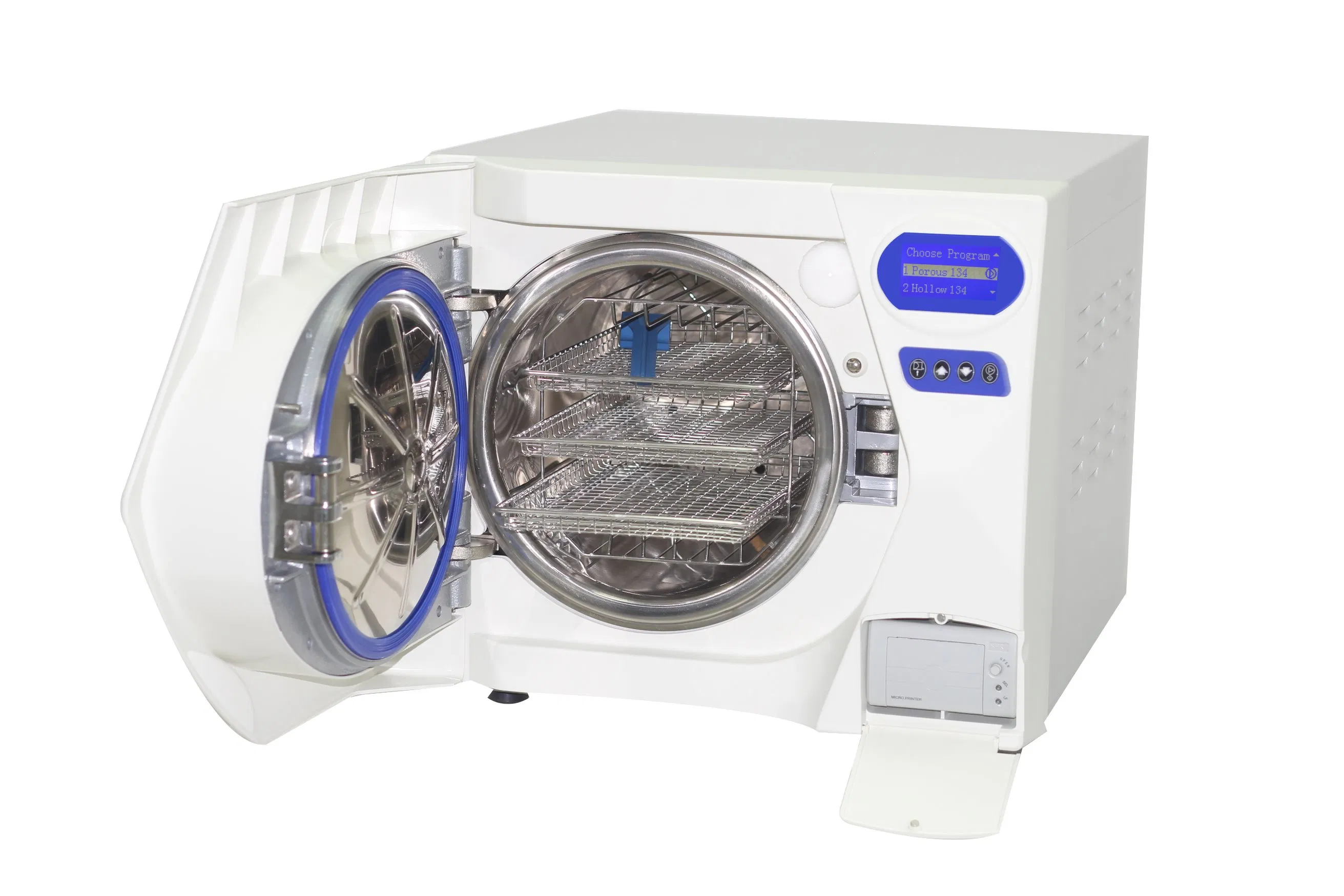

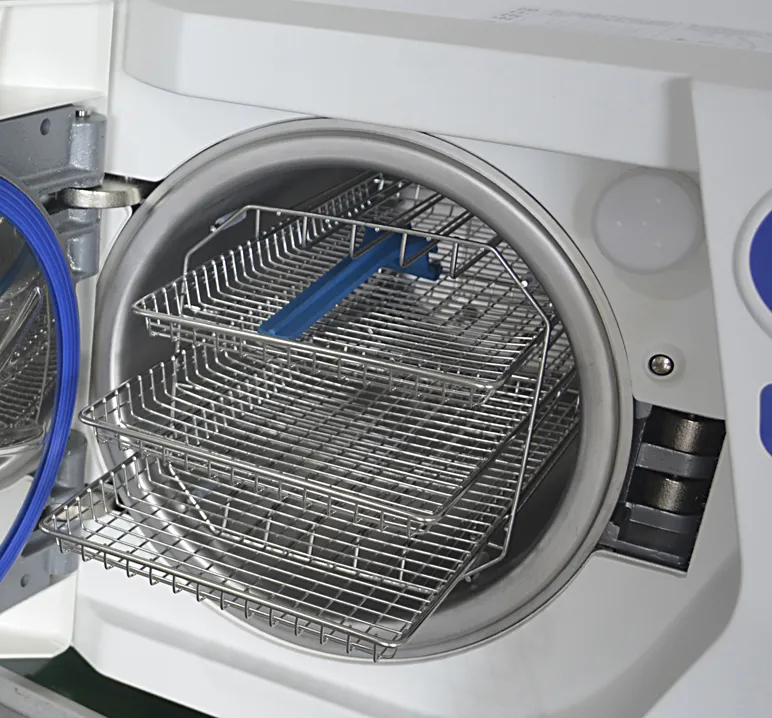

Trays Included 3 Stainless Steel Trays
Quality Control & Service
🛡️ Warranty & QC

We provide a 2-year warranty. Our QC team performs 100% inspection and random checks on all parts and machines to ensure high-quality standards.

📦 Packaging & Transport

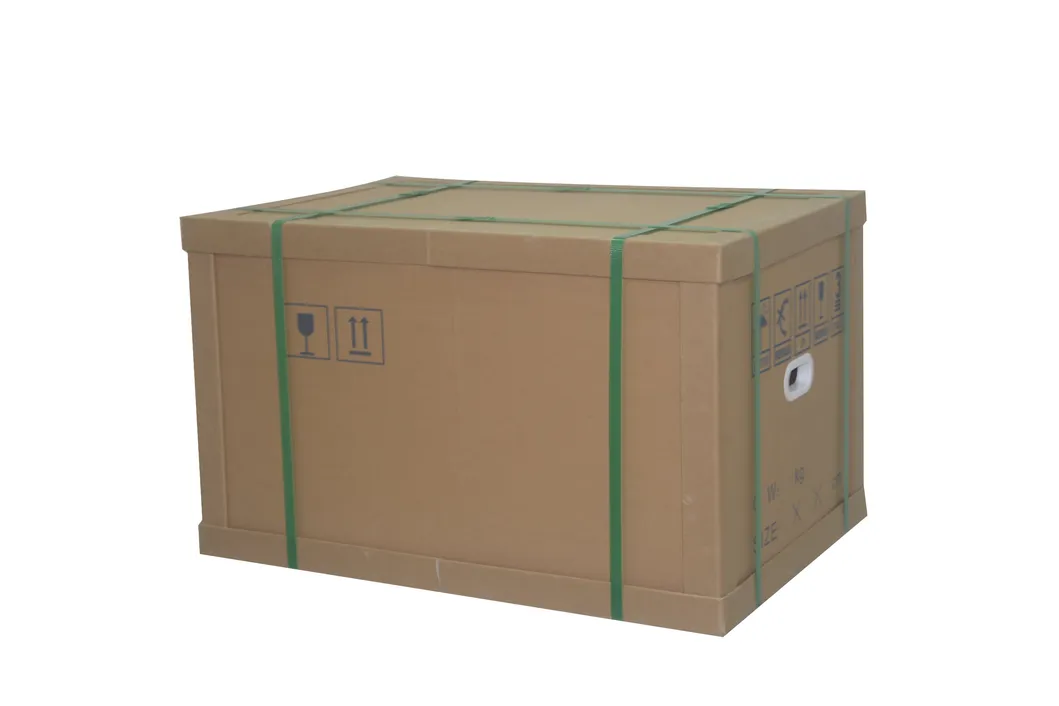

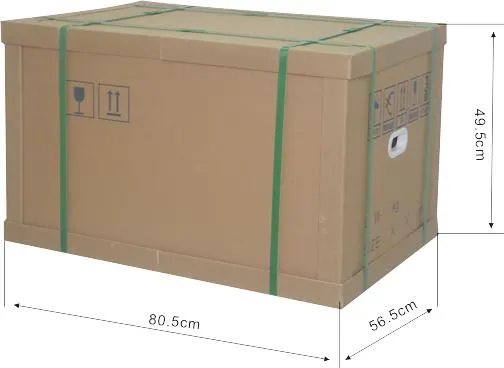

Standard packaging: 1PCS/CTN. Transportation options include air, sea, and express delivery.

Product Gallery

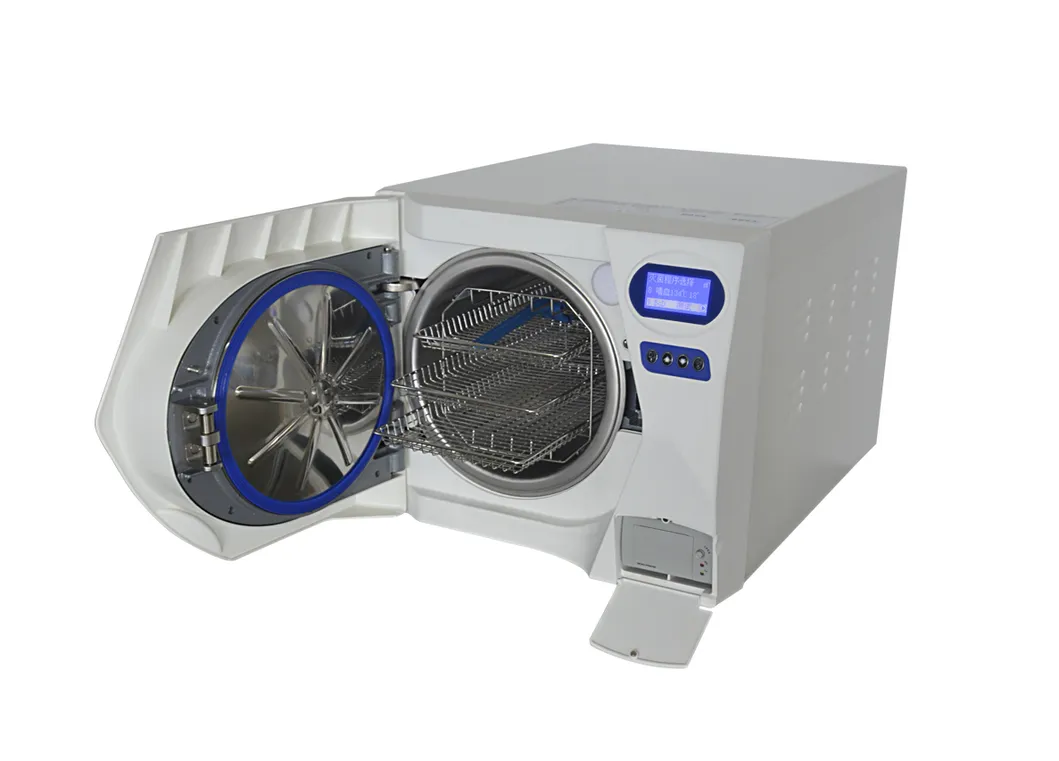

Autoclave Steam Sterilizer Autoclave Detail Internal Structure LCD Display Sterilizer Side View Sterilizer Door Control Panel Vertical Dimensions Rear View Accessories
Frequently Asked Questions
What is the difference between Class B and other sterilizers?
Class B autoclaves use a vacuum pump to remove air completely from the chamber, allowing steam to penetrate porous loads and hollow instruments, meeting the highest sterilization standards.
Does this machine include a drying function?
Yes, it features a specialized vacuum drying procedure to ensure instruments are dry and ready for use or storage immediately after the cycle.
Can I track the sterilization records?
Absolutely. The unit has a built-in printer that records temperature and pressure data every 6 seconds throughout the sterilization process.
What languages does the LCD system support?
The system supports multiple languages including English, German, Italian, Polish, Turkish, Spanish, Hungarian, Lithuanian, French, and Russian.
What materials is the chamber made of?
The chamber and internal instrument containers are made of high-quality stainless steel for durability and corrosion resistance.
Is the water filling process manual or automatic?
The system is full-automatic, featuring automatic water feeding and draining systems for convenience and safety.
