High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
1 / 5
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode
High-End ICU Ventilator with CPAP Breathing Mode

High-End ICU Ventilator with CPAP Breathing Mode

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
PA-900B
Power Source
Electricity
Warranty
1 Year
After-Sale Service
Online Technical Support
Material
Metal, Plastic, Steel
Safety Standard
ISO13485
Screen
10.4" LCD Display
Color
White
Tidal Volume
20~1500ml
Oxygen Conc.
21%~100%
Peep
0.1~1.0kpa
Resp. Rate
1~100/M

Product Overview

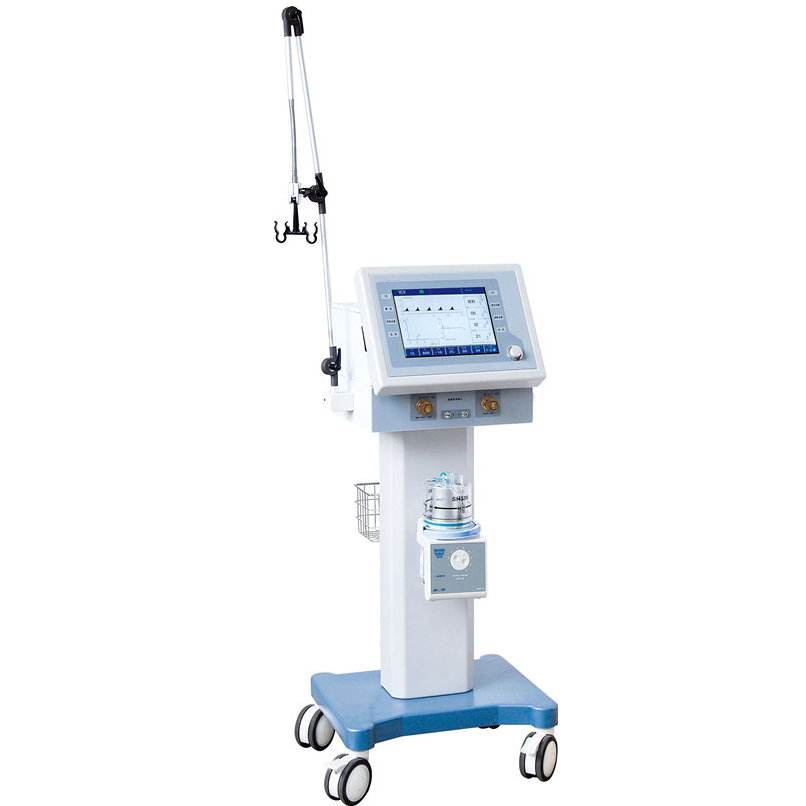

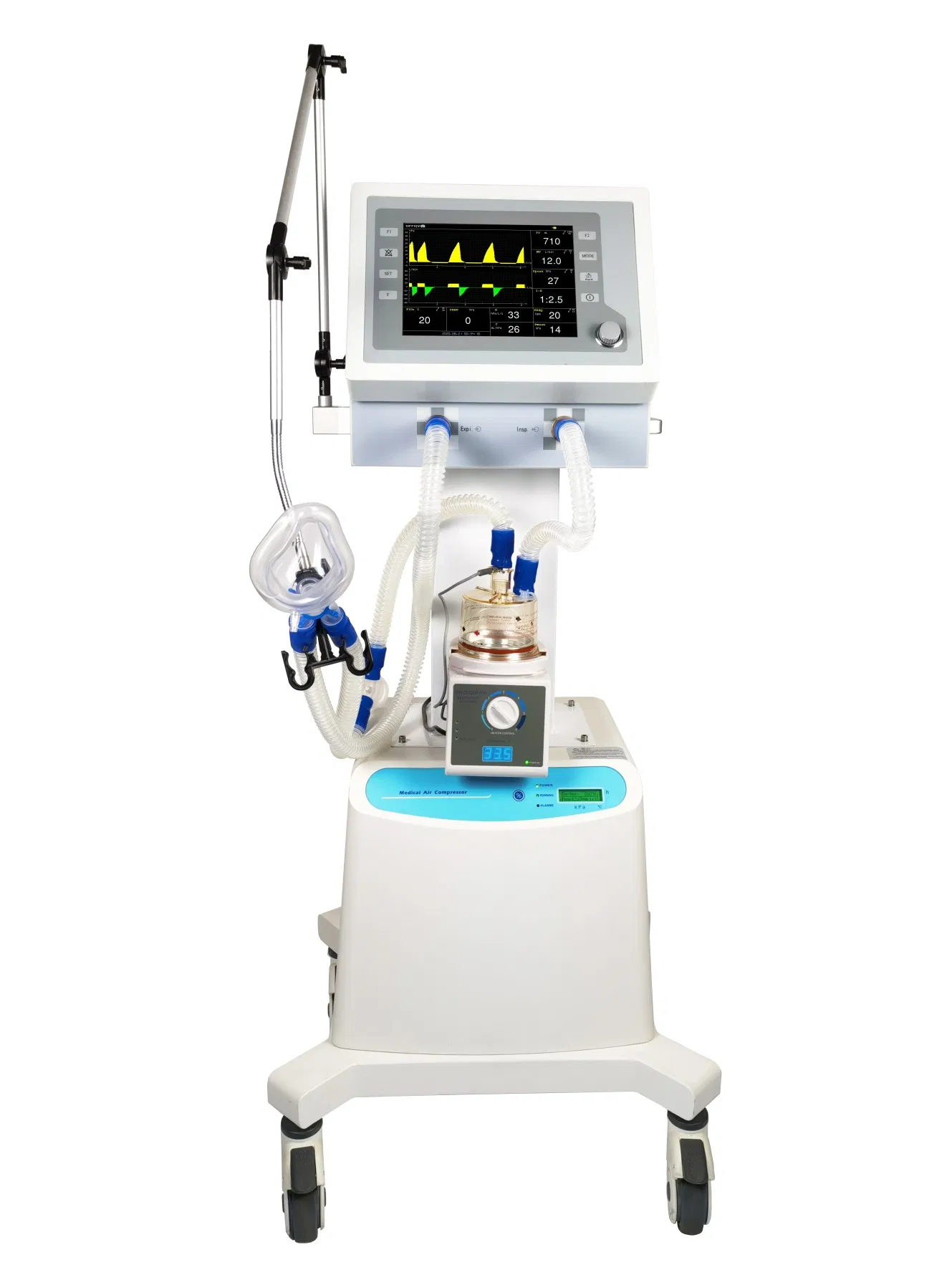

High-end ICU Ventilator with CPAP Breathing Mode

High-End ICU Ventilator
⚙️
Microprocessor controlled, Pneumatically driven electronically controlled
🖥️
10.4" TFT display screen for clear ventilation parameter monitoring
💧
Integrated Humidifier with precise temperature adjustment
🔋
Equipped with medical air compressor & 4-hour backup battery
👥
Versatile application for both Adult and Pediatric patients

Technical Specifications

Breathing ModesSIPPV(VCV), IPPV(VCV), PCV, PSV, SIMV, PSIMV, CPAP, MANUAL
Tidal Volume20 ~ 1500ml
I/E Ratio4:1 ~ 1:4
Respiration Frequency1 ~ 99 bpm (IMV: 1~20 bpm)
Oxygen Concentration21% ~ 100%
Pressure Limits1.0kPa ~ 6.0kPa
Trigger MethodPressure Trigger, Volume Trigger
Trigger SensitivityFlow: 1~20L/min, Pressure: -10~10cmH2O

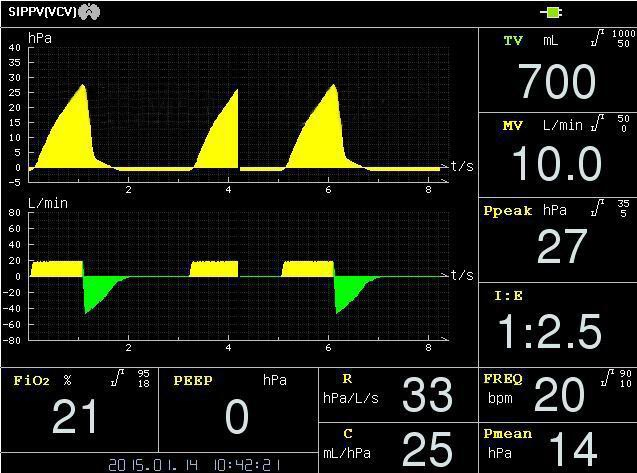

MonitoringTidal volume, Minute ventilation, Airway Pressure, I/E, FiO2, Waveforms

Frequently Asked Questions

What patient types is the PA-900B ventilator suitable for?
The PA-900B is designed for both Adult and Pediatric patients, with a wide tidal volume range of 20ml to 1500ml.
How long can the backup battery operate during a power outage?
The built-in backup battery supports the device for at least 4 hours of continuous operation.
Which ventilation modes are supported by this device?
It supports multiple modes including SIPPV(VCV), IPPV(VCV), PCV, PSV, SIMV, PSIMV, CPAP, and MANUAL mode.
Does the system include an air compressor?
Yes, the system comes with a medical-grade air compressor for reliable pneumatic drive.
What parameters can be monitored on the display?
The 10.4" TFT screen displays tidal volume, minute ventilation, frequency, airway pressure, I/E ratio, FiO2, and real-time waveforms.
What are the safety standards for this equipment?
The equipment complies with the ISO13485 safety standard for medical devices.
