ICU Hospital Therapy Ventilator (CWH-3010)

Customization:	Available
Type:	Ventilator
Used for:	Adult, Child, Infant

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CWH-3010

Screen Size

12.1 '' TFT Screen

Certification

CE, ISO13485

Kind

Medical Equipment

Group

Adult and Children

Transport Package

Standard Export Packing

Origin

China

HS Code

90192000

Capacity

5000PCS/Year

💊 Product Description

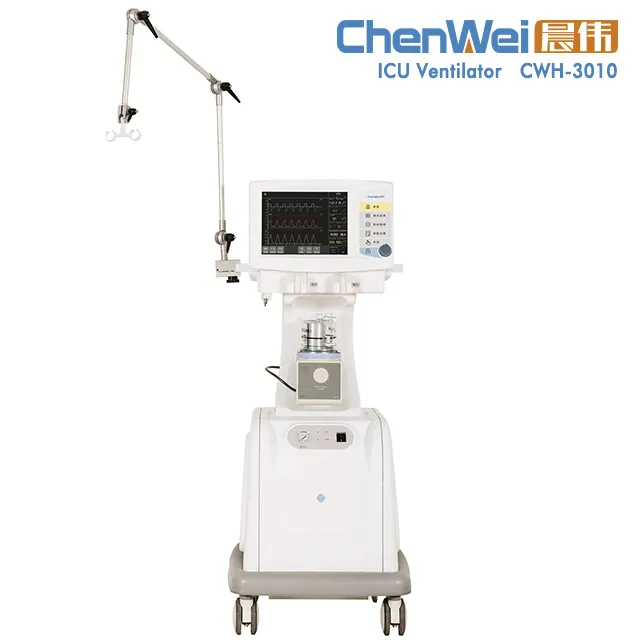

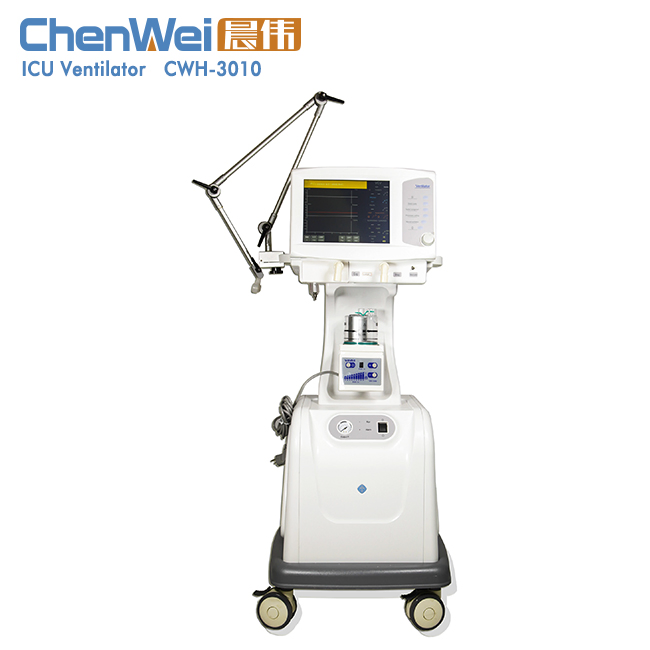

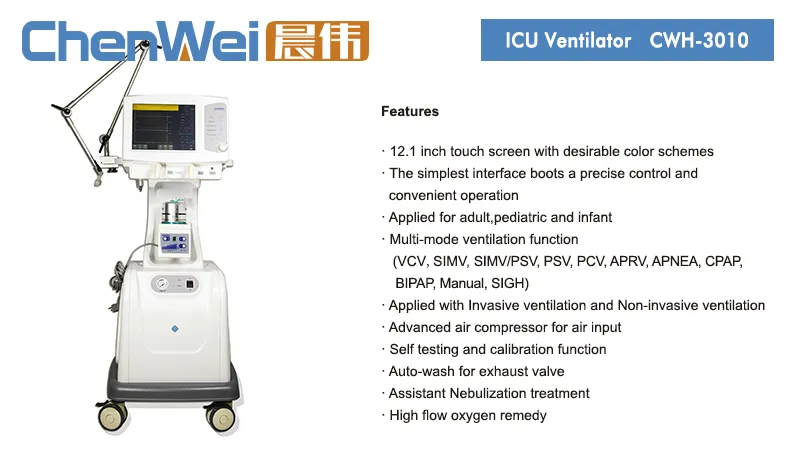

ICU Ventilator (CWH-3010)

✔ Applied for adult and child
✔ High-intelligent control system
✔ TFT display for ventilation parameters
✔ Humidifier with temperature adjustment
✔ Flow (optional) and pressure trigger
✔ Air compressor (optional)

Main Specifications

Model	CWH-3010
Applied for	Adult and child
Control System	High-intelligent control system
Display	TFT display for ventilation parameters
Adjustment	Humidifier with temperature adjustment
Power	220V AC ± 10%, 50 to 60Hz ± 2%, built-in battery for backup
Gas Source	O², Air
Ventilation Mode	IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T and manual (optional: Bi-level)
Monitoring	Tidal volume, minute volume, frequency, inhaling time, airway pressure, PEEP and O² Concentration
Waveform	Pressure-time (optional: Flowtime, pressure-volume loop)
Alarms	No tidal volume, minute volume too high/low, airway pressure too high/low, O² Concentration too high/low, O² or air failure, AC power failure, backup battery low

📷 Product Gallery

❓ Frequently Asked Questions

Q1: Which patient groups can use the CWH-3010 ventilator?

The CWH-3010 is designed for versatile clinical use, suitable for both adult and pediatric patients.

Q2: What ventilation modes are supported by this model?

It supports multiple modes including IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T, and manual operation. Bi-level mode is also available as an option.

Q3: Does the device have a backup power supply?

Yes, the CWH-3010 includes a built-in battery for backup to ensure continuous operation during AC power failures.

Q4: What parameters can be monitored on the display?

The 12.1'' TFT screen allows monitoring of tidal volume, minute volume, frequency, inhaling time, airway pressure, PEEP, and O² concentration.

Q5: What safety alarms are integrated into the system?

The system includes alarms for tidal volume issues, high/low minute volume, airway pressure fluctuations, O² concentration limits, gas source failure, and low battery.

Q6: Is an air compressor required for operation?

The device uses O² and air as gas sources. An external air compressor is available as an optional addition depending on your facility's requirements.
