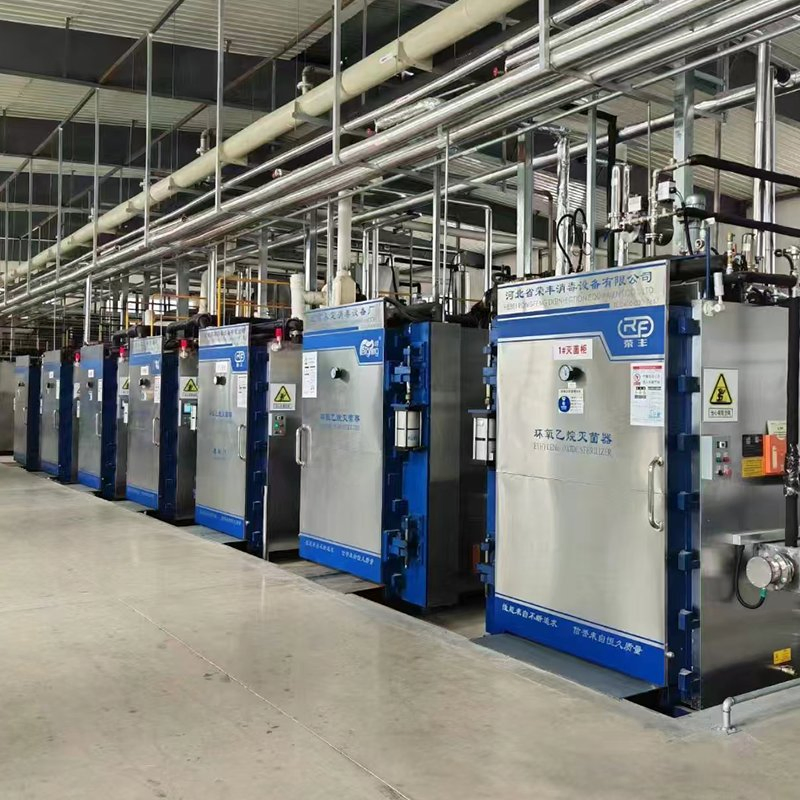

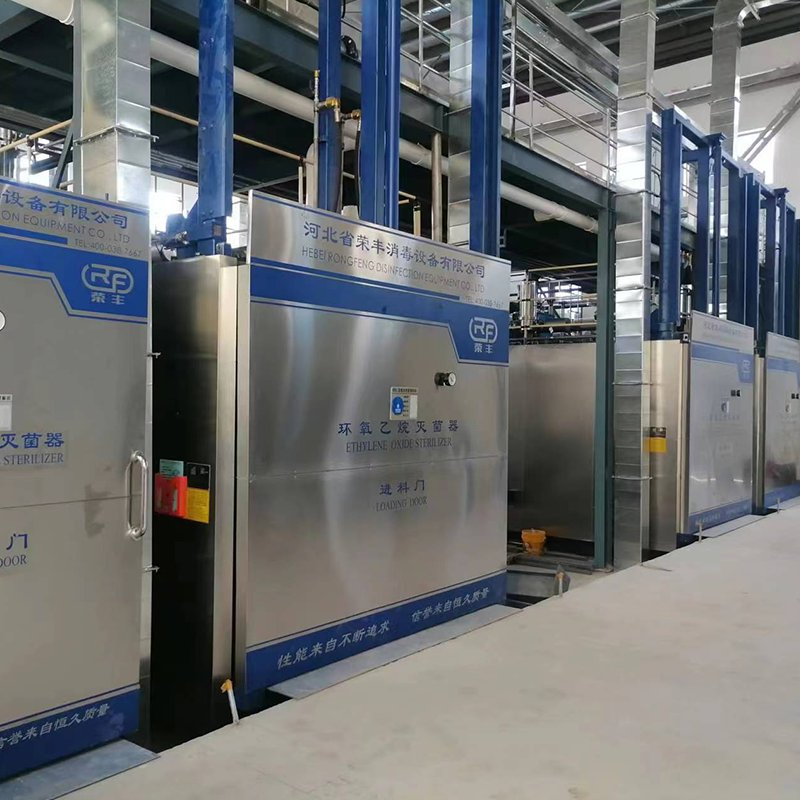

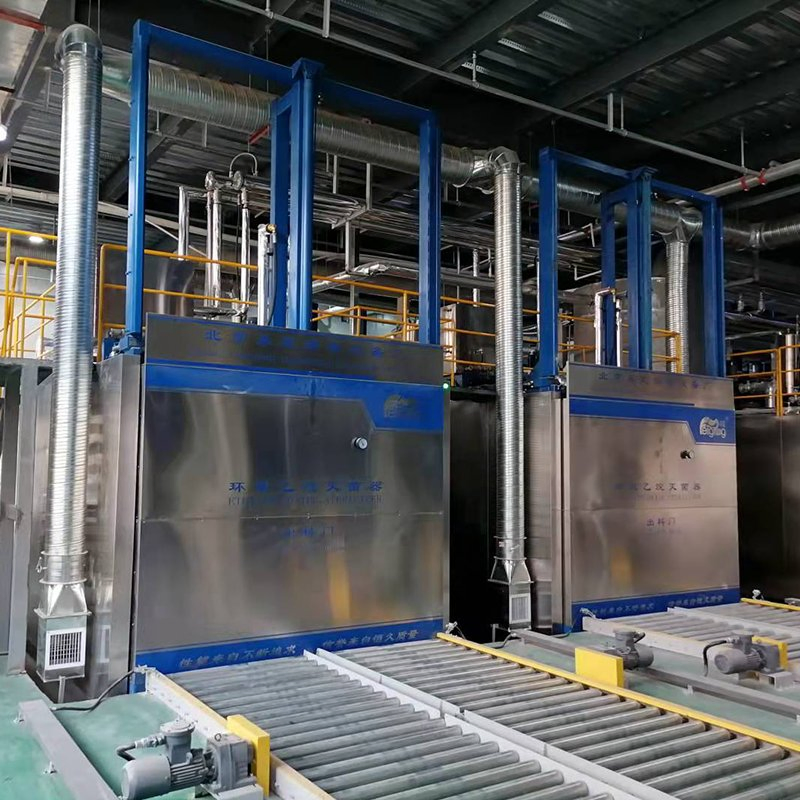

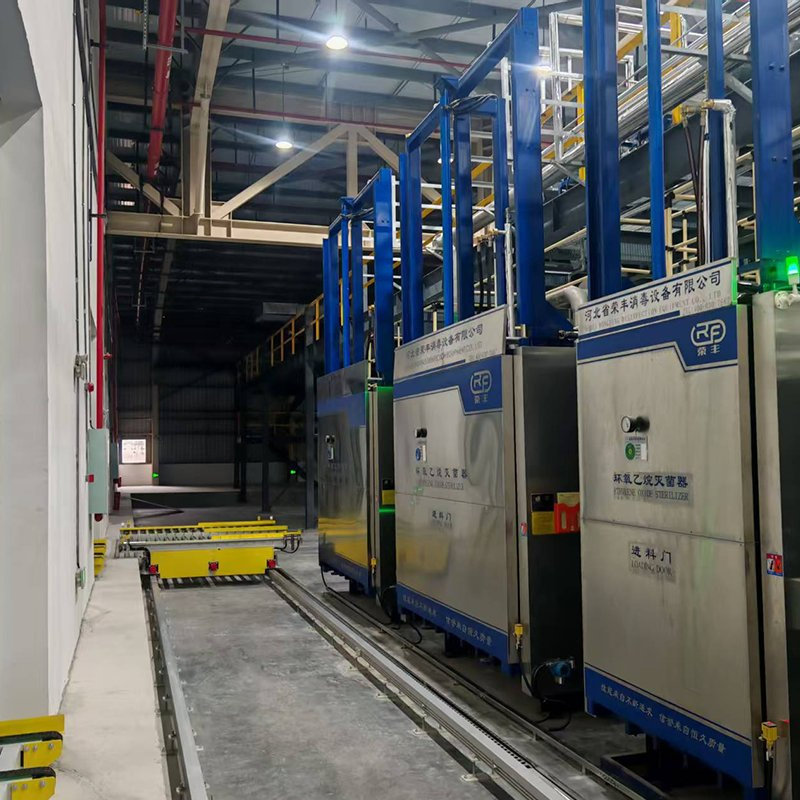

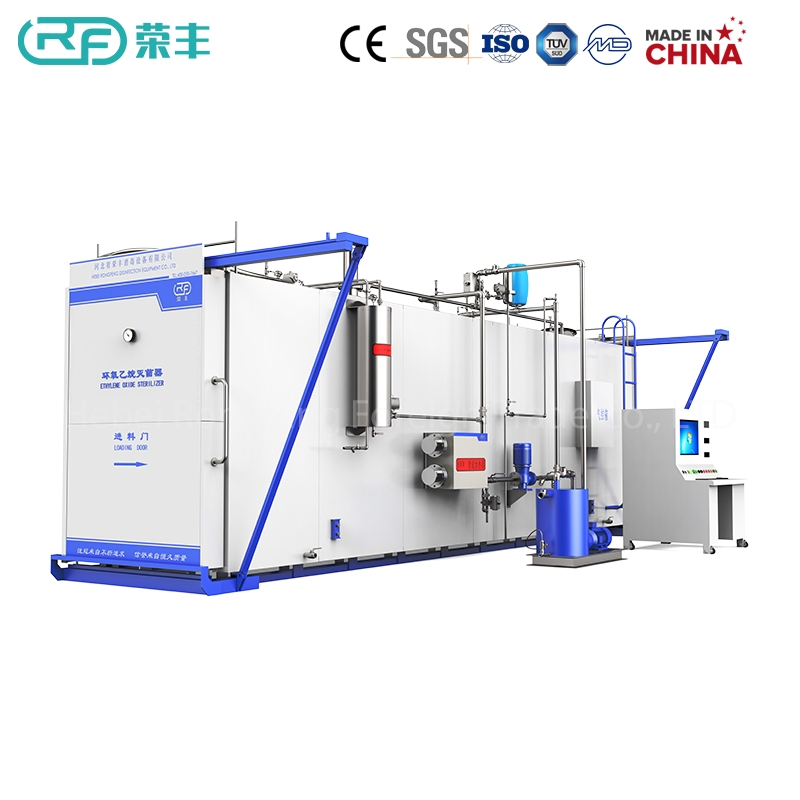

Large Ethylene Oxide Sterilizer / Eo Sterilizer / Eto Sterilizer

1 / 5

Large Ethylene Oxide Sterilizer / Eo Sterilizer / Eto Sterilizer

Customization:	Available
Theory:	Chemical Sterilization
Type:	Gas Sterilization Equipments

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

HMQ

Certification

CE, ISO13485

Electric Tension

380V

LCD Display

With LCD Display

Material

Stainless Steel

Cabinet Material

SUS 304 Stainless Steel

Temp. Range

(0~100)℃

Humidity Range

(0~100)%Rh

Max Power

(9~60)Kw

Specification

1-100m³

⚙️

Principle of Product

Ethylene oxide sterilizer is a special equipment for low temperature fumigation and sterilization of the articles enclosed in the sterilization room with ethylene oxide gas under certain temperature, pressure and humidity conditions. It has a broad spectrum of sterilization, strong penetration (cloth, carton, polyethylene film can penetrate), sterilization thoroughly, no damage to the articles, easy to preserve after sterilization and other advantages.

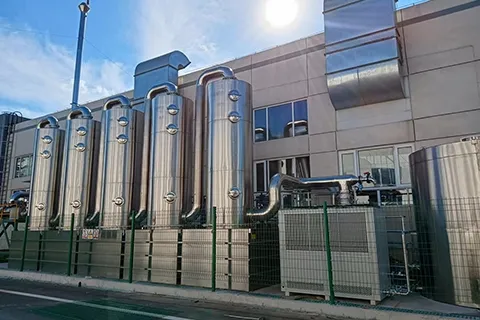

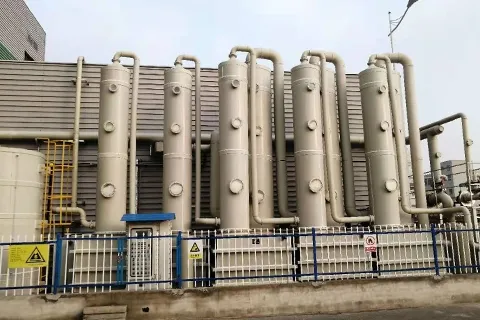

The HMQ large ethylene oxide sterilizer is mainly composed of sterilizer cabinet, auxiliary equipment (heating and thermal circulation device, vacuum device, dosing and vaporization device, humidification device, sealing device, residual gas treatment device), monitoring and control device.

🌟

Product Features

The cabinet body is made of pressure vessel grade plate, designed for 20 years of service life.

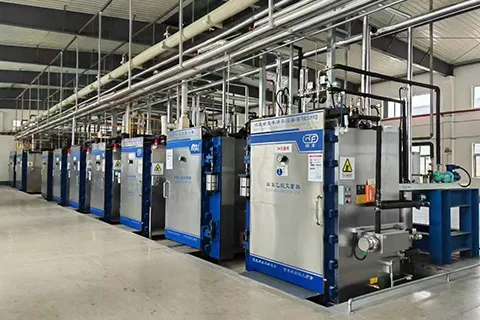

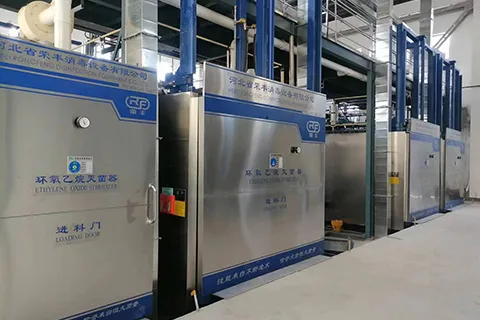

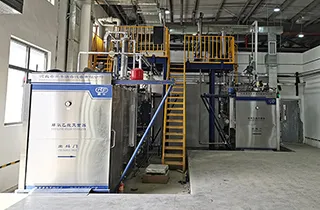

Customized equipment according to customer needs: size, cross-sectional area, and door body (lifting/sliding/revolving).
Hexahedral hot water circulation heating mode ensures sterilization without dead corners.
Supports automatic and semi-automatic intelligent control with voice prompts and human-computer interaction.
Real-time monitoring for over temperature, over pressure, and EO non-vaporization with automatic alarms.
Disassemble-ready dosing pipeline and drainage ball valves for easy cleaning and maintenance.

📊

Technical Parameters

Inner Tank Volume

(1~100)m³

Temp. Control

(0~100)℃

Pressure Control

±80Kpa

Humidifier Power

(3~24)kw

Humidity Range

(0~99)%RH

Power Supply

380V; 50Hz

📐

Basic Parameters

Volume (m³)	Model	Cabinet Inner Size LWH (mm)	Temp (℃)	Humidity (%RH)	Pressure (MPa)	Power (kW)	Weight (kg)
1	HMQ-1	1400x700x1000	30~70	40~80	-0.08~0.08	45	1000
2	HMQ-2	1650x1000x1200				45	2000
3	HMQ-3	2500x1000x1200				45	3000
6	HMQ-6	2900x1350x1550				45	5000
10	HMQ-10	4400x1350x1700				45	7000
15	HMQ-15	5600x1350x2000				100	9000
30	HMQ-30	10000x1350x2000	30~70	40~80	-0.08~0.08	100	15000
50	HMQ-50	8500x2700x2200	30~70	40~80	-0.08~0.08	100	25000
100	HMQ-100	16500x2700x2200	30~70	40~80	-0.08~0.08	120	45000
