Basic Information
| Model NO. |
FN-500S |
| Waveform |
Biphasic Truncated Exponential |
| Energy |
200 Joule Max |
| Energy Sequence |
Programmable |
| Charge Time |
Less Than 6 Sec |
| Voice Prompt |
Extensive Voice Prompt |
| Visual Indicators |
LED Prompts |
| Control |
On/Off, Shock |
| ECG Storage |
1500 Events |
🛡️

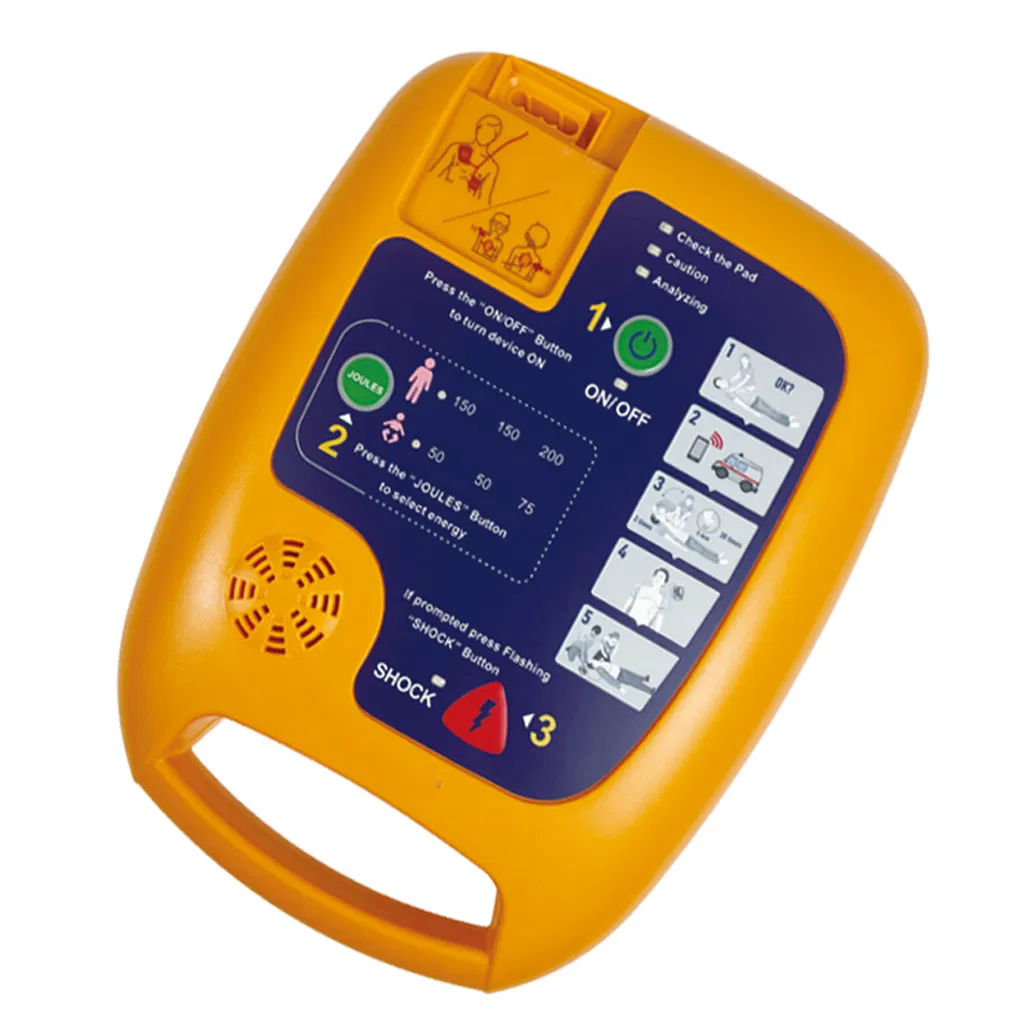

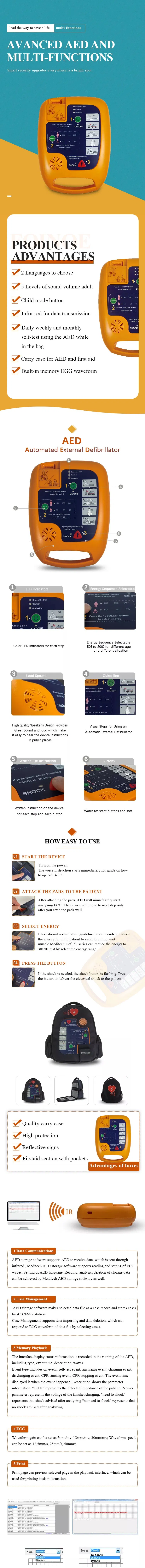

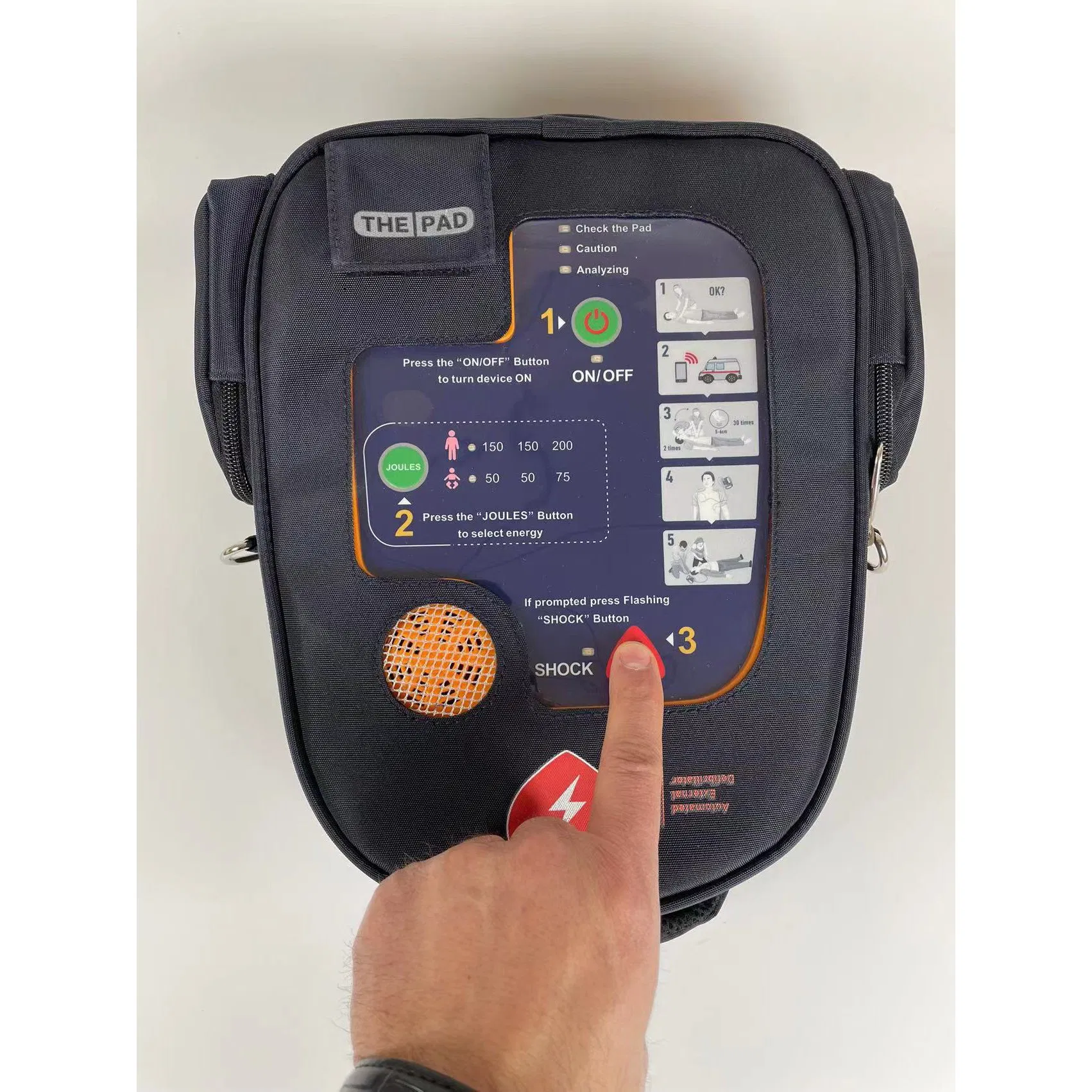

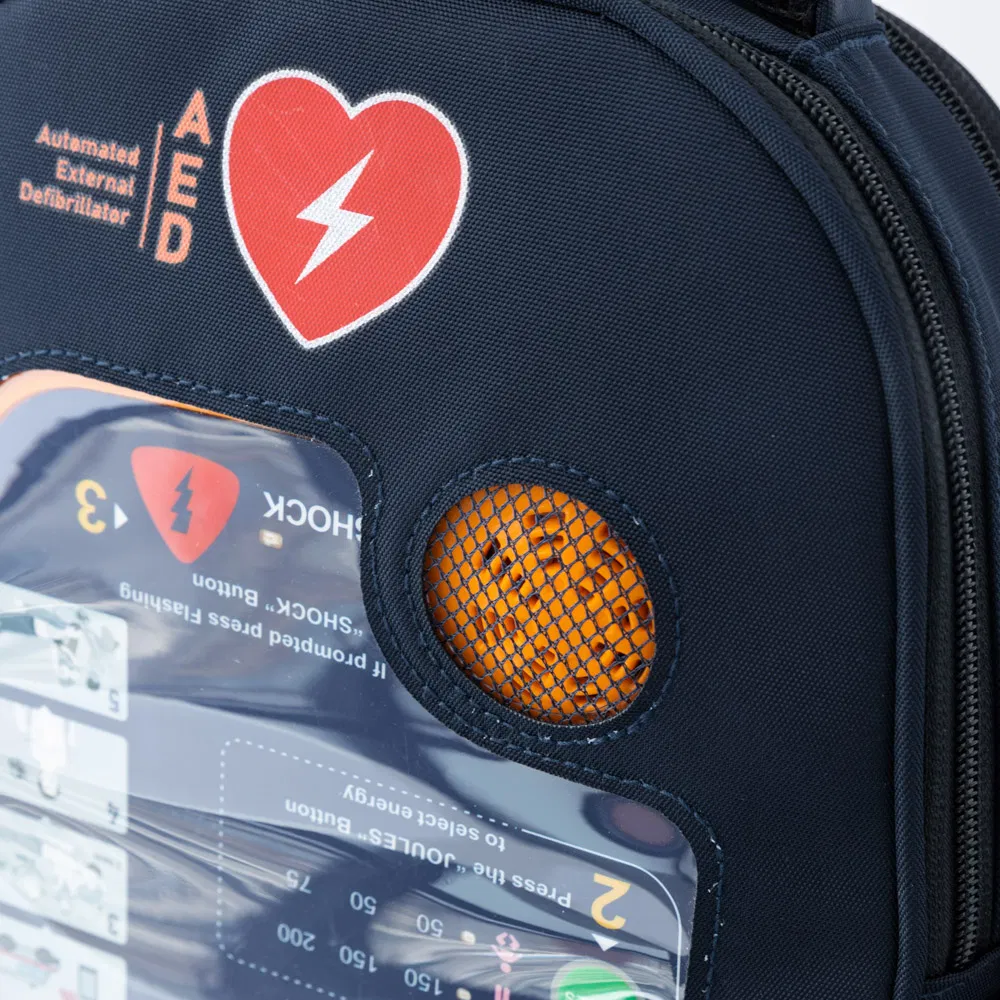

DEFI 5S Automatic External Defibrillator
🌟 Key Advantages
• 2 Language options (switchable by end user)
• 5 Levels of sound volume adjustment
• Dedicated Adult / Child mode button
• Infrared for standard data transmission
• Automated Daily, Weekly, and Monthly self-tests

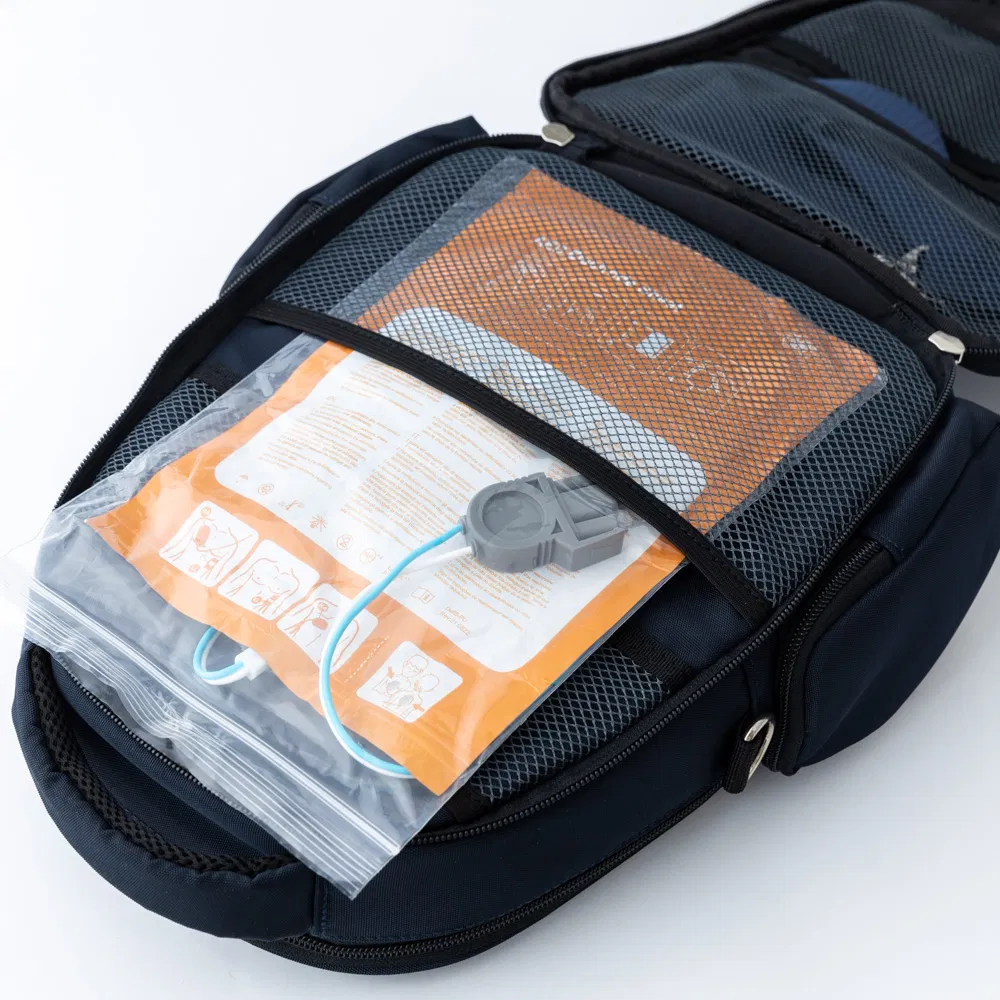

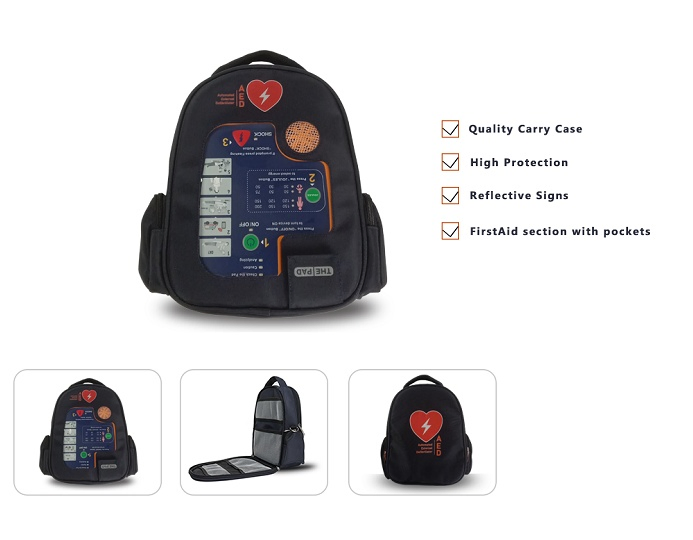

• Ready-to-use: Operable while inside the carrying bag
• IPX55 water and dust resistant rating
⚙️ Technical Features
• Efficient three-step defibrillation process
• Selectable Energy:
Pediatric: 50, 50, 75J
Adult: 150, 150, 200J
• Lock-out protection to prevent accidental shock
• Large internal memory (60 hours of data)
• Long-life LiMnO2 battery (min. 5 years life)
💻
AED Storage & Management Software
This software assists the upper supervisory system of the AED. It records and displays status information during operation, including:
Event Time
Self-test Logs
ECG Waveforms
Impedance (OHM)
CPR Events
Waveform settings are adjustable (5-20mm/mv gain, 12.5-50mm/s speed) and support direct ECG printing for medical records.
📜

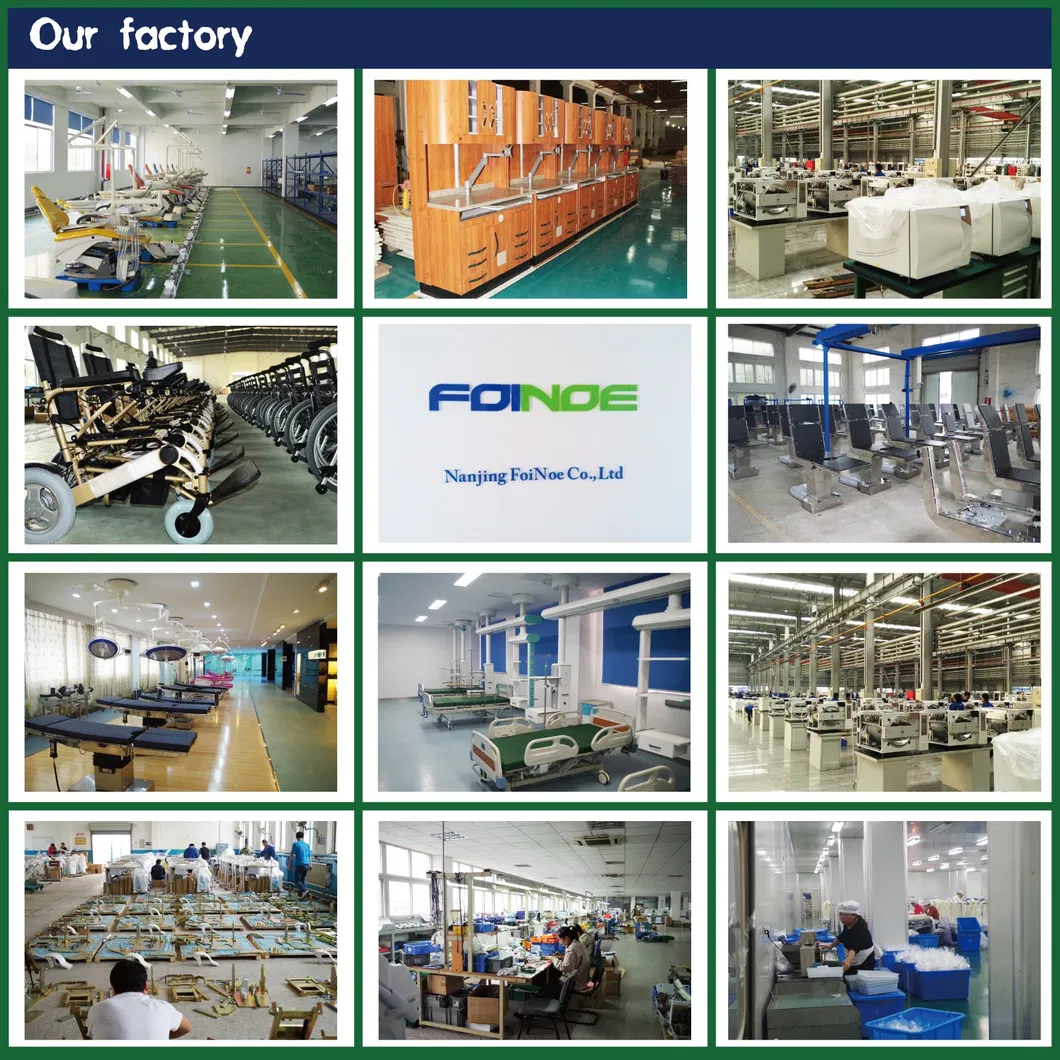

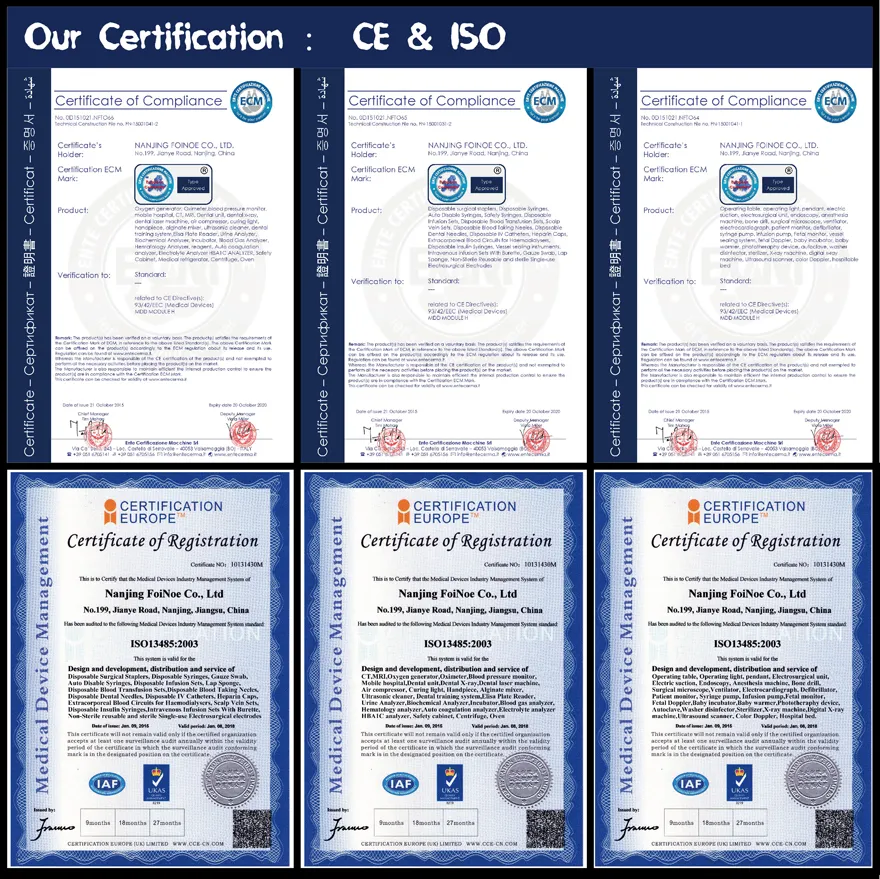

Certifications & Manufacturing
📦

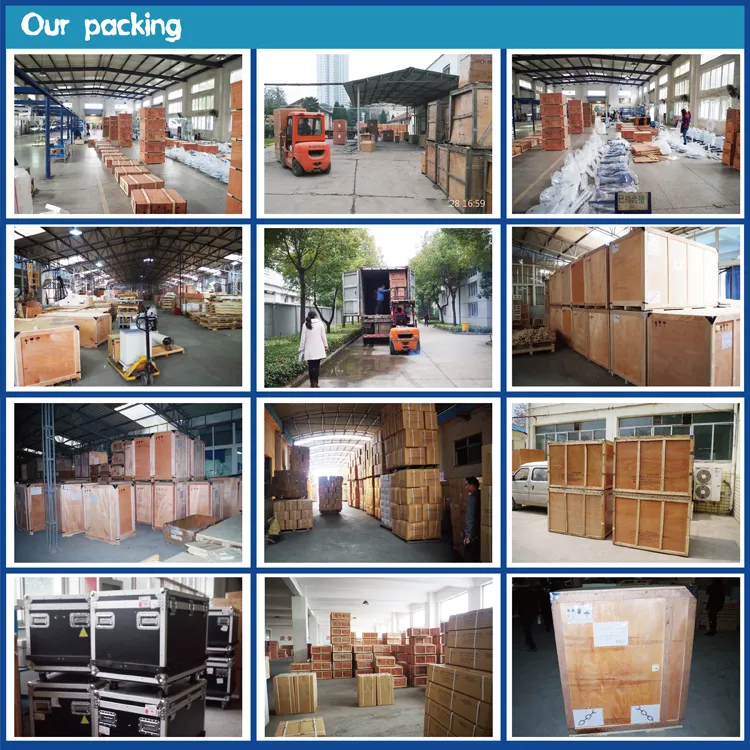

Packaging & Customer Experience
❓
Frequently Asked Questions
How long does the battery last?
The DEFI 5S uses a long-life disposable LiMnO2 battery with a shelf life of at least 5 years.
Is this device suitable for pediatric use?
Yes, the device features a dedicated Adult/Child mode button with programmable energy levels (50J, 50J, 75J) specifically for children.
What is the charging time for a shock?
The device is designed for rapid response, charging to its maximum energy level in less than 6 seconds.
Can I export the rescue data to a computer?
Yes, the device has internal memory that stores up to 60 hours of data, which can be transferred to a PC via infrared using the standard configuration software.
Does the AED require manual testing?
No, the device performs automatic daily, weekly, and monthly self-tests to ensure it is always ready for emergency use.
Can the device be used in harsh environments?
Yes, it is IPX55 water and dust resistant, making it durable for various outdoor and indoor environments.
