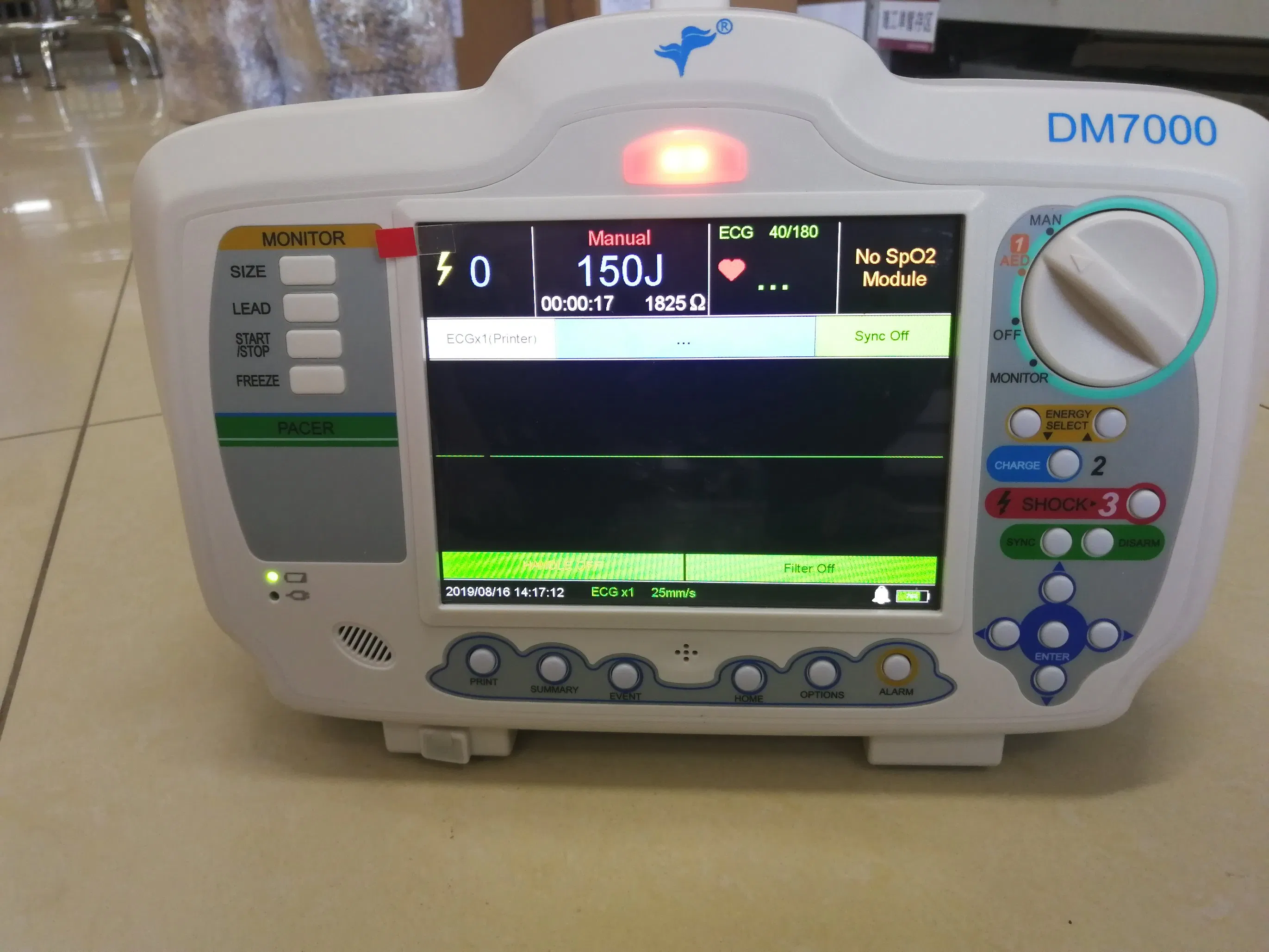

Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
1 / 5
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor
Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor

Portable Biphasic External Defibrillator Machine Aed Automatic External Heart Defibrillator Monitor

Transport Package: Cartoon Box
Trademark: POCVODA
Origin: China
Send Inquiry

Product Description

Basic Information

Model NO.
DM7000
Production Capacity
50000/Year

Product Description

TWO colors available.
DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

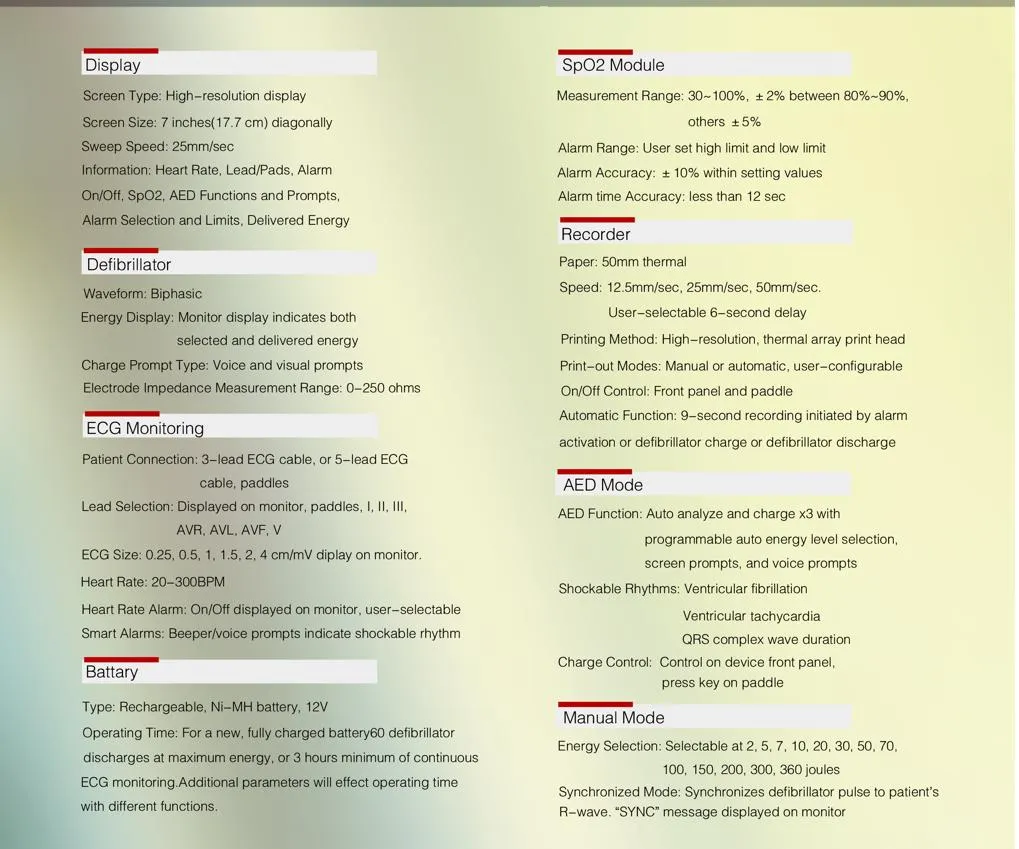

🖥️ Display Specifications
• Screen Type: High-resolution display
• Screen Size: 7 inch (17.7cm) diagonally
• Sweep Speed: 25mm/sec
• Information: Heart Rate, Lead/Pads, Alarm on/off, Spo2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
⚡ Defibrillator
• Waveform: Biphasic
• Charge Time: Less than 7 seconds with a new fully charged battery.
• Energy Display: Monitor display indicates both selected and delivered energy.
• Charge Prompt Type: Voice and visual prompts.
• Electrode Impedance Range: 0-250 ohms.
❤️ ECG Monitoring
• Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
• Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
• ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV display on monitor.
• Heart Rate: 20-300BPM.
• Smart Alarms: Beeper/voice prompts indicate shockable rhythm.
🔋 Battery System
• Type: Rechargeable, Ni-MH battery, 12V.
• Operating Time: 100 defibrillator discharges or 3 hours minimum of continuous ECG monitoring.
🩸 SpO2 Module
• Measurement Range: 30~100%, ±2% between 80%~90%.
• Alarm Range: User set high limit and low limit.
• Alarm Accuracy: Less than 12 sec.
📠 Recorder
• Paper: 50mm thermal.
• Speed: 12.5mm/sec, 25mm/sec, 50mm/sec.
• Modes: Manual or automatic, user-configurable.
• Automatic Function: 9-seconds recording initiated by alarm or discharge.

Operating Modes

AED Mode

Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts. Detects Ventricular fibrillation with amplitude >=140ms.

Manual Mode

Energy Selection: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules. Synchronized Mode: Synchronizes pulse to patient's R-wave.

Product Visuals

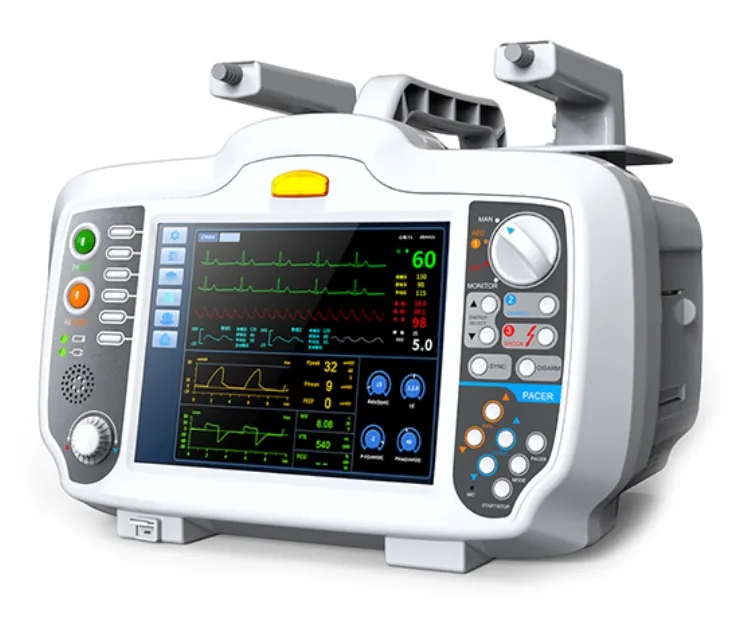

DM7000 Defibrillator Overview

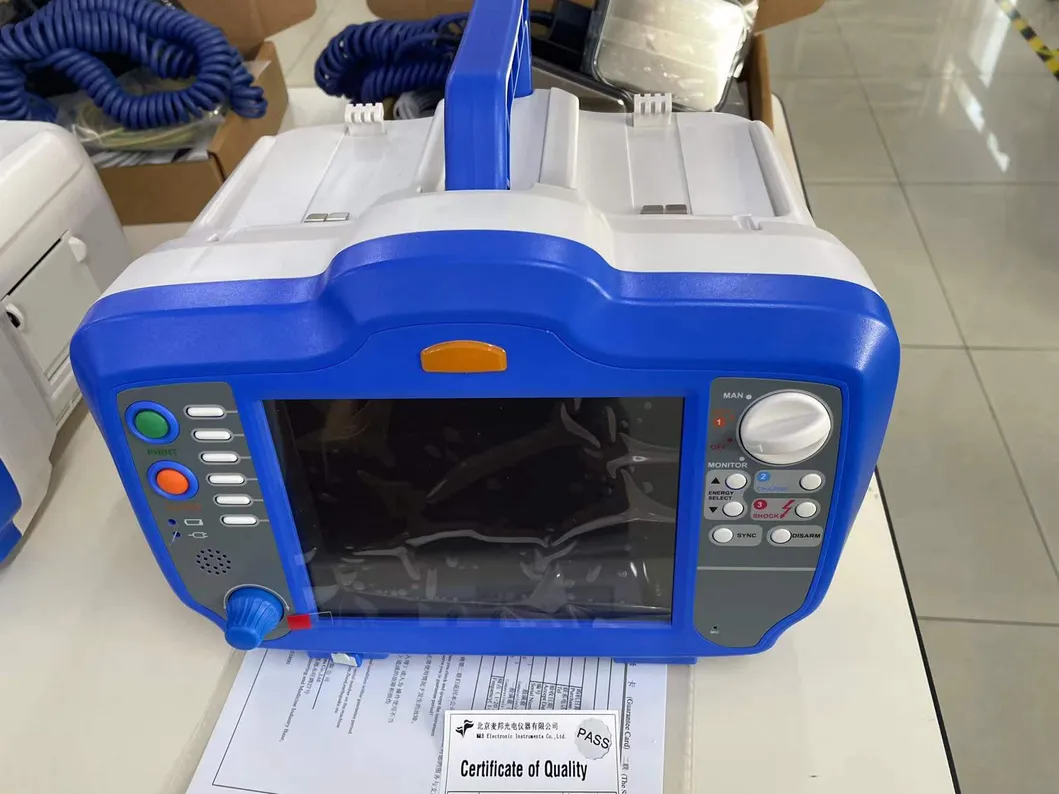

Portable Biphasic External Defibrillator Machine
AED Automatic External Heart Defibrillator

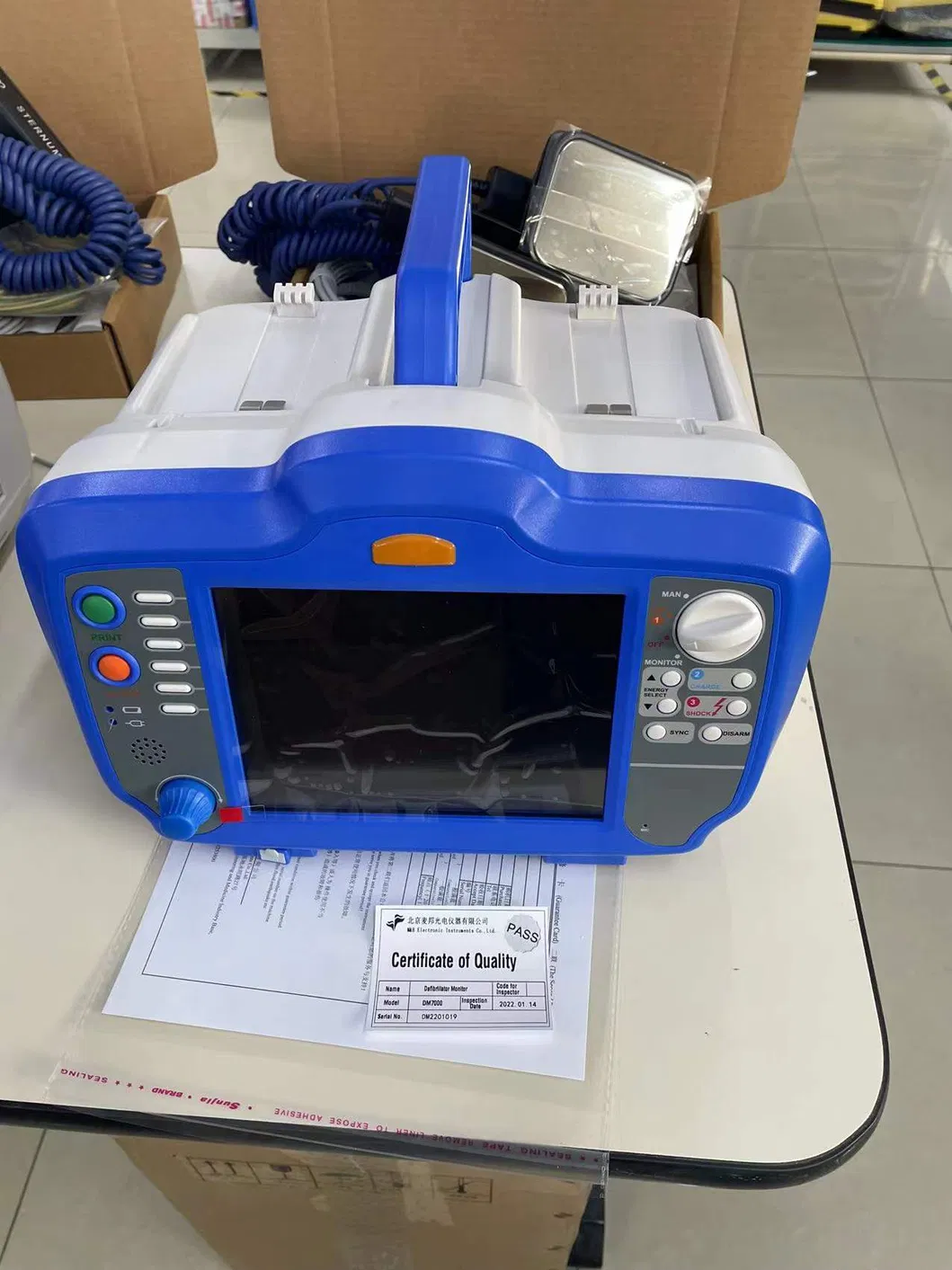

Defibrillator Monitor Display
Portable Defibrillator Machine

Frequently Asked Questions

Q1: What type of waveform does the DM7000 use?
The DM7000 utilizes a Biphasic waveform for efficient defibrillation.
Q2: How long is the charging time for the device?
The device charges in less than 7 seconds when using a new, fully charged battery.
Q3: What is the battery life during continuous monitoring?
A fully charged Ni-MH battery provides a minimum of 3 hours of continuous ECG monitoring or 100 discharges.
Q4: Does the DM7000 support both AED and Manual modes?
Yes, it features an AED mode with voice/visual prompts and a Manual mode with energy selection from 2 to 360 joules.
Q5: What is the screen size and what information does it display?
It features a 7-inch high-resolution display showing heart rate, ECG leads, SpO2, AED prompts, and delivered energy.
Q6: Is there a built-in recorder for clinical documentation?
Yes, it includes a 50mm thermal recorder with multiple speeds and automatic recording functions triggered by alarms or discharges.
