Price Blood Dialysis Water Treatment System with Customized Service, China Factory of Hemodialysis Fluid Equipment, Endotoxin Removal Dialysis Machine

Customization:	Available
Customized:	Customized
Certification:	CE, FDA, ISO13485

i

Basic Specifications

Model NO.HHHD

TypeHemodialysis Water Purification System

Quality StandardYY0572-2015 and YY0793-2010

Ion Removal RateAbove 99.5%

Endotoxin Removal RateAbove 99.9%

Host SystemTwo-Stage RO System

Pasteurization90°C

VoltageAC380V 20kw / Customized

Capacity100-5000 LPH

Bacterial CountBelow 10 CFU/ml

✓

Product Description

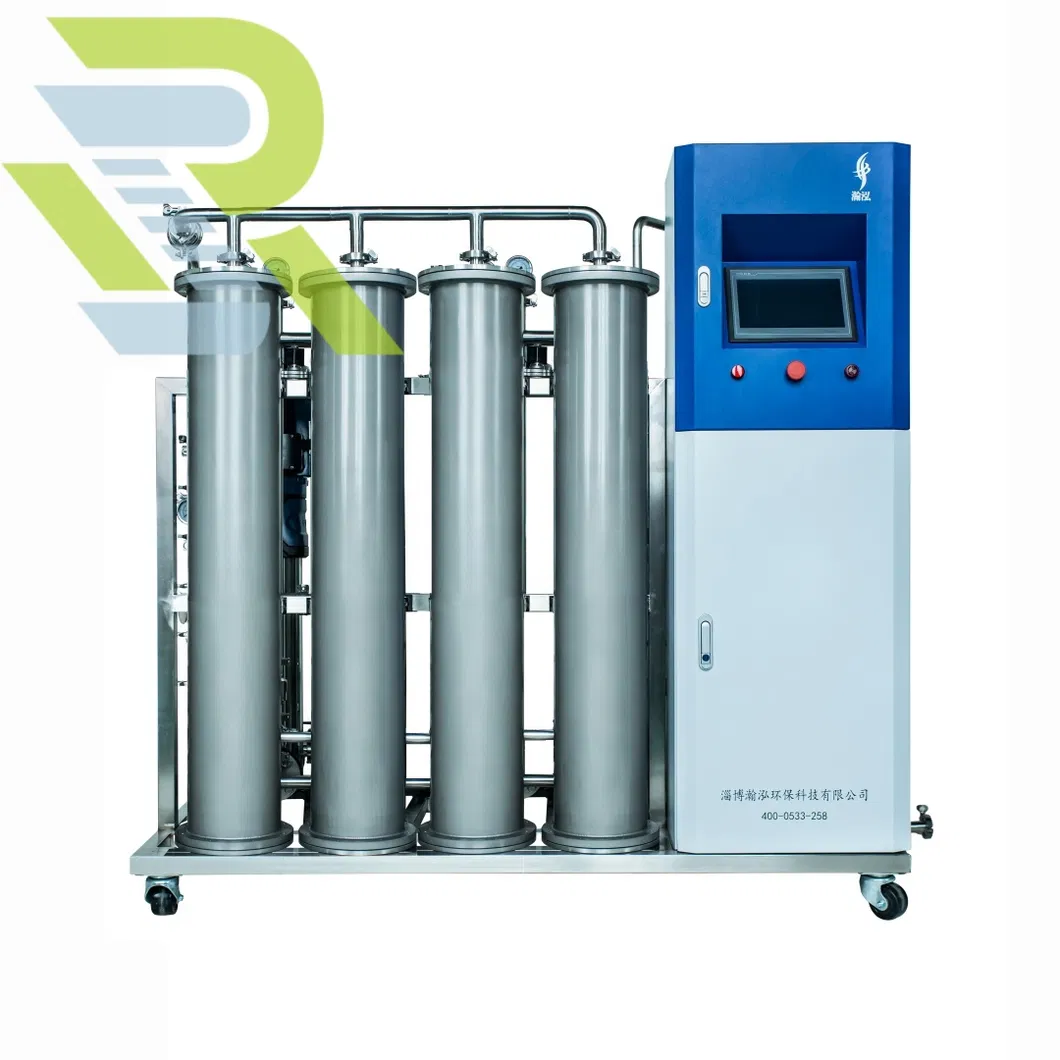

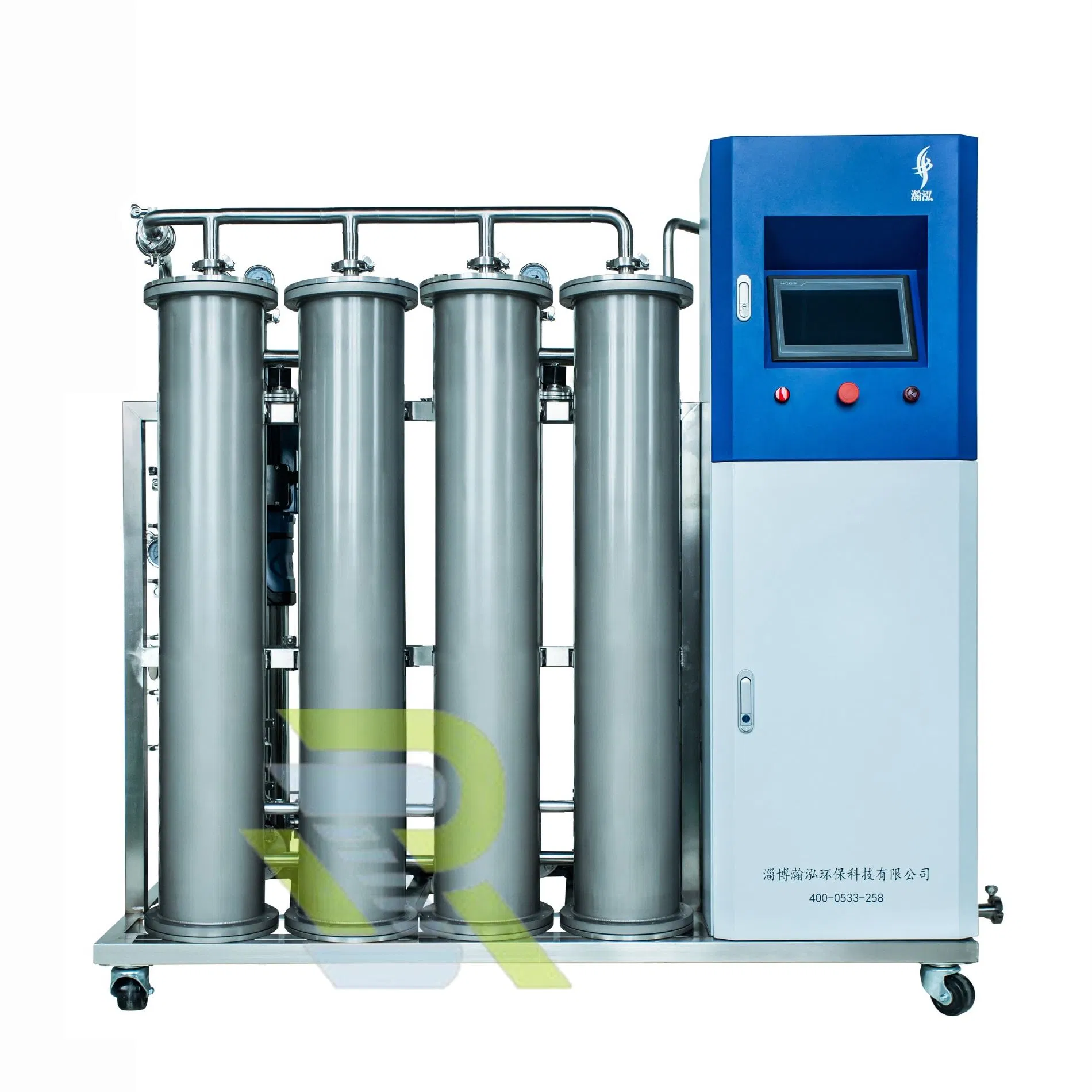

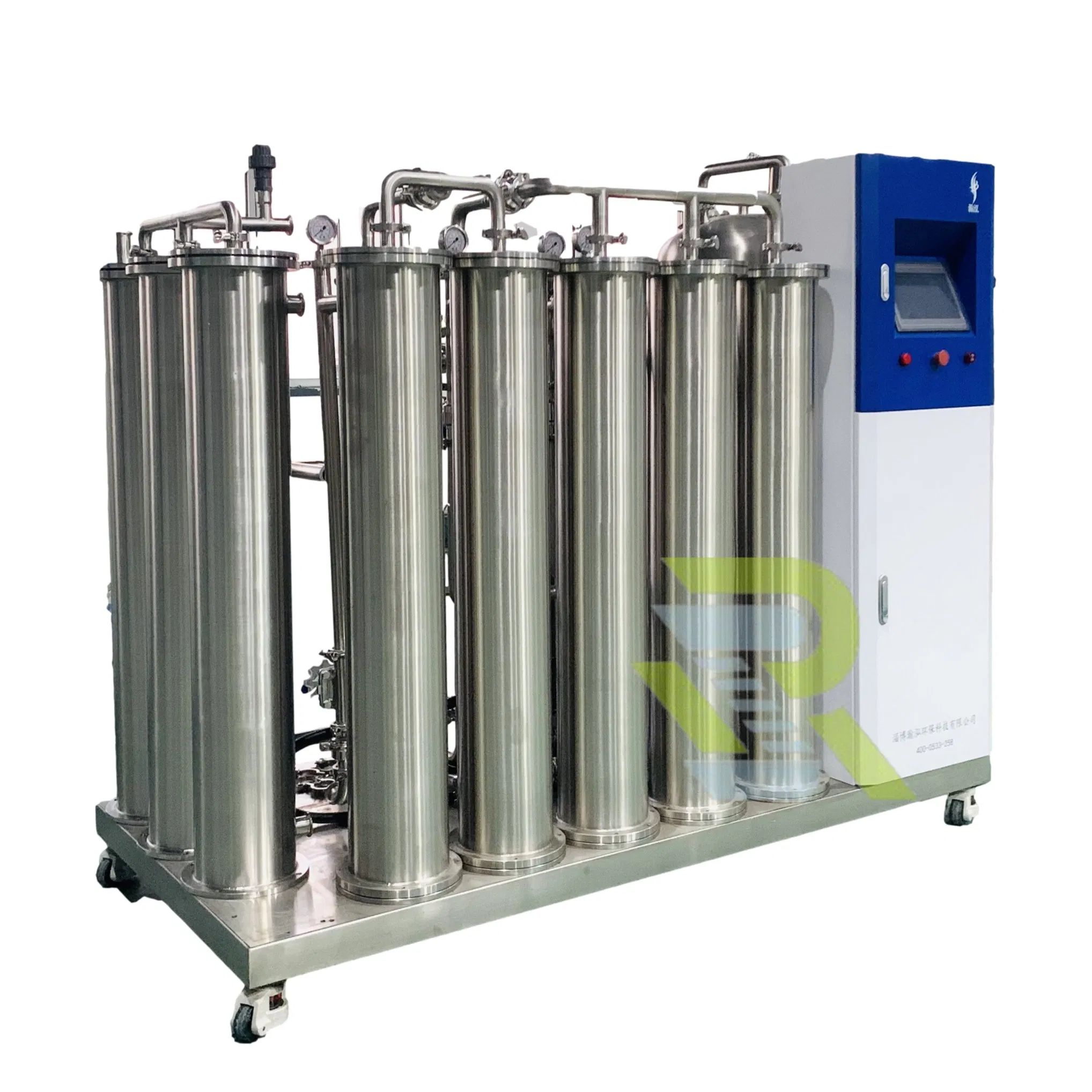

The HHHD-RO water treatment equipment is specifically designed for hemodialysis rooms and centers, meeting the stringent water quality requirements essential for safe and effective hemodialysis treatment. This advanced system is fully compatible with a wide range of domestic and international dialysis machines, ensuring seamless integration into any dialysis facility.

Core Standards

Comply with YY0572-2015 and YY0793-2010 hemodialysis water quality standards.
Meet AAMI/ASAIO standards for hemodialysis water (USA).
Meet Standard Operating Procedures for Blood Purification (2010).
Endotoxin levels < 0.03 EU/ml.

⚙

Product Parameters

Operating Requirements

Feed Water: Qualified pure water meeting dialysis standards.

Pressure: 0.2 MPa.

Temperature: 5 - 25°C.

Environment: 2 - 40°C, Humidity ≤ 80% RH.

Thermal Disinfection System

Fully Automatic: Sanitizes RO membranes and the entire supply loop.
High Temp: Ensures return water remains above 85°C.
Siemens Control: Precise temperature management via Siemens module.
Sanitary Piping: Automatic argon arc welding for seamless interiors.

Model	Water Output (L/H)	Power (Kw)	Bed Capacity	Dimension (mm)
HHHD-RO-300	300	4.0	3-7 Beds	900x750x1600
HHHD-RO-600	600	5.5	5-15 Beds	1500x750x1750
HHHD-RO-1000	1000	7.0	10-25 Beds	1500x750x1750
HHHD-RO-2000	2000	12.0	30-70 Beds	1500x750x1750
HHHD-RO-4800	4800	18.0	60-150 Beds	2100x1000x1750

★

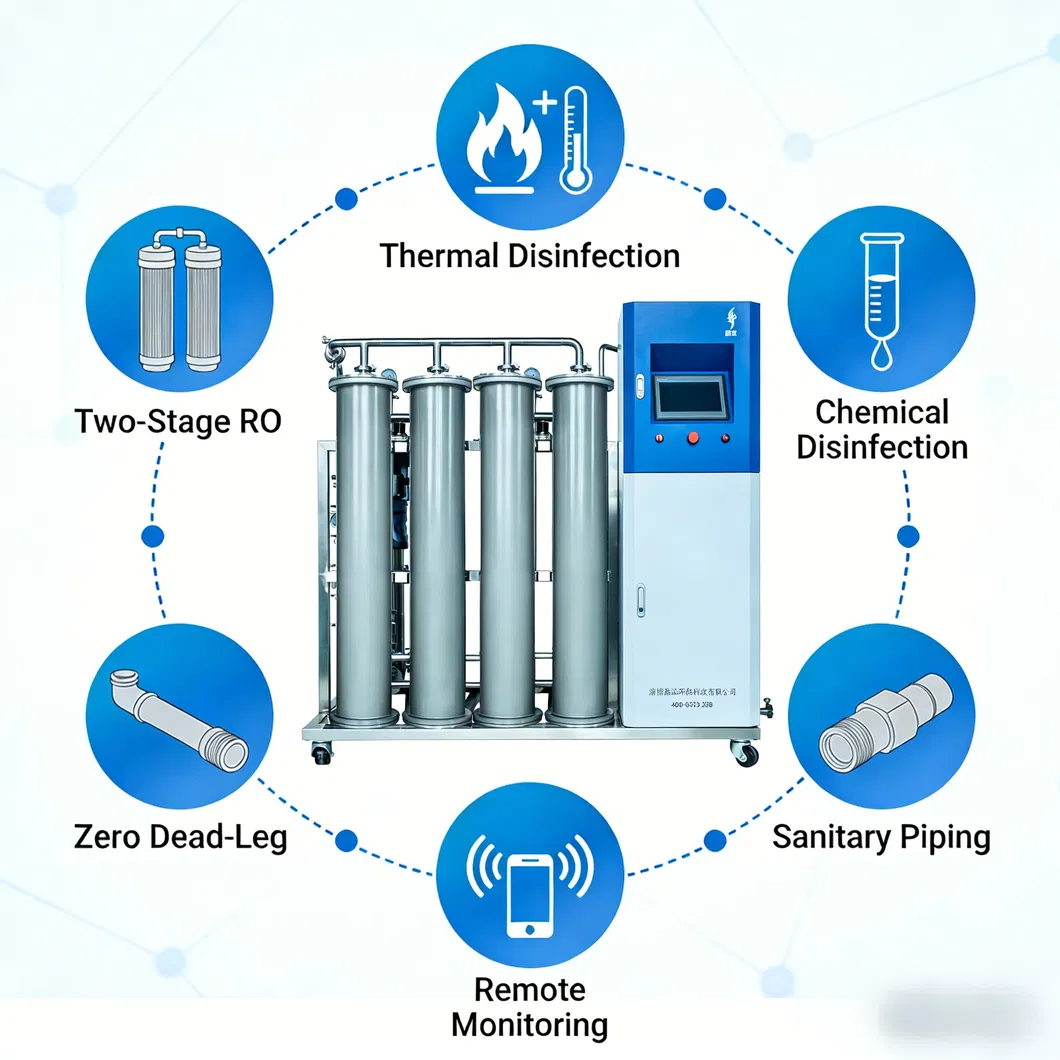

Technical Advantages

Bacteria Control Zero dead-leg design with flow velocity >1 m/s to inhibit microbial attachment.

Endotoxin Control Ultra-pure technology ensures high-efficiency removal during production.

Remote Monitoring Real-time supervision of status via mobile phone or computer.

Intelligent Interface PLC program with HMI for precise concentration and conductivity monitoring.

⚓

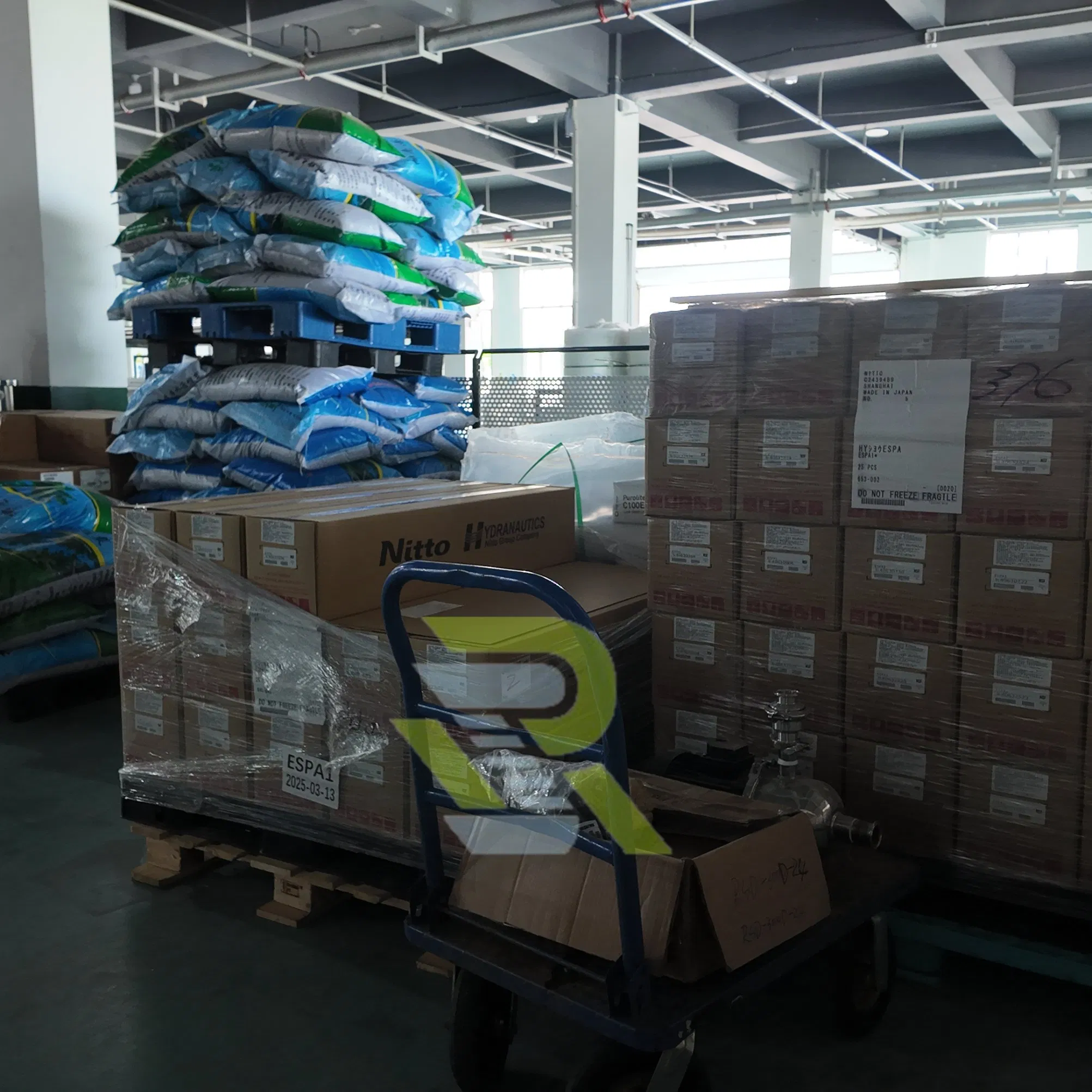

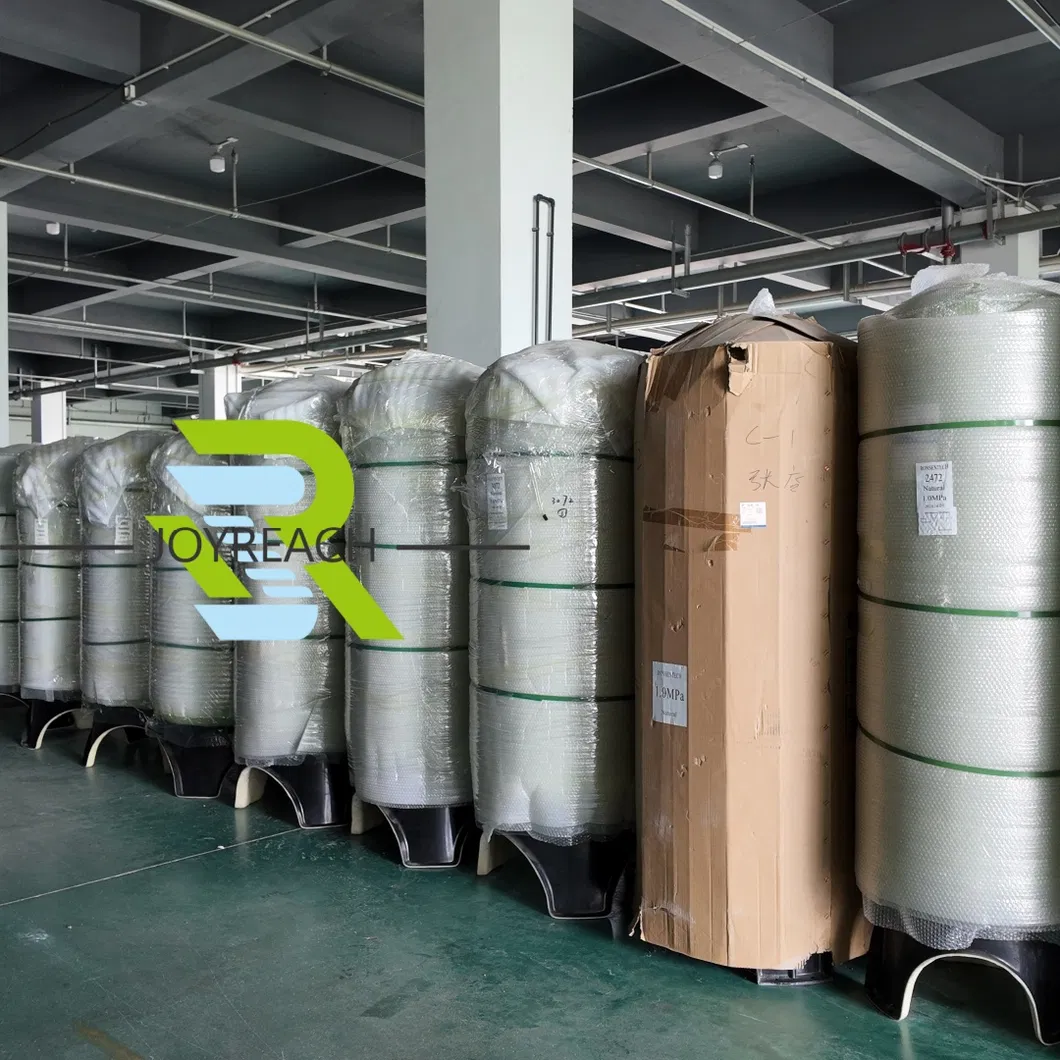

Packaging & Certifications

Our solutions hold 4 invention patents, 16 utility model patents, and certifications including ISO9001, ISO13485, CE, and High-Tech Enterprise status. We are trusted by over 100 large tertiary hospitals.

?

Frequently Asked Questions

Q1: How do I choose the right capacity for my hemodialysis center? Capacity is typically based on the number of beds. For example, 300 LPH serves 3-7 beds, 600 LPH serves 5-15 beds, and 1000 LPH serves 10-25 beds. We provide customized suggestions based on your specific bed quantity.

Q2: What are the primary disinfection options available? The system offers both high-temperature thermal disinfection (Pasteurization at 90°C) and chemical disinfection. Thermal disinfection is generally a cost-effective and highly reliable option.

Q3: Does the system prevent bacterial growth during idle periods? Yes, the entire system is designed with zero dead space and operates with an automatic pulse washing mode day and night to prevent microorganism attachment.

Q4: What information is needed for a customized quotation? We require: 1. Feed water test report; 2. Required purified water standards; 3. Production capacity or bed count; 4. Layout drawing of the installation room; 5. Preferred disinfection method.

Q5: What kind of after-sales support is provided for international orders? We offer free online technical support, detailed manuals, and video guidance. On-site service by engineers is also available upon request (subject to travel cost arrangements).

Q6: Is the water quality real-time monitored? Absolutely. The system provides real-time monitoring of conductivity, temperature, and pressure with multiple alarm functions to ensure safe and continuous dialysis therapy.
