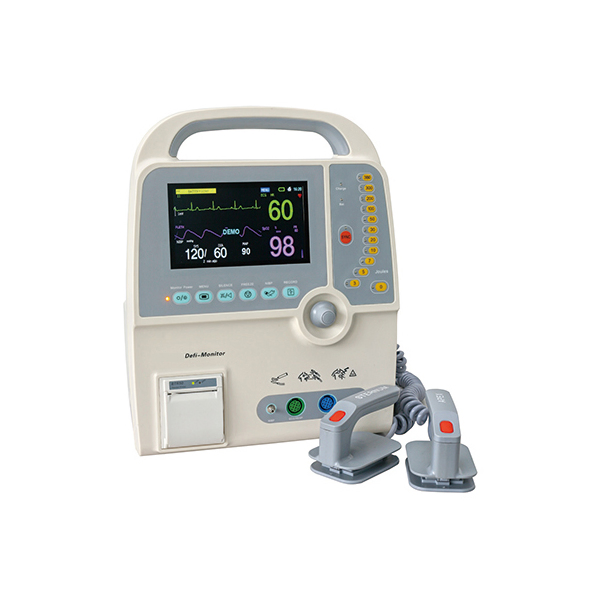

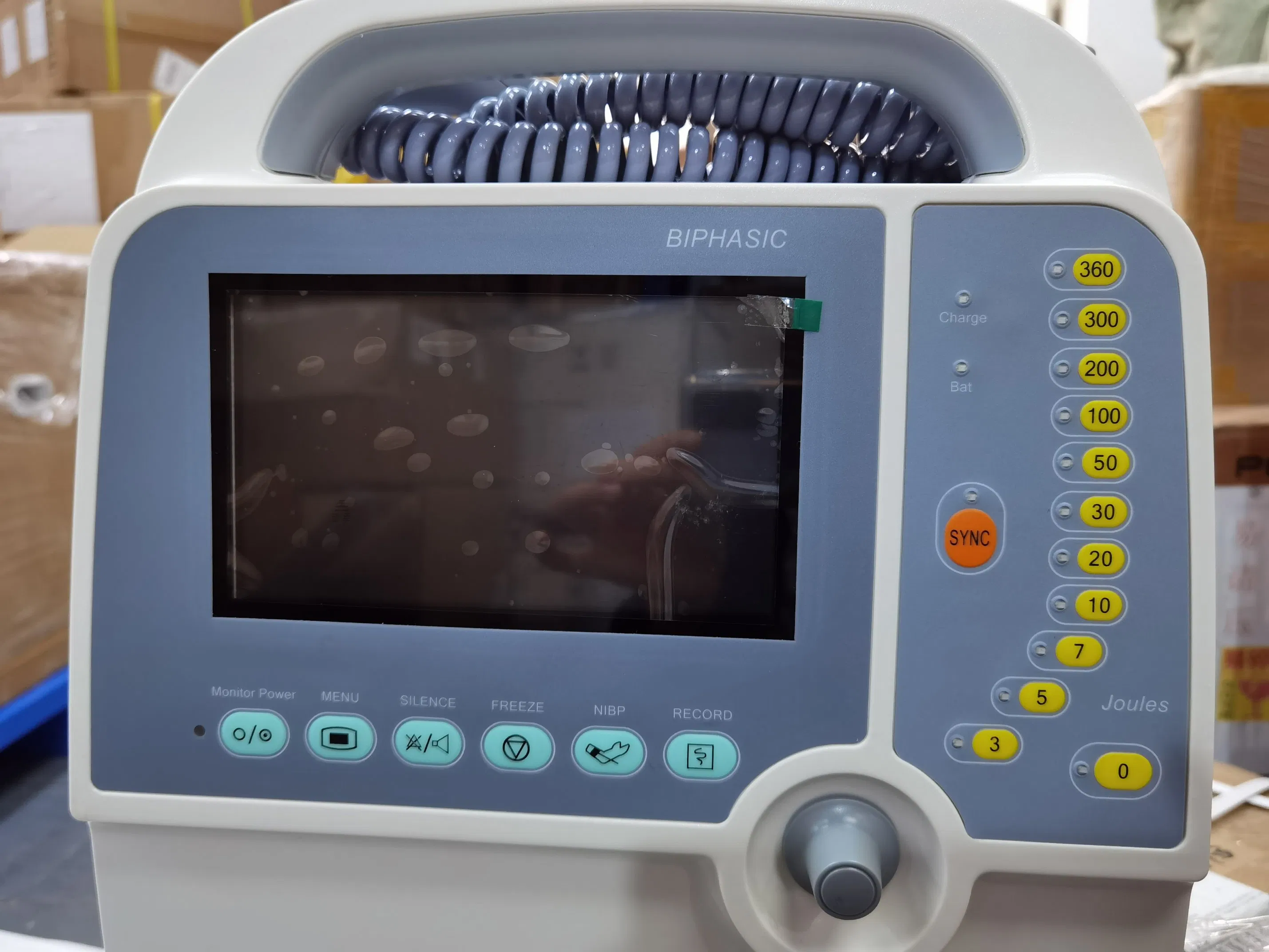

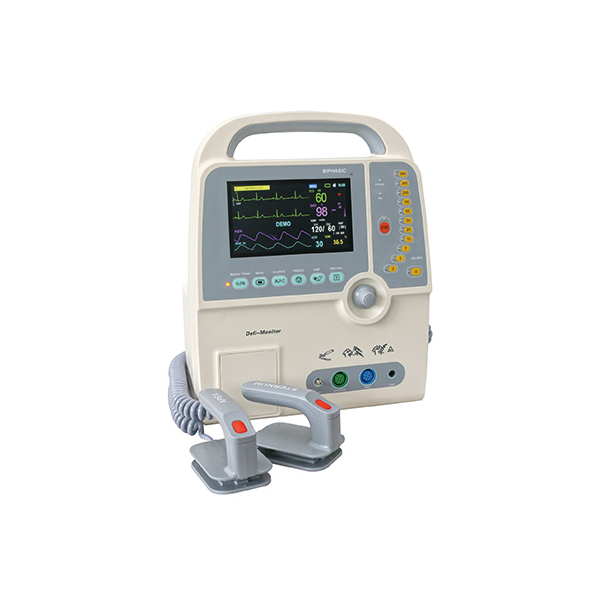

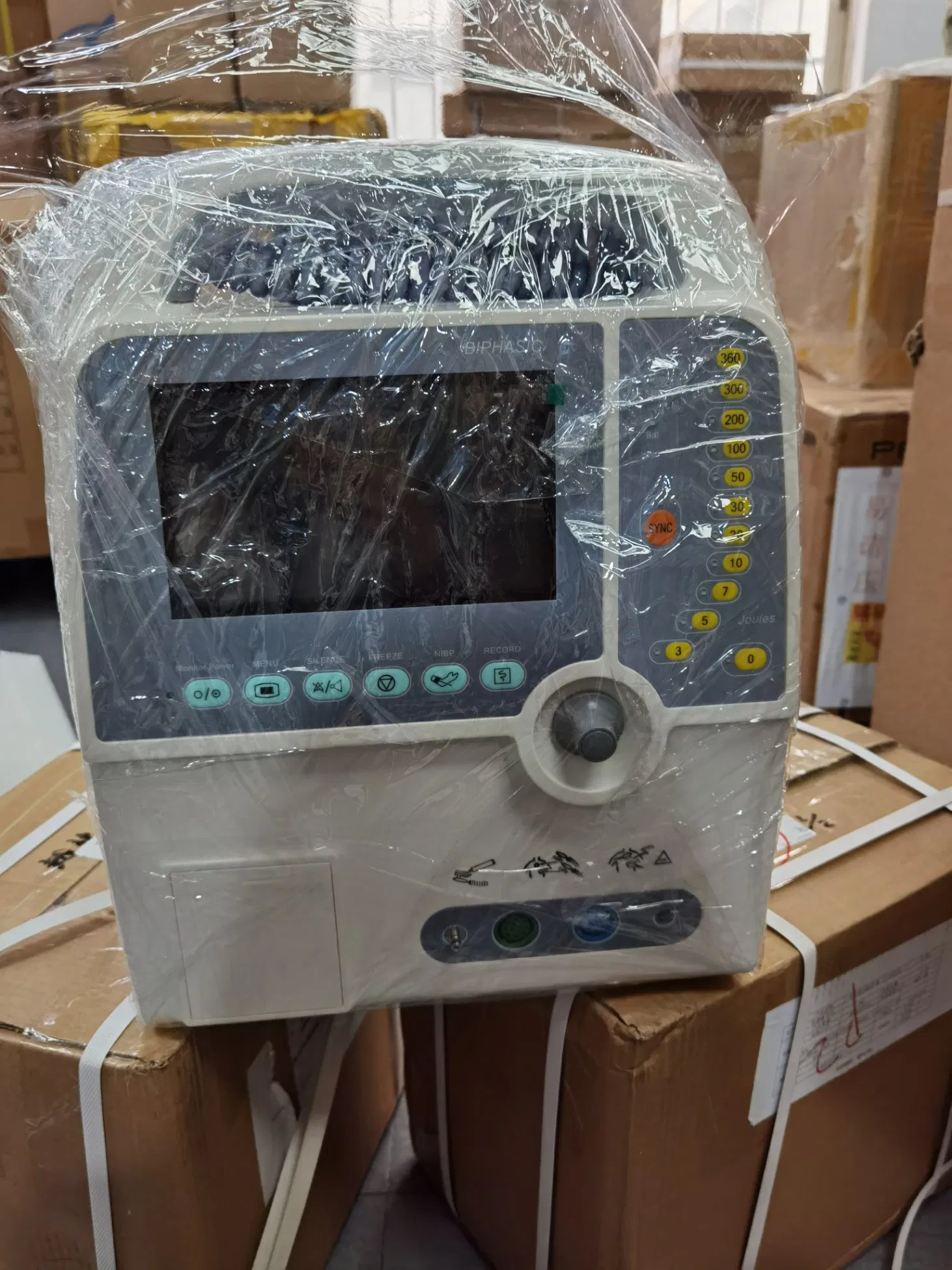

Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
1 / 5
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator
Ys-8000c Hospital Monophasic Portable Defibrillator

Ys-8000c Hospital Monophasic Portable Defibrillator

Customization: Available
Type: Defibrillator
Certification: ISO13485
Send Inquiry

Product Description

📋

Basic Information

Model NO.
YS-8000C
Defibrillator Type
Manual, Synchronized, Asynchronized
Output Waveform
Monophasic Technology
AC Power Supply
110V, 60 Hz / 220V, 50 Hz
Charging Time
Maximum 8 Seconds to 360 Joules
Vehicle Voltage
DC 12V
Display
7" Diagonal High Resolution LED
ECG Lead
I, II, III, AVR, AVL, AVF, V1~V6, GND
S-T Segment Analysis
-2.0~2.0mv
Transport Package
Wooden Case
🏥

Hospital Monophasic Portable Defibrillator

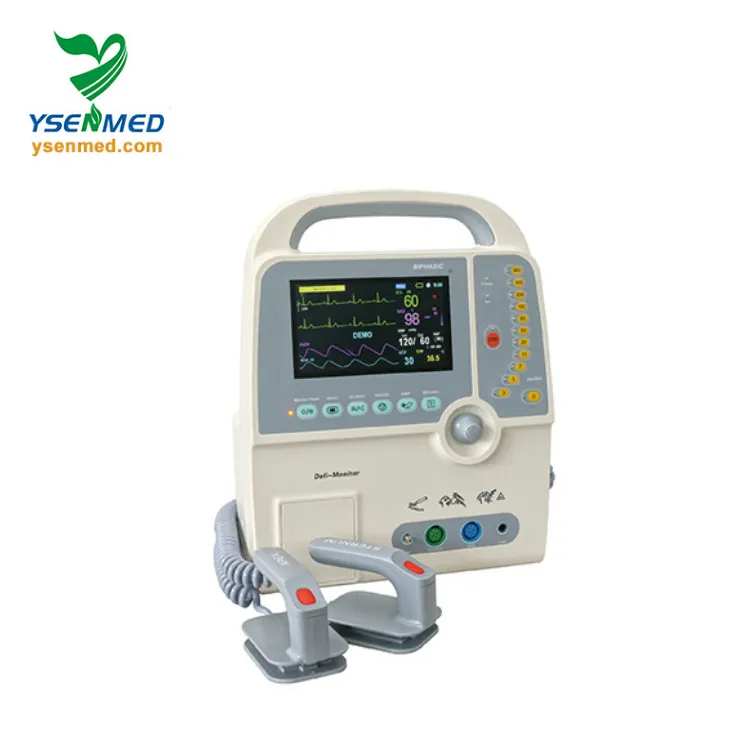

Hospital Monophasic Portable Defibrillator YS-8000C
⚡ Physical Characteristics
Main unit: Portable
Dimensions: L320 x W205 x H410
Weight: 9.5kg
⚡ Energy Selection
0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules
Accuracy: ∠+1%
⚡ Battery Backup
Type: Rechargeable lead-acid / lithium (optional)
Capacity: 120 mins monitoring or 30 discharges at 360J

Technical Specifications:

  • Paddles: Reusable external adult paddles with integrated pediatric paddles.
  • Display Resolution: 480 x 234 high-resolution true-color graphic LED.
  • Protection: Withstand 4000vAc/50Hz voltage in isolation; works against electrosurgical interference and defibrillation.
  • Respiration: Thoracic impedance measurement method.
Defibrillator Detail 1
Defibrillator Detail 2
Defibrillator Detail 3
Defibrillator Detail 4
❓

Frequently Asked Questions

What defibrillation modes are available on the YS-8000C?
The device supports three modes: Manual, Synchronized, and Asynchronized defibrillation.
How long does it take for the device to charge to its maximum energy level?
It takes a maximum of 8 seconds to charge to the full 360 Joules energy level.
Can this defibrillator be used in emergency vehicles?
Yes, it is designed with vehicle voltage compatibility, supporting DC 12V power supply.
What is the battery life during emergency use?
A fully charged battery provides up to 120 minutes of continuous monitoring or 30 discharges at the maximum 360 Joules level.
Does the system include pediatric paddles?
Yes, the device features reusable external adult paddles with integrated pediatric paddles for versatile patient care.
What parameters are monitored by the YS-8000C?
Standard parameters include ECG, Respiration (RESP), and Defibrillation, with built-in S-T segment and arrhythmia analysis.
