12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
1 / 5
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g
12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g

12 Lead 12 Channel Portable Electrocardiograph ECG Machine ECG1200g

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ECG-1200G
Certification
CE, EEC, MSDS, ISO13485
Display
Color LCD
Paper Width
215mm
Leads
12 Leads
Channels
12 Channels
Lead Time
7 Days
Warranty
18 Months
Battery
Inbuilt
Transport Package
Hard Paper Carton
Origin
China
★

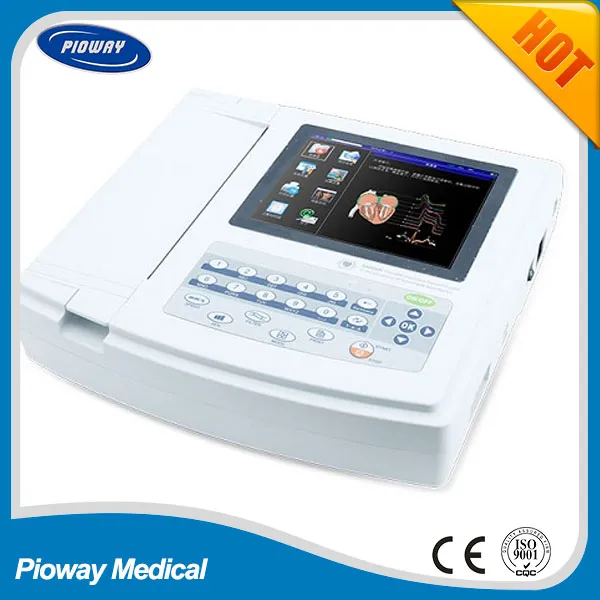

Twelve Channel ECG Machine

ECG1200G Twelve Channel ECG Machine

Introduction: ECG1200G is an advanced electrocardiograph designed to collect 12-lead ECG signals simultaneously. It features a high-precision thermal printing system for clear waveform output. The device supports both automatic and manual recording modes, provides automated diagnosis of ECG parameters, and includes safety prompts for "Lead off" or "Lack of paper." It is equipped with a multi-language interface, AC/DC power options, and a comprehensive case database management system.

✔ Signal Processing: Digital signal processing technology with power frequency, baseline, and EMG filters for high-quality waveforms.
✔ Versatile Display: View 3/6/12-lead ECG, print mode, sensitivity, and paper speed on a single integrated screen.
✔ Multi-Printing Modes: Supports Auto 12x1, 6x2+1, Rhythm 12/10/8/6, and more. Includes trend charts and P-R interval histograms.
✔ Auto-Diagnosis: Automatic measurement and diagnosis for HR, P-R interval, QRS Duration, Q-T interval, and various Axis parameters.
✔ Large Memory: Built-in storage for up to 1000 cases, facilitating easy medical record review and statistics.
✔ Endurance: Up to 10-hour standby time and over 3 hours of continuous printing in DC mode (approx. 300 ECG cases).
⚙

Technical Parameters

Input wayFloating and defibrillation protection
LeadStandard 12 leads
Input impedance≥50MΩ
Frequency response0.05Hz~150Hz (-3dB,+0.4dB)
Time constant>3.2s
Noise level≤13μVp-p
FilterAC filter, ECG interference filter, DFT filter
SensitivityAuto 10, 20mm/mV±2% etc.
Measure dataHR, Interval, Duration, Axis
Paper speed5, 6.25, 10, 12.5, 25, 50mm/s
Recording paper210/216mm(W) x 20/30m(L)
Safety TypeClass I, Type CF
Net Weight3.5Kg
OptionsWorkstation Software, SD Card, Portable Pack, Trolley
▣

Product Gallery

ECG Device Detail 1
ECG Device Detail 2
ECG Device Detail 3
≡

Other Available Models

PM10
Portable ECG Monitor, 1.77" Color TFT-LCD, Rechargeable Lithium Battery
ECG100G
One Channel, 12 Leads, 2.7" LCD Screen
ECG300G
Three Channels, 12 Leads, 3.5" TFT Color LCD Screen
ECG600G
Six Channels, 12 Leads, 7" TFT Color LCD, Touch Screen
ECG1200G
Twelve Channels, 12 Leads, 8" TFT Color LCD Screen
?

Frequently Asked Questions

1. How many leads can the ECG1200G collect simultaneously?
The ECG1200G is designed to collect 12-lead ECG signals simultaneously, ensuring comprehensive heart monitoring and diagnostic accuracy.
2. Does the device support automated diagnosis?
Yes, it features auto-analysis and auto-diagnosis functions for routine ECG parameters, providing measurement results for HR, P-R interval, QRS Duration, and more.
3. What is the storage capacity for patient records?
The built-in memory can store up to 1000 cases, which is highly convenient for clinical case review and medical statistics.
4. How long does the battery last on a single charge?
Under optimal DC conditions, it provides up to 10 hours of standby time and can print continuously for more than 3 hours (approx. 300 ECG cases).
5. What type of printing paper is required?
It uses thermal recording paper with a width of 210mm or 215mm and a length of 20m to 30m.
6. Which languages are supported by the interface?
The interface and reports support multiple languages including English, Spanish, French, German, Portuguese, Russian, Turkish, and several others.
