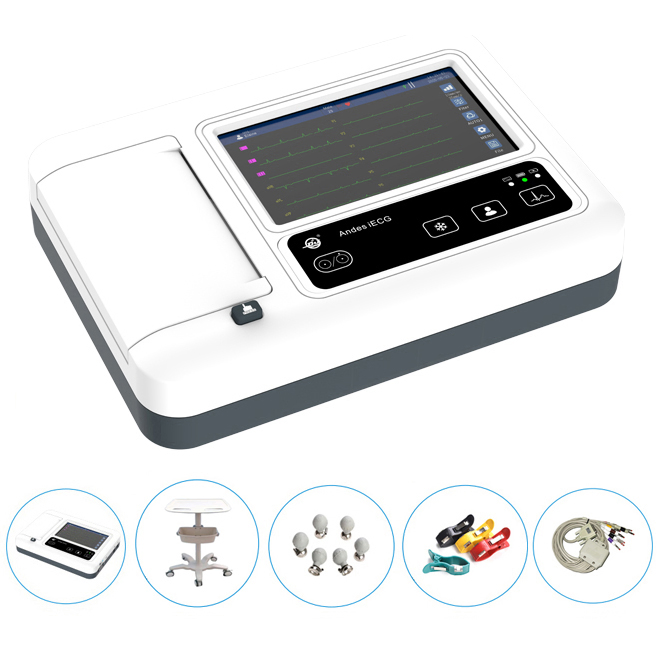

Hospital Equipment Portable ECG Machine Electrocardiograph 12 Channel Digital EKG Machine

1 / 5

Hospital Equipment Portable ECG Machine Electrocardiograph 12 Channel Digital EKG Machine

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

📊

Basic Information

Model NO.:Andes iECG3A

Certification:CE, ISO13485

Product:3 Channel ECG Machine

Screen:7 Inch

Warranty:18 Months

Power Supply:Built-in Battery

Usage:Hospital/Clinic

HS Code:9018110000

✨

Product Description

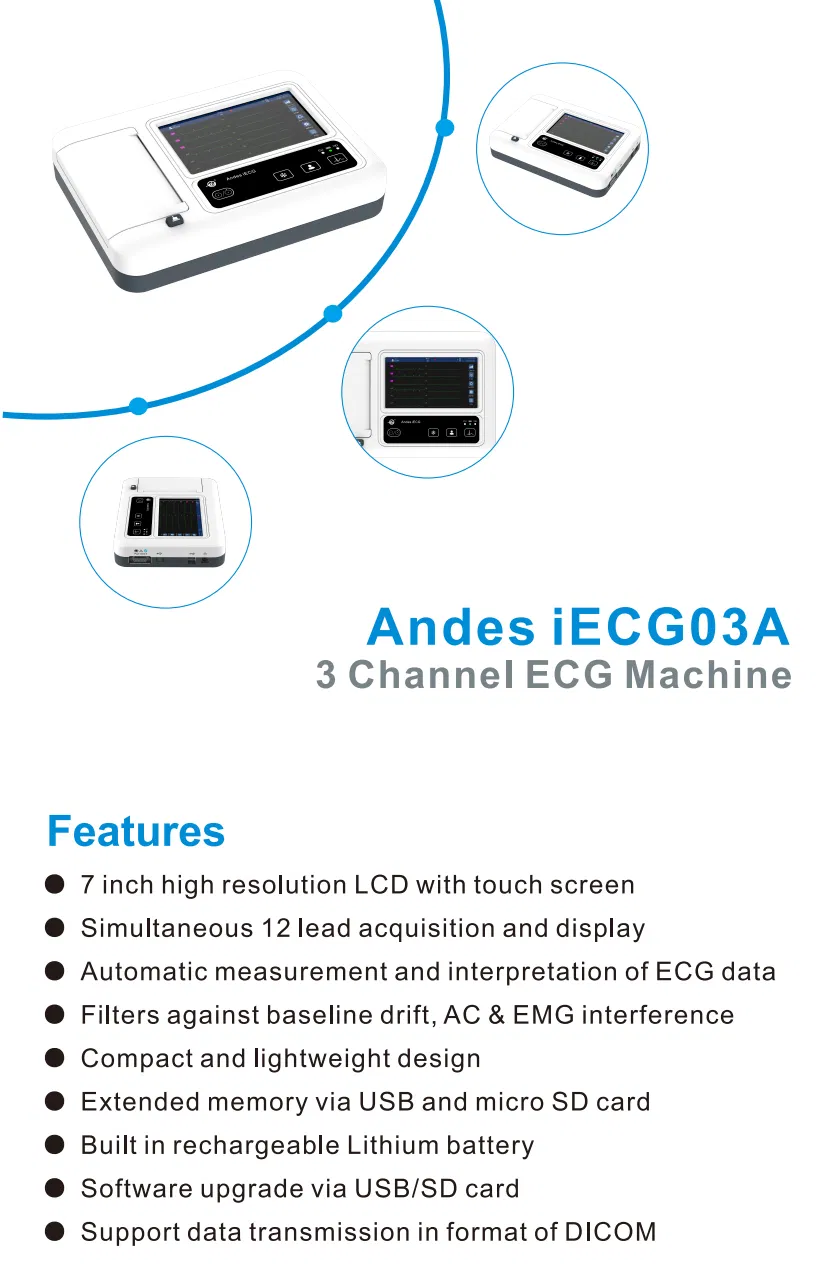

Portable Electrocardiograph - 12 Channel Digital EKG Machine

7 inch high resolution LCD with touch screen

Simultaneous 12 lead acquisition and display

Automatic measurement and interpretation

Filters against baseline drift, AC & EMG interference

Compact and lightweight design

External memory via USB and micro SD card

Built-in rechargeable Lithium battery

Support data transmission in DICOM format

⚙️

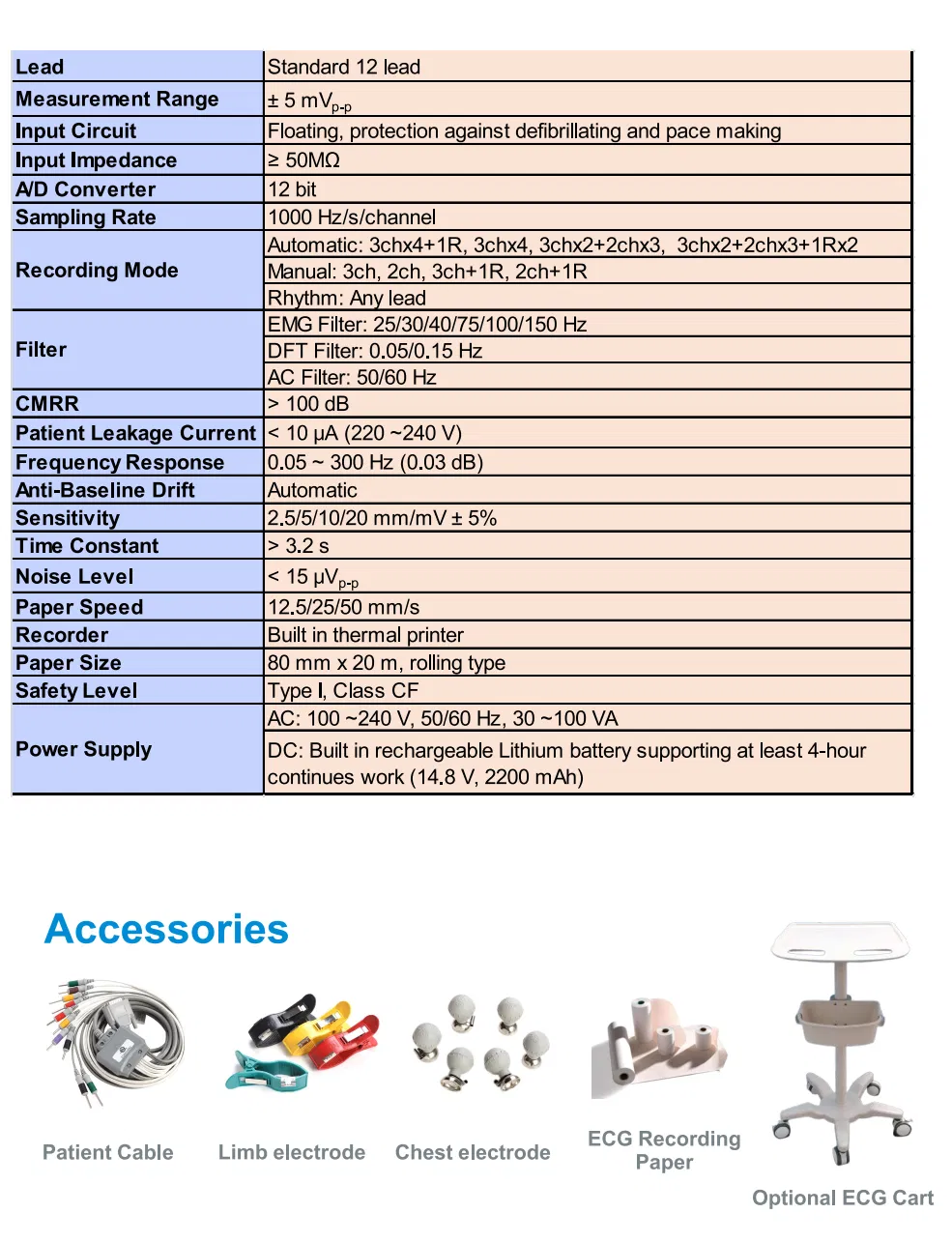

Product Parameters

Leads	Standard 12 leads
Input Circuit	Isolated input circuit
Time Constant	≥ 3.2 s
CMRR	> 100dB (filters in use)
Frequency Response	0.05 ~ 300 Hz (-3dB ~ +0.4dB)
Sensitivity	5, 10, 20, 40 mm/mV ± 3%
Recording Speed	5, 6.25, 10, 12.5, 25, 50 mm/s ± 3%
Recording Paper	Rolling Type/Z-fold: 80mm × 20 m
Input Impedance	> 50MΩ

📸

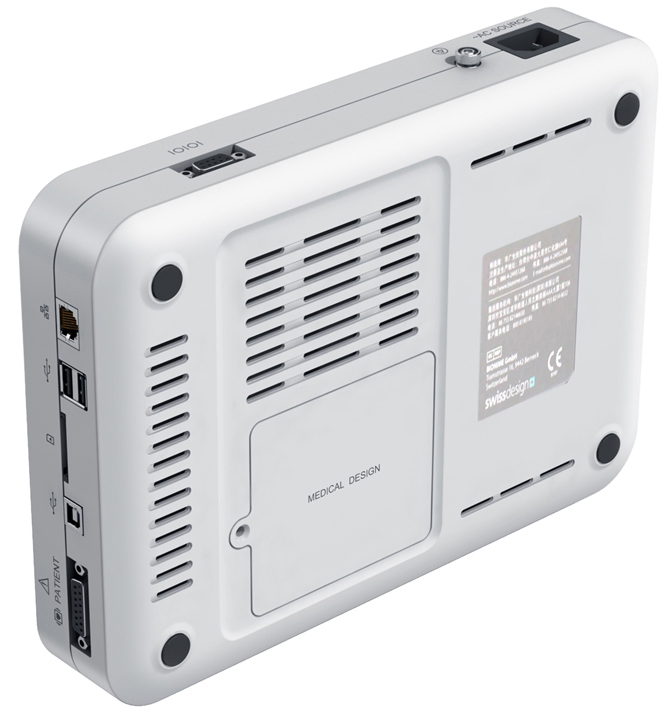

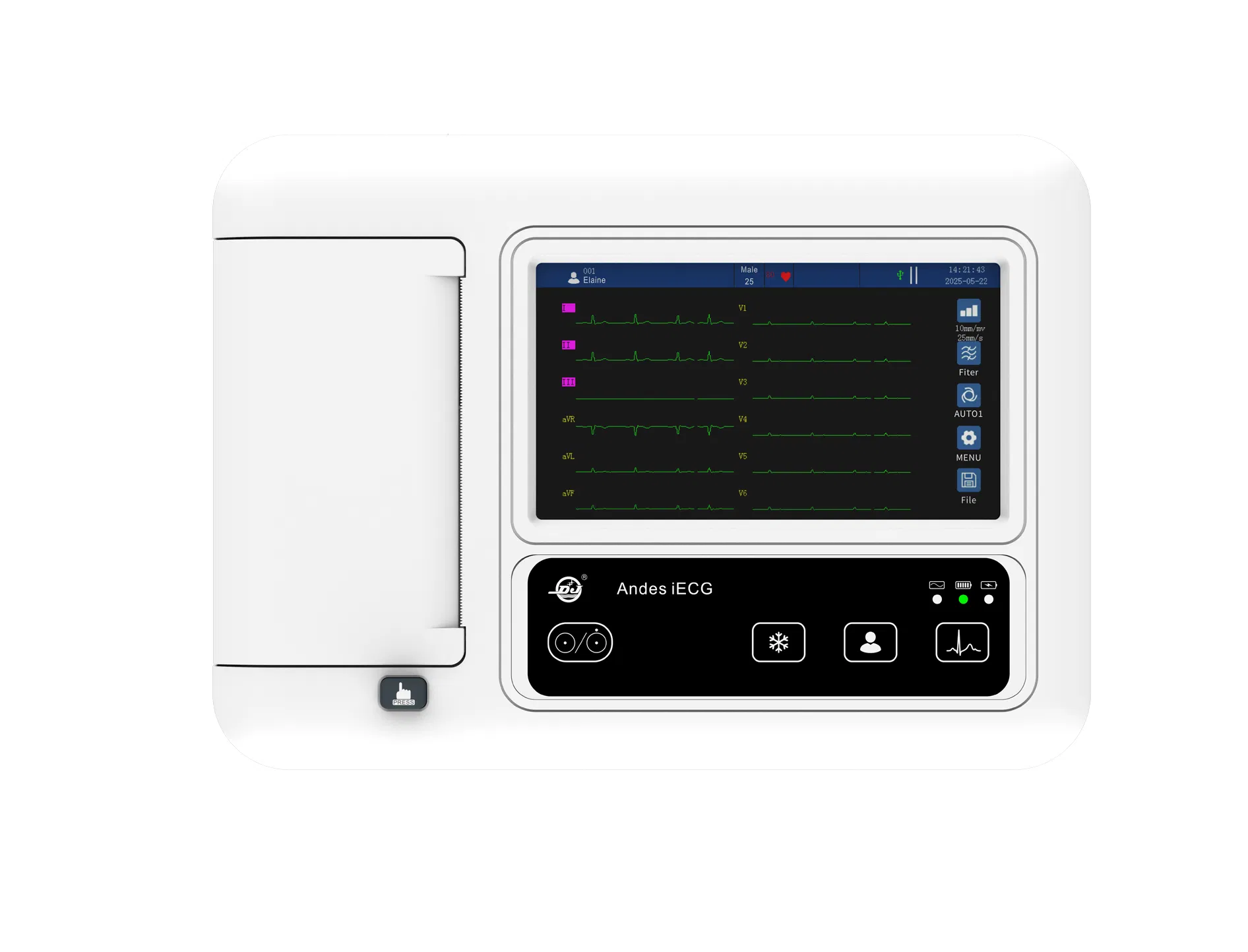

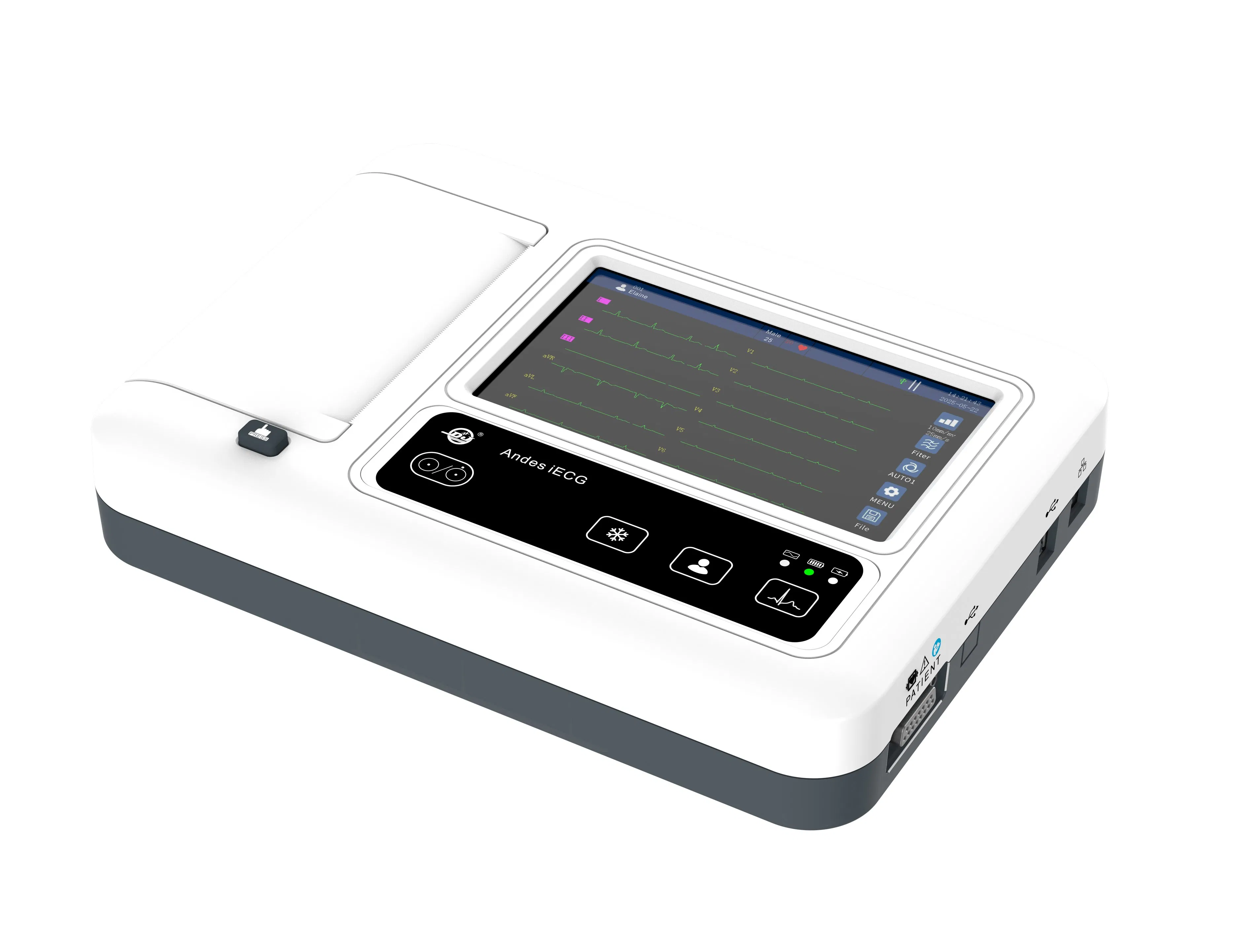

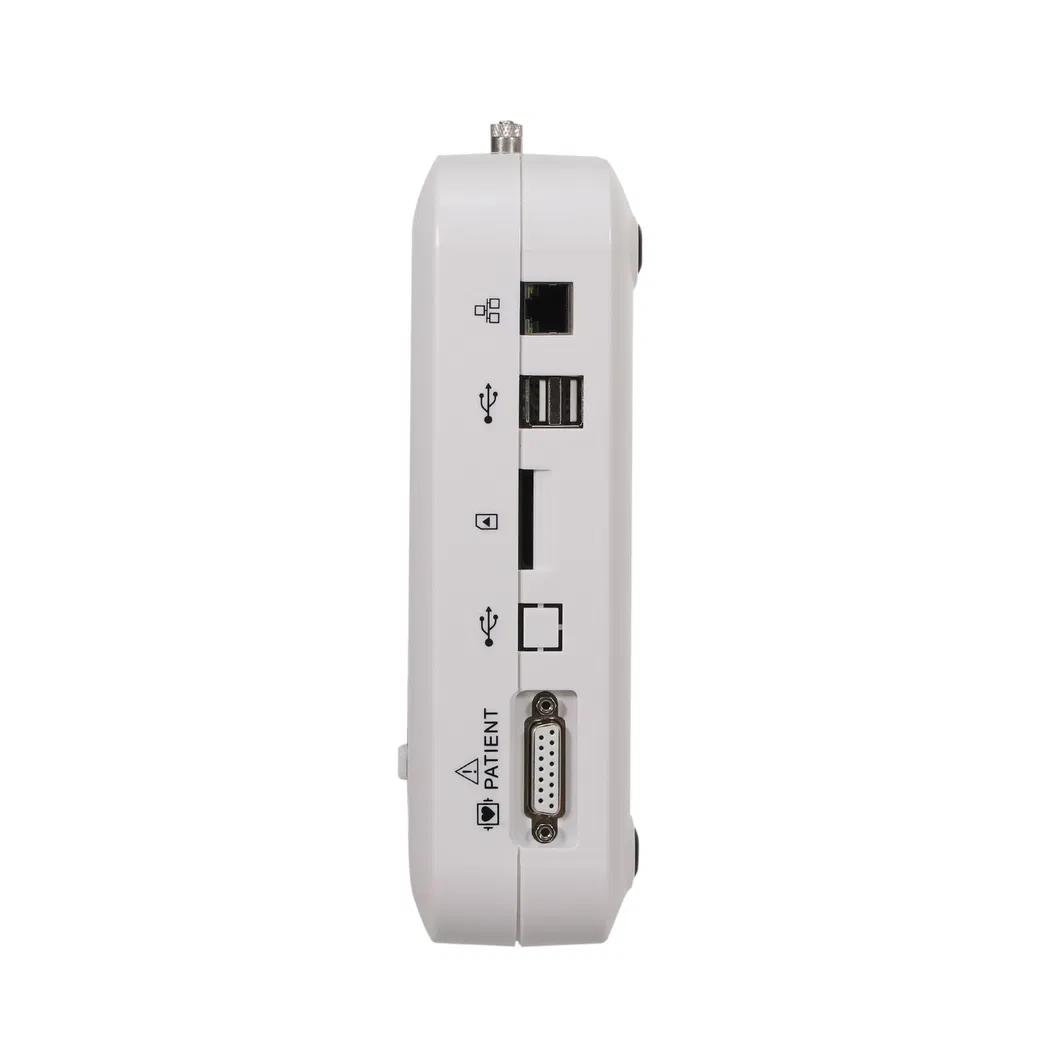

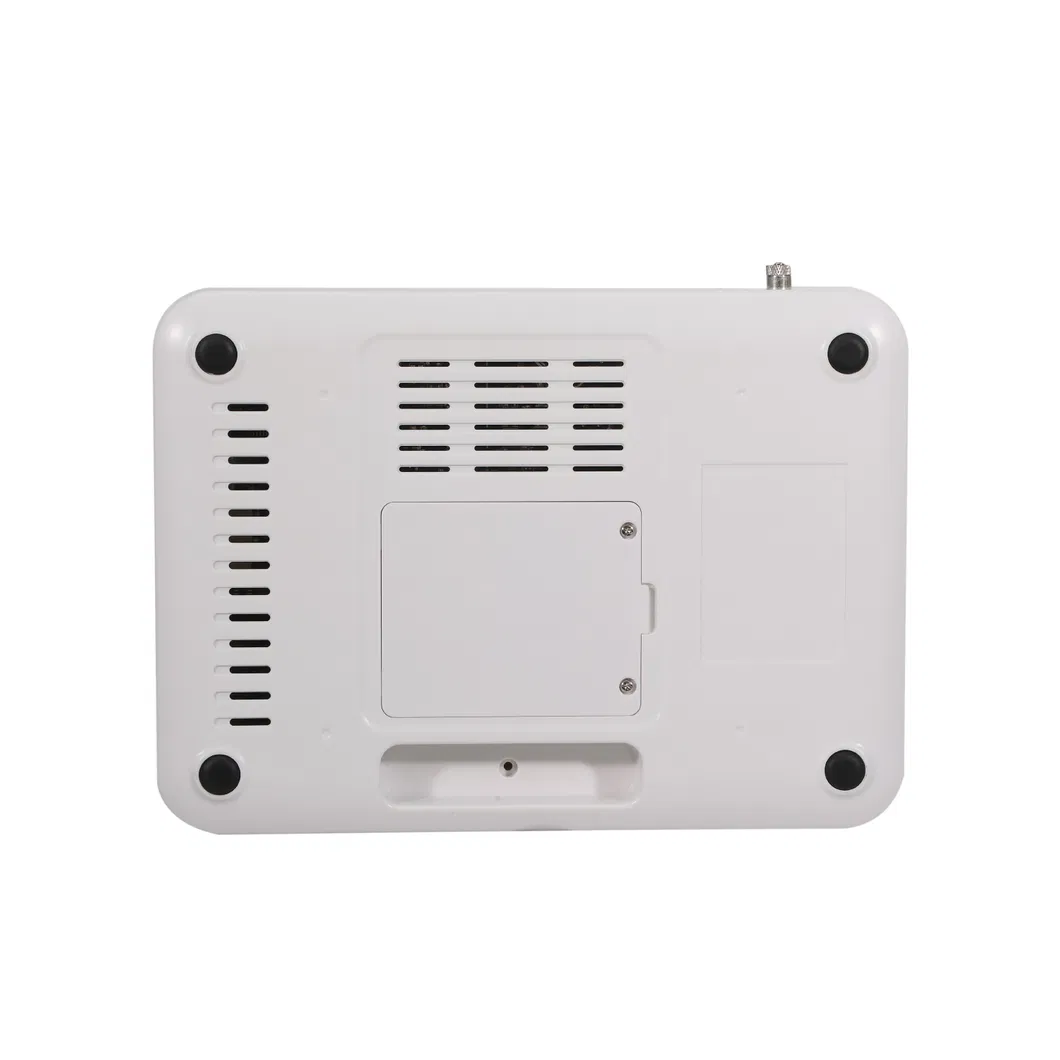

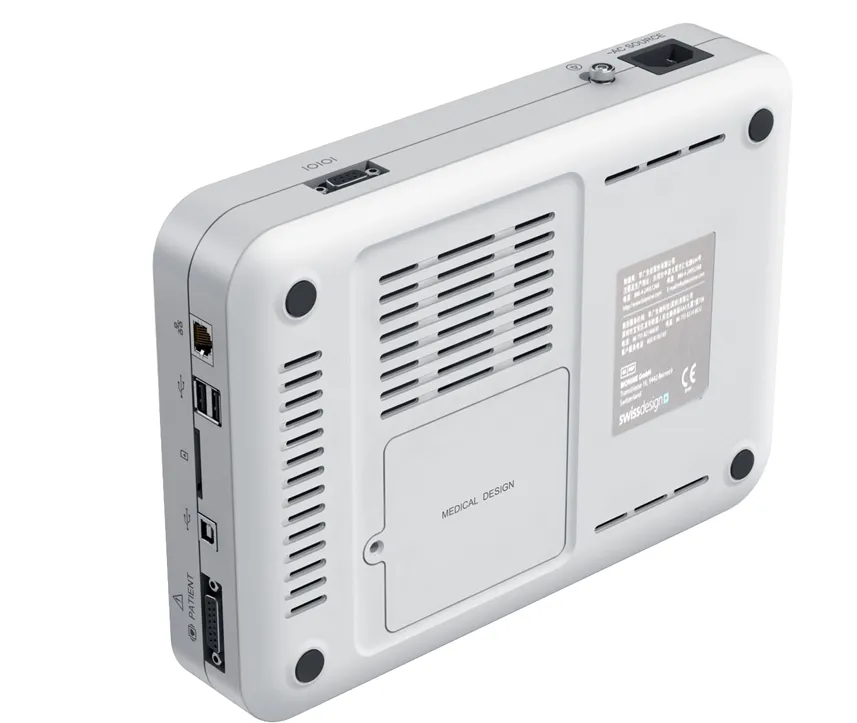

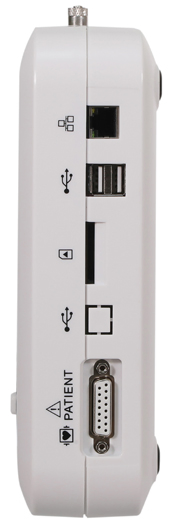

Detailed Photos

🌡️

Ambient Condition

Operation Environment: Temperature: +5ºC~+40ºC | Humidity: 25%~80%

Storage Environment: Temperature: -10ºC~+40ºC | Humidity: 25%~80%

Transport Environment: Temperature: -20ºC~+55ºC | Humidity: 25%~95%

📦

Packaging & Shipping

Dimension: 290mm × 225mm × 75mm | Weight: 3Kg

Standard Package List:

Main Unit Andes iECG3A
Patient Cable
Thermal Recording Paper
Power Cord & Grounding Cable
Limb Electrodes (4PCS)
Chest Electrodes (6PCS)
User Manual
Warranty & Certificate

🏭

Professional Environment

Frequently Asked Questions

Q: How many leads can this ECG machine acquire simultaneously? A: The Andes iECG3A supports simultaneous 12-lead acquisition and display for comprehensive cardiac monitoring.

Q: Does the device come with a battery for portable use? A: Yes, it features a built-in rechargeable Lithium battery, making it ideal for portable hospital or clinic use.

Q: What is the screen size and type? A: The machine is equipped with a 7-inch high-resolution LCD touch screen for easy operation and clear waveform viewing.

Q: Can the data be exported to a hospital management system? A: Yes, the device supports data transmission in DICOM format and allows for external memory storage via USB or micro SD cards.

Q: What is the warranty period for this product? A: This ECG machine comes with an 18-month warranty and online technical support for after-sales service.

Q: Does it include interpretation software? A: Yes, it features automatic measurement and interpretation of ECG data to assist medical professionals.
