Product Description

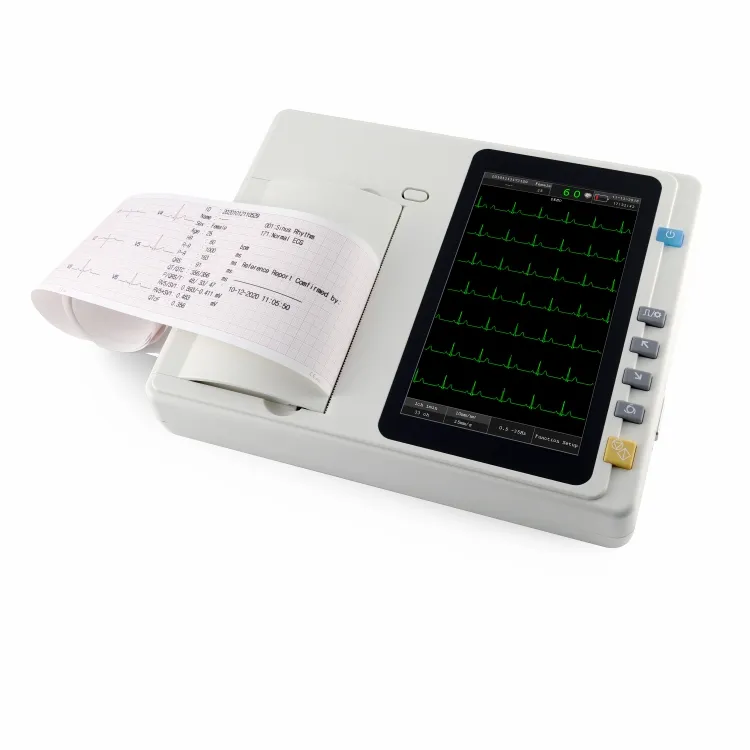

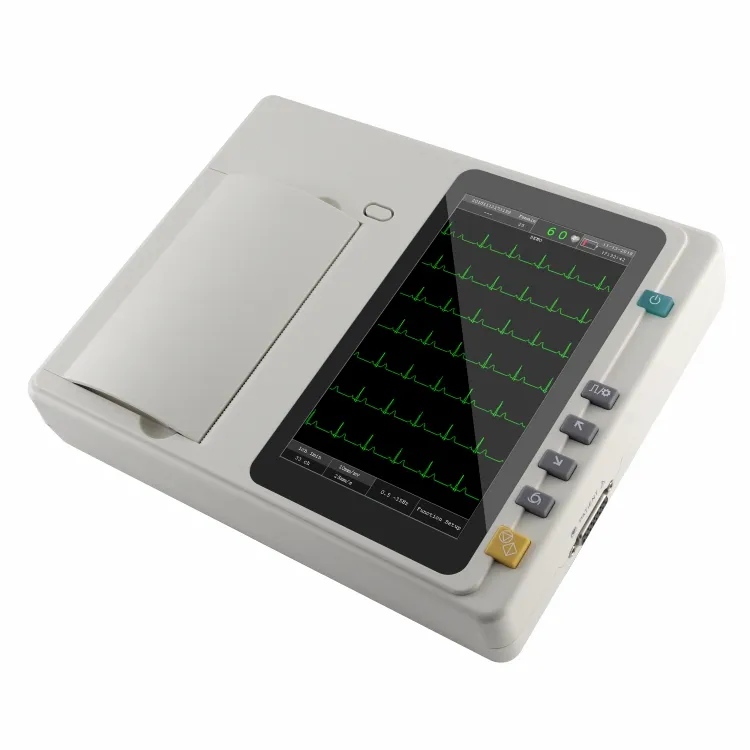

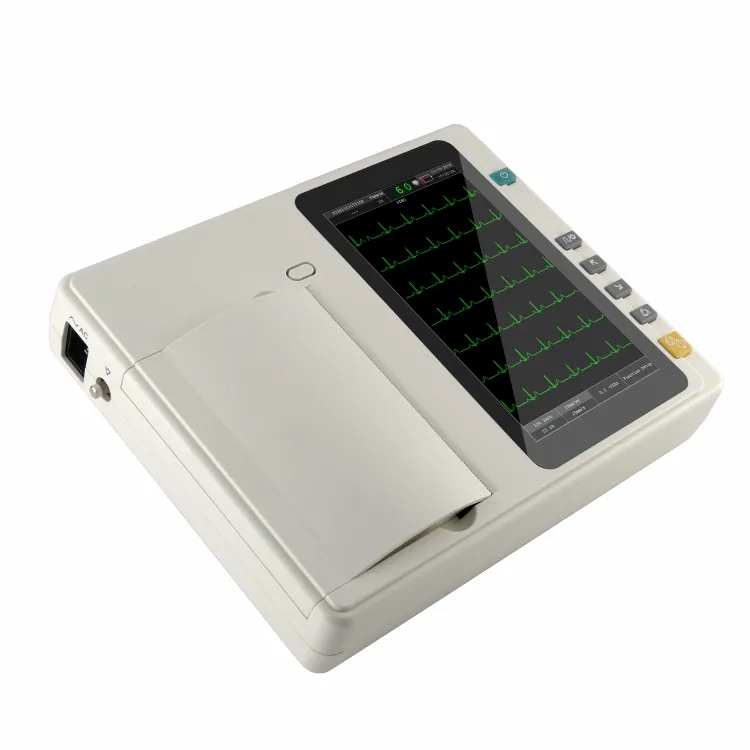

3-Channel ECG Machine (JRECG301)
7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design

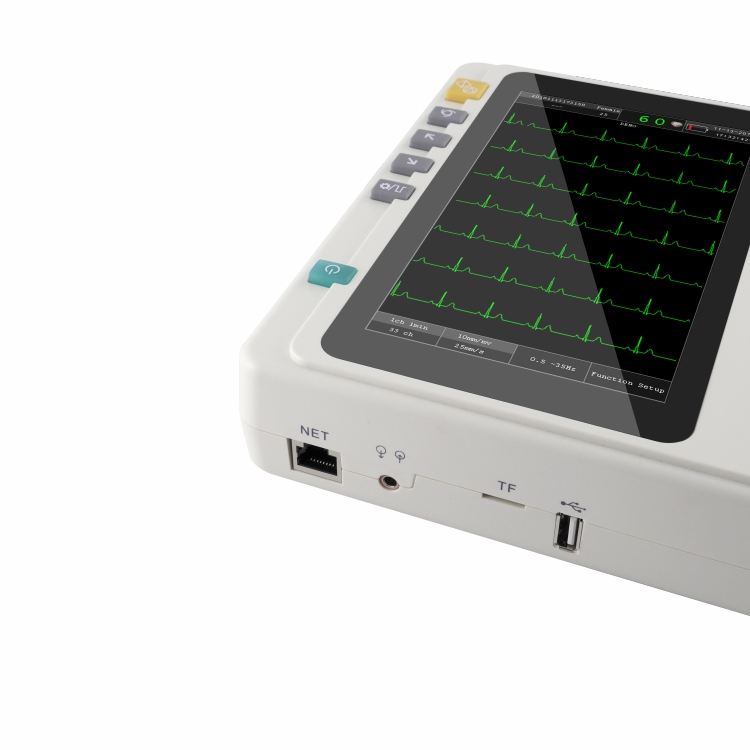

Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Technical Specifications
| Items |
Specification |
| Lead | Standard 12 leads |
| Acquisition Mode | Simultaneous 12 leads acquisition |
| Measurement Range | ±5mVpp |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input circuit current | < 0.05µA |
| Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
| Filter | EMG Filter: 25-150Hz; DFT Filter: 0.05/0.15 Hz; AC Filter: 50/60Hz |
| CMRR | >100dB |
| Patient leak current | < 10µA (220V-240V) |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20 mm/mV (error:±5%) |
| Anti-baseline Drift | Automatic |
| Time constant | ≥3.2s |
| Noise level | < 15µVp-p |
| Paper speed | 12.5, 25, 50 mm/s |
| Recording mode | Thermal printing system |
| Paper specification | Roll 80mmx20M |
| Safety Standard | IEC I/CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC: 100~240V; DC: 14.8V/2200mAh Li-ion battery |
Standard Configuration
- Main machine: 1 PC

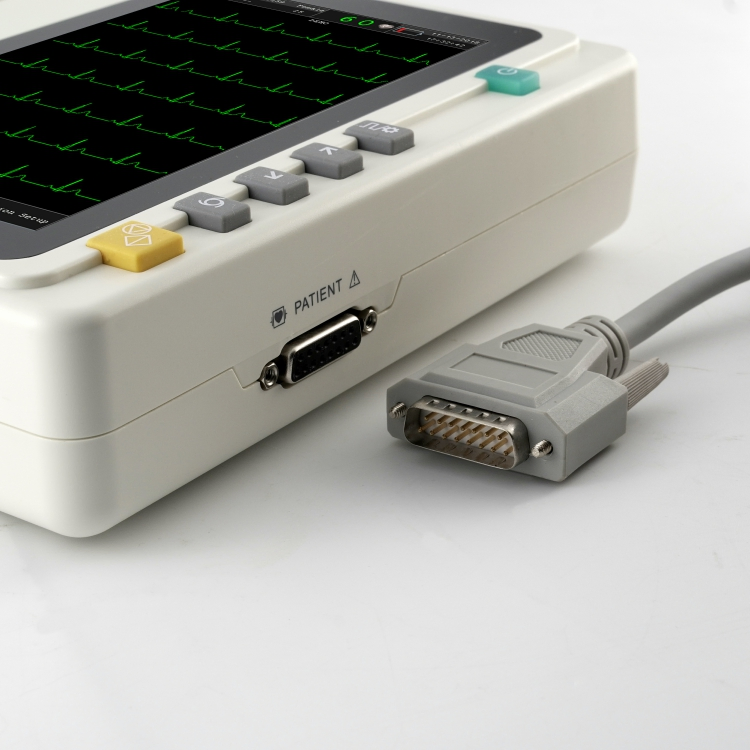

- Patient cable: 1 PC
- Limb electrode: 1 set (4pcs)
- Chest electrode: 1 set (6pcs)
- Power cable: 1 PC
- 80mm*20M recording paper: 1 PC
- Paper axis: 1 PC
- Power cord: 1 PC
Packing Details
Single package size: 32*25*17cm
Single gross weight: 2.8 KG
8 units per carton: 54*33*75cm (22 KG)

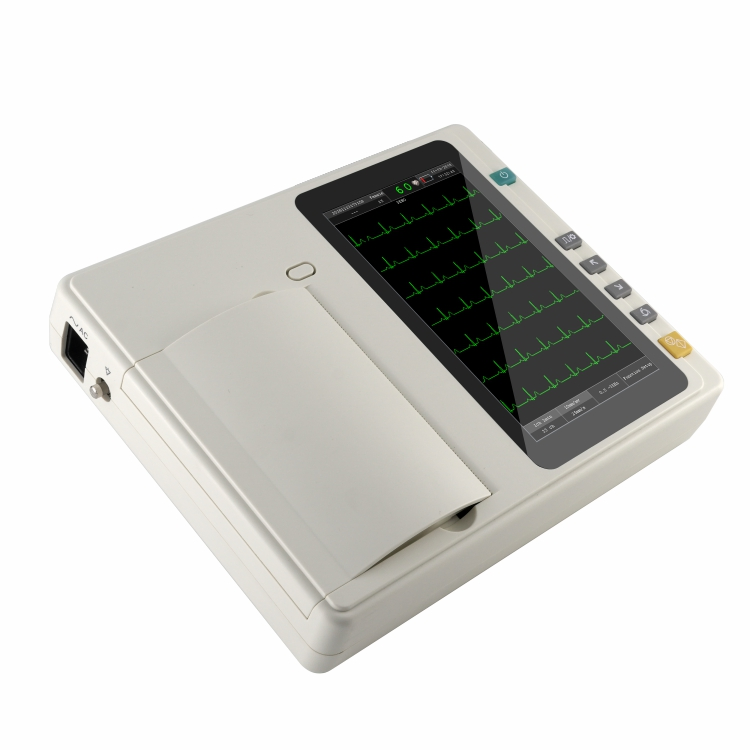

6-Channel ECG Machine (JRECG 601)
7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation
Complete digital filters for AC/EMG interference
Compact and lightweight design
USB and Micro SD card memory extension
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Frequently Asked Questions
What type of display does the JRECG-301 use?
The machine features a 7-inch high-resolution color touch screen for clear visualization and easy operation.
Does this ECG machine support automatic interpretation?
Yes, it includes an ECG automatic measurement and interpretation function to assist healthcare professionals.
Can I export or save the ECG data externally?
Absolutely. The device supports both USB flash disks and micro SD cards to extend memory and facilitate data transfer.
What kind of filters are built into the system?
It is equipped with complete digital filters that effectively resist baseline drift, AC interference, and EMG interference.
Is the device portable for emergency use?
Yes, it has a compact and lightweight design and includes a built-in rechargeable Li-ion battery for mobile use.
What is the standard recording paper used?
The machine uses standard thermal recording paper rolls with specifications of 80mm x 20M.
