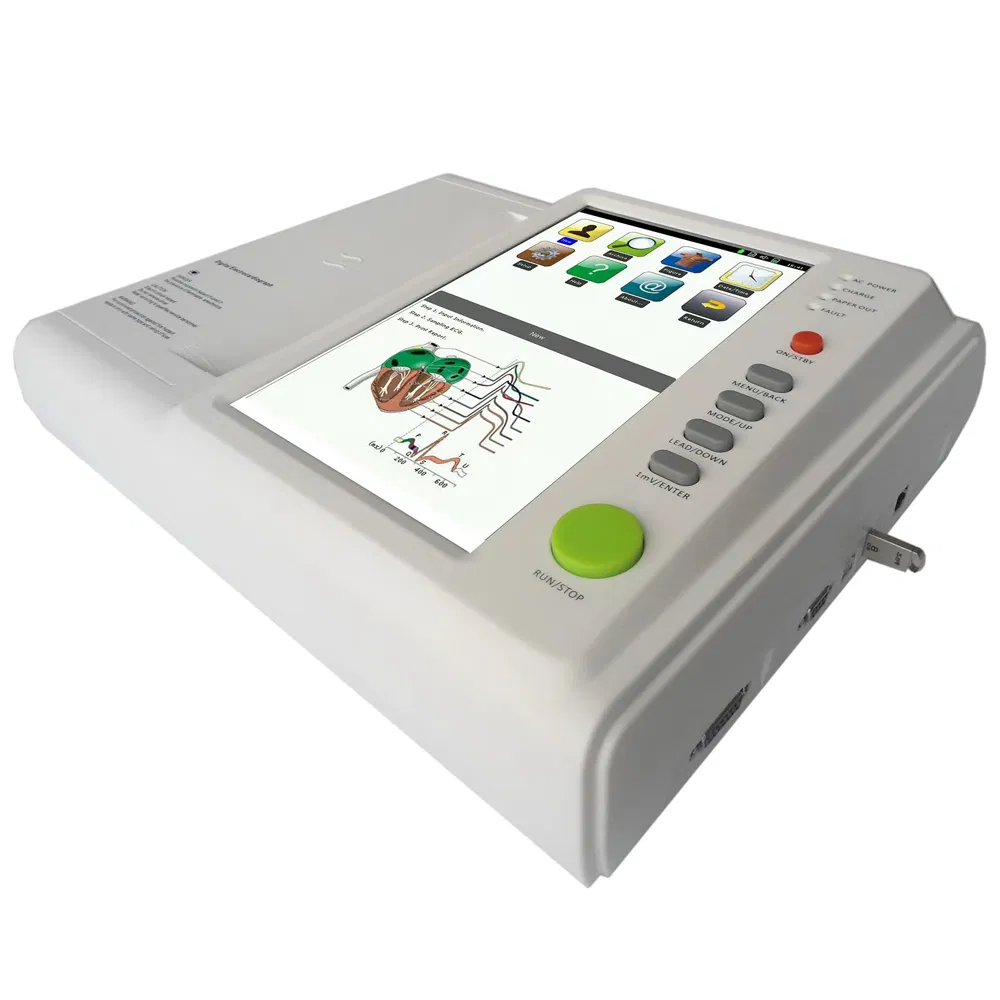

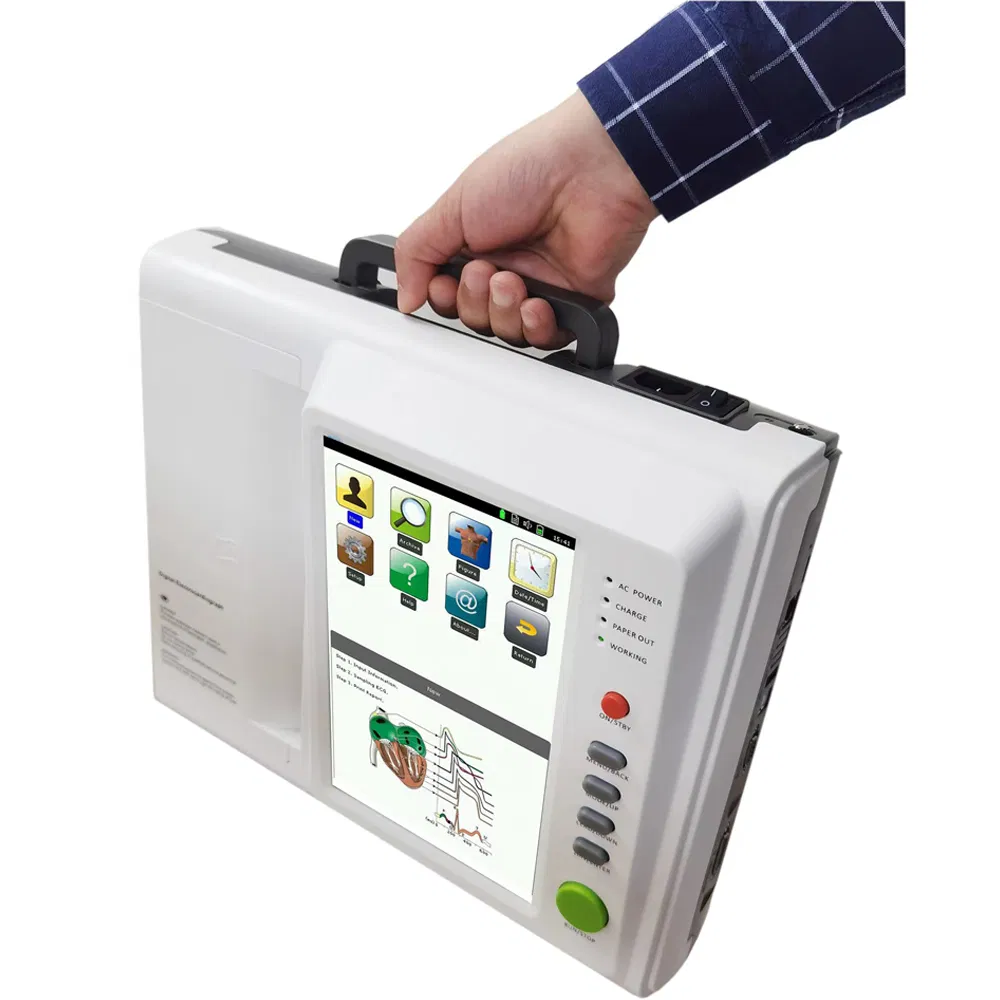

Novalion Twelve Channel Electrocardiograph 12 Channels ECG

1 / 4

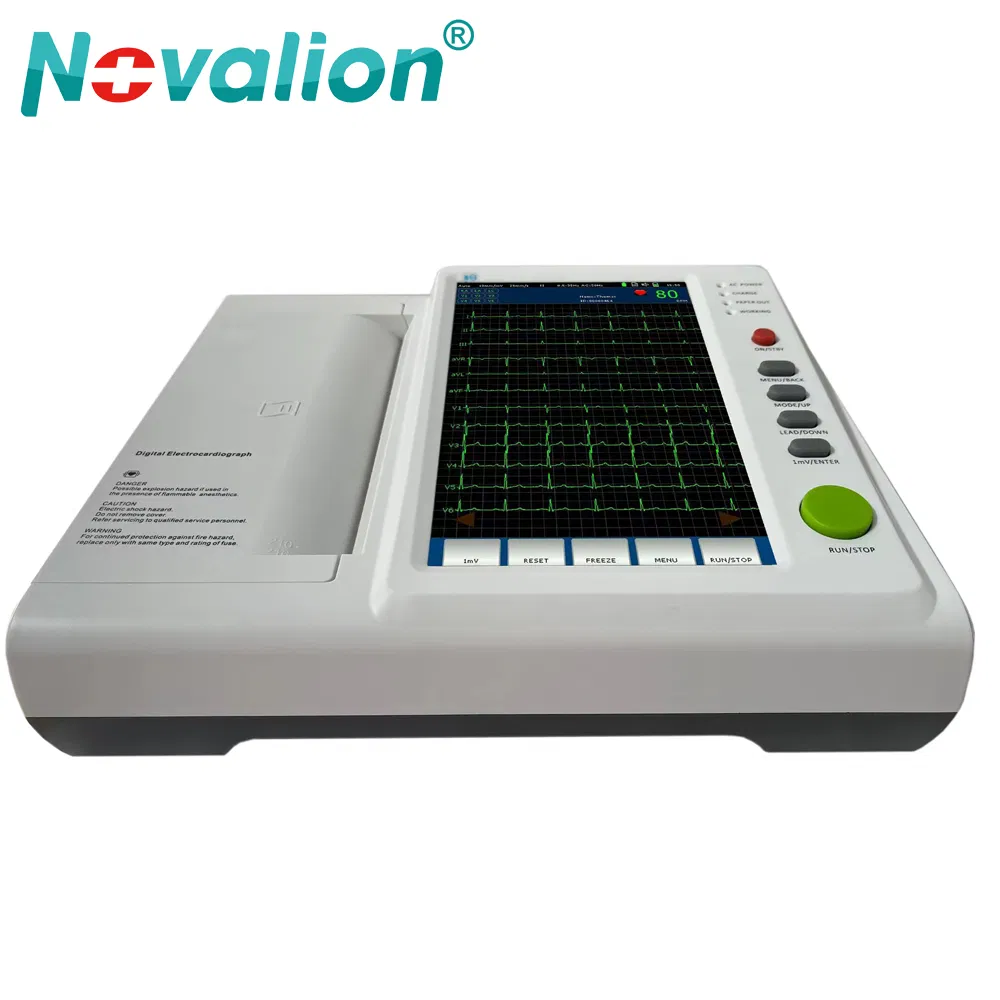

Novalion Twelve Channel Electrocardiograph 12 Channels ECG

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

General Specifications

Model NO.	NL070301B-12	Certification	CE, ISO13485
Group	Adult / Children	Lead/Channel	12 / 12
Displayer	10.2" Color Touch Screen	AC Power	100-230V, 50/60Hz
Origin	China	Production Capacity	50 PCS/Day

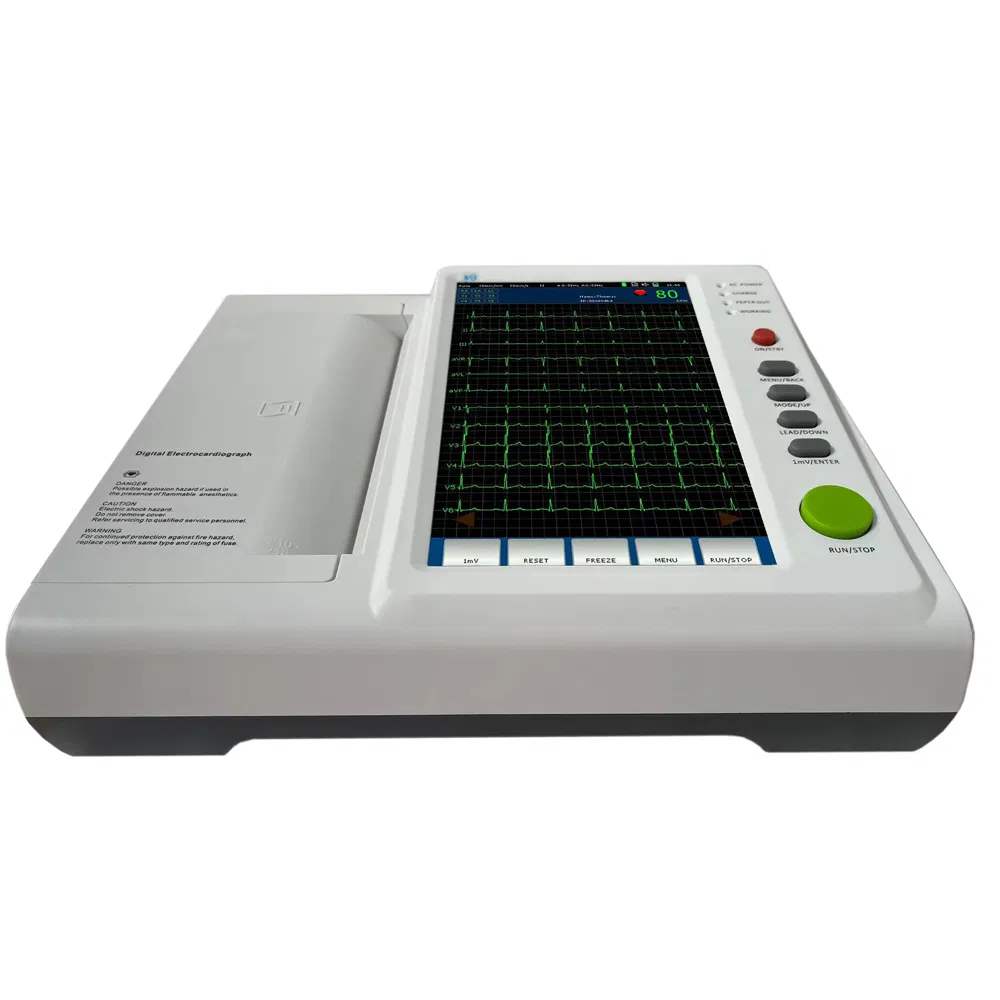

Twelve Channel Electrocardiograph

Advanced 12 Channels ECG Monitoring System

Key Characteristics

✓Simultaneously acquisition of 12 lead, full screen display.

✓10.2" color touch-screen with push-button operation.

✓Defibrillation protection and Pacemaker detection.

✓Automatic measurement, calculation, and analysis.

✓Thermal printer with 216mm paper synchronization.

✓Built-in rechargeable Li-ion battery (14.8V/4000mAh).

✓Support USB flash disk for data storage and PC analysis.

Technical Parameters

CMRR	≥ 100dB, with AC Filter
Input Circuit	Floating, Protection against defibrillator effect
Resolution	12bit/1000Hz
Input Impedance	> 50MΩ
Frequency Response	0.05Hz~150Hz
Paper Speed	12.5mm/s, 25, 50mm/s (±3%)
Sensitivity	5, 10, 20mm/mV
Dimension	295mm205mm73mm

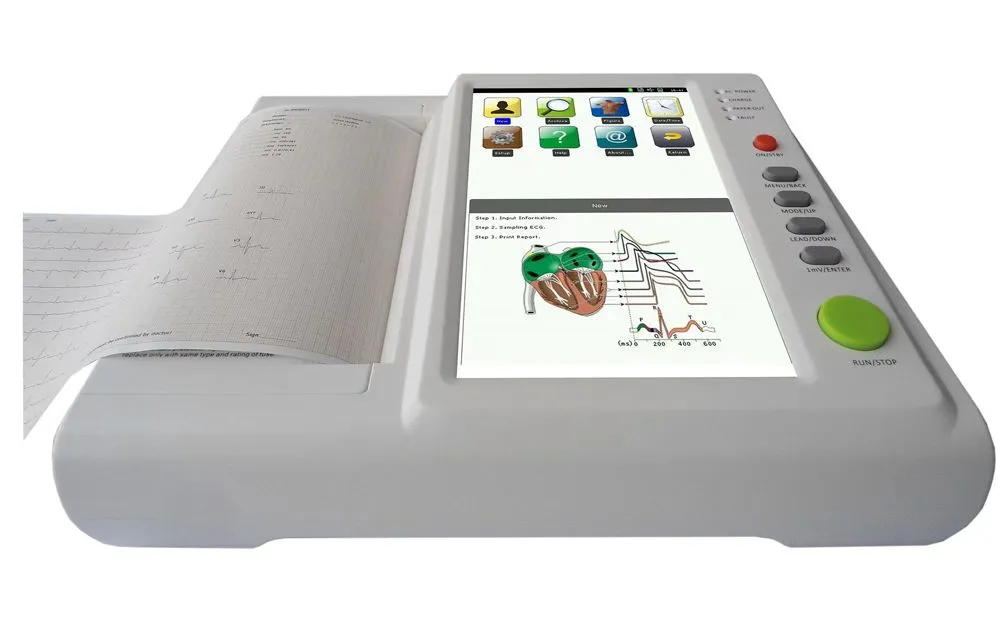

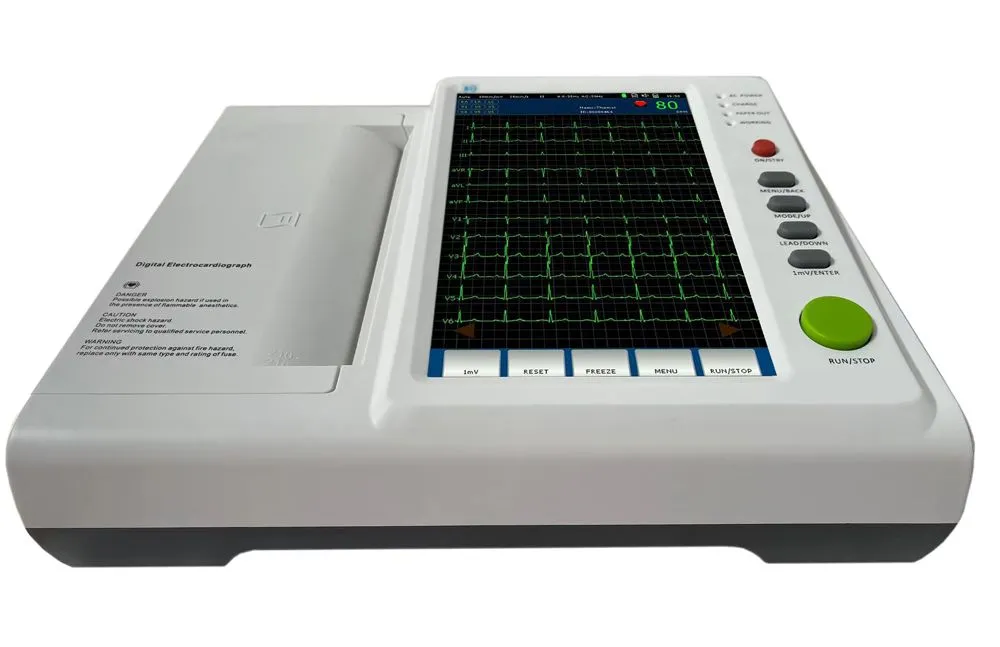

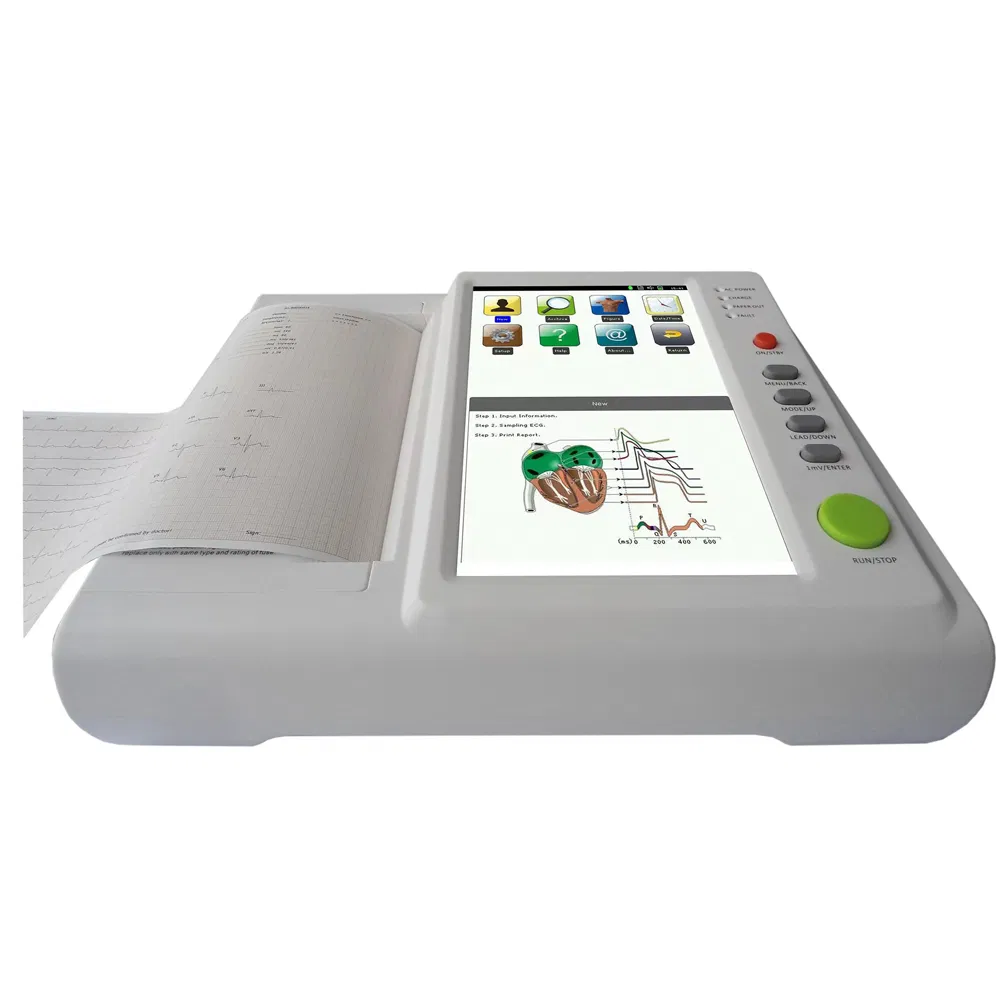

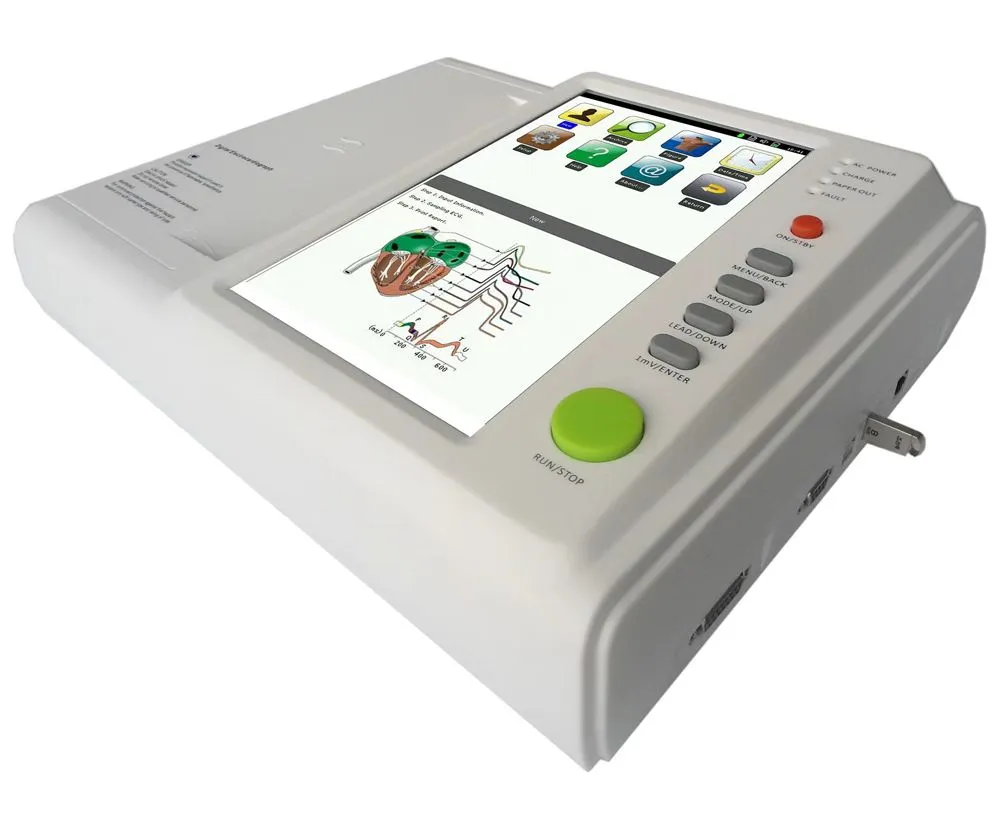

Product Display

Our Advantages

Frequently Asked Questions

How is the product quality ensured?

Our products are certified by international authoritative bodies including BV and TUV. We maintain extensive export experience serving customers in 87 countries worldwide.

Why are these products considered cost-effective?

For comparable quality, our pricing is often 8% to 30% lower than competitors. We achieve this through rigorous factory screening, negotiations, and efficient procurement management.

What is the standard delivery timeframe?

Generally, delivery takes 15 days after order confirmation. For small quantities, we can check immediate stock availability, while large or customized orders are confirmed upon request.

What payment methods are accepted?

We support multiple payment terms including T/T, Credit Card, L/C, Western Union, and PayPal.

What does the after-sales service include?

Most products come with a one-year warranty. During this period, free replacement parts are provided for non-human induced faults. Post-warranty support is also available for a nominal fee.

Can the device connect to a PC?

Yes, the device can connect with a PC via ECG workstation software using USB or RS232 ports. It also supports LAN connectivity as an option.
