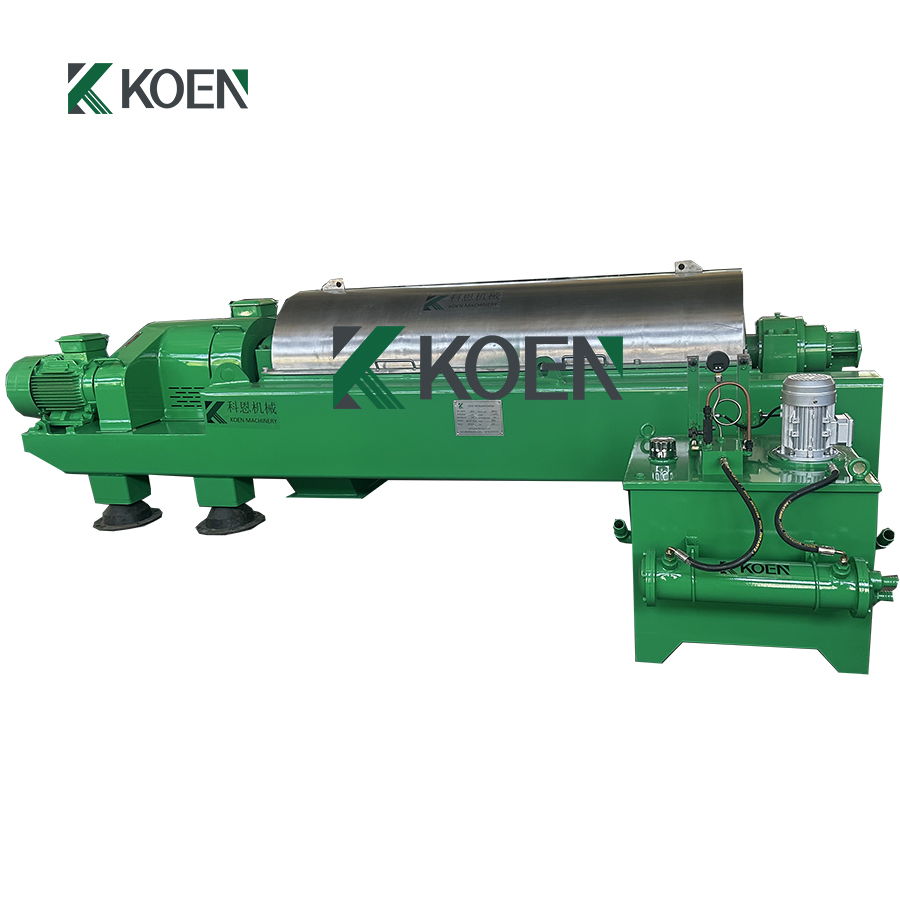

2 Phase Horizontal Decanter Centrifuge Separator

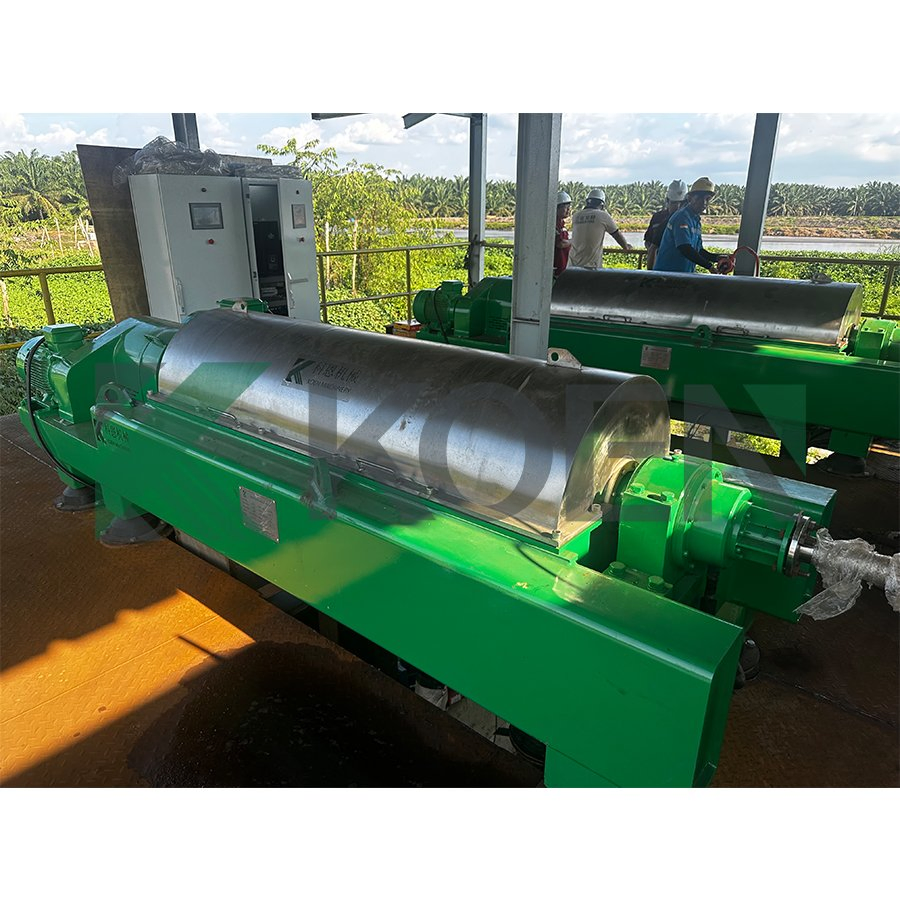

The LW horizontal screw centrifuge is a new type of two-phase horizontal screw centrifuge mainly suitable for liquid-solid separation. It is widely used in soy protein separation plants, waste water treatment plans, and is also applicable for the separation of liquid-solid from olive oil, fish oil, avocado oil, coconut oil, and more.

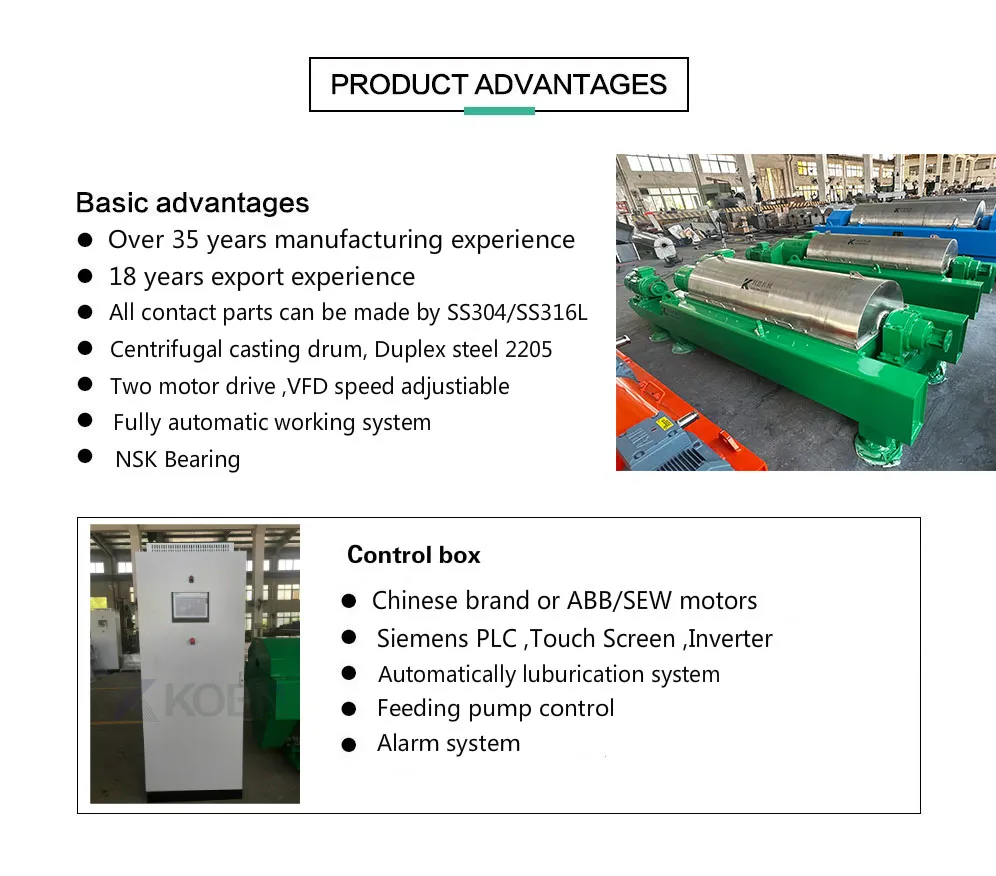

This centrifuge offers high production capacity with low energy consumption. It features the best separation effect, minimum material loss, and economical installation and maintenance costs. The advanced slag-discharge structure ensures continuous and smooth solid phase discharge, avoiding blocking even during downtime.

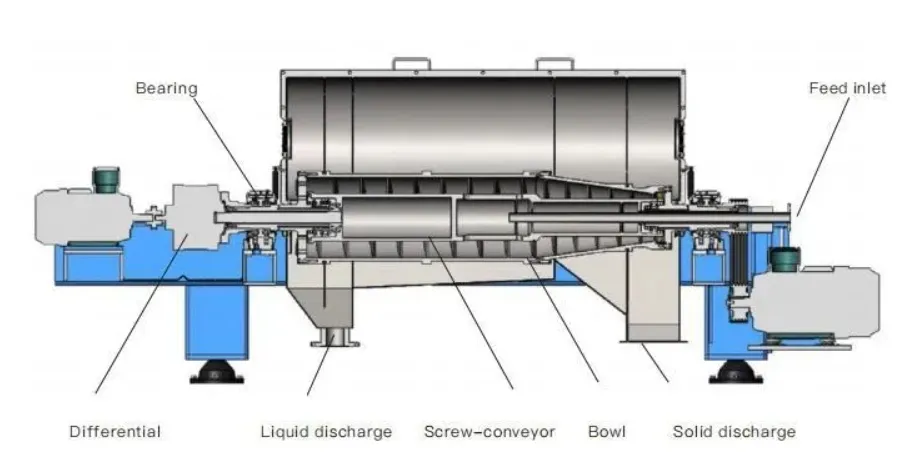

The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated into the bowl. Due to high-speed rotation and centrifugal force, larger specific gravity solid phases sink to the drum wall. The screw conveyor, rotating at a slightly different speed, conveys the settled solids axially towards the discharge ports. The liquid phase forms a hollow cylinder and flows towards the large end of the bowl, overflowing adjustable plate dams into the centrate chamber.
| Model | Diameter (mm) | Max. Speed (rpm) | Separation Factor | Capacity (M3/H) | Power (kw) | Weight (kg) | Overall Size (mm) |
|---|---|---|---|---|---|---|---|
| LW250×1000 | 250 | 5400 | 4080 | 2-10 | 11-15 | 1000 | 2600×760×1115 |
| LW300×700 | 250 | 4600 | 3553 | 2-10 | 11-15 | 1120 | 2335×814×1170 |
| LW300×1000 | 300 | 4600 | 3553 | 2-10 | 11-18.5 | 1380 | 2635×814×1170 |
| LW350×1000 | 350 | 4200 | 3450 | 2-18 | 15-30 | 1950 | 2712×872×1244 |
| LW350×1320 | 350 | 4200 | 3450 | 3-22 | 22-30 | 2200 | 3012×872×1244 |
| LW430×1320 | 430 | 4000 | 3845 | 4-28 | 22-37 | 2500 | 3120×940×1320 |
| LW480×2000 | 480 | 3650 | 3580 | 8-40 | 45-55 | 5050 | 3850×1010×1396 |
| LW530×2200 | 530 | 3500 | 3630 | 10-50 | 45-75 | 7200 | 3800×2350×1200 |
| LW650×2400 | 650 | 2800 | 29180 | 15-60 | 75-90 | 8300 | 4330×1560×1768 |

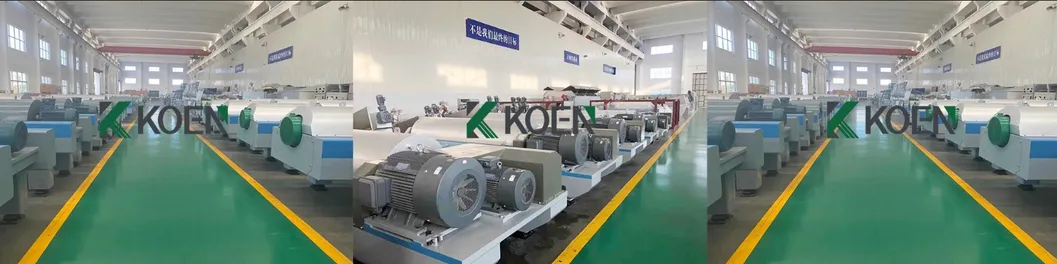

We are a professional manufacturer of centrifuge machinery and separation equipment with over 30 years of experience. Operating from multiple specialized factories, our facilities cover an area of 58,700 square meters, including 38,600 square meters of workshop area. We are committed to the production of advanced disc and decanter centrifuges with an annual capacity of 4000 sets.
Our professional technology team focuses on research, development, and custom design to meet specific requirements with high-standard production control. Our products are exported to more than 30 countries, including the United States, Australia, Canada, and various regions across Europe and Asia. We aim to provide efficient solutions and superior service to all our global customers.
