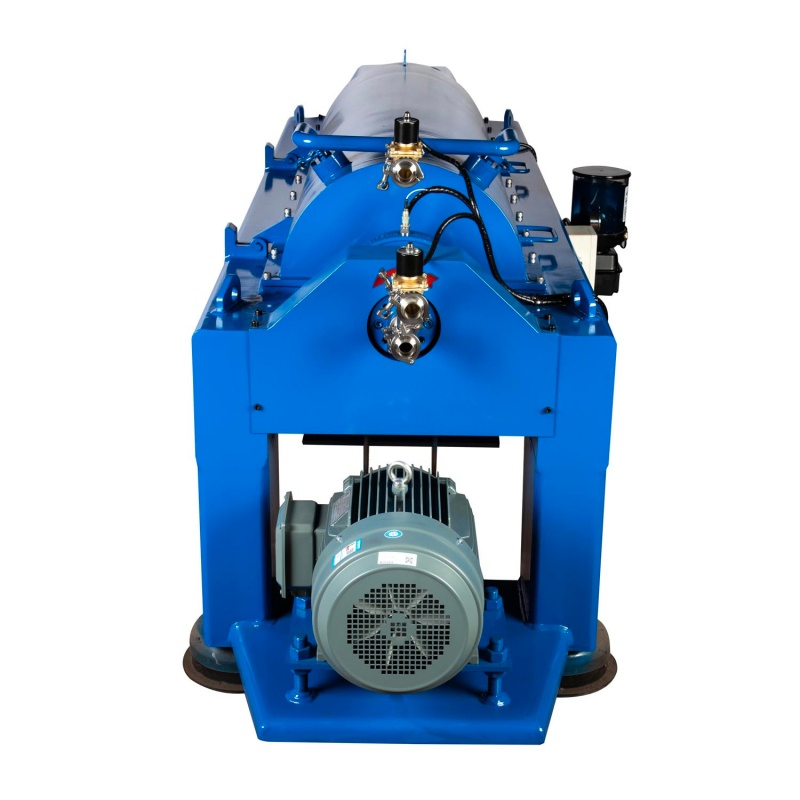

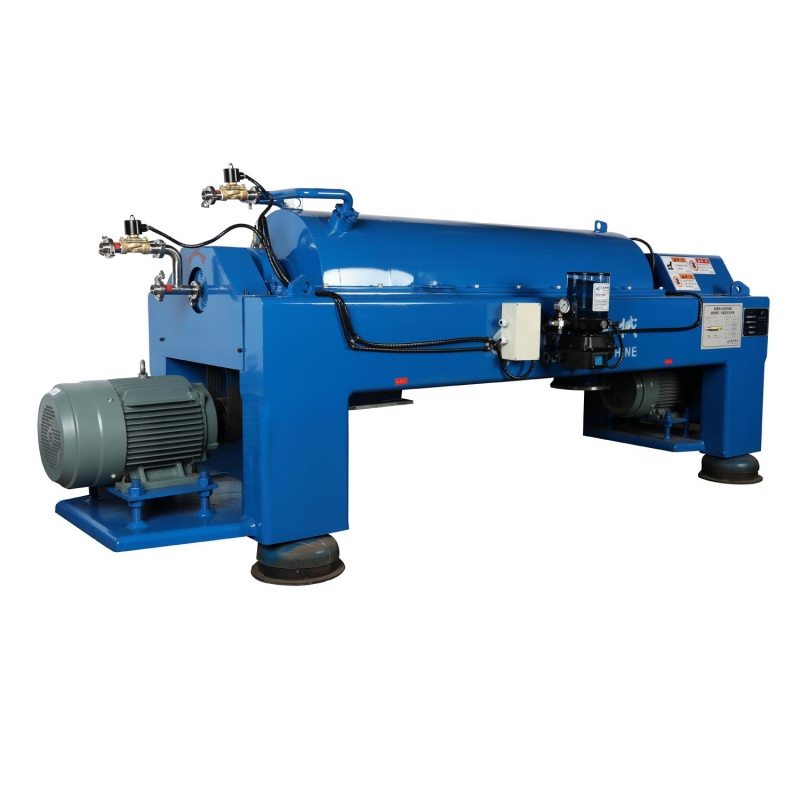

Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
1 / 5
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge
Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge

Engineered to Achieve Highest Possible Dry Solid Content Chts Sludge Dewatering Horizontal Decanter Centrifuge

Customization: Available
Type: Centrifuge
Separation Mode: Sedimentation Type
Send Inquiry

Product Description

📊

Basic Information

Model NO.
Sludge Dewatering Horizontal Decanter Centrifuge
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Disc Centrifuge
Condition
New
Origin
China
⚙️

Product Description

Decanter Centrifuge Banner
Personnel costs are minimized as the decanter centrifuge can be operated continuously and automatically. The sludge centrifuge automatically adapts to changes in feed and operating conditions during operation via PLC or remote monitoring. No cleaning cycles are required during the operating phase. The dewatering centrifuge is controlled by a control module equipped with a PLC, thanks to which it is easy to operate.

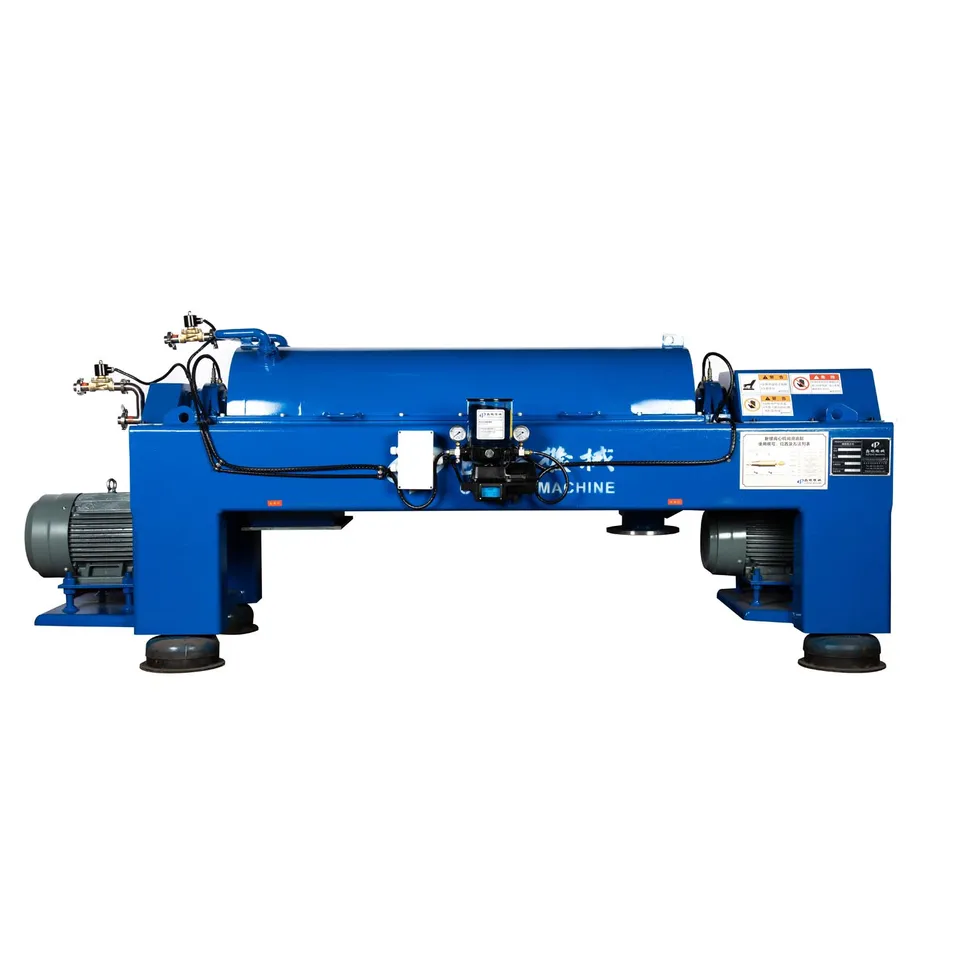

Product Detail
📋

Technical Specifications

Model Number CHTS2-4 CHTS3-4 CHTS4-4 CHTS5-4 CHTS6-4
Bowl ID 255mm 360mm 430mm 550mm 650mm
Bowl Speed 4200 rpm 3500 rpm 3200 rpm 2850 rpm 2600 rpm
Max. Acceleration 2500 xg 2500 xg 2500 xg 2500 xg 2500 xg
Differential Speed 1.5-30rpm 1.5-30rpm 1.5-30rpm 1.5-30rpm 1.5-30rpm
Material All parts in contact with materials are made of high quality stainless steel.
Weights 1000 KG 2500 KG 3500 KG 5500 KG 8000 KG
Bowl Drive 7.5 KW 15 KW 30 KW 45 KW 75 KW
🏭

Manufacturing Excellence

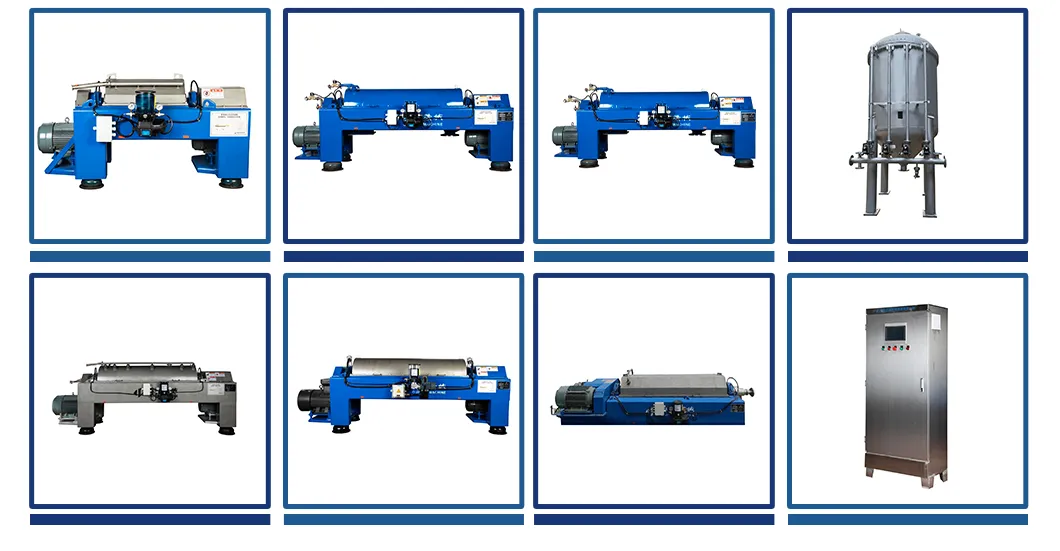

Main Product Line

With over 40 years of practical experience in microporous filtration technology and more than 30 years in centrifugal separation technology, our manufacturing facility is a leader in the industry. We have been researching and manufacturing specialized filtration media since 1980.

Our technology has been recognized with multiple scientific achievements and national invention patents, including advanced two-way flow filtration and thickening devices. Since 1992, we have focused on high-end decanter centrifuge research, providing core components for world-famous manufacturers.

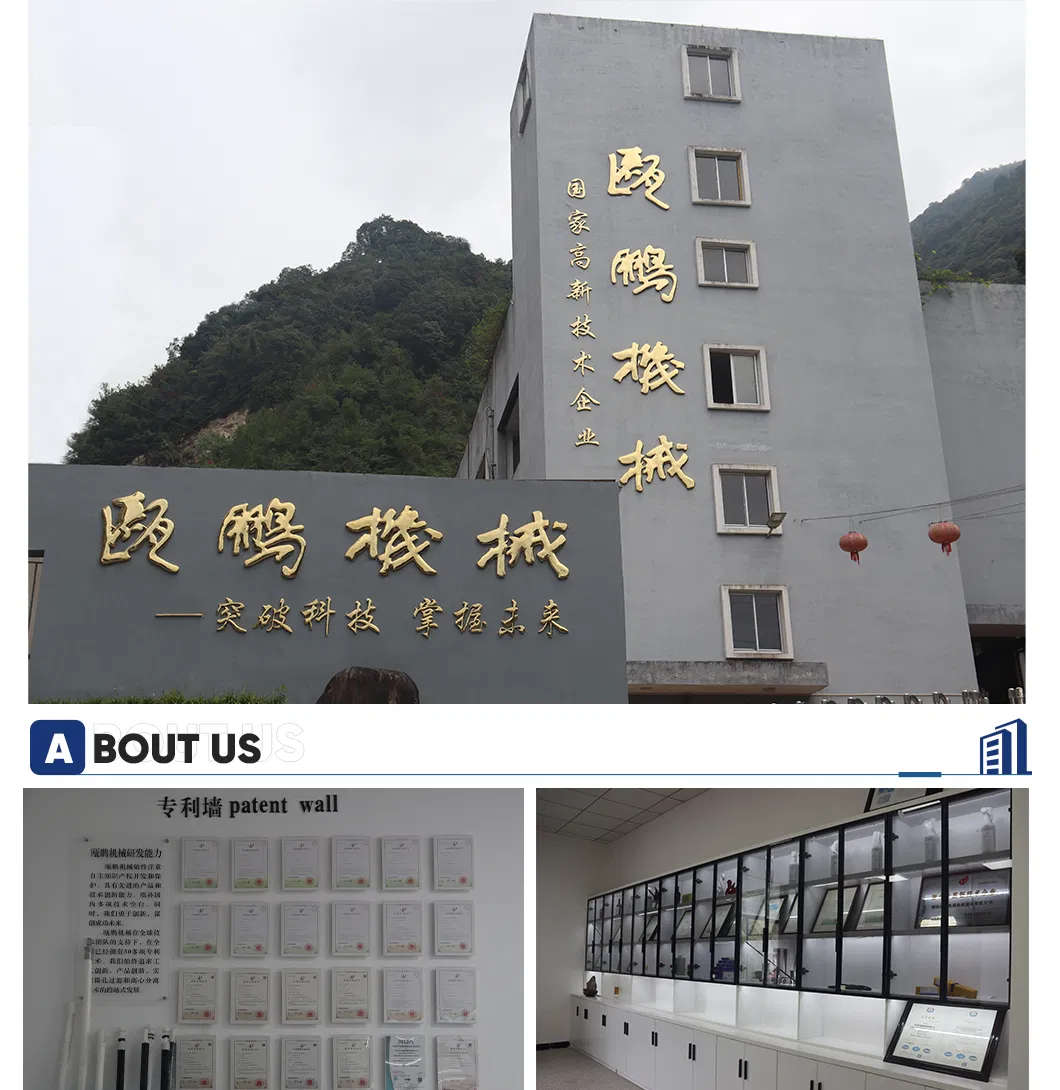

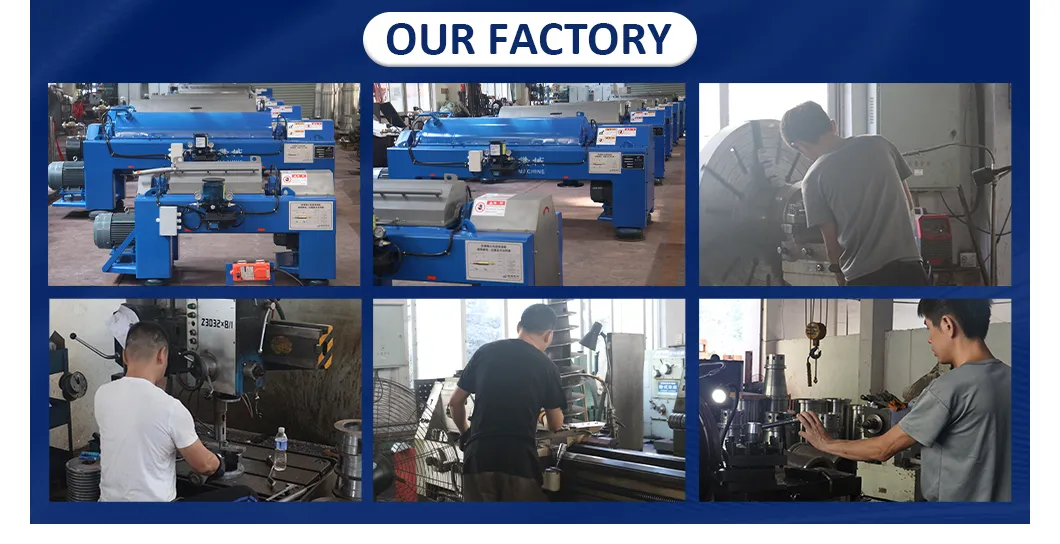

Factory View 1 Factory View 2
📦

Certifications & Delivery

Certifications Packing and Shipping
Package Size
490.00cm * 152.00cm * 163.00cm
Gross Weight
8000.000kg
❓

Frequently Asked Questions

What is the primary advantage of the CHTS decanter centrifuge?
It minimizes personnel costs through continuous and automatic operation, adapting to feed changes via PLC without requiring cleaning cycles during the operating phase.
What materials are used for the parts in contact with processed media?
All parts that come into contact with materials are manufactured from high-quality stainless steel to ensure durability and corrosion resistance.
How is the quality of the equipment ensured?
Quality is ensured through clarified standards, standardized operations, rigorous inspections, testing, and a final verification process before shipment.
Can the centrifuge be monitored remotely?
Yes, the system is designed to adapt to operating conditions via PLC or remote monitoring, allowing for easy control and automation.
What is the maximum acceleration factor for these models?
The CHTS series features a maximum acceleration factor of 2500 xg across the standard model range.
What kind of packaging is used for international transport?
The units are securely packed in a robust wooden frame to ensure safety during transit.
