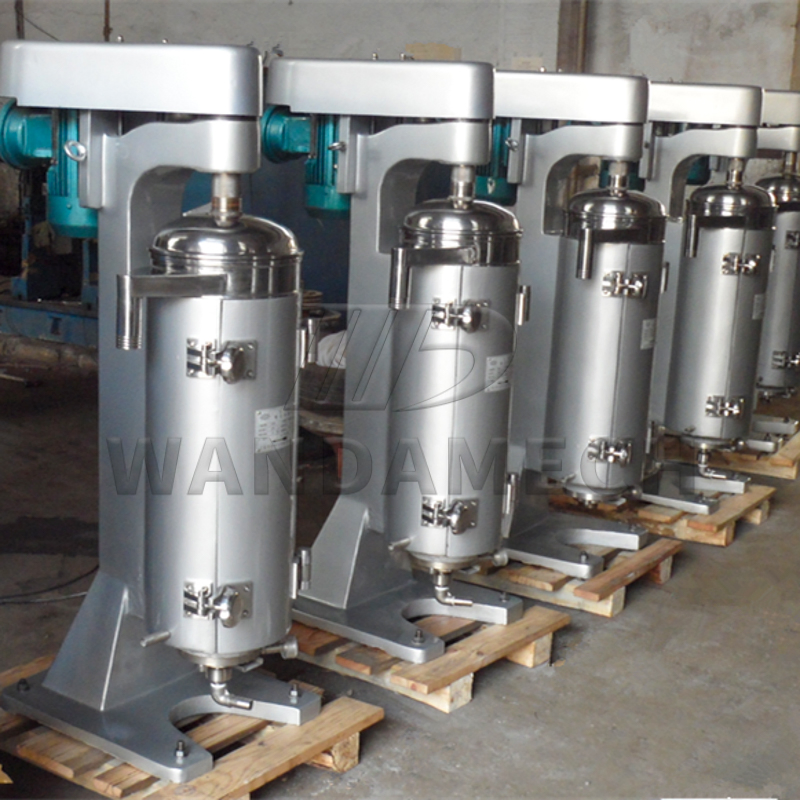

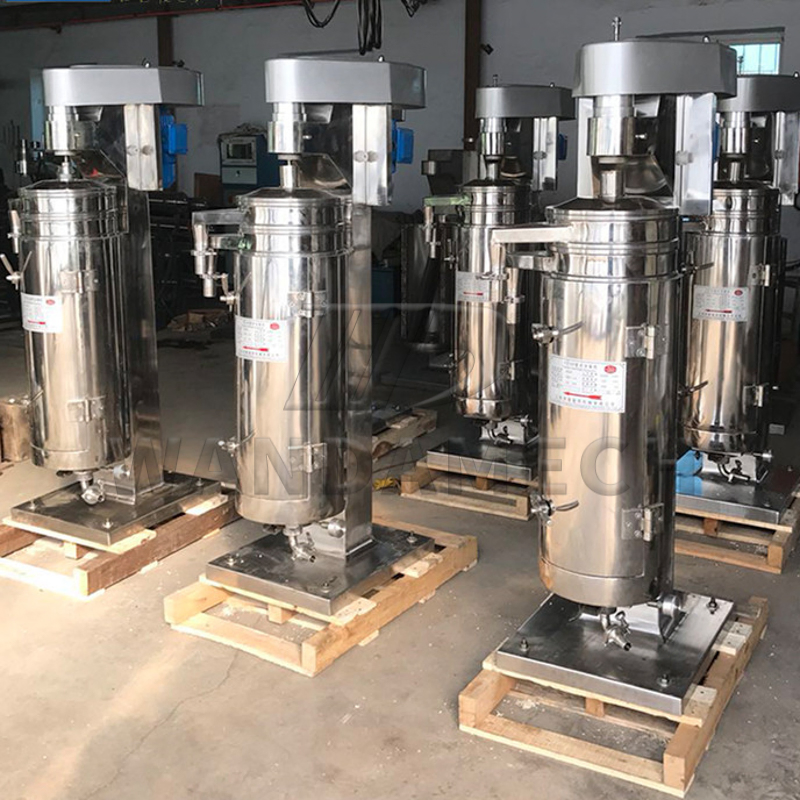

High Speed Tubular Centrifuge Protein / Yeast Dehydration Separator
Tubular centrifuge is a kind of fine separation equipment. It is specialized for solid-liquid separation and liquid-liquid-solid separation for small solid particles and similar specific gravity difference. It is the ideal equipment for food, dairy, chemical, and biological products industries.
Available Modes:

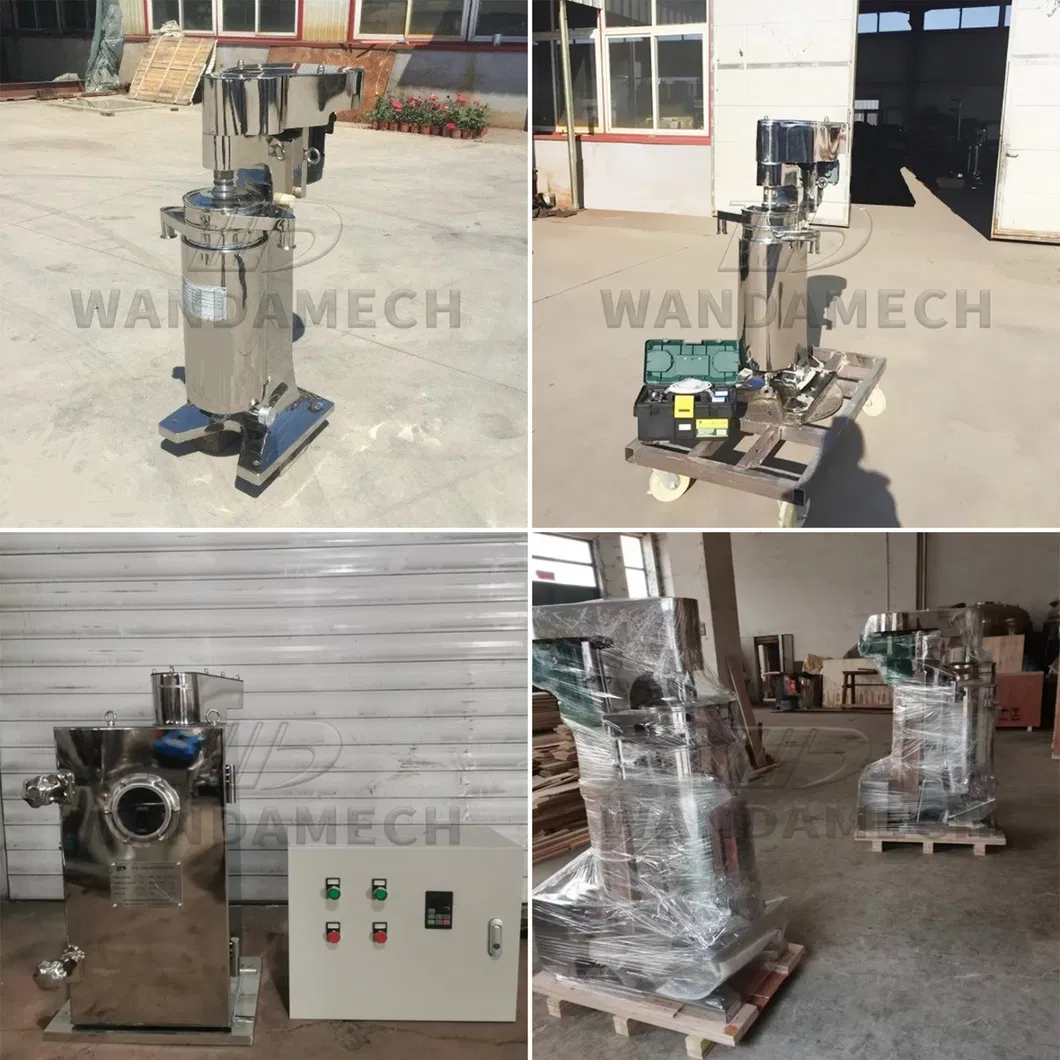

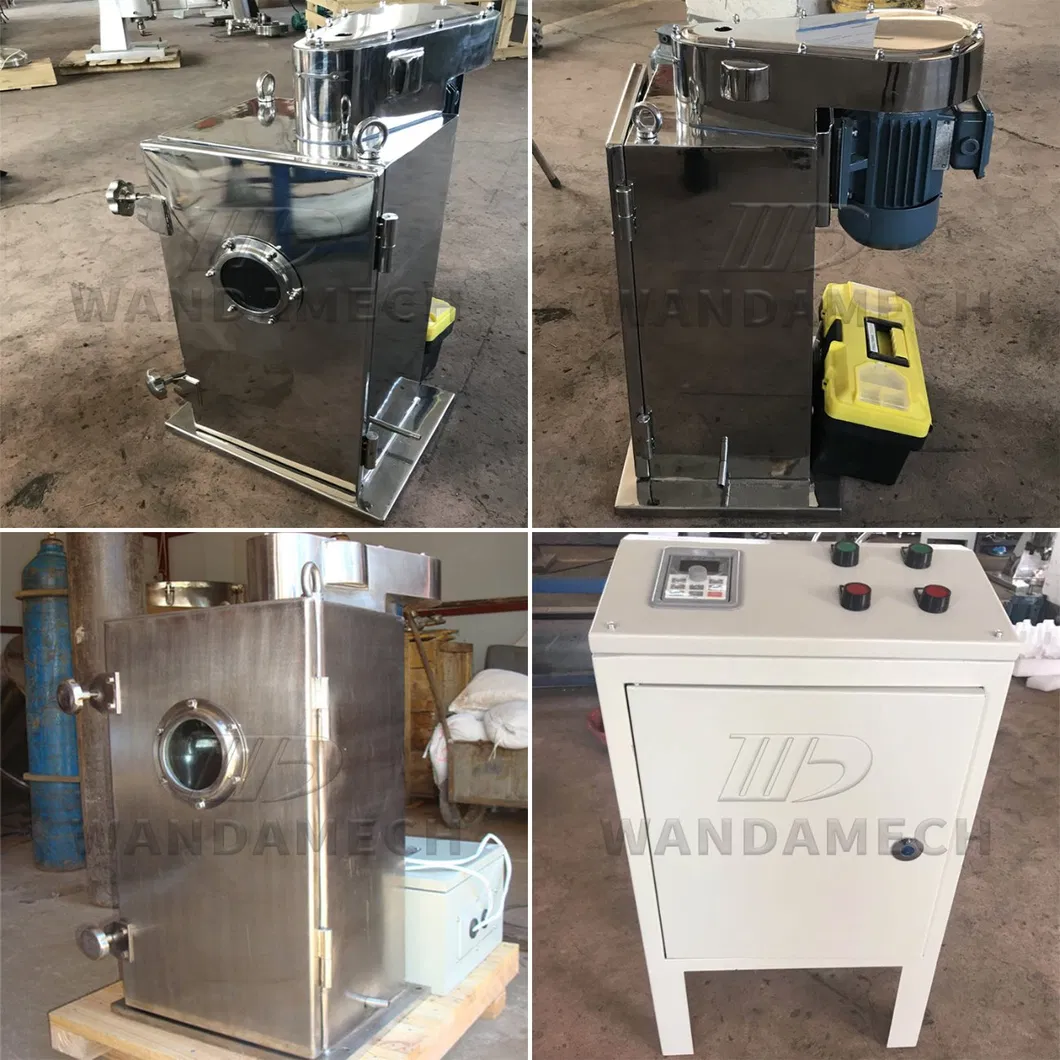

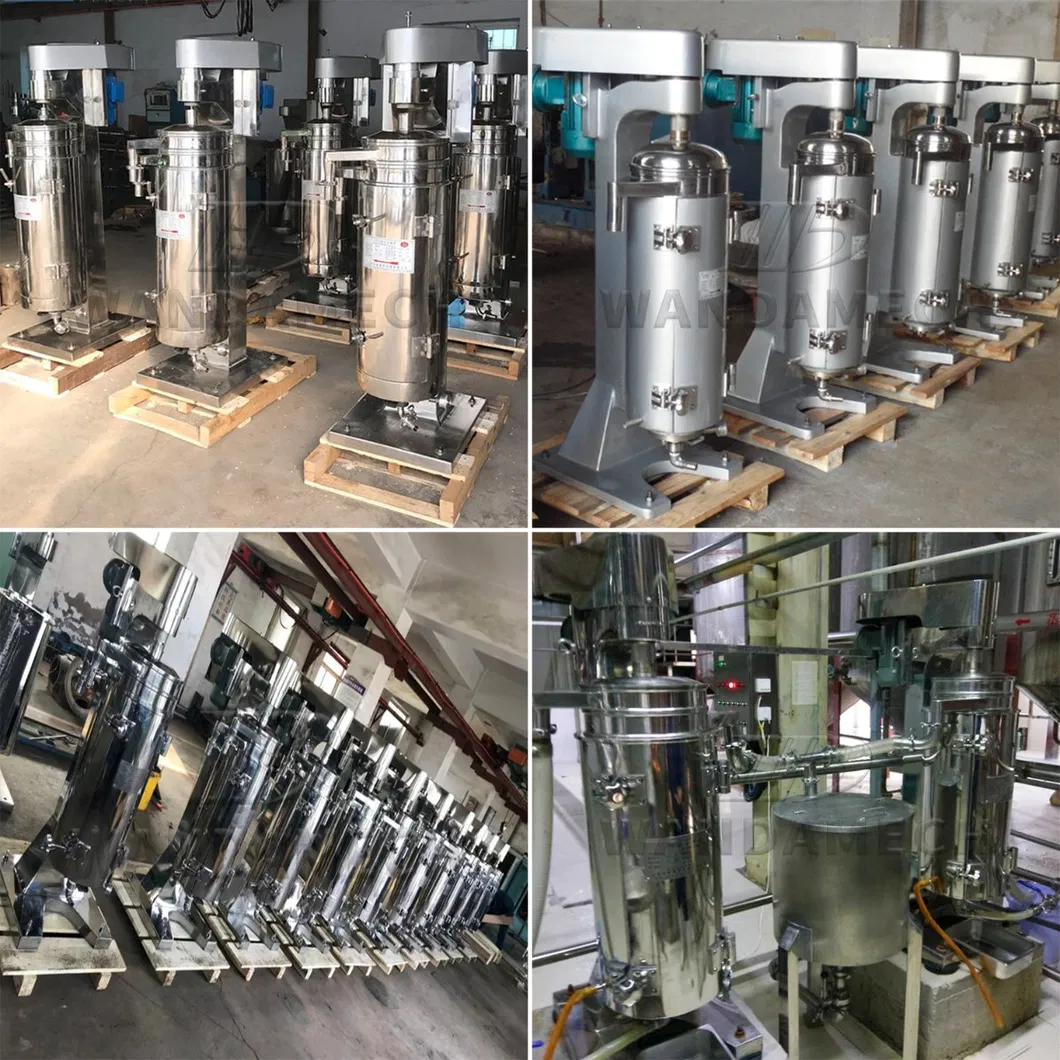

Big model for scale production & Lab use models:

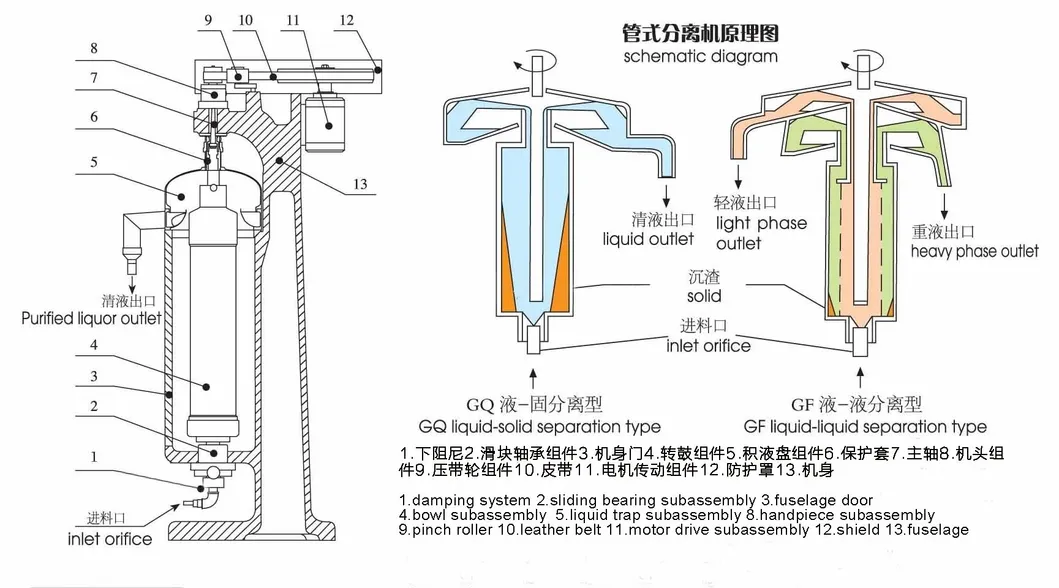

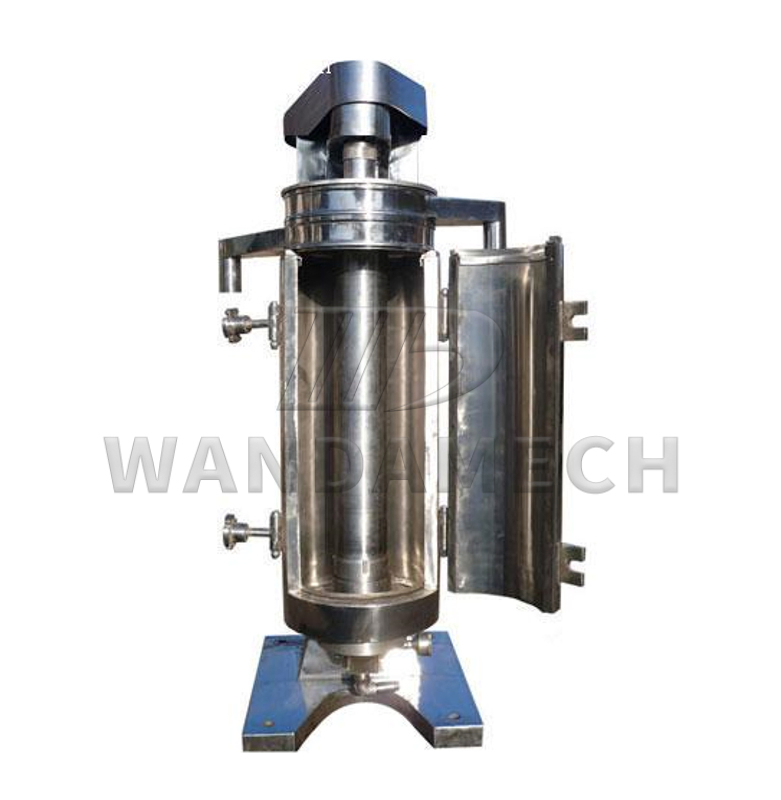

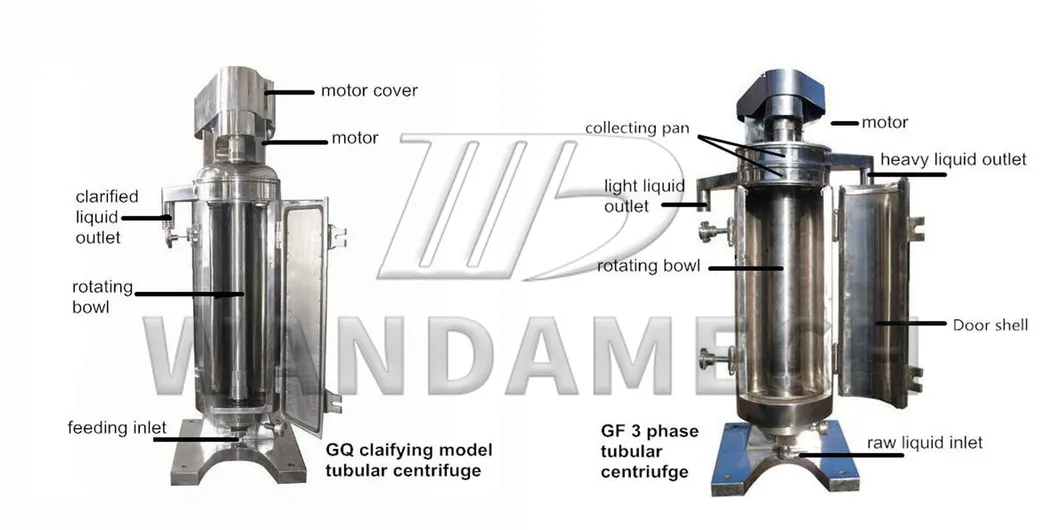

The tubular centrifuge consists of the drum assembly, liquid collecting plate, and machine head. Power is transmitted to the main shaft, driving the drum to rotate at high speed. Centrifugal force field is formed on the inner wall. Material enters from the bottom; light liquid flows to the upper part and is recovered, while heavy solids are thrown onto the inner wall for manual discharge after shutdown.
GQ Model (Two Phase): Used for suspension clarification, coal tar, protein extraction, molasses refining, blood separation, and plant extract clarification.
GF Model (Three Phase): Ideal for liquid-liquid-solid separation such as transformer oil, fuel oil, edible oil purification, and oil-water separation.
| Model | GF/Q45 | GF/Q75 | GF/Q105 | GQY125 | GQ150 |
|---|---|---|---|---|---|
| Bowl diameter | 45 mm | 75 mm | 105 mm | 125 mm | 142 mm |
| Settling volume | 0.45 L | 2 L | 5.5 L | 7.4 L | 10 L |
| Bowl speed (r/min) | 0-28000 | 16770 | 16000 | 15000 | 14000 |
| Max separation factors | 0-19800 | 20000 | 15025 | 15500 | 15570 |
| Throughput (approx) | 100 kg/h | 500 kg/h | 1200 kg/h | 2000 kg/h | 3000 kg/h |
| Motor power | 0.6 kw | 1.5 kw | 2.2 kw | 3.0 kw | 3.0 kw |
| Weight | 120 Kg | 300 Kg | 400 Kg | 500 Kg | 550 Kg |
Pre-Service: 24 hours online consultation, detailed product introductions, and customized plans based on customer requirements.
After-sale Service: Installation and debugging help, 24/7 technical support, sufficient spare parts inventory, and one-year warranty period.
