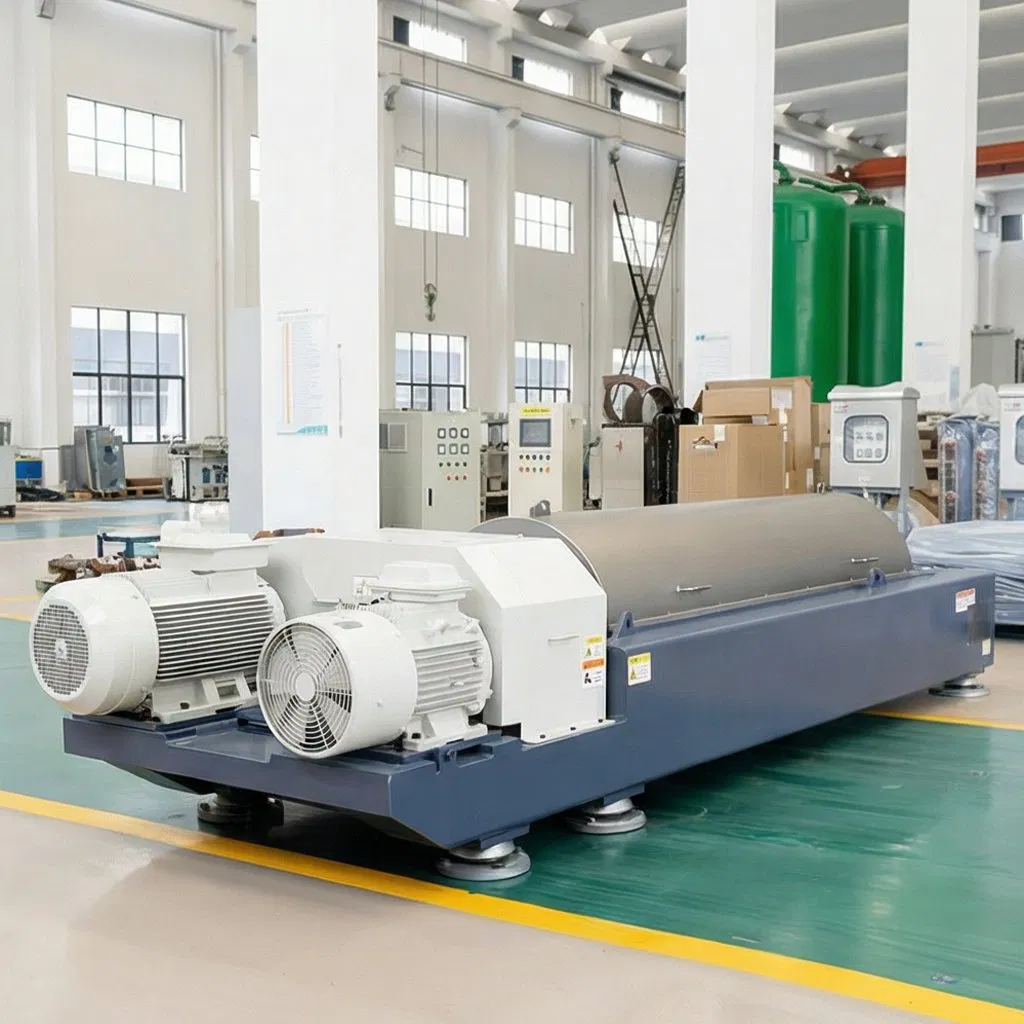

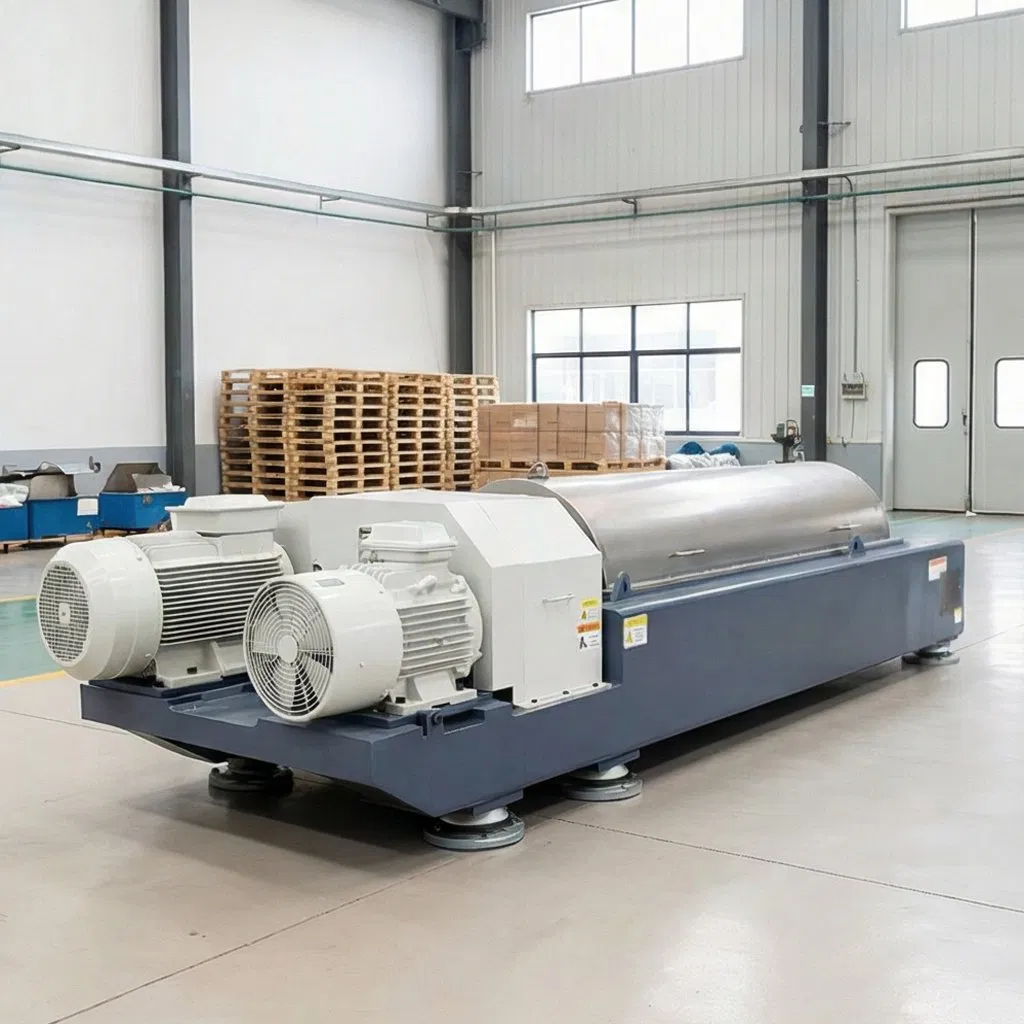

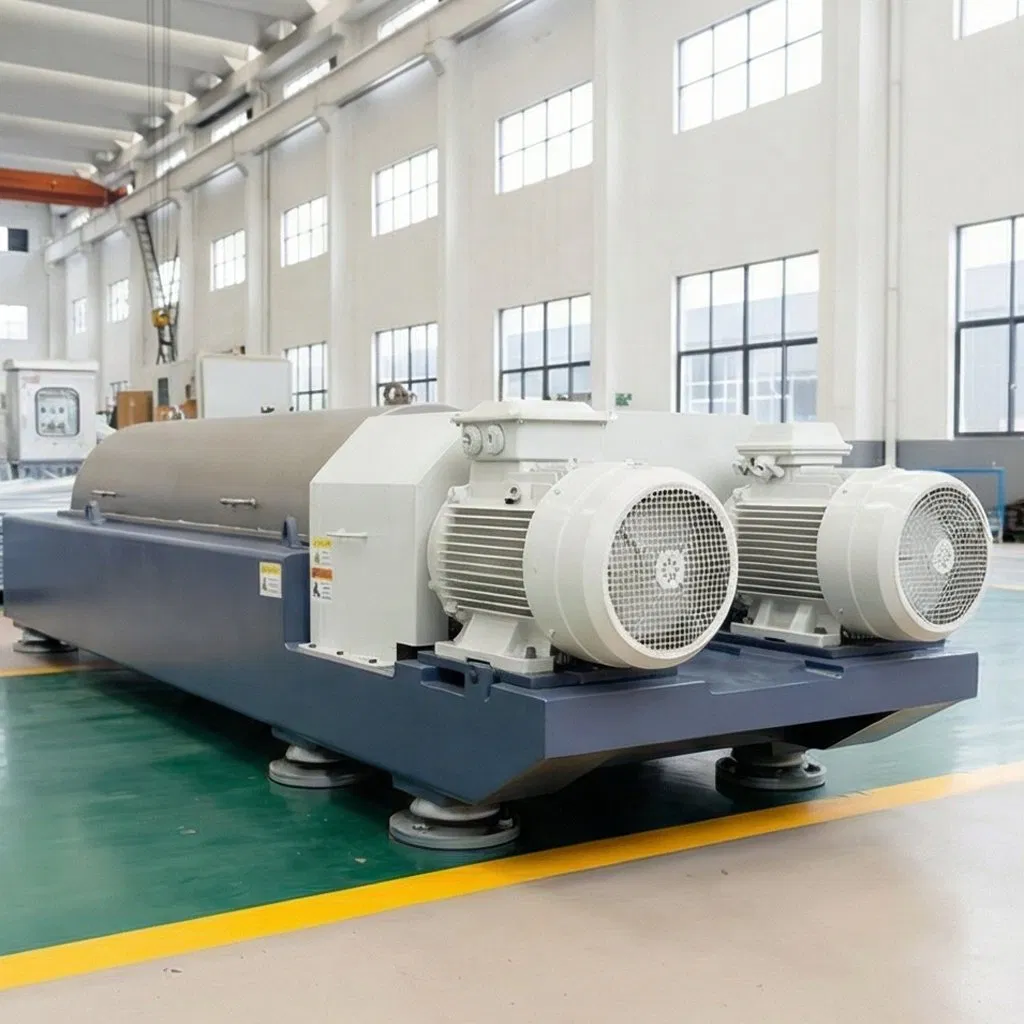

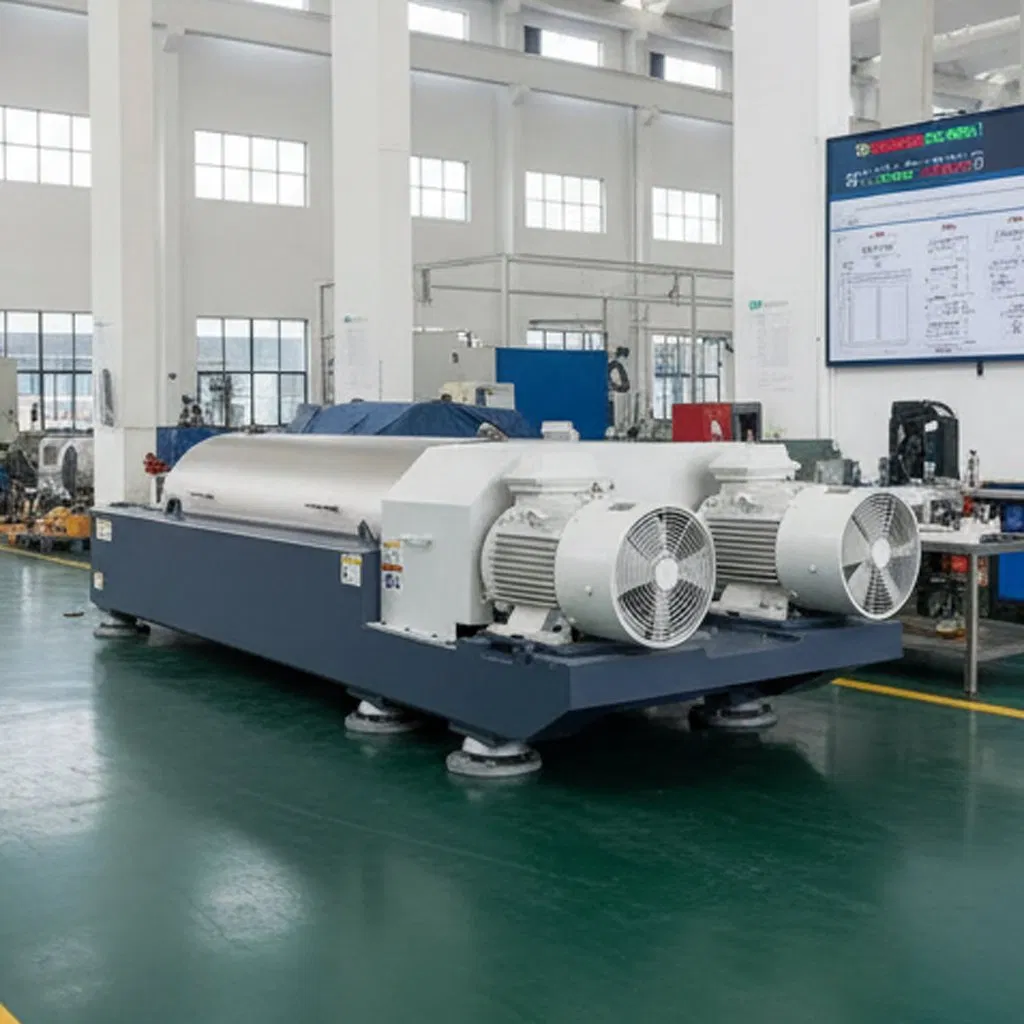

Decanter Centrifuge Sludge Dewatering System Sludge Dewatering Waste Water Treatment

Customization: Available
After-sales Service: 24-Hour Service Response & Remote Guidance
Warranty: 1 Year Warranty

Product Description

Decanter Centrifuge System
📊 Basic Information
Model NO.
SY-LDW
Type
Centrifuge
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Horizontal Spiral Centrifuge
Motor
Dual Motors
Drive Motor
Variable Frequency Drive
Package Size
300.00cm * 100.00cm * 150.00cm
Gross Weight
1200.000kg
📝 Product Description

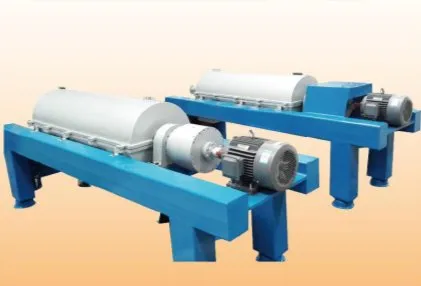

Centrifuge Detail 1

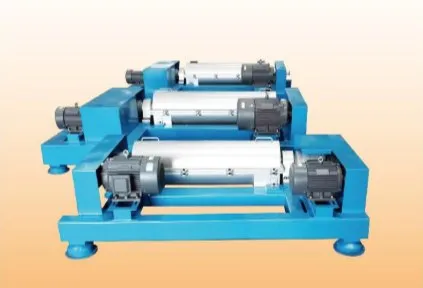

Centrifuge Detail 2

The horizontal screw centrifuge is a flagship product leveraging years of technical accumulation and innovative strength in the separation equipment field. Adopting advanced differential speed transmission technology, the equipment features precise coordination between the drum and the feeding screw, which operate at high speed with a stable differential speed.

It efficiently completes core processes such as solid-liquid separation and dehydration, making it widely suitable for material processing in multiple industries including chemical engineering, environmental protection, food processing, and pharmaceuticals. By optimizing the structural design and upgrading the main and auxiliary motor power systems, it ensures higher separation efficiency and lower moisture content of sediment.

⚙️ Product Details & Principle

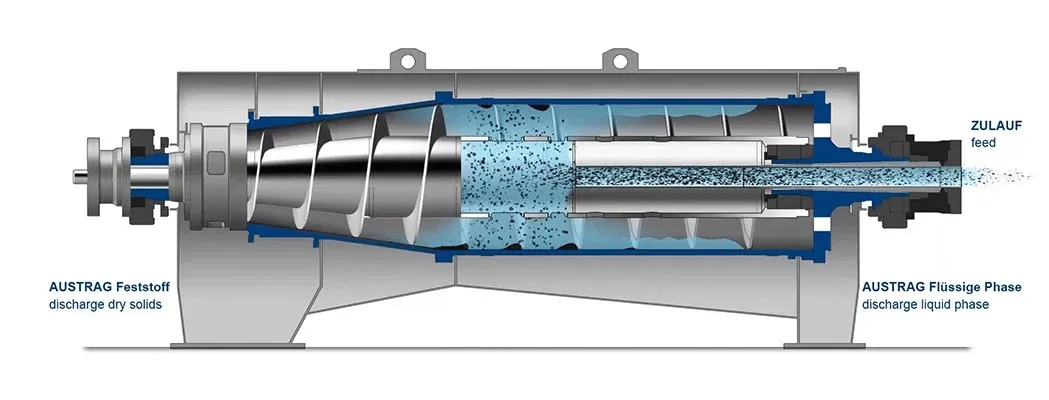

Decanter Centrifuge Principle
Decanter Centrifuge Basic Principle:
The drum and the feeding screw rotate at high speed with a certain differential speed. Materials are continuously introduced into the inner cylinder of the screw pusher through the feed pipe, accelerated, and then enter the drum. Under the action of the centrifugal force field, the heavier solid phase settles on the drum wall to form a sediment layer. The feeding screw pusher continuously conveys the deposited solid phase to the conical end of the drum for dehydration and discharge. The lighter liquid phase forms an inner liquid ring and overflows through the outlet.
📋 Technical Specifications
Model Drum Diameter (mm) Feed Rate (m³/h) Motor Power (Kw) Weight (kg) Dimensions (mm)
LDW2502501~411/412002650*720*900
LDW3503505~1522/5.520003585*980*1238
LDW4504505~2030/1130004380*1080*1360
LDW52052010~2645/1550004840*1160*1465
LDWS58058015~2075/2270004800*1580*1280
LDW720W72035~85110/22120005200*1900*1620
⭐ Main Features
  • 🔵 High separation factor with stepless adjustment of drum and differential speed.
  • 🔵 Dual-motor and dual-frequency conversion design for precision control.
  • 🔵 Adjustable liquid level height tailored to material properties.
  • 🔵 Advanced differential process with imported brand bearings for extended service life.
  • 🔵 Low vibration design (within 5mm/s) reducing noise and wear.
  • 🔵 Easy operation and maintenance, improving overall efficiency.

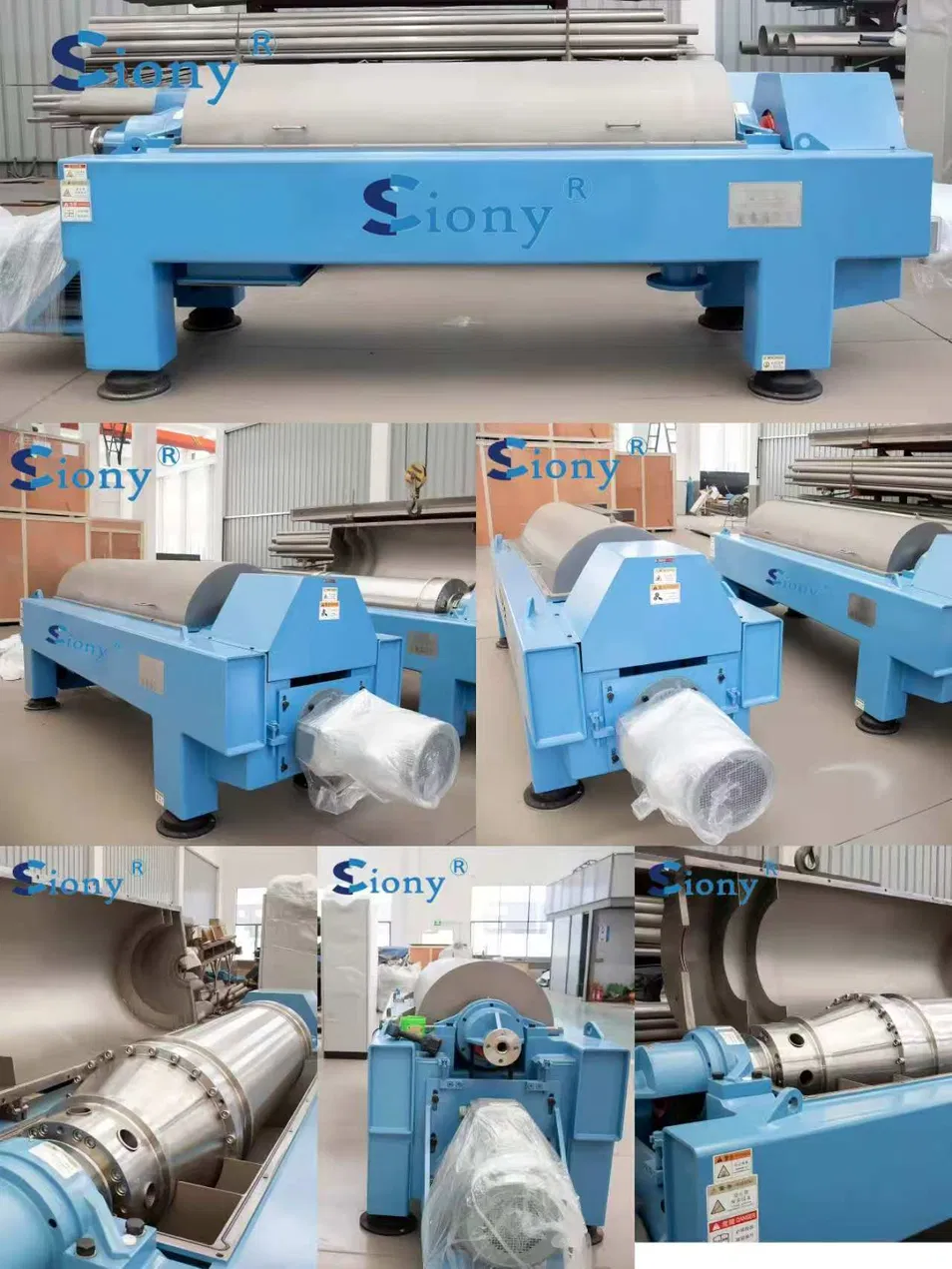

Features Illustration
🖼️ Product Gallery

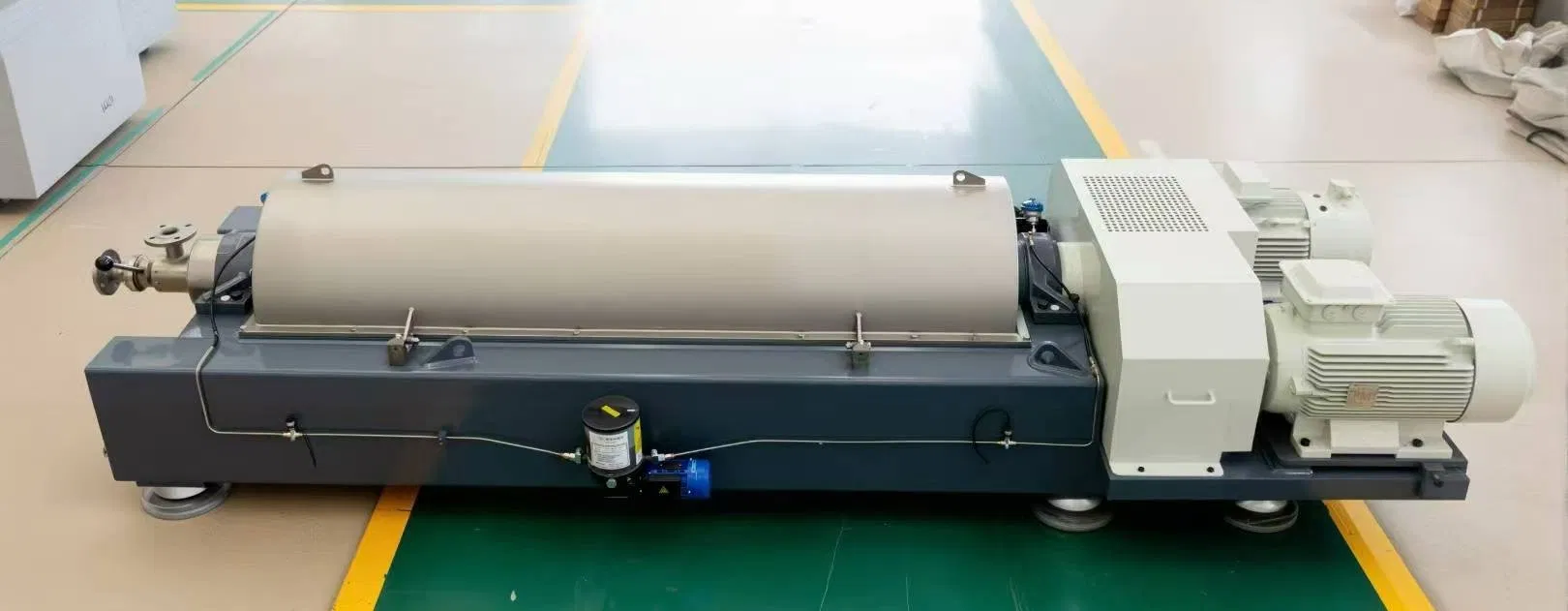

Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
❓ Frequently Asked Questions
Do you have a minimum order quantity (MOQ)?
No minimum order is required, but discounts are available for large quantity orders.
What certificates do your products have?
Our equipment holds ISO, CE, and RoHS certifications, ensuring international quality standards.
Can you meet special requirements for the product?
Yes, we have a professional design team that can provide customized drawings and specifications according to your needs.
What information is needed to recommend a product?
Please provide details regarding your water or waste sources, quality, flow rate, and available ground area.
What is the typical delivery time?
Delivery time generally ranges from 2 to 4 weeks, depending on the order quantity and specifications.
How is the equipment installed after arrival?
We provide detailed illustrations and instructions. If necessary, technical assistance can be arranged to help with the installation process.
