Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
1 / 5
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet
Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet

Digital Veterinary ECG Machine Channel Portable Electrocardiograph Machine Animal Medical Equipment for Vet

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HB-A3
Certification
CE, FDA, ISO13485
Group
Animal
Product Name
ECG Machine for Animal
Filter
AC. Emg Filter
Input Circuit
Floating
Resolution
12bit/1000Hz
Operation Mode
Manual/Auto
Display
7'' Color Touch Screen
Production Capacity
50000 Piece/Month
🔍 Product Description

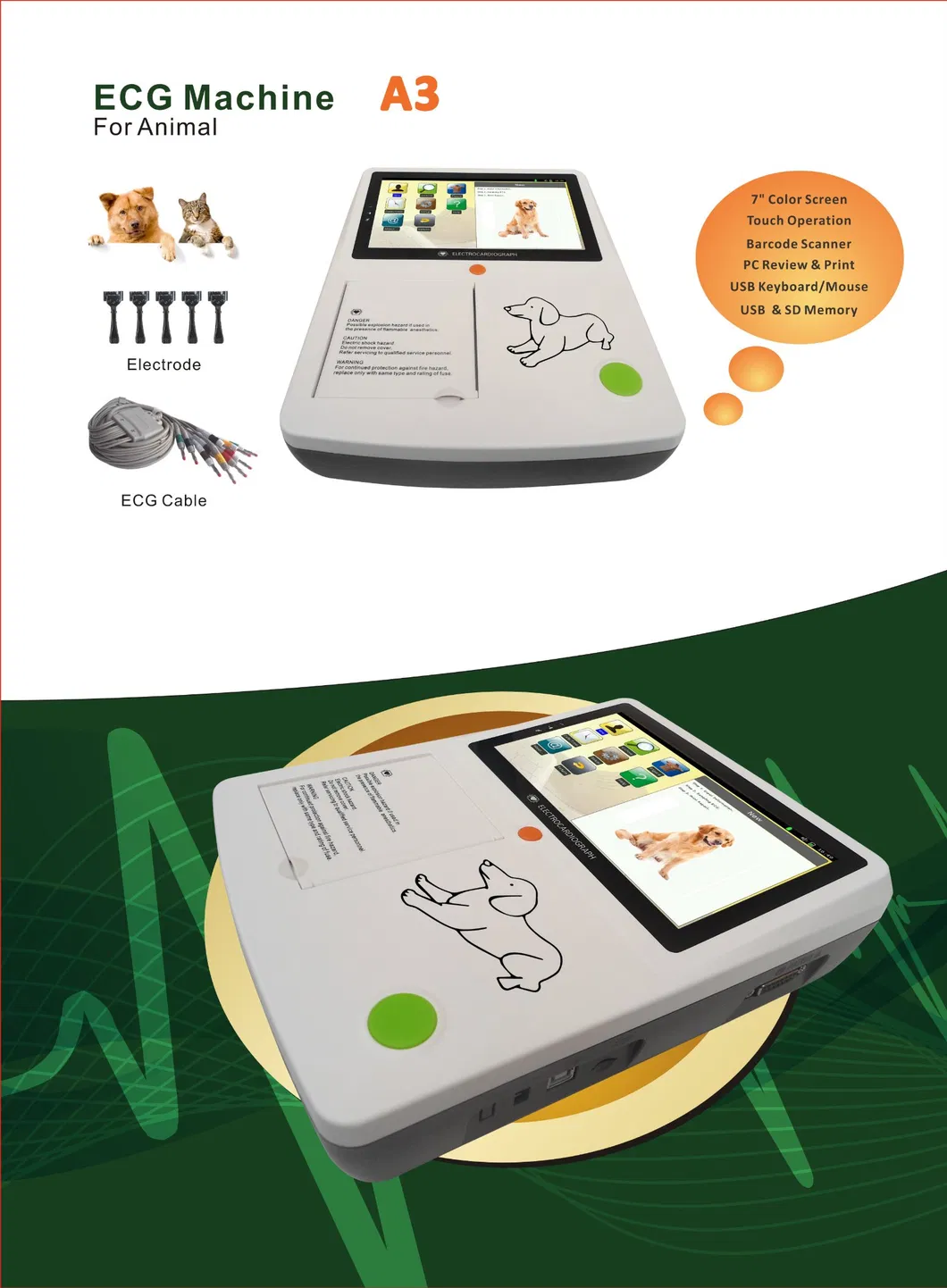

Veterinary ECG Machine

Function Features of A3 ECG Machine

  • 7/12 lead ECG synchronous sampling system.
  • Thermal printer with 80mm print paper, synchronization print.
  • 7" color touch-screen, touch operation.
  • Automatic measurement, calculation, analysis, waveform freezing.
  • Support USB flash disk & SD memory.
  • Data transmitting to PC via USB.
  • Animal's information can be input.
  • Historical data can be reviewed and printed.
  • Built-in rechargeable li-ion battery, AC/DC power conversion.
  • Sleep mode to save energy and extend TFT screen life.
  • Support USB Keyboard/Mouse.
  • Lead off & lack off paper detection function.
  • 7 level printing thick can be chosen.
  • Adapt to 110-230V, 50/60Hz AC power supply.
📊 Product Parameters
CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Paper speed 12.5, 25, 50mm/s (± 3%) Sensitivity 5,10,20mm/mV
Battery Built-in rechargeable Li-ion 11.1V(2200mAh) Package 256mm*204mm*66mm
📸 Detailed Photos

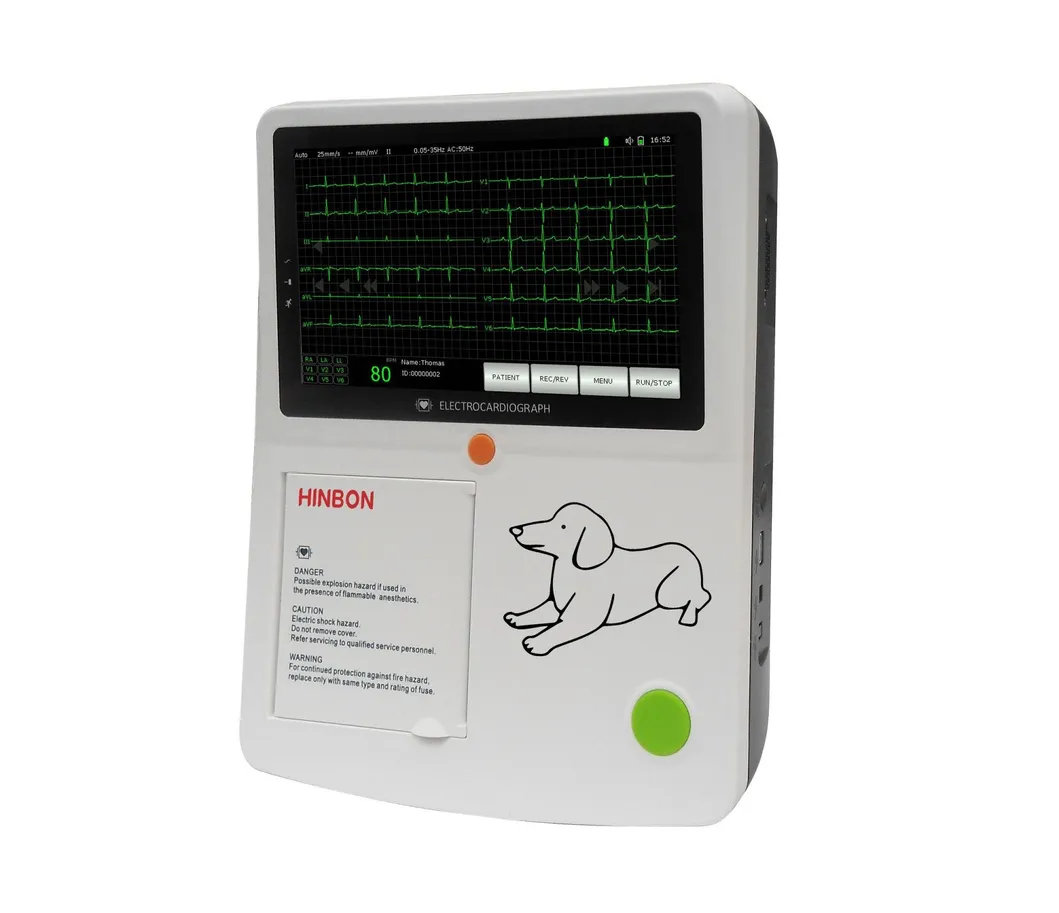

ECG Detail 1

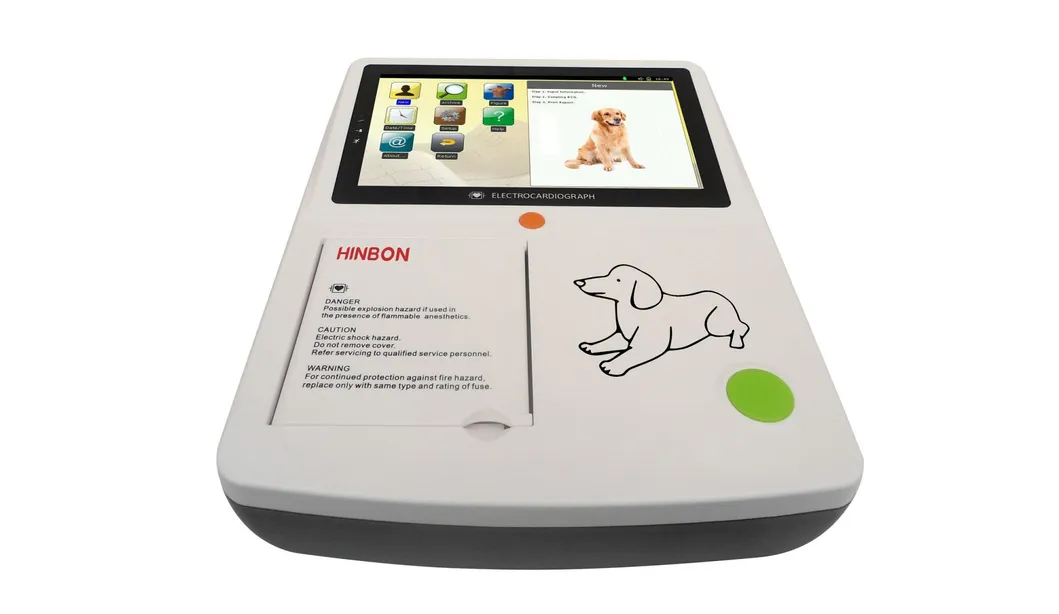

ECG Detail 2

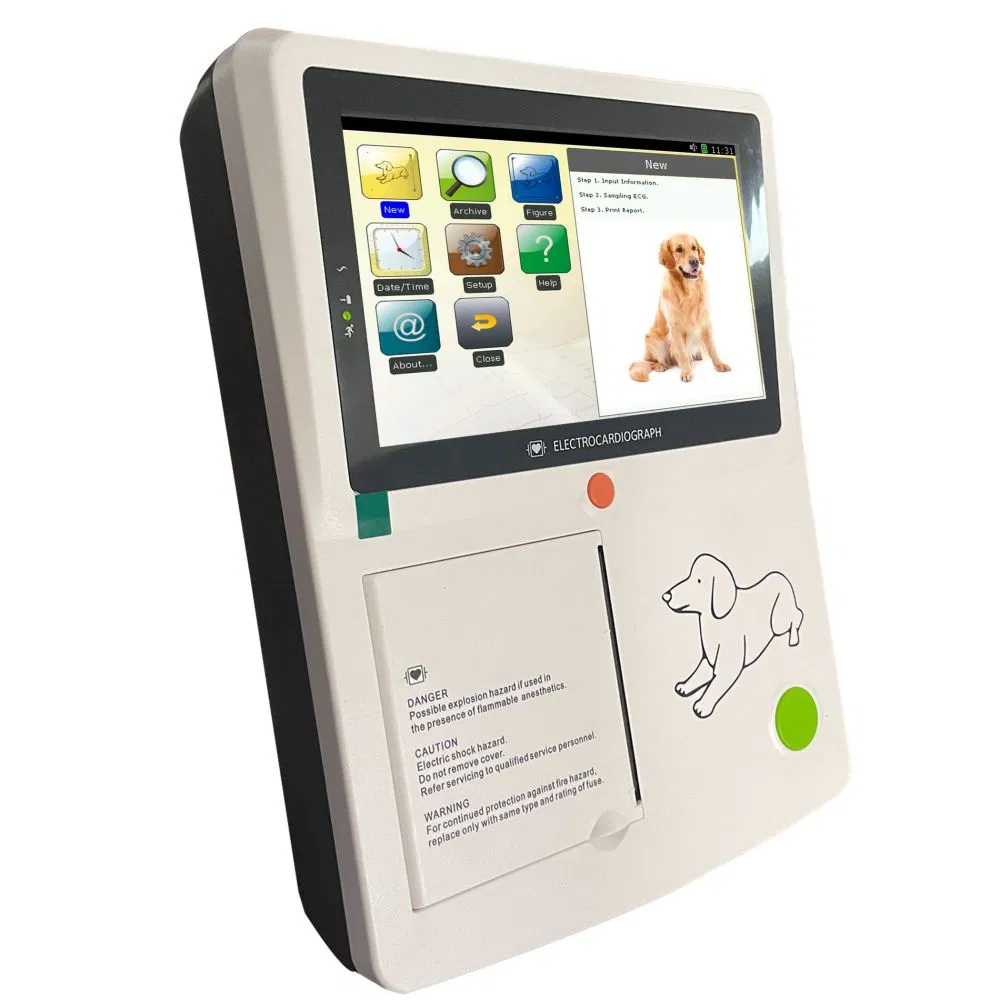

ECG Detail 3

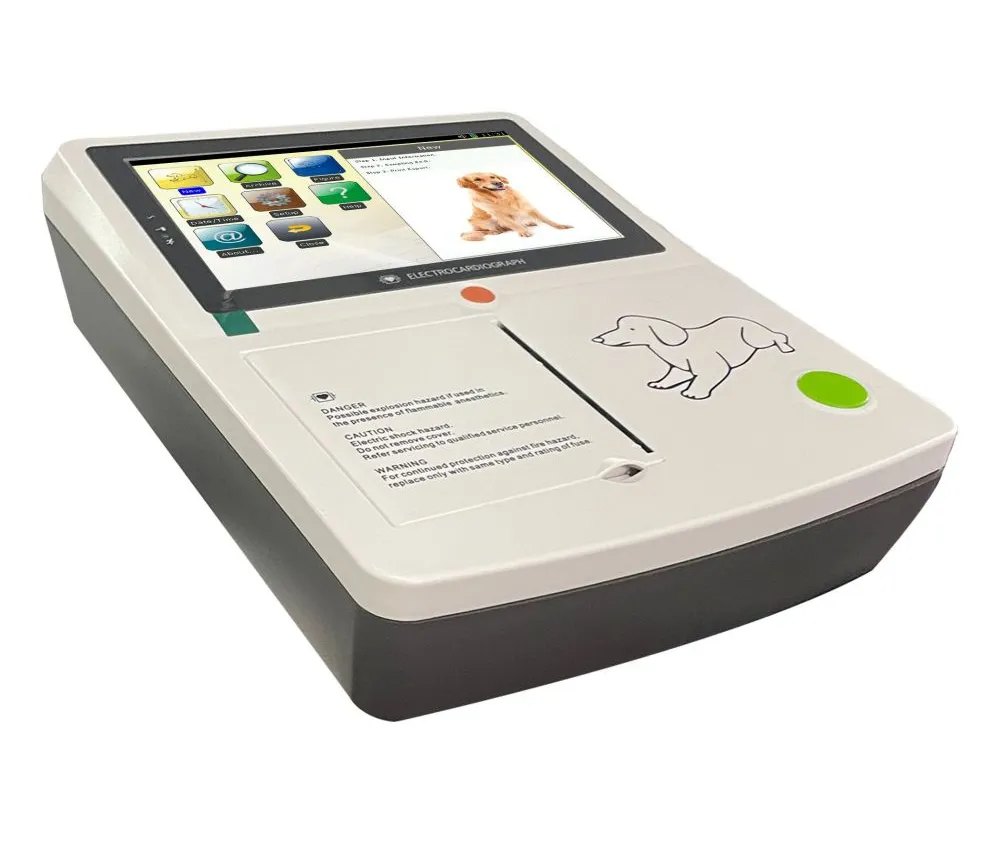

ECG Detail 4

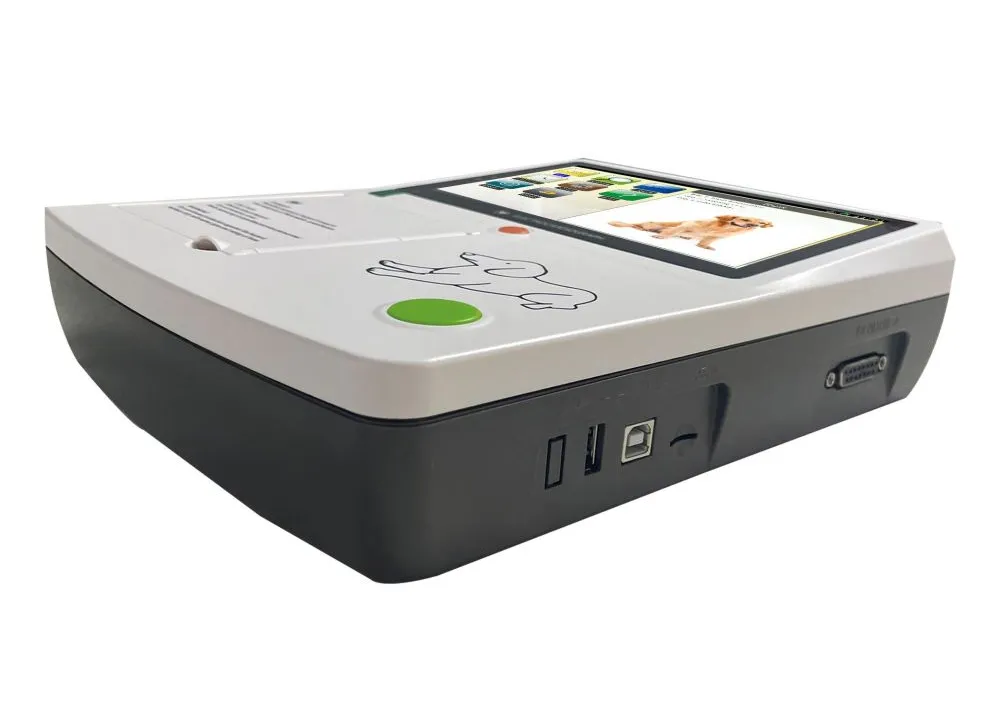

ECG Detail 5

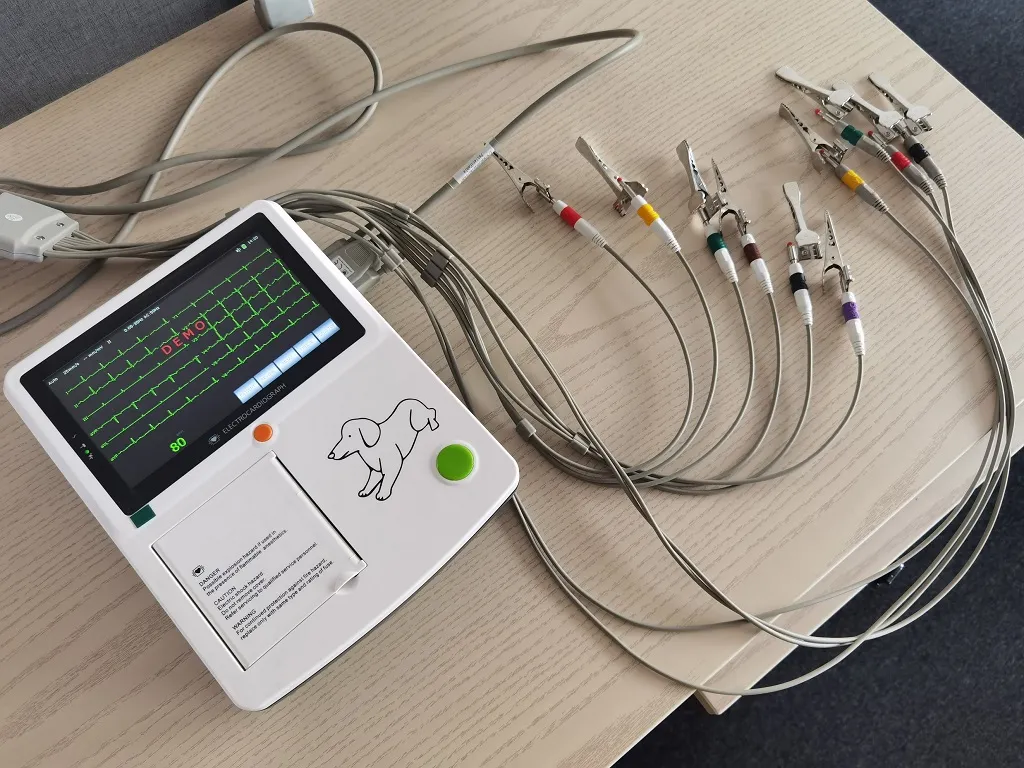

ECG Detail 6

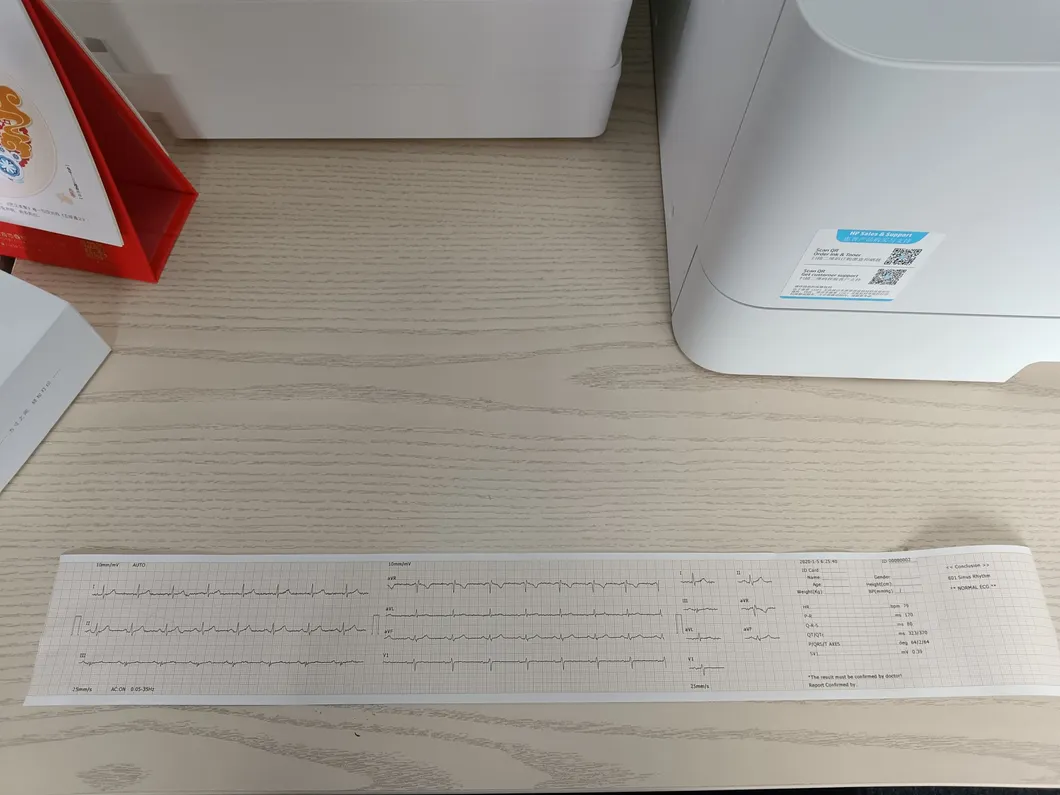

ECG Detail 7

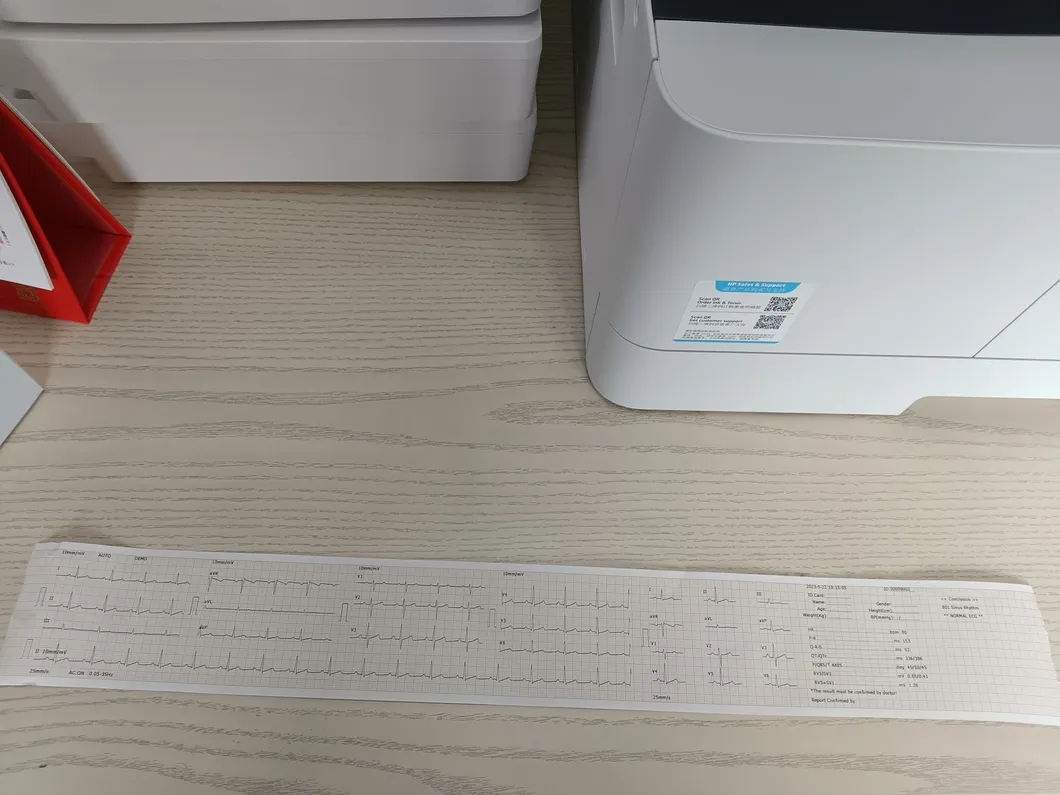

ECG Detail 8

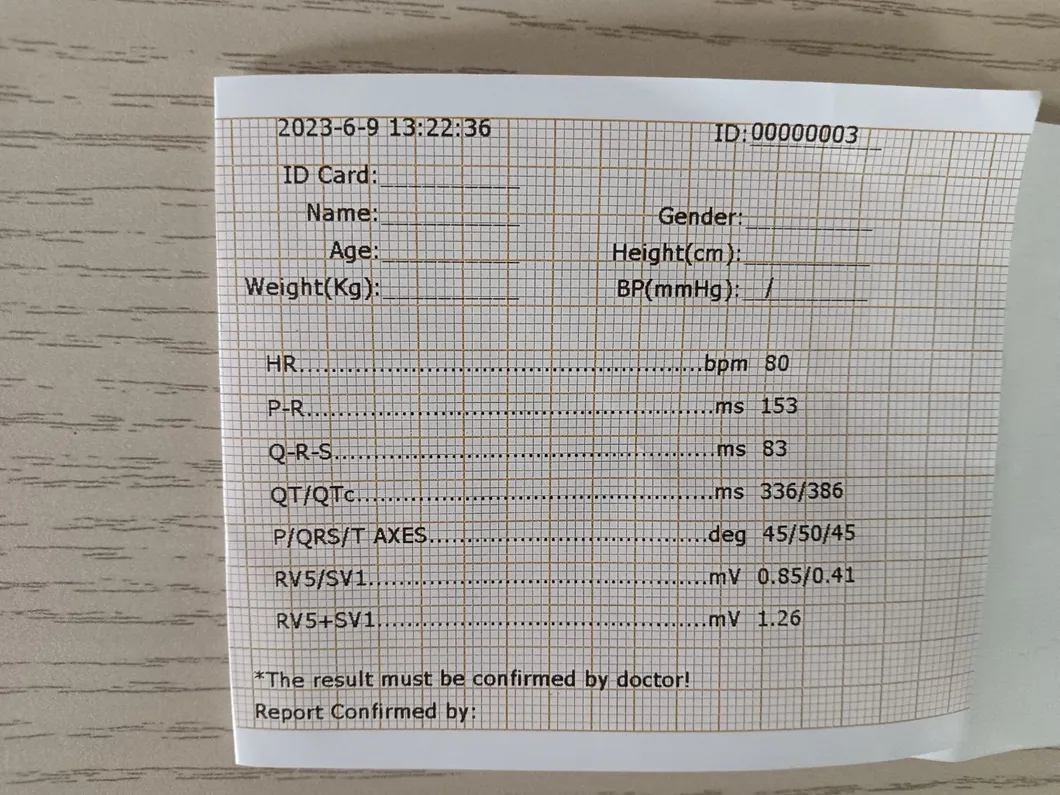

ECG Detail 9

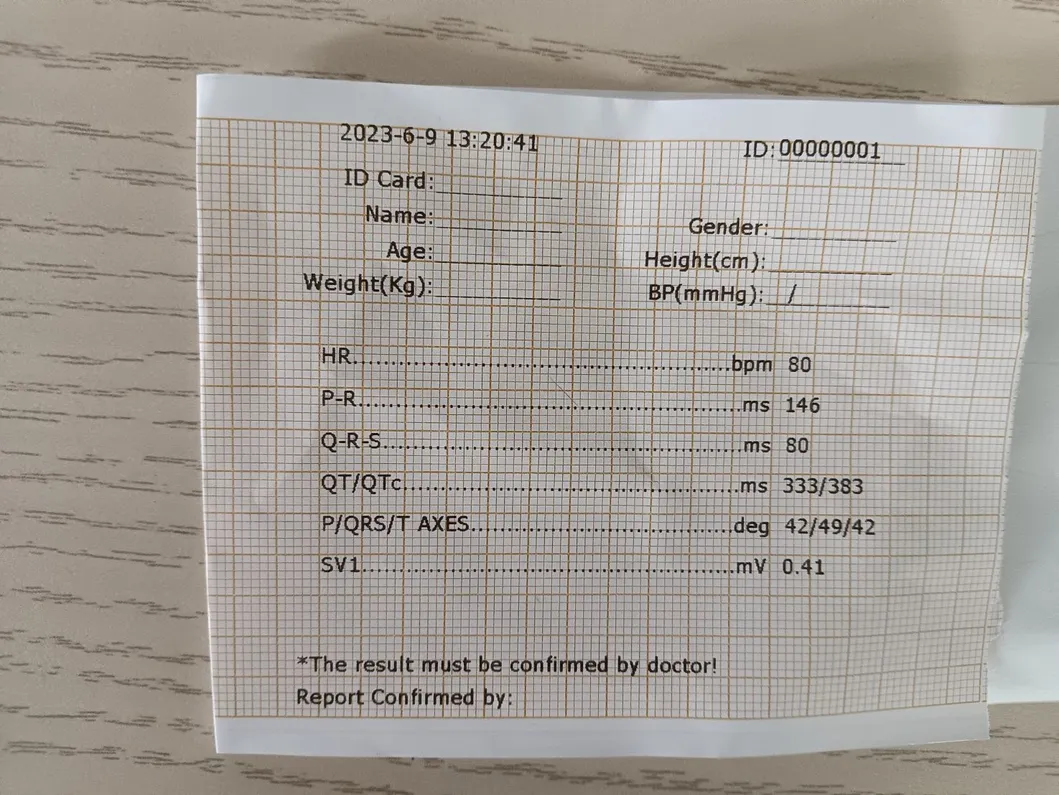

ECG Detail 10

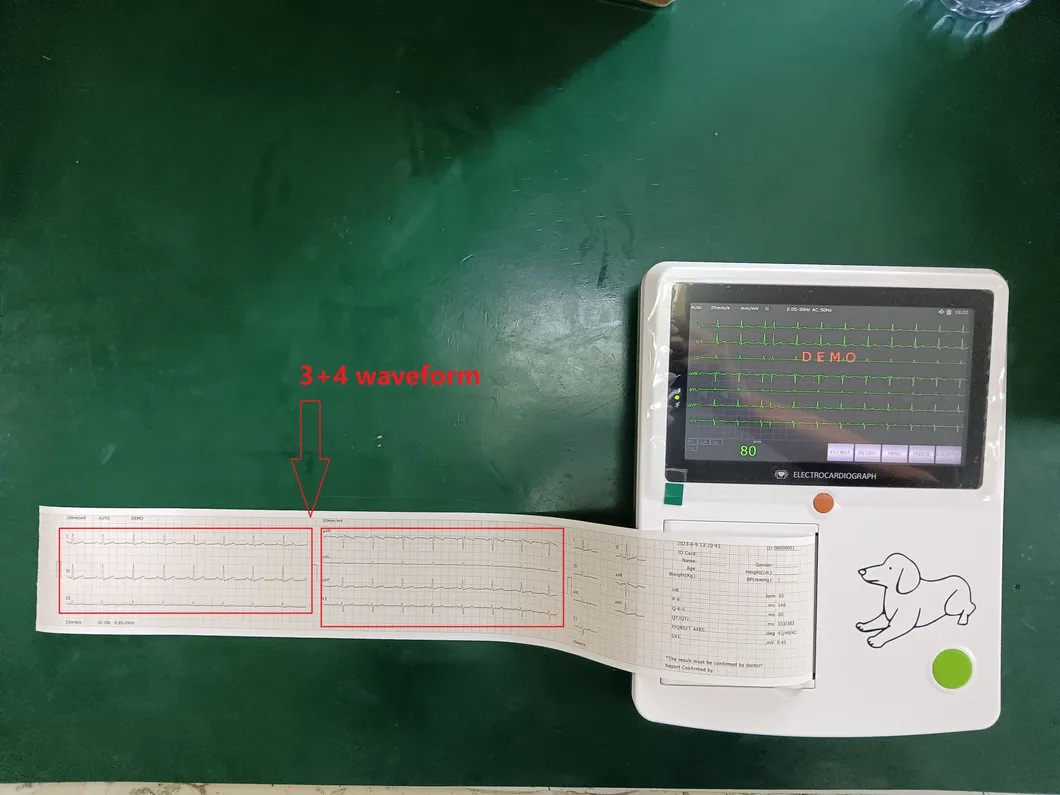

ECG Detail 11

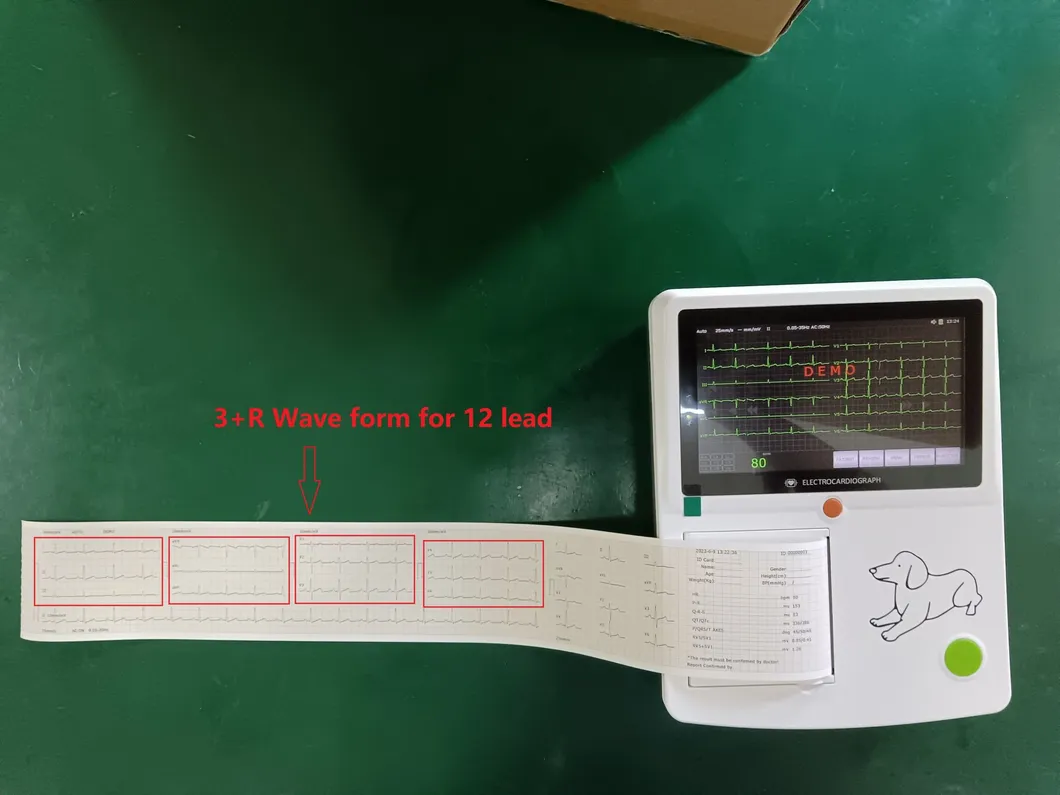

ECG Detail 12

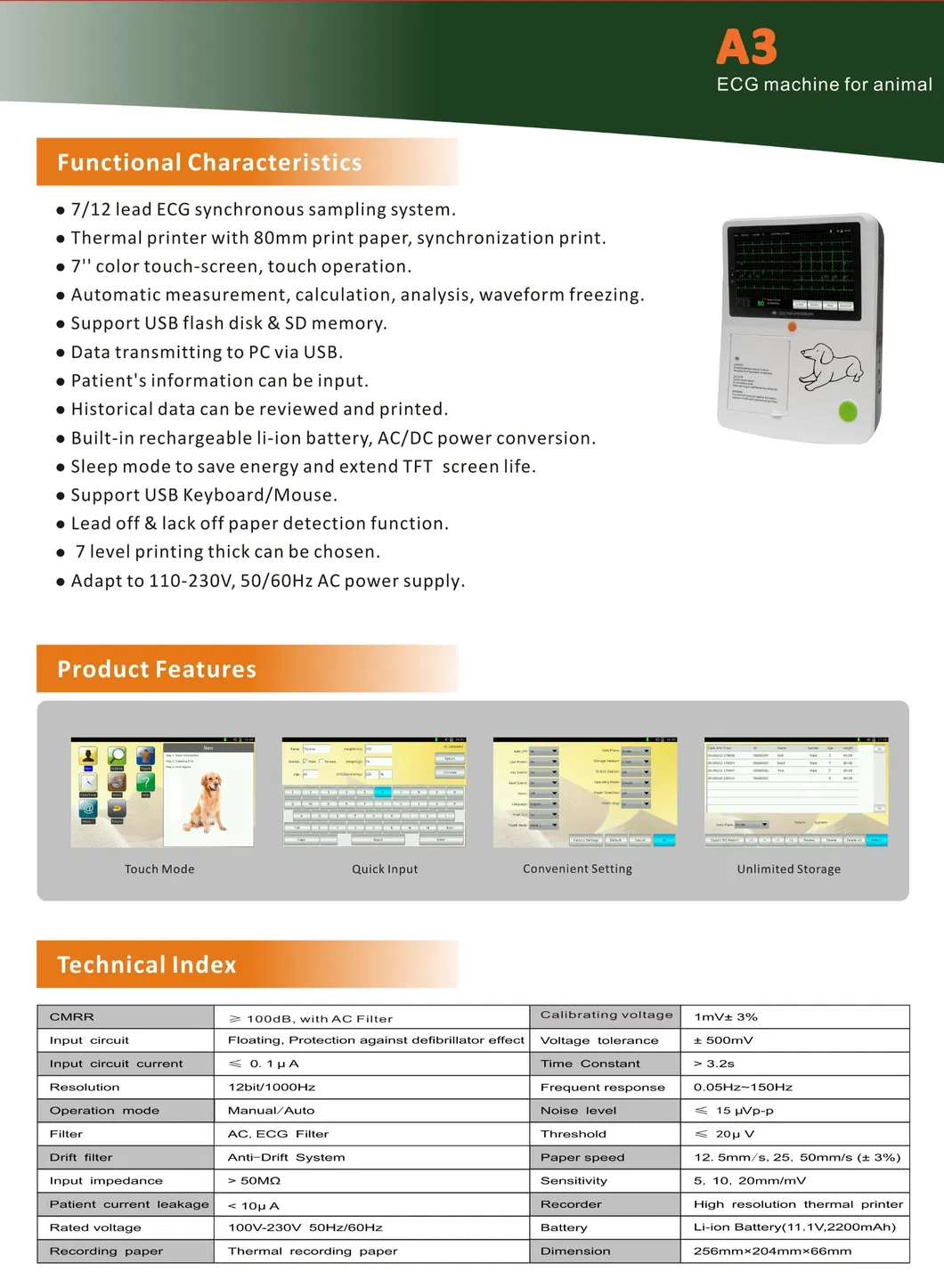

Full Set Interface
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with dedicated R&D and production departments.
Do you have the necessary certifications?
Yes, we hold CE certificates and complete test reports for our medical equipment.
Can you provide OEM/ODM services?
Yes, customization is available, including printing client logos on the products.
What is your Minimum Order Quantity (MOQ)?
Our standard MOQ is 100pcs. For customized logo printing or voice prompts, the MOQ is 1000pcs.
What is the delivery time for orders?
Neutral printing orders are delivered within 3 days. Customized orders typically take 20-25 days after payment.
What shipping options do you provide?
We offer comprehensive shipping services via Express, Air, and Sea through long-term logistics partners.
