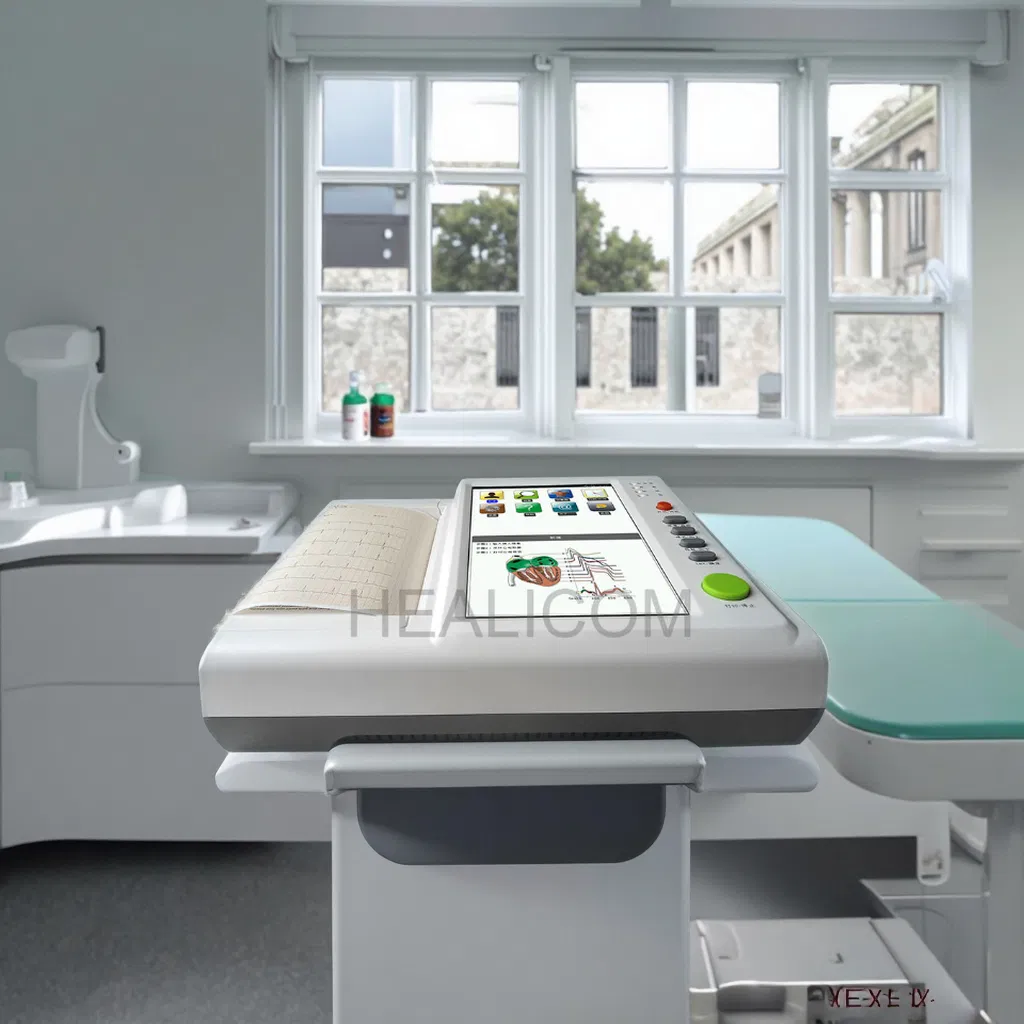

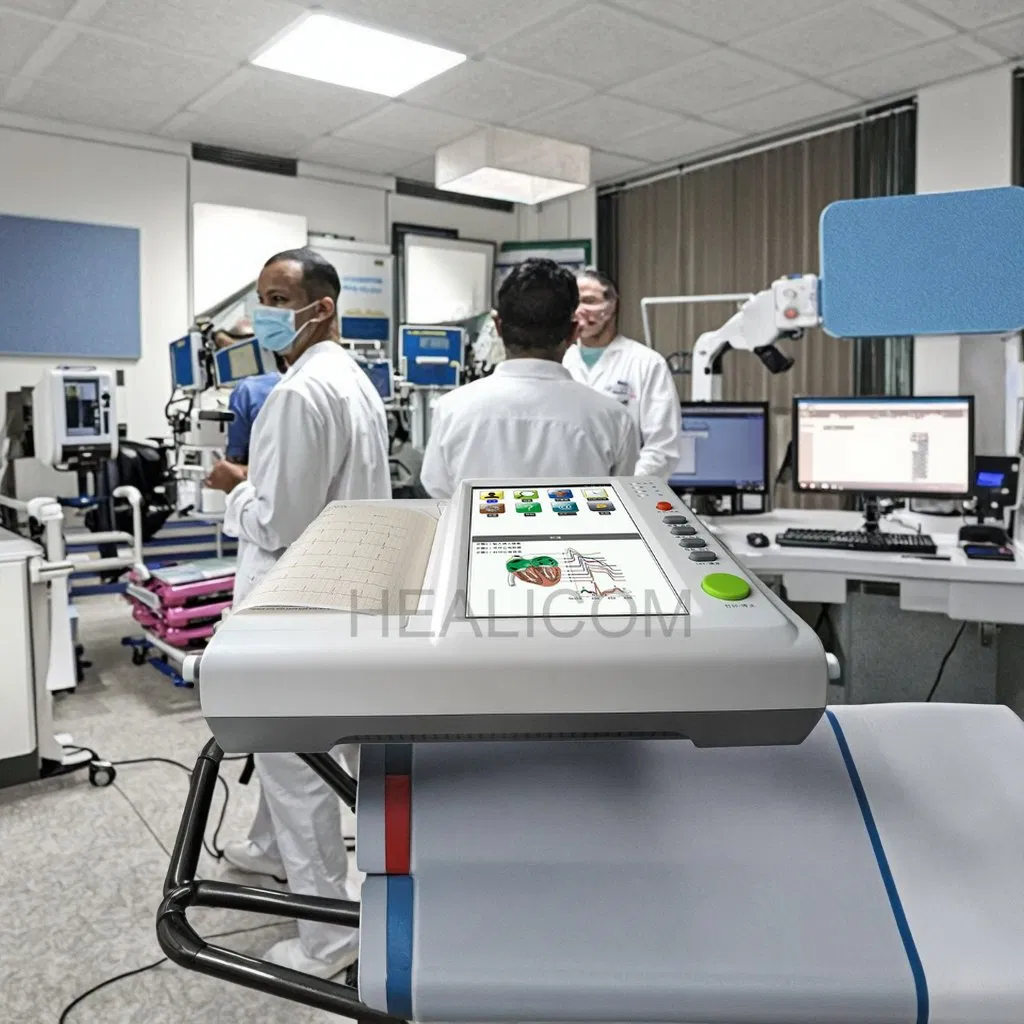

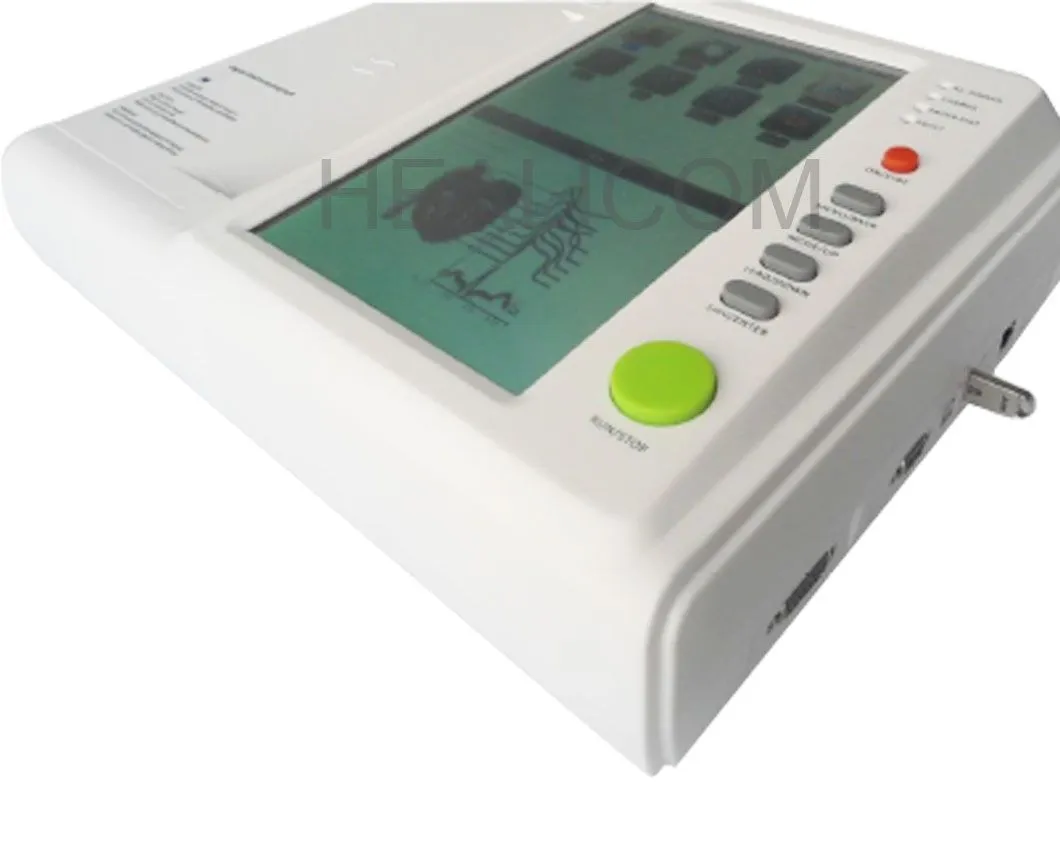

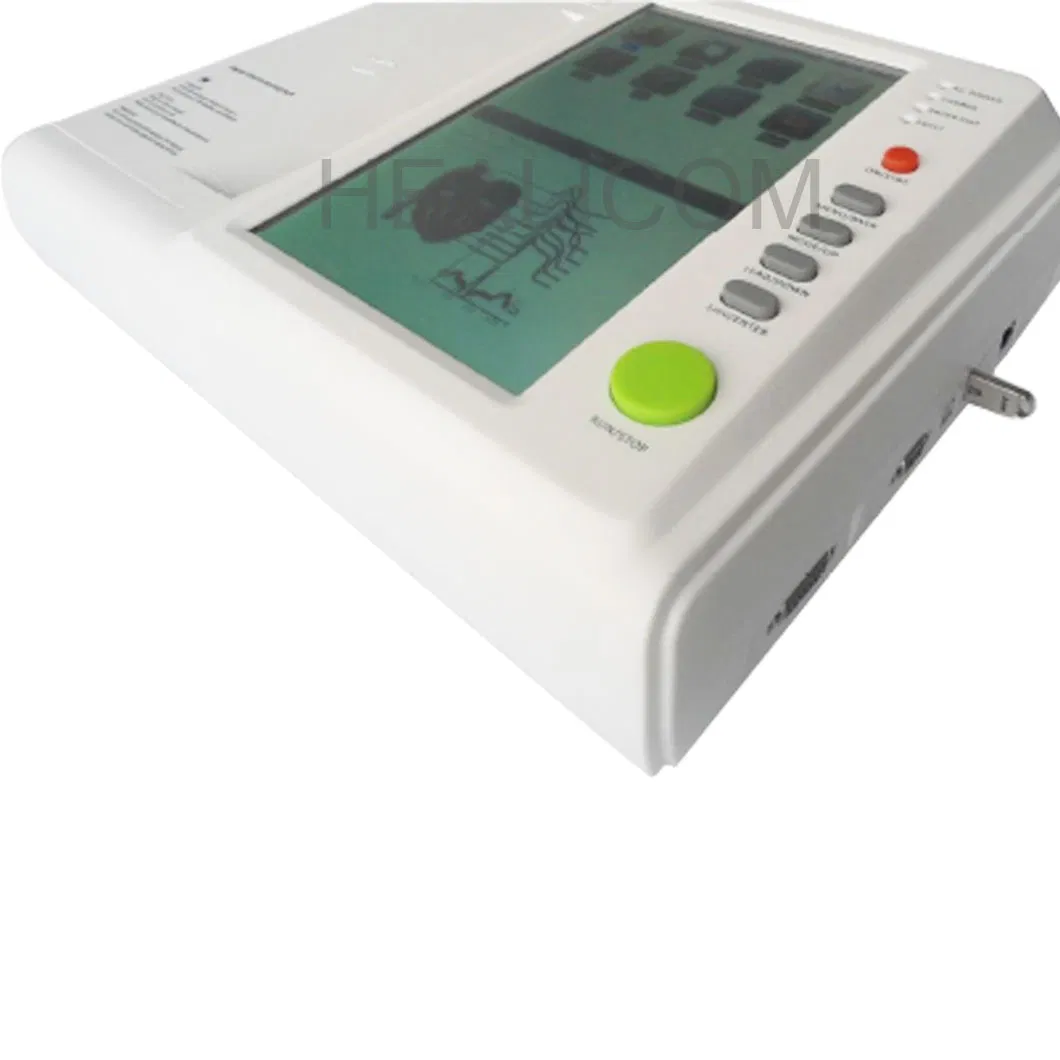

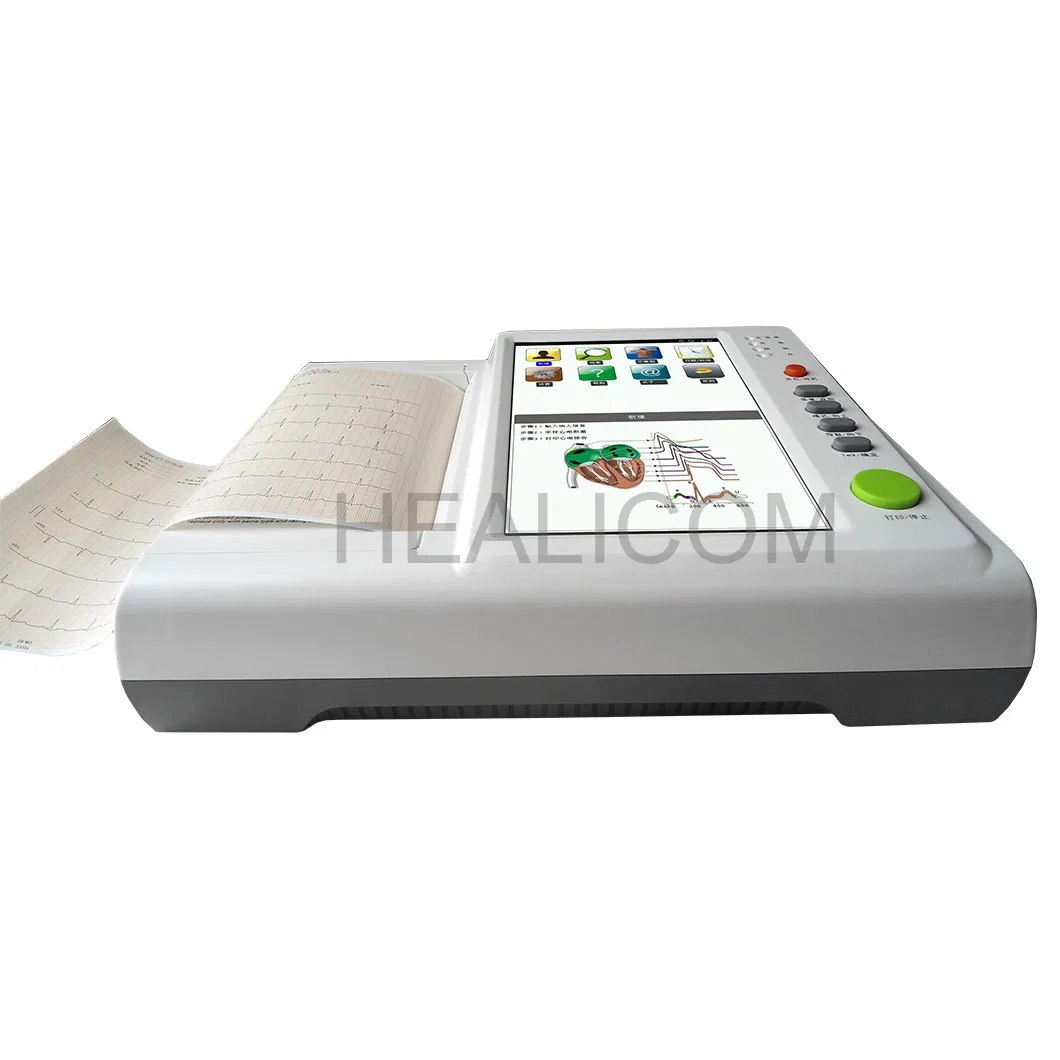

He-1201 Touch-Screen Digital 12 Lead ECG Electrocardiograph

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	ECG Machine

Basic Information

📋Model NO.: HE-1201

📜Certification: CE

📦Transport Package: Carton

Product Overview

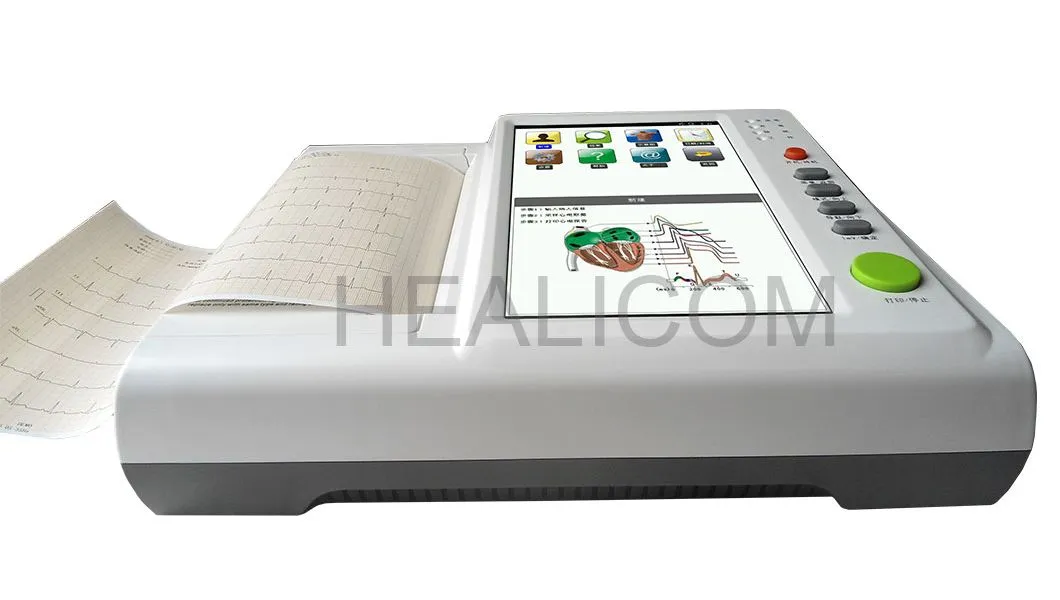

HE-1201 Touch Screen ECG Machine Digital Electrocardiograph

Core Features

12 lead ECG synchronous sampling system.

Thermal printer with 216mm print paper, synchronization print.

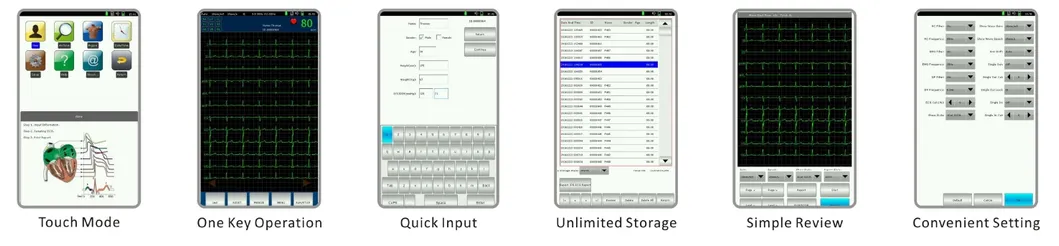

10.2' color touch-screen, both push-button and touch operation.

Automatic measurement, calculation, analysis, waveform freezing.

Support USB flash disk & SD memory.

Data transmitting to PC via RS232/USB.

Patient's information can be input.

Historical data can be reviewed and printed.

Built-in rechargeable li-ion battery, AC/DC power conversion.

Sleep mode to save energy and extend LCD life.

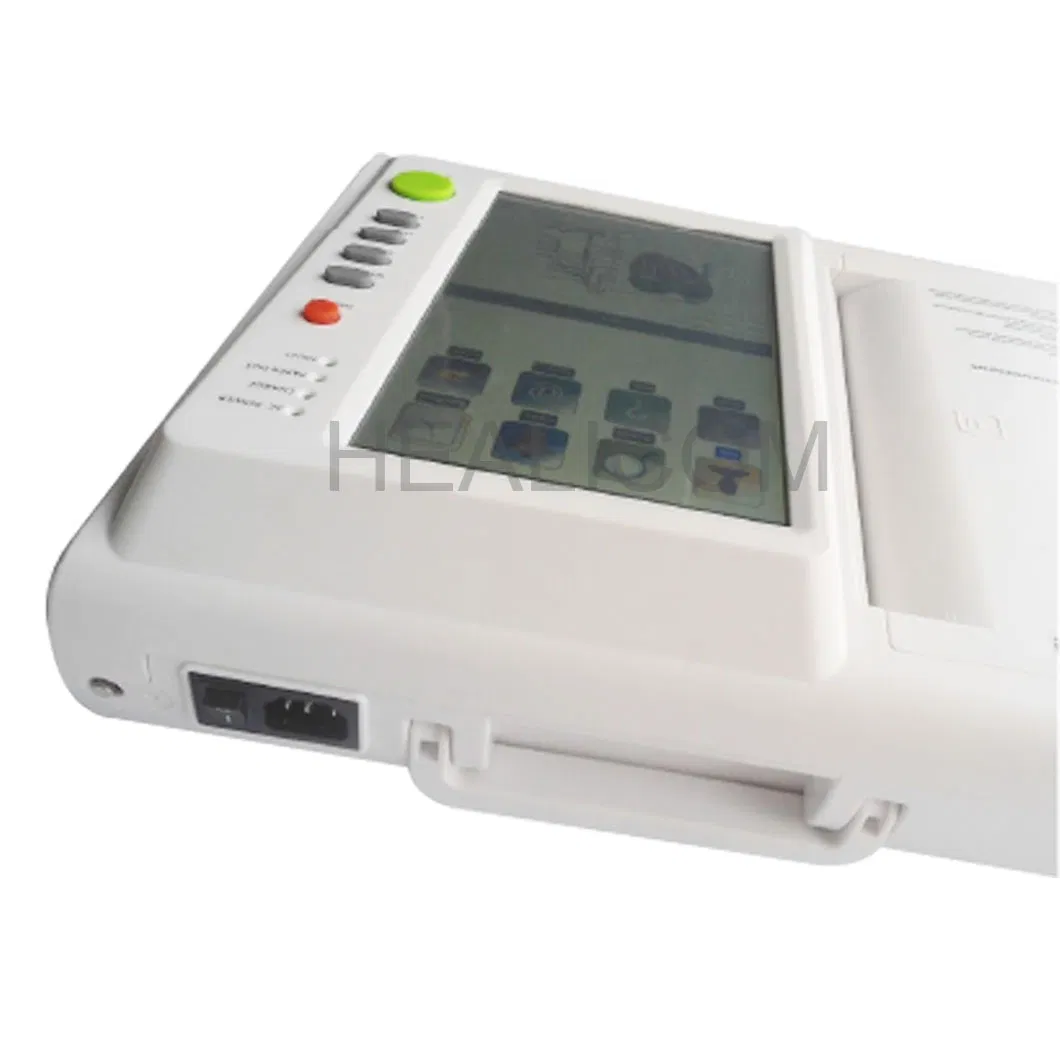

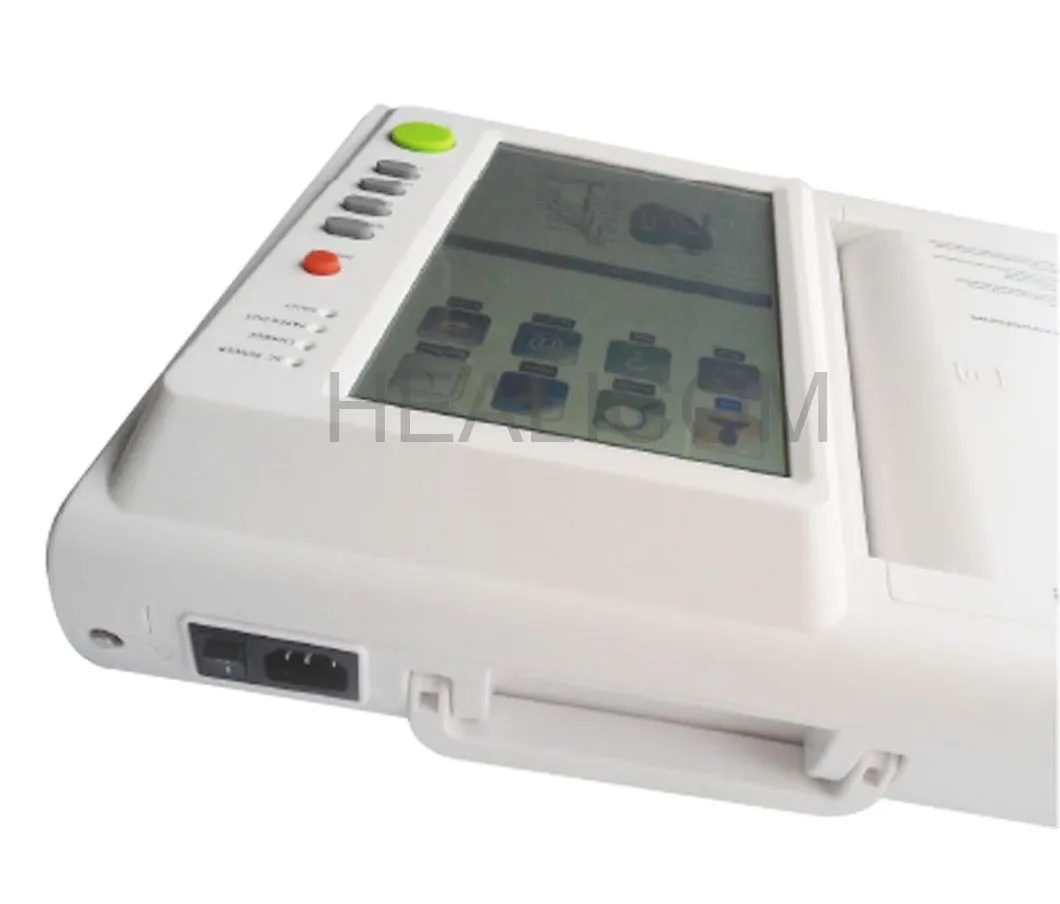

Portable design with hidden handle, convenient to carry.

Lead off & lack off paper detection function.

7 level printing thickness can be chosen.

Adapt to 110-230V, 50/60Hz AC power supply.

Technical Specifications

CMRR	>100dB, with AC Filter	Calibrating voltage	1mV+ 3%
Input circuit	Floating	Voltage tolerance	+500mV
Input circuit current	<0.1μ A	Time constant	>3.2s
Resolution	12bit/8000Hz	Frequent response	0.05Hz~150Hz
Operation mode	Manual/Auto	Noise level	<15μ Vp-p
Filter	AC. EMG Filter	Threshold	<20μ V
Drift filter	Anti-Drift System	Paper speed	12.5, 25, 50mm/s (± 3%)
Input Impedance	>50MΩ	Sensitivity	5, 10, 20mm/mV
Patient leakage	<10μ A	Recorder	High resolution thermal printer
Battery	Li-ion 14.8V(4000mAh)	Package Size	365mmx306mmx109mm

Product Gallery

Manufacturing and Quality

Frequently Asked Questions

What about the price level?

We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this field more than 20 years. We always adhere to the principle of providing top quality products with competitive prices.

Why do some prices vary for similar looking models?

Prices may vary based on the quality of materials used and the level of quality control. Products with cheaper materials and less rigorous testing are relatively cheaper than those built to higher professional standards.

What is the time of delivery?

Since our products are produced according to each specific order, the delivery period will be approximately 15 days after confirmation. For small or sample orders, please check with us regarding ready stock for immediate delivery.

What about quality assurance?

We offer a one-year warranty period beginning from the time of shipment for medical equipment. For minor problems, we provide free spare parts for replacements; for serious problems, we provide free replacements.

What are the payment terms?

We accept T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.

Are the devices portable for field use?

Yes, the device features a portable design with a hidden handle and a built-in rechargeable li-ion battery, making it highly convenient for transport and mobile medical use.
