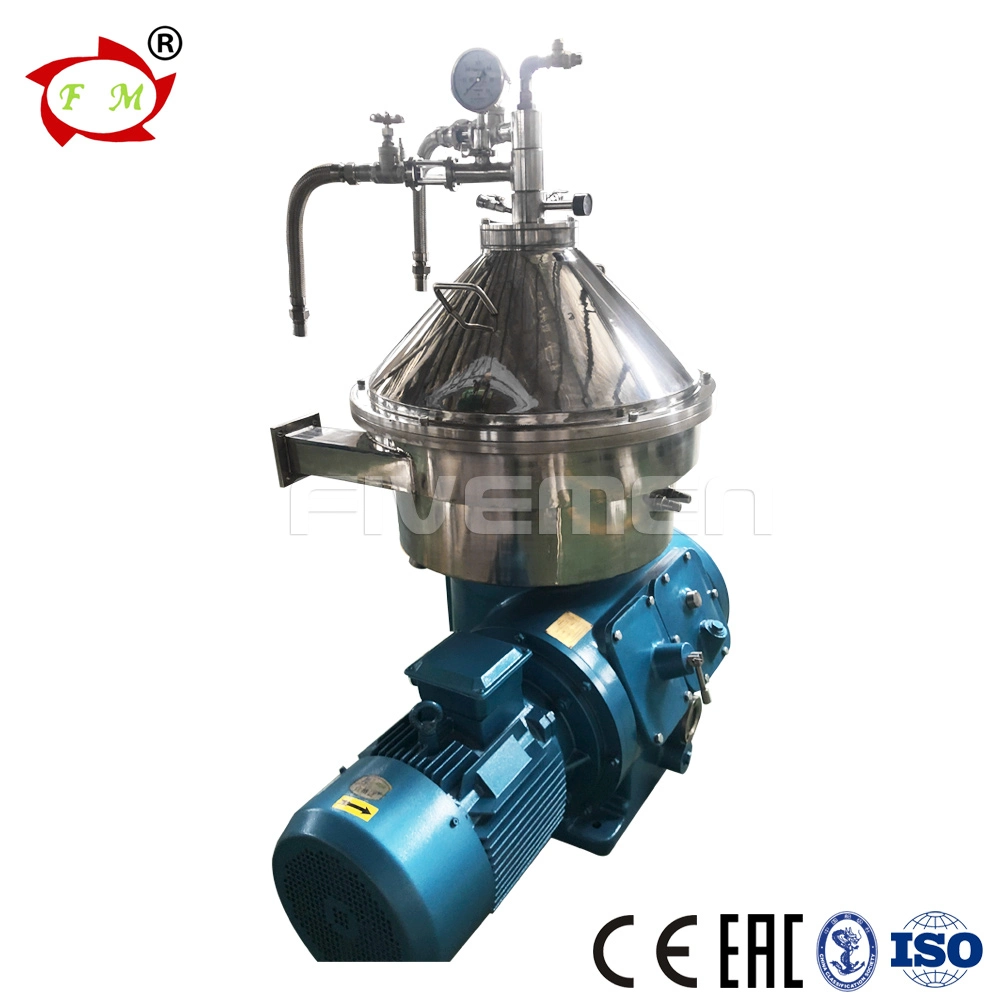

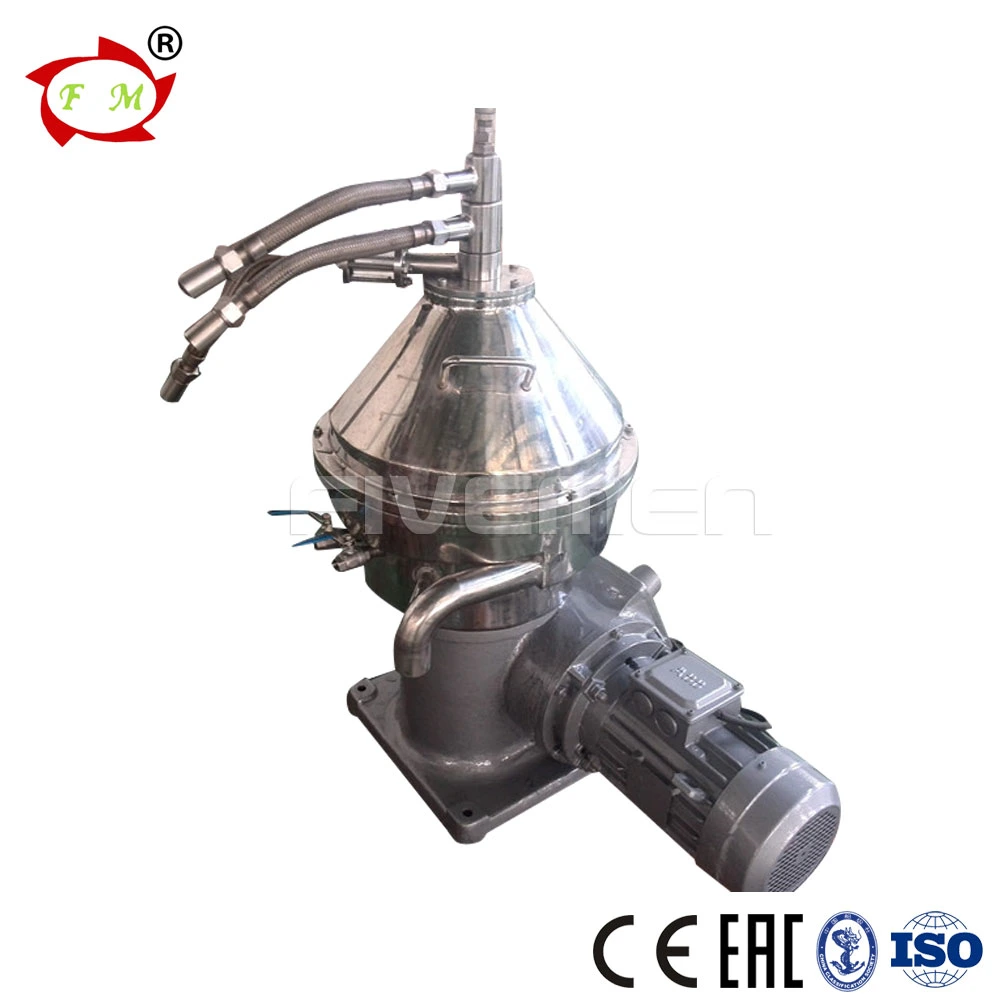

High Speed Self-Cleaning Beer Yeast Disc Stack Centrifuge Separator Machine Price

Customization: Available
Type: All Kinds of Wine Separation
Alcoholicity: Crude Wine

Product Description

Basic Specifications

Model NO.
PRDH270
Producing Method
by Garvity Separation
Taste
Authentic
Certification
ISO/Eac
Warranty
1 Year
Keywords
Yeast Centrifuge Separator
Discharge
Automatic Discharging
Control Box
PLC Control
Bearing
SKF Bearing
Function
Solid Liquid Clarificaiton or Concentration
Raw Material
304/316L Food Grade
Separation Phase
Two/Three Phase
HS Code
8421192000
Production Capacity
50-200L/H

Product Introduction

The yeast disc separator is a specialized type of nozzle slag discharge separator. It is widely utilized for solid phase concentration in suspensions and light phase concentration in emulsions. Key applications include the separation and concentration of various yeasts, clarification of clay and pigment-contaminated water, and the recycling of catalysts and high polymer powders. This makes it essential equipment for yeast production, alcohol manufacturing, breweries, and environmental protection sectors.

These starch separators operate at high speeds with continuous nozzle discharge. The disc centrifuge is designed for starch purification, preconcentration, protein separation, and starch recovery. It also serves industries such as medicine, dyeing, and kaolin pulp recycling for liquid-solid two-phase separation and clarification.

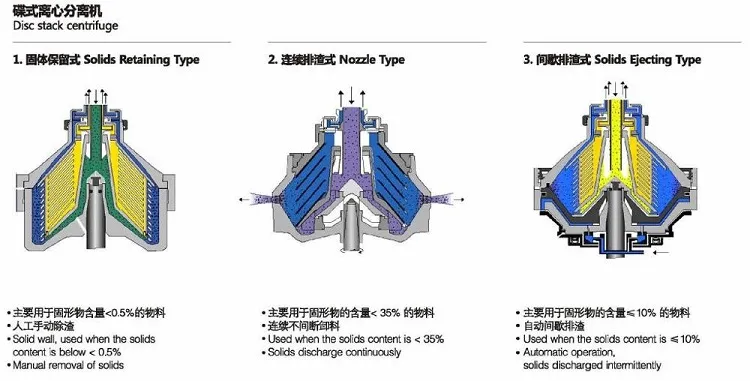

Yeast Disc Stack Centrifuge

Nozzle separators are continuously operating disk centrifuges built as centrifugal clarifiers and separators. They are more solids-oriented than self-cleaning separators. When configured as clarifiers, they function as concentrators to thicken solids from suspensions. They are absolute specialists in processing fermentation products in biotechnology, pharmaceutical, and food industries.

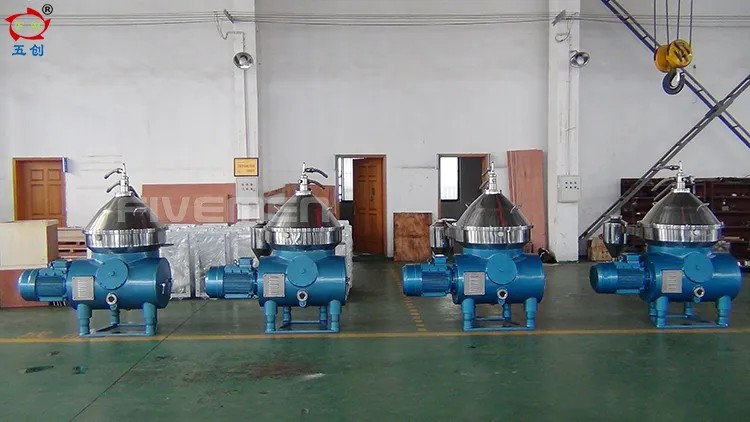

Separation Process

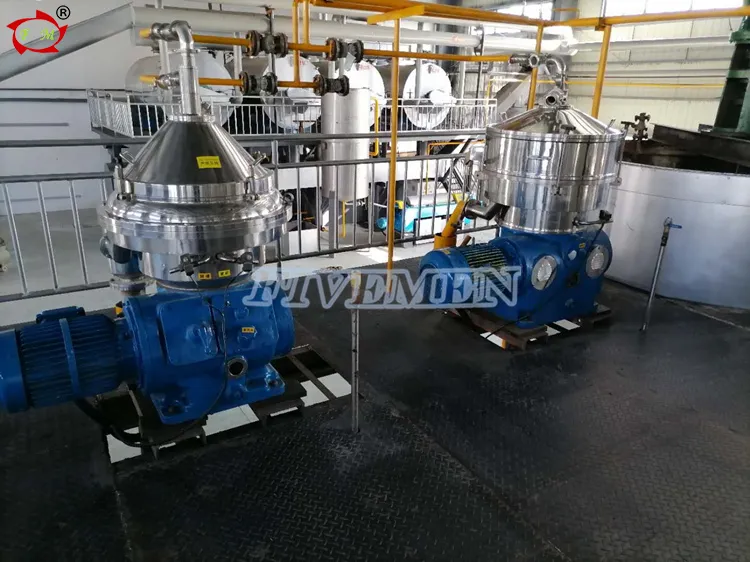

Equipment Detail

Technical Parameters

Model Clarify Capacity (l/h) Degrease Capacity (l/h) Drum Diameter (mm) Drum Speed (rpm) Size (mm)
RPDR2301200600-8002306930850X625X985
RPDH2701800800-10002707200865X645X1100
RPDH315300015003156500900X600X1150
RPDH3855000200038565001100X1050X1250
RPDH4306000300043069001200X950X1400
RPDH47010000500047060001250X1000X1500

Main Components & Applications

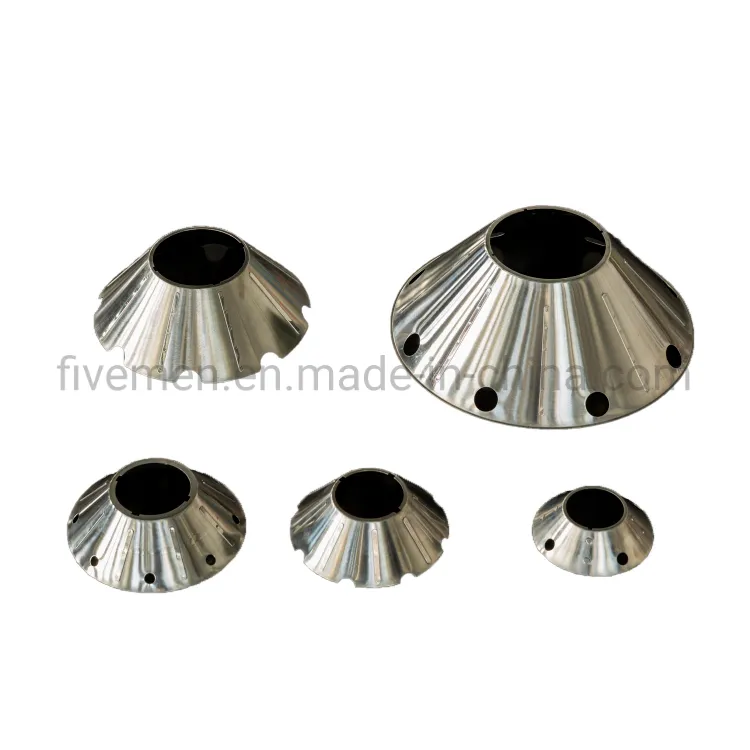

Main Parts 1

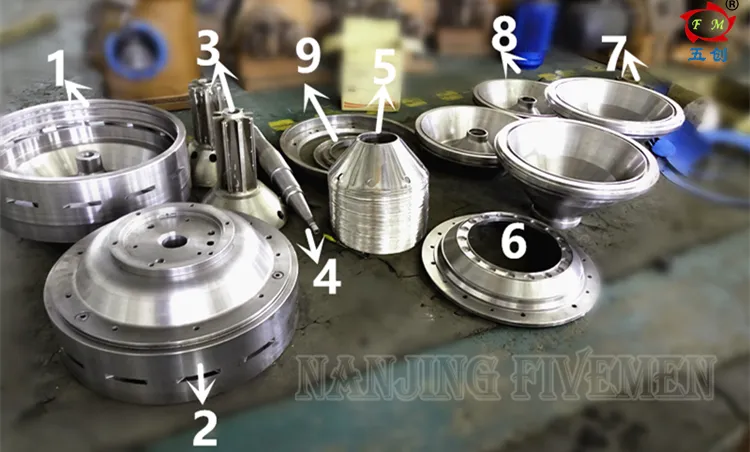

Main Parts 2

Our separation technology is successfully applied in liquid-solid or liquid-liquid-solid separation across various sectors including biomedicine, traditional Chinese medicine, phytoextraction, health foods, beverages, dairy products, and chemical industries. We provide ideal equipment for materials with small differences in specific gravity and low solid content.

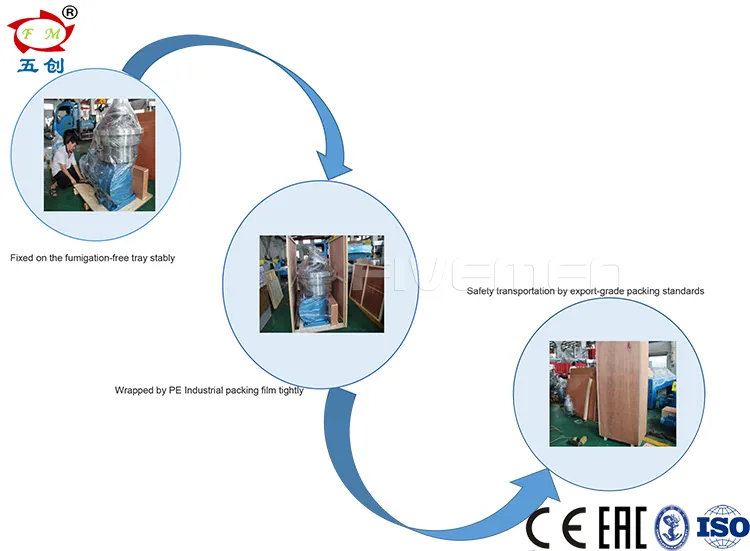

Packing and Shipping
Application Occasion 1

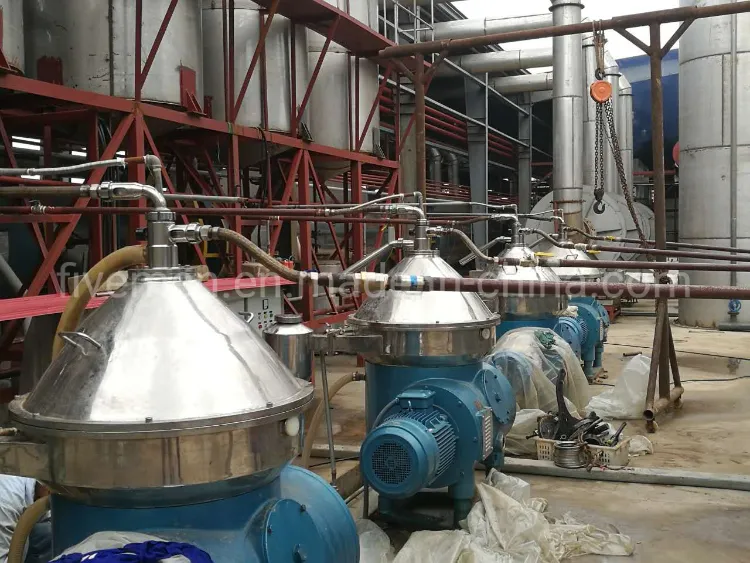

Application Occasion 2
Machine Overview

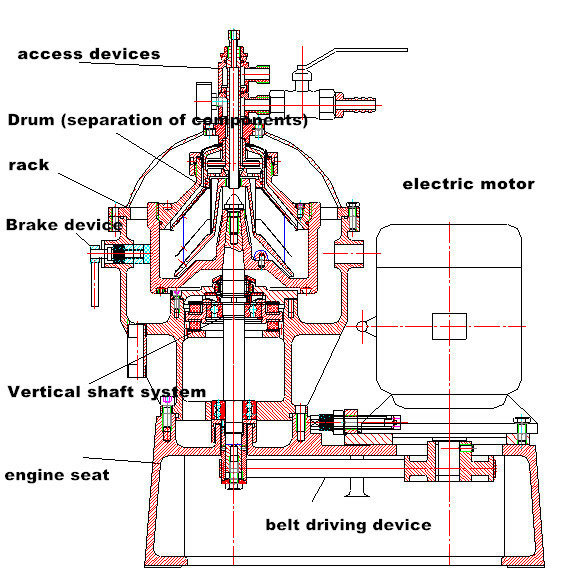

Technical Drawing

Frequently Asked Questions

What is the primary use of a yeast disc separator?
It is primarily used for the separation and concentration of yeast, clarification of liquids in fermentation processes, and recovery of catalysts or polymers in various industrial applications.
What materials are used in the construction of the separator?
The equipment is manufactured using high-quality 304 or 316L food-grade stainless steel to ensure durability and compliance with hygiene standards.
How is the discharge process managed?
The machine features an automatic nozzle slag discharge system, allowing for continuous operation without manual intervention for waste removal.
Does the machine support automated control?
Yes, the separator is equipped with a PLC control box for precise and automated management of the separation process.
What kind of bearings are used in this equipment?
We use high-performance SKF bearings to ensure high-speed stability, reduced noise, and a longer service life for the drum assembly.
Can this machine handle both two-phase and three-phase separation?
Depending on the specific model and configuration, the machine can be used for both liquid-solid (two-phase) and liquid-liquid-solid (three-phase) separation.
