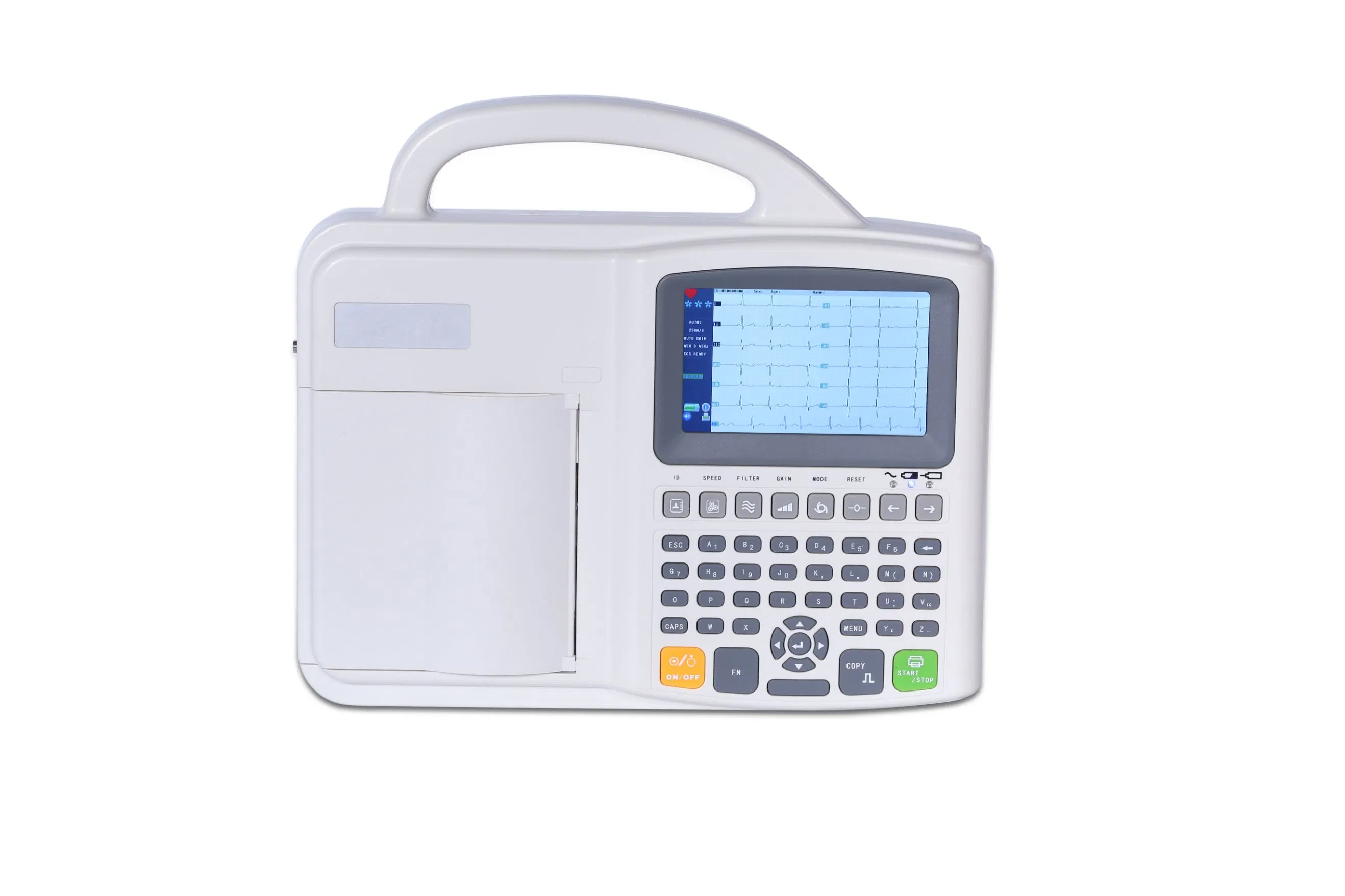

Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
1 / 5
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph
Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph

Med-E3a Factory Host Sale Made in China Medcal Equipment ECG Machine Electrocardiograph

Customization: Available
Type: ECG
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Information

Model NO.
Med-E3A
Transport Package
Carton
Specification
310mm× 270mm× 73mm

Product Description

Med-E3A Factory sale medical equipment ecg machine electrocardiograph

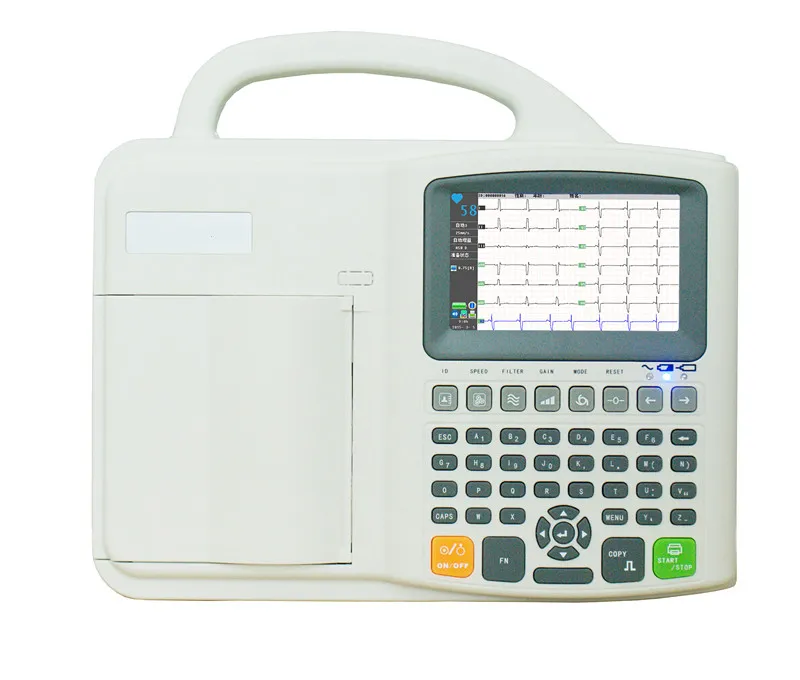

ECG Machine Med-E3A

Three Channel ECG Features

3 channel ECG machine with interpretation
5.0" color TFT LCD display
Simultaneous 12 leads acquisition
1, 1+1, 3 channel (Manual/Auto) recording
High resolution thermal printer
Manual/Auto working modes
Digital isolation technology & signal processing
Baseline stabilization inspection
Full alphanumeric silicon keyboard
Support U disk storage

Technical Specifications

LeadStandard 12 leads
AcquisitionSimultaneous 12 leads
A/D Converter14bit
Sampling Rate1000Hz
Working ModeManual/Auto
Interference FilterAC Filter and EMG Filter
CMMR≥100dB (with AC filter)
Input CircuitFloating, protection circuit against defibrillator effect
Input Circuit Current≤0.1μA
Input Impedance≥50MΩ
Patient Current Leakage<10μA
Calibrating Voltage1mV±2%
Skin Voltage Tolerance≥±500mV
Time Constant≥3.2s
Frequency Response0.05 Hz~250Hz
Noise Level<15μVp-p
Sensitivity Threshold≤20μV
Signal Channel Interference≤0.5mm
PrinterThermal printer
Paper80mmx20m, roll
Page Speed6.25, 12.5, 25, 50mm/s (±3%)
Sensitivity Printer10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU32 bits
Safe ClassGB9706.1, Class I, Type CF
Power SupplyAC 220V/85~265V or DC14.8V rechargeable Li-ion battery
Dimension310mm×270mm×73mm
Weight1.45kg (with battery)

Product Gallery

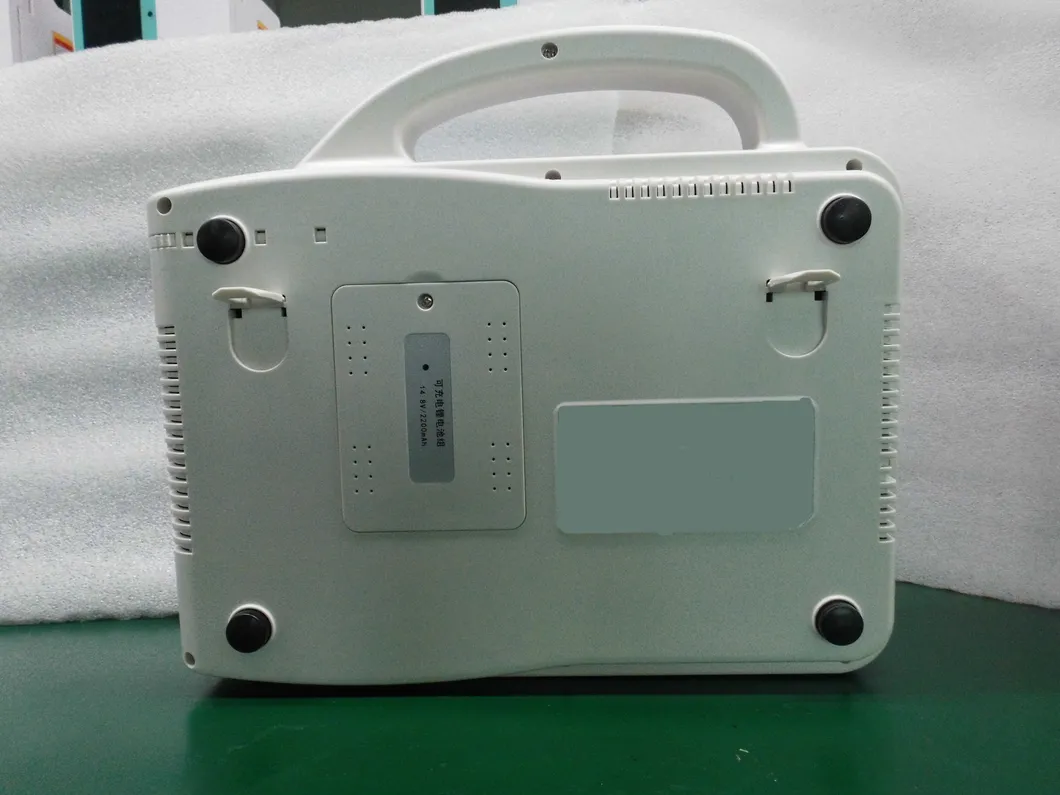

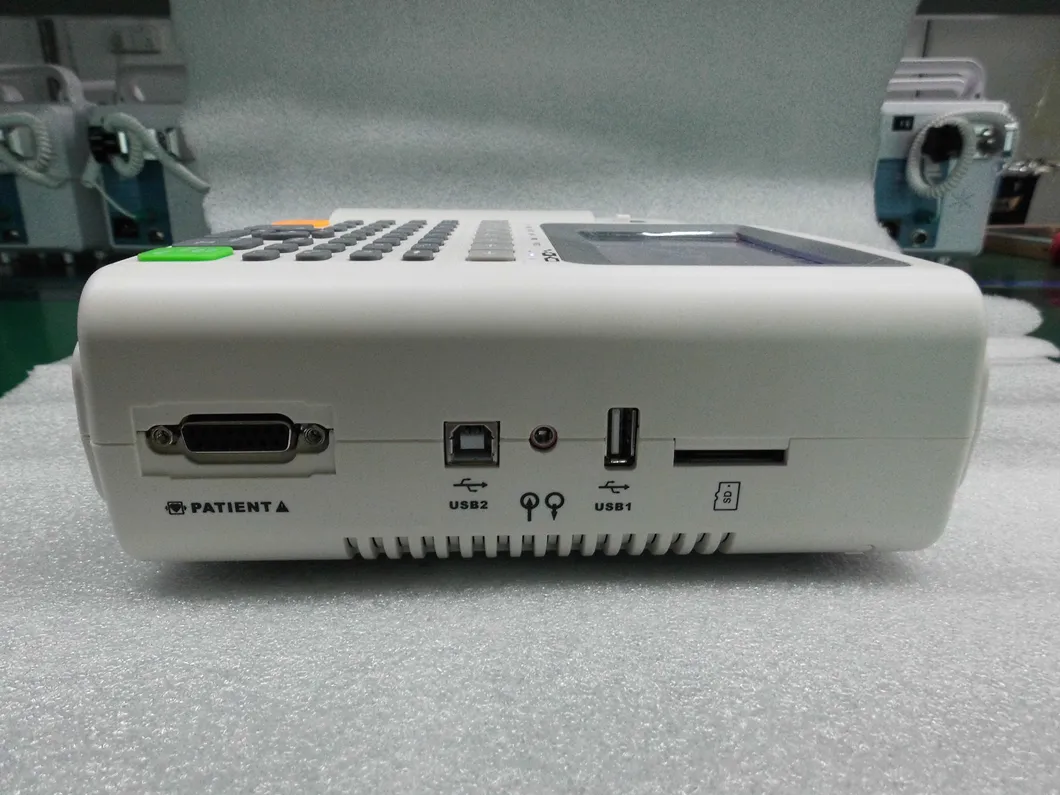

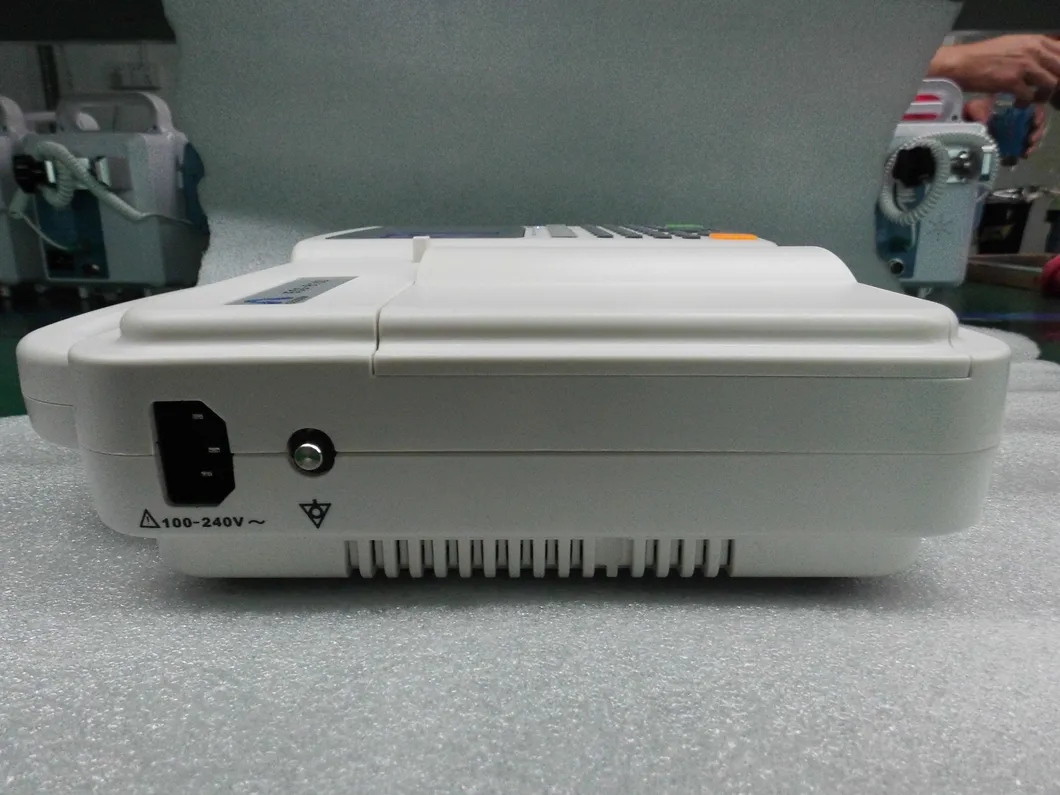

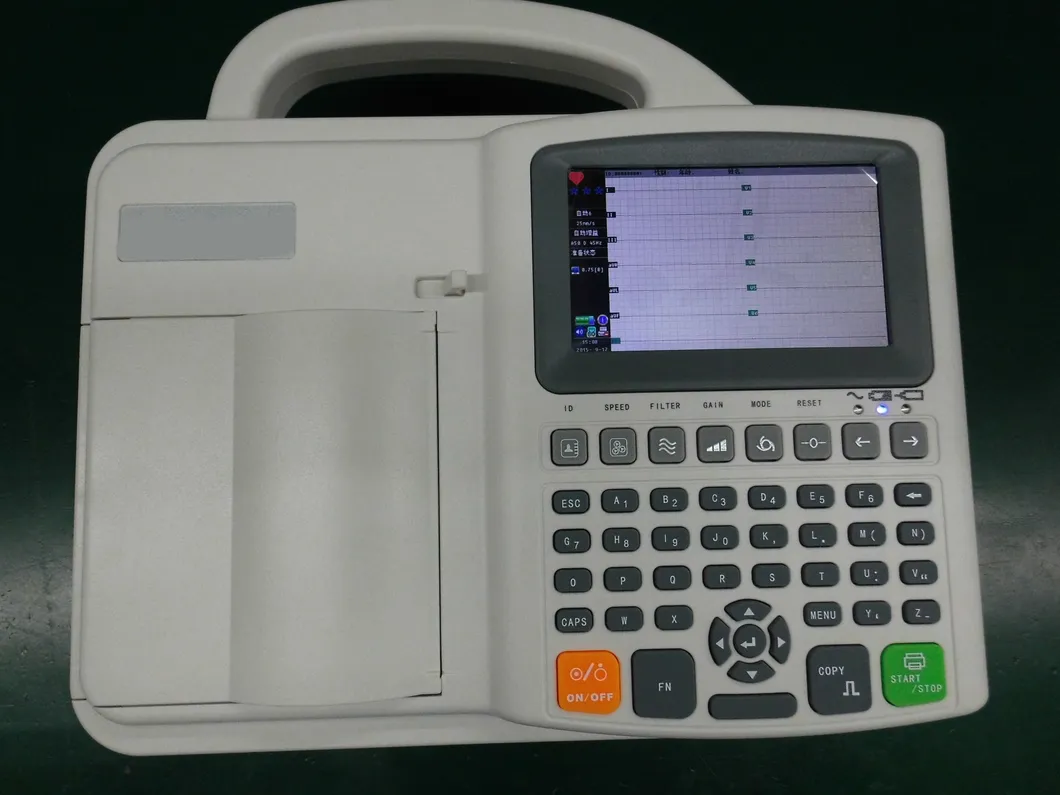

Med-E3A view 1 Med-E3A view 2 Med-E3A view 3 Med-E3A view 4 Med-E3A view 5 Med-E3A view 6

Frequently Asked Questions

How many channels can this ECG machine record?
The Med-E3A is a 3-channel ECG machine that supports simultaneous 12-lead acquisition and offers manual or automatic recording modes (1, 1+1, 3 channel).
What type of display does the Med-E3A have?
It features a 5.0" color TFT LCD display for clear visualization of ECG waveforms and parameters.
Does it support external data storage?
Yes, the device supports U disk storage, allowing for easy data transfer and management.
What is the battery life and power supply?
The machine can be powered by standard AC (220V or 85~265V) or by its built-in rechargeable 14.8V (2200mAh) Li-ion battery.
Is the machine portable?
Yes, with a compact dimension of 310mm × 270mm × 73mm and a weight of only 1.45kg (including battery), it is highly portable.
What kind of keyboard is used?
The device is equipped with a full alphanumeric silicon keyboard for easy and durable data entry.
