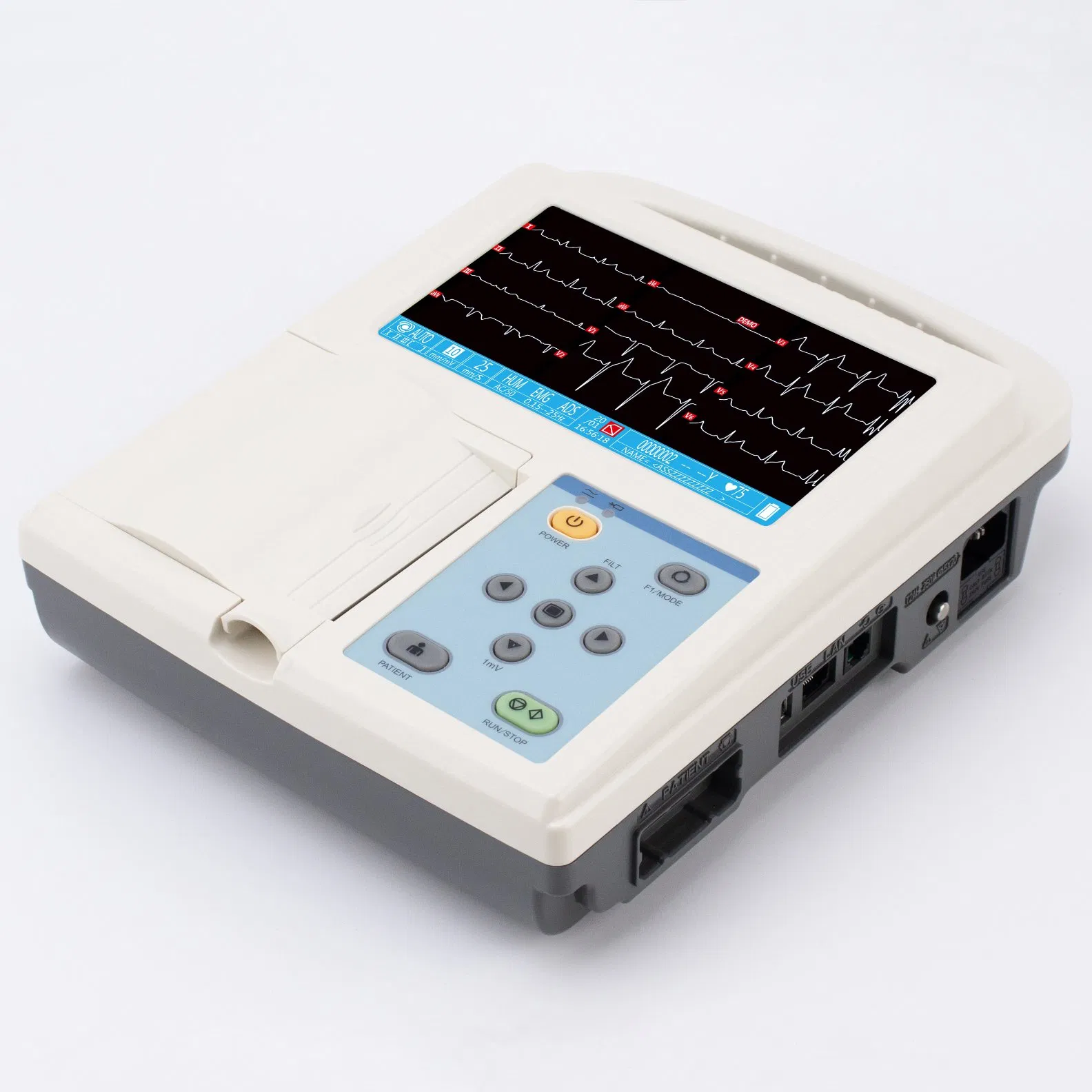

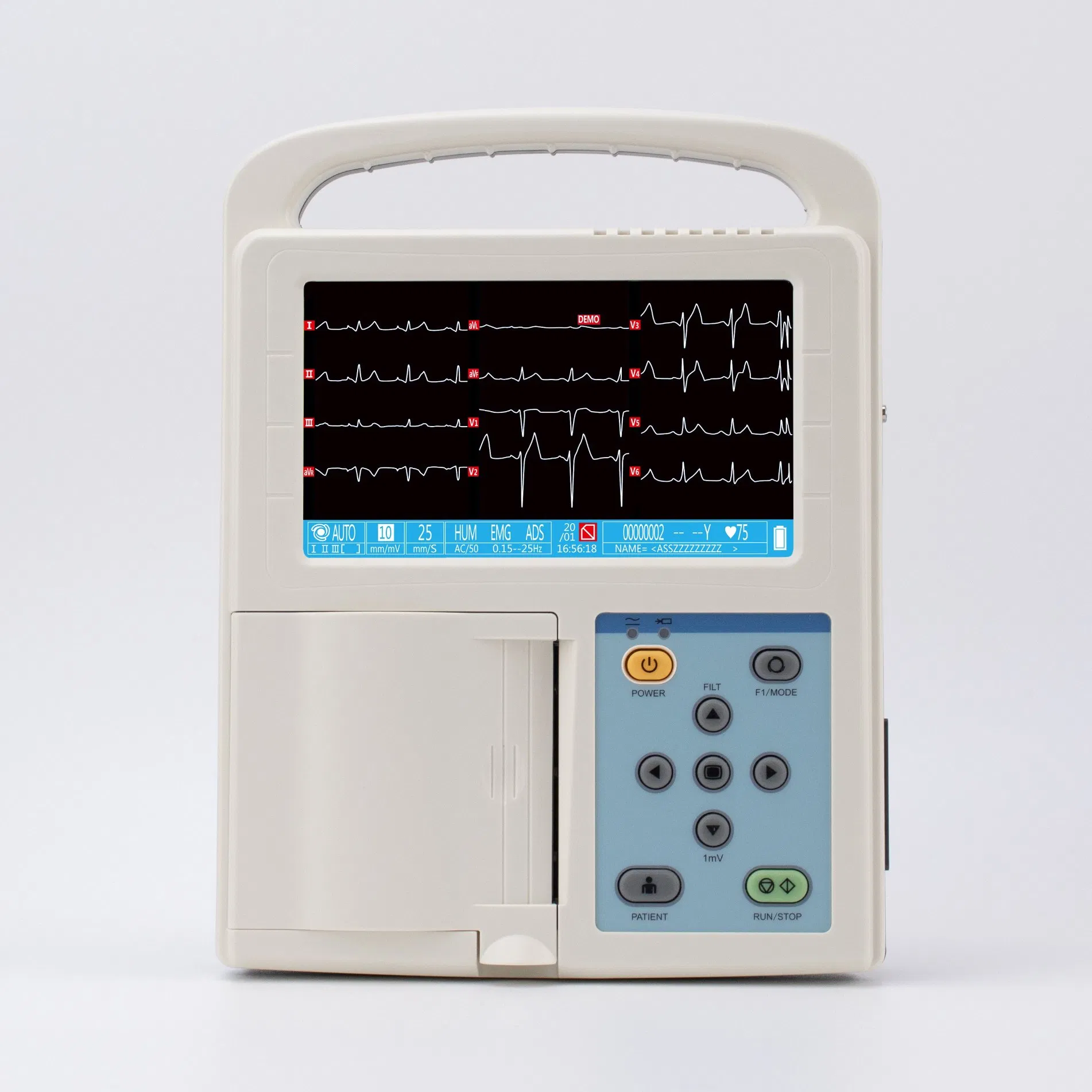

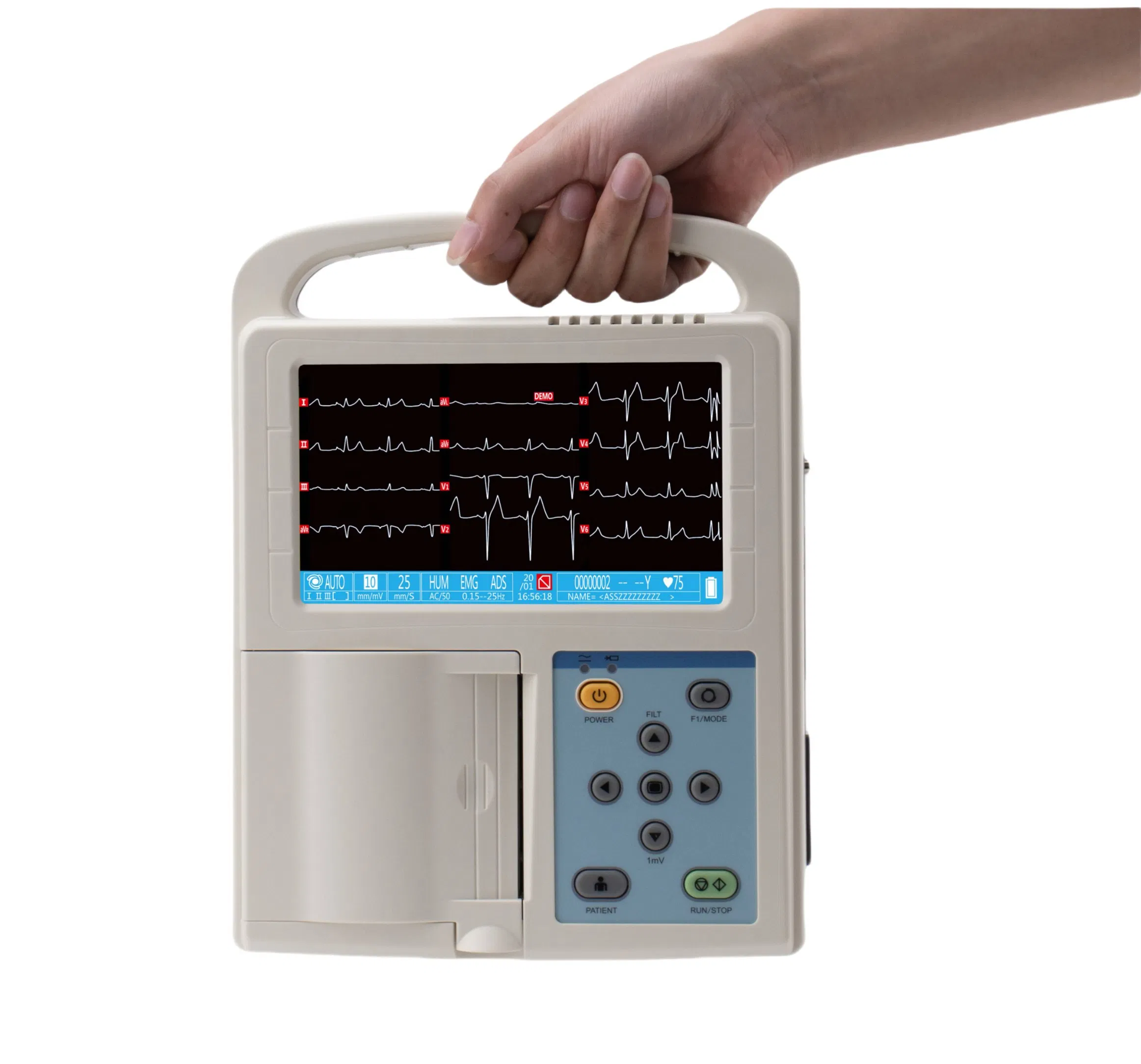

Medical 3 Channel ECG/EKG Machine Electrocardiograph
Medical 3 Channel ECG/EKG Machine Electrocardiograph
Medical 3 Channel ECG/EKG Machine Electrocardiograph
1 / 3
Medical 3 Channel ECG/EKG Machine Electrocardiograph
Medical 3 Channel ECG/EKG Machine Electrocardiograph
Medical 3 Channel ECG/EKG Machine Electrocardiograph

Medical 3 Channel ECG/EKG Machine Electrocardiograph

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

📋

Overview

Model NO.
GP-ECG5503B
Certification
CE, ISO13485
Group
All People
Package
Standard Export Cartons
Specification
214mmx276mmx63mm
Medical ECG Machine

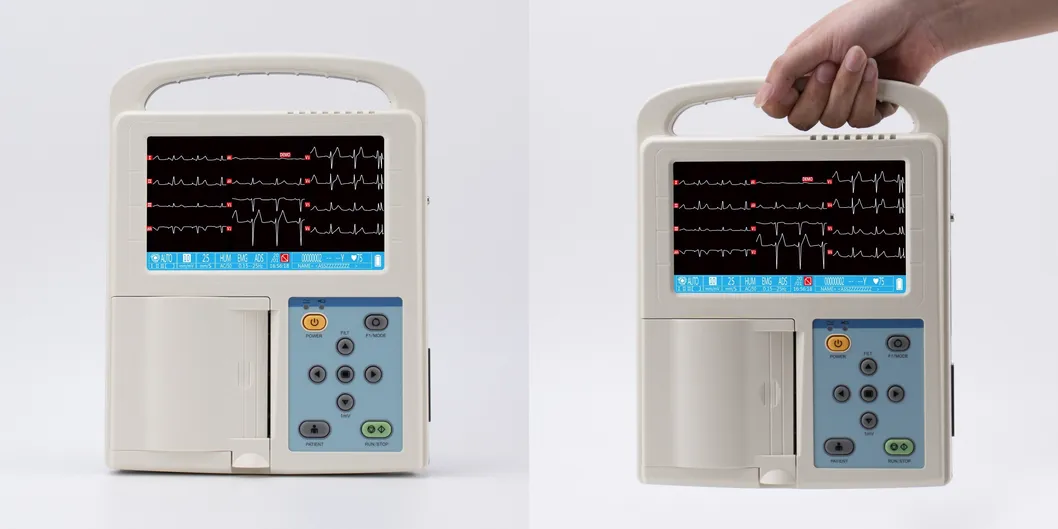

Electrocardiograph Display
⚙️

Key Features

Portable, delicate design, big LCD display, easy to operate.
Accurate pulse pace identification and excellent auto-interpretation function.
High accuracy digital filter and auto-baseline adjustment.
12 leads synchronously acquisition and record.
4 working modes: Auto/Man/Rhythm/Store to meet clinical requirements.
Wide-Voltage design, adapts for AC 75-265V, 50/60Hz.
Rechargeable Li-ion battery supports long time continuous work.
80mmx20m roll paper, high resolution thermal printing.
UART and USB ports for external storage and bar code scanning.
Compact dimensions: 214mmx276mmx63mm, Weight: 1.8kgs.
📊

Technical Specification

Lead Standard 12/15/18 leads
Lead Acquisition 32000Hz synchronously 12/15/18 leads
AC/EMG Filter 50Hz/60Hz; 25Hz/45Hz
Anti-Drift Filter 0.15Hz (adaptive)
CMRR >120dB (with AC Filter)
Input Impedance >50MΩ
Patient Current Leakage <10μA
Frequency Response 0.05-160Hz (-3db)
Paper Speed 6.25, 12.5, 25, 50 mm/s (+3%)
Recording Model 3ch, 3ch+R, 12ch, 15ch, 18ch configurations available
Power Supply AC: 75-265V; DC: Li-ion 14.4V (2200mAh - 4400mAh)
🔄

Model Comparison

GP-ECG5503B 800x480 graphic, 7 inch color LCD; 400 patient cases storage; External USB storage.
GP-ECG5503G 800x480 graphic, 7 inch color touch LCD; 250 patient cases storage (Internal SD optional).
🖼️

Product Gallery

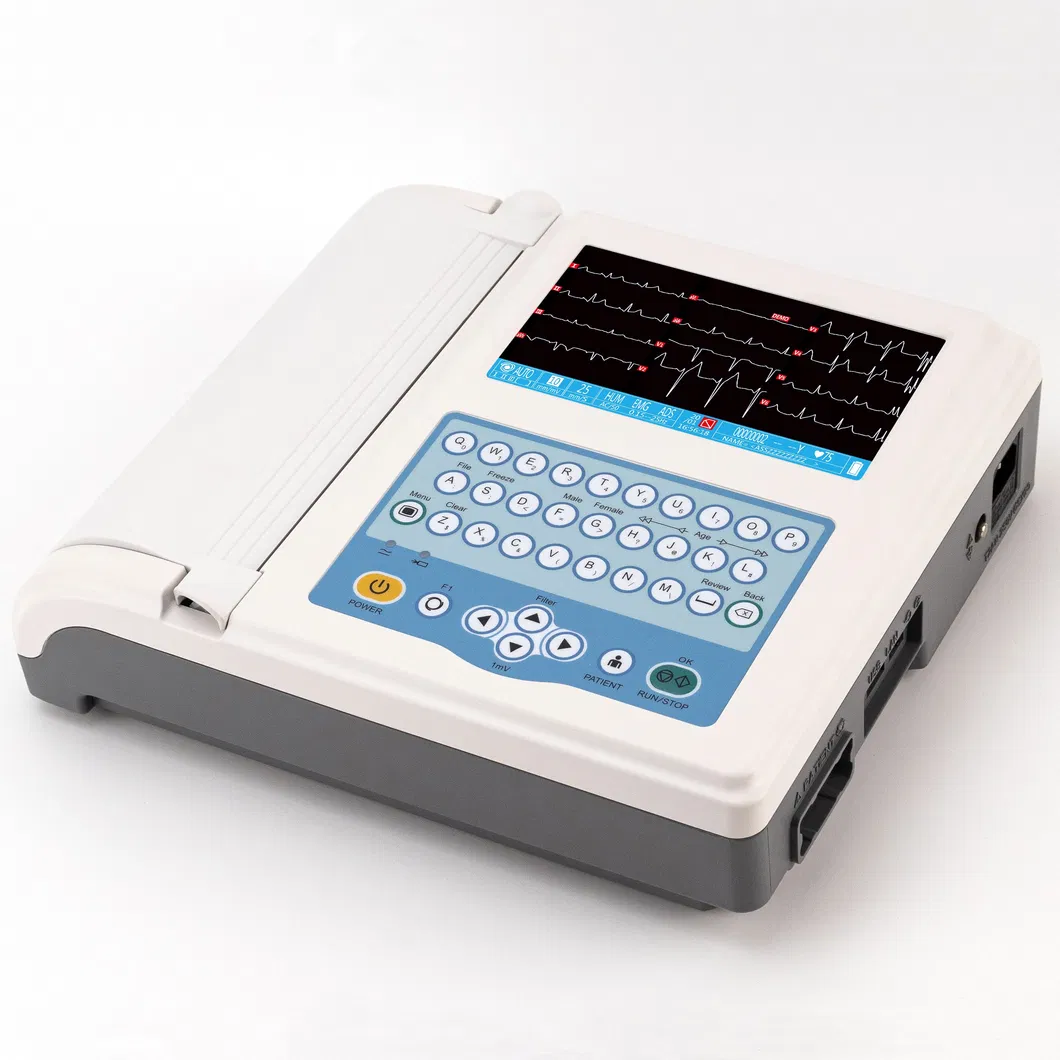

Related Product
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
❓

Frequently Asked Questions

How many leads does this ECG machine support?
The machine supports synchronous acquisition and recording of standard 12, 15, or 18 leads depending on the specific configuration.
What are the available working modes?
It offers 4 distinct working modes: Auto, Manual, Rhythm, and Store, designed to meet various clinical requirements.
Is the device portable for emergency use?
Yes, it features a delicate, portable design weighing only 1.8kg and includes a rechargeable Li-ion battery for continuous operation.
What kind of display is used on the GP-ECG5503B?
It uses a 7-inch color LCD display with an 800x480 graphic resolution for clear visualization of ECG data.
Does the machine support digital data management?
Yes, it features UART and USB communication ports, supporting external USB disk storage and optional PC ECG management software.
What type of printing paper is required?
The 3-channel model uses 80mmx20m roll paper with high-resolution thermal printing technology.
