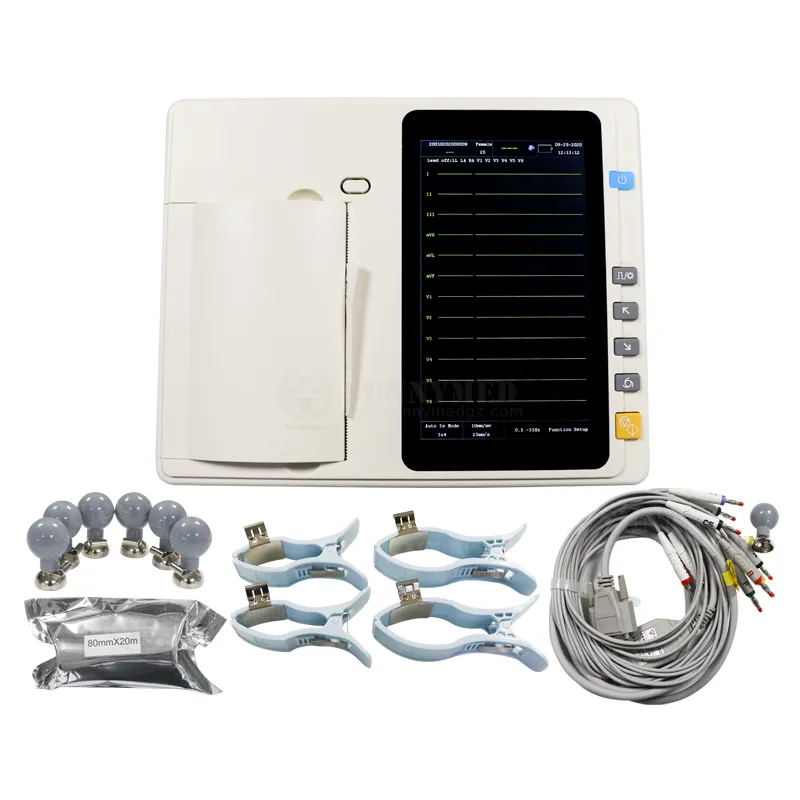

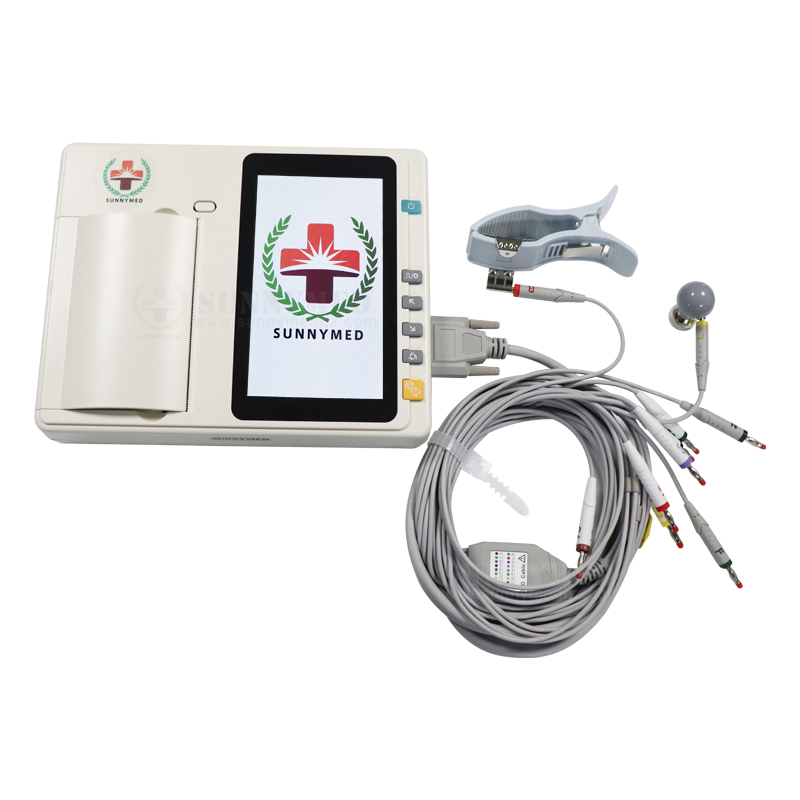

Equipped with a 7-inch color LCD touch screen for intuitive operation.
Capability to save data for more than 30,000 patients.

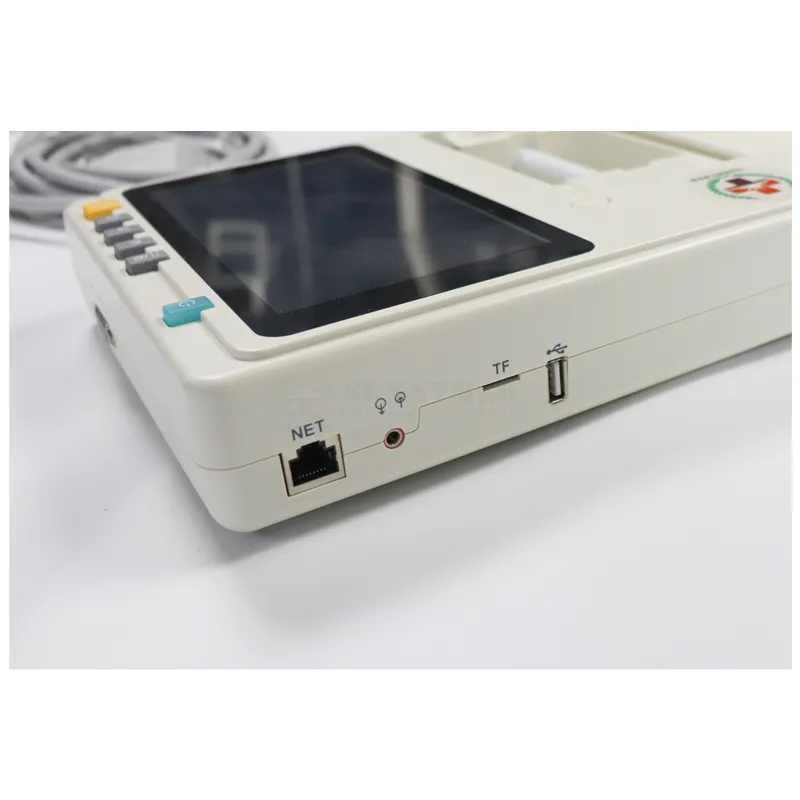

Fully supports SD card and USB disk for easy data transfer.
| Parameter | Details |
|---|---|
| Lead | Standard 12 leads |
| Acquisition | Synchronous 12 leads |
| Input Circuit | Floating; Protection against Defibrillator effect |
| Input Impedance | ≥50MΩ |
| Record Mode | Auto (3CH×4+1R, 6CHX2, etc.), Manual, Rhythm |
| Filter | EMG (25-150Hz), DFT (0.05/0.15Hz), AC (50/60Hz) |
| CMRR | >100dB |
| Frequency Response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5, 5, 10, 20 mm/mV |
| Paper Speed | 12.5, 25, 50 mm/s |
| Safety Class | IEC60601-1 Class I, Type CF |

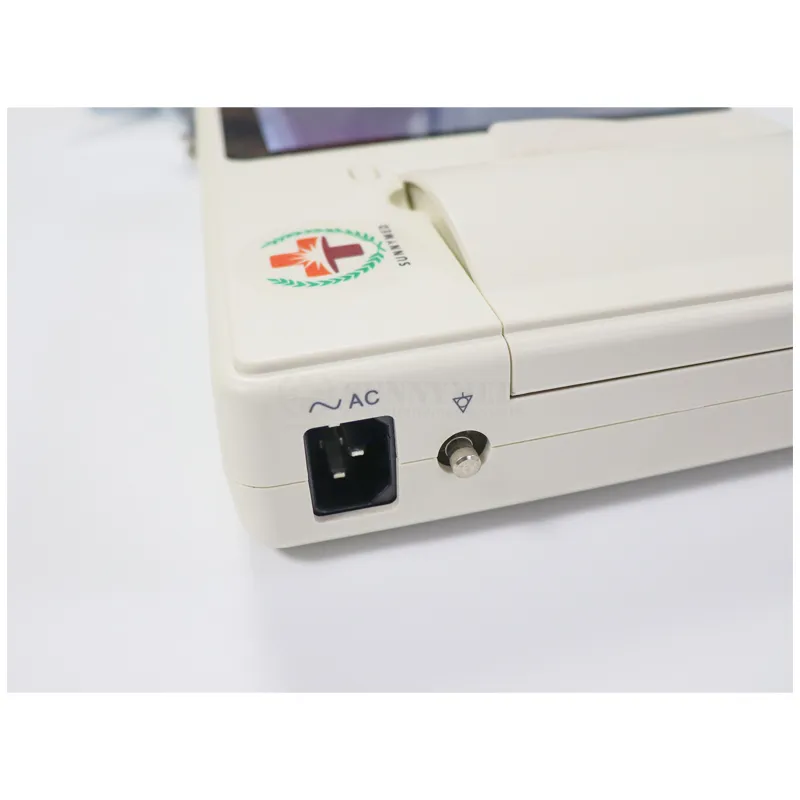

| Power Supply | AC 100~240V, 50/60Hz |

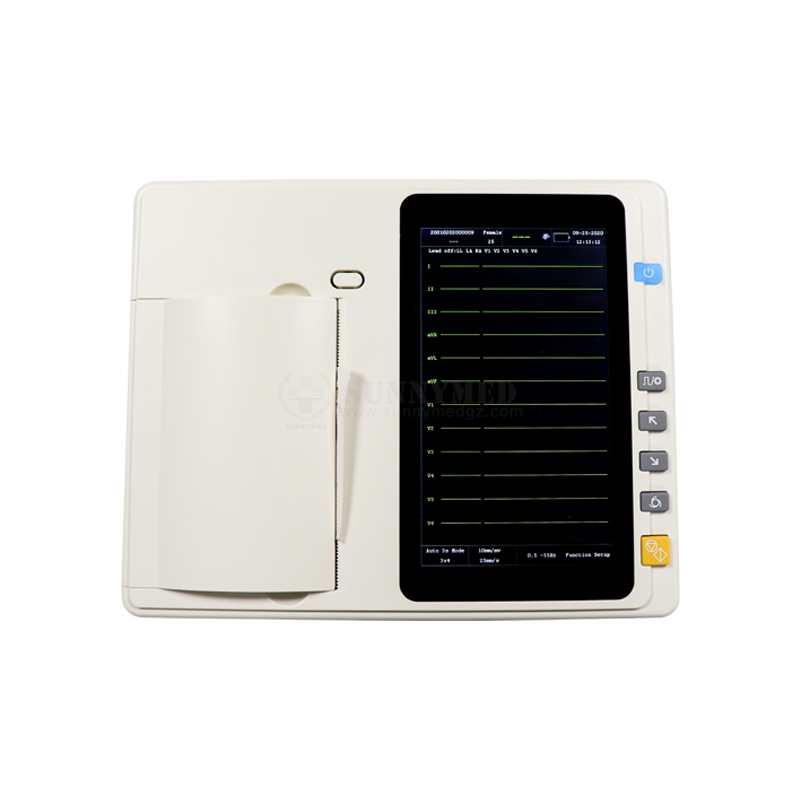

A: It features a high-resolution 7-inch color LCD graphic touch screen for clear visualization of ECG waves.
A: The internal memory can save data for more than 30,000 patients, and it also supports external storage via SD card or USB disk.
A: Yes, it includes built-in ECG analysis capabilities with various modes including Manual, Auto, and Arrhythmia analysis.
A: Yes, the input circuit includes a protection circuit specifically designed against the defibrillator effect.

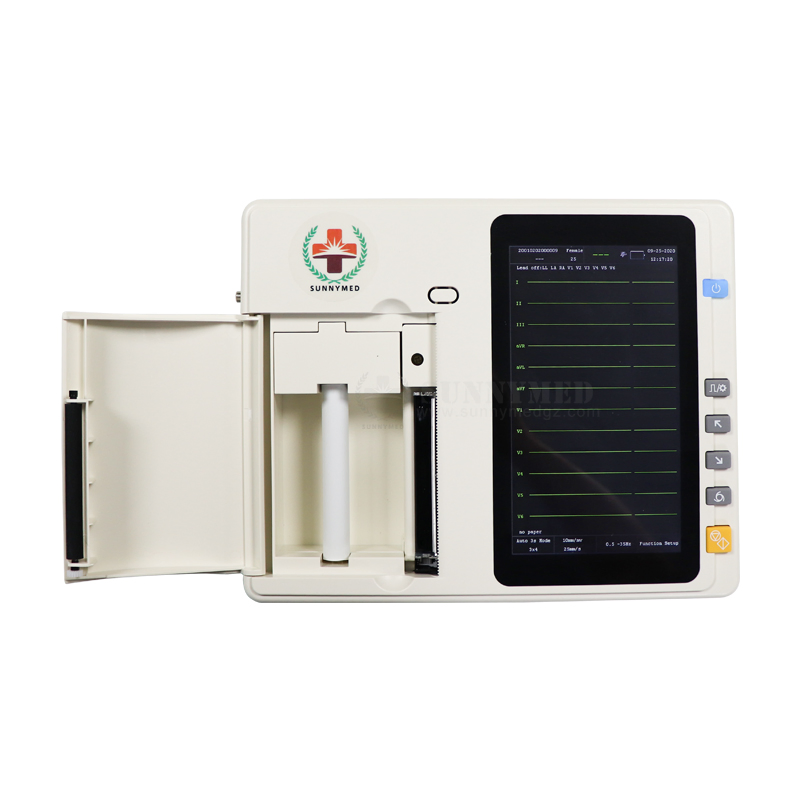

A: It uses thermal printing paper with specifications of 80mm x 20m or 120mm x 20m depending on the specific model configuration.
A: Yes, it comes with a built-in rechargeable battery and is suitable for operation rooms, ICUs, and various clinical environments.
