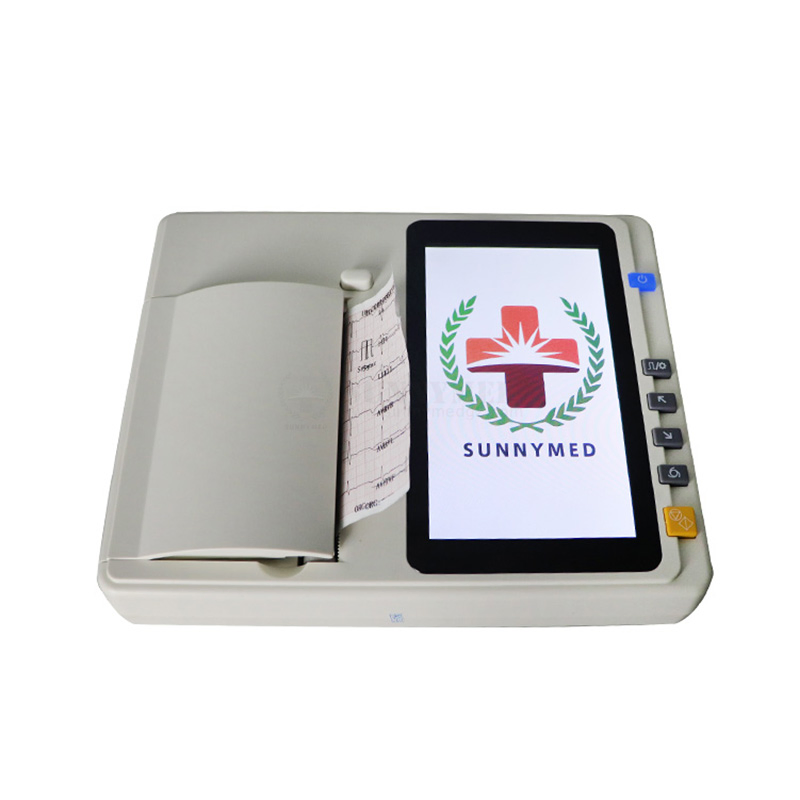

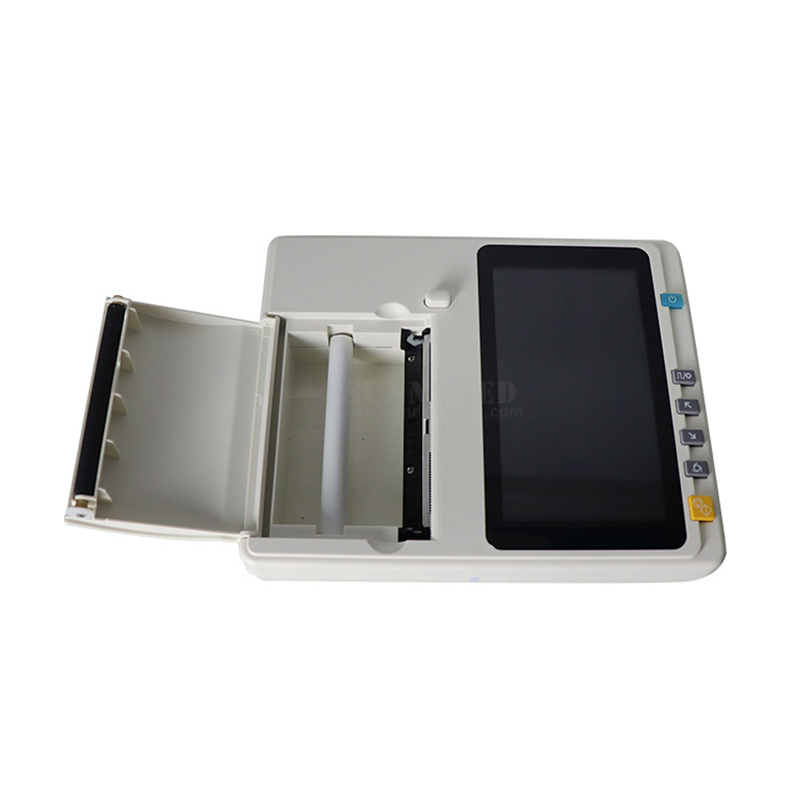

Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
1 / 5
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human
Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human

Sy-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
SY-H006
Product Name
Digital ECG Machine
Material
Metal, Plastic
Display
5.7 Inch Color LCD Screen
Storage
Support SD Card, USB Disk
Application
Operating Room, ICU
Rechargeable Battery
Yes
Lead
Standard 12 Leads
Warranty
1 Year
After-Sale Service
Online Technical Support
Transport Package
Carton Box
Production Capacity
200 Set/Month
🩺 Product Description
SY-H006 Touch Screen Six Channels ECG Analysis Electrocardiograph ECG Device for Human

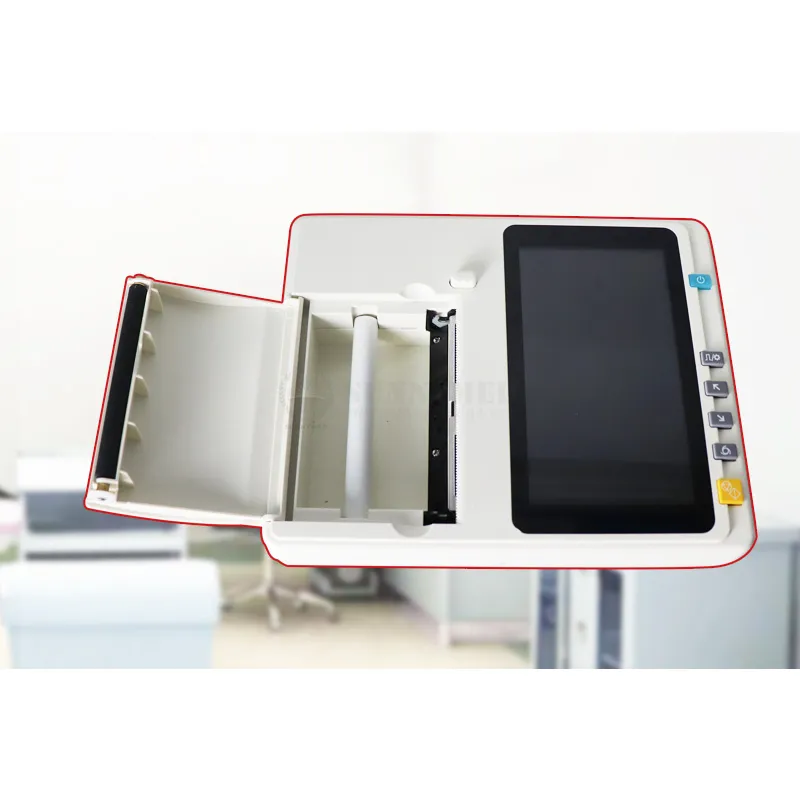

Digital ECG Machine
Features 7 "display touch screen; Support Ecg analysis capabilities
Lead standard 12 leads
Lead acquisition synchronously 12 leads
Input circuit Floating; Protection circuit against Defibrillator effect
Input Impedance ≥50MΩ
Input circuit current ≤0.0.05μA
Record mode Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable.
Filter EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz; DFT Filter: 0.05 Hz/ 0.15 Hz; AC Filter: 50 Hz / 60Hz
CMRR >100dB
Patient current leakage <10μA
Frequency Response 0.05Hz~150Hz (-3dB)
Sensitivity 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Time constant ≥3.2s
Noise level <15μVp-p
Paper speed 12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode Thermal printing system
Paper specification 80mmx20m paper roll / 120mmx20m paper roll
LCD display 7" graphic LCD
Safety classification IEC60601-1 class I, type CF
Power supply AC: 100~240V, 50/60Hz, 30VA~100VA
⭐ Key Features
👆 Touch Screen

Intuitive interface for easy operation.

🖥️ Color LCD Display

5.7 - 7 inches high-resolution color display for clear waveform viewing.

💾 Massive Storage

Save more than 30,000 patient records internally.

📂 External Support

Full support for SD cards and USB disks for data transfer.

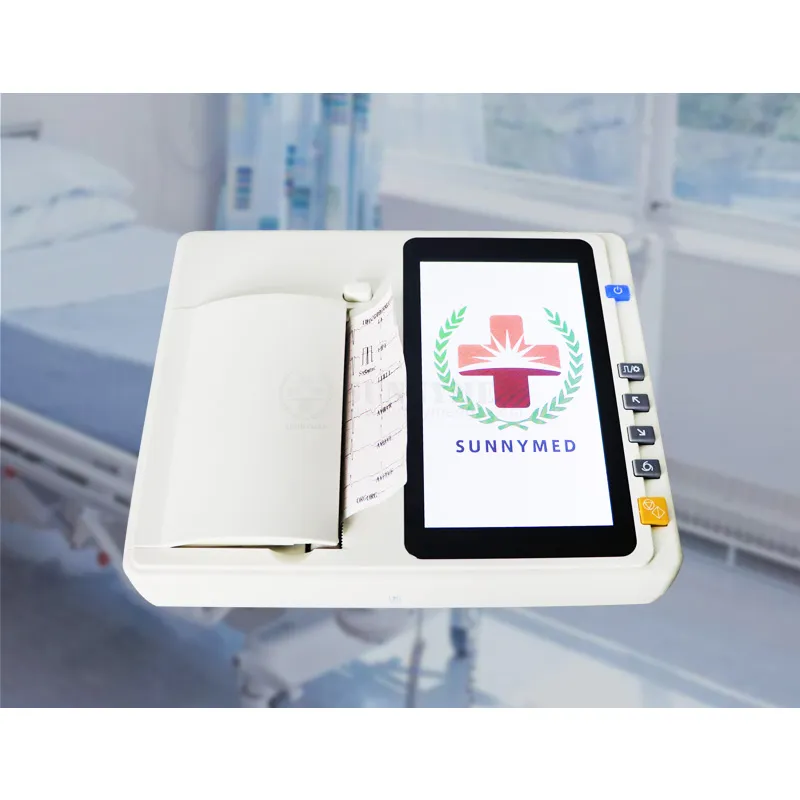

ECG Detail 1

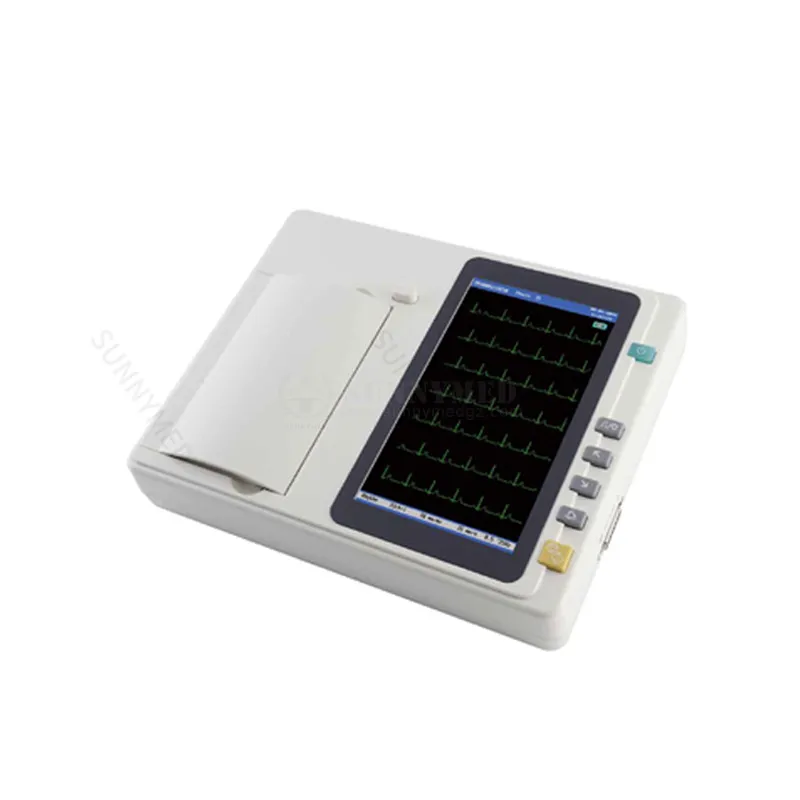

ECG Detail 2

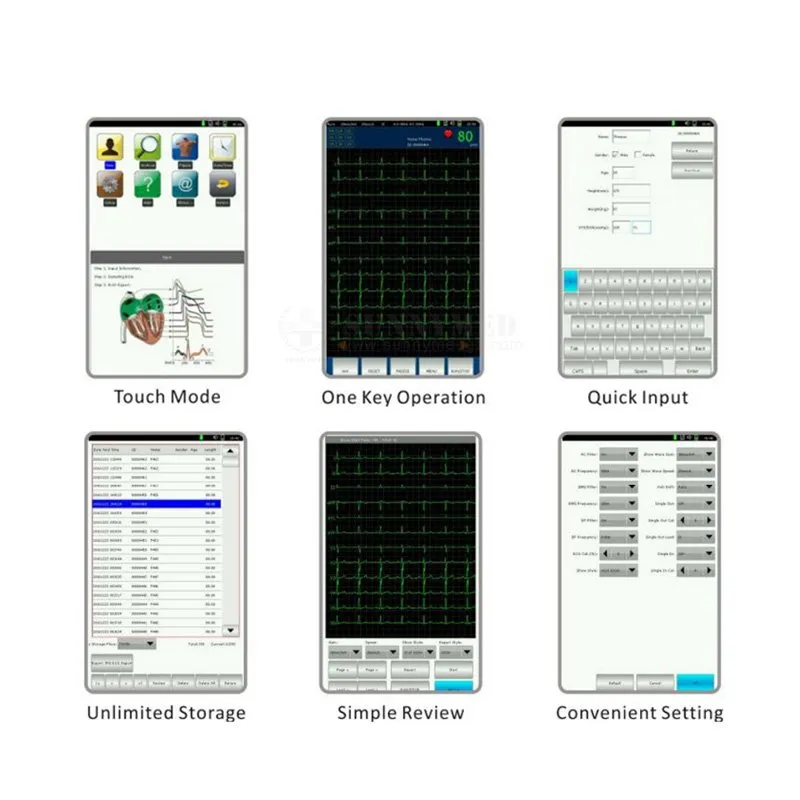

ECG Detail 3

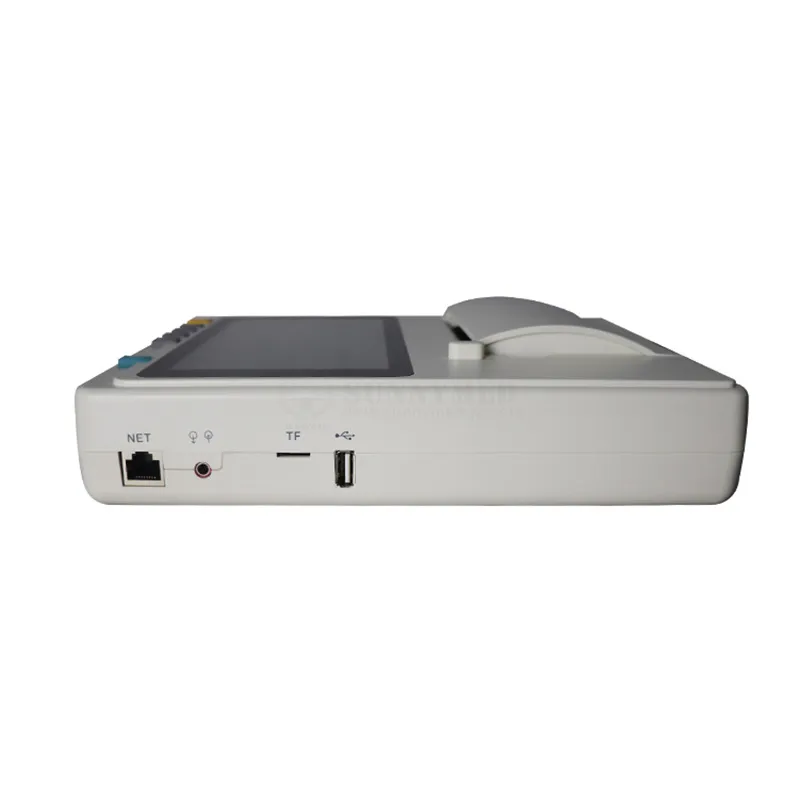

ECG Detail 4

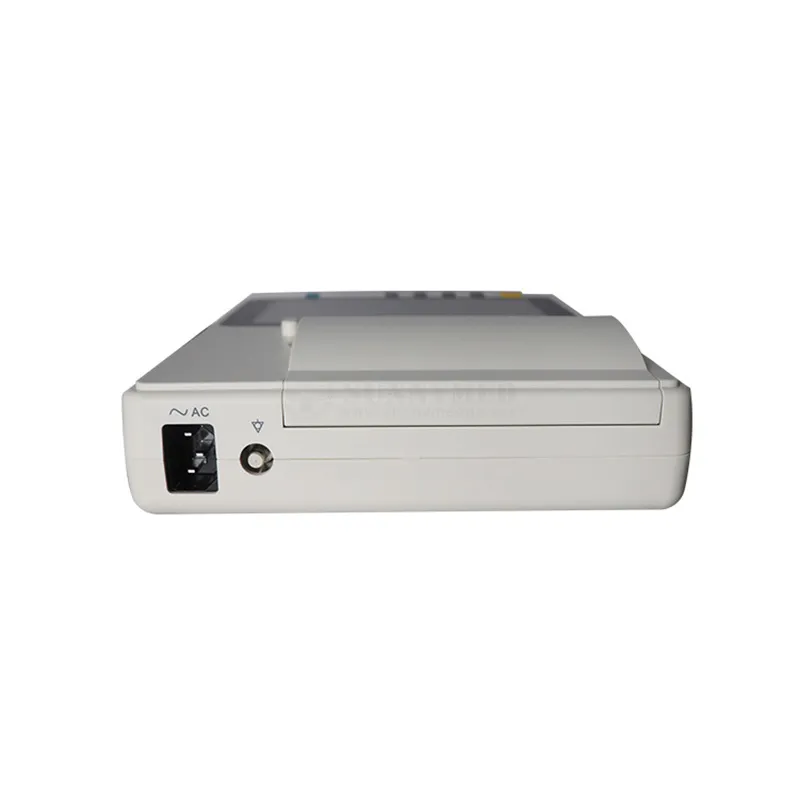

ECG Detail 5

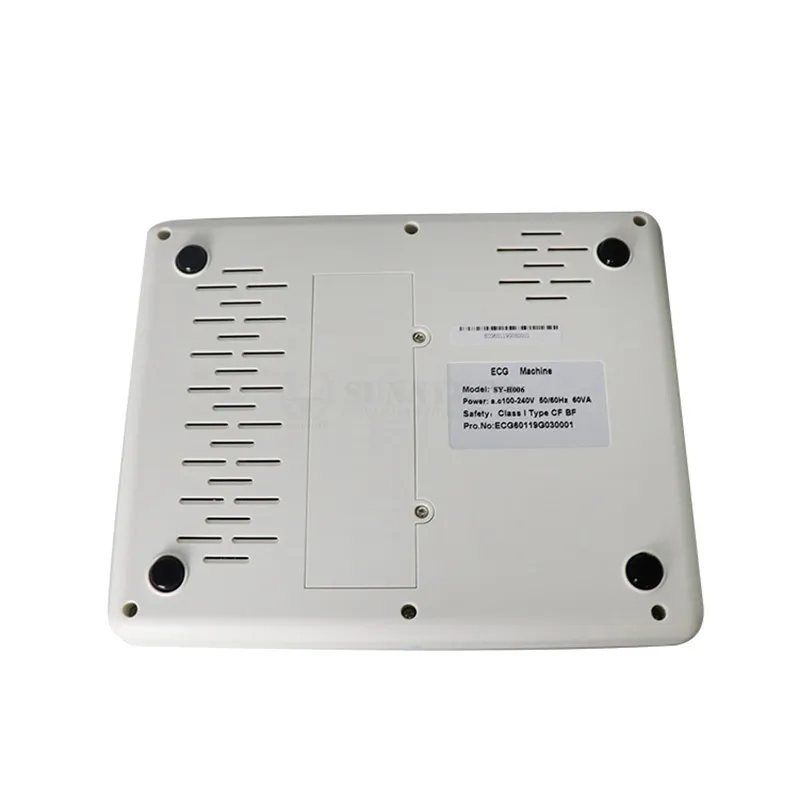

ECG Detail 6

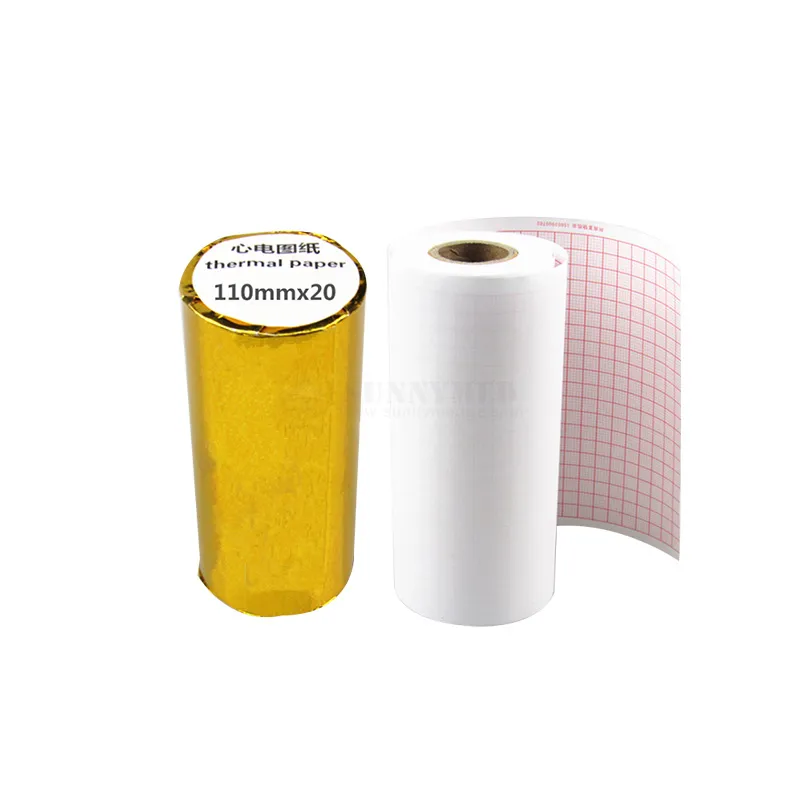

ECG Detail 7

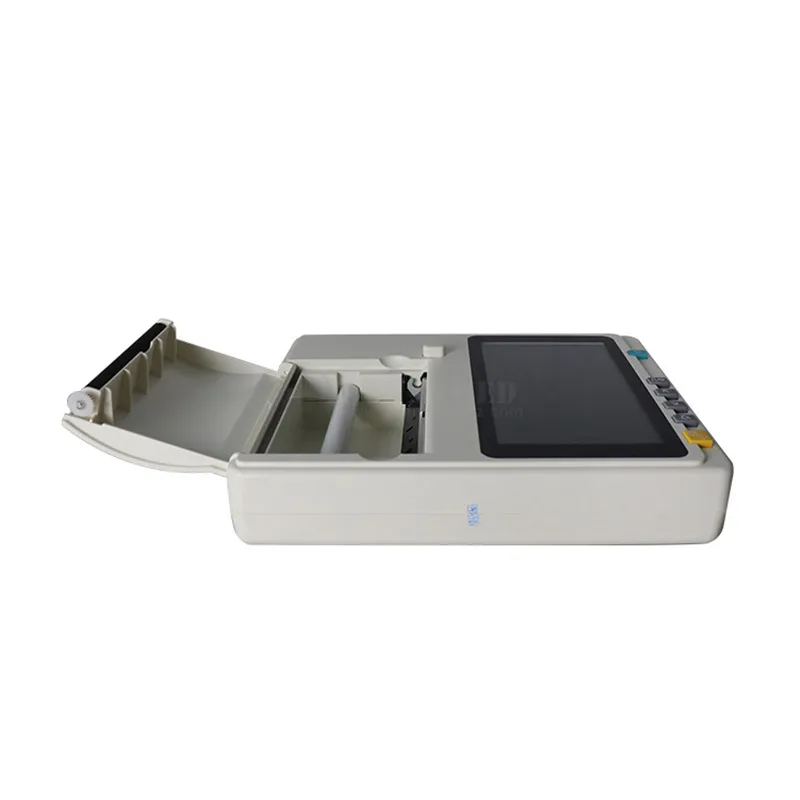

ECG Detail 8

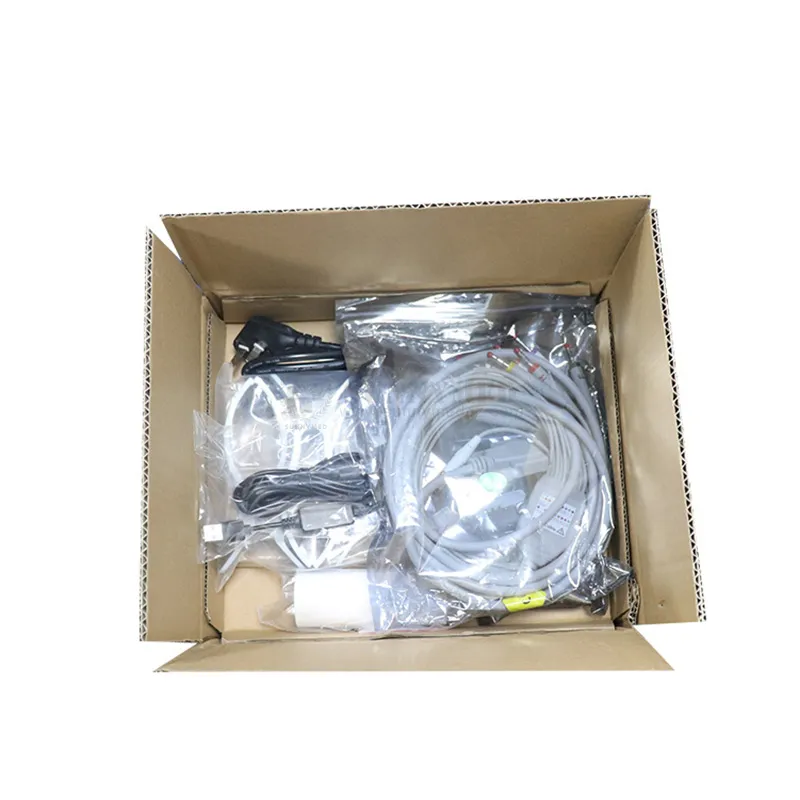

ECG Detail 9
ECG Full View
❓ Frequently Asked Questions
What is the screen size and type of the SY-H006 ECG machine?
The device features a 5.7 to 7-inch color graphic LCD touch screen, allowing for clear visualization of ECG waveforms and easy navigation.
How many patient records can the device store?
The SY-H006 has a large internal memory capacity capable of saving data for more than 30,000 patients.
Does this ECG machine support external data storage?
Yes, it supports both SD cards and USB disks for convenient data backup and transfer.
What are the available recording modes?
It offers multiple automatic modes (such as 3CH×4+1R, 6CHX2), manual modes (3CH, 2CH), and a rhythm mode for any selectable lead.
Is the device suitable for mobile use within a hospital?
Yes, it comes equipped with a rechargeable battery and is designed for use in various environments including Operating Rooms and ICUs.
What type of printing system does it use?
The machine utilizes a high-quality thermal printing system compatible with 80mm or 120mm paper rolls.
