Basic Information
Specification
50X60X50 cm
Production Capacity
50000

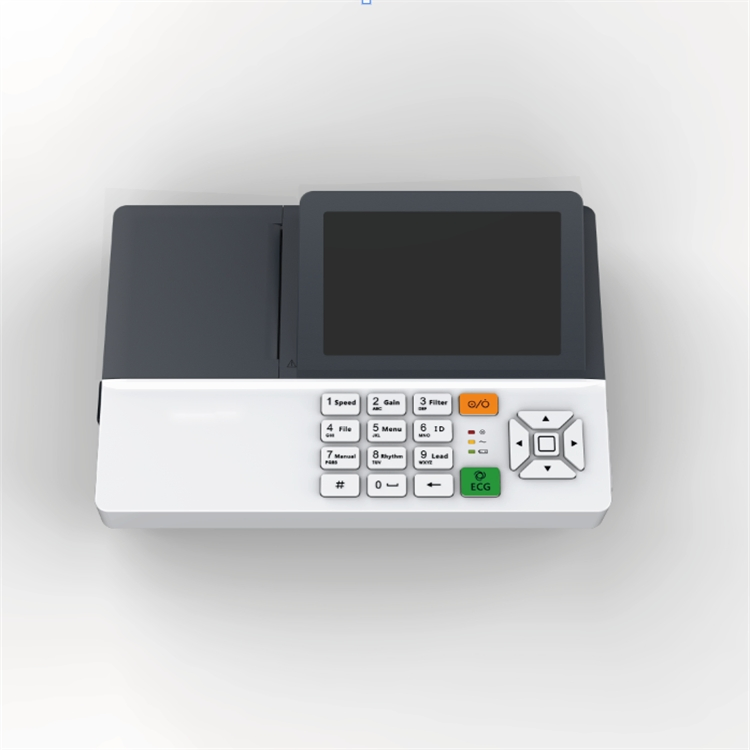

Technical Specifications
- Time Constant: ≥ 3.2s
- CMRR: ≥ 115dB
- Input Impedance: ≥ 50 MΩ (10 Hz)
- Noise Level: ≤ 12.5μVp~p
- Sensitivity Valve: 20 μV
- Patient Leakage Current: ≤10µA
- Calibration Voltage: 1mV ± 2%
- Polarization Voltage: ±910mV
- A/D Shift: 24 bits
- Sampling Rate: 20000Hz
- Sensitivity: 2.5, 5, 10, 20, 40, Auto
- Paper Speed: 5, 6.25, 10, 12.5, 25, 50mm/s
- Recording Mode: Thermal array printer
- Vertical Resolution: 8 dot/mm
- Horizontal Resolution: 40 dot/mm (25mm/s)
- Paper Type: Z-Fold Paper or Roll Paper
- Paper Size: 80mm*70mm-14m or 80mm*20m
- AC Filter: Off/50/60Hz
- EMG Filter: Off/25/35/45/75/100/150/250/310Hz
- DFT Filter: Off/0.01/0.05/0.3/0.6Hz
- Equipment Dimension: 264.4mm * 183.9mm * 87.6mm
- Weight: Approx. 1.3 kg
- Electrical Power: AC 100V-240V, 50Hz/60Hz
- Battery: Built-in Lithium Battery (2200mAh/10.8V)
- Continuous Operation: ≥ 6h
- Recharge Time: 90% in < 3h, 100% in < 3.5h
- Data Storage: ≥ 1000 reports
- Export Support: SD card and U Disk
- Ambient Temperature: +5ºC ~ +40ºC
- Ambient Humidity: 20% ~ 85% (no condensation)
Frequently Asked Questions (FAQ)
How long does the battery last on a single charge?
The built-in 2200mAh lithium battery supports continuous operation for more than 6 hours.
What are the data storage options for ECG reports?
The device internal memory can store over 1000 reports, and it also supports external SD cards and U-Disks for exporting data.
What is the sampling rate of this EKG machine?
The machine features a high sampling rate of 20,000Hz for precise data acquisition.
What types of recording paper are compatible?
It is compatible with both Z-Fold and Roll paper, with standard sizes of 80mm*70mm or 80mm*20m.
How quickly does the battery recharge?
The battery can be charged to 90% within 3 hours and reaches a full 100% charge in no more than 3.5 hours.
Is the machine portable for different clinical settings?
Yes, the equipment weighs only about 1.3 kg with compact dimensions, making it highly portable for various medical environments.
