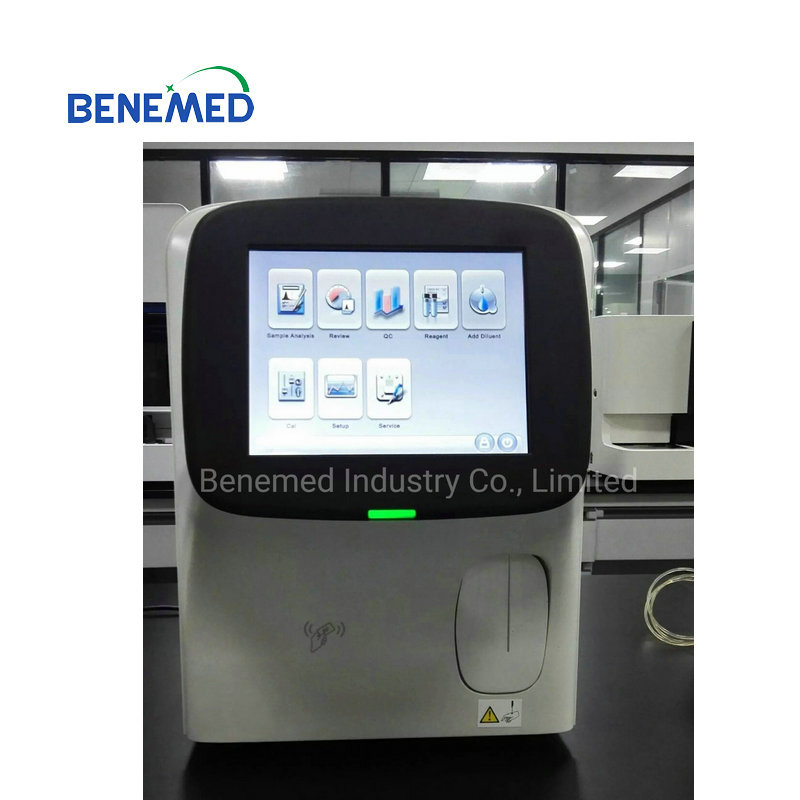

Lab Equipment 5 Part Auto Blood Cell Counter Hematology Analyzer

1 / 5

Lab Equipment 5 Part Auto Blood Cell Counter Hematology Analyzer

Customization:	Available
Classification:	Biochemical Apparatus
Type:	Urine Analyzer

Send Inquiry

Product Description

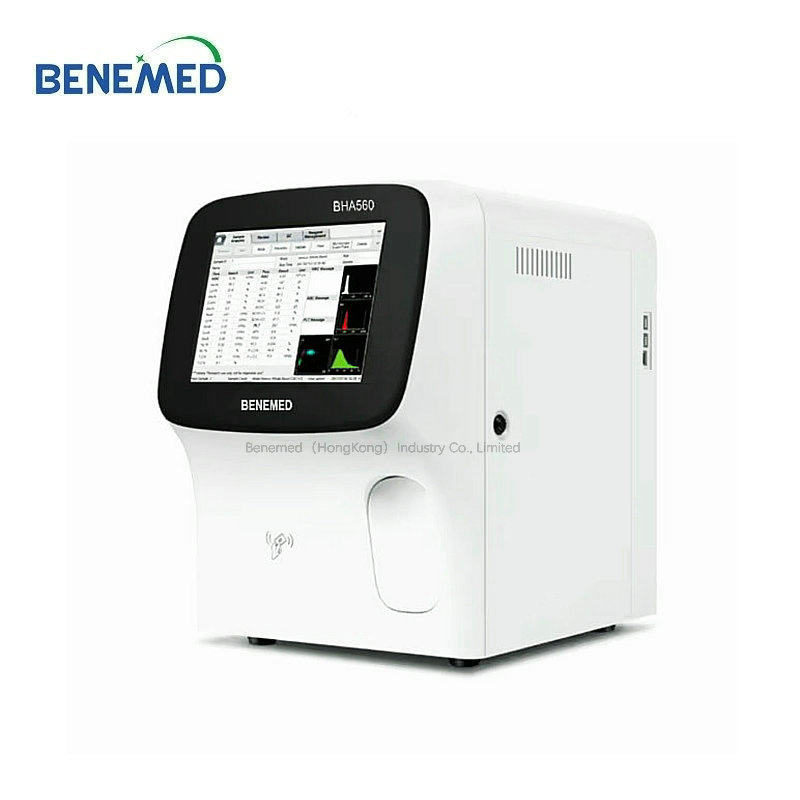

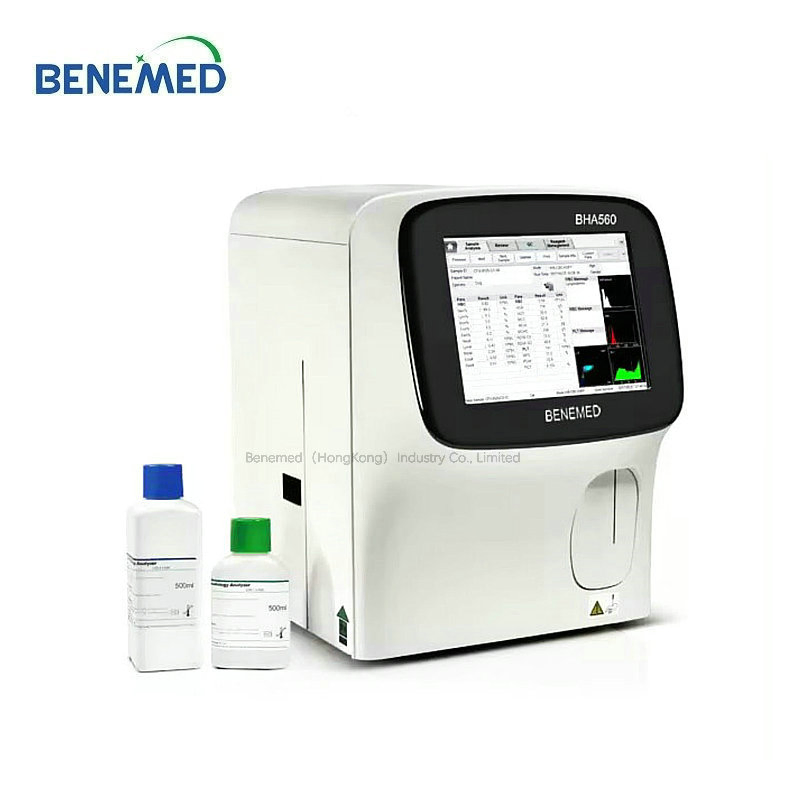

BHA560 Lab Equipment 5 Part Auto Blood Cell Counter Hematology Analyzer

Basic Specifications

Model NO.BHA560

CertificationCE, ISO13485

Throughput60 Samples/ Hour

Assay Items27 Parameters, 5 Part Diff

Display10.4" TFT Touch Screen

Storage50,000 Samples

Net Weight26.5 KG

HS Code9027809900

Key Features

5-part differentiation, 27 parameters
Laser scatter + Chemical dye + Flow cytometry
Up to 60 samples per hour
Independent channel for Basophil measurement
10.4 inches high resolution TFT touch screen
Powerful capability to flag abnormal cells
Support USB/LAN /bi-directional LIS
Support external inkjet and Laser Printer

Technical Specifications

Principles	Impedance method for RBC/PLT; Cyanide free reagent for HGB; Laser scatter/Flow cytometry for WBC 5-part.
Parameters	RBC, MCV, HCT, RDW-SD, RDW-CV, HGB, MCH, MCHC, PLT, MPV, PCT, PDW, WBC, LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS#, BAS%, ALY#, ALY%, LIC#, LIC%
Sample Volume	Venous blood: 15uL; Capillary blood: 15uL; Prediluted: 20uL
Reagents	DIL-C Diluent, LYC-1LYSE, LYC-2LYSE, CLE-P
Output	4 USB ports, 1 LAN port (HL7 protocol)
Dimensions	364mm(L) x 431mm(W) x 498mm(H)

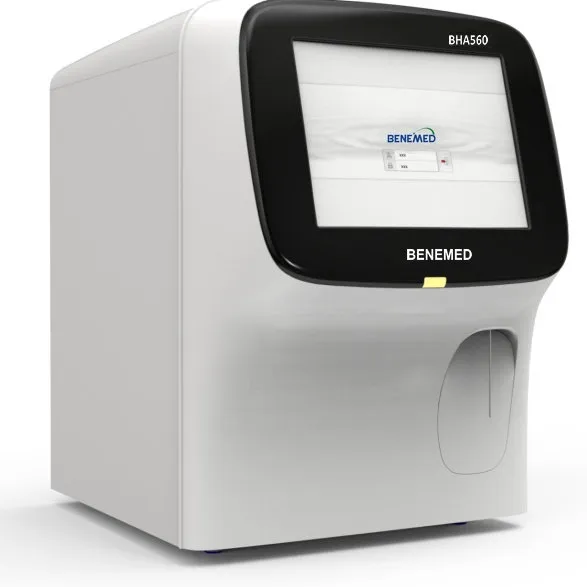

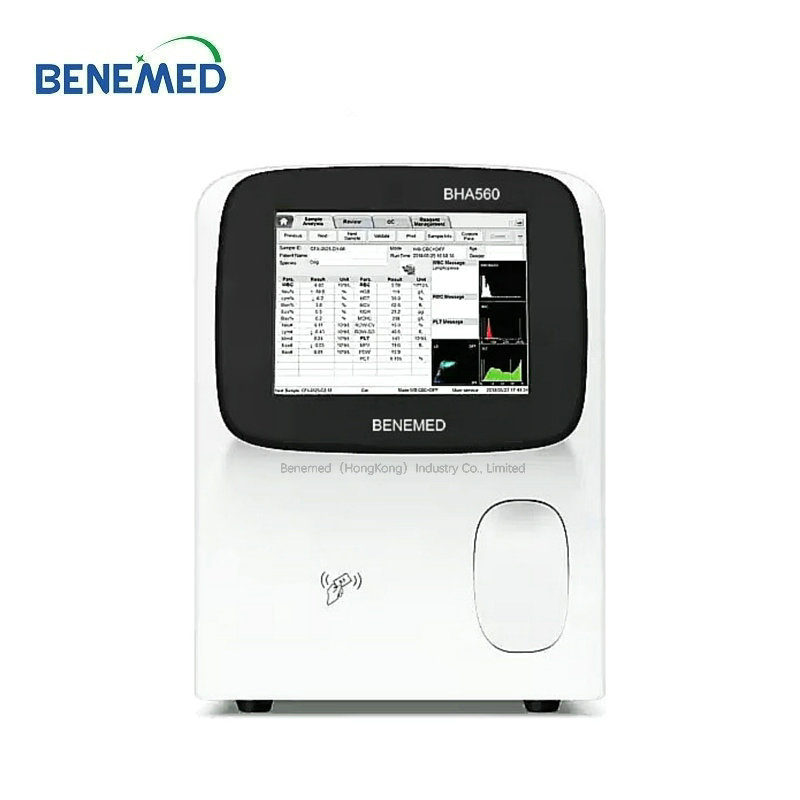

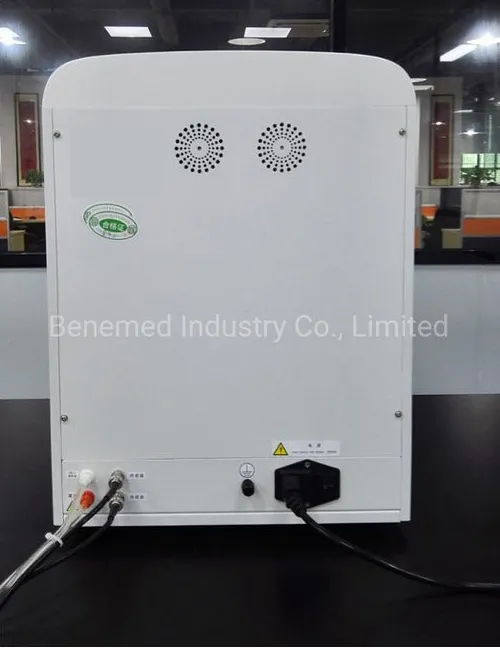

Product Display

Frequently Asked Questions

What is the testing speed of the BHA560 analyzer? The BHA560 can process up to 60 samples per hour, ensuring efficient laboratory workflow.

What technologies are used for blood cell differentiation? It utilizes a combination of Laser Scatter, Chemical Dyeing, and Flow Cytometry for accurate 5-part WBC differential analysis.

How many parameters can this device measure? The system measures 27 parameters, including 5 parts of differential WBC, along with various histograms and scattergrams.

What type of sample volume is required for testing? It requires very low sample volumes: 15uL for Venous or Capillary blood, and 20uL for Prediluted samples.

Does the device support external printing and data connection? Yes, it features 4 USB ports and 1 LAN port with HL7 protocol support, allowing connection to external inkjet/laser printers and bi-directional LIS.

What is the storage capacity for test results? The analyzer has a large internal storage capacity capable of saving up to 50,000 sample results including histograms and scattergrams.
