Certification
CE, ISO13485
Assay Items
5 Parts, 29 Parameters, 3 Histograms, 3D Scattergram
Principle
Tri-Angle Laser Scatter, Flow Cytometry Method
Test Mode
CBC Mode, CBC+Diff Mode
Sample Volume
CBC+Diff Mode: ≤20μL, CBC Mode: ≤10μL
Storage
100,000 Results with Histograms & Scattergrams
Interface
4 USB Ports, 1 LAN Port (Bi-Directional LIS)

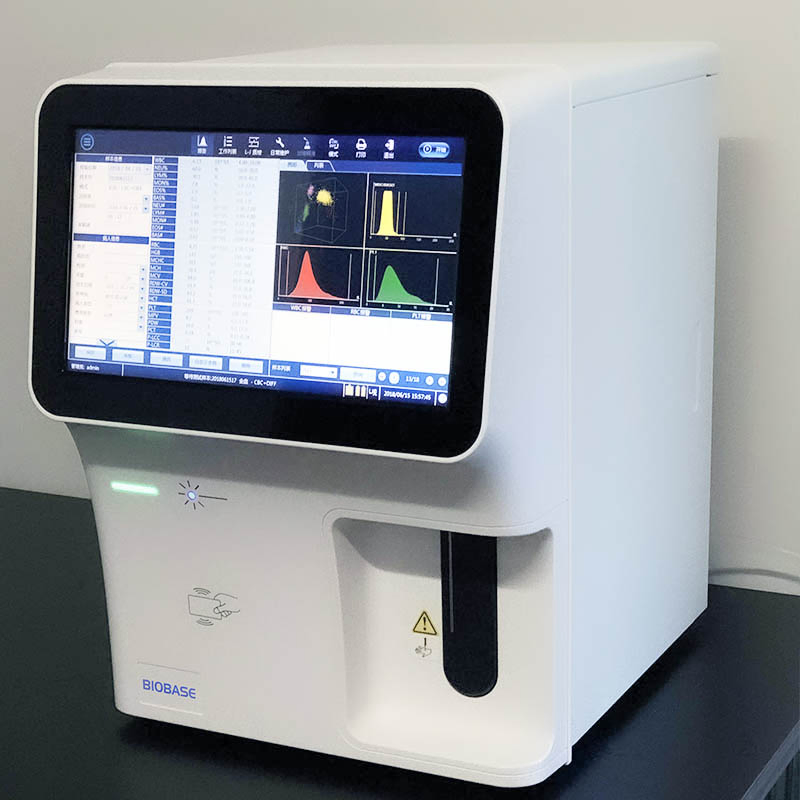

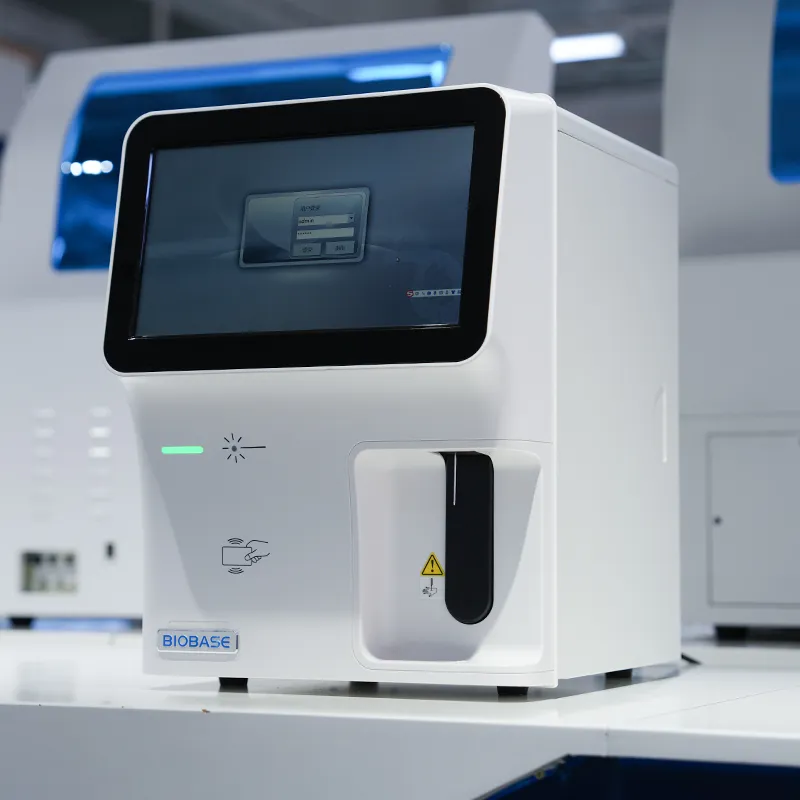

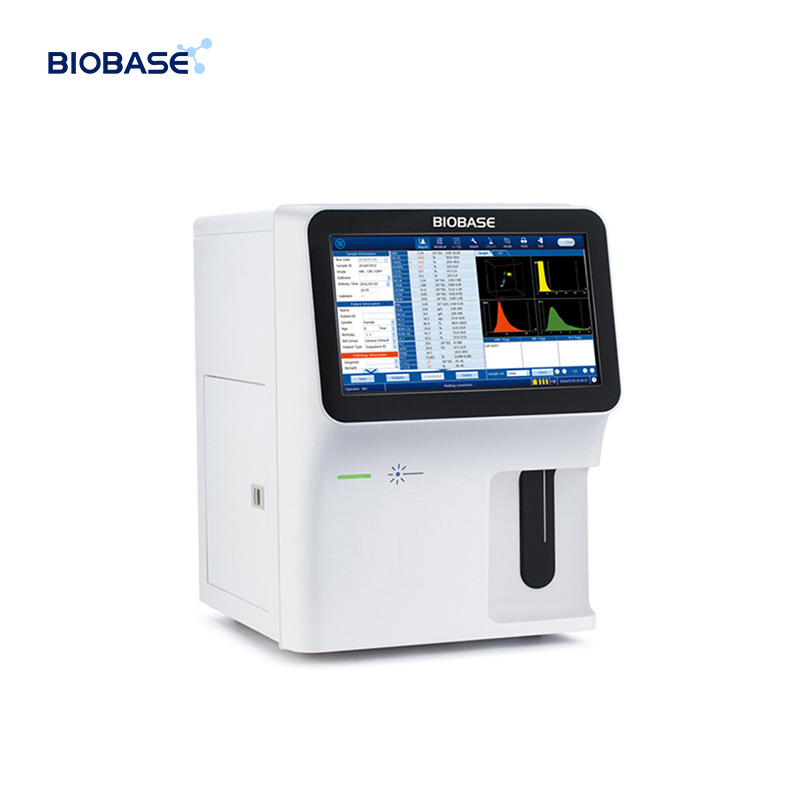

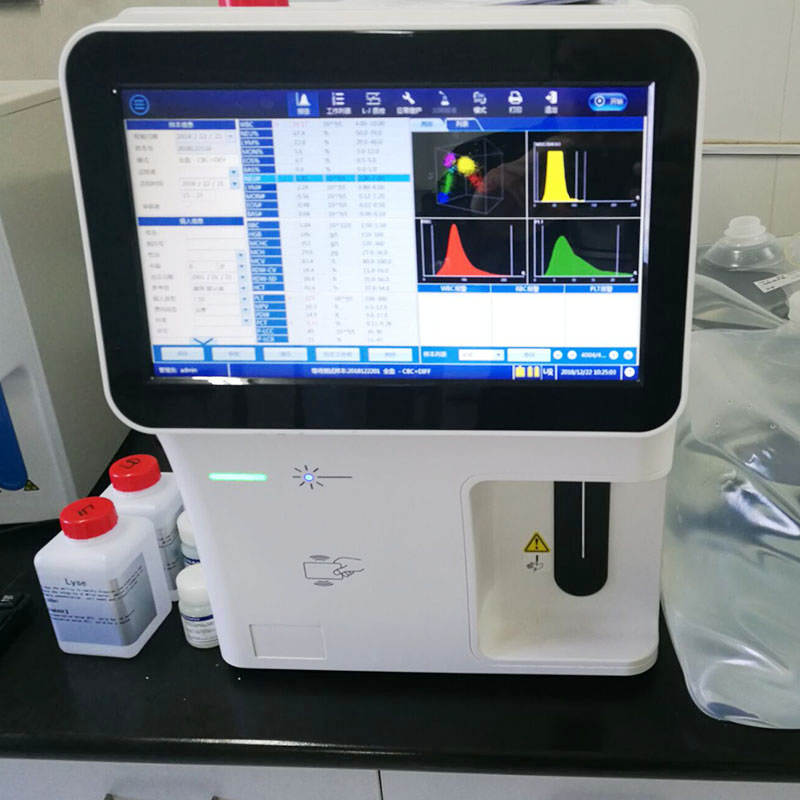

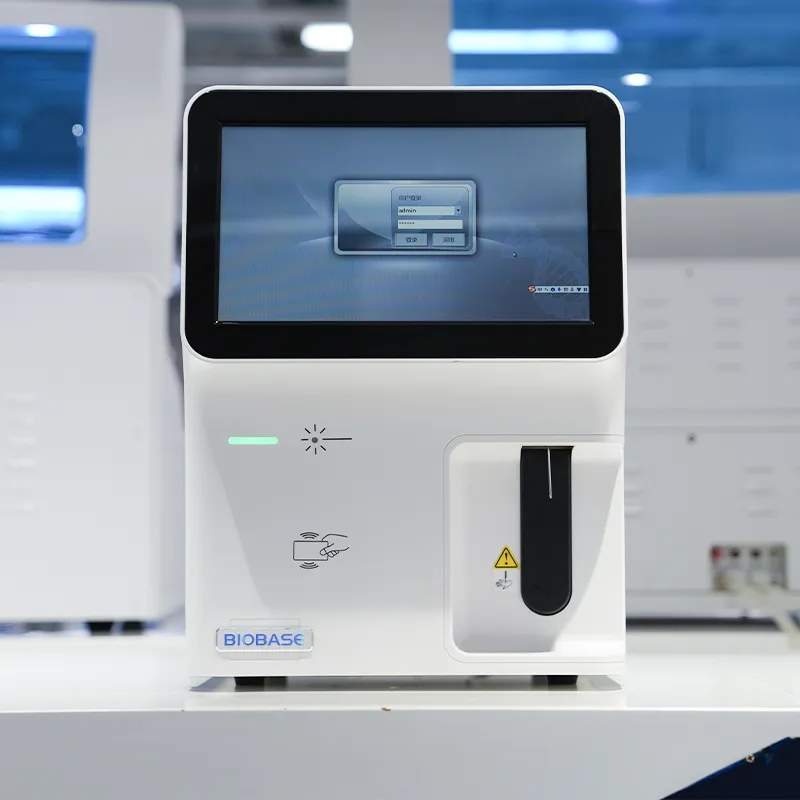

Auto 5-Diff Hematology Analyzer
This advanced in vitro diagnostic device is developed based on laser flow cytometry analysis and nucleic acid fluorescence staining. It provides quantitative and qualitative analysis of red blood cells, white blood cells, and platelets in human blood.
✔
Innovative Design & Highlights
- High Throughput: Processes 60 samples per hour (60T/H).

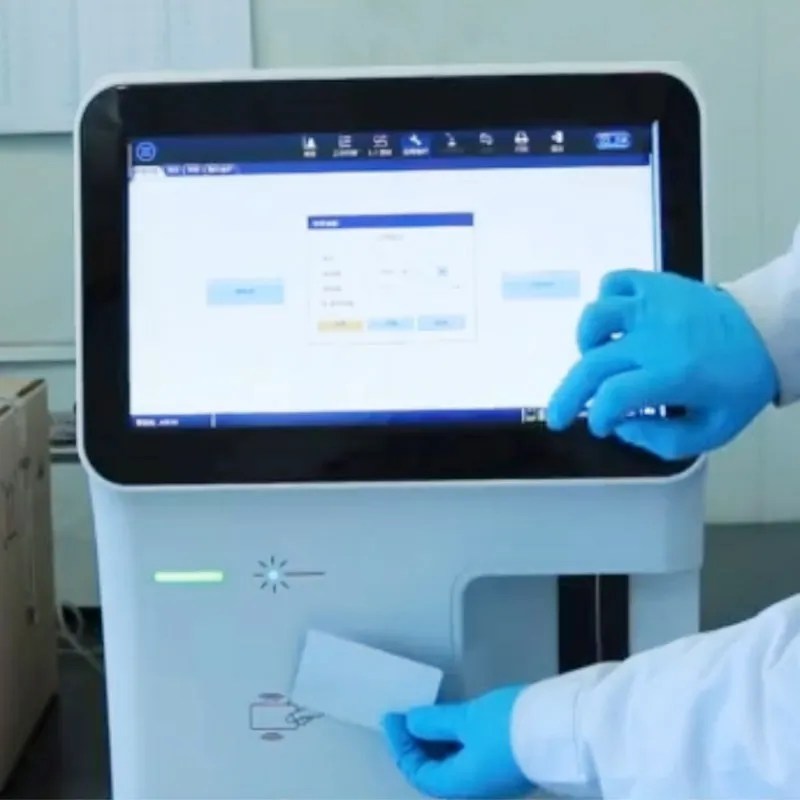

- User Interface: Large 14-inch high-resolution touch screen.
- Precision Technology: Uses Tri-angle laser scatter combined with flow cytometry and impedance methods for accurate RBC and PLT counting.
- 3D Analysis: Features 3D holographic scattergrams for precise 5-part differentiation of WBCs.
- Massive Data Capacity: Storage capacity for up to 300,000 results including full patient information and graphs.
| Parameter |
Linearity Range |
Carry Over |
CV (Repeatability) |
| WBC |
0~300*10⁹/L |
≤0.5% |
≤2.0% |
| RBC |
0~8.6*10¹²/L |
≤0.5% |
≤1.5% |
| HGB |
0~260g/L |
≤0.5% |
≤1.5% |
| PLT |
0~3000*10⁹/L |
≤1.0% |
≤4.0% |

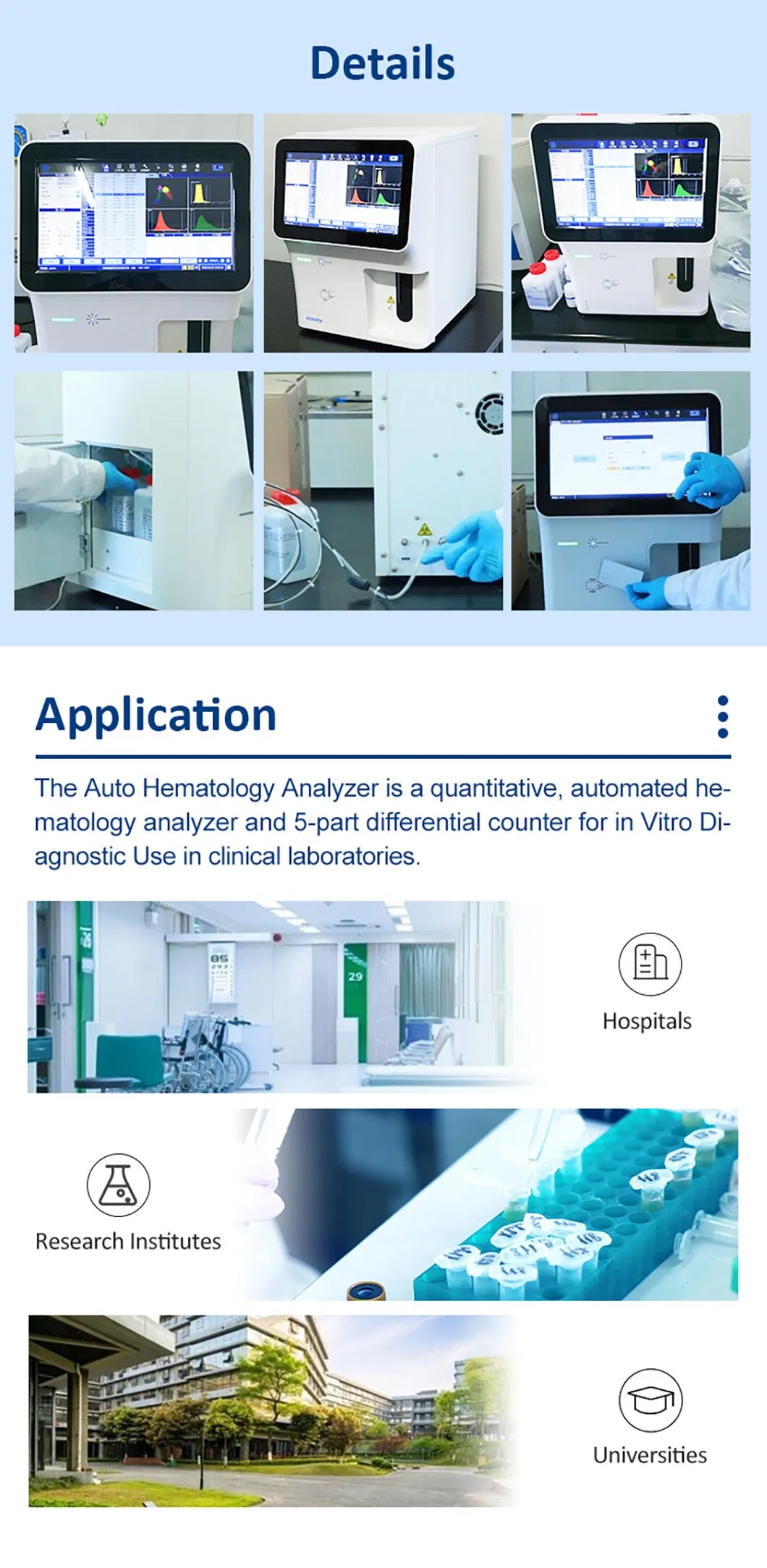

Our products are secured in standard export-grade packaging (Carton or Wooden Case) to ensure safe transit globally.
?
Frequently Asked Questions
How many parts does this hematology analyzer differentiate?
The BK-6310 is a 5-part hematology analyzer, providing detailed differentiation for white blood cells.
What is the testing speed of the device?
It has a throughput of 60 tests per hour, making it efficient for laboratory workflows.
What technology is used for counting and differentiation?
It utilizes Tri-angle laser scatter, flow cytometry, and impedance methods to ensure high accuracy.
Does the analyzer support LIS connectivity?
Yes, it features a bi-directional LIS interface and supports the HL7 protocol for seamless data management.
What sample types can be tested?
The device supports venous whole blood, capillary whole blood, and prediluted samples.
What is the delivery time for orders?
Standard delivery usually takes between 3 to 15 workdays after receipt of deposit.
