Medical Hospital Laboratory Instrument 3 Parts 22 Parameter Clinical Auto Blood Hematology Analyzer

1 / 5

Medical Hospital Laboratory Instrument 3 Parts 22 Parameter Clinical Auto Blood Hematology Analyzer

Classification:	Biological Diagnostics
Type:	Urine Analyzer
Certification:	CE, MSDS, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

CCL-H3200

Group

All

Warranty

1 Year

LCD

10.4 Inch True Color TFT LCD

Speed

60 Test Per Hour

Analyzer

3-Parts

Counting Modes

Whole Blood, Pre-Diluted Blood

Parameters

21 Parameters and 3 Histograms

Origin

China

Product Description

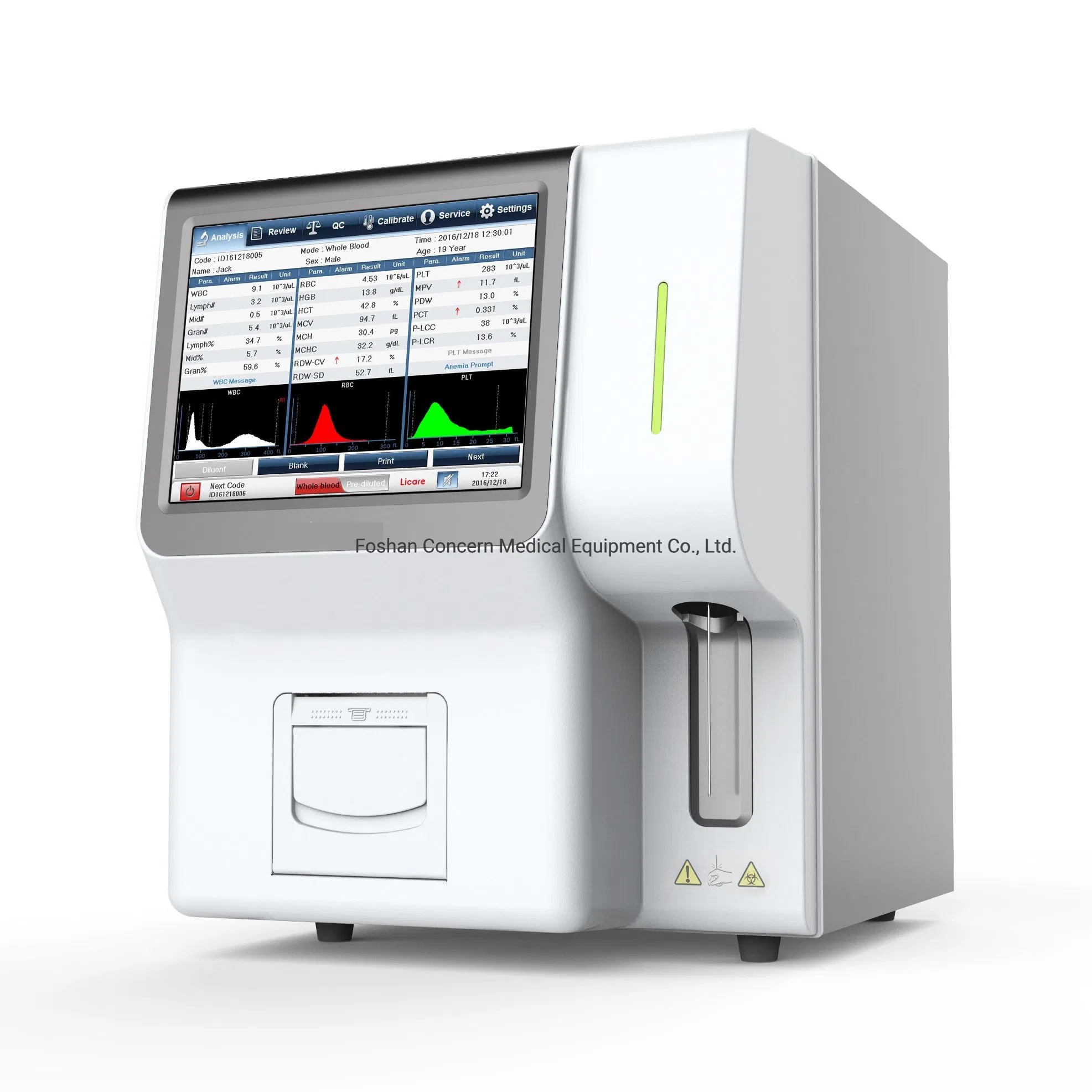

Medical Hospital 3 Parts Diff 22 parameter Clinical Auto Blood Hematology Analyzer

Model: CCL-H3200

Technical Features

●

User-friendly interface: 10.4 inch true color TFT LCD & touch screen. Minimize interface layers with pop-up soft keyboard.

●

Internationalization: Multi-language support with online language switching.

●

Anemia Indications: Provides indications for Normocytic, Macrocytic, and Microcytic anemia.

●

Smart Alarm System: Clear text-based alarm information (more intuitive than traditional R1/Rm/Pm characters).

●

Automated Maintenance: Automatic blank counting during start-up and auto-unclogging/re-counting features.

●

Fast Printing: Built-in thermal printer with 80mm wide paper. Large size report prints in only 5 seconds.

●

Advanced Technology: Sweeping flow, Pulse discrimination, and intelligent floating threshold technologies.

Technical Specifications

Principle	Impedance method for cell counting; Cyanide-free colorimetric method for HGB
Throughput	≤60 Seconds from test to printout
Sample Volume	Whole Blood: ≤14µL; Pre-diluted Blood: ≤20µL
Parameters	21 parameters including WBC, Lymph, RBC, HGB, PLT, etc. + 3 Histograms
Storage	>10,000 sample results including histograms and patient info
Display	10.4 inch true color TFT touch screen
Data Ports	1x Network, 1x RS-232, 4x USB ports
Power	220V, 50Hz; Input power ≤150VA

One-Stop Medical Equipment Solution

Category	Core Equipment
X-Ray Room	X-Ray Machine, Processor, Film, Cassette, Lead Protections
Ultrasound	B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound
Laboratory	Chemistry Analyzer, Hematology Analyzer, ELISA Reader, Centrifuge, Urine Analyzer
Operating Room	Anesthesia Machine, Ventilator, Operating Lamp/Table, Patient Monitor, Defibrillator
Sterilization	Autoclave Sterilizer, Electric Suction Device

Frequently Asked Questions

Q1: How many tests can the analyzer perform per hour? The CCL-H3200 is designed for high efficiency, completing a full cycle from test to printout in ≤60 seconds, achieving a throughput of 60 tests per hour.

Q2: Does it support pediatric or general patient reference values? Yes, the system includes five sets of preset reference values: Man, Woman, Child, Baby, and General, to cater to various patient groups.

Q3: What kind of sample volume is required? The analyzer is micro-sample friendly, requiring only ≤14µL for whole blood and ≤20µL for pre-diluted blood.

Q4: How does the system handle clogged counting holes? The device features automatic unclogging treatments including back flushing, soaking, and high-voltage burning. It will automatically re-count after treatment to avoid the need for a second blood collection.

Q5: Can the data be exported to a hospital LIS system? Yes, it features an open communication protocol and supports direct connection to LIS (Laboratory Information Systems). Data can also be exported via USB ports.

Q6: Is the HGB measurement method environmentally friendly? Absolutely. It utilizes a cyanide-free colorimetric method for Hemoglobin (HGB) measurement, ensuring safety for laboratory staff and the environment.
