Basic Specifications
Model NO.MJ-560B1
CertificationCE, ISO13485
Patient GroupAdult & Children
LCD DisplayIntegrated LCD Display
Gas ChoiceHalothane, Enflurane, Isoflurane, Sevoflurane
Gas SourceO2, N2O: 0.27~0.55MPa
Tidal Volume50~1500ml
Rate4~80 Bpm
Transport PackageWooden Case
Product Description

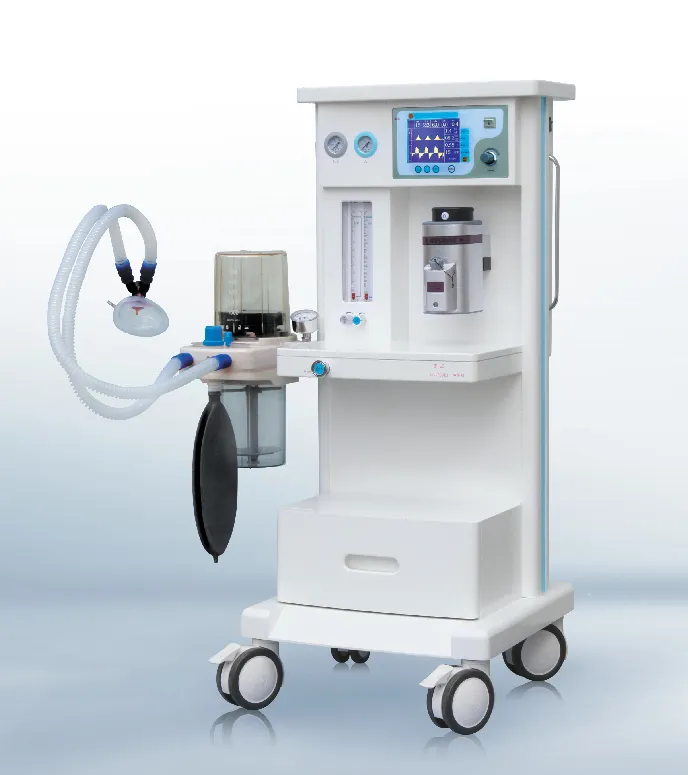

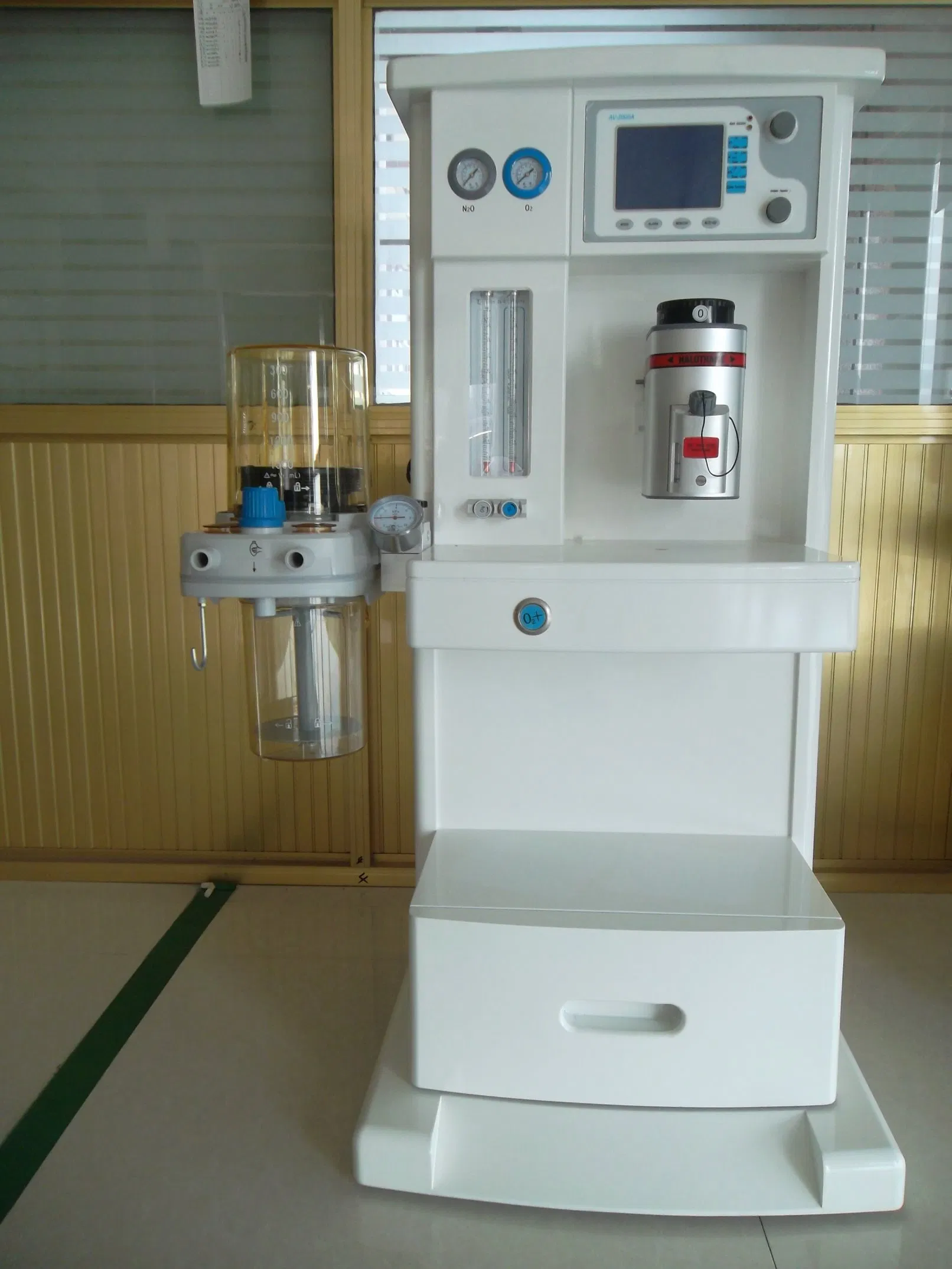

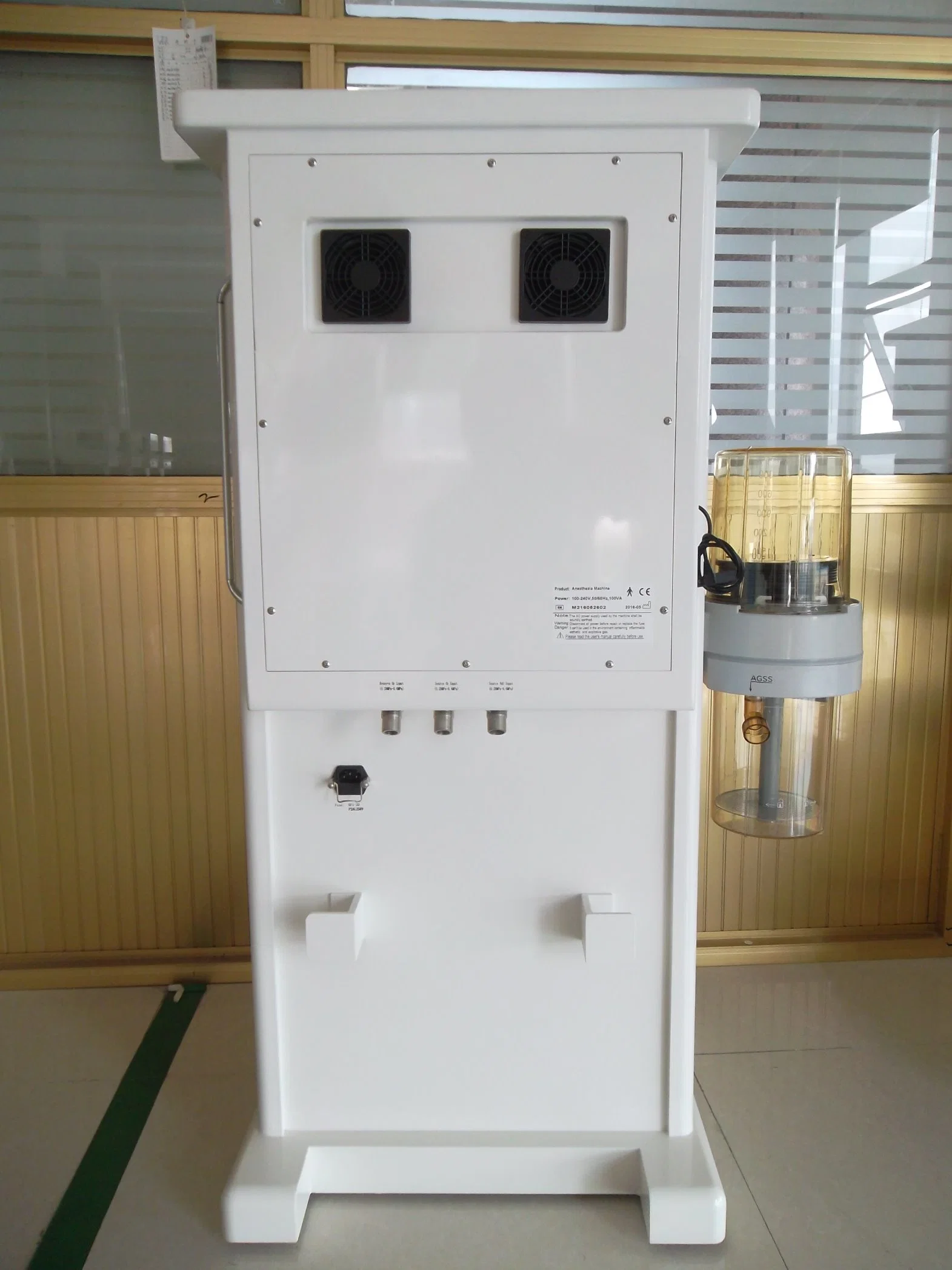

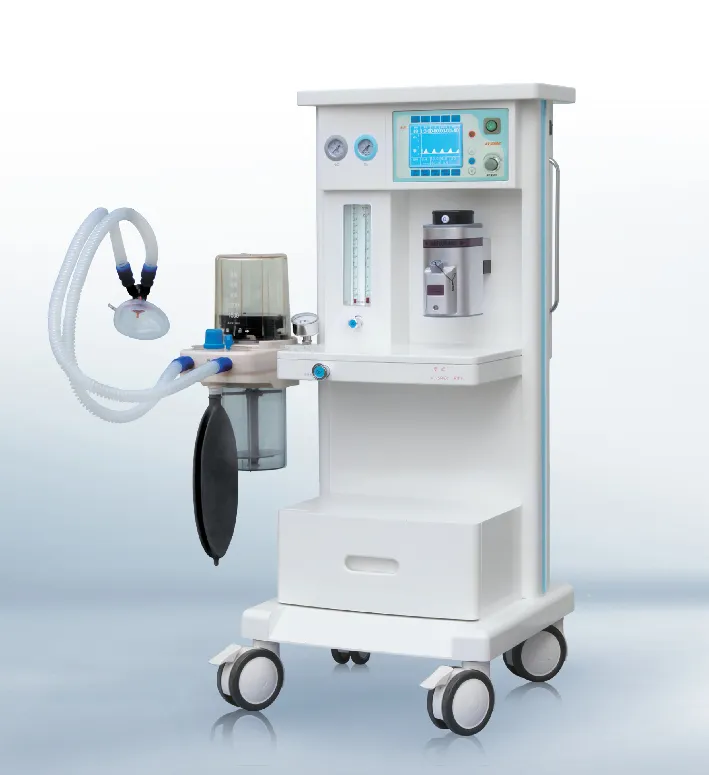

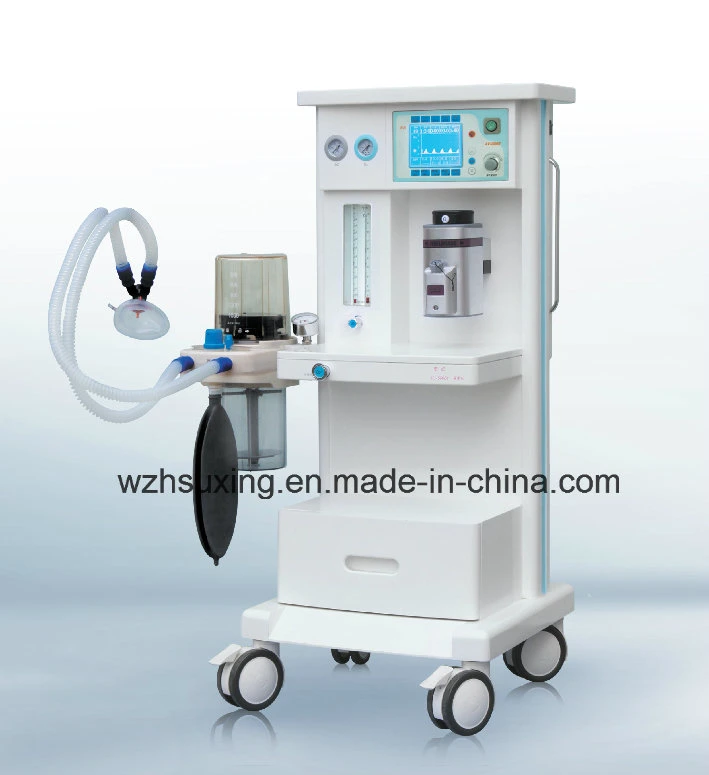

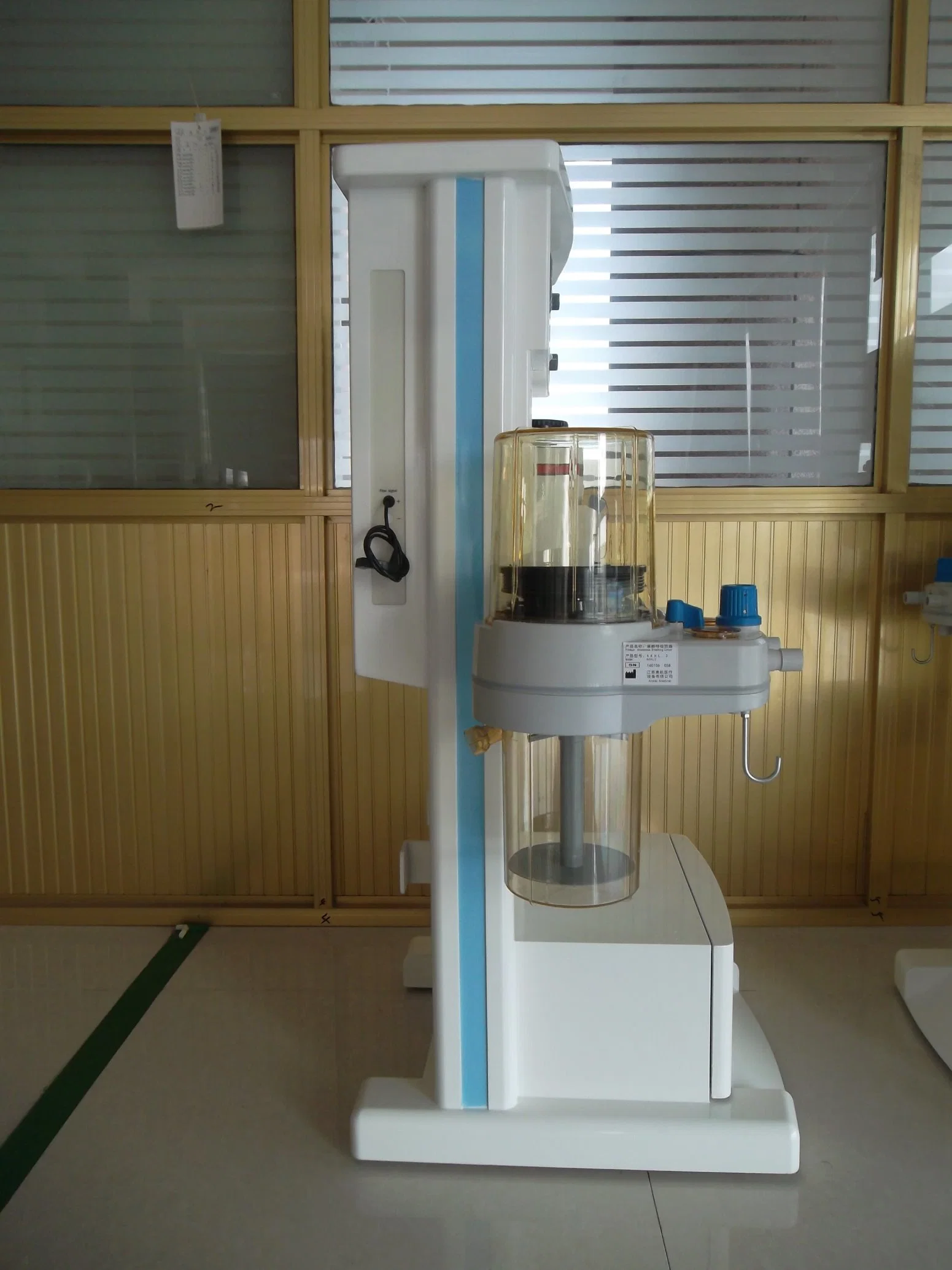

MJ-560B1 Anesthesia Machine (Simple Type)
The high-precision Vaporizer is designed with a stable concentration output, offering automatic compensation for pressure, temperature, and flow rate. It provides flexibility by allowing the selection of one specific anesthetic agent from Halothane, Enflurane, Isoflurane, or Sevoflurane to ensure precise surgical operations.
- Reliable pneumatic transmission system for consistent performance.
- Economic and proper configuration of technologies to meet various clinical needs.
- Modularized design allowing for easy maintenance and future upgrades.
⚙️Anesthesia Unit Details
Main BodyHigh-strength engineering plastic rack, light, beautiful and corrosion resistant
Flow MeterO2: 0.1~1.0L/min | 1.1~10L/min
Rapid O2 Supply25~75L/min
Safety AlarmAudible alarm if O2 pressure < 0.2MPa
Respiratory CircuitAll-close, semi-close, semi-open
BellowsIntegrated bellows for both adults and children
📊Ventilator Performance
Display ModeHigh-definition 4.8" LCD screen
Ventilation ModeIPPV, MANUAL
I:E Ratio2:1 ~ 1:4
Pressure Range1.0 ~ 6.0 kPa
Monitoring Parameters: Tidal volume, ventilation volume, IPPV rate, I/E ratio, peak airway pressure, inspiratory trigger pressure, and pressure-time waveform.
Frequently Asked Questions
1. What patient groups is the MJ-560B1 suitable for?
The MJ-560B1 is designed for both adult and pediatric use, featuring adjustable bellows and parameters to accommodate different tidal volume requirements.
2. Which anesthetic gases can be used with this machine?
The high-precision vaporizer supports Halothane, Enflurane, Isoflurane, and Sevoflurane. Customers can choose one agent based on their specific needs.
3. Does the system include a safety alarm for oxygen levels?
Yes, it features a low oxygen pressure alarm system that triggers an audible sound whenever the oxygen pressure drops below 0.2MPa.
4. What are the available ventilation modes?
The machine supports IPPV (Intermittent Positive Pressure Ventilation) and Manual mode, allowing for comprehensive monitoring of tidal volume and respiratory rates.
5. What information is displayed on the LCD screen?
The 4.8" high-definition LCD screen displays critical parameters such as tidal volume, IPPV rate, I/E ratio, peak airway pressure, and real-time pressure-time waveforms.
6. How does the vaporizer maintain concentration accuracy?
The vaporizer is equipped with automatic compensation functionality for pressure, temperature, and flow rate to ensure a stable and accurate concentration output.
