Product Description

📋

Basic Information

Model NO.
jinling-01B
Certification
ISO13485, RoHS
Group
Adult and Children
LCD Display
5.4 Inch TFT Display
Ventilation Mode
Ippv, Sippv, Simv, Manual
Back-up Power
At least 4 Hours
Tidal Volume
50~1500ml (Adjustable)
Origin
China
🏥

Product Description

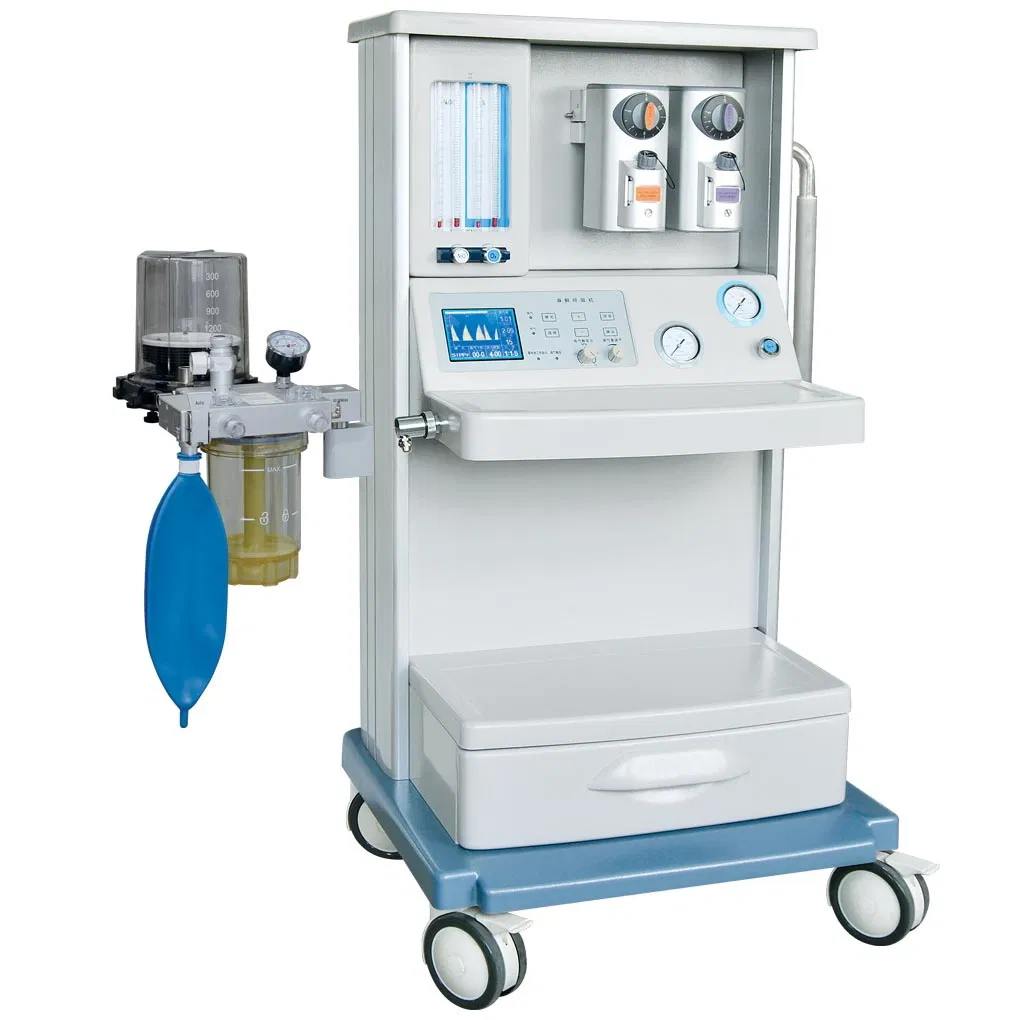

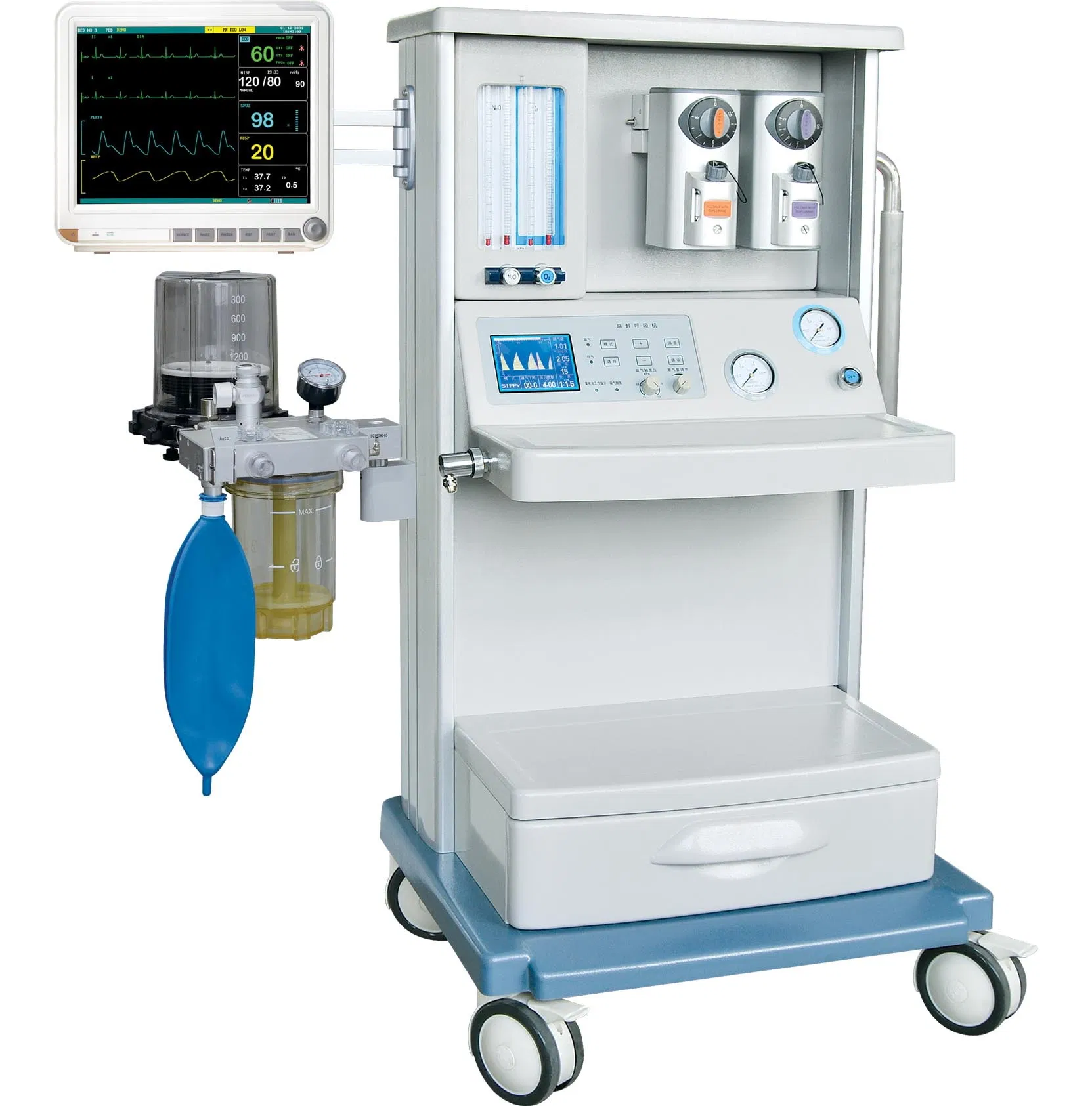

5.4 inch TFT display Hospital Medical equipment Anesthesia machine with two vaporizers

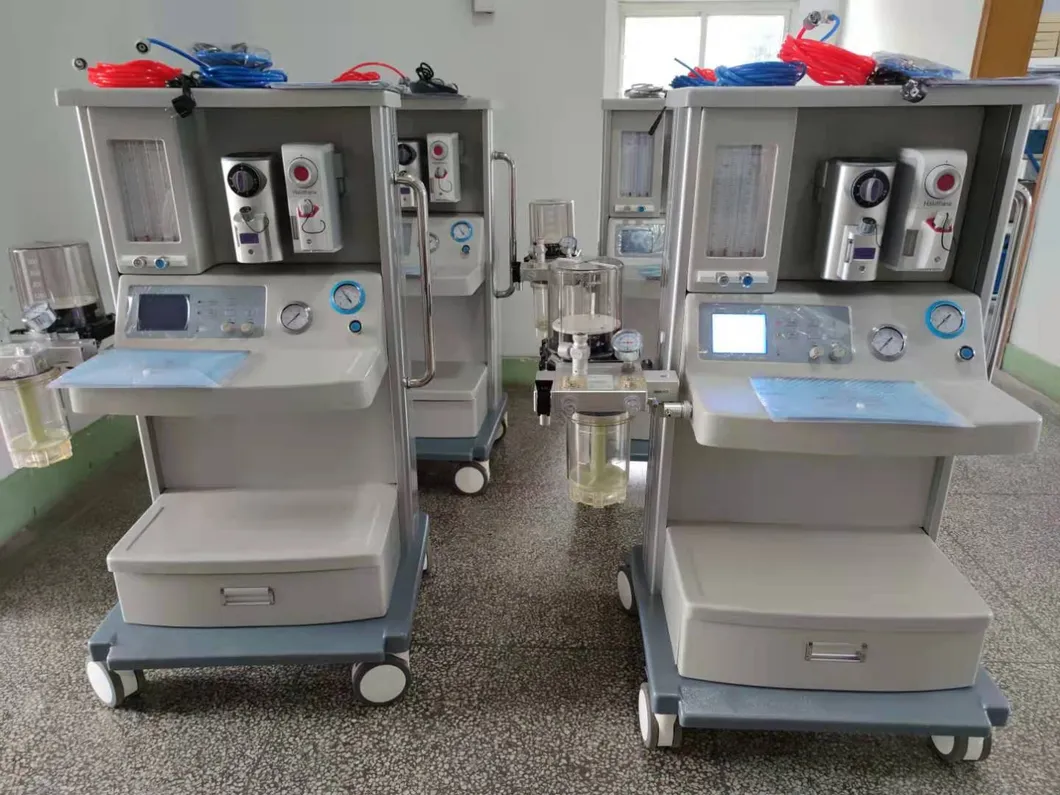

Anesthesia Machine Main
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.

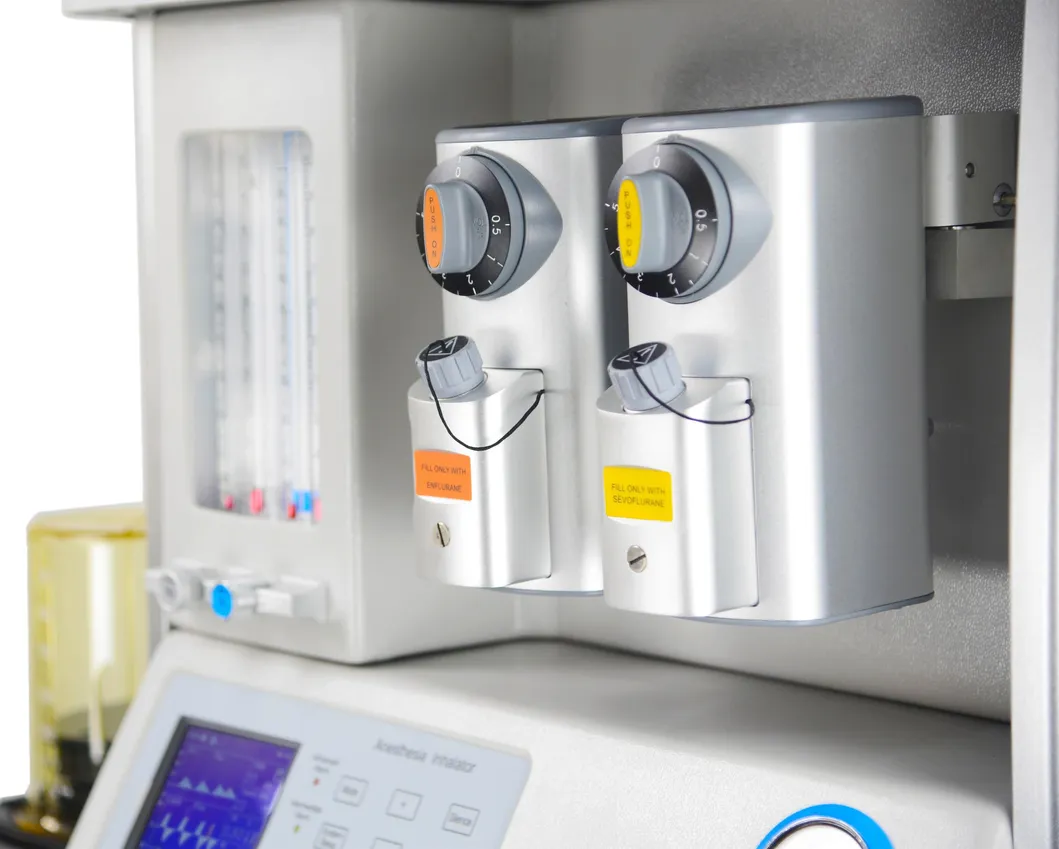

  • Vaporizer: Imported tank components; supports Enflurane, Isoflurane, and Sevoflurane (Halothane optional) with self-compensating functionality.
  • High precision four-tube flowmeter with interlocking oxygen-nitrous oxide supply, ensuring oxygen output is never lower than 21%.
  • Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
  • Power Failure Support: Automatically converts to backup power mode during AC outages.
  • Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure.
  • Advanced international rotating Na-lime tank using imported PPSU material, temperature resistant to 134°C.
Detail 1
Detail 2

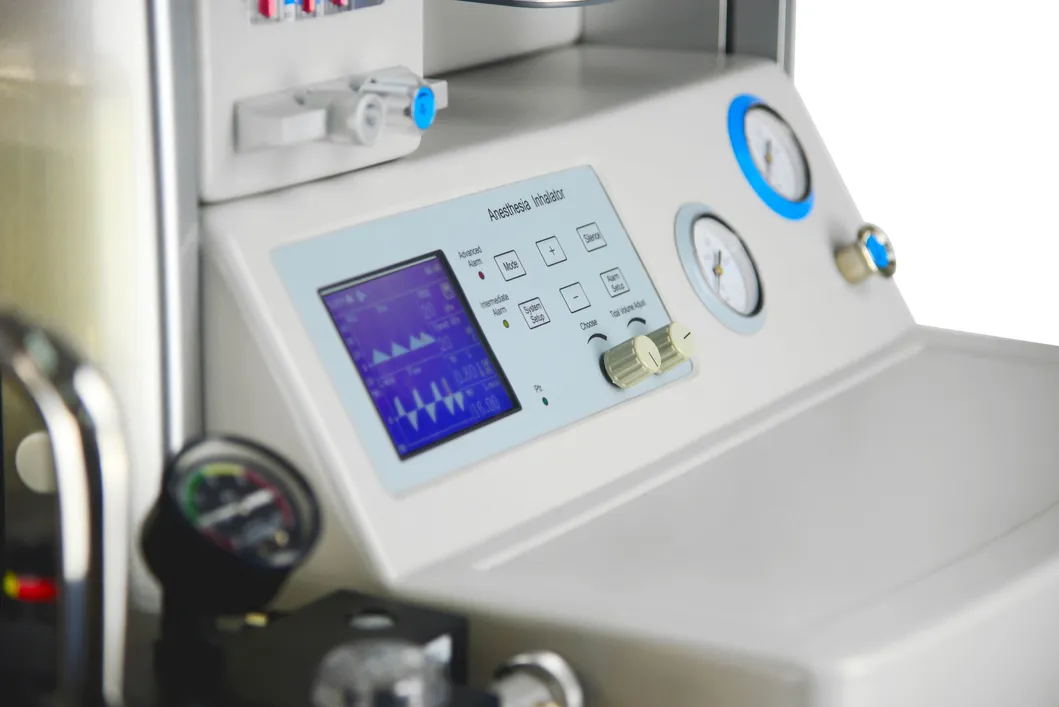

Detail 3
Detail 4
Detail 5
Detail 6
📊

Technical Specifications

Parameter Specification Details
ModelJINLING-01B Advanced Model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1-1:10 (Inverse ratio ventilation capable)
Oxygen Flush25~75L/min
Pressure Trigger-10~10cmH2O (Electronically controlled)
SIGH1 sigh breath in every 80-160 breaths
Vaporizer SlotsDouble PA-I type slots (0-5% concentration)
❓

Frequently Asked Questions

What patient groups is the jinling-01B suitable for?
The machine is designed for both adult and pediatric patients, with an adjustable tidal volume range of 50ml to 1500ml.
How does the machine ensure safety during a power outage?
It features an automatic backup power system that provides at least 4 hours of continuous operation in the event of an AC power failure.
What types of anesthesia gases can be used with the vaporizers?
The system is compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane. It features double slots for versatile gas administration.
Does the device include an integrated monitoring system?

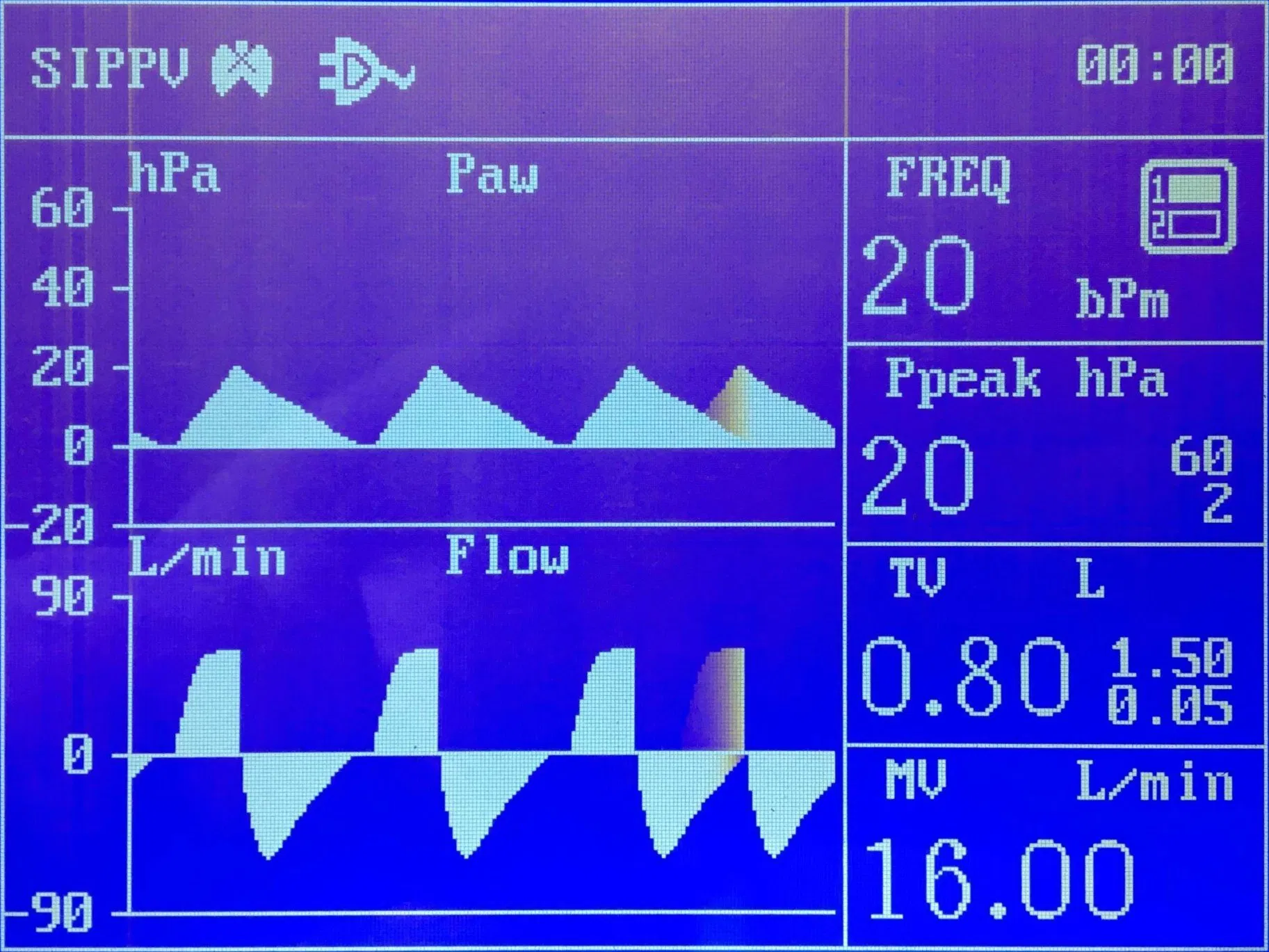

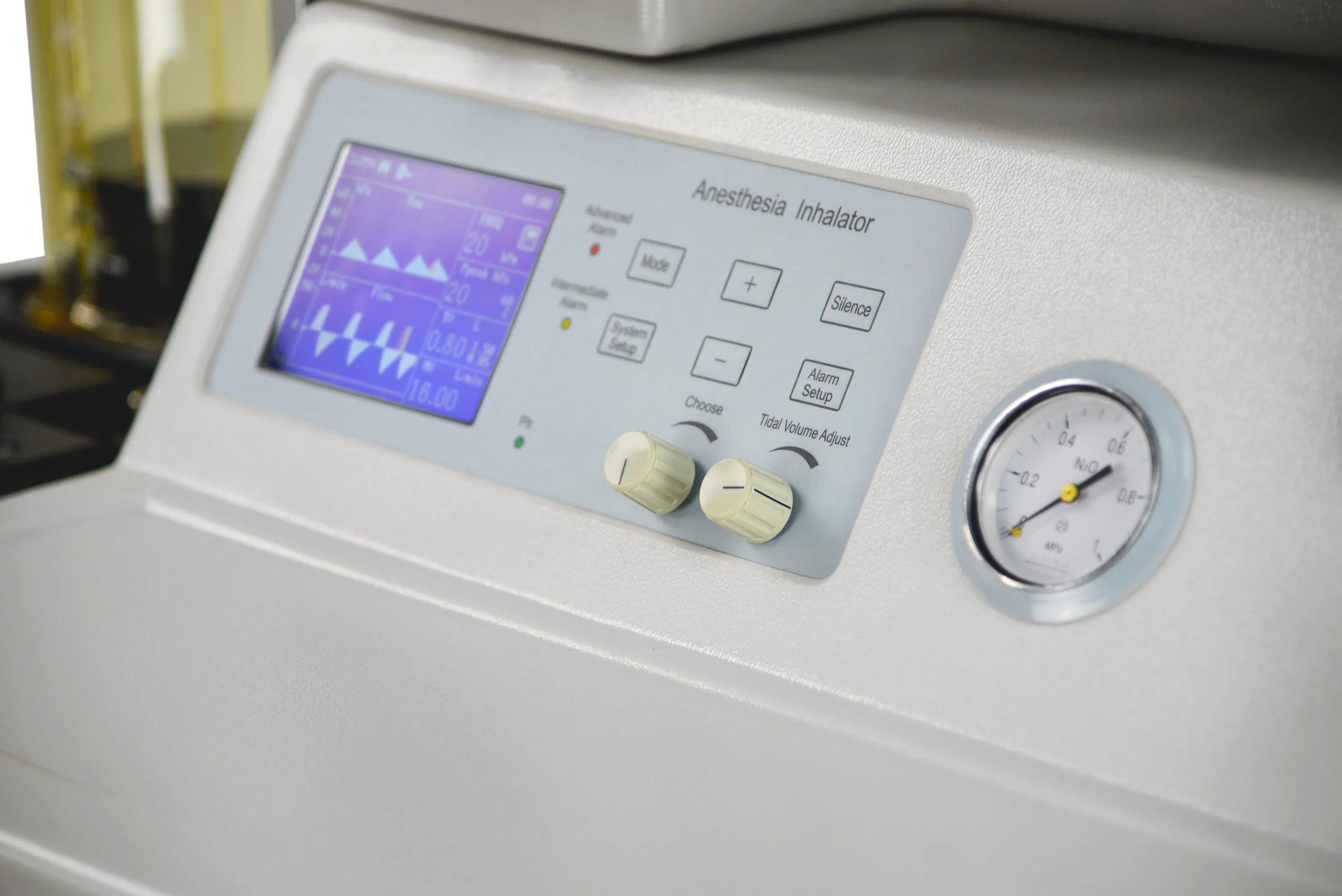

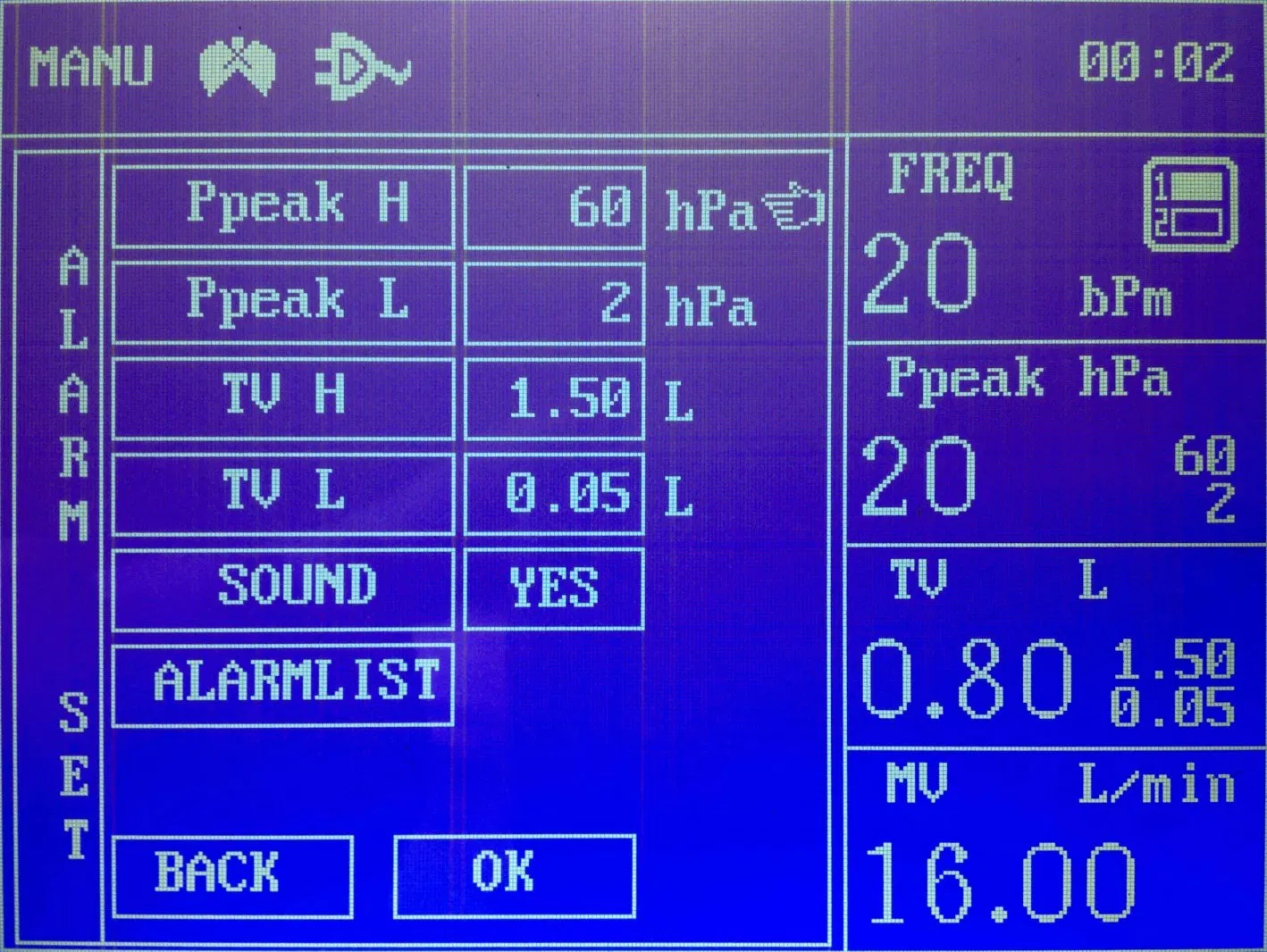

Yes, it includes a 5.4-inch TFT display and comprehensive audible/visual alarms for parameters like airway pressure, tidal volume, and oxygen failure.
What is the precision of the gas flow control?
The machine uses a high-precision four-tube flowmeter with an interlocking mechanism to ensure the oxygen concentration never drops below 21%.
Is the breathing system easy to maintain?
Yes, it is equipped with an advanced rotating Na-lime tank made of PPSU material, which is temperature resistant up to 134°C for easy sterilization.
