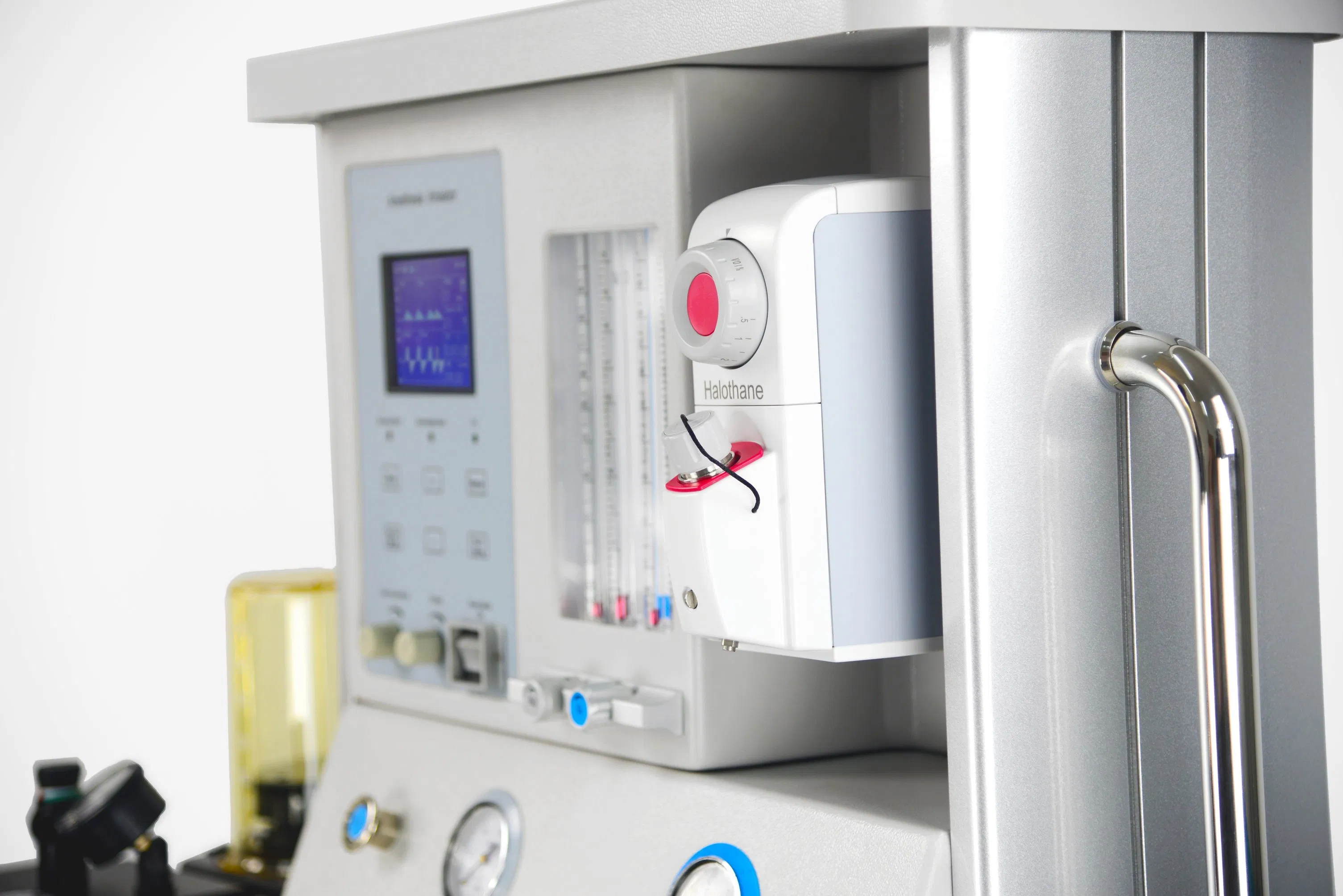

Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
1 / 5
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine
Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine

Surgical Practical Medical Equipment ISO Approved Jinling 01b Anesthesia Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

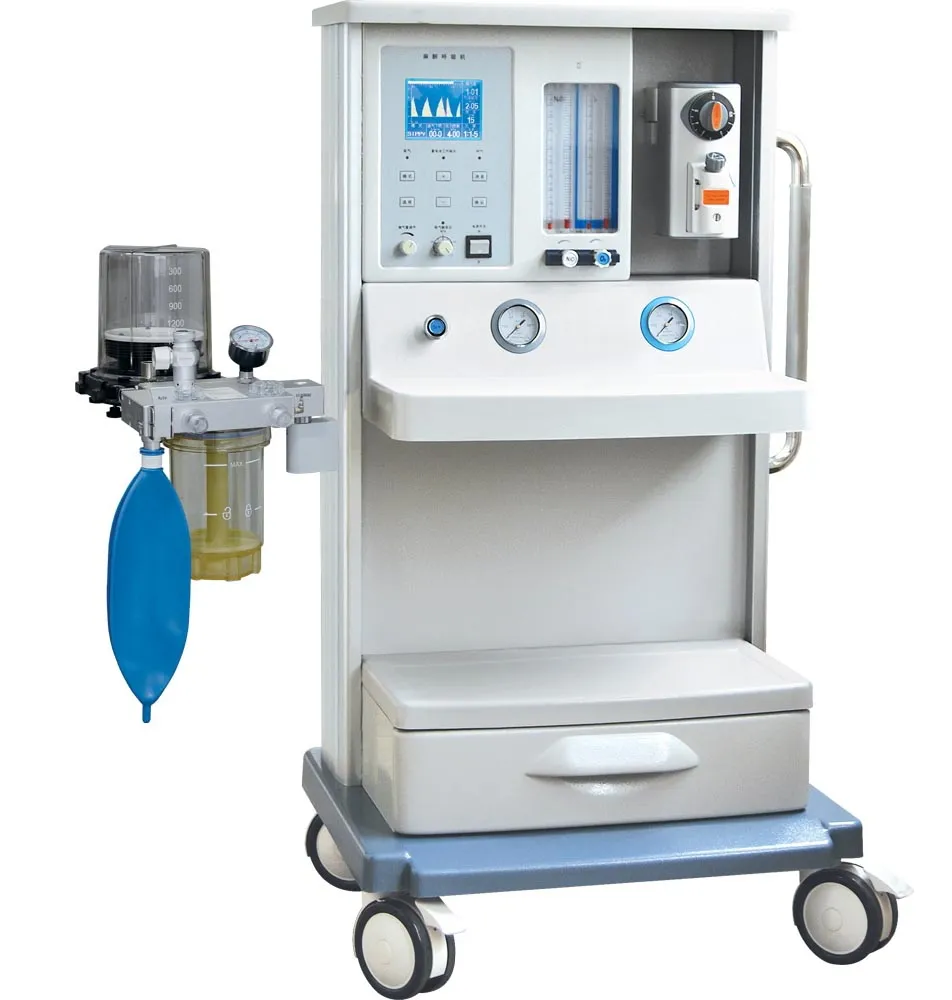

Anesthesia Machine Display

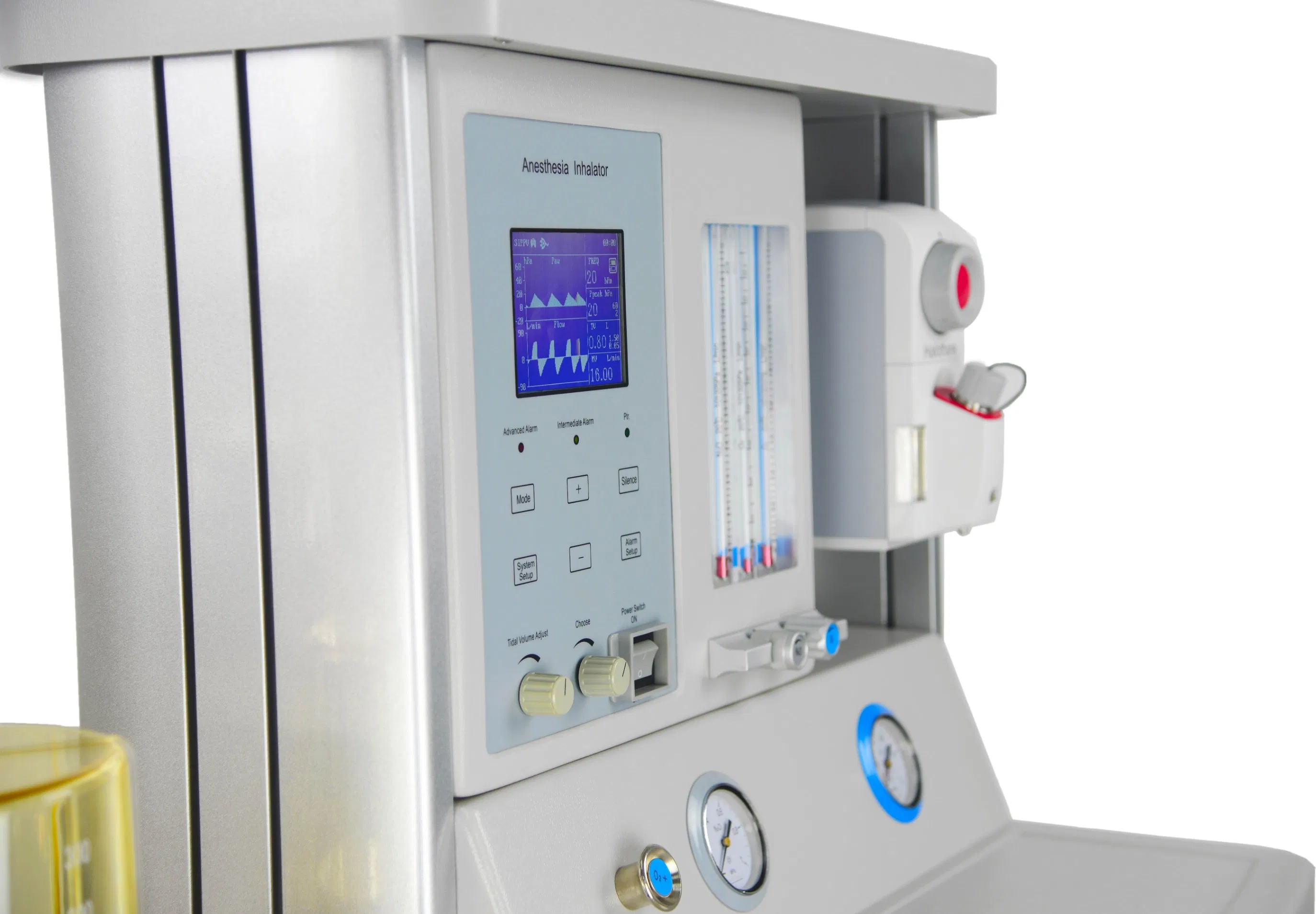

Anesthesia Machine Side View
Anesthesia Machine Details
Medical Equipment Components

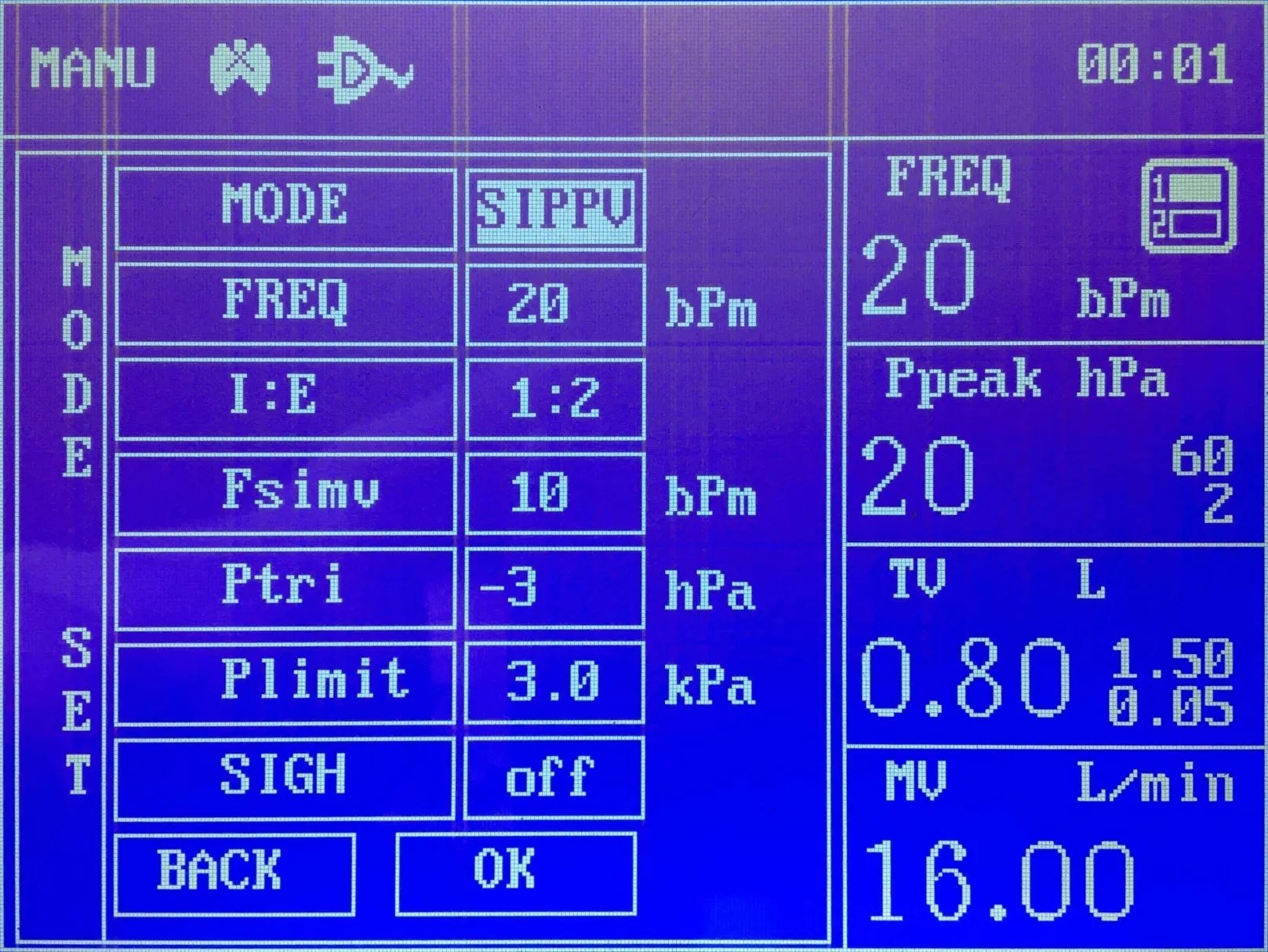

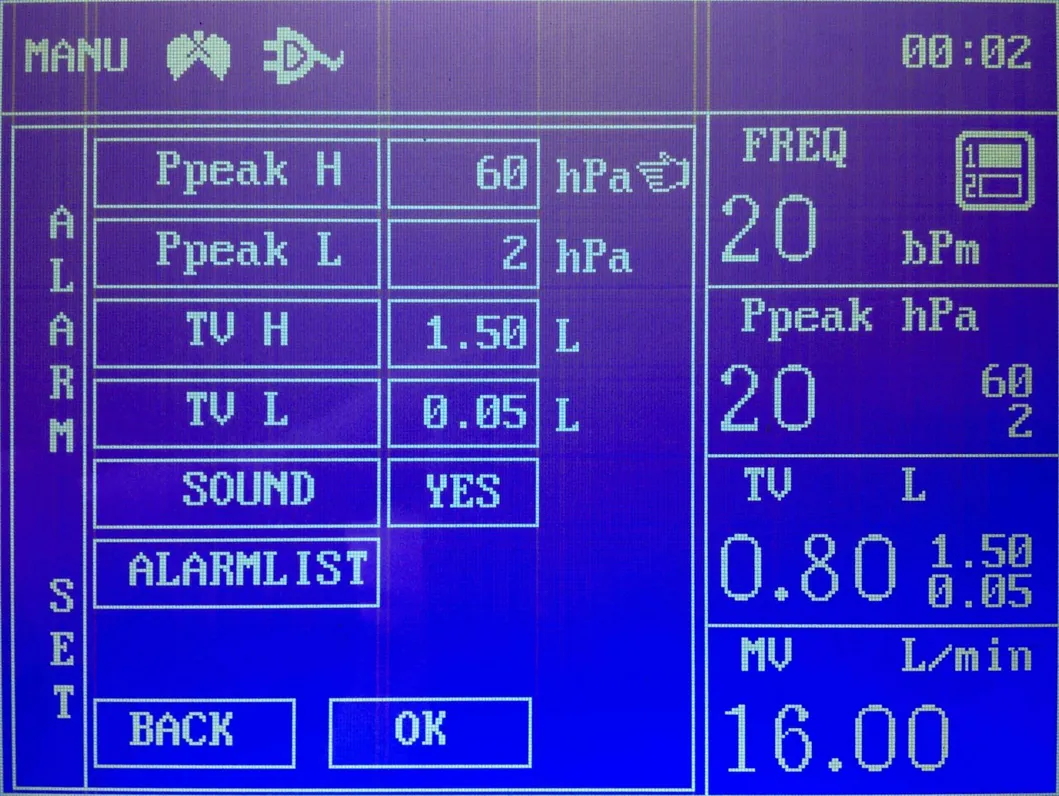

Anesthesia Device Interface

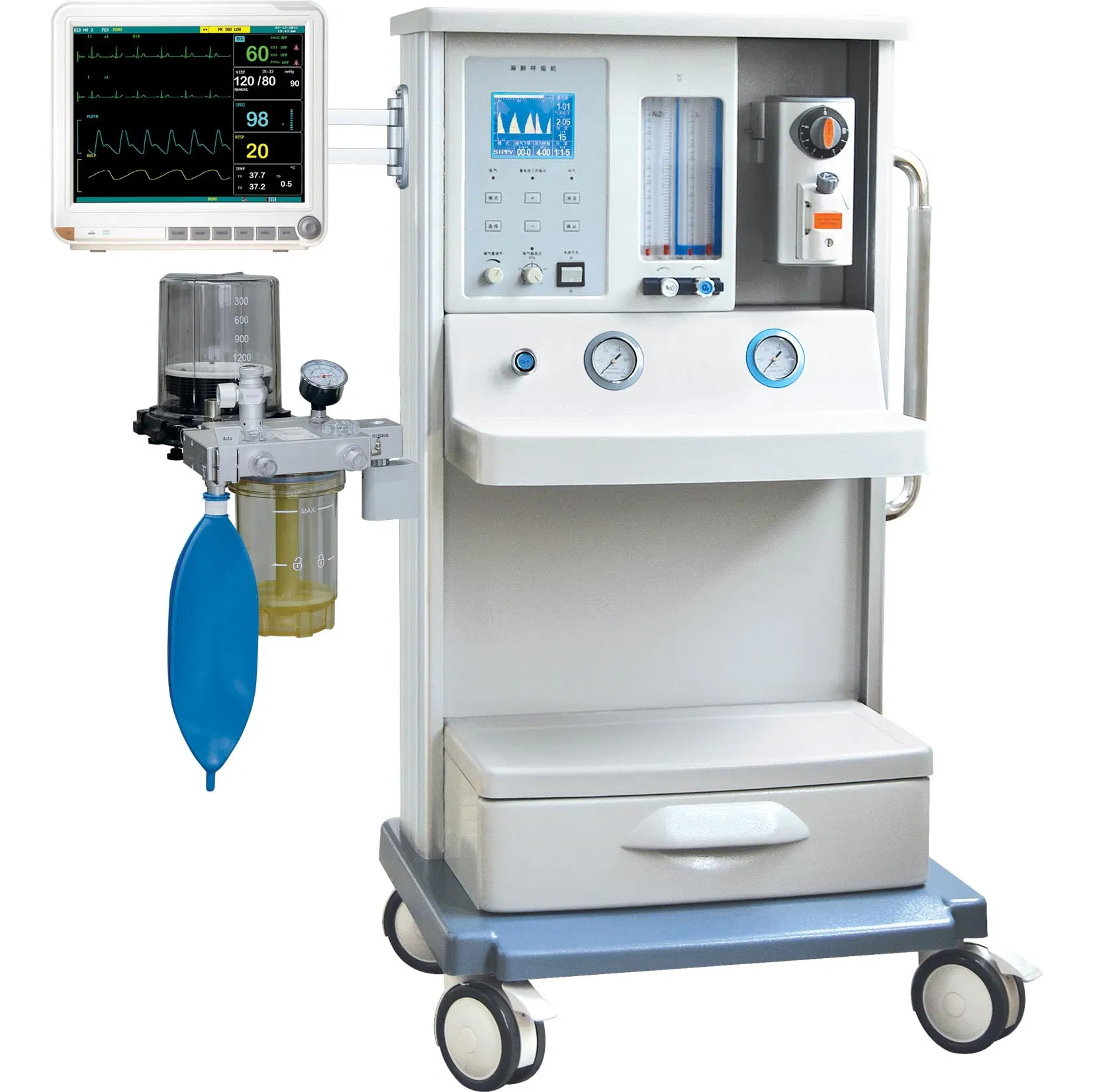

JINLING 01B Full View
📋

Basic Information

Model NO.
JINLING 01B
Certification
ISO13485, RoHS
Group
Adult and Children
LCD Display
5.4 inch TFT display
Transport Package
Cartons for Export
Specification
0.85 CBM; 96 KGS
Trademark
JINLING
HS Code
9018907010
Production Capacity
200 Unit/Month
✨

Key Features

✔
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
✔
Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time waveforms.
✔
Metallic Modular Circuit: Standard integrated metallic modular respiratory circuit; high temperature disinfection resistant.
✔
Pressure Sensor: Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
✔
Vaporizer: Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality.
✔
Precision Flowmeter: Four tube flowmeter with interlocking oxygen-nitrous oxide supply.
✔
Safety Functions: Automated self-checking during startup and automatic self-calibrating sensor.
✔
Power Support: Automatically converts to backup power mode during AC power outages.
✔
Alarm System: Audible and visual alarms for tidal volume, airway pressure, asphyxia, and power failure.
✔
Na-lime Tank: Advanced international rotating tank using imported PPSU material (resistant to 134°C).

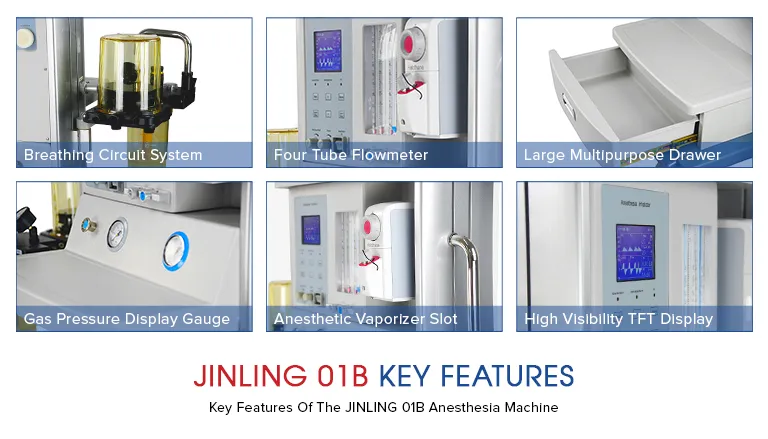

Control Panel

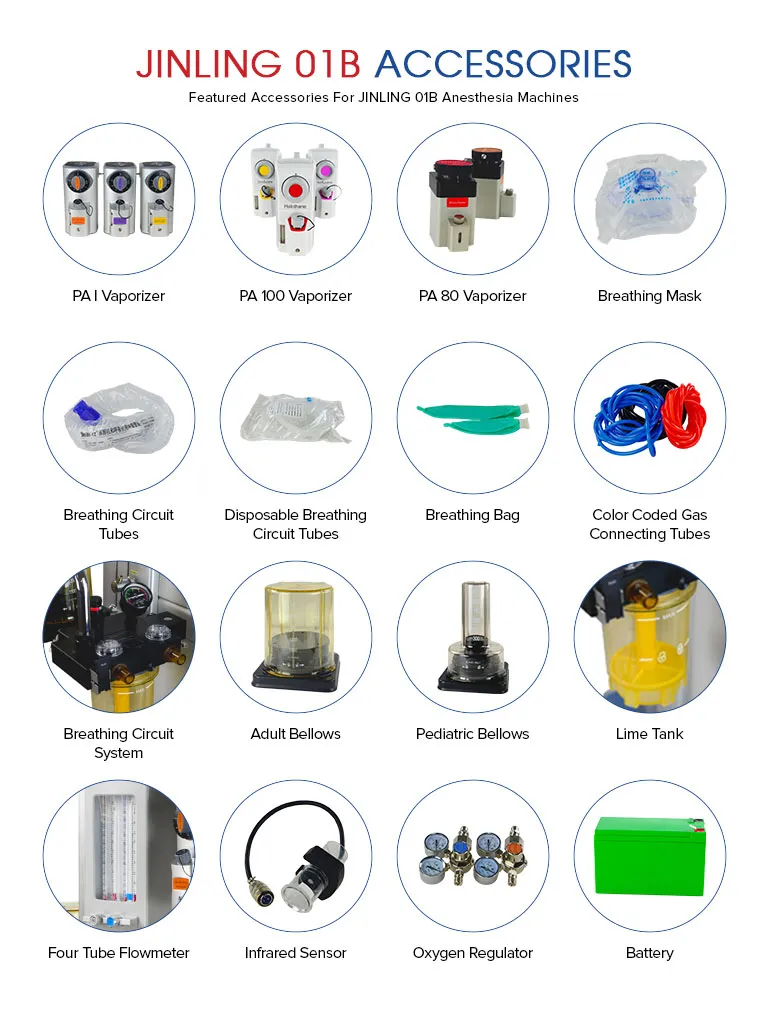

Structure Detail
📊

Technical Specifications

ModelJINLING-01B advanced model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:10 (capable of inverse ratio)
Oxygen Flow Rate25~75L/min
Pressure Trigger-10 to 10cmH2O (electronically controlled)
Vaporizer Concentration0-5%
Full Machine Profile
Product Dimensions
❓

Frequently Asked Questions

What patient groups is the JINLING 01B suitable for?
This anesthesia machine is designed for use with both adult and pediatric (children) patients.
How long does the backup battery last?
The system includes a built-in backup power supply that provides at least 4 hours of operation during AC power outages.
Can the respiratory circuit be disinfected?
Yes, it features a standard integrated metallic modular respiratory circuit that completely solves gas sealing issues under high-temperature disinfection.
What ventilation modes are supported?
Supported modes include IPPV, SIPPV, IMV, SIMV, and MANUAL ventilation.
What safety alarms are included?
The machine features audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure.
What certifications does the product hold?
The JINLING 01B anesthesia machine is ISO13485 and RoHS certified, ensuring international medical quality standards.
