Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
1 / 5
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

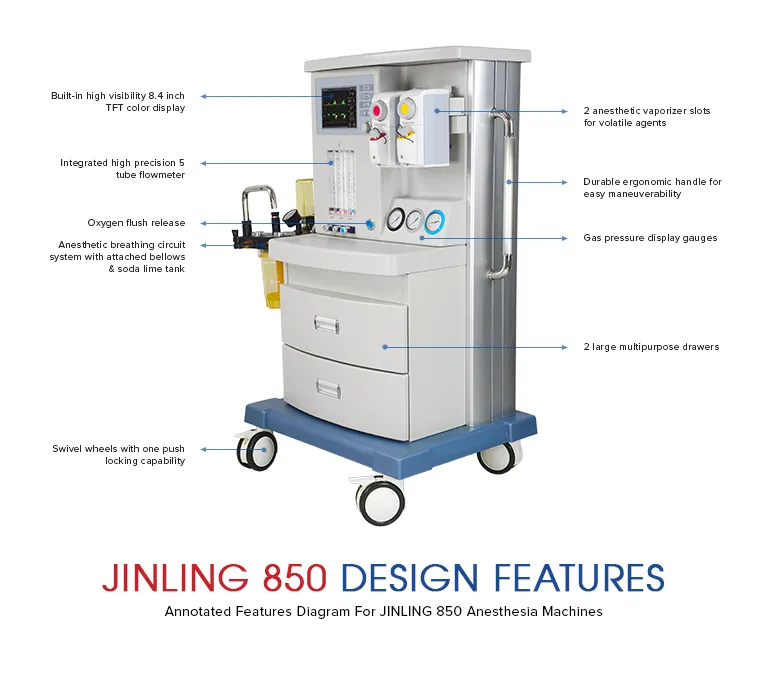

Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Basic Information
Model NO.
JinLing 850
Certification
ISO13485, ISO9001
Group
Adult
Display
8.4 Inch LCD Color Screen
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, PCV
Tidal Volume
0-1500ml
Respiratory Rate
1-100bpm
Origin
China
Key Features
✓

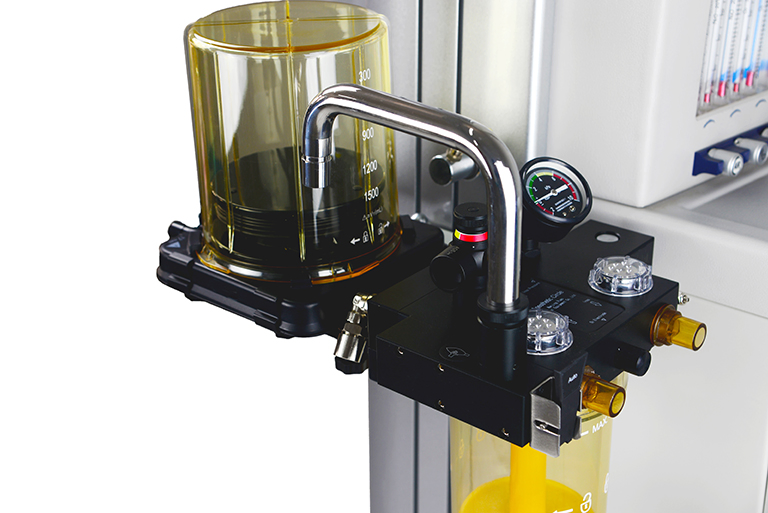

Standard integrated metallic modular respiratory circuit; solves gas sealing under high temperature disinfection, easy to clean.
✓
High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
✓
Nonhazardous environmentally friendly frame with automated self-checking function and self-calibrating sensor.
✓
Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
✓
Advanced international rotating Na-lime tank using imported PPSU material, temperature resistant to 134°C.

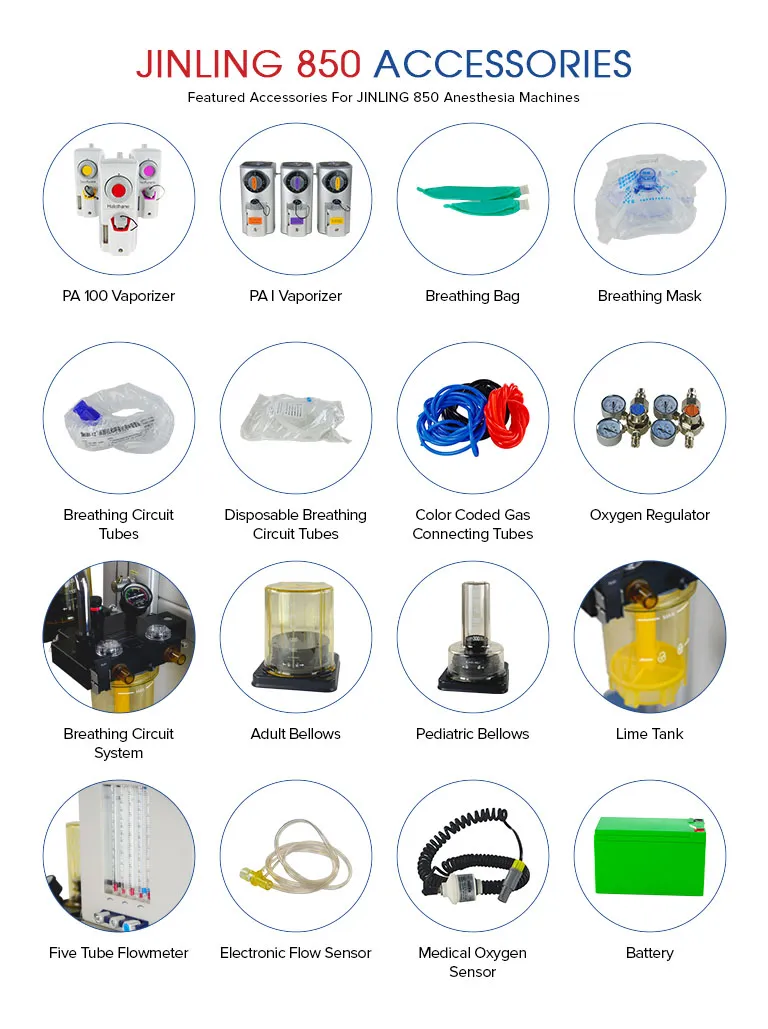

Anesthesia Machine View 1
Anesthesia Machine View 2
Technical Specifications
Model850 (Standard Model)

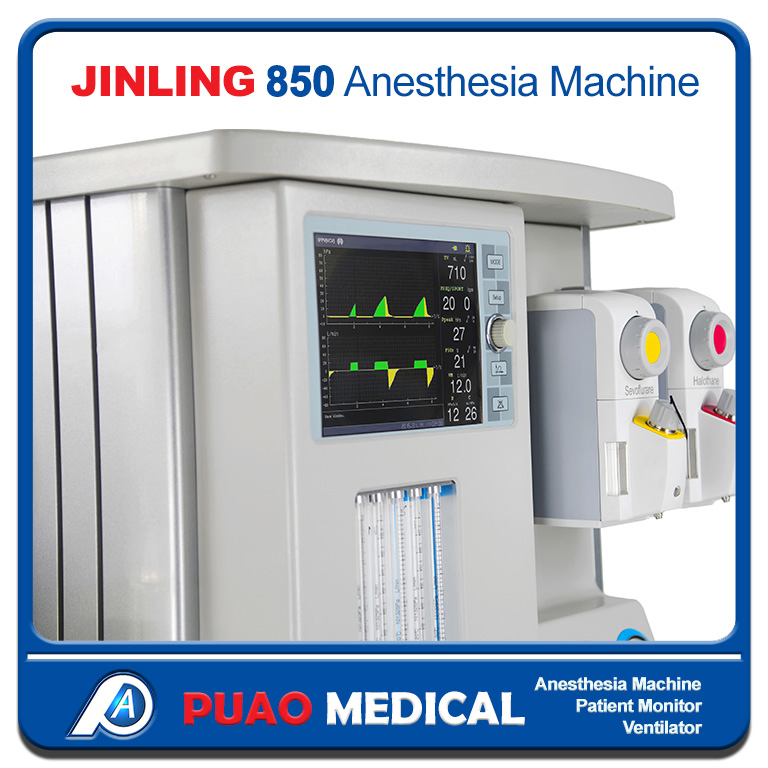

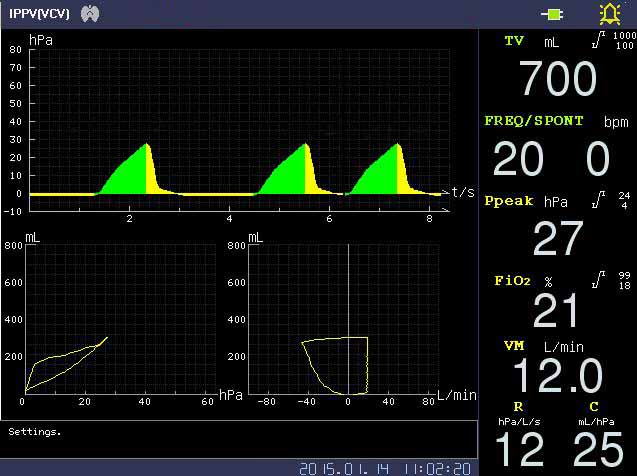

Display8.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Tidal VolumeAdjustable: 10-1500ml; Display: 0-2000ml
PEEP Range0-20cmH2O (electronically controlled)
I:E Ratio8:1-1:10 (inverse ratio ventilation capable)
Back-up PowerAt least 4 hours
Component Details 1
Component Details 2
Frequently Asked Questions
Q: What is the adjustable range for tidal volume on the JinLing 850?
A: The tidal volume can be adjusted between 10ml and 1500ml, with a display range up to 2000ml.
Q: Can this machine support low-flow anesthesia?
A: Yes, it is equipped with an advanced and stable Adjustable Pressure Limiting (APL) valve, which is ideal for both low and ultra-low flow anesthesia.
Q: How long does the backup battery last?
A: The machine includes a back-up power supply that provides at least 4 hours of operation during power interruptions.
Q: What safety features are included for oxygen delivery?
A: It features a high-precision five-tube flowmeter with an interlocking oxygen-nitrous oxide supply system, ensuring the oxygen concentration never drops below 21%.
Q: Is the respiratory circuit easy to disinfect?
A: Yes, it uses a standard integrated metallic modular circuit designed to withstand high-temperature disinfection while maintaining a perfect gas seal.
Q: What ventilation modes does the JinLing 850 support?
A: It supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, PCV, Manual, and Standby.
