Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
1 / 5
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price
Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price

Jingling-850 Advanced Model Best Seller Anesthesia Machine, Anesthesia Machine Price

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery and ICU Equipment
Send Inquiry

Product Description

Basic Information

Model NO.
JINGLING-850 Advanced Model
Certification
CE, ISO13485
Group
Adult
LCD Display
TFT
Name
Anesthesia Machine
Display
8.4 Inch
Vaporizer
Double
Warranty
One Year
HS Code
9018907010
Production Capacity
100PCS/Month

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
Anesthesia Ventilator: Built-in 8.4 inch color TFT display, capable of cycling Pressure-Time, Flow-Time, Pressure-Volume, and Flow-Volume waveforms instantly.
Metallic Modular Circuit: Standard integrated metallic respiratory circuit solves gas sealing issues under high-temperature disinfection.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Precision Sensors: Electronic pressure differential flow sensor and imported respiratory control valve for stable response.
Five Tube Flowmeter: Fitted with interlocking O2-N2O supply, guaranteeing oxygen output is never lower than 21%.
Environmentally Friendly Frame: Precise construction with automated self-checking and self-calibrating sensors.
Comprehensive Alarms: Audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power failure.
High-Quality Vaporizer: Locally assembled imported components for Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.
APL Valve: Advanced stable Adjustable Pressure Limiting valve suitable for low and ultra-low flow anesthesia.
Rotating Na-lime Tank: International standard one-hand operation, using PPSU material resistant to 134°C.
Patient Monitoring: Optional multi-parameter patient monitor support.

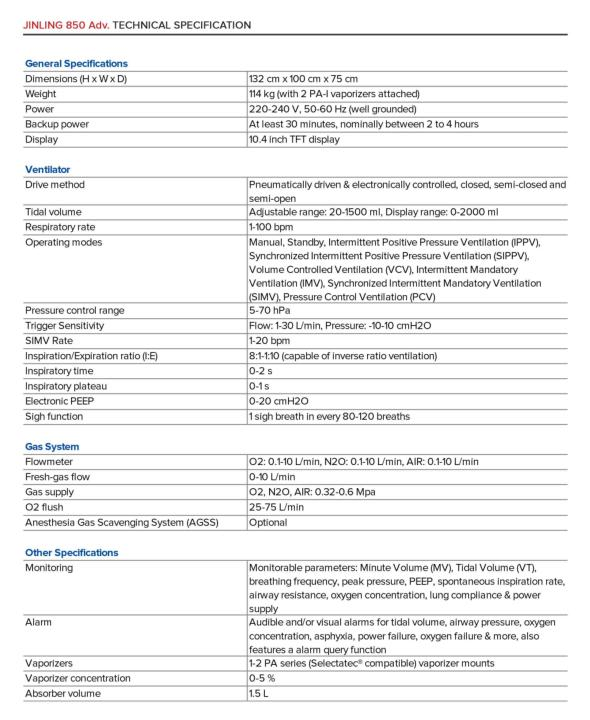

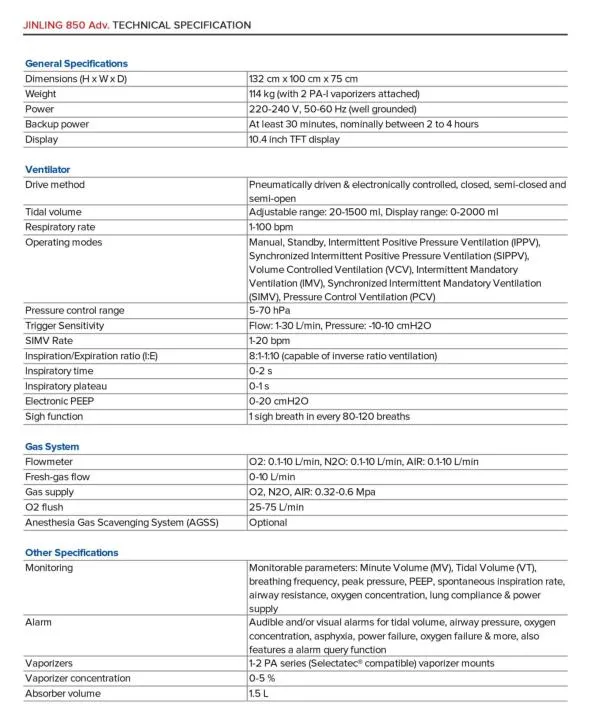

Technical Specifications

Model 850 (Standard Model) 850 (Advanced Model)
Display8.4 inch TFT display10.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min | N2O: 0.1-10L/min | Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUALIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL
Back-up PowerAt least 4 hours
Tidal VolumeAdj: 20-1500ml | Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Inverse ratio capable)
PEEP Range0-20cmH2O (Electronically controlled)
Inhaled O2 Monitor21-100%
Vaporizer SlotsDouble PA-I type slots

Product Gallery

Anesthesia Machine View 1
Anesthesia Machine View 2

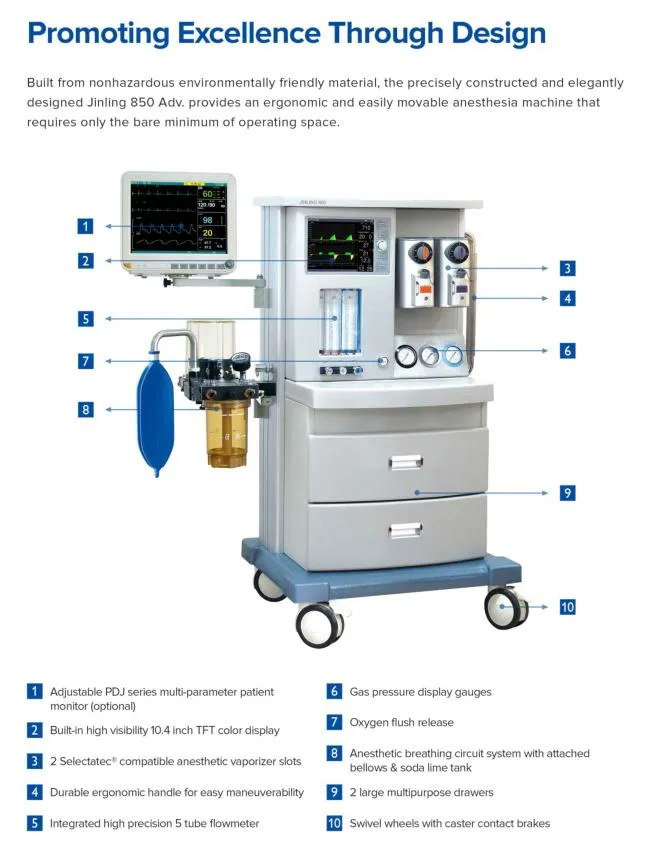

Anesthesia Machine View 3

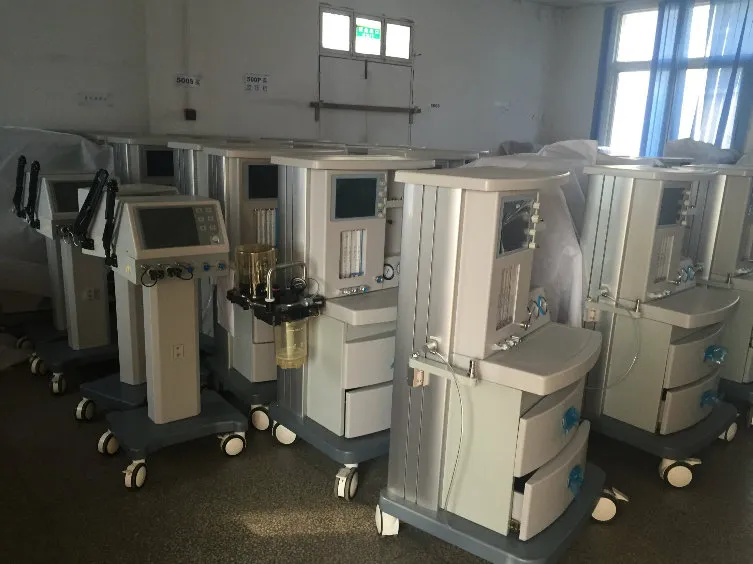

Anesthesia Machine Detail 1

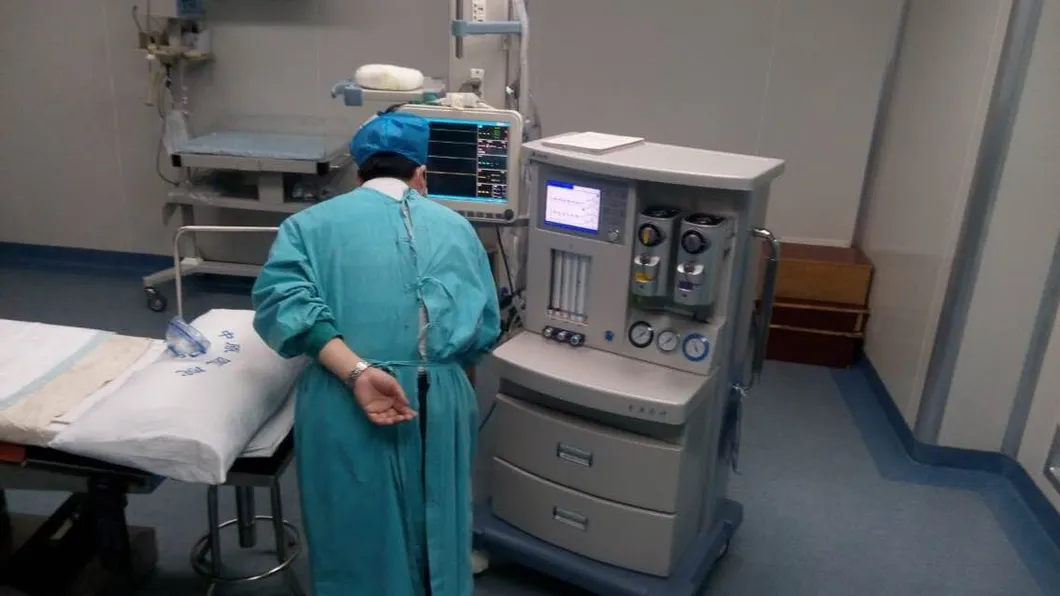

Anesthesia Machine Detail 2
Technical Layout
Component Diagram
Full Specifications List

FAQ

What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is generally 1 unit. For specific consumables or accessories, the MOQ may vary.
Which payment methods are accepted?
We accept various forms of payment including bank transfer (T/T), L/C, and Western Union.
What is the standard shipping and delivery time?
Once the order and payment are confirmed, shipping typically occurs within 15 working days.
Which certifications do these products have?
Most of our products are fully certified with CE, ISO, and RoHS standards.
Is it possible to place a custom company logo on the product?
Yes, logo customization is available for most models, with a few specific exceptions.
What is the warranty period and after-sales support?
We offer a 12-month warranty for all main products. Technical support and troubleshooting services are provided throughout the product lifecycle.
