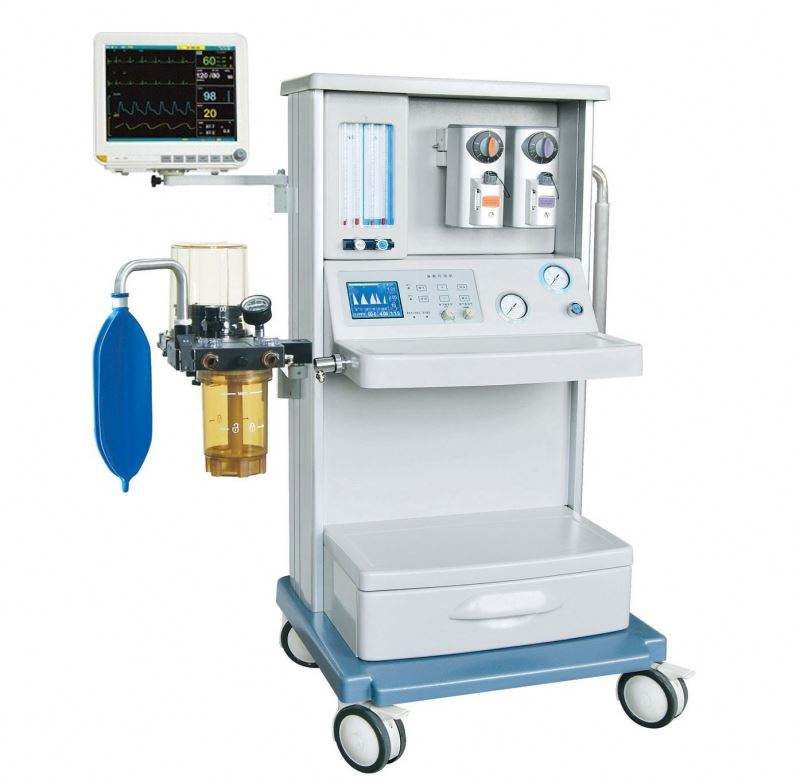

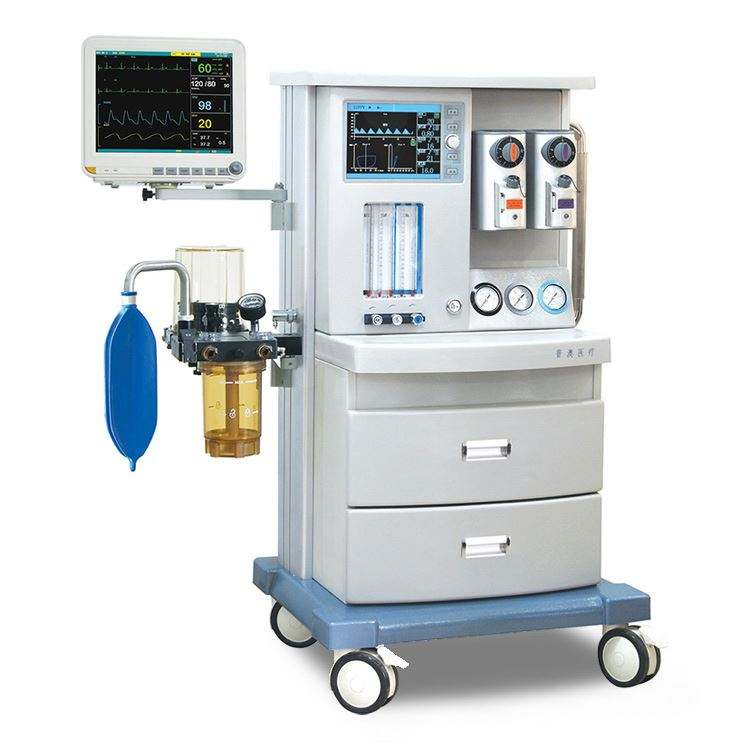

High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
1 / 5
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine
High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine

High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine

Customization: Available
Warranty: 1 Year
Respiratory Rate: 1~99bpm
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.
AM-850
Power Source
Electric
Peep
0 ~ 20 Hpa
Screen
10.4 '' LCD Display Screen
Quality Certification
CE
Material
Metal, Plastic, Steel
Tidal Volume
0 ~ 1500 Ml
Scope of Application
Adult, Child
After-Sale Service
Online Technical Support
Model Name
Anaesthesia Instruments
Inspiratory Plateau
0~1s
Instrument Classification
Class II
Oxygen Flush
25~75 L/Min
Specification
CE, ISO
📺

Product Display

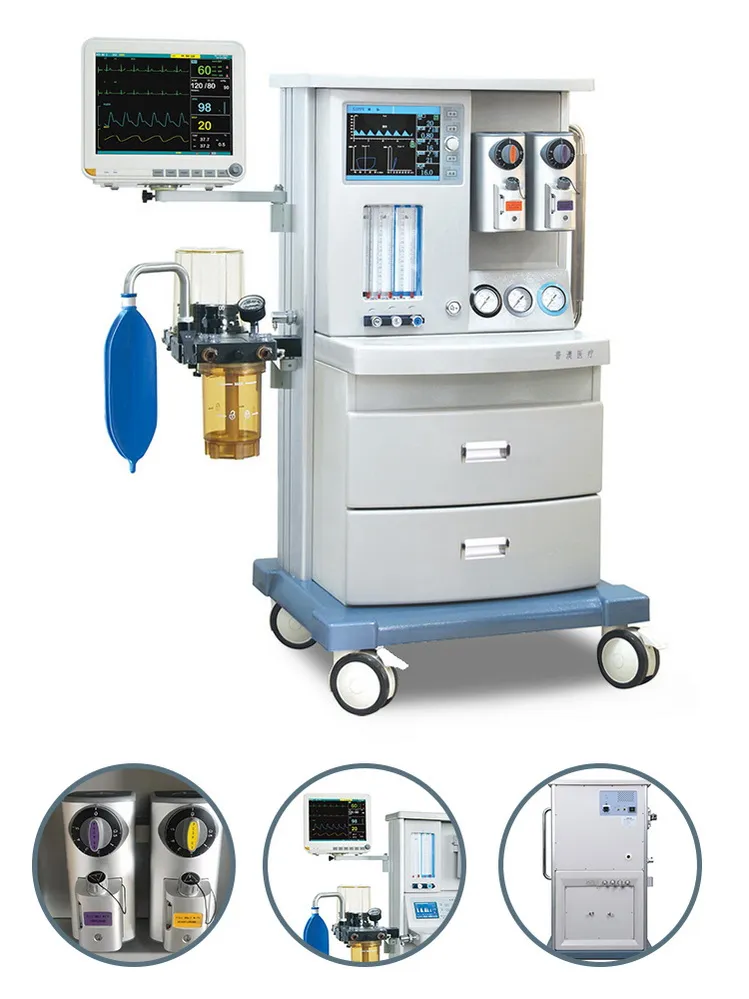

ICU Anesthesia Machine Display

Common Features

  • Operating Modes: Pneumatically driven & electronically controlled, dosed, semi-closed and semi-open.

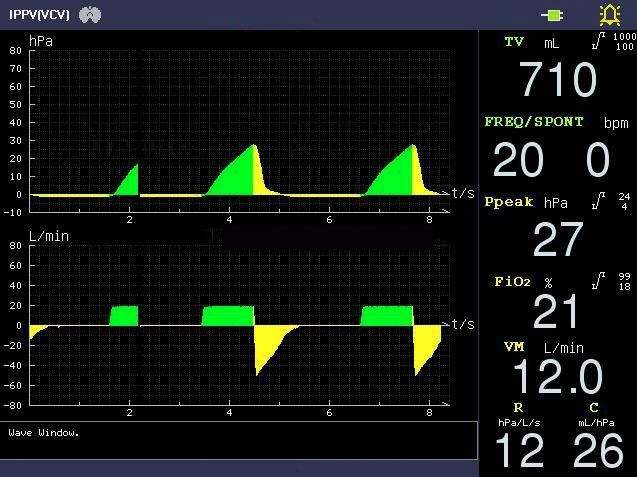

  • Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.
  • Standard integrated metallic modular respiratory circuit; solves gas sealing under high temperature disinfection.
  • Power Failure Support Functions: Automatically converts to backup power mode during AC power outages.
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • High precision five tube flowmeter with interlocking oxygen-nitrous oxide supply.
📋

Product Specifications

Physical SpecificationsDetails
Screen10.4 '' LCD Display Screen
SuitableAdult & Child
ModePneumatically powered and electrically controlled system
Flowmeters5 Tubes: O2:0.1~10L/Min, N2O:0.1~10L/Min, Air: 0.1~10L/Min
Technical SpecificationsDetails
Respiratory Rate1~99bpm
Oxygen Flush25~75 L/min
PEEP0 ~ 20 hPa
I/E Ratio8:1 ~ 1:10 (Inverse ratio ventilation supported)
Tidal Volume0 ~ 1500 ML
Oxygen Concentration21%~100%
Pressure Limit Range0 ~ 6.0 kPa
🔍

Detail Images

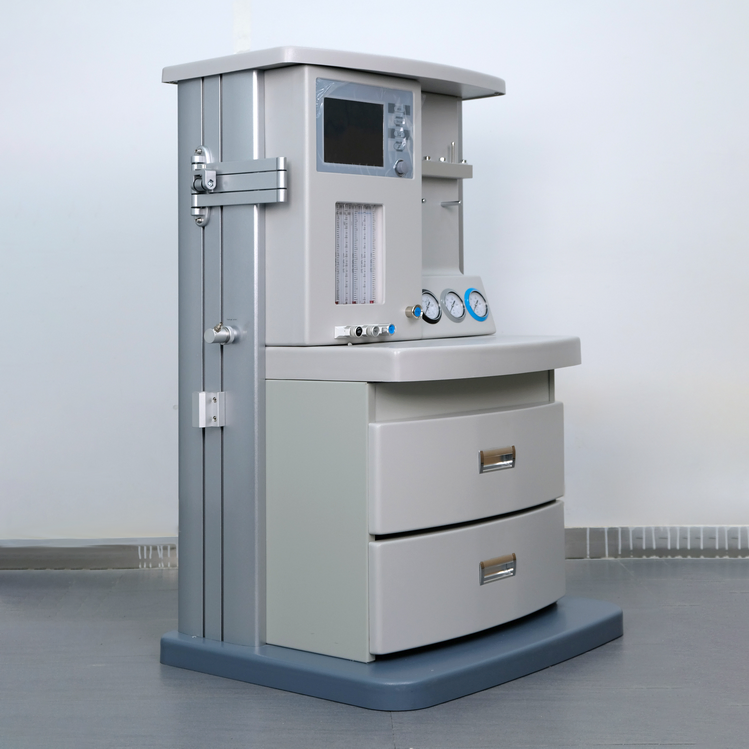

Detail 1

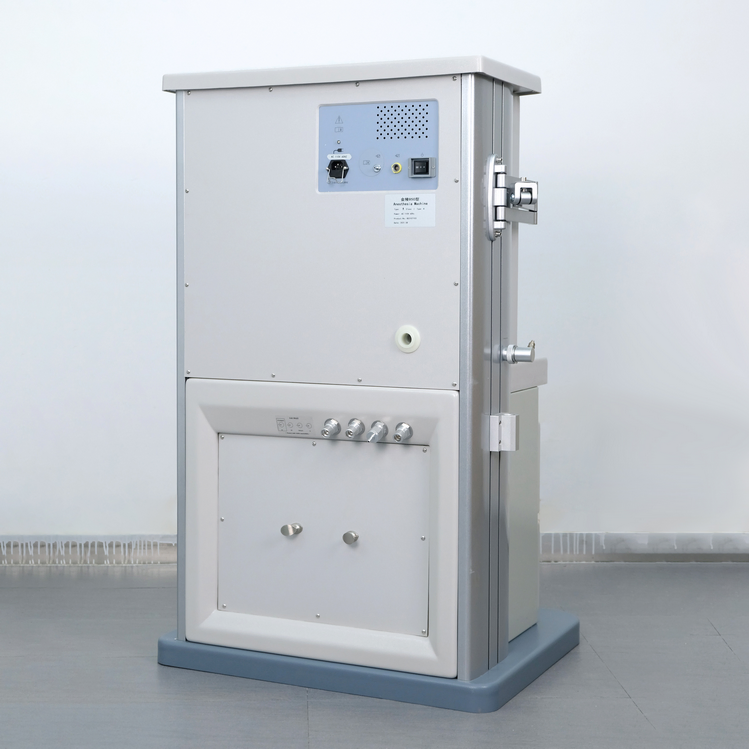

Detail 2

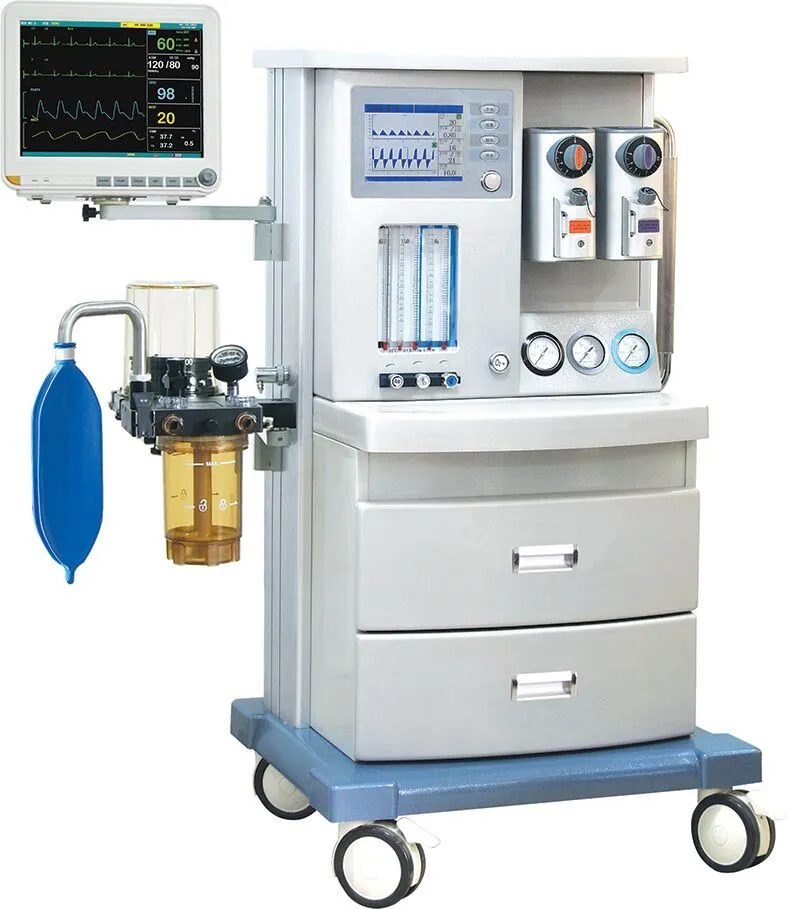

Detail 3

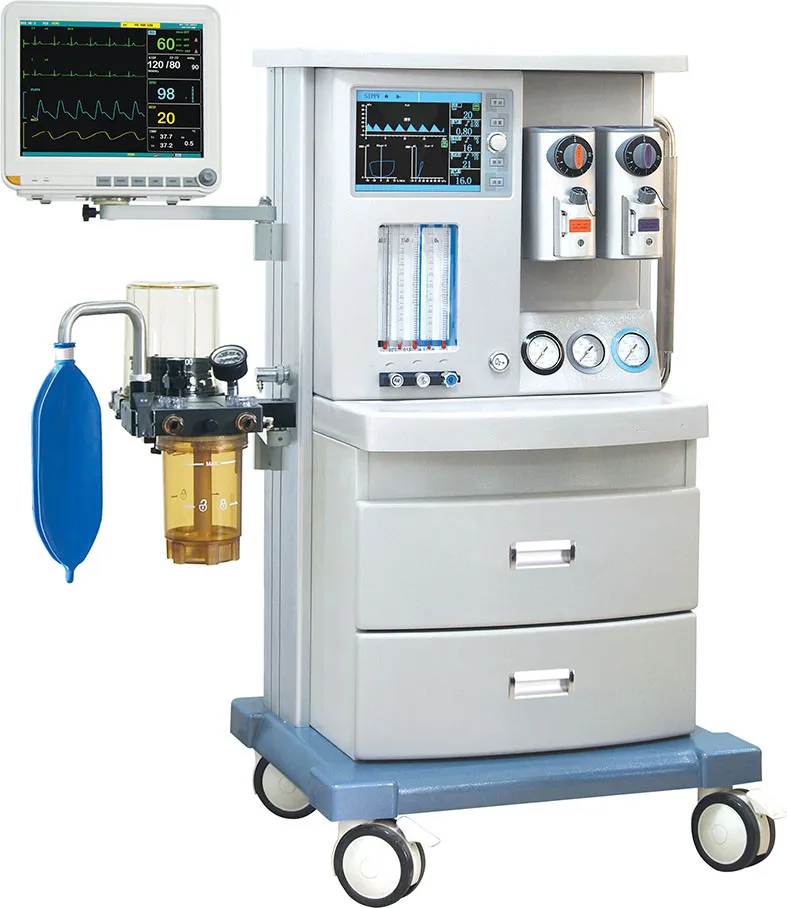

Detail 4
🏥

Application

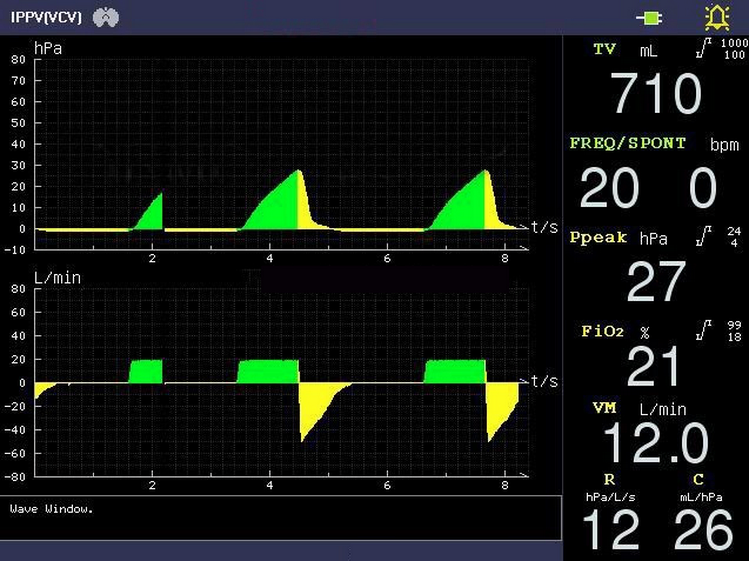

Application 1

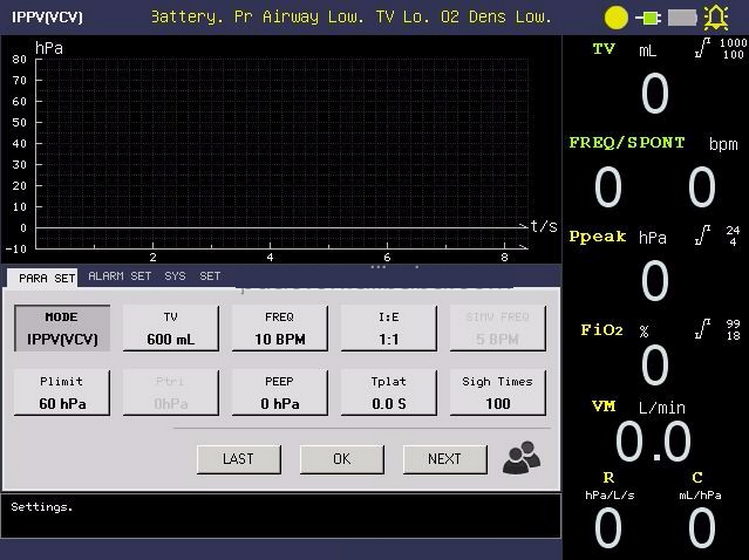

Application 2
⭐

Why Choose Us

Feature 1
Feature 2
Feature 3
Feature 4
Feature 5
❓

Frequently Asked Questions

What are the primary operating modes of the AM-850?
The machine is pneumatically driven and electronically controlled, supporting dosed, semi-closed, and semi-open operating modes.
Is this anesthesia machine suitable for pediatric use?
Yes, the scope of application includes both adults and children, with adjustable tidal volumes from 0 to 1500 ml.
How does the machine handle power outages?
It features a power failure support function that automatically converts to backup power mode during AC power outages to ensure patient safety.
What display features does the anesthesia ventilator include?
It has a built-in 10.4-inch LCD screen capable of displaying waveforms for Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume.
What safety features are integrated into the gas supply?
It is equipped with a high-precision five-tube flowmeter and an interlocking O2-N2O supply system to guarantee that oxygen output never falls below 21%.
Can the respiratory circuit be easily disinfected?
Yes, the machine uses a standard integrated metallic modular respiratory circuit designed to solve gas sealing issues during high-temperature disinfection.
