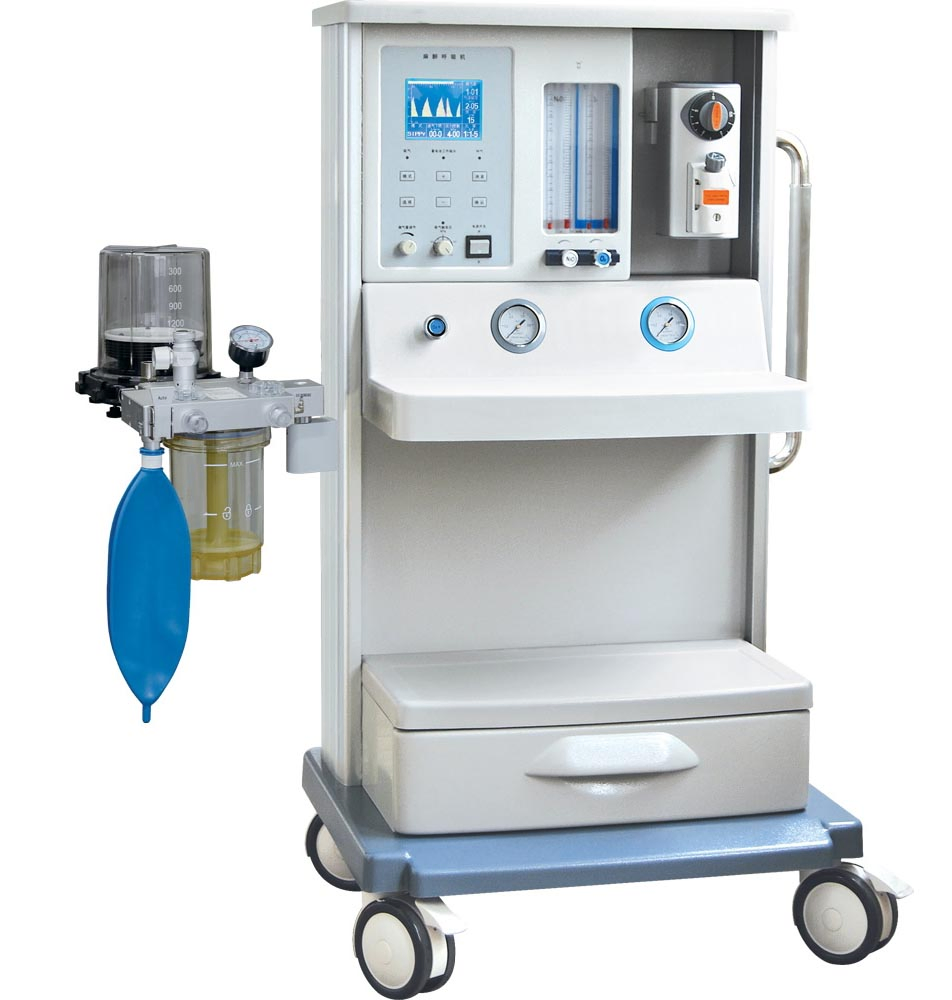

Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
1 / 5
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine

Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

ℹ

Basic Info.

Model NO.JINLING 01B
CertificationCE, ISO13485
GroupAdult
LCD DisplayWith LCD Display
Ventilation ModeA/C, Ippv, Sippv, Manual, Imv, Simv
Tidal Volume50-1500ml
(I:E) Ratio4:1~1:10
Respiratory Rate1~99 Bpm
Display5.4 Inch TFT Display
Simv Rate1-20bpm
Sigh Function1 Sigh Breath in Every 80-160 Breaths
Transport PackageCartons for Export
Specification0.85 CBM; 96 KGS
TrademarkJINLING
OriginChina
HS Code9018907010
Production Capacity500
📋

Product Description

Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Movable Anesthesia Machine

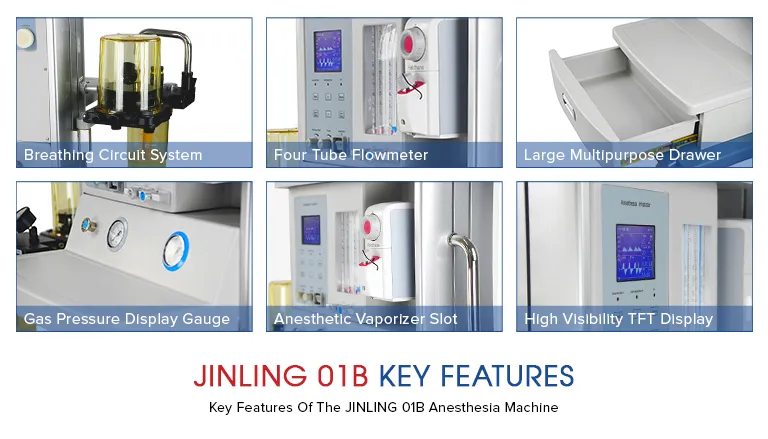

ICU Medical Equipment

Key Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

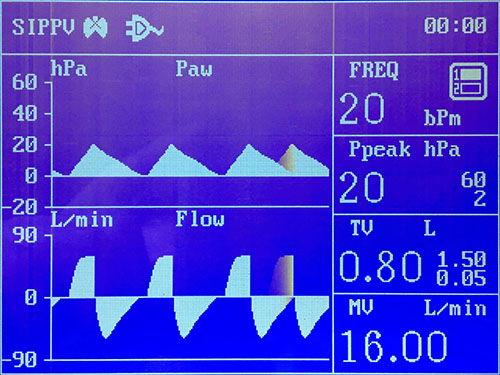

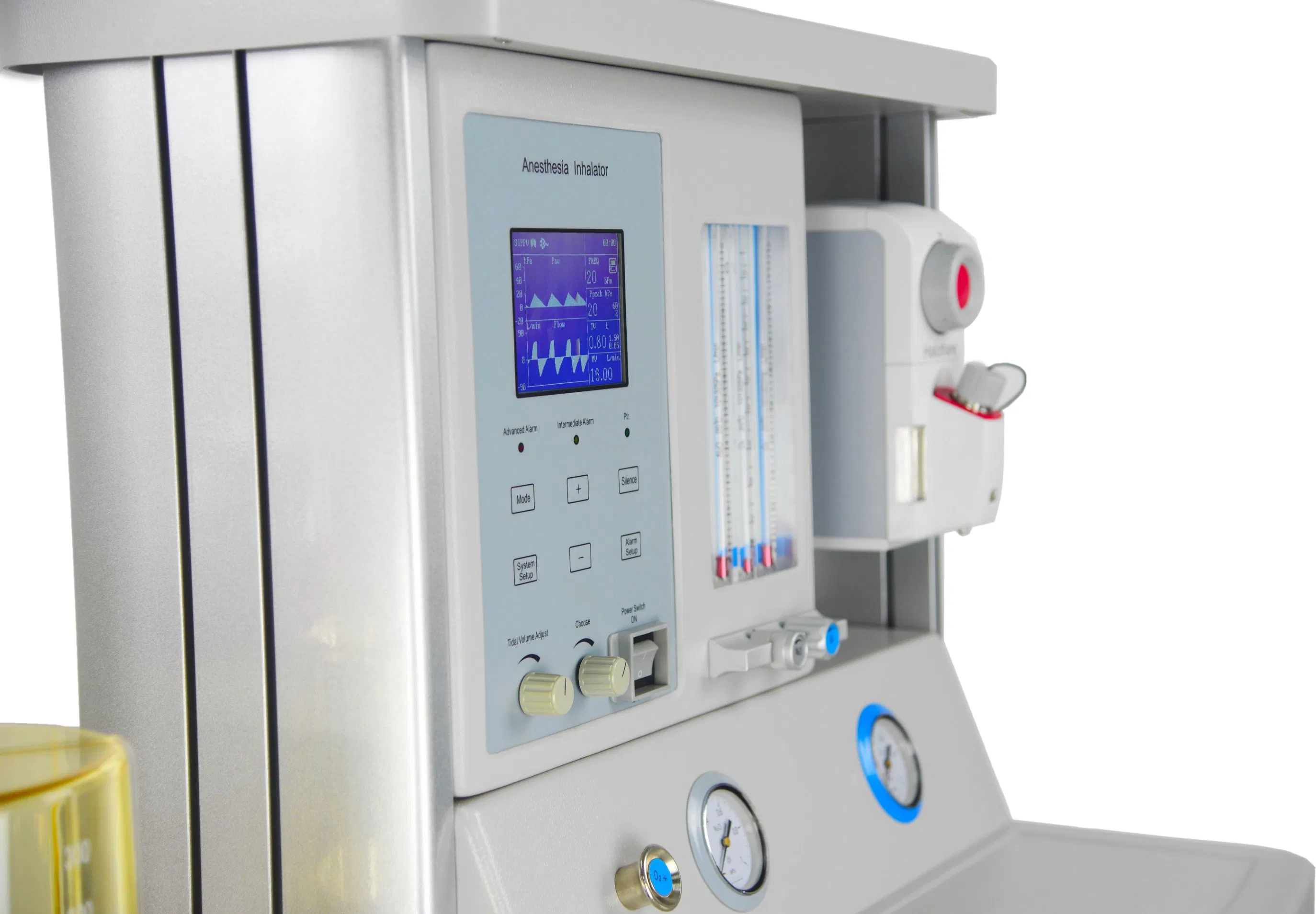

Anesthesia Ventilator: Built-in 5.4 inch TFT display, displaying Pressure-Time and Frequency-Time waveforms
Standard integrated metallic modular respiratory circuit; high temperature disinfection compliant
Equipped with electronic pressure differential flow sensor and imported respiratory control valve
Vaporizer: Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality
High precision four tube flowmeter with interlocking oxygen-nitrous oxide supply
Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensor
Power Failure Support: Automatically converts to backup power mode during AC power outages
Advanced Alarms: Audible and visual alarms for tidal volume, airway pressure, asphyxia, and oxygen failure
Advanced international rotating Na-lime tank using imported PPSU material (resistant to 134°C)
Optional: Multi-parameter Patient Monitor
Anesthesia Details
⚙

Specifications

Model JINLING-01B advanced model
Display 5.4 inch TFT display
Flowmeter Range O2: 0.1-10L/min | N2O: 0.1-10L/min
Ventilation Mode IPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power Supply At least 4 hours
Tidal Volume Adjustable: 50-1500ml | Display: 0-2000ml
Respiratory Rate 1-99bpm
I:E Ratio 4:1-1:10 (Inverse ratio ventilation capable)
Oxygen Supply Flow 25~75L/min
SIGH 1 sigh breath in every 80-120 breaths
Vaporizer Slots Double PA-I type slot (0-5% range)

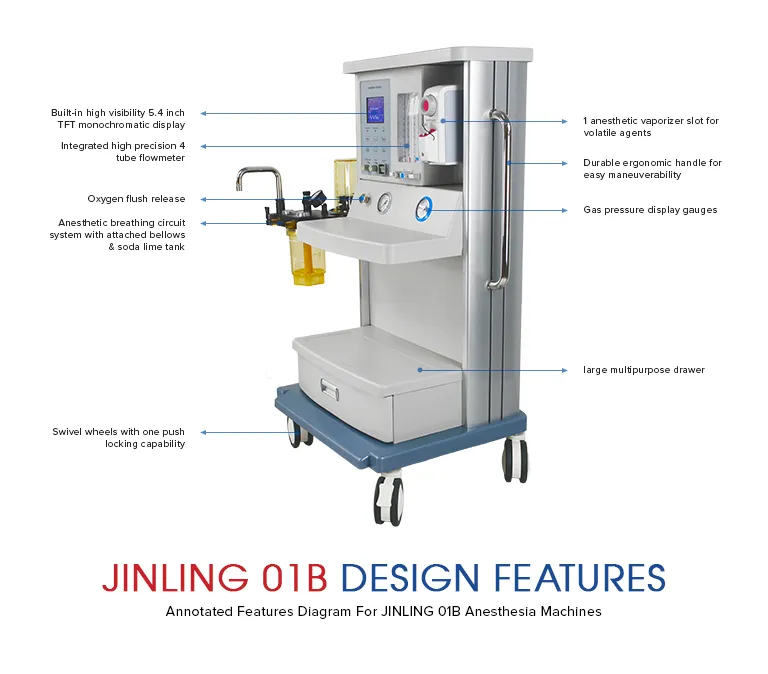

Technical View

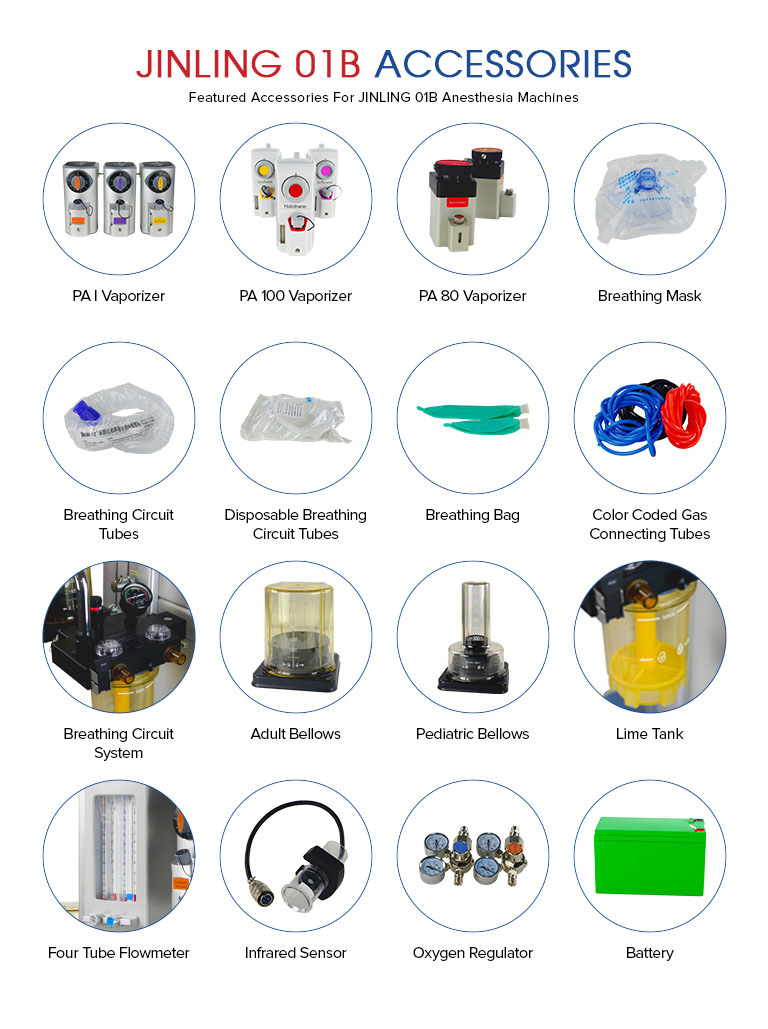

Machine Configuration
Frequently Asked Questions
1. What patient group is the JINLING 01B anesthesia machine designed for? The JINLING 01B is designed specifically for adult patients, with a tidal volume range adjustable from 50ml up to 1500ml.
2. Which ventilation modes are supported by this equipment? It supports multiple modes including IPPV, SIPPV, IMV, SIMV, and MANUAL ventilation to accommodate various surgical requirements.
3. How long does the battery last in case of a power failure? The machine is equipped with a backup power supply that provides at least 4 hours of operation during AC power outages.
4. Can the respiratory circuit be sterilized at high temperatures? Yes, it features a standard integrated metallic modular respiratory circuit designed to solve gas sealing problems under high-temperature disinfection.
5. Does the machine include safety alarms? Yes, it features audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure, along with an alarm query function.
6. What types of anesthetic agents can be used with the vaporizers? The machine supports Enflurane, Isoflurane, and Sevoflurane. Halothane is also available as an optional configuration.
