Basic Specifications
Display
5.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, IMV, SIMV, Manual
Back-up Power
At least 4 Hours
Oxygen Flow Rate
25~75L/min
Product Features

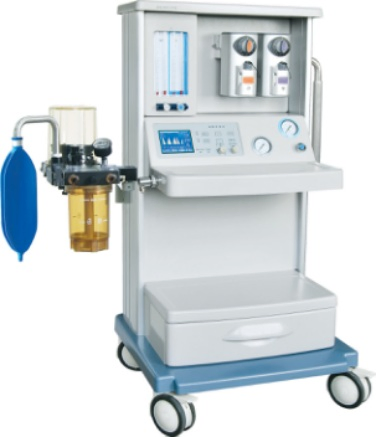

Hot selling JINLING-01B (ECONOMIC, STANDARD & ADVANCED MODEL) Cart type Anesthesia Machine For Surgery ICU Equipment
Common Features:
- Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
- Anesthesia Ventilator: Built-in 5.4 inch TFT display, displaying Pressure-Time and Frequency-Time waveforms.
- Integrated metallic modular respiratory circuit; high temperature disinfection support, easy to clean.
- Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
- High precision two-tube flowmeter with interlocking oxygen-nitrous oxide supply (O2 > 21%).
- Oxygen failure alarm system; automatically cuts off nitrous oxide if supply falls below 0.20 MPa.
- Power Failure Support: Automatic conversion to backup power mode during AC outages.
- Comprehensive Alarms: Audible/visual alerts for tidal volume, airway pressure, and power status.
- Infrared turbine flow sensor for precise and reliable gas flow measurement.
- Advanced Vaporizer: Self-compensating functionality (Enflurane, Isoflurane, Sevoflurane).
- Rotating Na-lime tank: Single-hand operation, temperature resistant up to 134°C.
Advanced Model Exclusive Features:
- Vaporizer with dual tank design for extending surgical lengths with interlocking capability.
Technical Comparison
| Parameter |
Economic Model |
Standard Model |
Advanced Model |
| Display | 5.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min; N2O: 0.1-10L/min |
| Ventilation Mode | IPPV, SIPPV, IMV, SIMV, MANUAL |
| Tidal Volume | Adjustable: 50-1500ml; Display: 0-2000ml |
| I:E Ratio | 4:1 - 1:10 (Inverse ratio ventilation supported) |
| Vaporizer Slots | Single PA-80 type | Single PA-I type | Double PA-I type |
| Gas Supply | O2 & N2O: 0.32MPa~0.6MPa |
Product Show

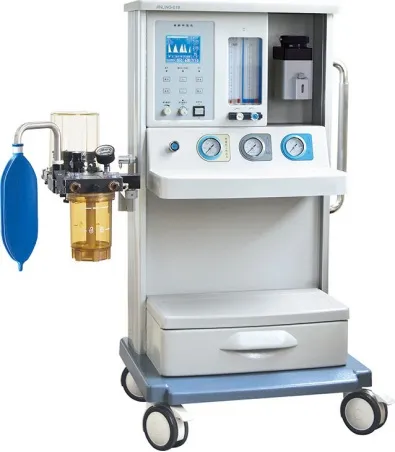

Economic Model

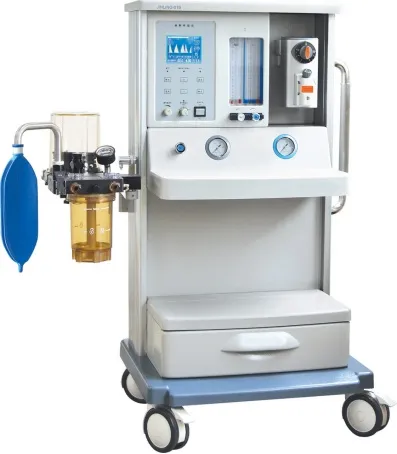

Standard Model
Advanced Model
Product Details
| MOQ | 1 pc |
| Warranty | 1 year |
| Package | One piece one carton |
| Production Capacity | 800PCS/Month |
Frequently Asked Questions
What is your Minimum Order Quantity (MOQ)?
Our Minimum Order Quantity (MOQ) is generally 1 unit. For certain consumable items like wires or tubing, the MOQ may vary.
Which payment methods are accepted?
We accept most forms of payment including bank transfer, T/T, L/C, and Western Union.
Can I place my company logo on the product?
Yes, OEM services are available with a few exceptions. Please verify with our team regarding specific model requirements.
What after-sales services do you provide?
We offer comprehensive technical support, customer service, and troubleshooting for all our products.
How long is the warranty period?
We typically offer a 12-month warranty for all main products. Some accessories may have different warranty periods.
Is the equipment suitable for high-temperature disinfection?
Yes, the respiratory circuit is designed to handle high-temperature disinfection, and the Na-lime tank is temperature resistant up to 134°C.
